Component Locations: BONNEVILLE

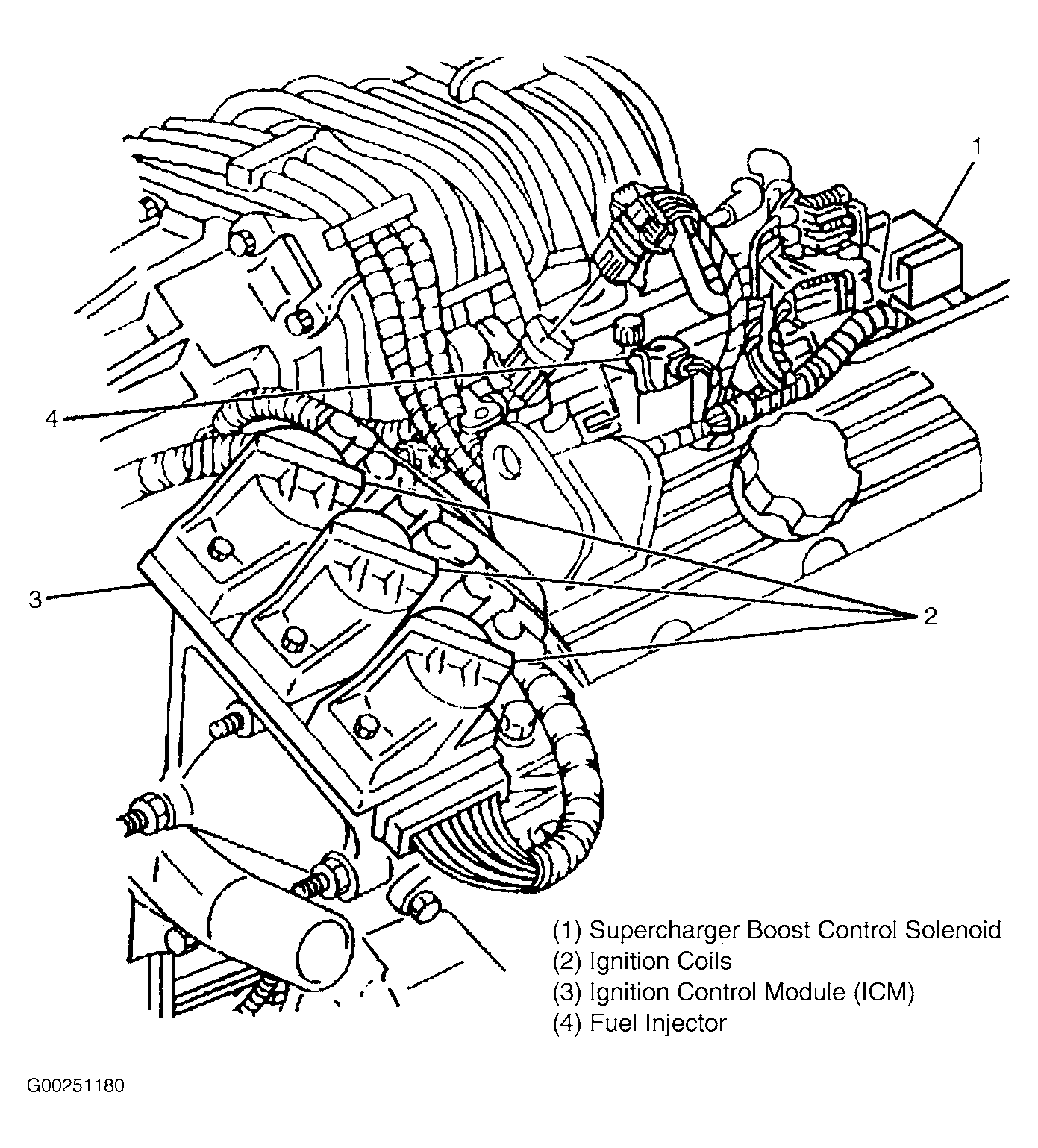

Fig 1: Locating Boost Solenoid, Ignition Coils, Ignition Control Module & By-Pass Valve Actuator (W/Supercharger)

Courtesy of GENERAL MOTORS CORP.

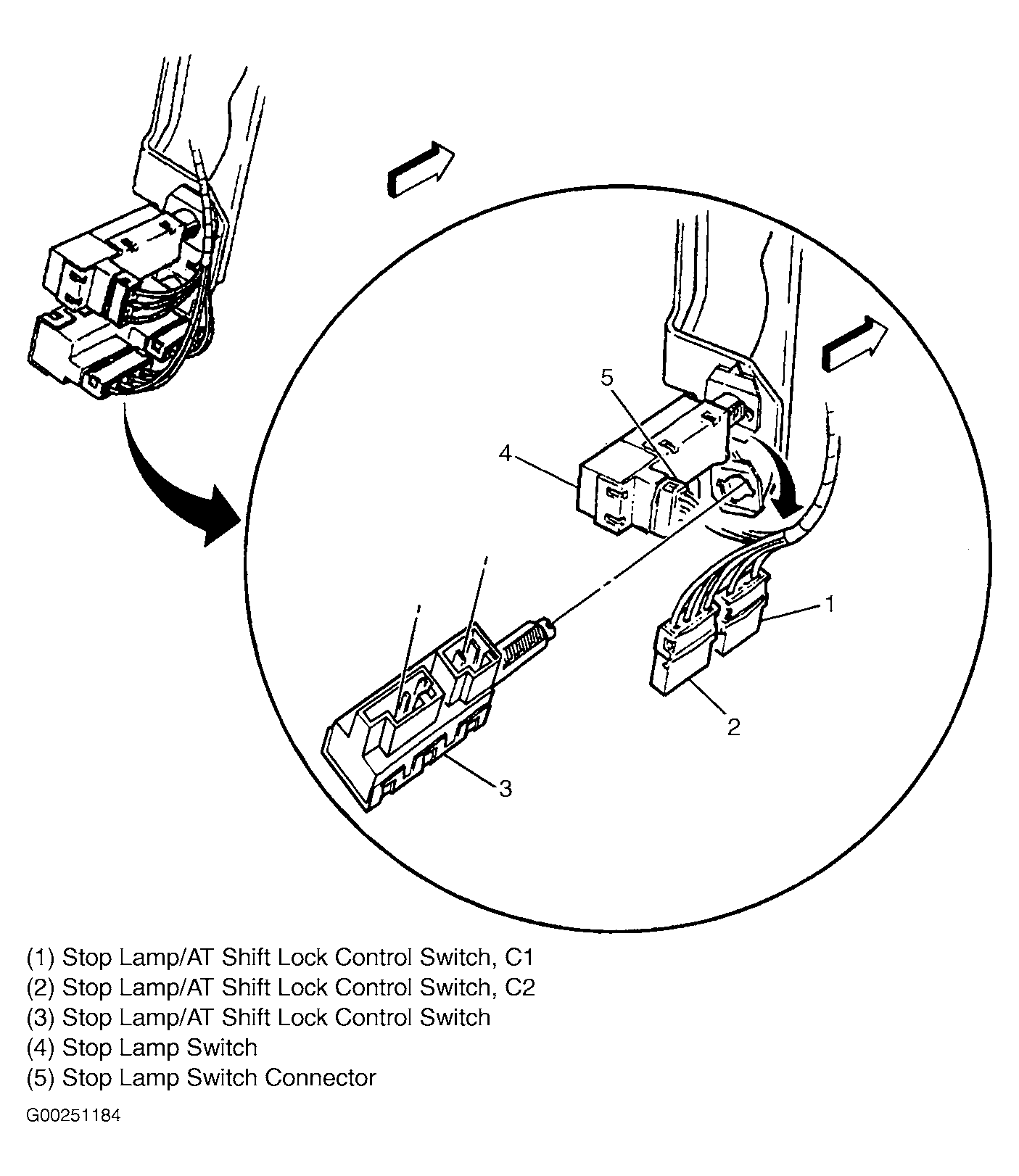

Fig 2: Locating Brake Switches

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating Camshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

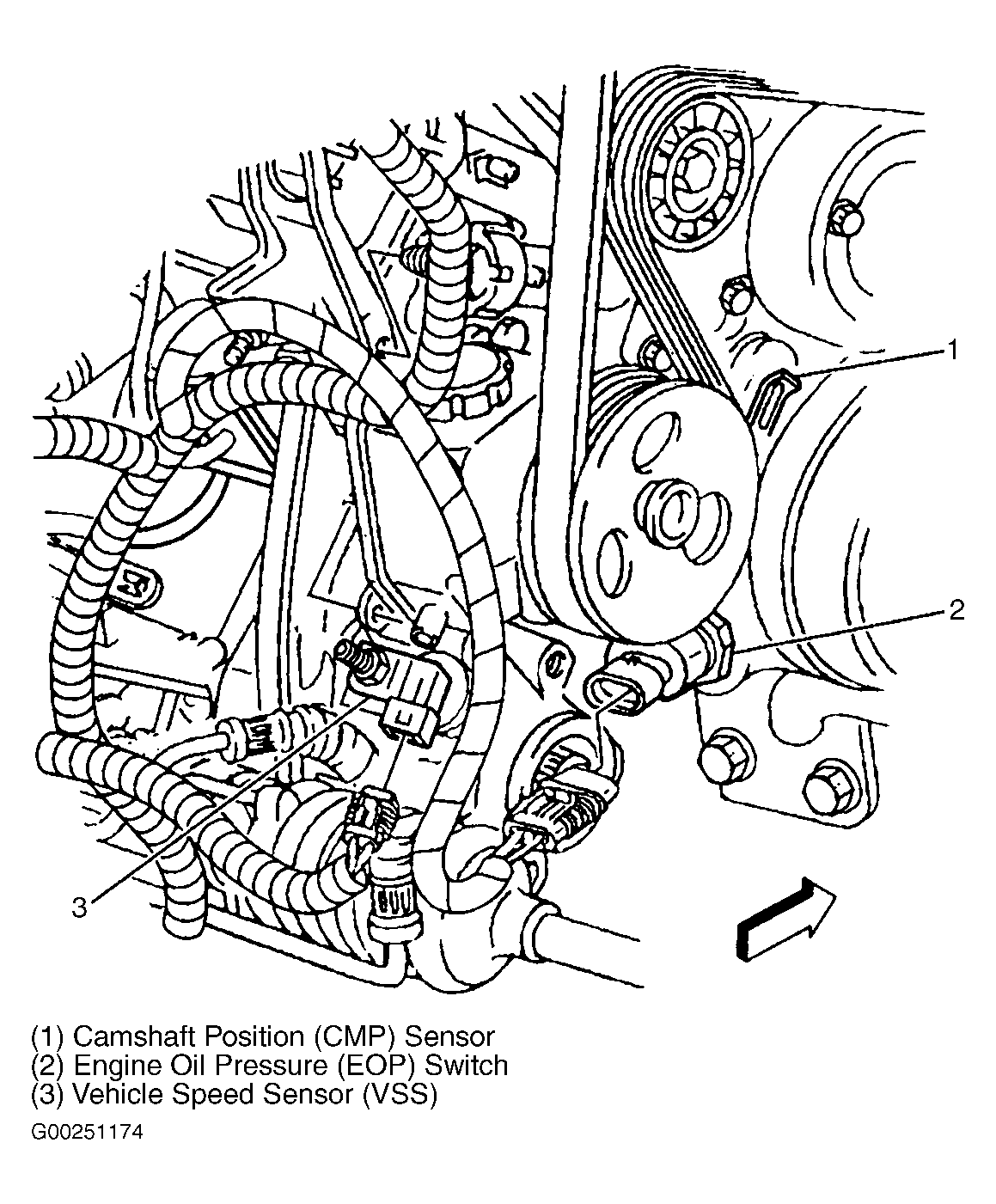

Fig 4: Locating Camshaft Position Sensor, Oil Pressure Sensor & Vehicle Speed Sensor

Courtesy of GENERAL MOTORS CORP.

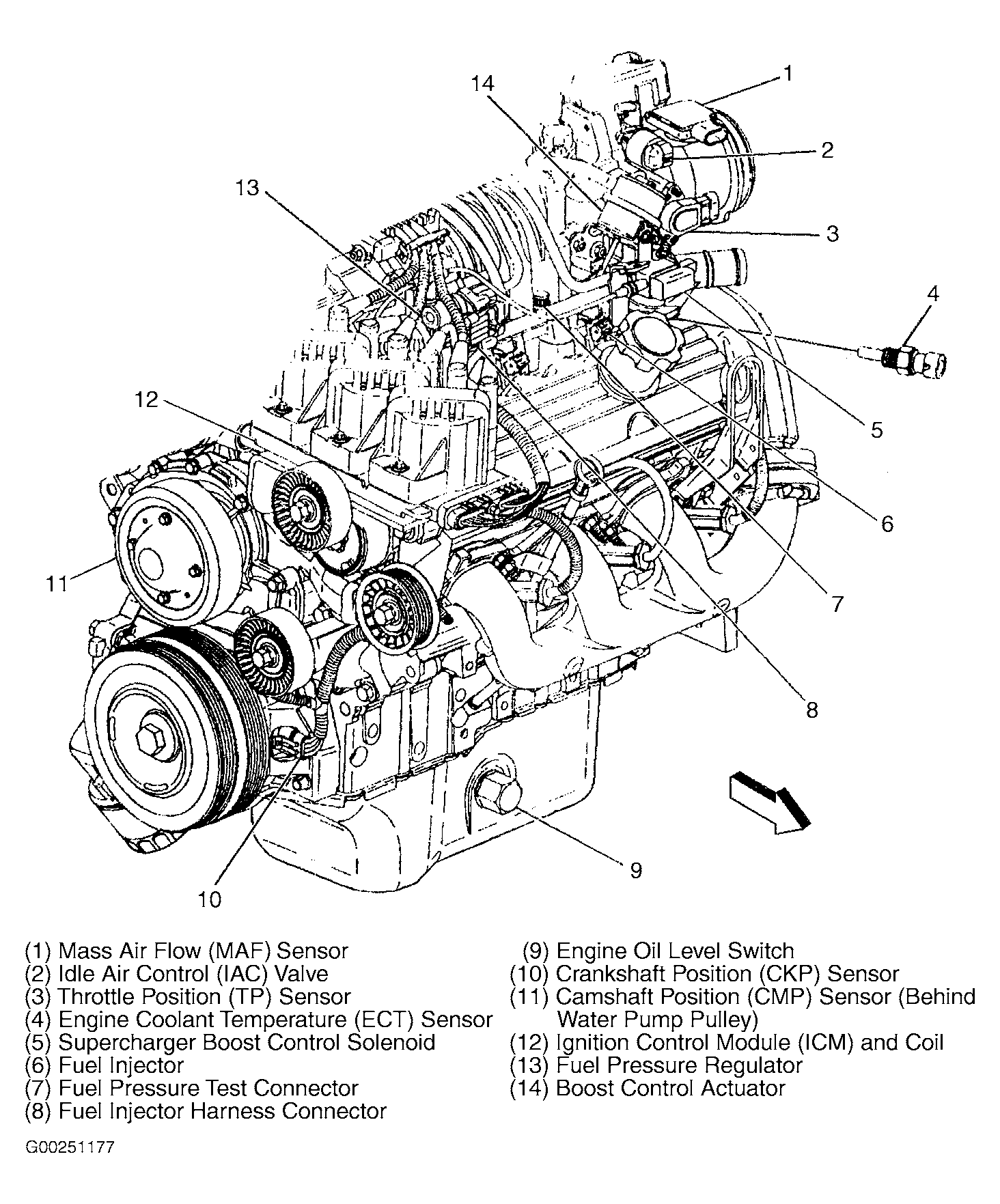

Fig 5: Locating Engine Components (Front View - W/Supercharger)

Courtesy of GENERAL MOTORS CORP.

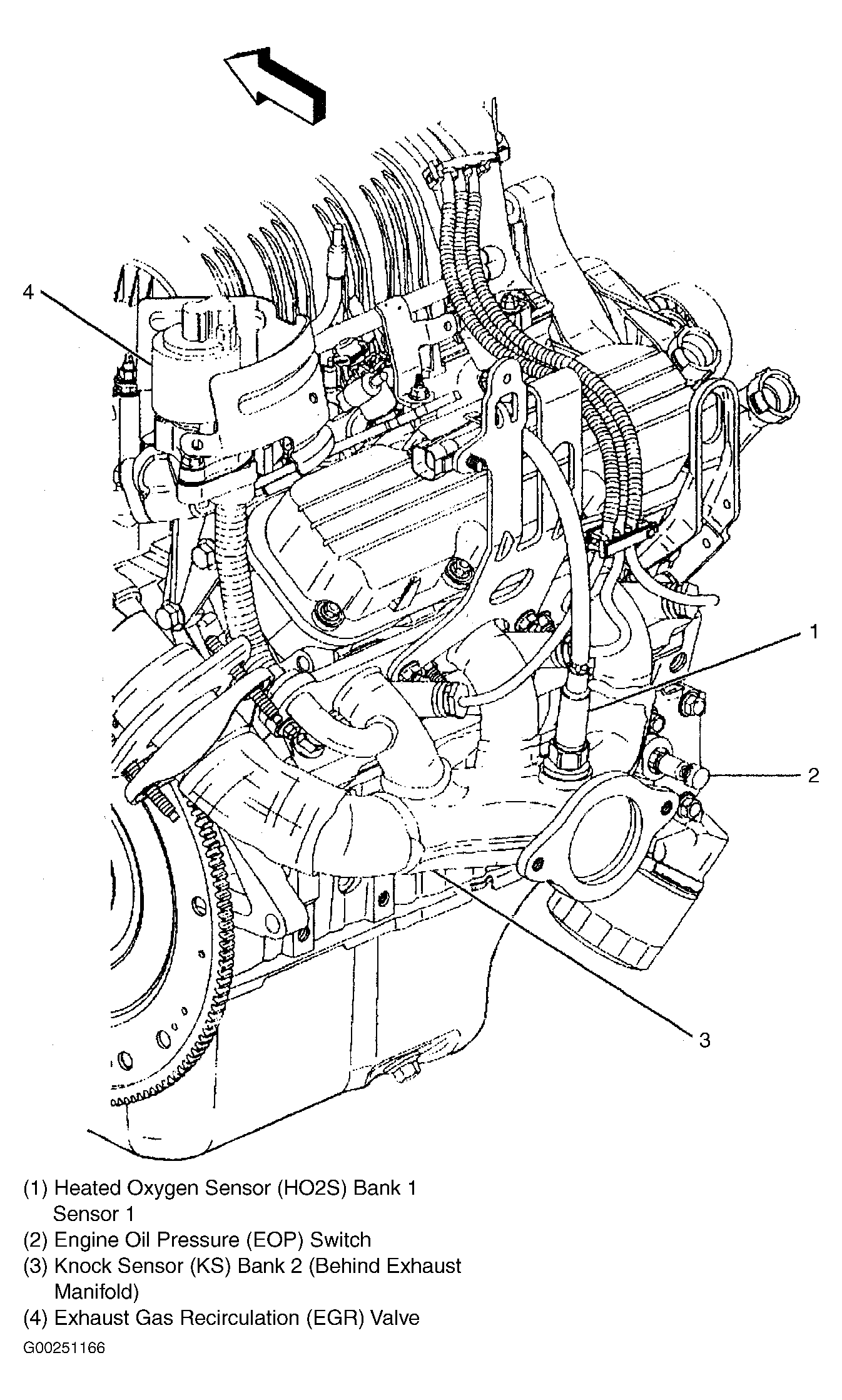

Fig 6: Locating Engine Components (Rear View W/O Supercharger)

Courtesy of GENERAL MOTORS CORP.

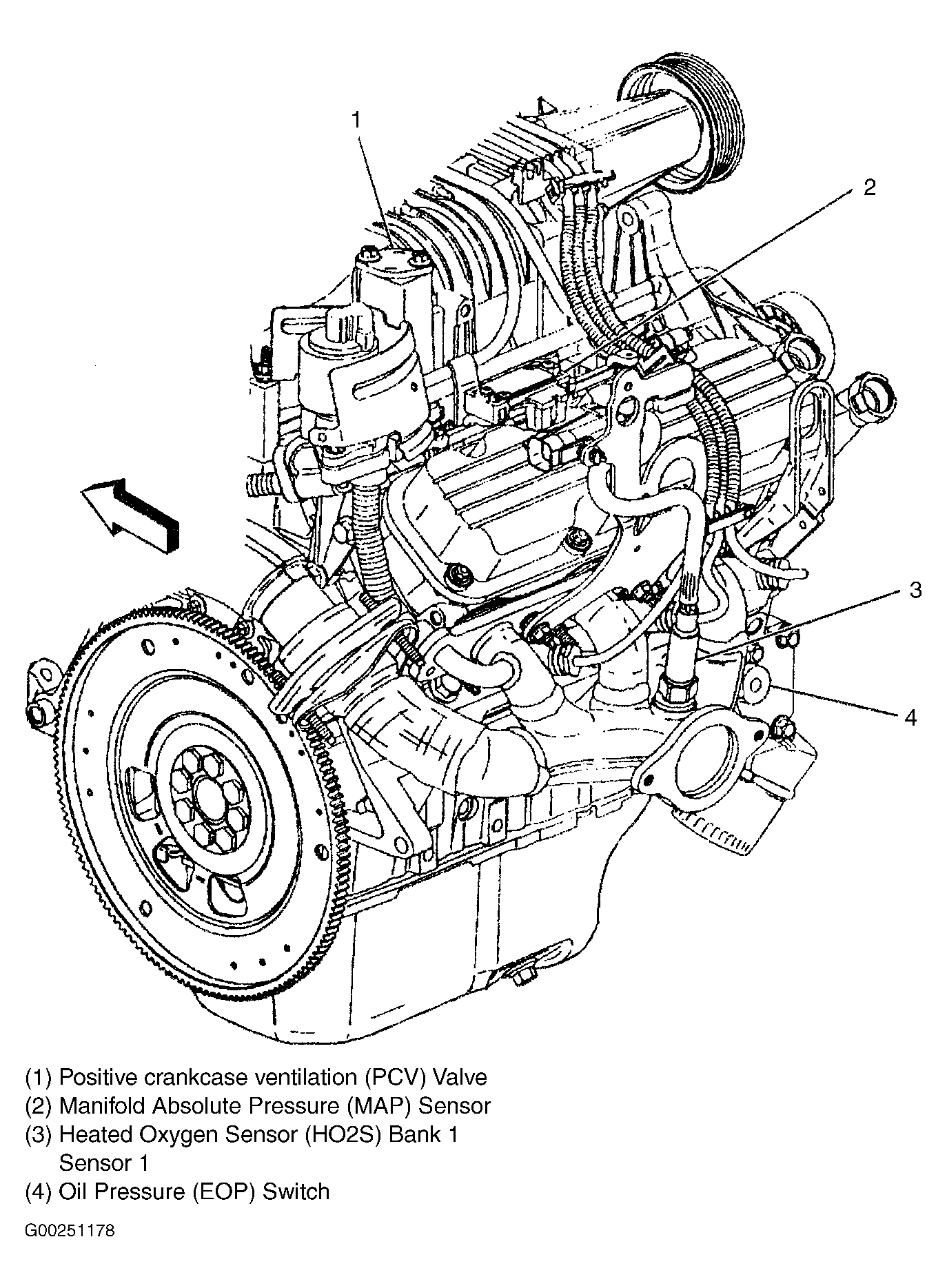

Fig 7: Locating Engine Components (Rear View Of Engine - W/Supercharger)

Courtesy of GENERAL MOTORS CORP.

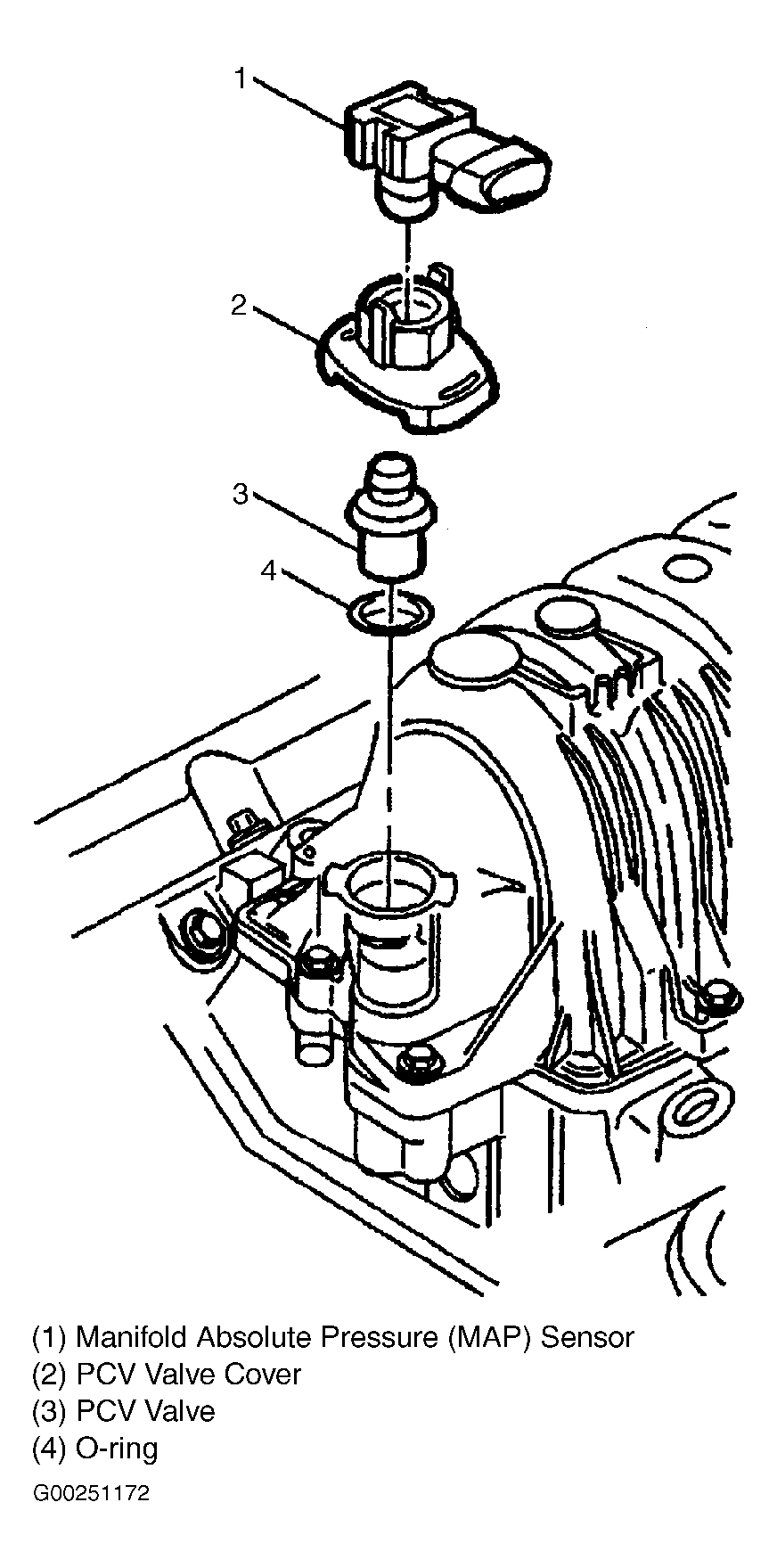

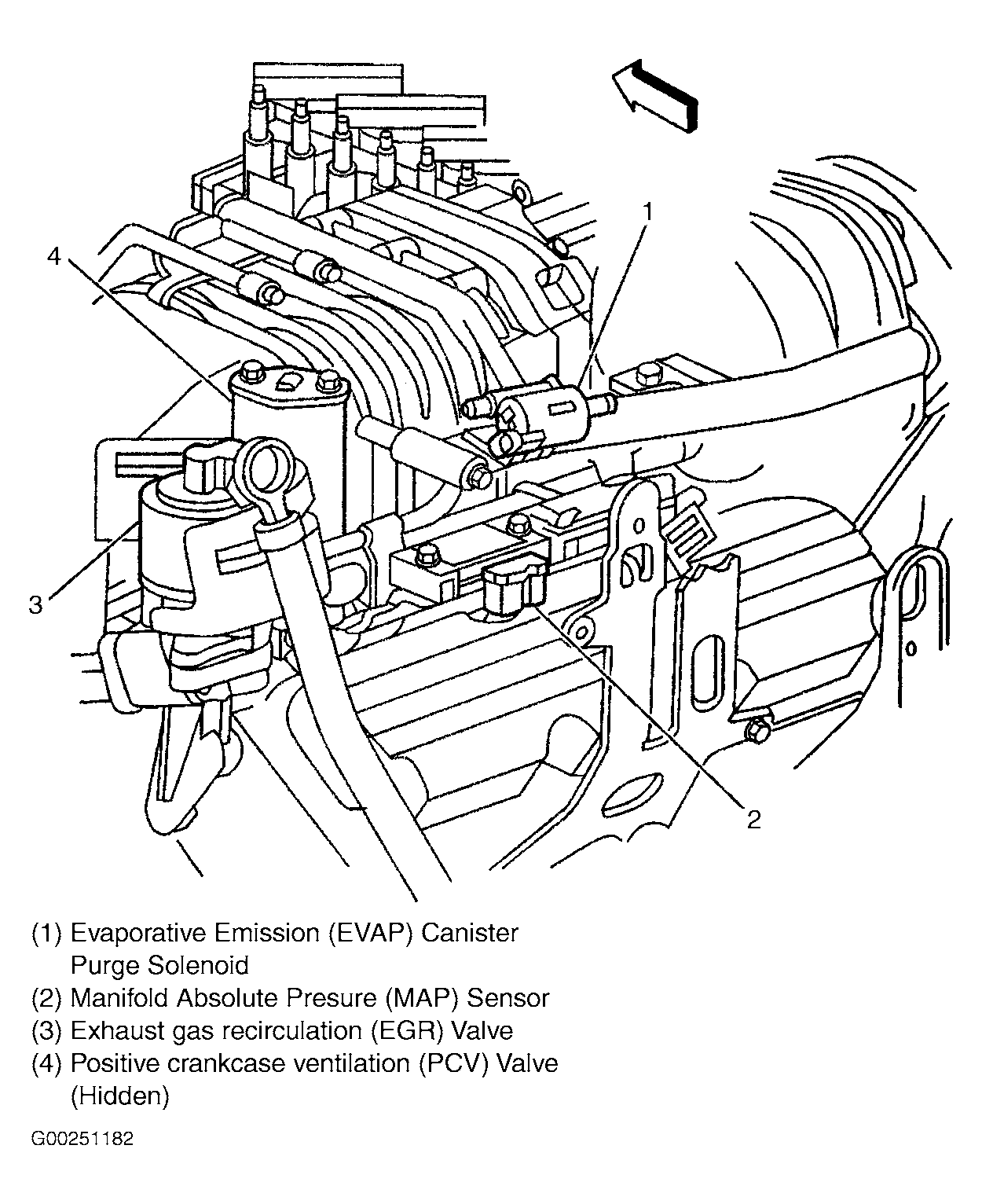

Fig 8: Locating Evaporative Emission Canister Purge Solenoid, Manifold Absolute Pressure Sensor, Exhaust Gas Recirculation Valve & PCV Valve (W/Supercharger)

Courtesy of GENERAL MOTORS CORP.

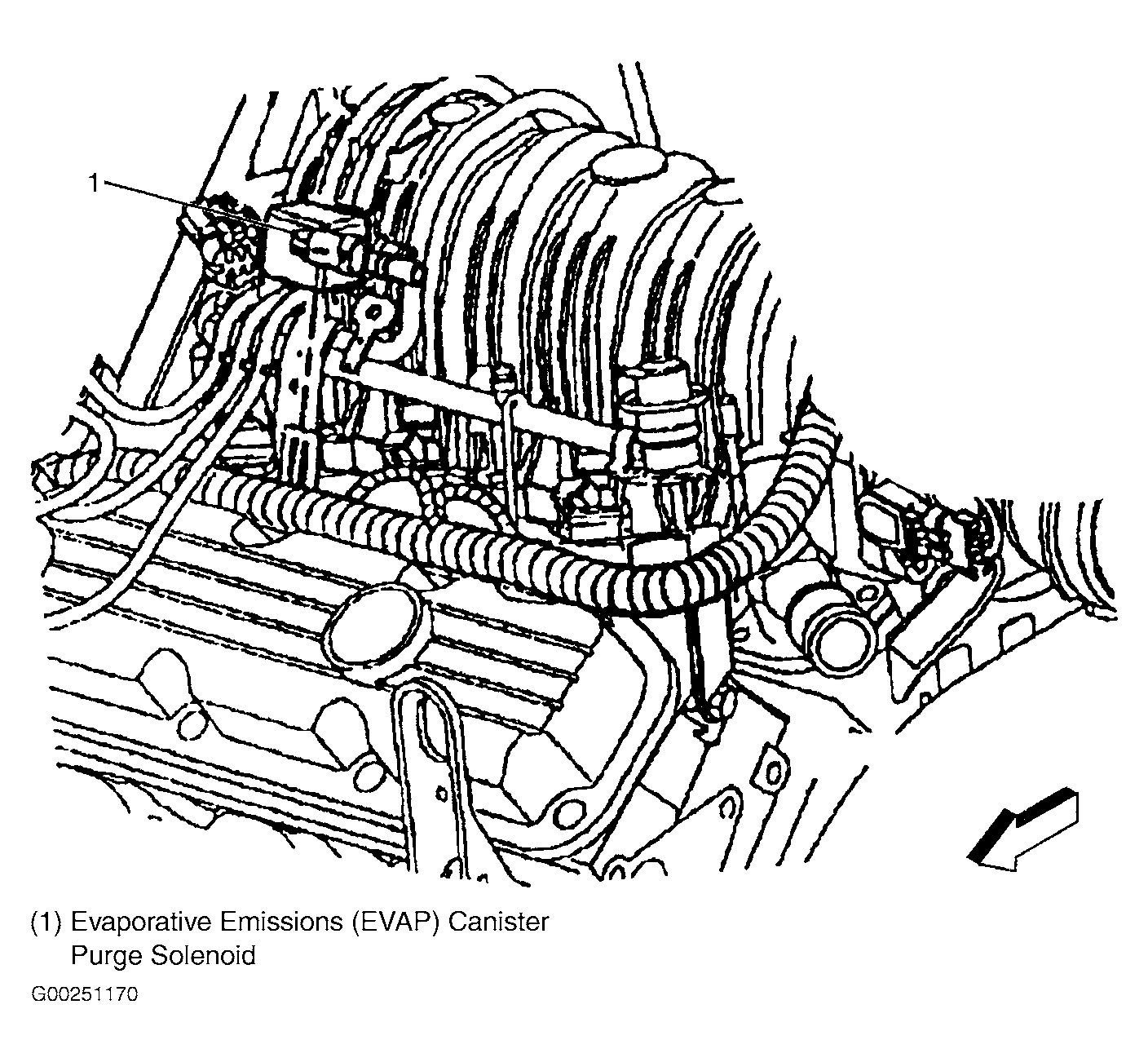

Fig 9: Locating Evaporative Emissions Canister Purge Valve Solenoid

Courtesy of GENERAL MOTORS CORP.

Fig 10: Locating Fog/Headlight Connectors

Courtesy of GENERAL MOTORS CORP.

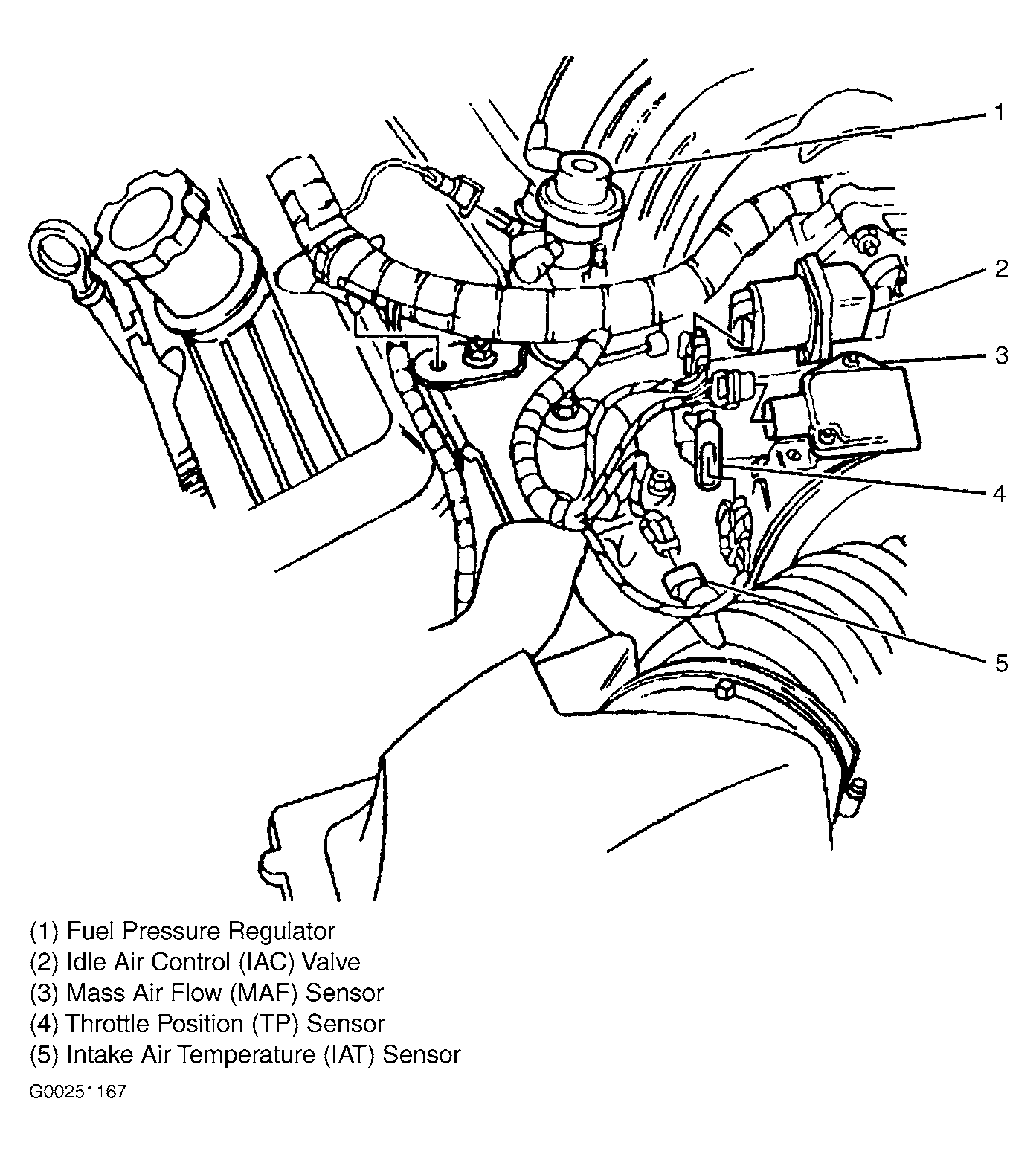

Fig 11: Locating Fuel Pressure Regulator, Idle Air Control Valve, Mass Airflow Sensor, Throttle Position & Intake Air Temperature

Courtesy of GENERAL MOTORS CORP.

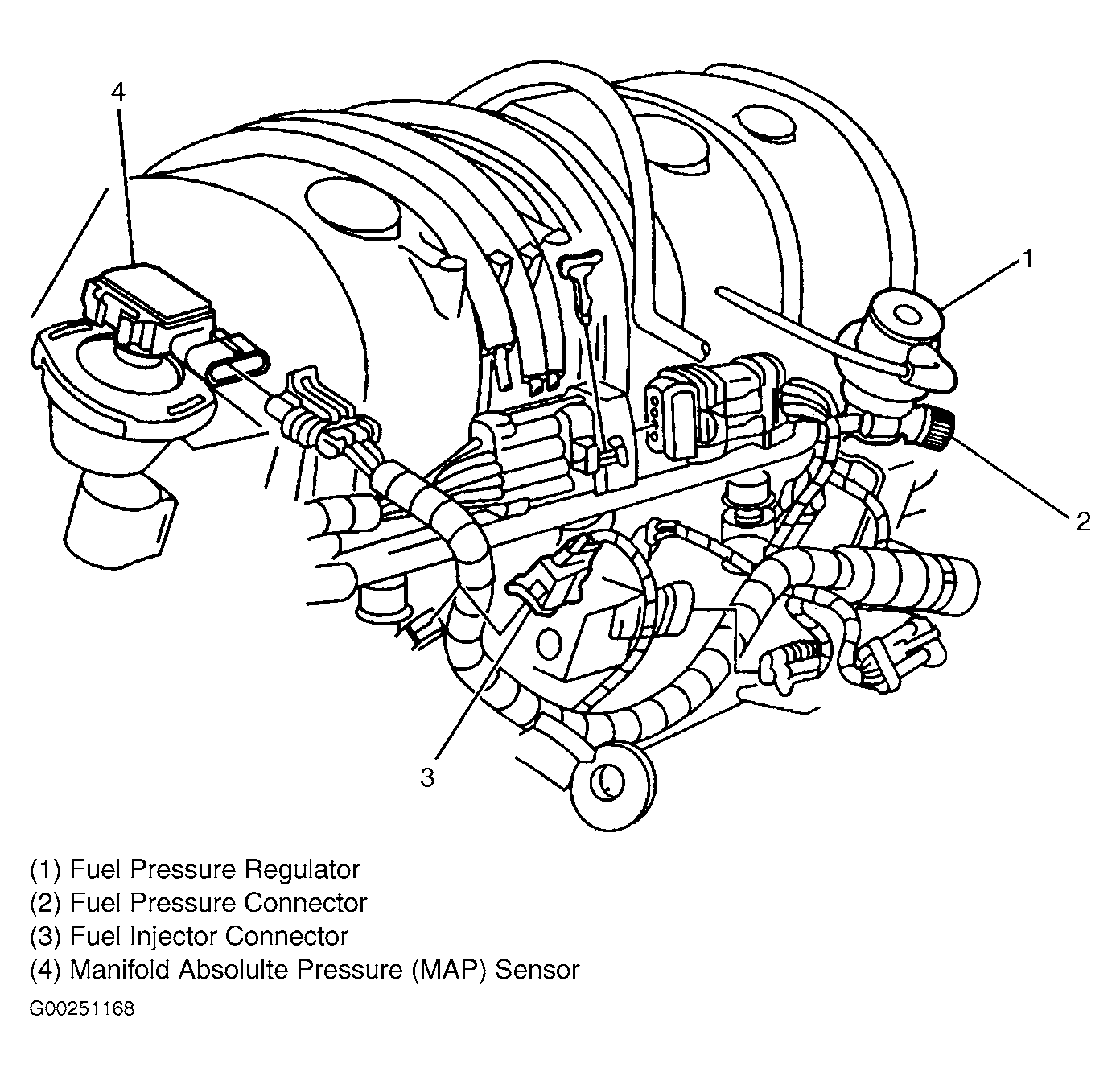

Fig 12: Locating Fuel Pressure Regulator & Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

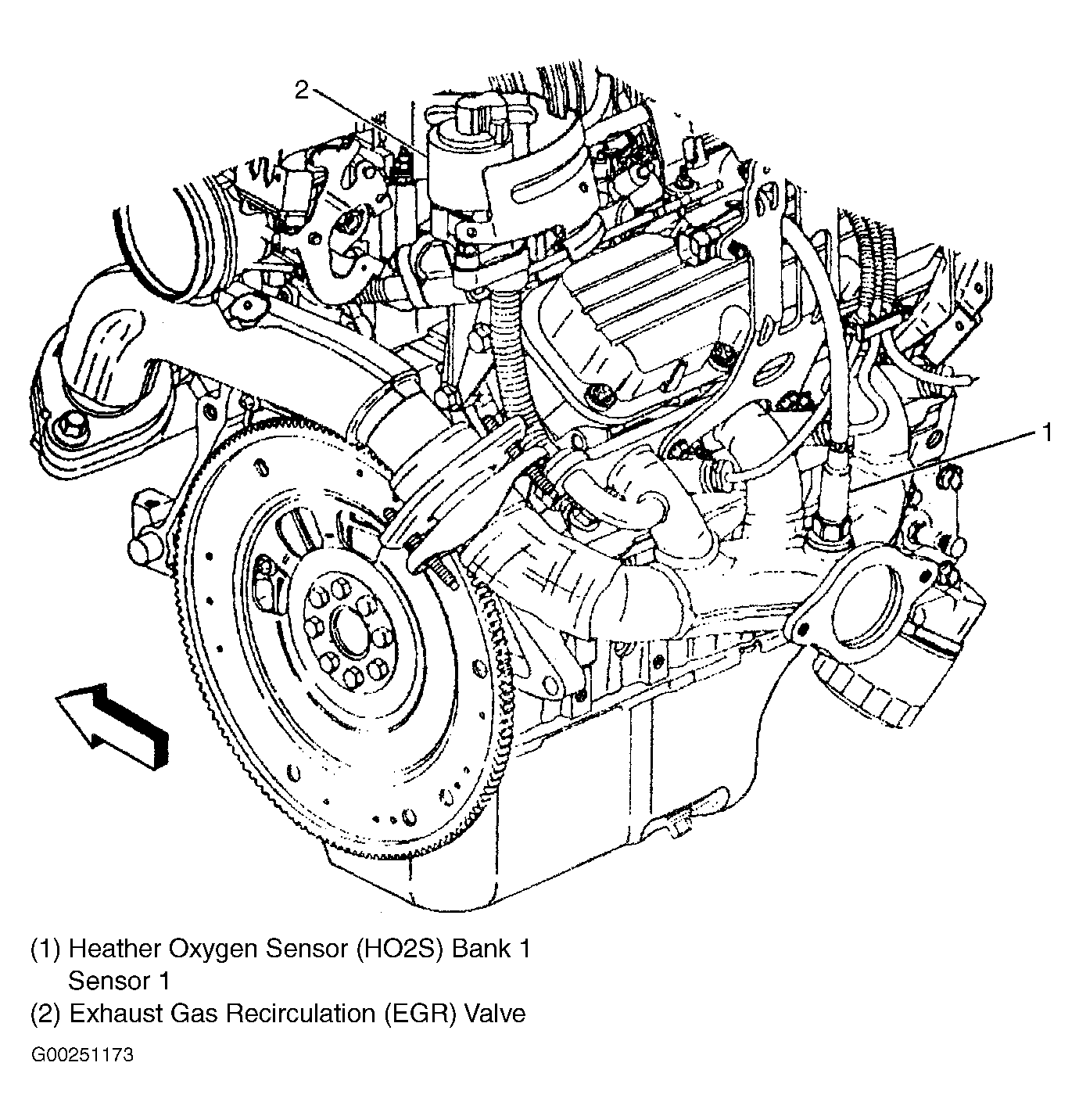

Fig 13: Locating HO2S Bank 1 Sensor 1 & Engine Gas Recirculation Valve (W/O Supercharger)

Courtesy of GENERAL MOTORS CORP.

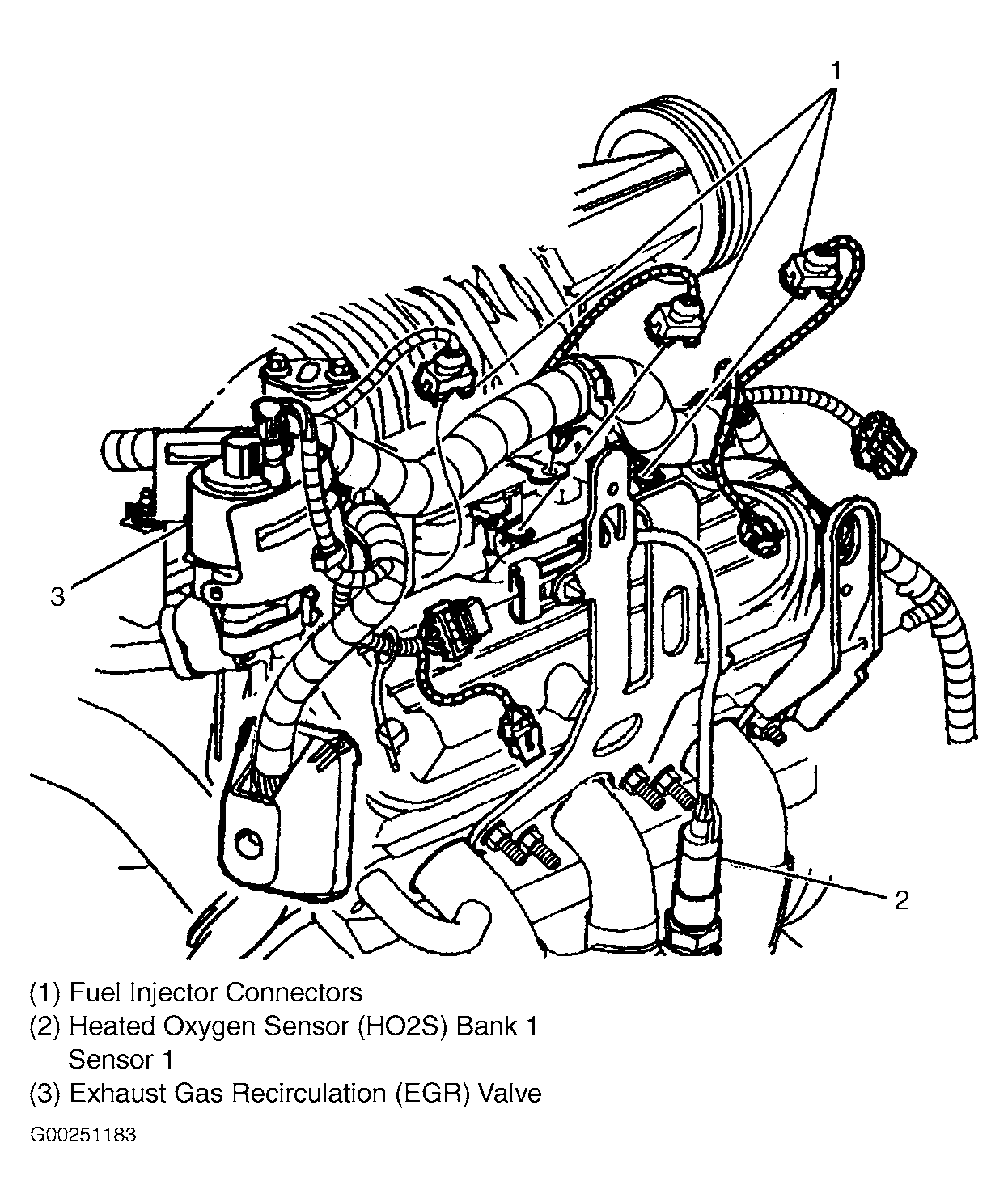

Fig 14: Locating HO2S Bank 1 Sensor 1 & Fuel Injector Connectors

Courtesy of GENERAL MOTORS CORP.

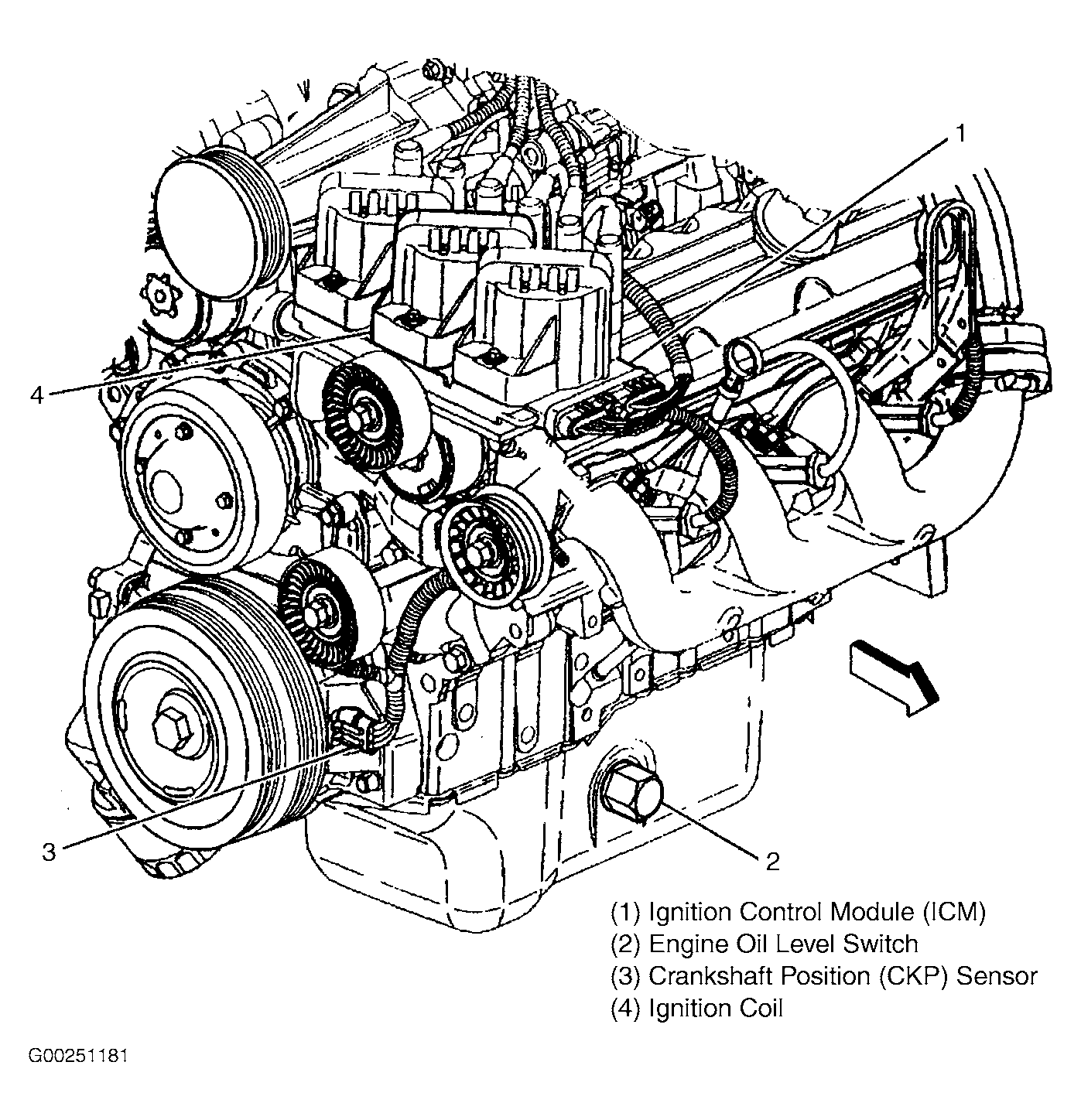

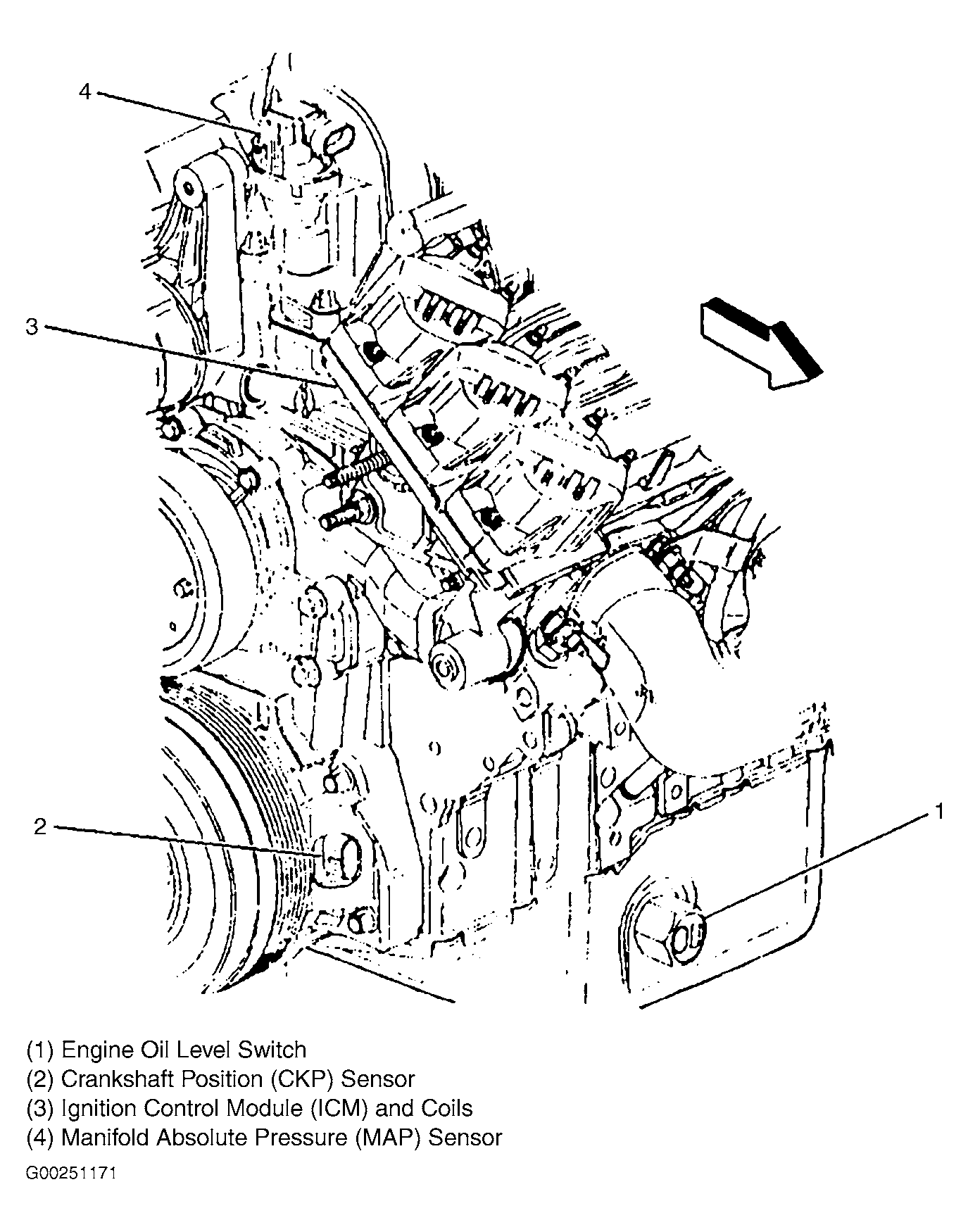

Fig 15: Locating Ignition Control Module, Ignition Coil, Engine Oil Level Switch & Crankshaft Position Sensor (W/Supercharger)

Courtesy of GENERAL MOTORS CORP.

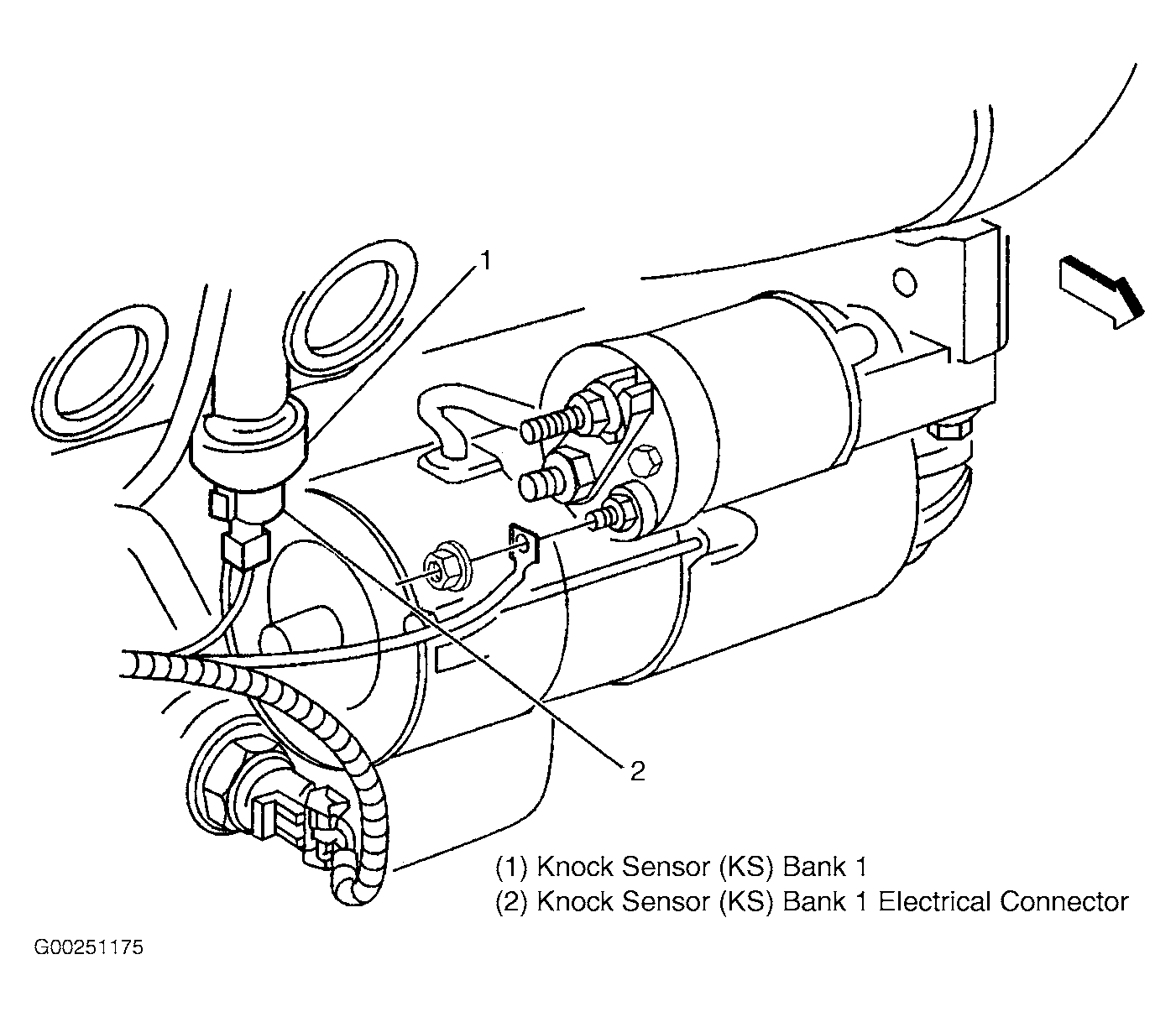

Fig 16: Locating Knock Sensor 1

Courtesy of GENERAL MOTORS CORP.

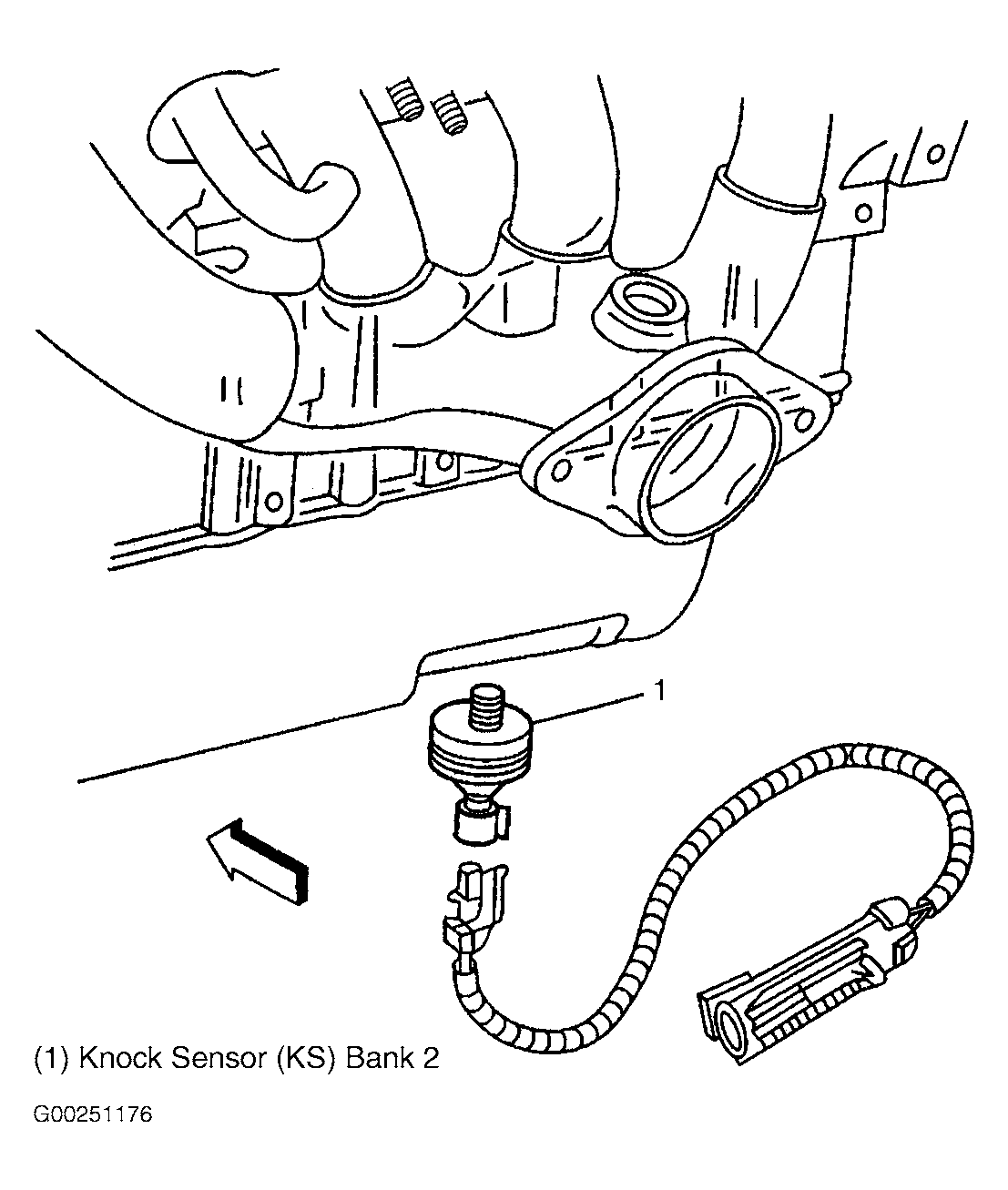

Fig 17: Locating Knock Sensor 2

Courtesy of GENERAL MOTORS CORP.

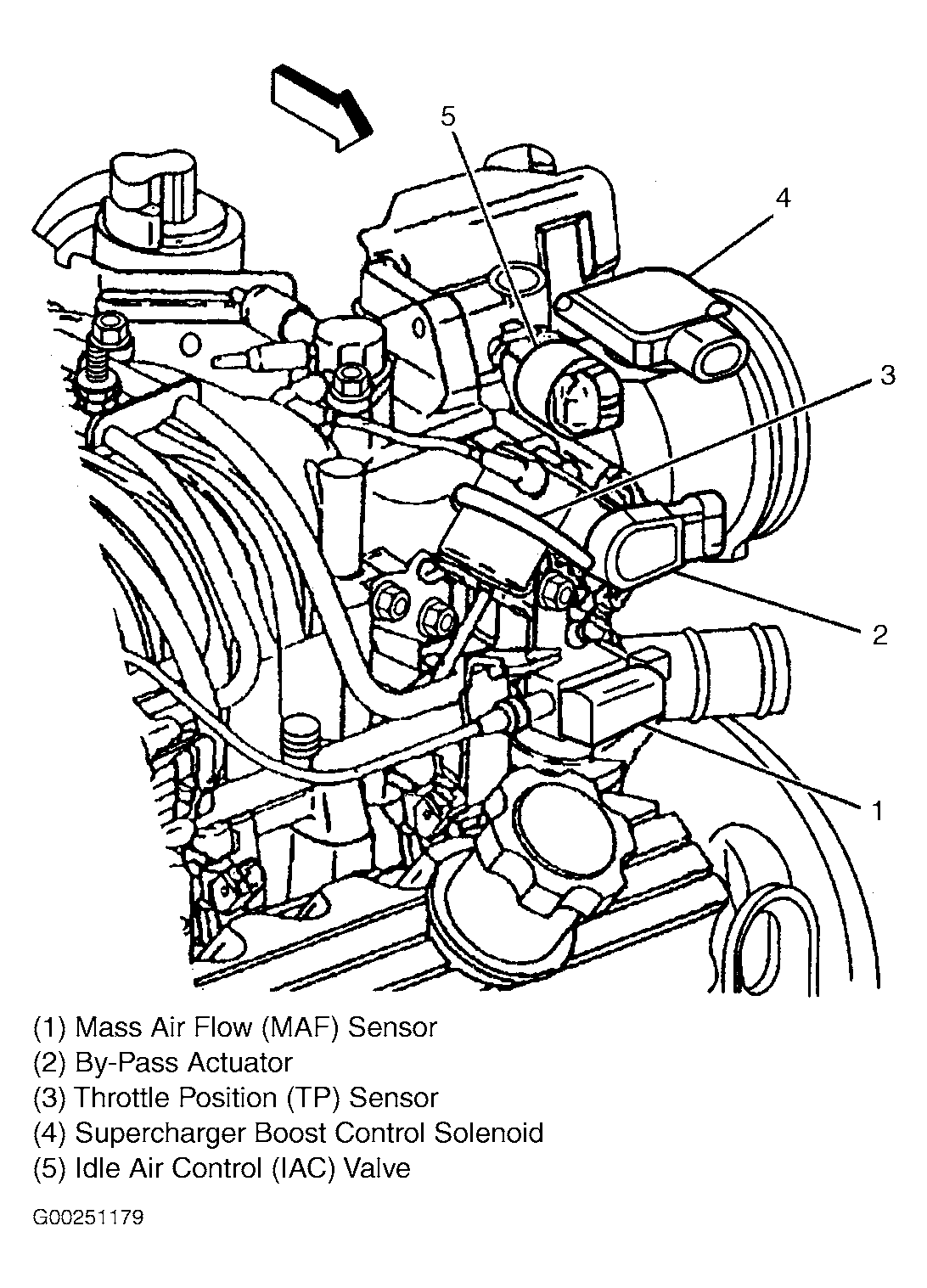

Fig 18: Locating Mass Airflow Sensor, By-Pass Actuator, Throttle Position Sensor, Boost Control Solenoid & Idle Air Control Valve (W/Supercharger)

Courtesy of GENERAL MOTORS CORP.

Fig 19: Locating Oil Level Sensor, 18X Crankshaft Sensor & Ignition Module & Coils (W/O Supercharger)

Courtesy of GENERAL MOTORS CORP.

Fig 20: Locating PCV Valve (W/O Supercharger)

Courtesy of GENERAL MOTORS CORP.

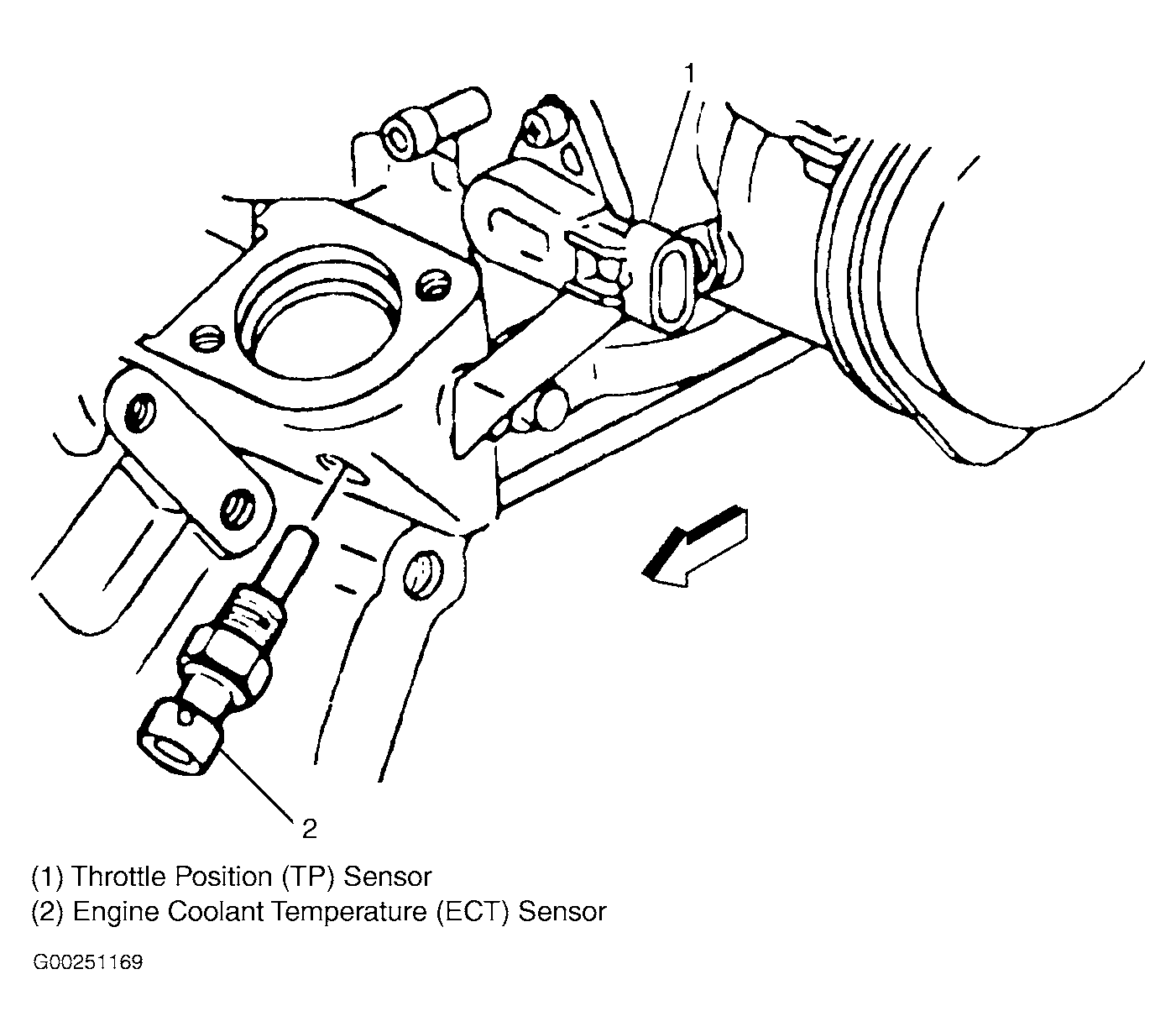

Fig 21: Locating Throttle Position Sensor & Engine Coolant Temperature Sensor (W/O Supercharger)

Courtesy of GENERAL MOTORS CORP.
