Component Locations: Impala

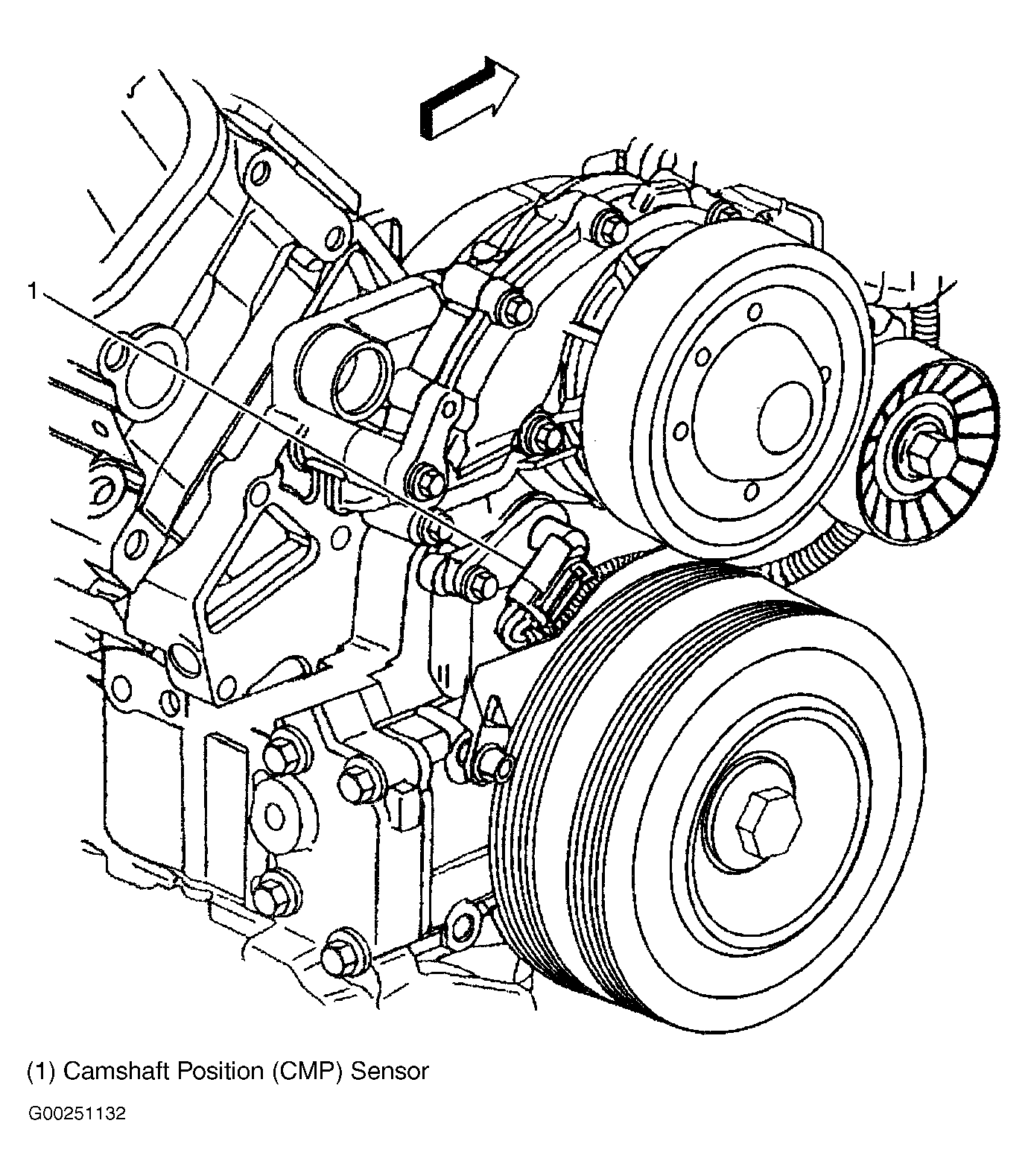

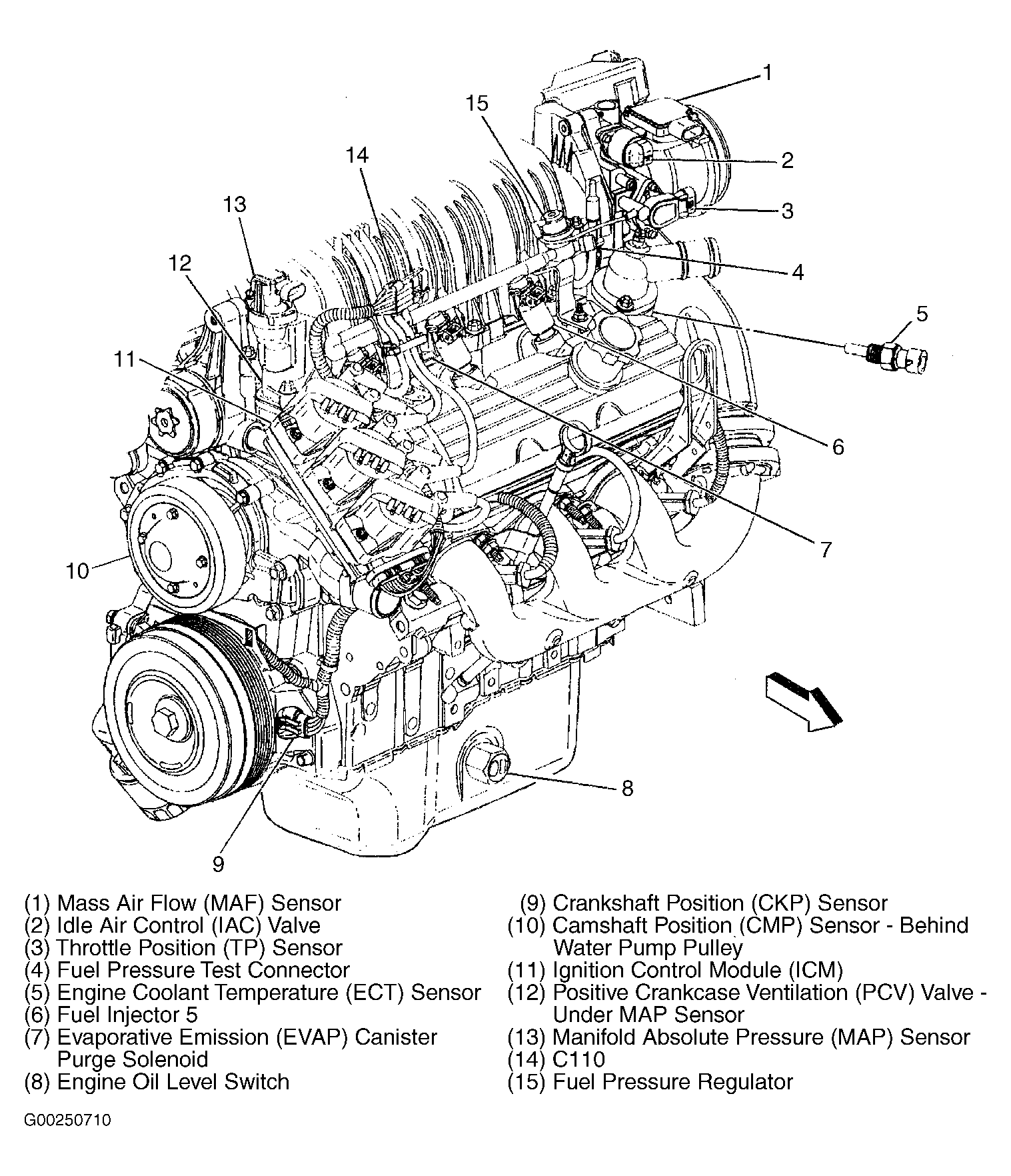

Fig 1: Locating Camshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

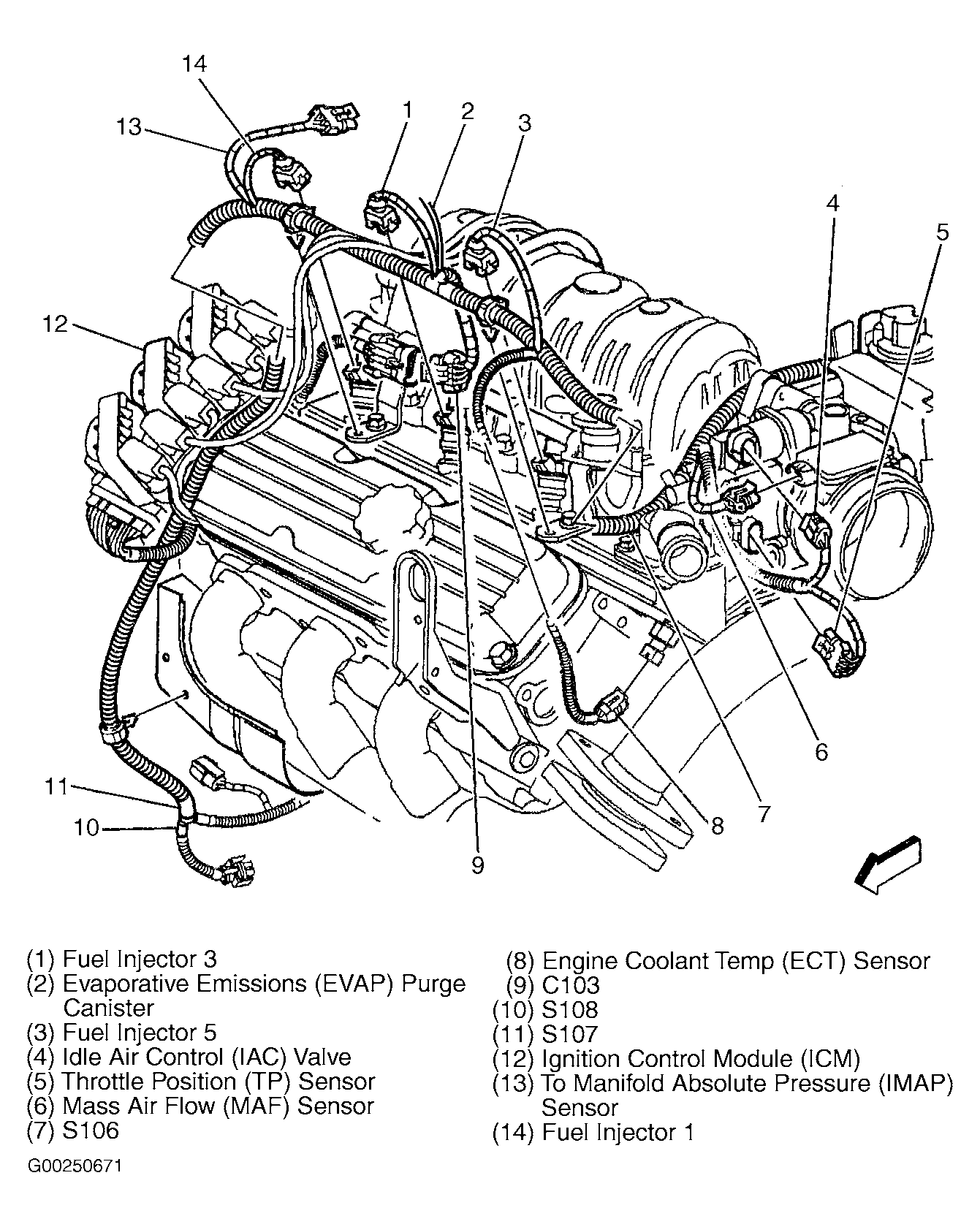

Fig 2: Locating Engine Components (Front Of Engine)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating Engine Components (Right Side Of Engine)

Courtesy of GENERAL MOTORS CORP.

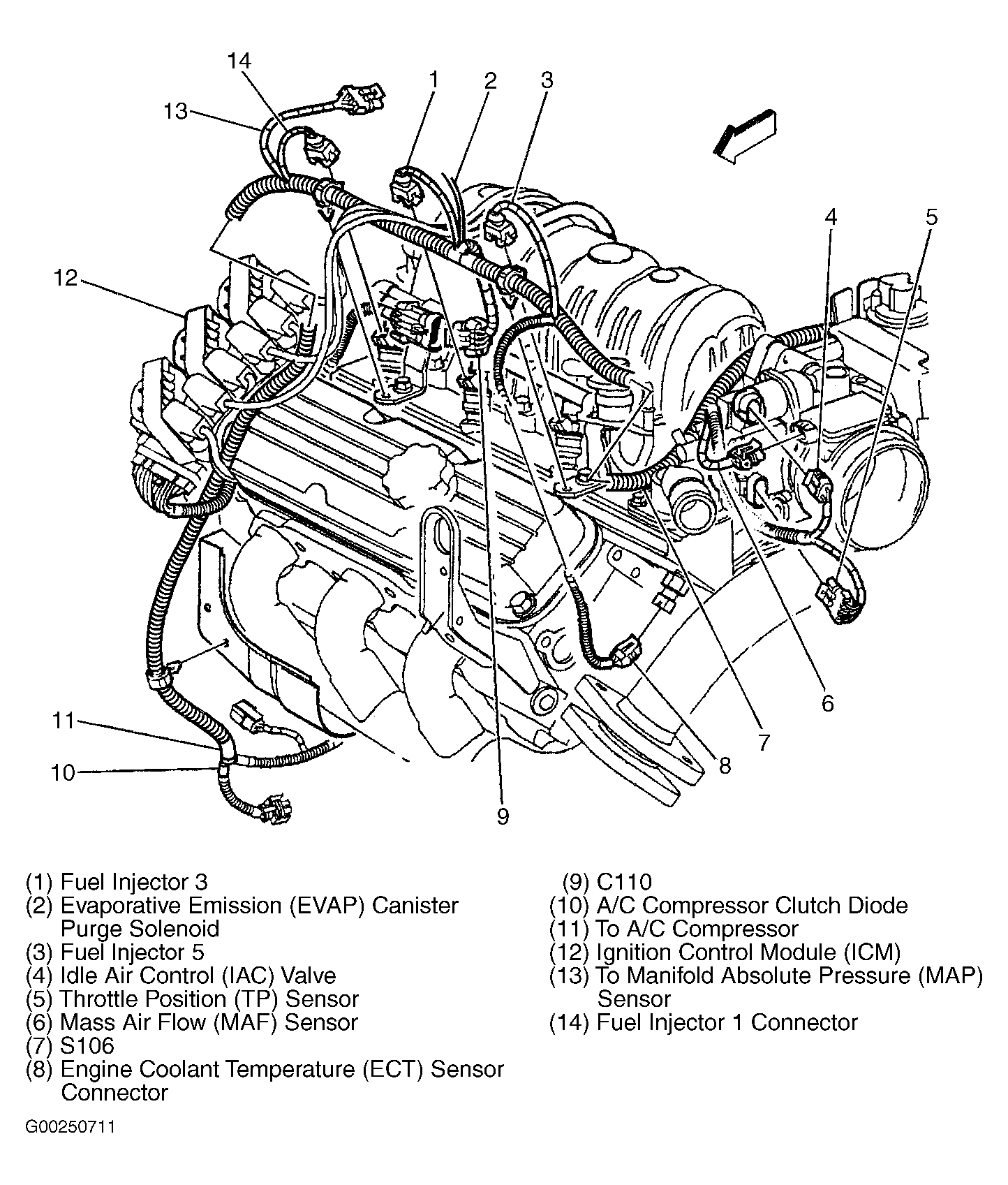

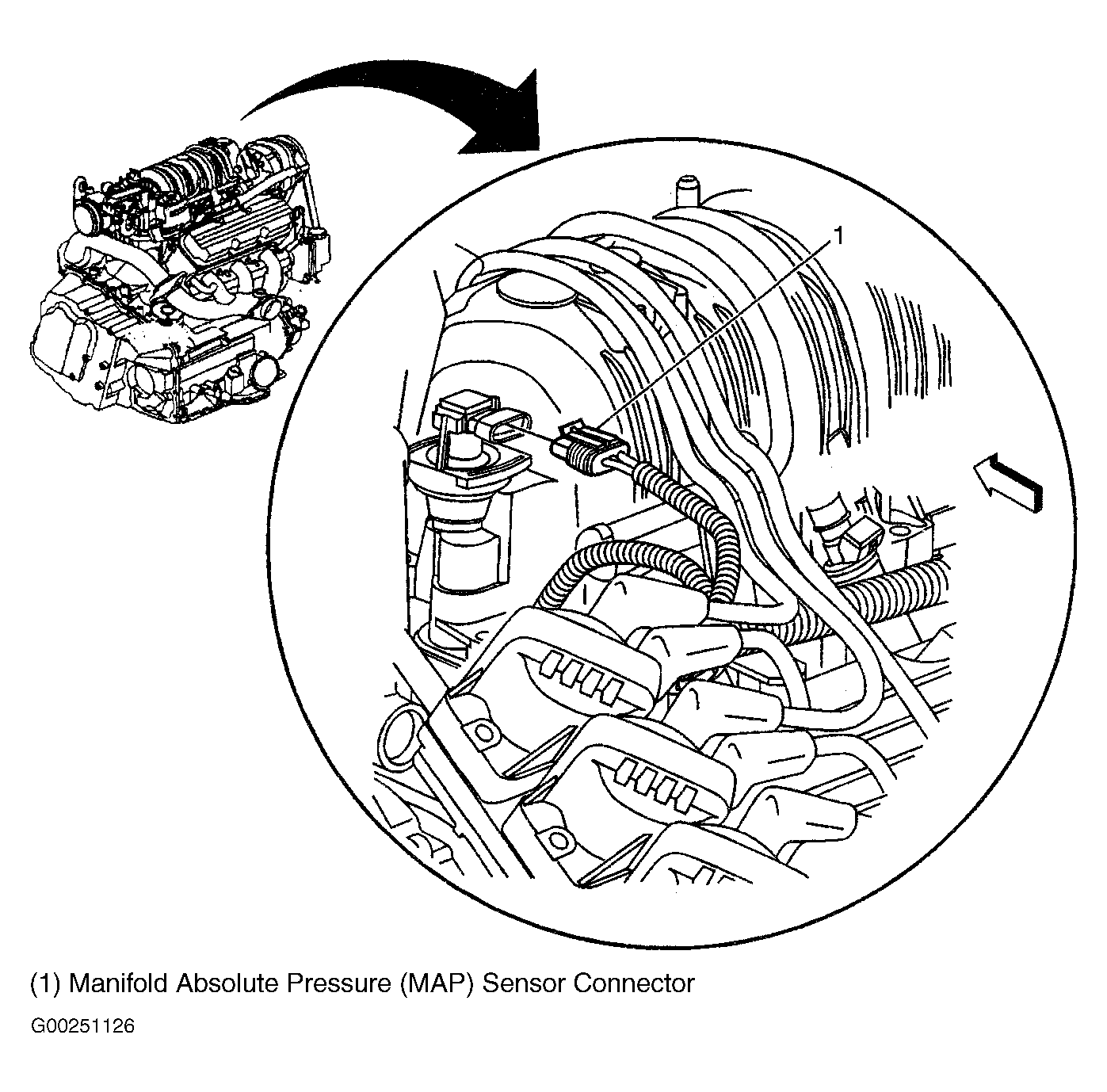

Fig 4: Locating Engine Components (Upper Left Front Of Engine)

Courtesy of GENERAL MOTORS CORP.

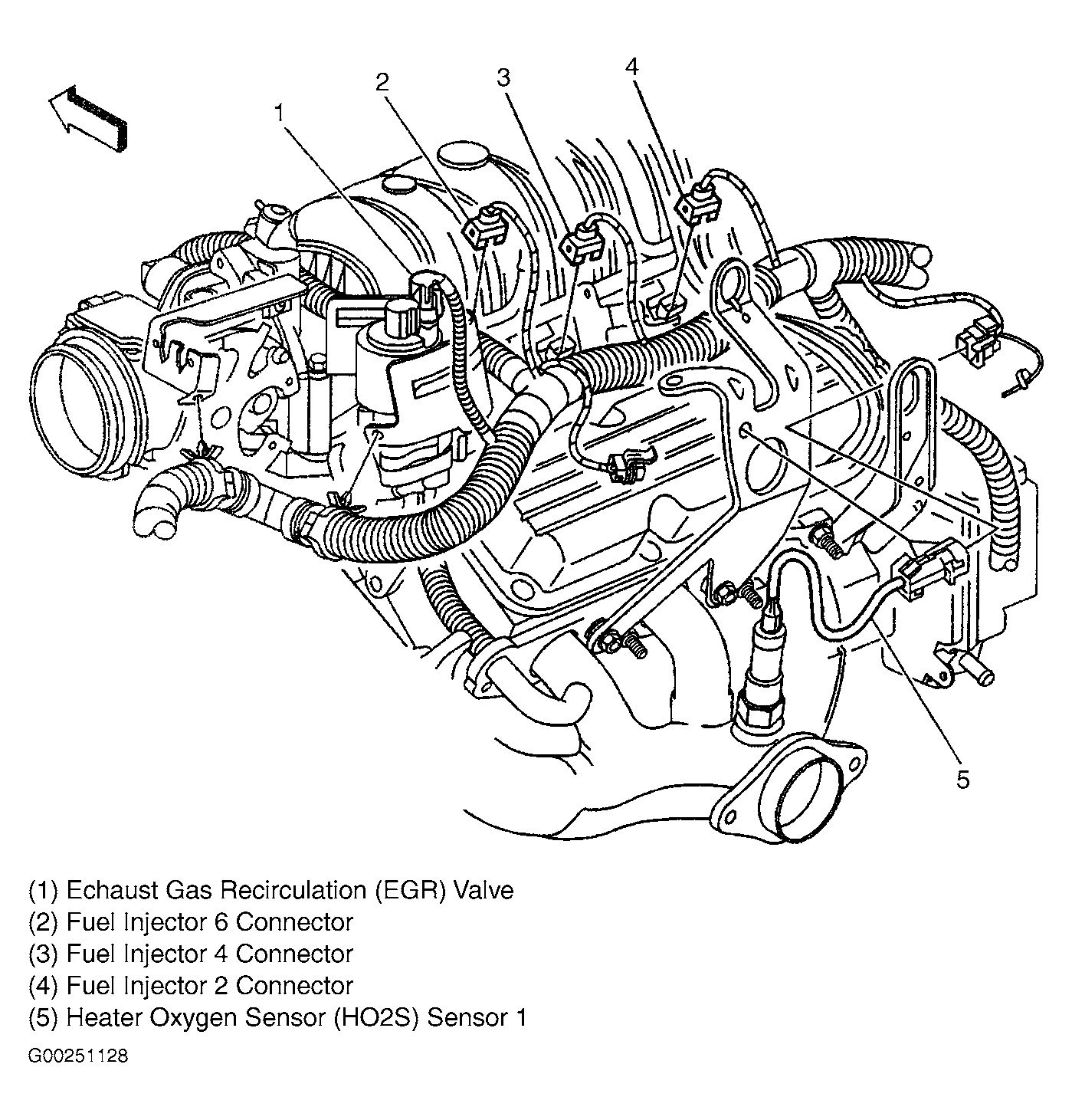

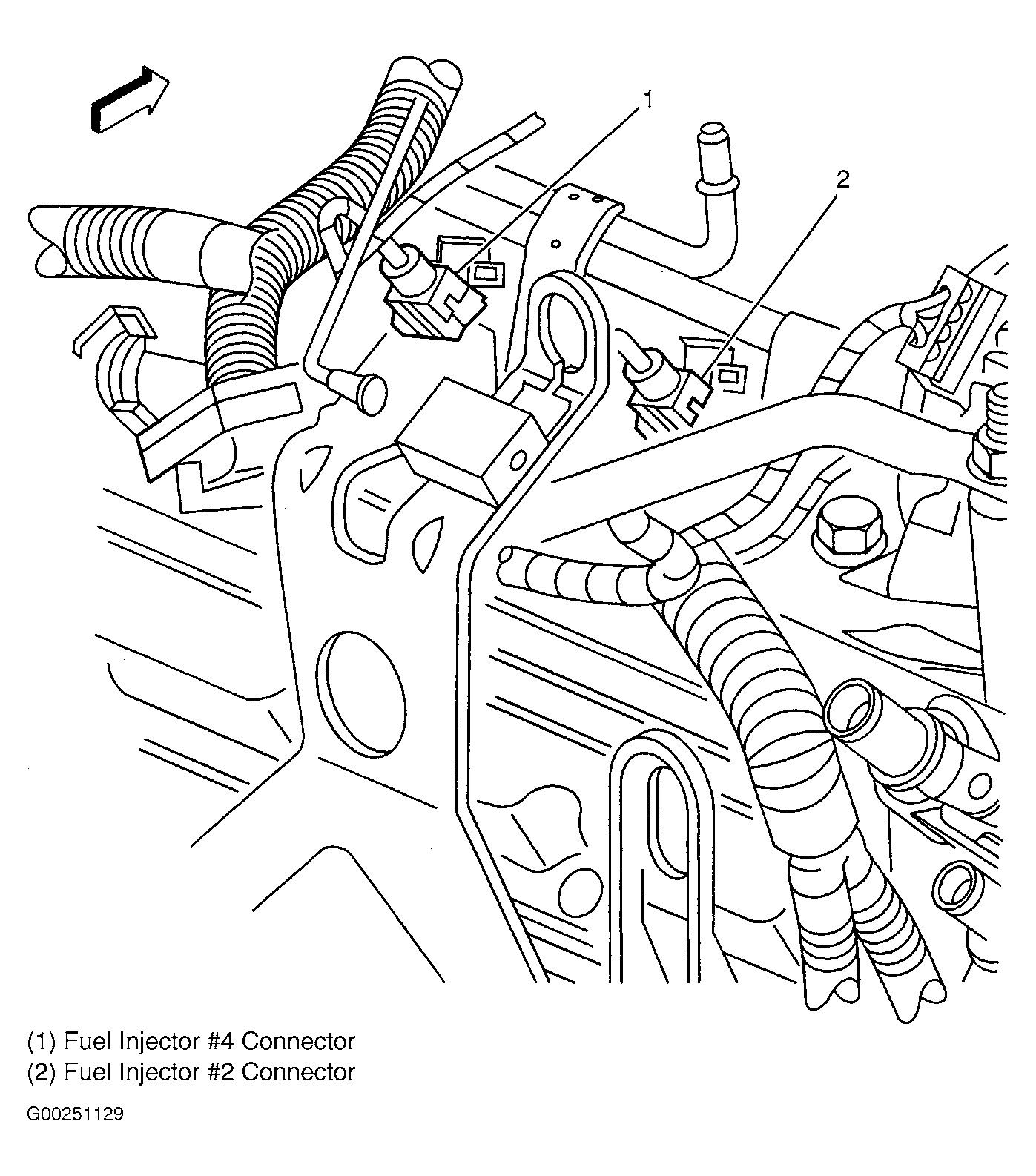

Fig 5: Locating Engine Components (Upper Left Rear Of Engine)

Courtesy of GENERAL MOTORS CORP.

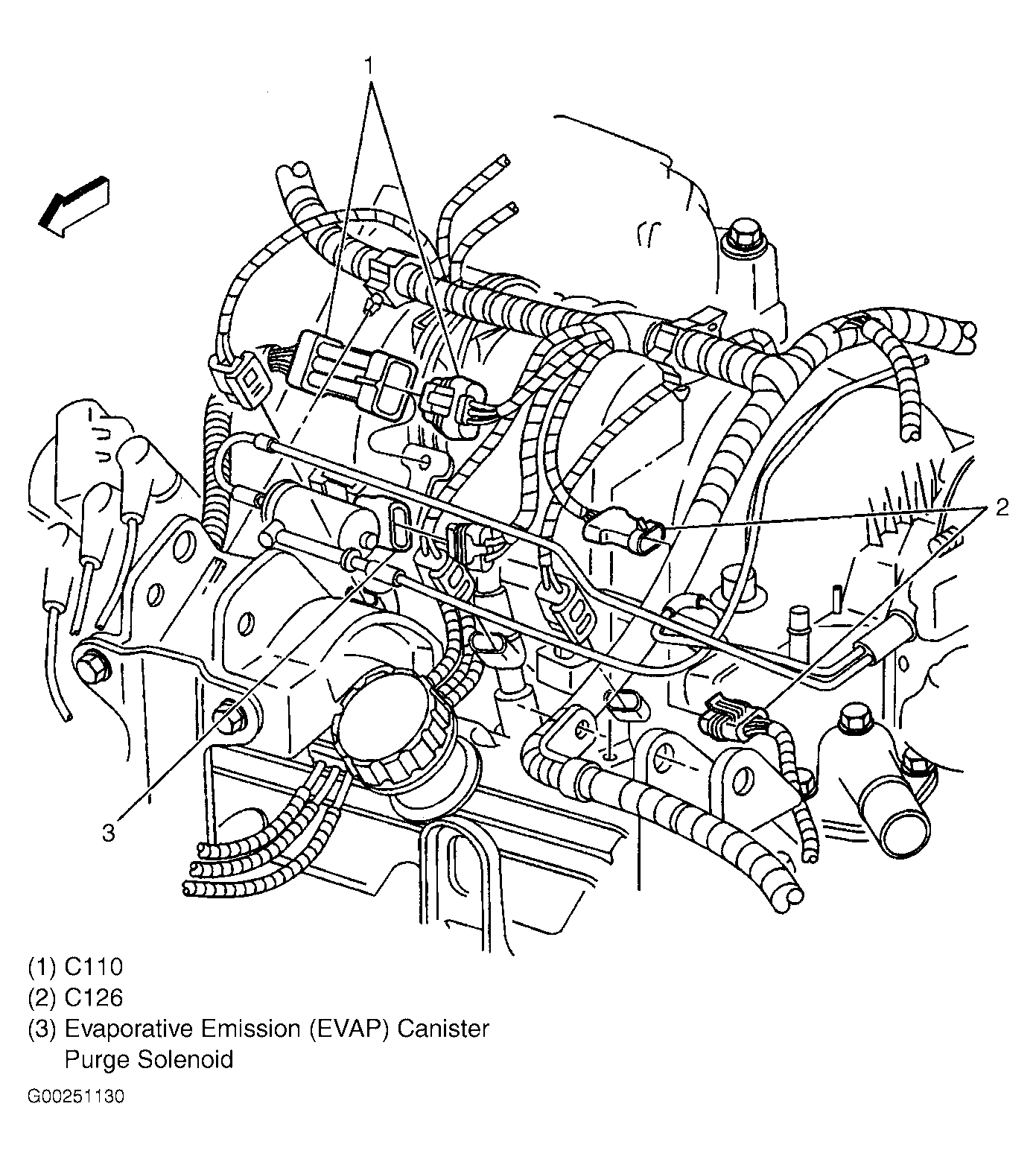

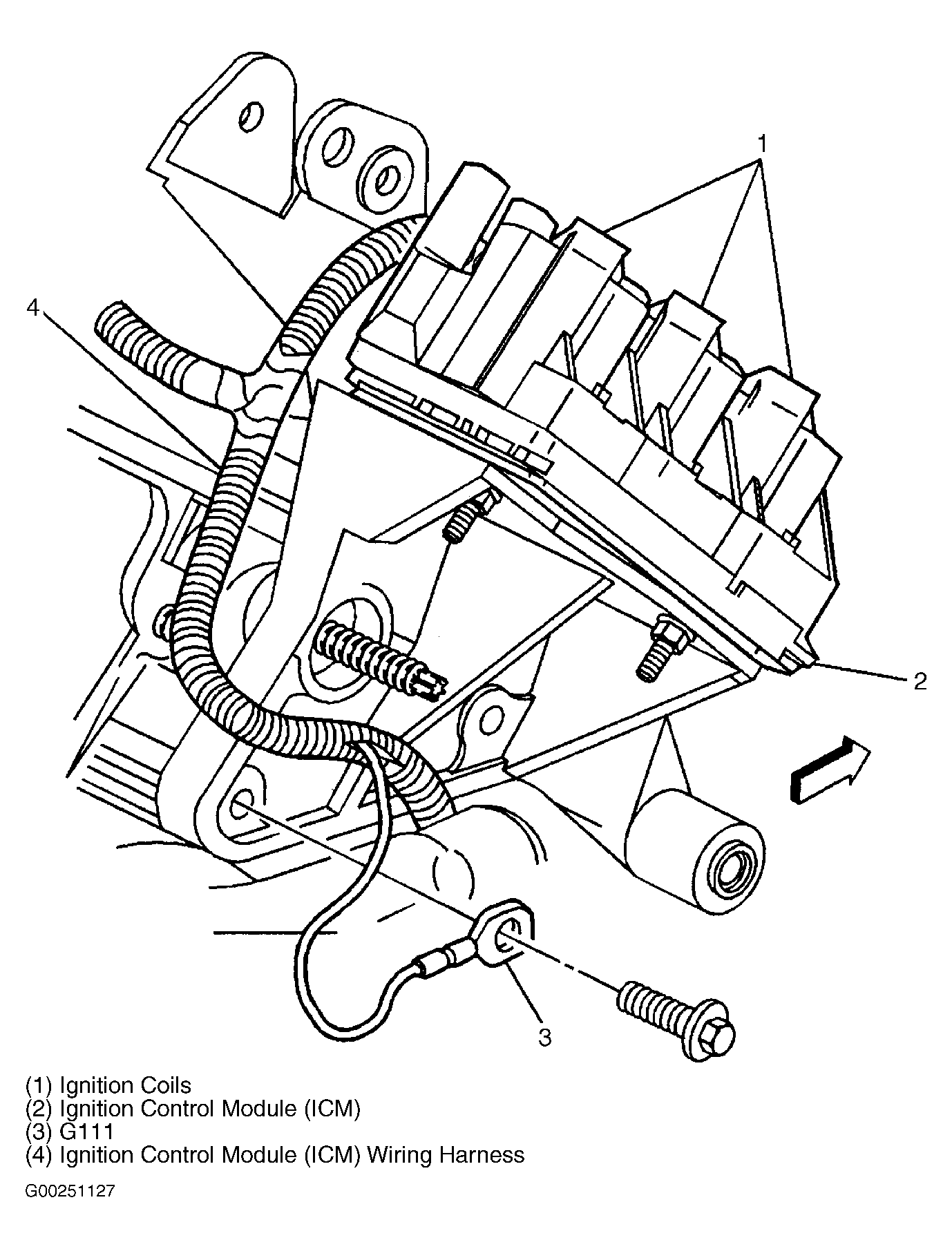

Fig 6: Locating Engine Components (Upper Rear Of Engine)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Locating Engine Components (Upper Right Center Of Engine)

Courtesy of GENERAL MOTORS CORP.

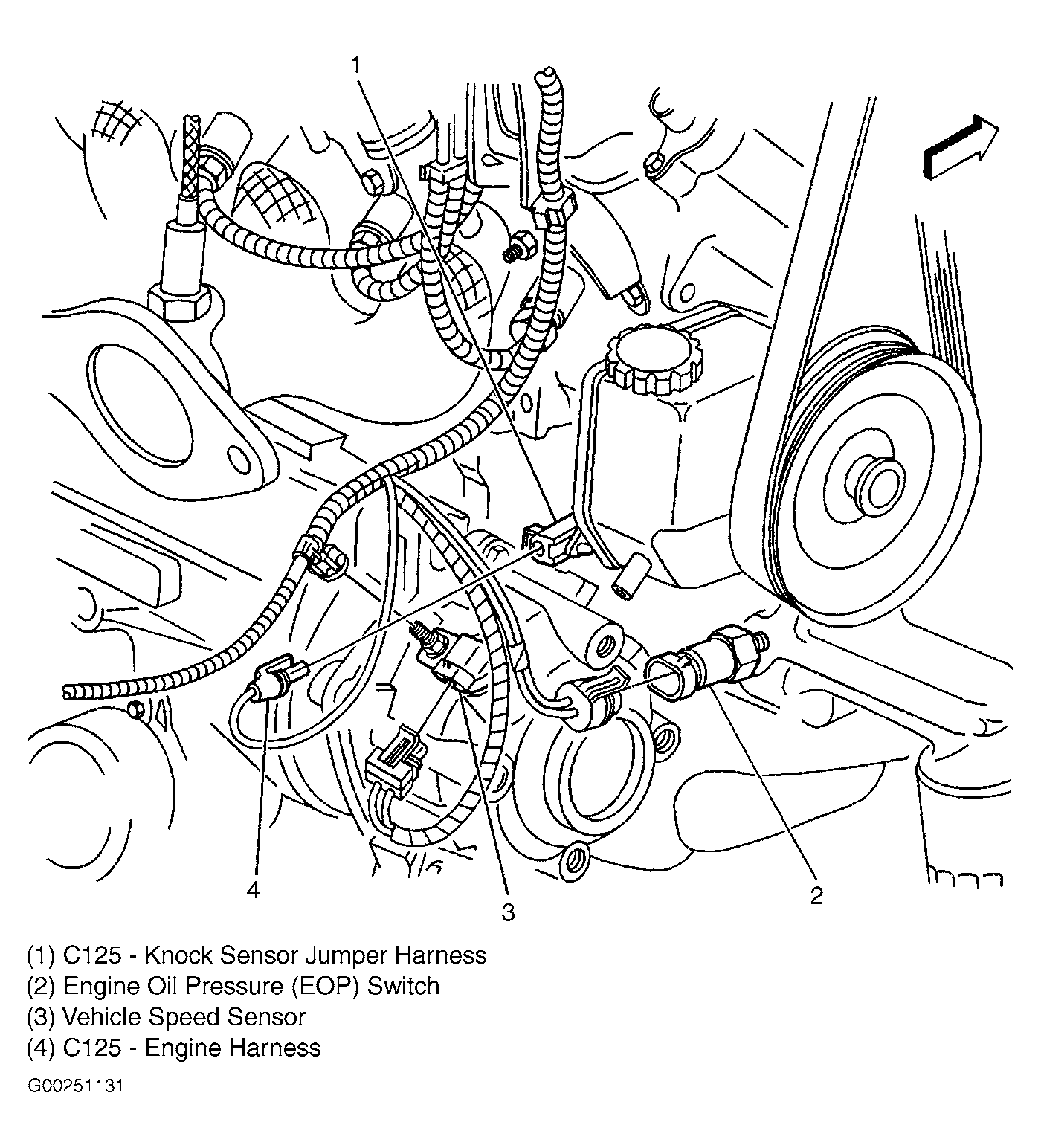

Fig 8: Locating Engine Oil Pressure Switch & Vehicle Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 9: Locating Evaporative Emission Canister Purge Solenoid

Courtesy of GENERAL MOTORS CORP.

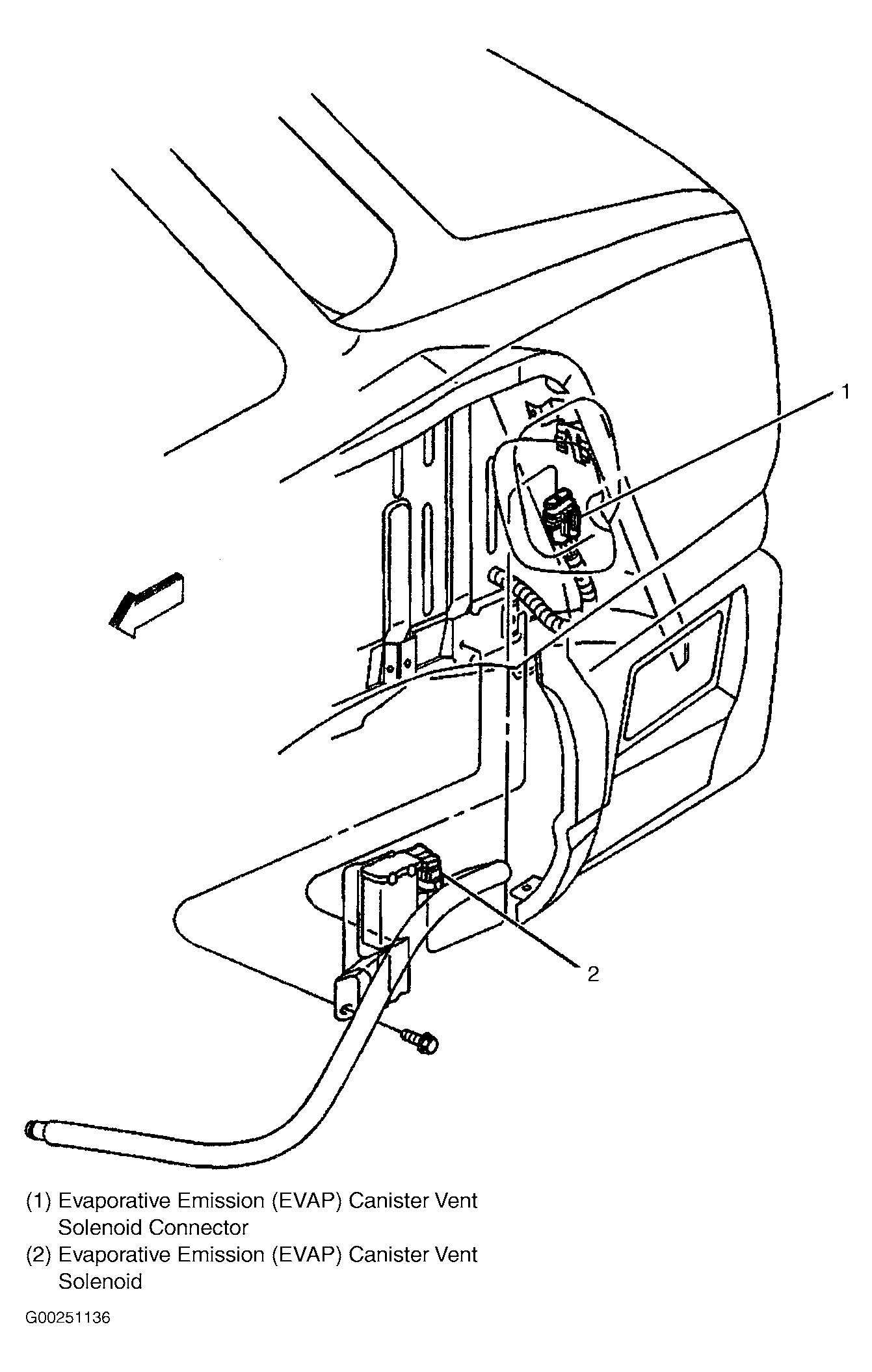

Fig 10: Locating Evaporative Emission Canister Vent Solenoid

Courtesy of GENERAL MOTORS CORP.

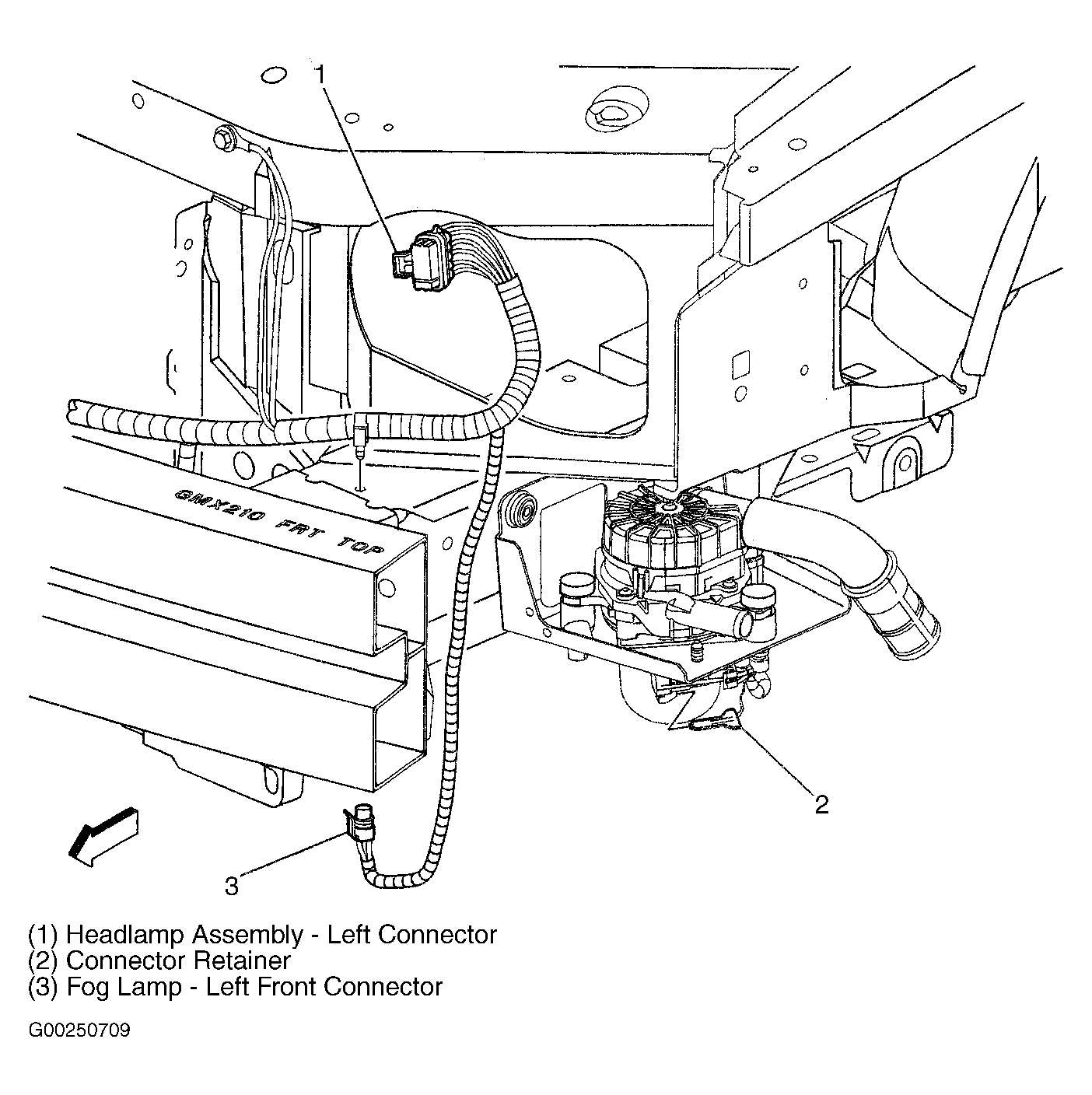

Fig 11: Locating Fog/Headlight Connectors

Courtesy of GENERAL MOTORS CORP.

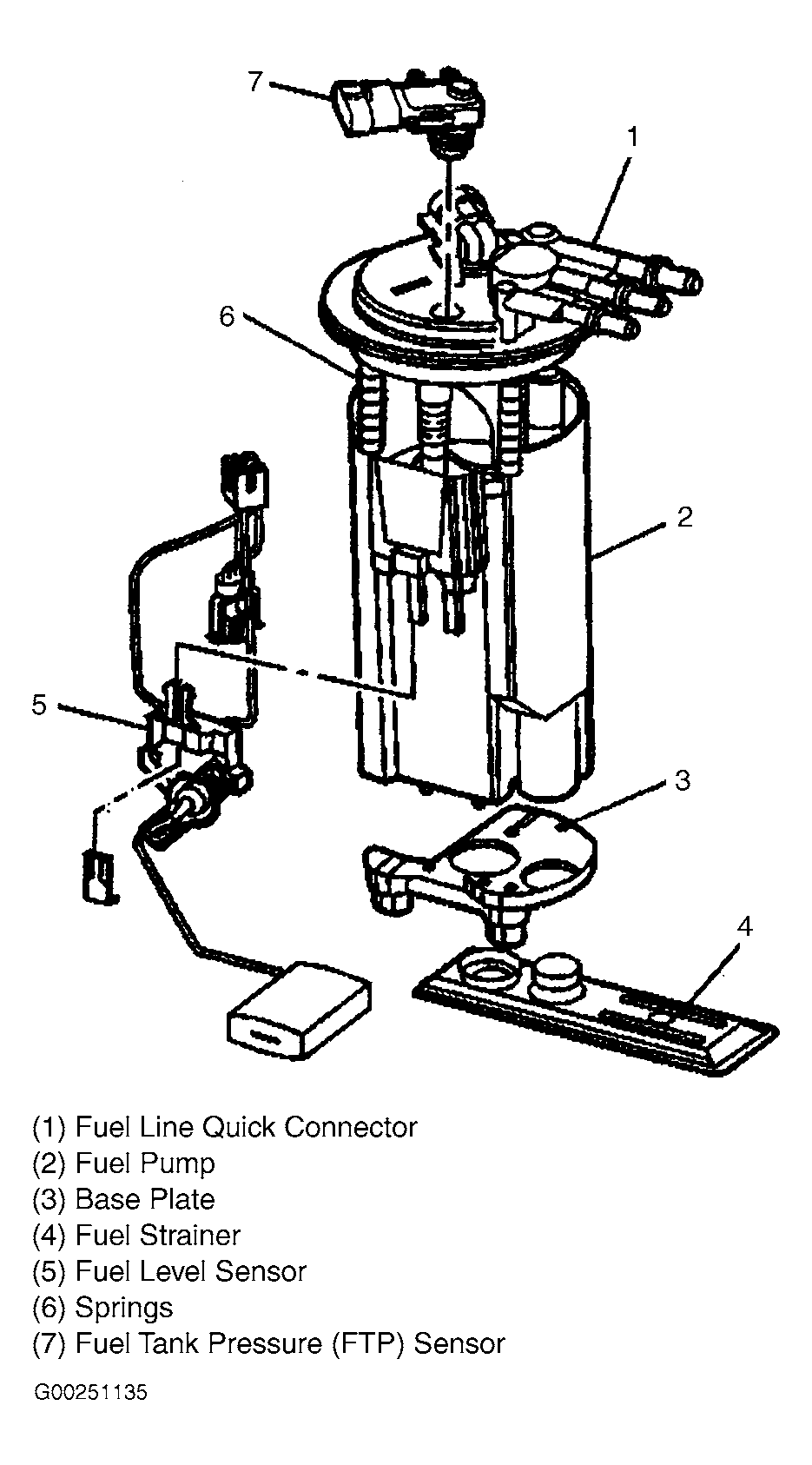

Fig 12: Locating Fuel Pump & Assembly

Courtesy of GENERAL MOTORS CORP.

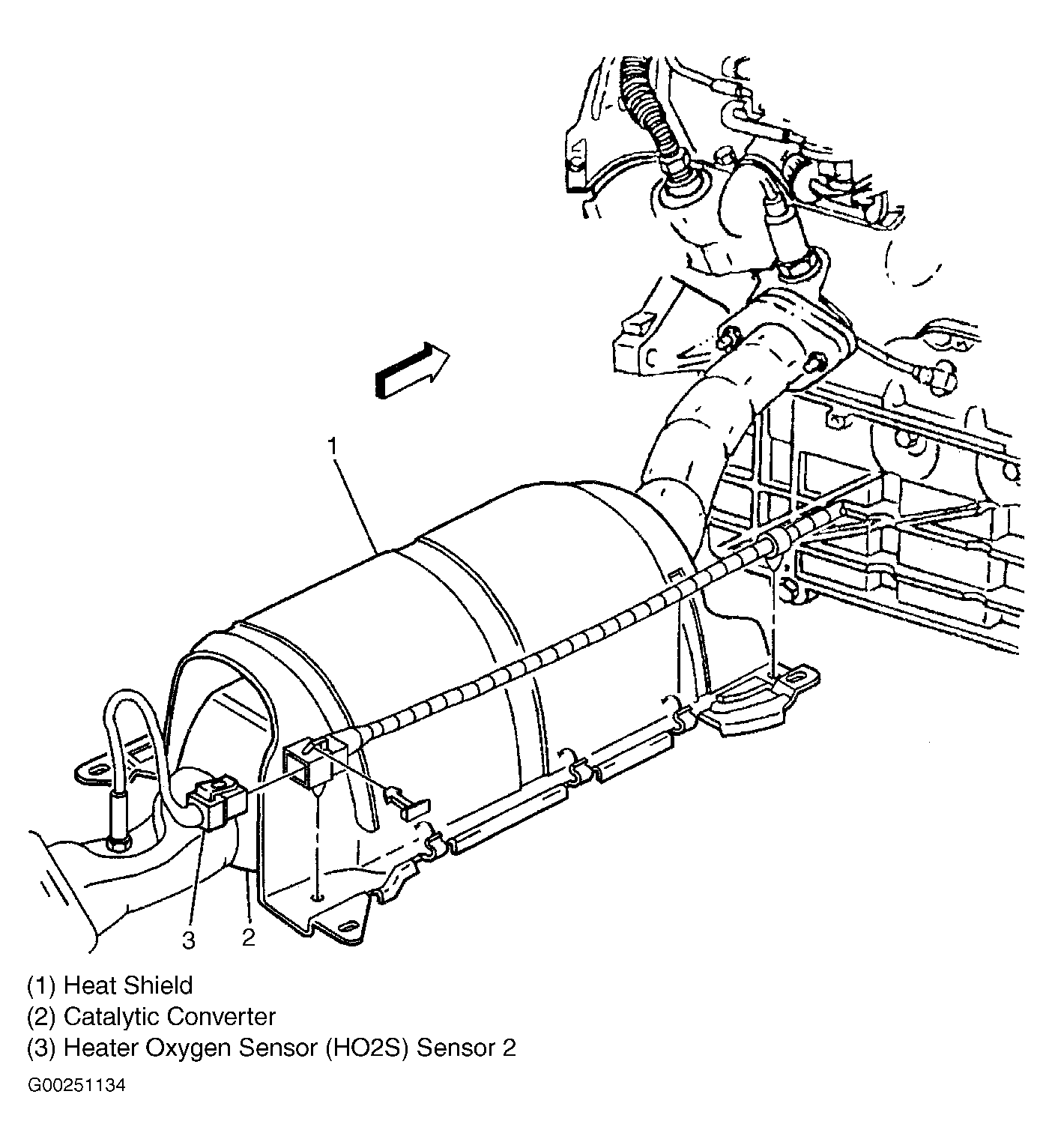

Fig 13: Locating HO2S Sensor 2

Courtesy of GENERAL MOTORS CORP.

Fig 14: Locating Idle Air Control Valve, Throttle Position Sensor & Mass Airflow Sensor

Courtesy of GENERAL MOTORS CORP.

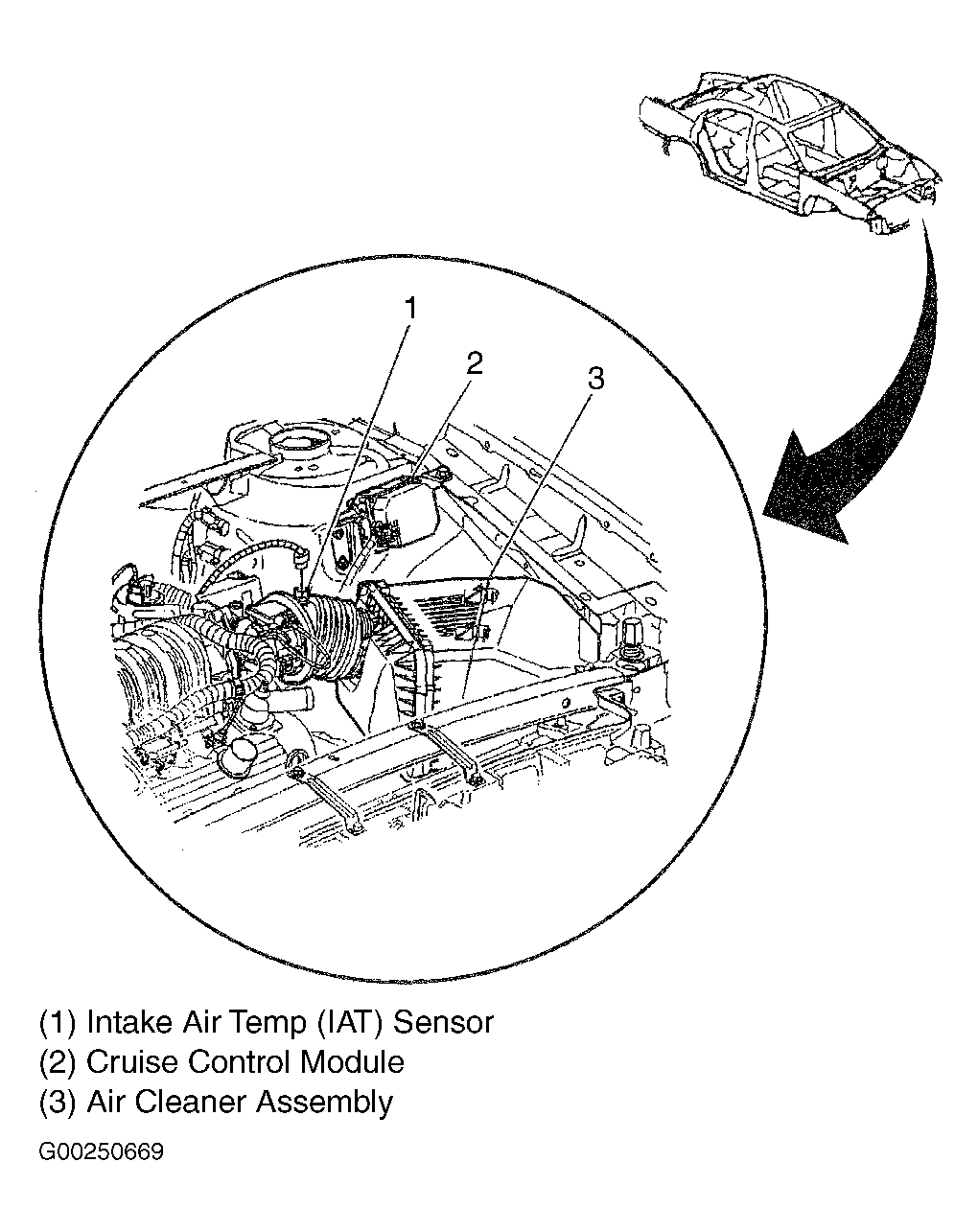

Fig 15: Locating Intake Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

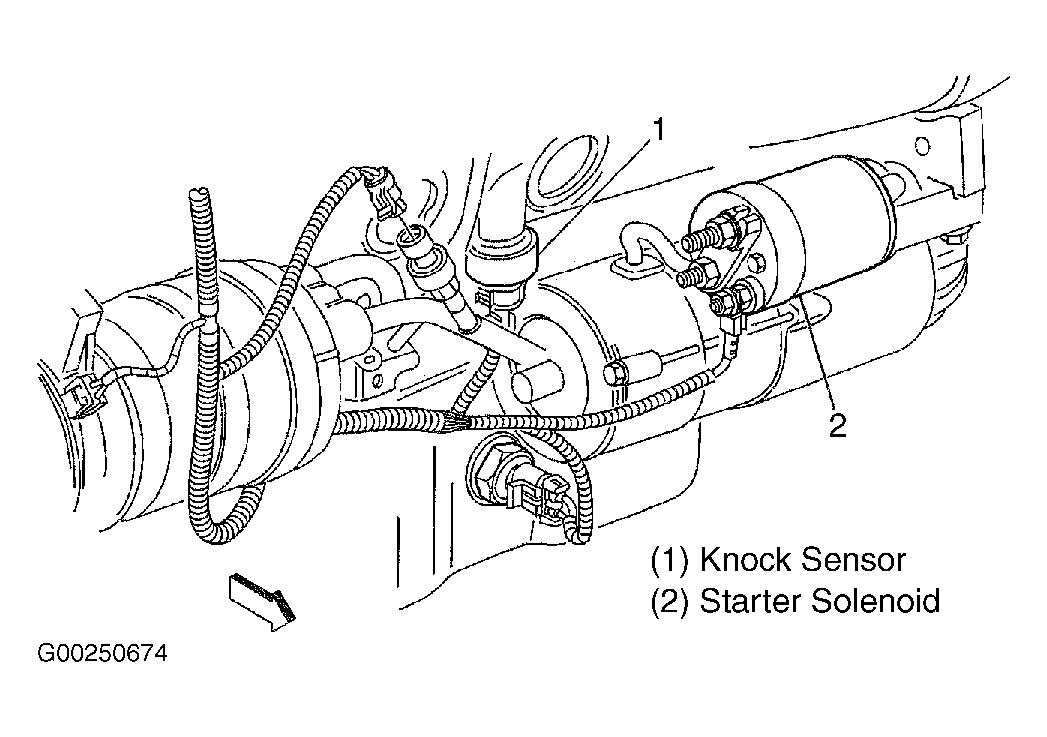

Fig 16: Locating Knock Sensor & Starter Solenoid

Courtesy of GENERAL MOTORS CORP.

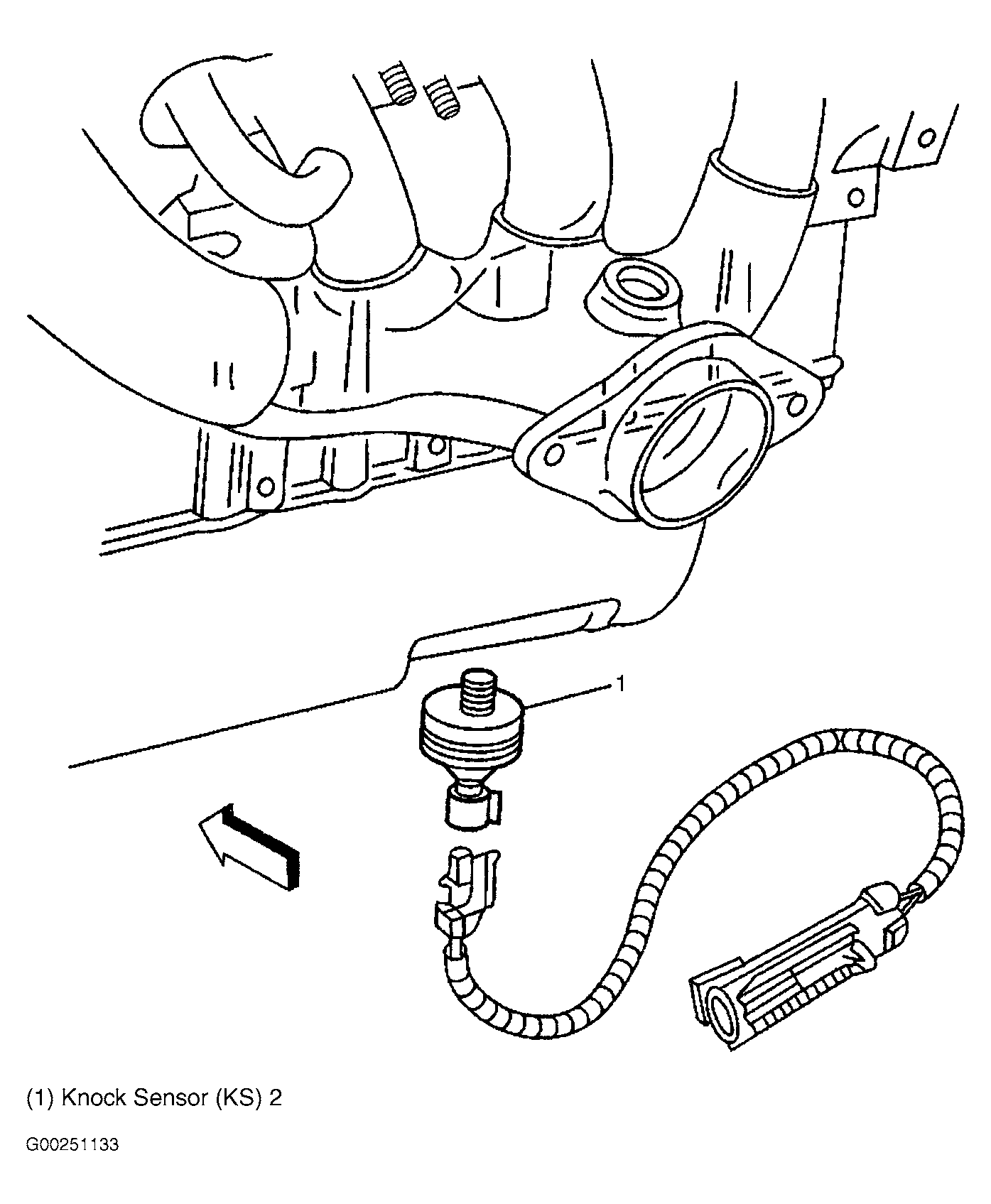

Fig 17: Locating Knock Sensor 2

Courtesy of GENERAL MOTORS CORP.

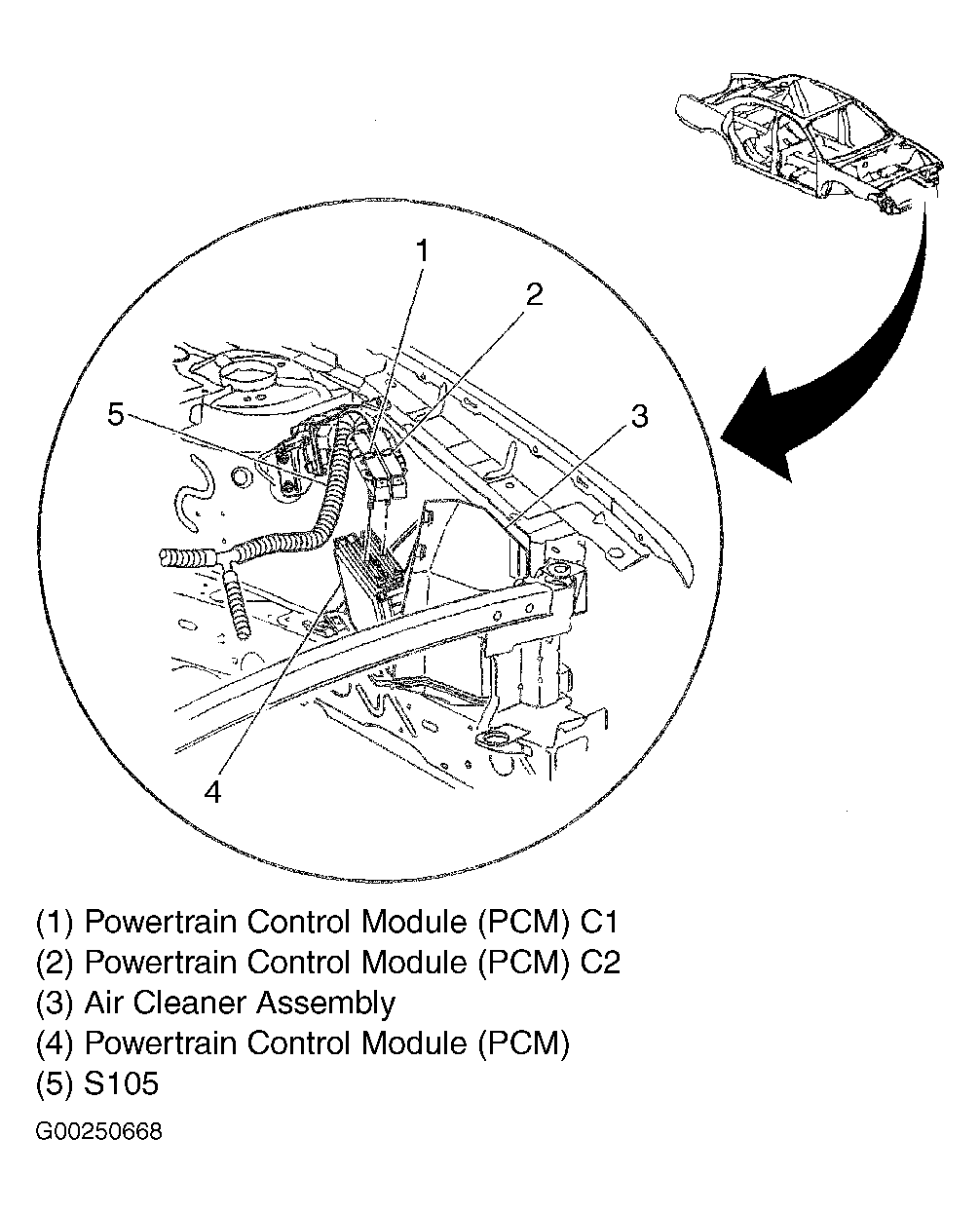

Fig 18: Locating PCM

Courtesy of GENERAL MOTORS CORP.
