Component Locations: Regal

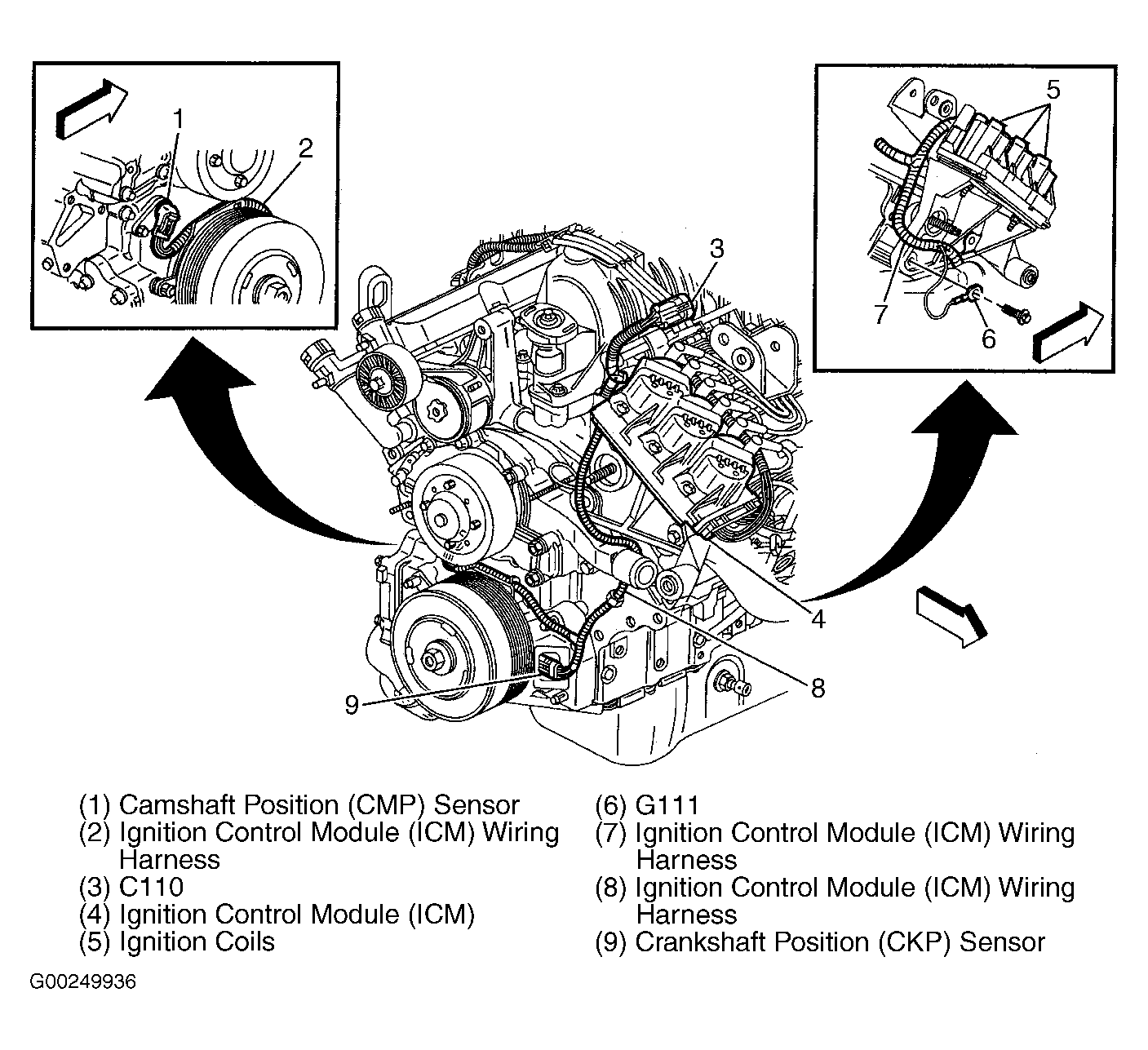

Fig 1: Locating Crankshaft Position Sensor, Camshaft Position Sensor & Ignition Control Module

Courtesy of GENERAL MOTORS CORP.

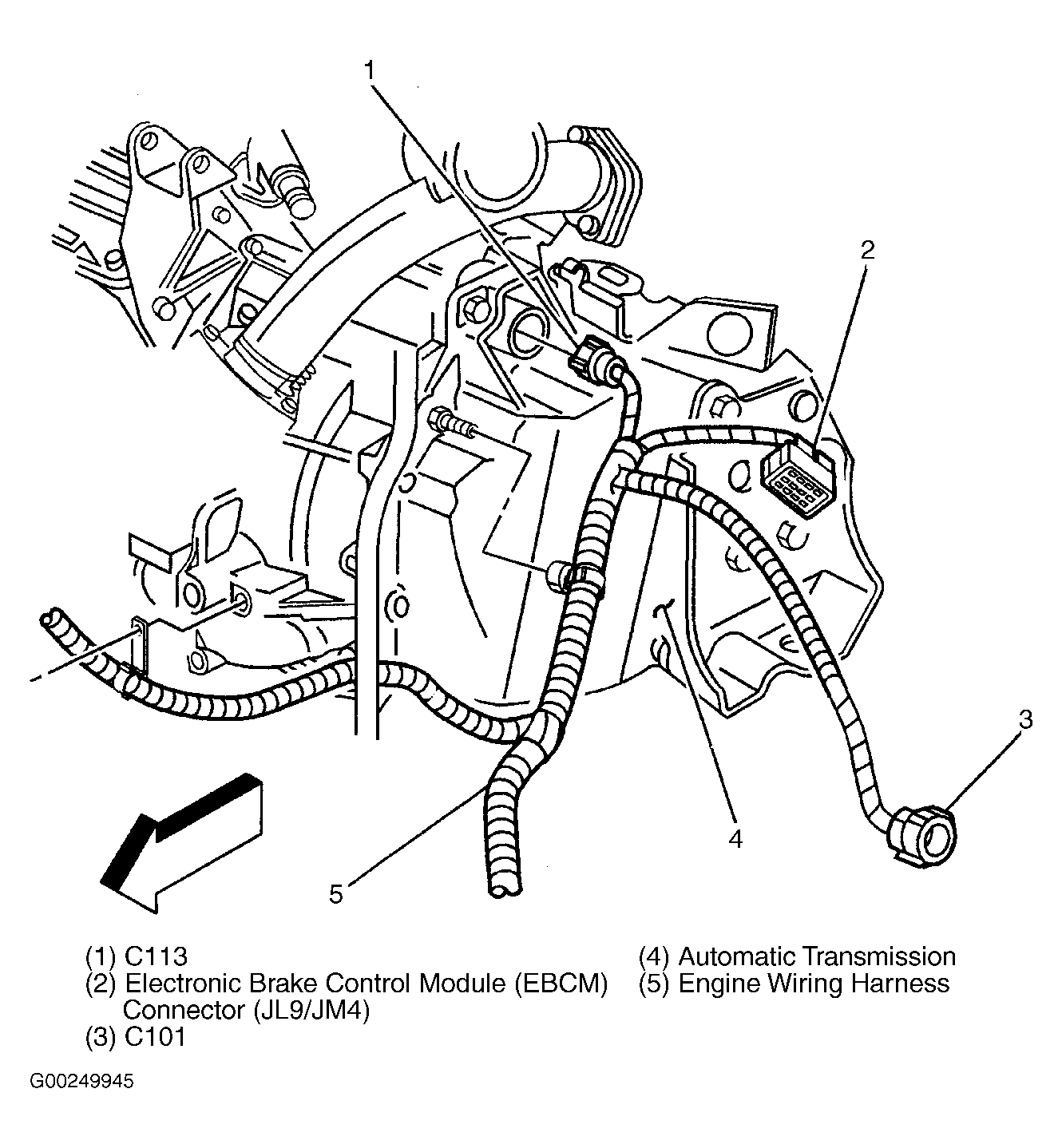

Fig 2: Locating Electronic Brake Control Module

Courtesy of GENERAL MOTORS CORP.

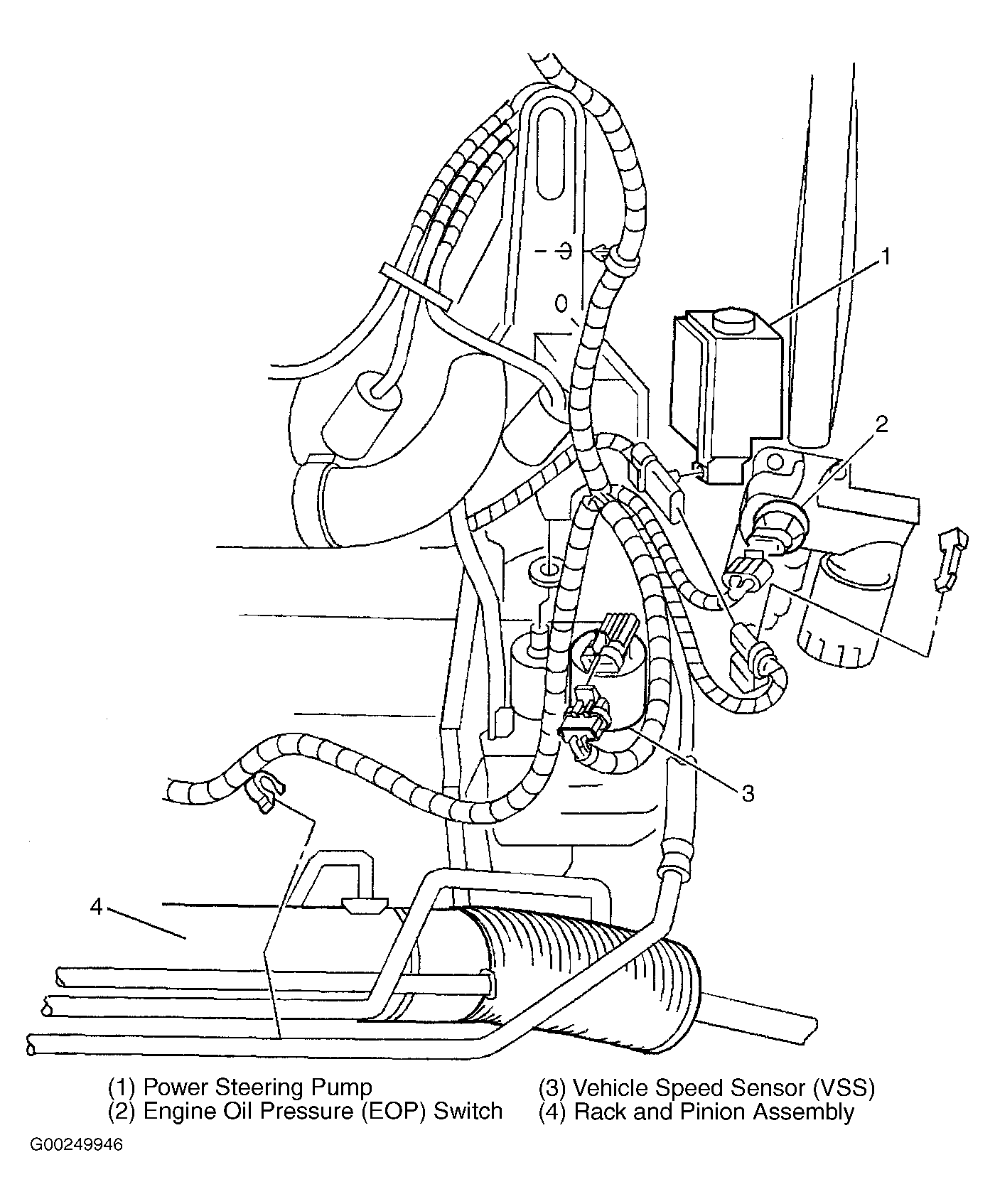

Fig 3: Locating Engine Oil Pressure Switch & Vehicle Speed Sensor

Courtesy of GENERAL MOTORS CORP.

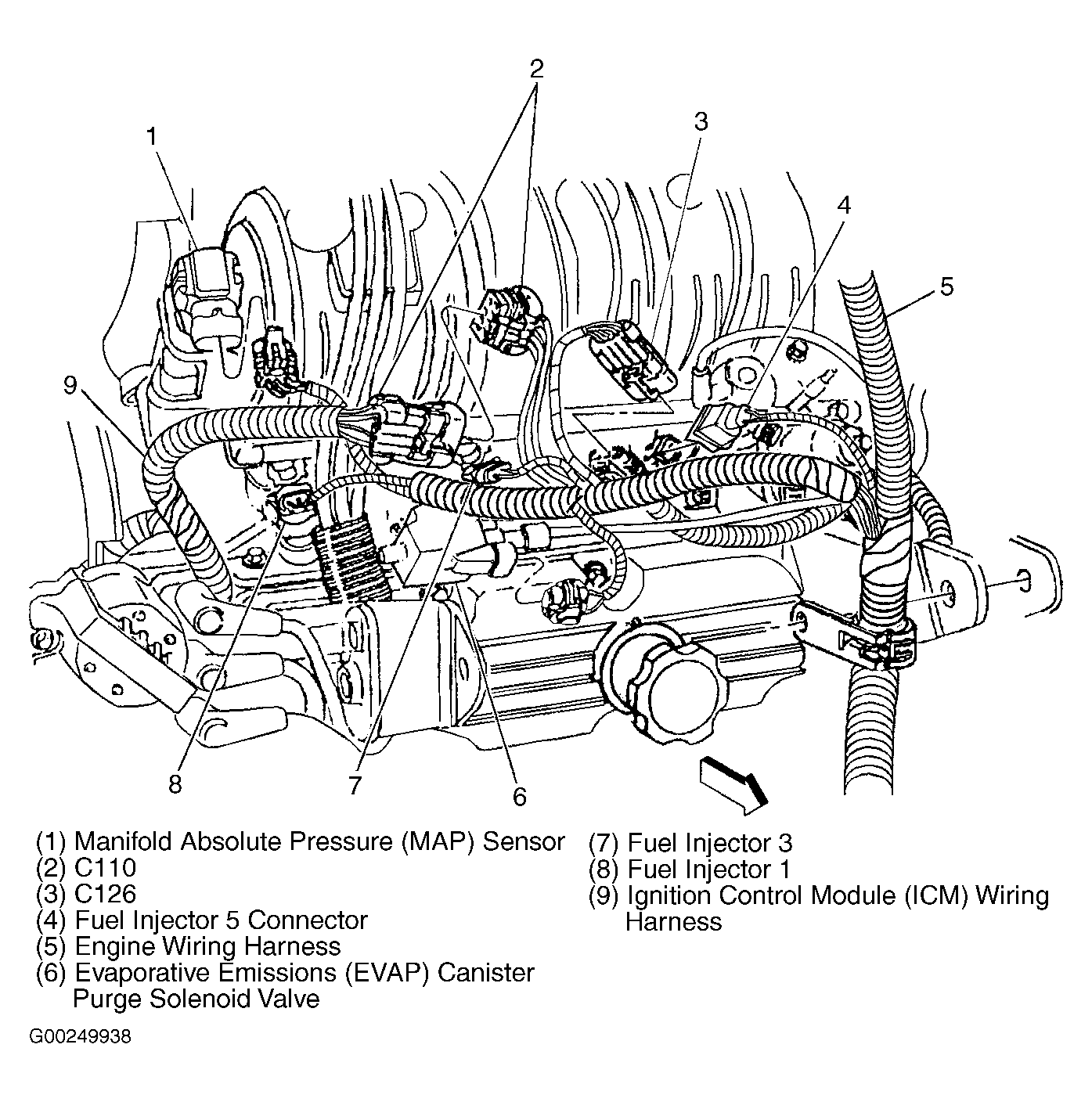

Fig 4: Locating Evaporative Emissions Canister & Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

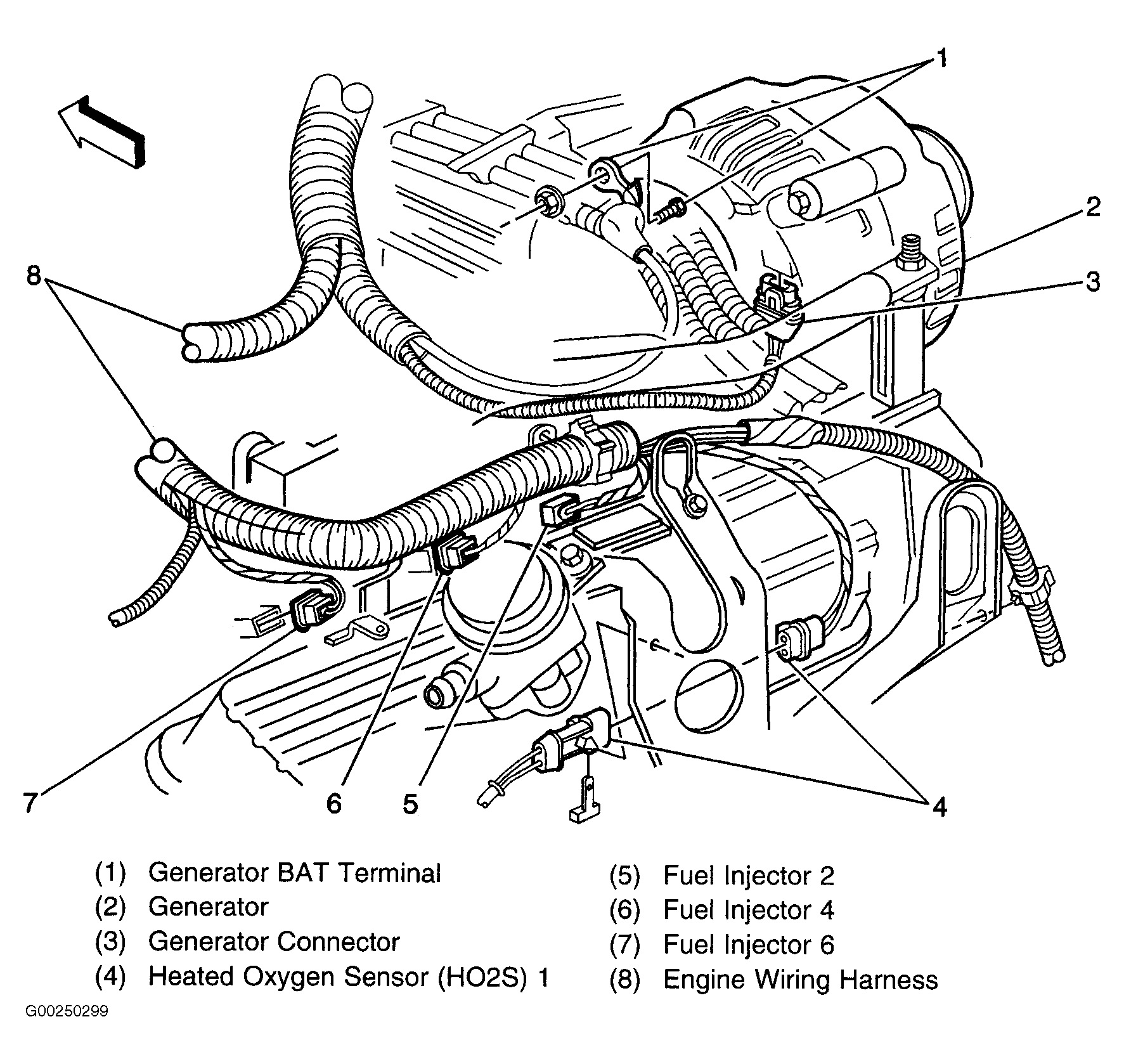

Fig 5: Locating Fuel Injectors 2, 4 & 6

Courtesy of GENERAL MOTORS CORP.

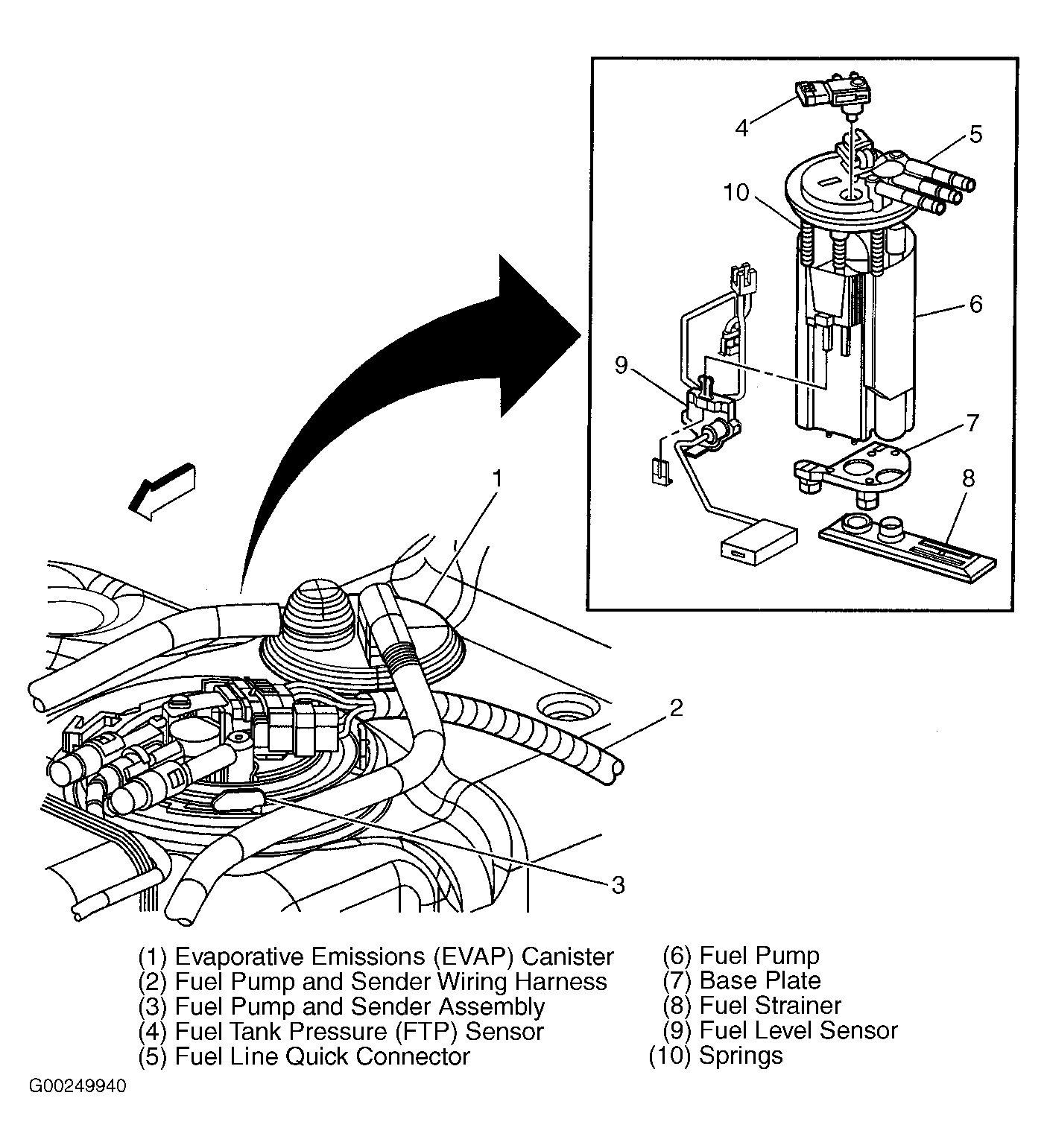

Fig 6: Locating Fuel Tank Components

Courtesy of GENERAL MOTORS CORP.

Fig 7: Locating Fuel Tank Connector

Courtesy of GENERAL MOTORS CORP.

Fig 8: Locating Heated Oxygen Sensor 1

Courtesy of GENERAL MOTORS CORP.

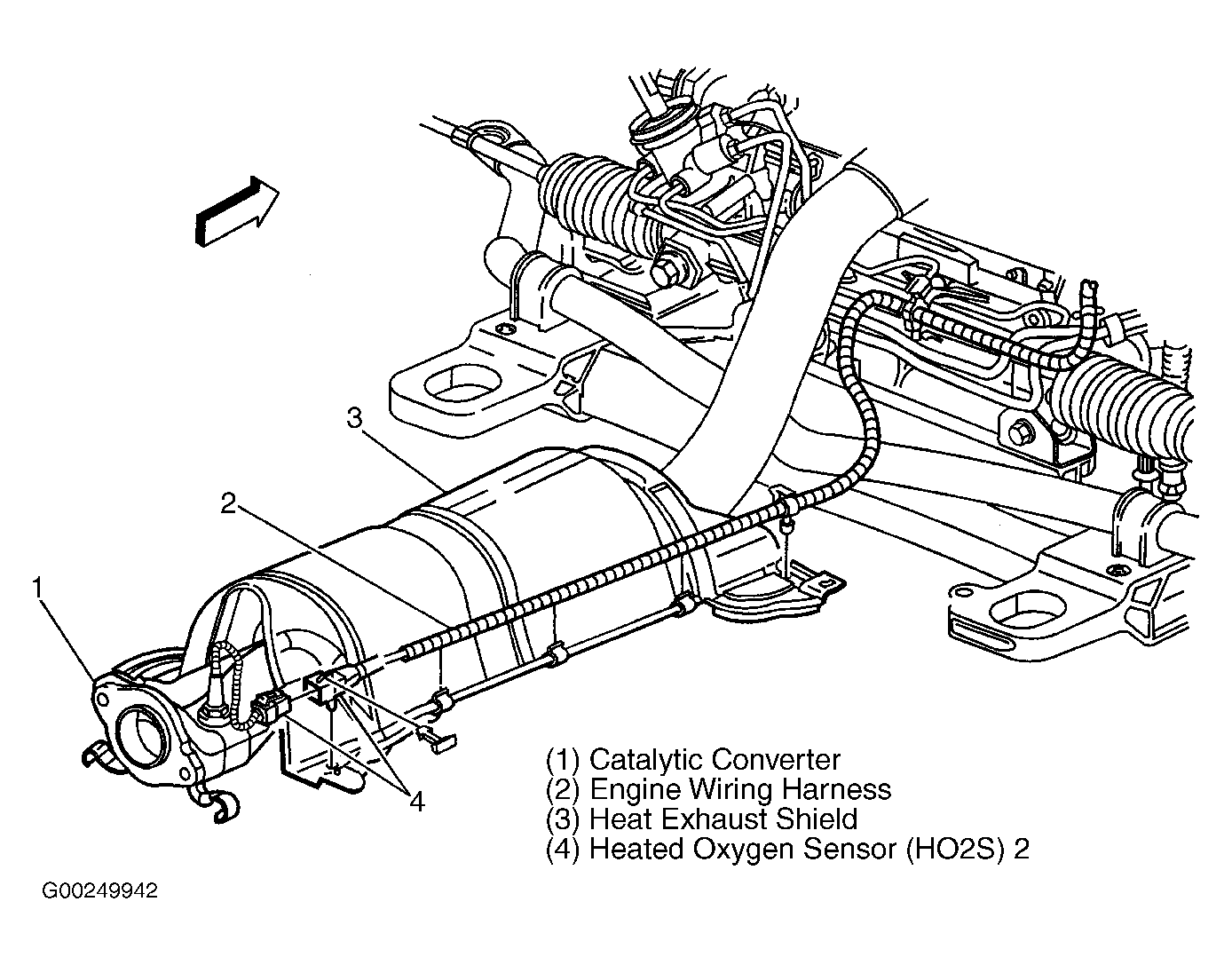

Fig 9: Locating Heated Oxygen Sensor 2

Courtesy of GENERAL MOTORS CORP.

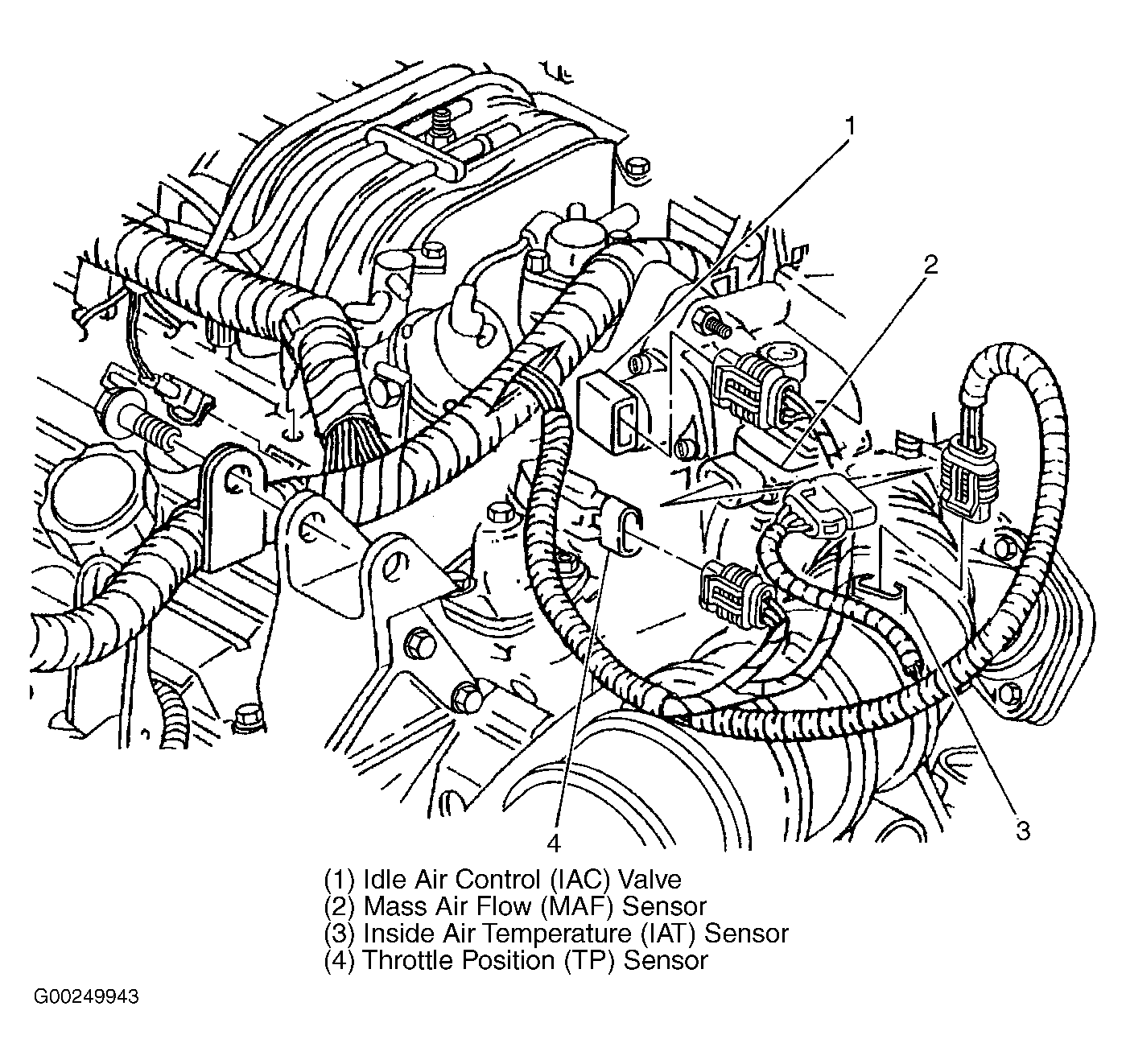

Fig 10: Locating Idle Air Control Valve, Mass Airflow & Throttle Position Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 11: Locating Inside Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

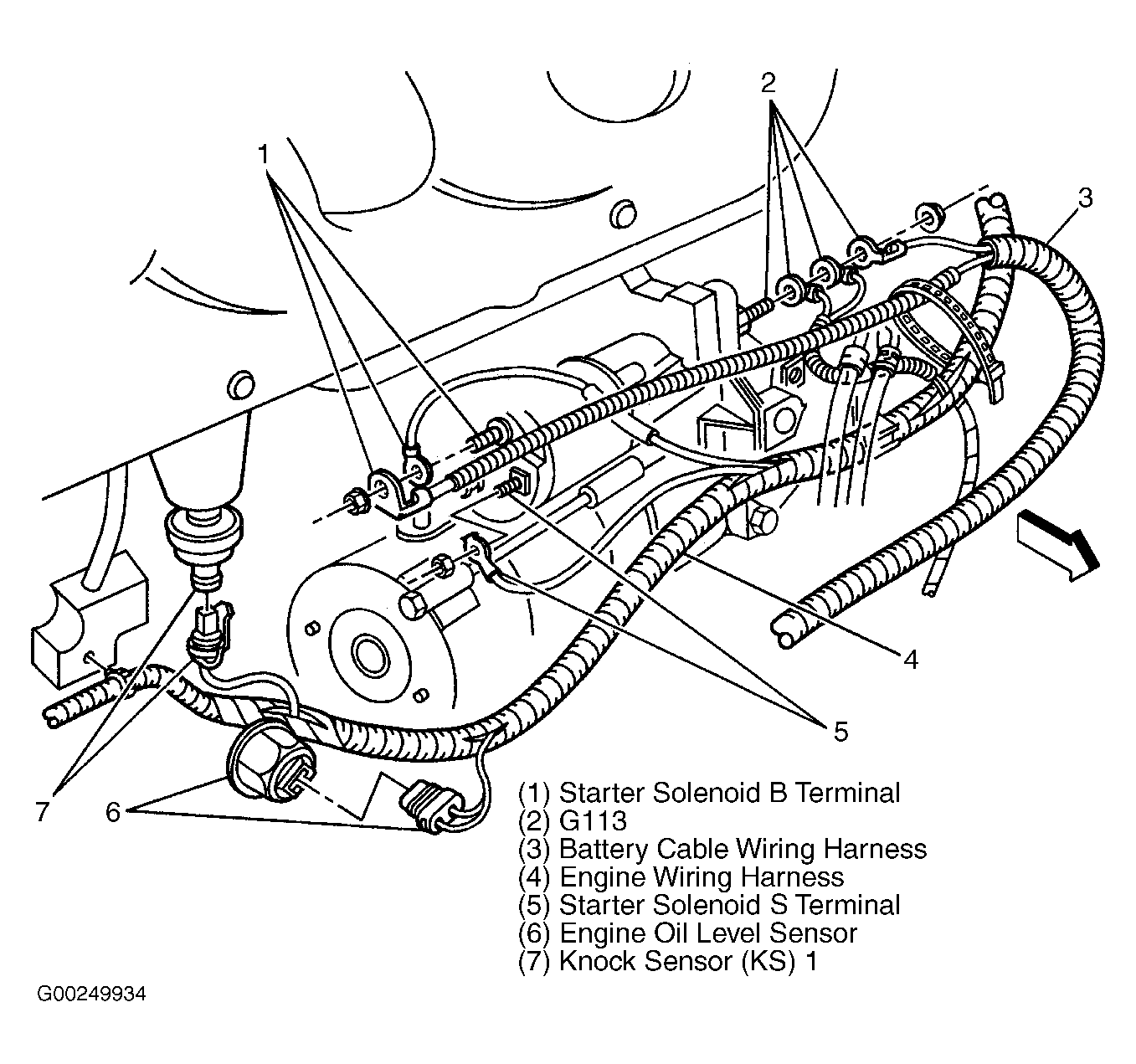

Fig 12: Locating Knock Sensor 1 - W/Supercharger

Courtesy of GENERAL MOTORS CORP.

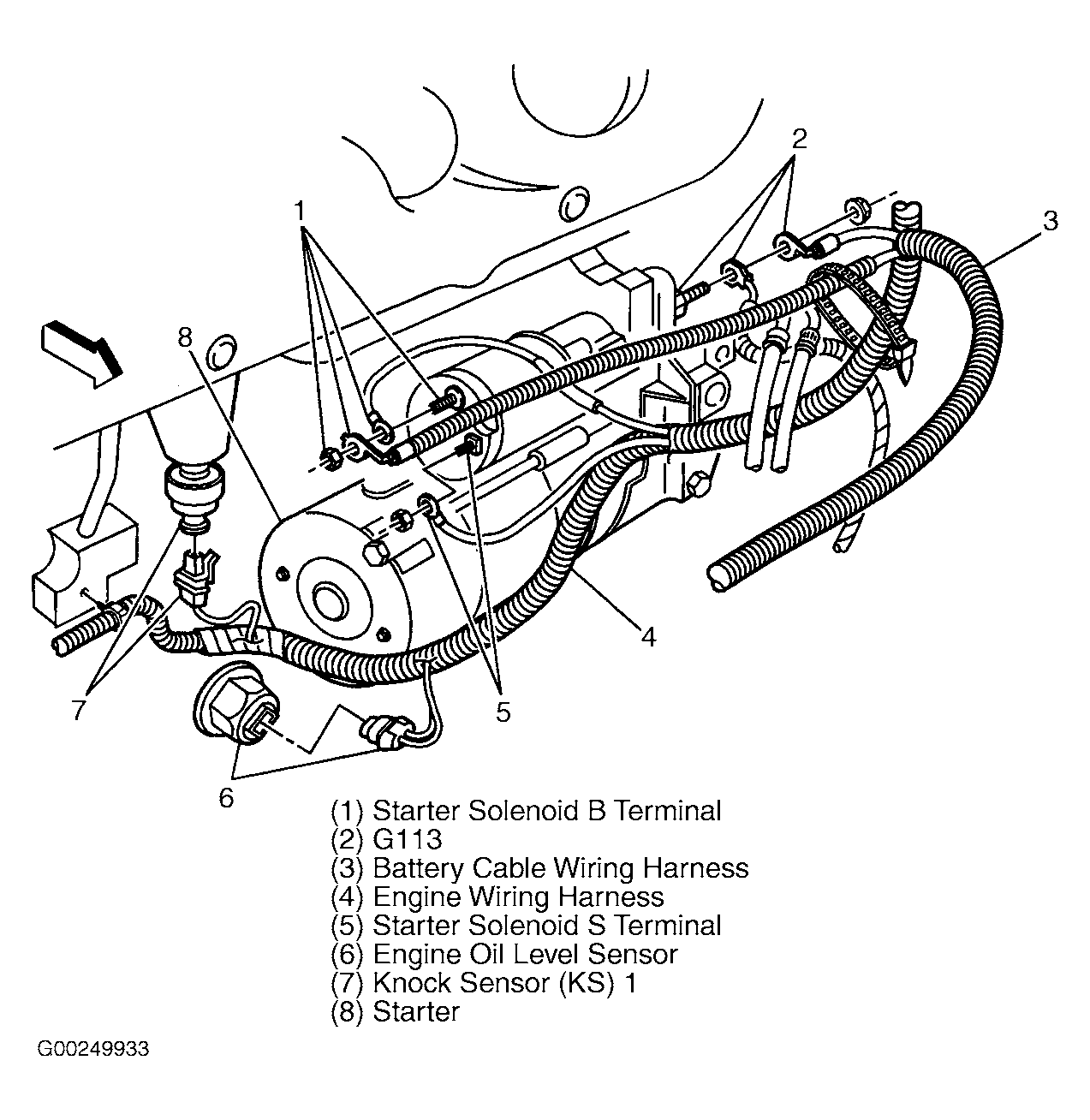

Fig 13: Locating Knock Sensor 1 - W/O Supercharger

Courtesy of GENERAL MOTORS CORP.

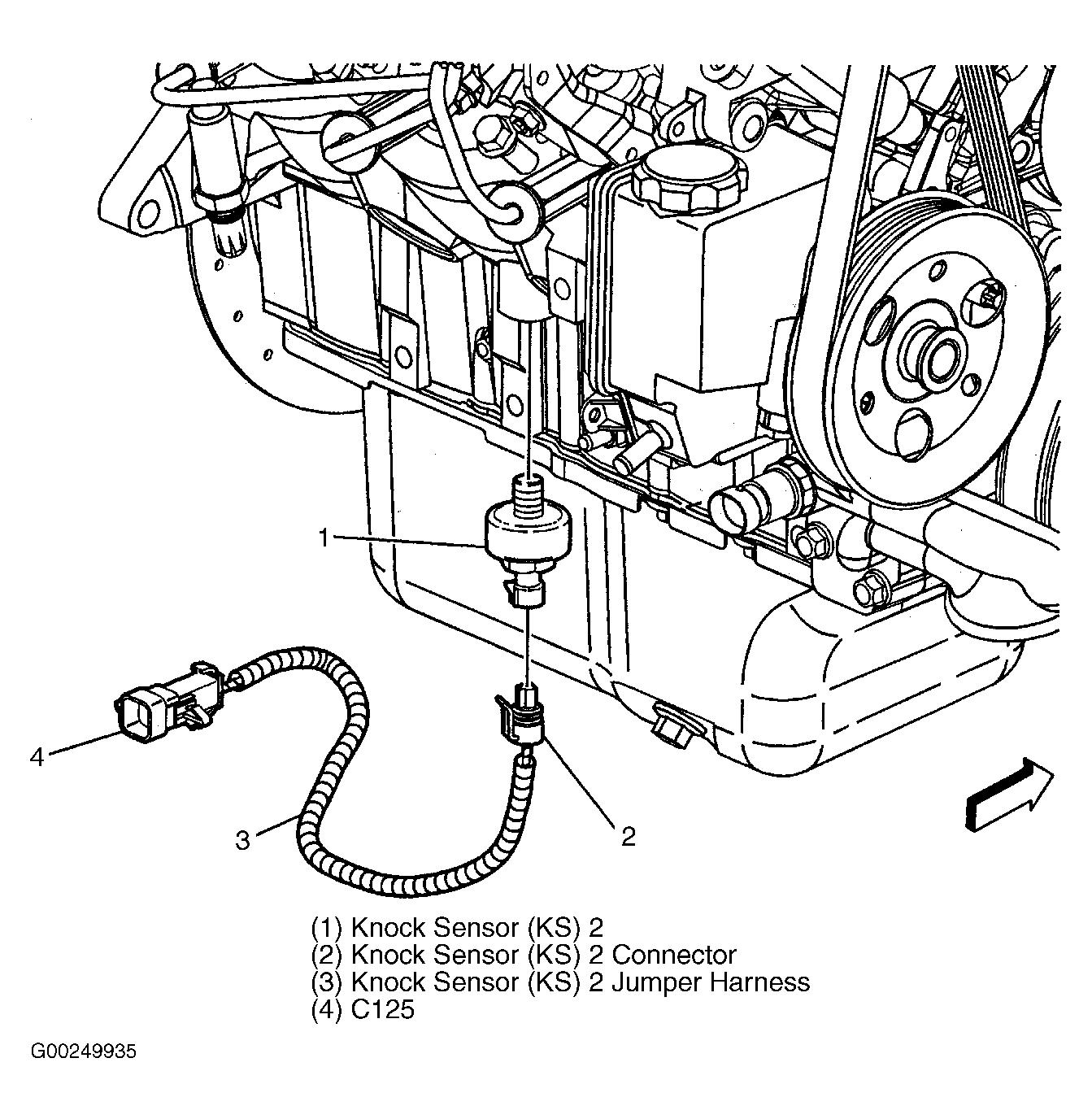

Fig 14: Locating Knock Sensor 2

Courtesy of GENERAL MOTORS CORP.

Fig 15: Locating Powertrain Control Module

Courtesy of GENERAL MOTORS CORP.

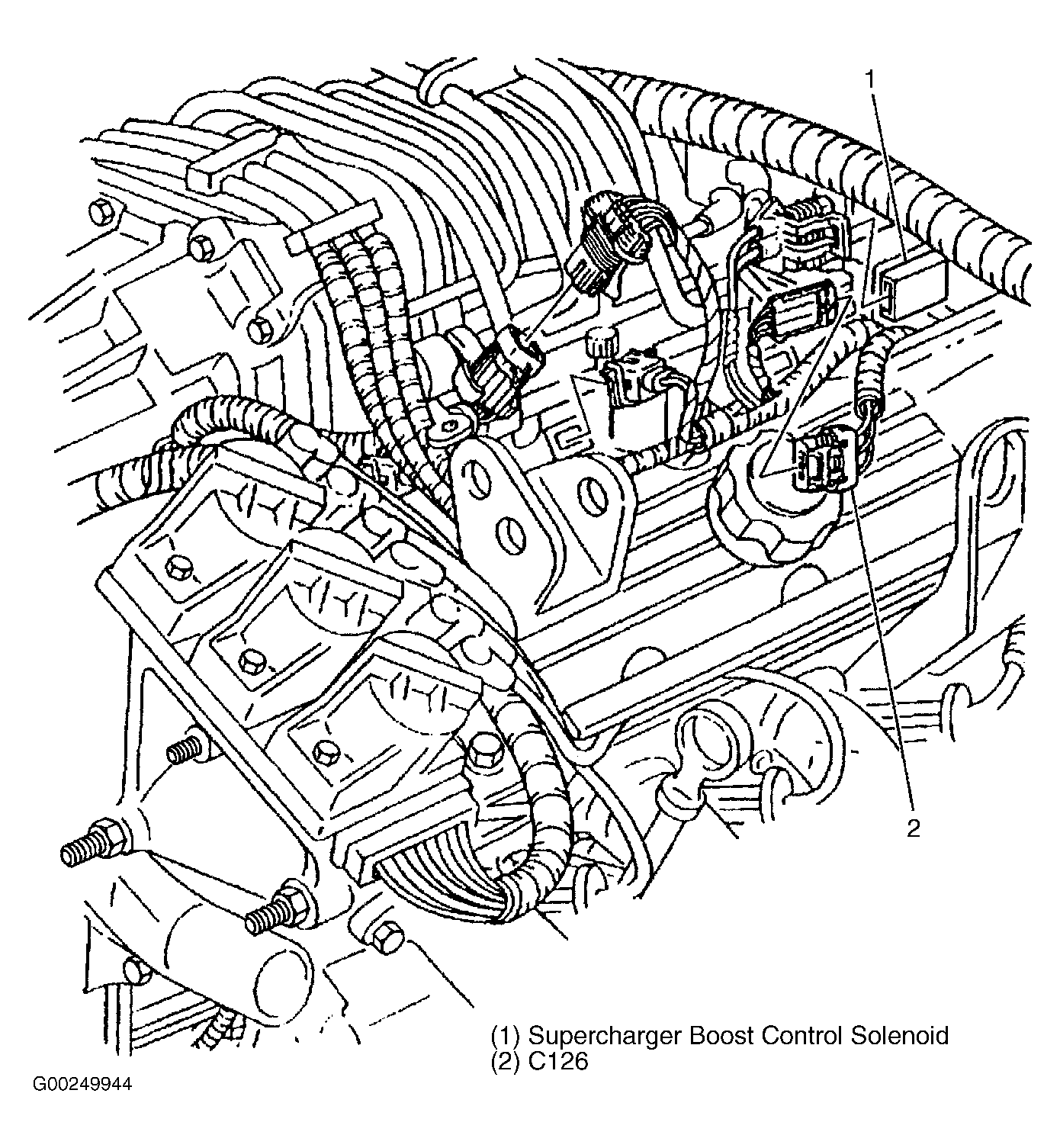

Fig 16: Locating Supercharger Boost Control Solenoid

Courtesy of GENERAL MOTORS CORP.
