Connector Identification: BONNEVILLE

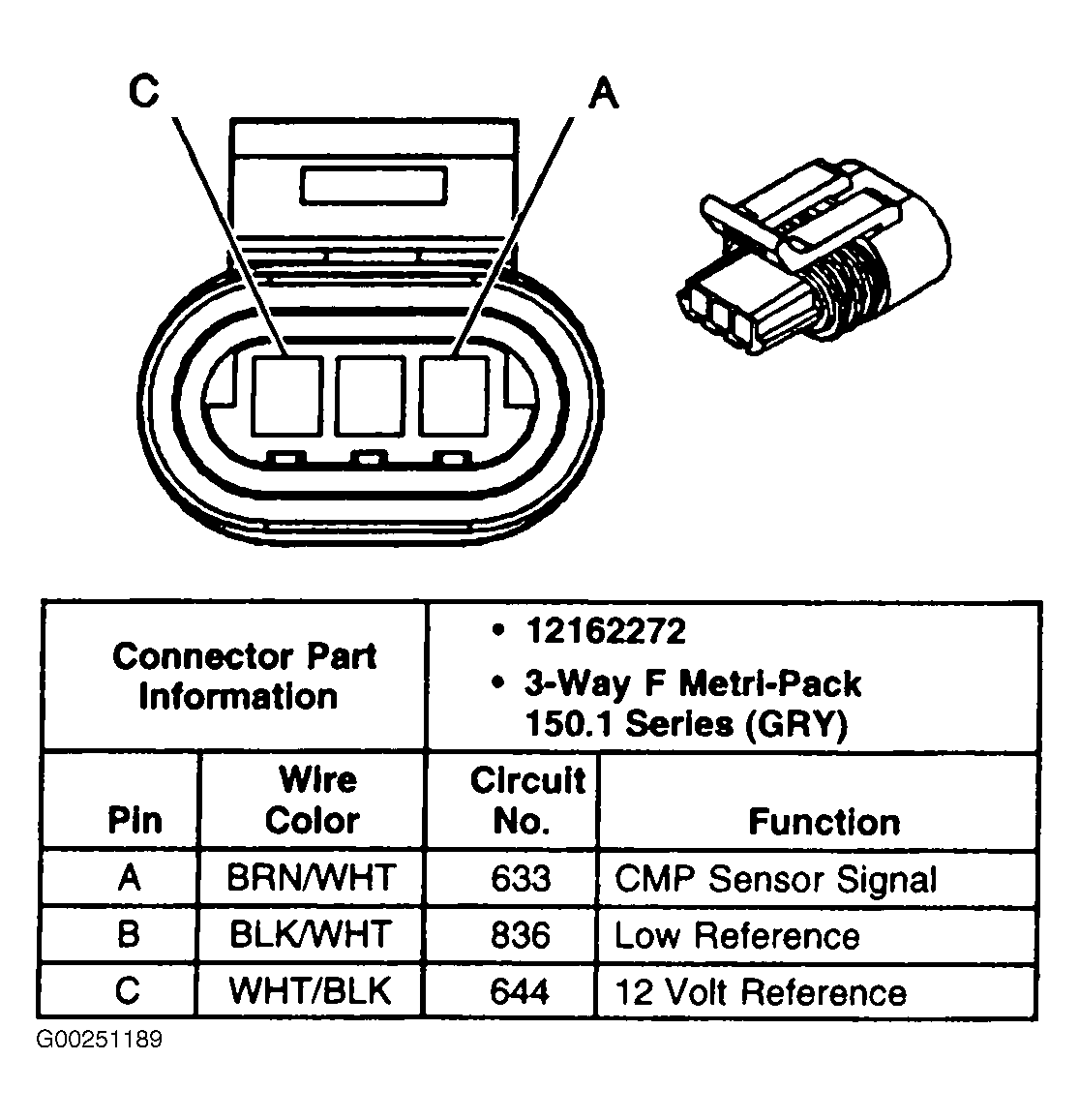

Fig 1: Identifying Camshaft Position Sensor Connector Terminals
G00251189Courtesy of GENERAL MOTORS CORP.

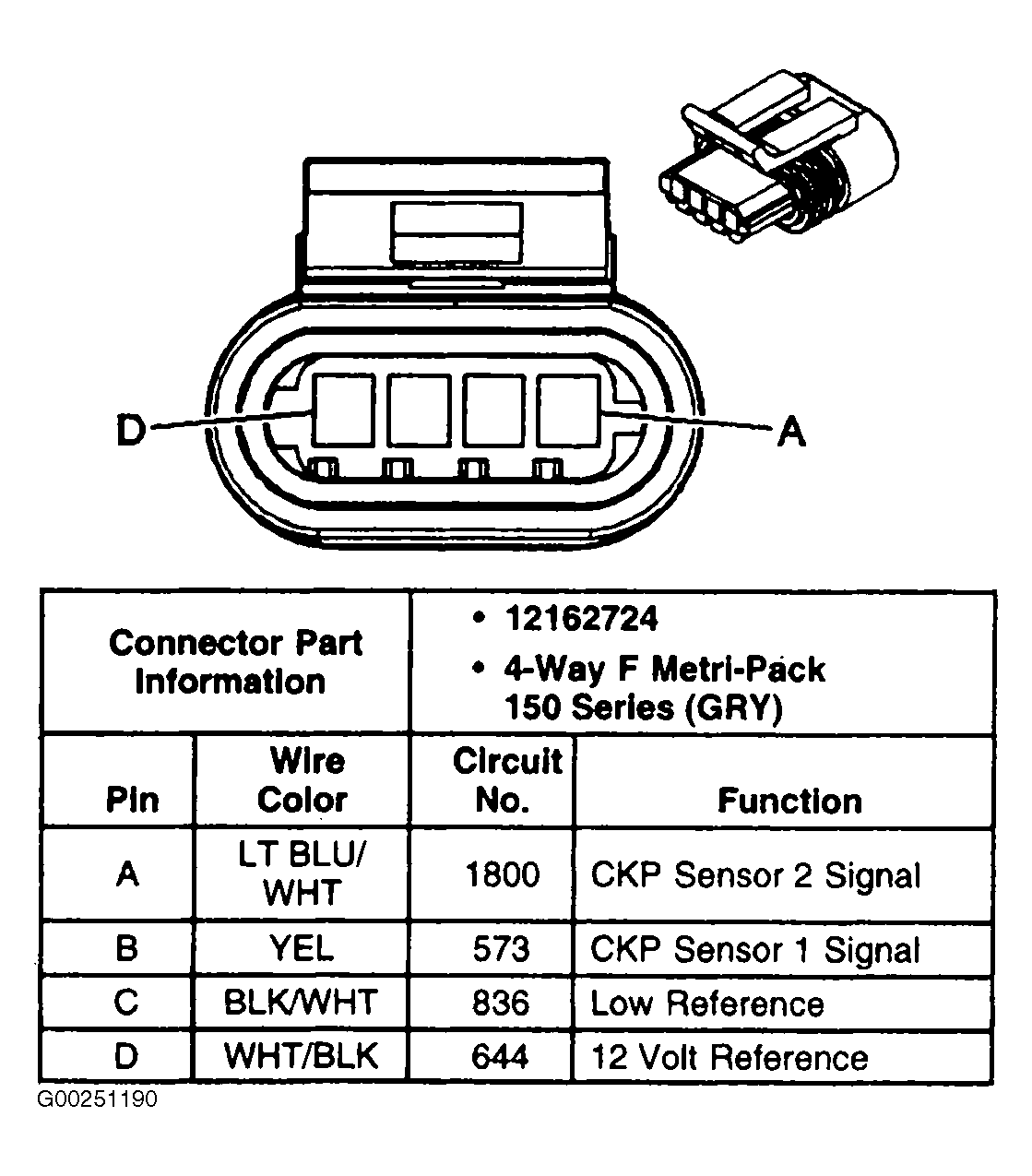

Fig 2: Identifying Crankshaft Position Sensor Connector Terminals
G00251190Courtesy of GENERAL MOTORS CORP.

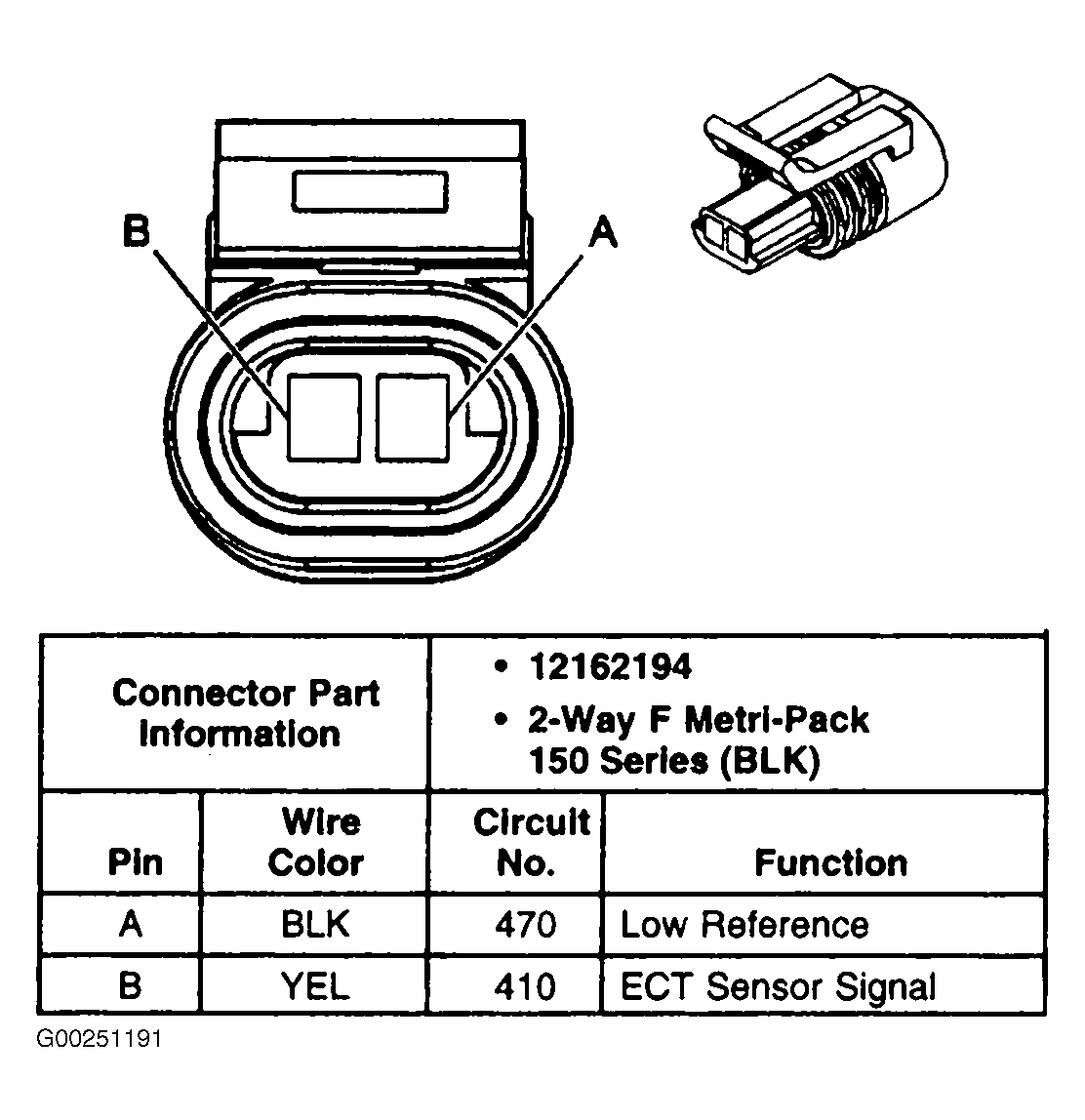

Fig 3: Identifying Engine Coolant Temperature Sensor Connector Terminals
G00251191Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Evaporative Emissions Canister Purge Solenoid Connector Terminals
G00251192Courtesy of GENERAL MOTORS CORP.

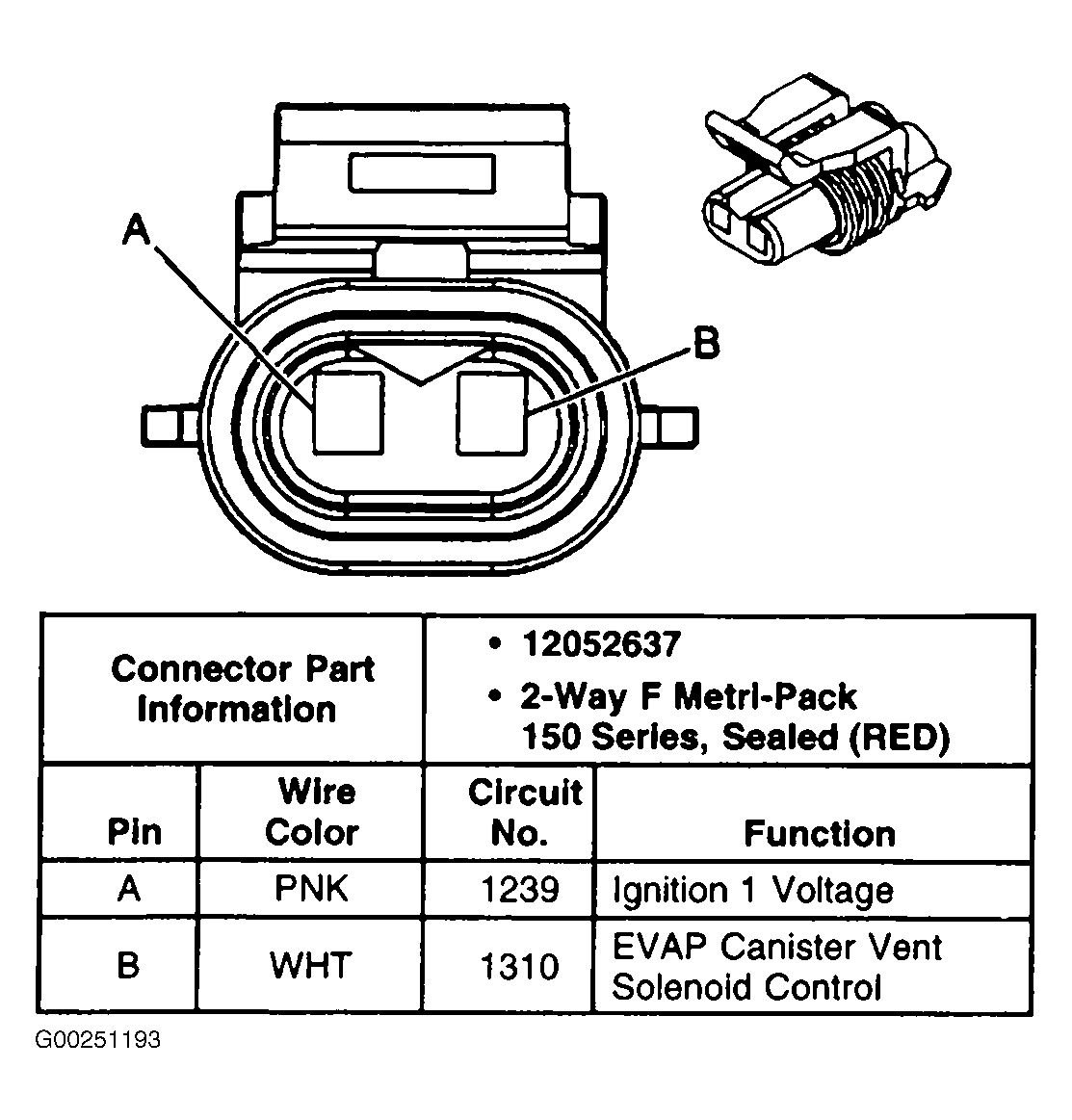

Fig 5: Identifying Evaporative Emissions Canister Vent Valve Solenoid Connector Terminals
G00251193Courtesy of GENERAL MOTORS CORP.

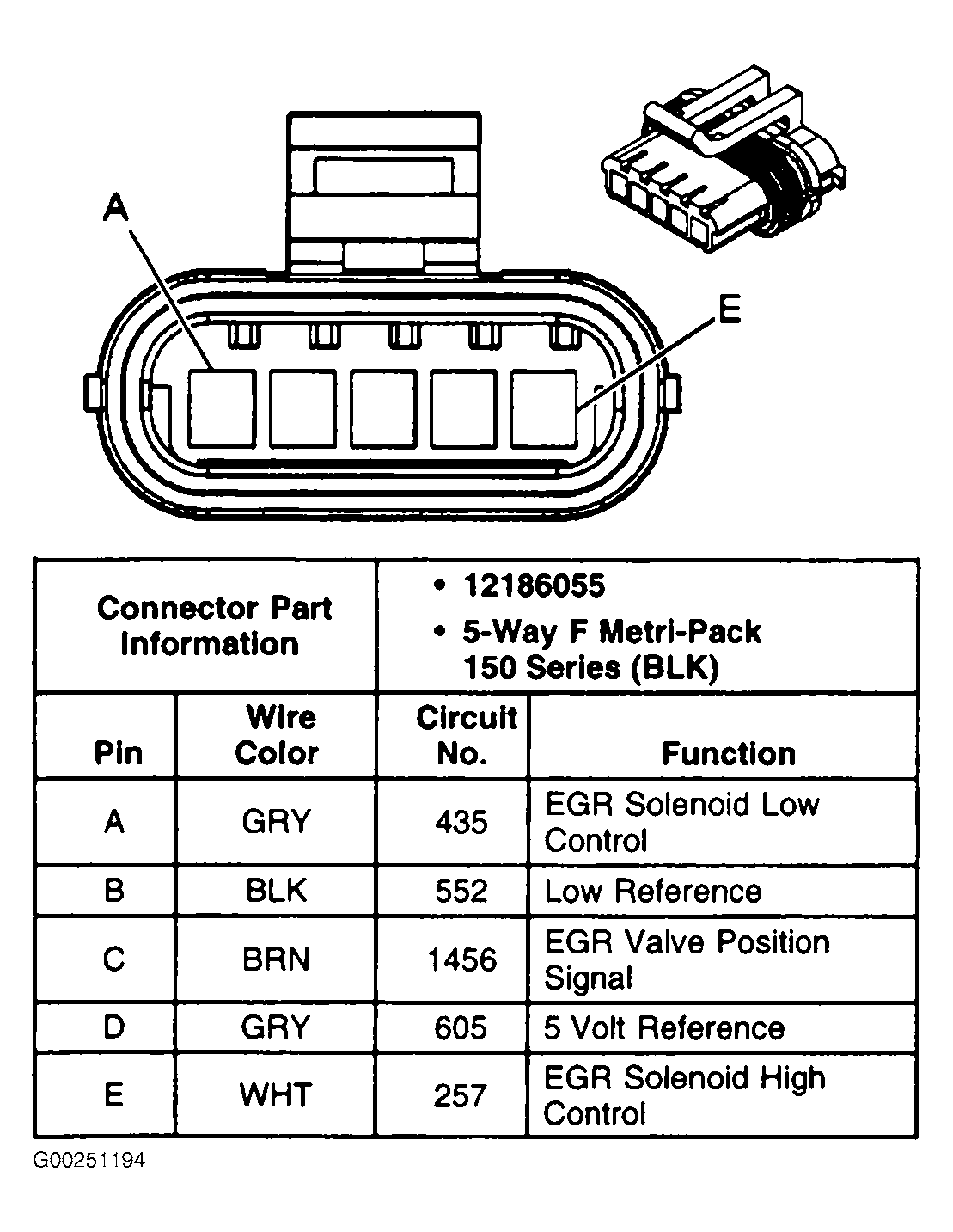

Fig 6: Identifying Exhaust Gas Recirculation Valve Connector Terminals
G00251194Courtesy of GENERAL MOTORS CORP.

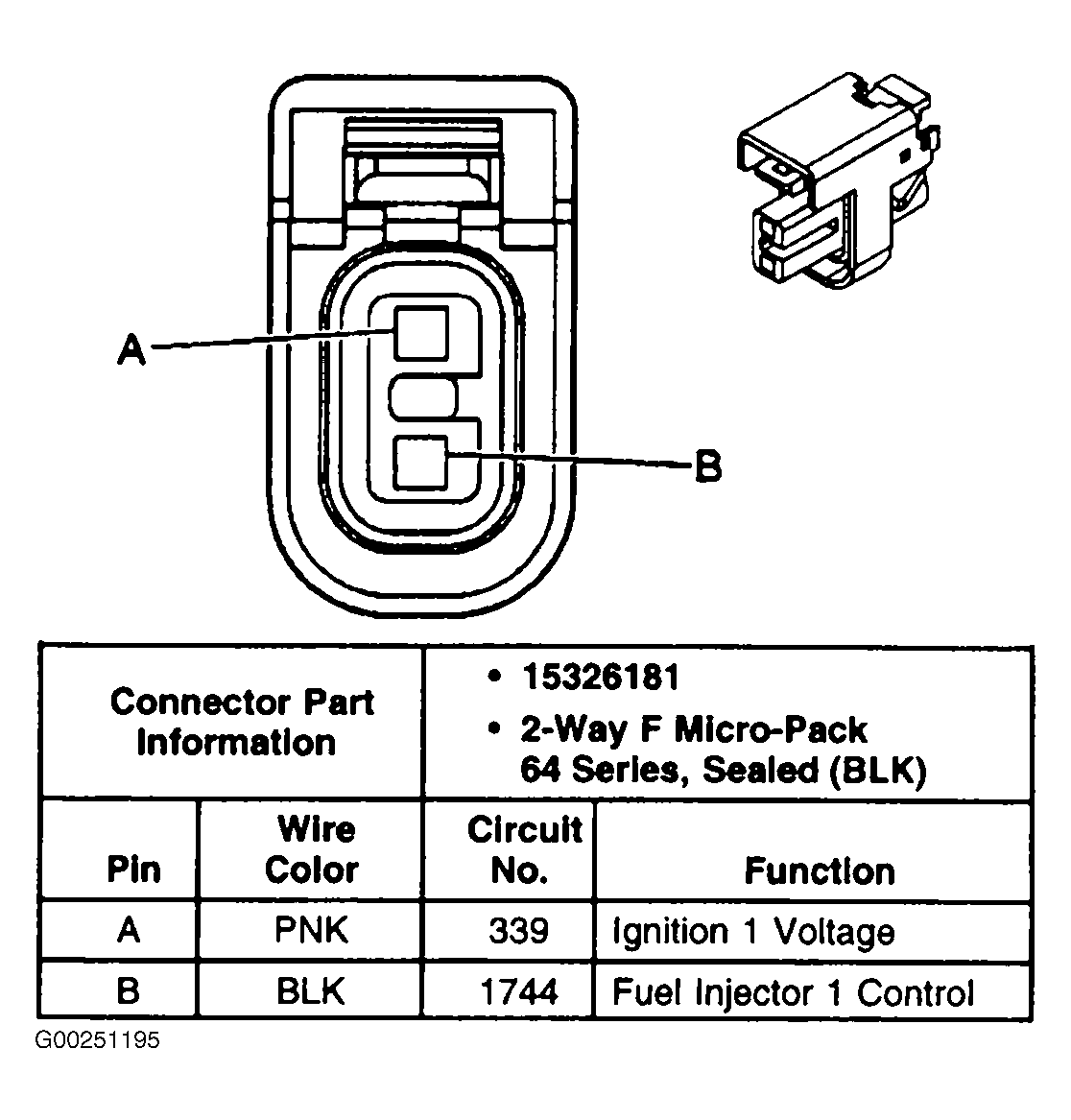

Fig 7: Identifying Fuel Injector No. 1 Connector Terminals (W/O Supercharger)
G00251195Courtesy of GENERAL MOTORS CORP.

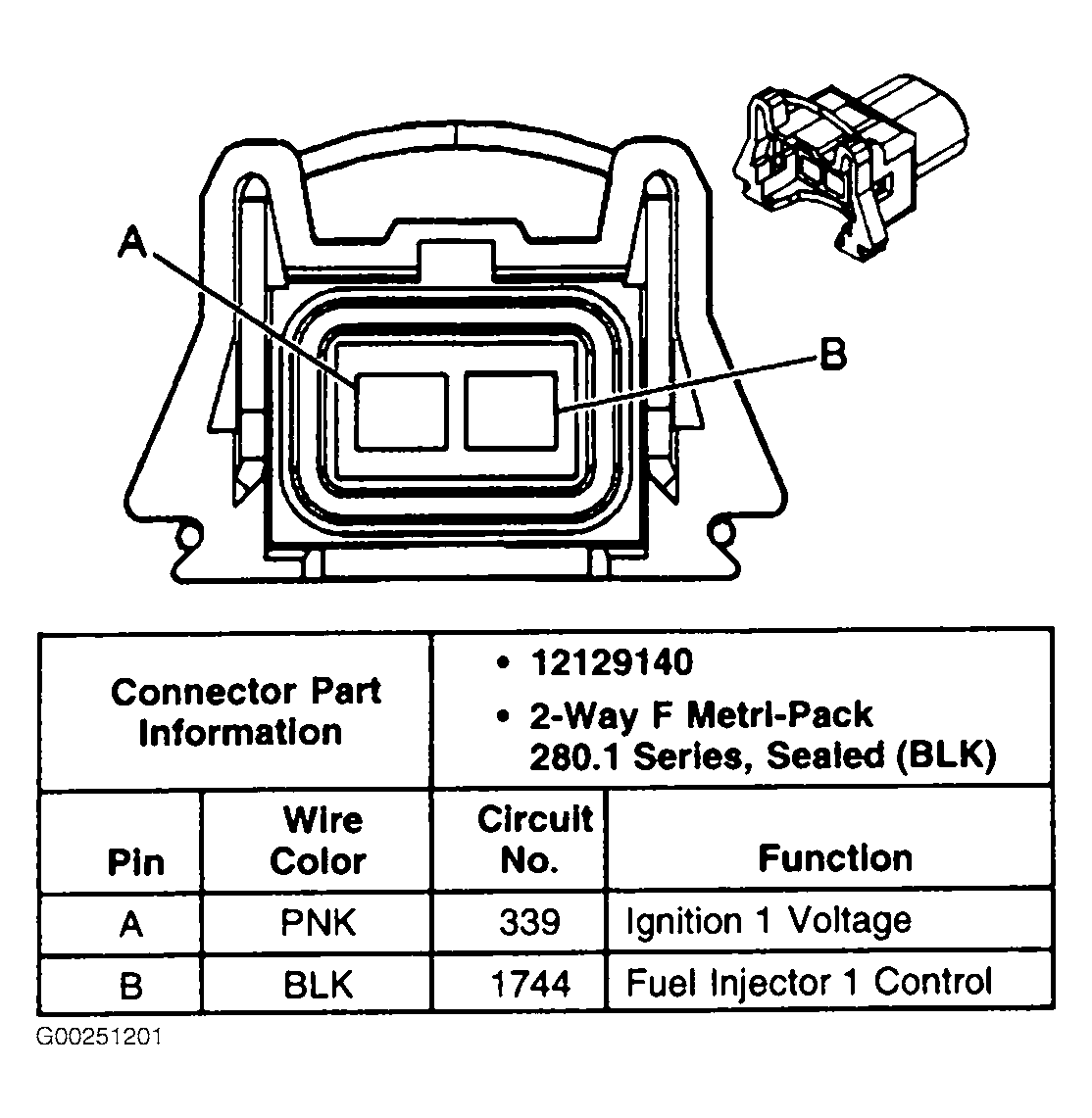

Fig 8: Identifying Fuel Injector No. 1 Connector Terminals (W/Supercharger)
G00251201Courtesy of GENERAL MOTORS CORP.
Fig 9: Identifying Fuel Injector No. 2 Connector Terminals (W/O Supercharger)
G00251196Courtesy of GENERAL MOTORS CORP.

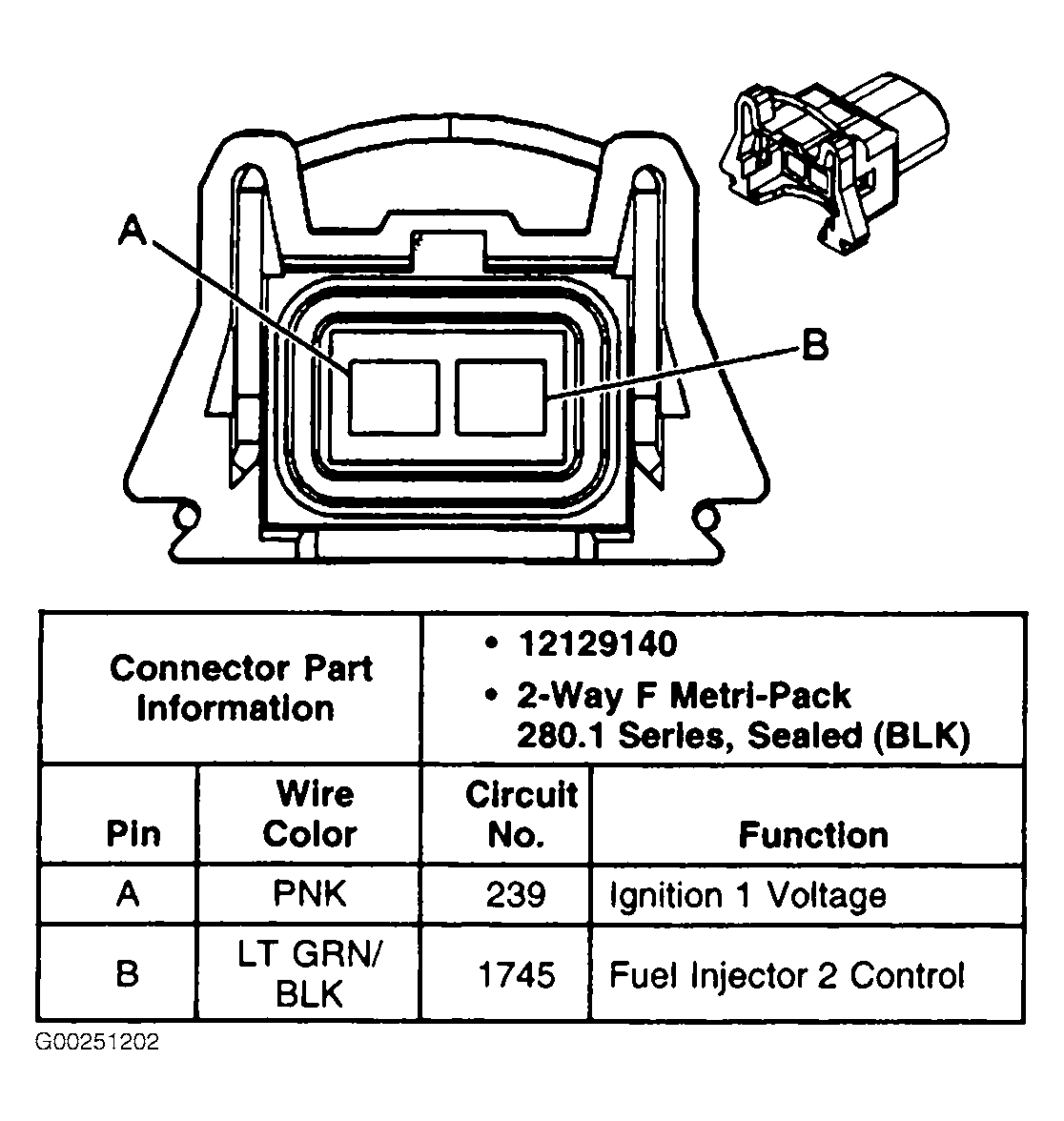

Fig 10: Identifying Fuel Injector No. 2 Connector Terminals (W/Supercharger)
G00251202Courtesy of GENERAL MOTORS CORP.

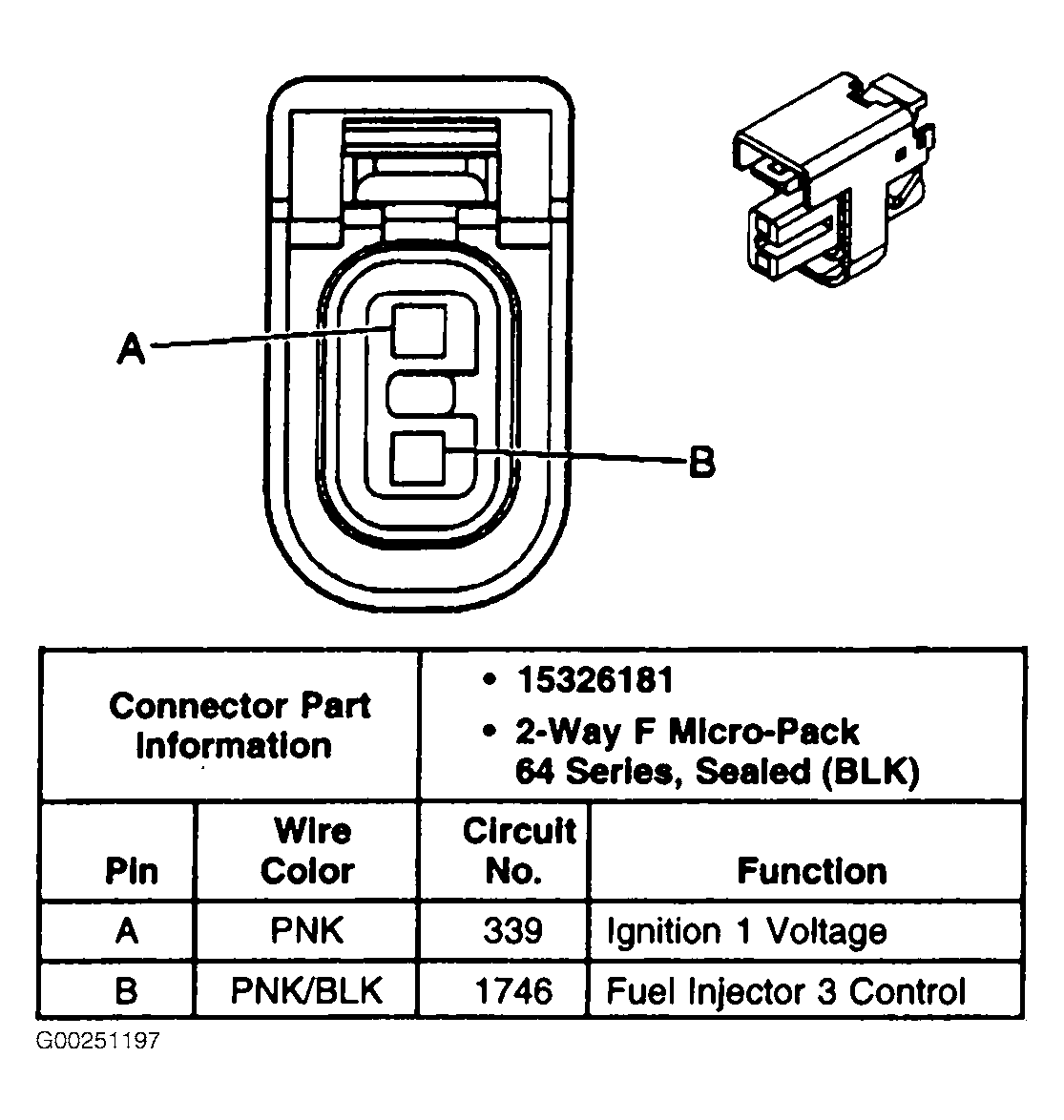

Fig 11: Identifying Fuel Injector No. 3 Connector Terminals (W/O Supercharger)
G00251197Courtesy of GENERAL MOTORS CORP.

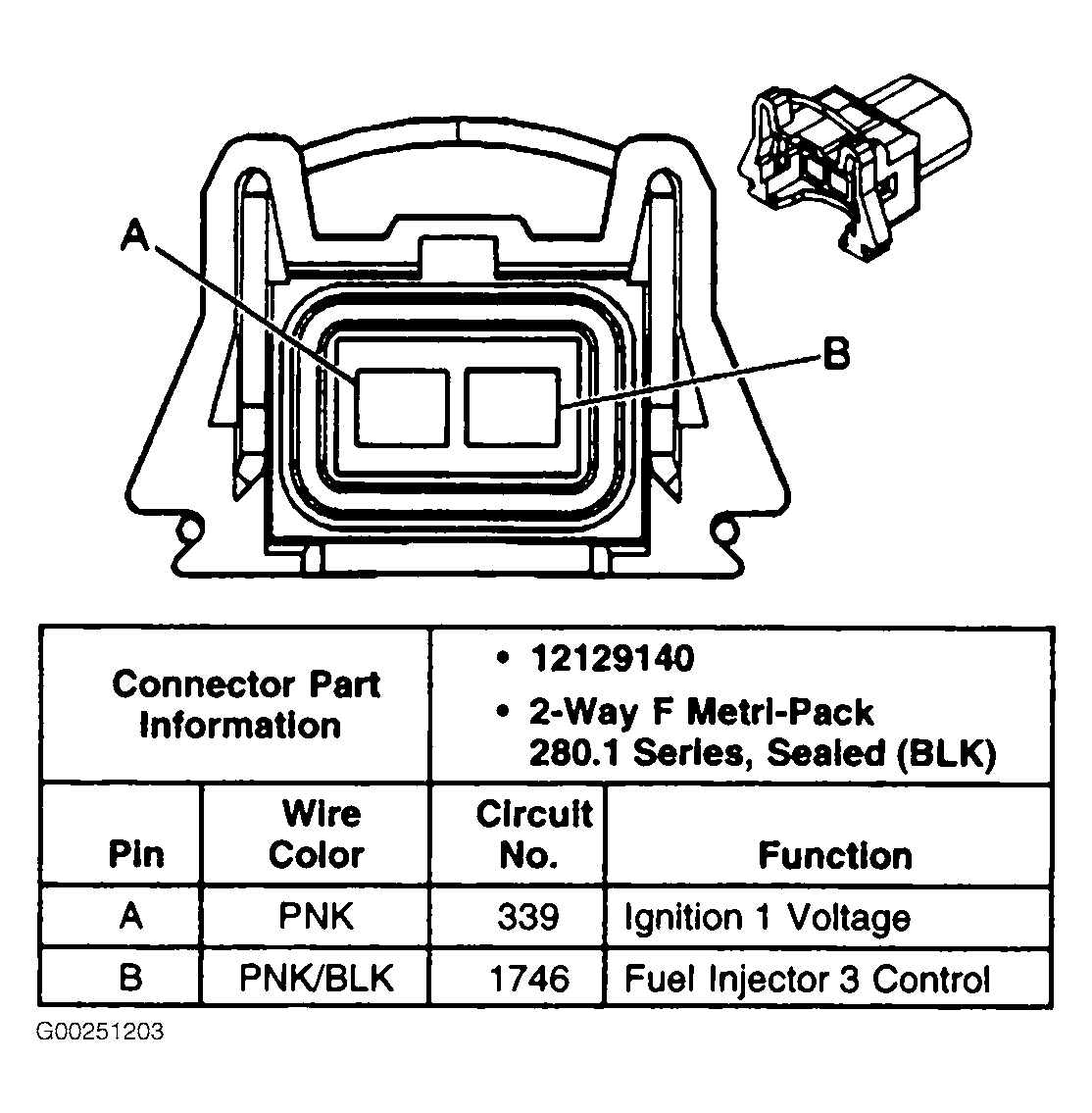

Fig 12: Identifying Fuel Injector No. 3 Connector Terminals (W/Supercharger)
G00251203Courtesy of GENERAL MOTORS CORP.

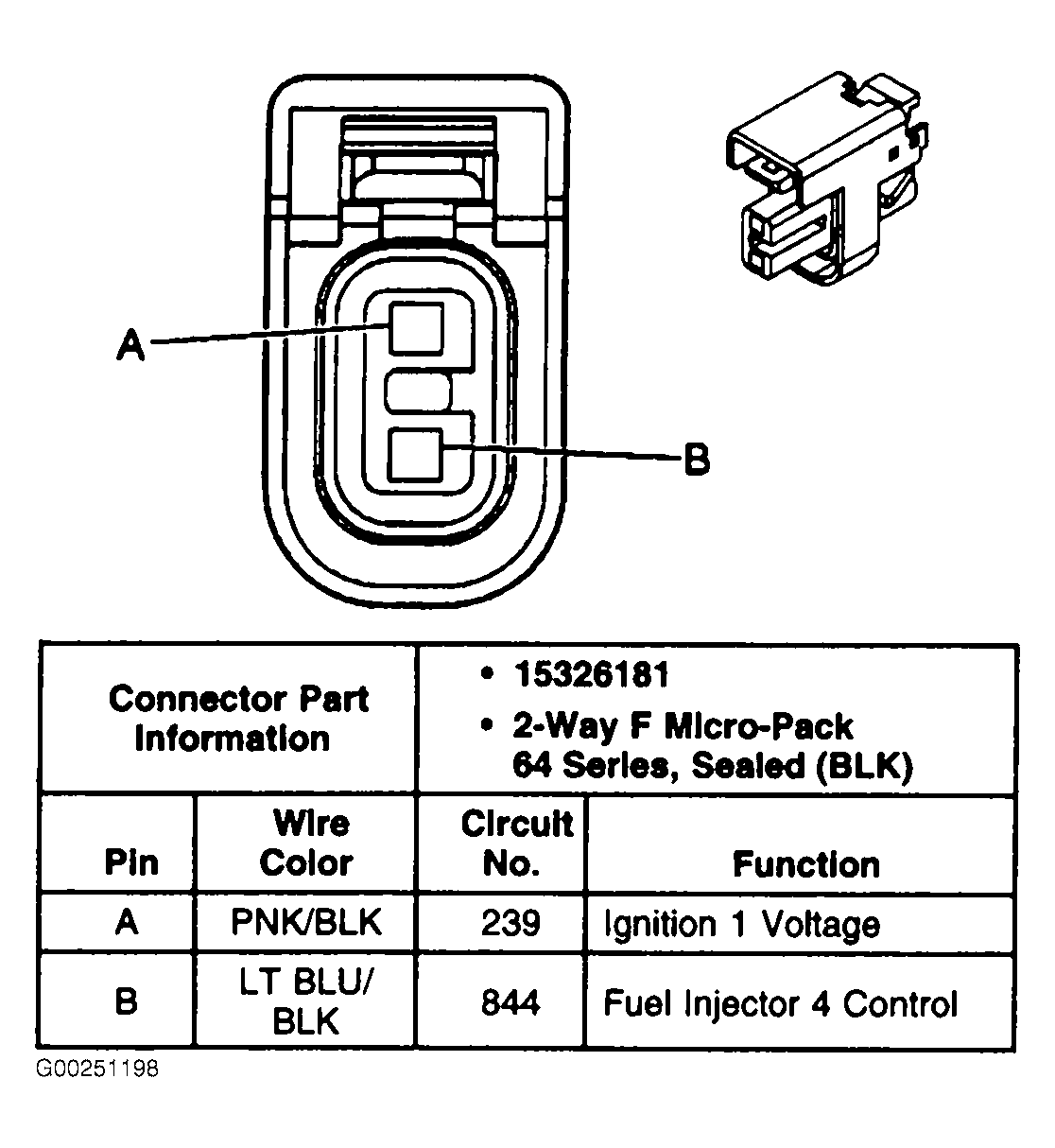

Fig 13: Identifying Fuel Injector No. 4 Connector Terminals (W/O Supercharger)
G00251198Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying Fuel Injector No. 4 Connector Terminals (W/Supercharger)
G00251204Courtesy of GENERAL MOTORS CORP.

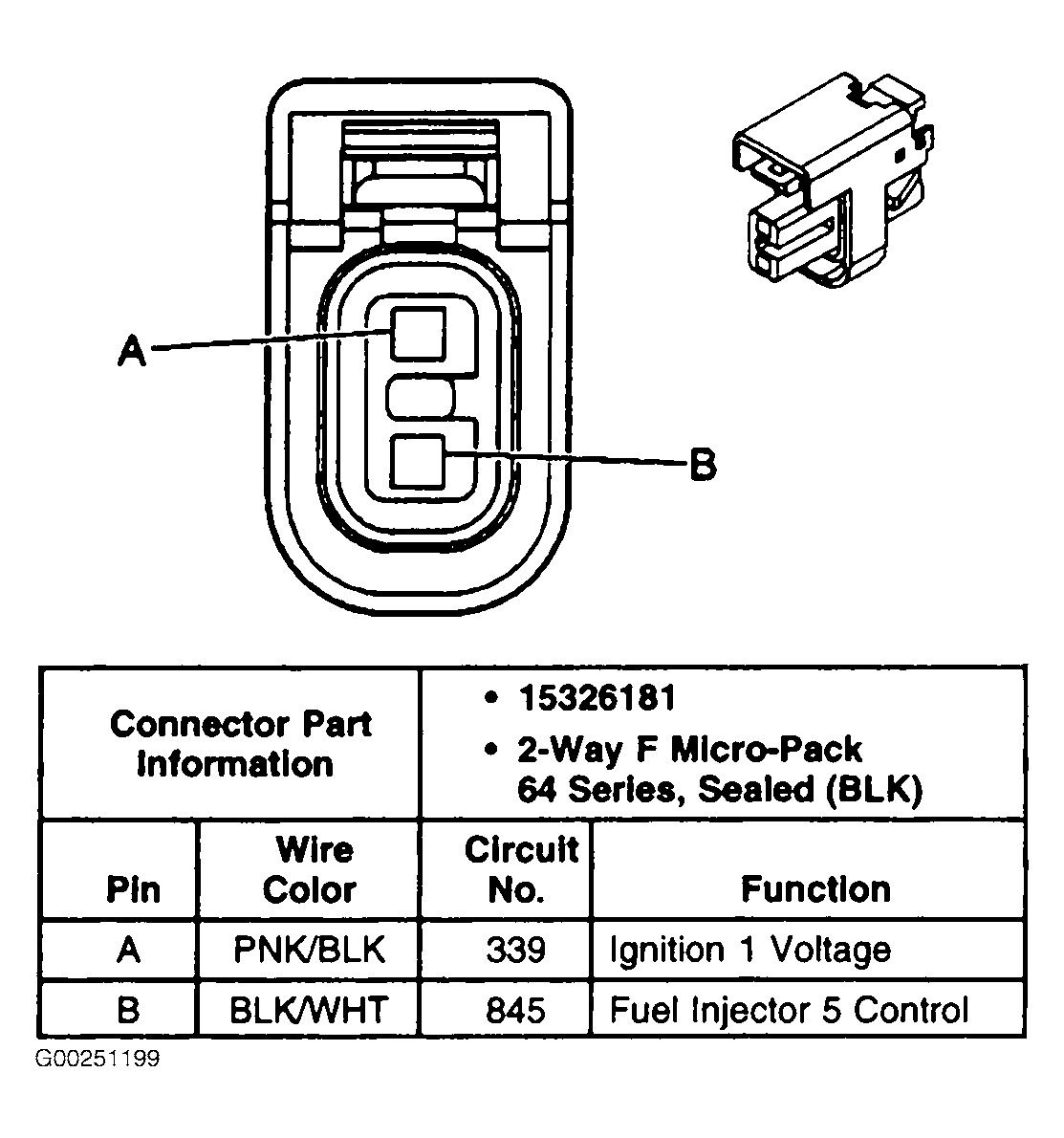

Fig 15: Identifying Fuel Injector No. 5 Connector Terminals (W/O Supercharger)
G00251199Courtesy of GENERAL MOTORS CORP.

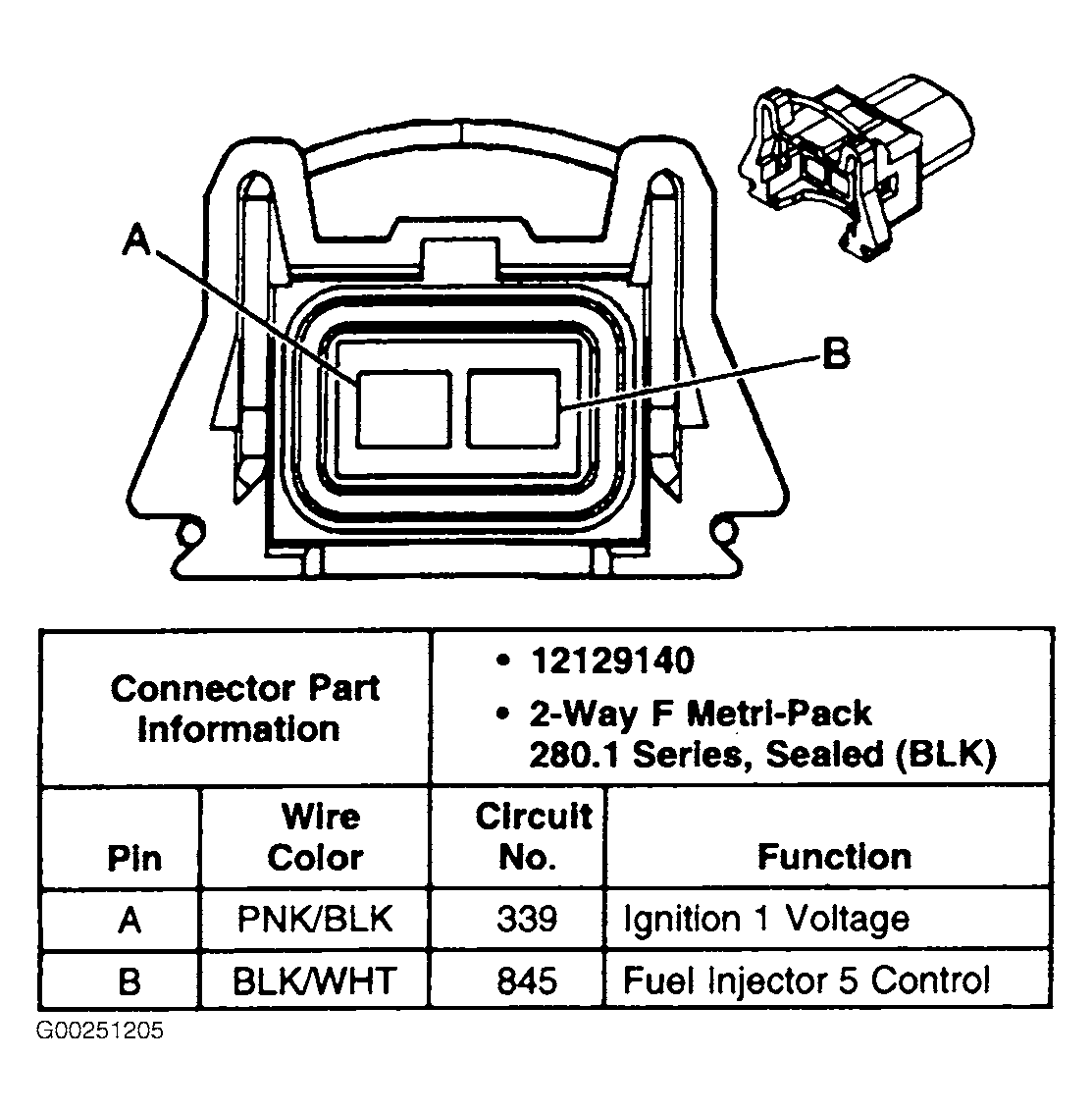

Fig 16: Identifying Fuel Injector No. 5 Connector Terminals (W/Supercharger)
G00251205Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying Fuel Injector No. 6 Connector Terminals (W/O Supercharger)
G00251200Courtesy of GENERAL MOTORS CORP.

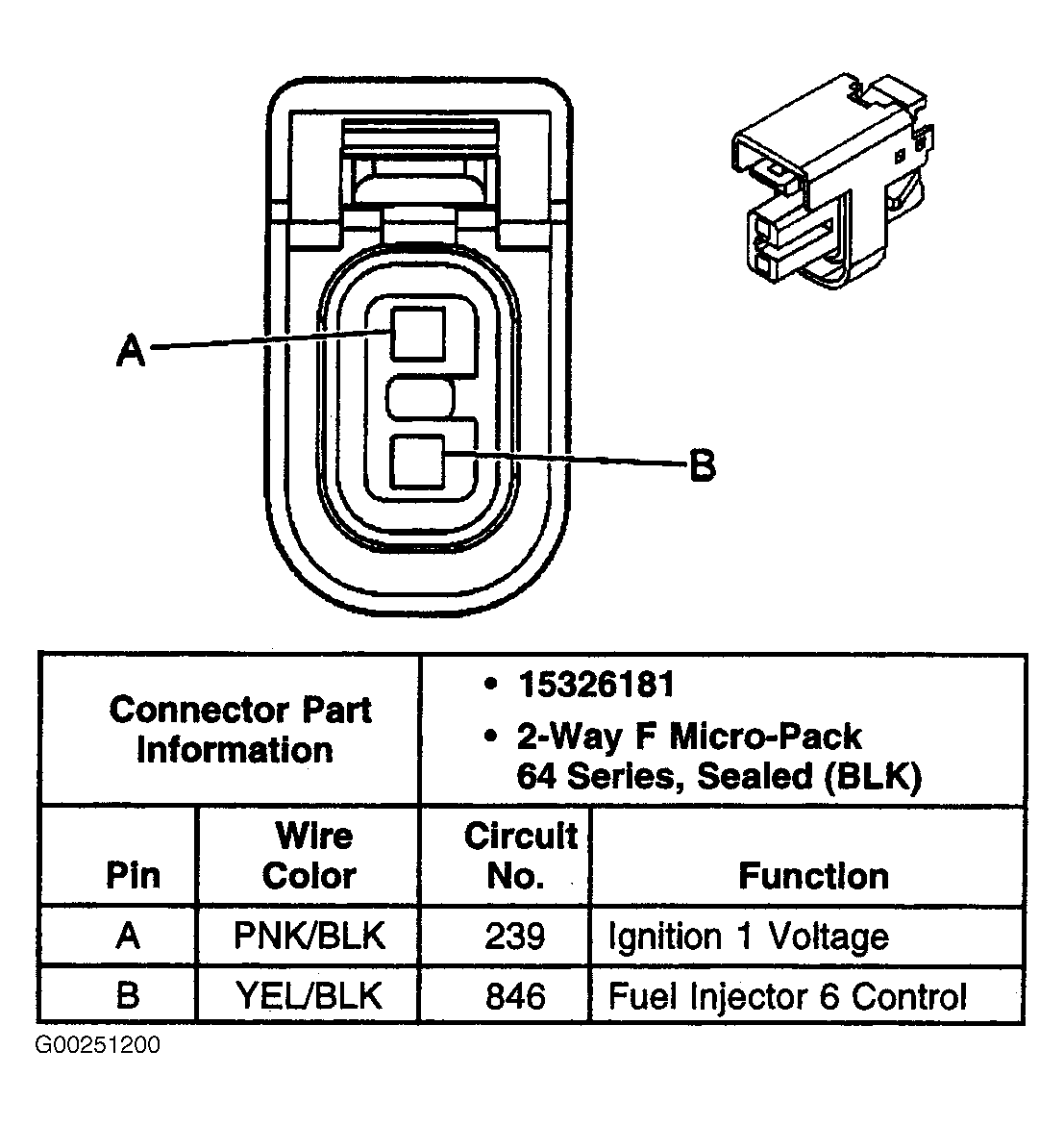

Fig 18: Identifying Fuel Injector No. 6 Connector Terminals (W/Supercharger)
G00251206Courtesy of GENERAL MOTORS CORP.

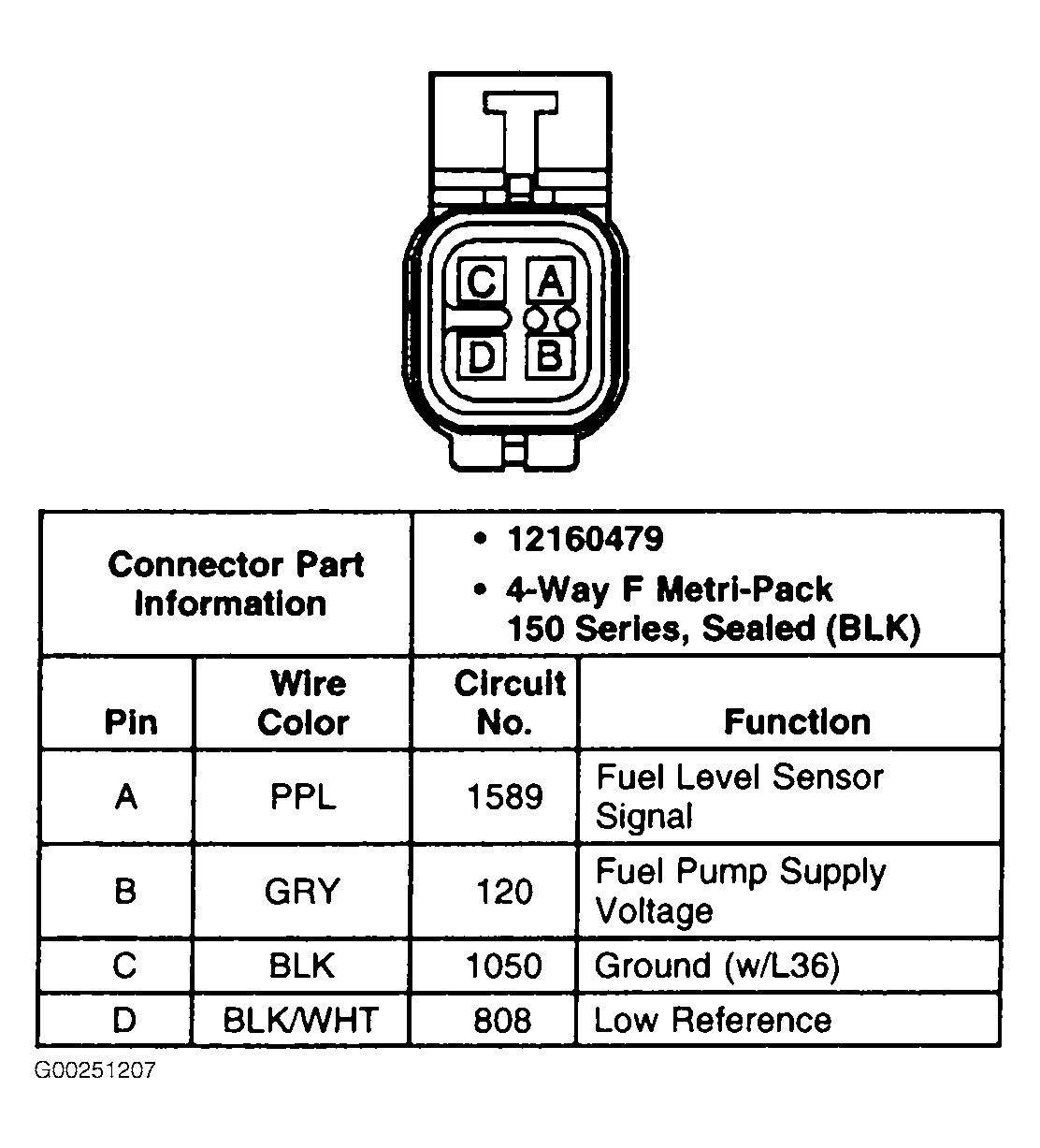

Fig 19: Identifying Fuel Pump & Sender Assembly Connector Terminals
G00251207Courtesy of GENERAL MOTORS CORP.

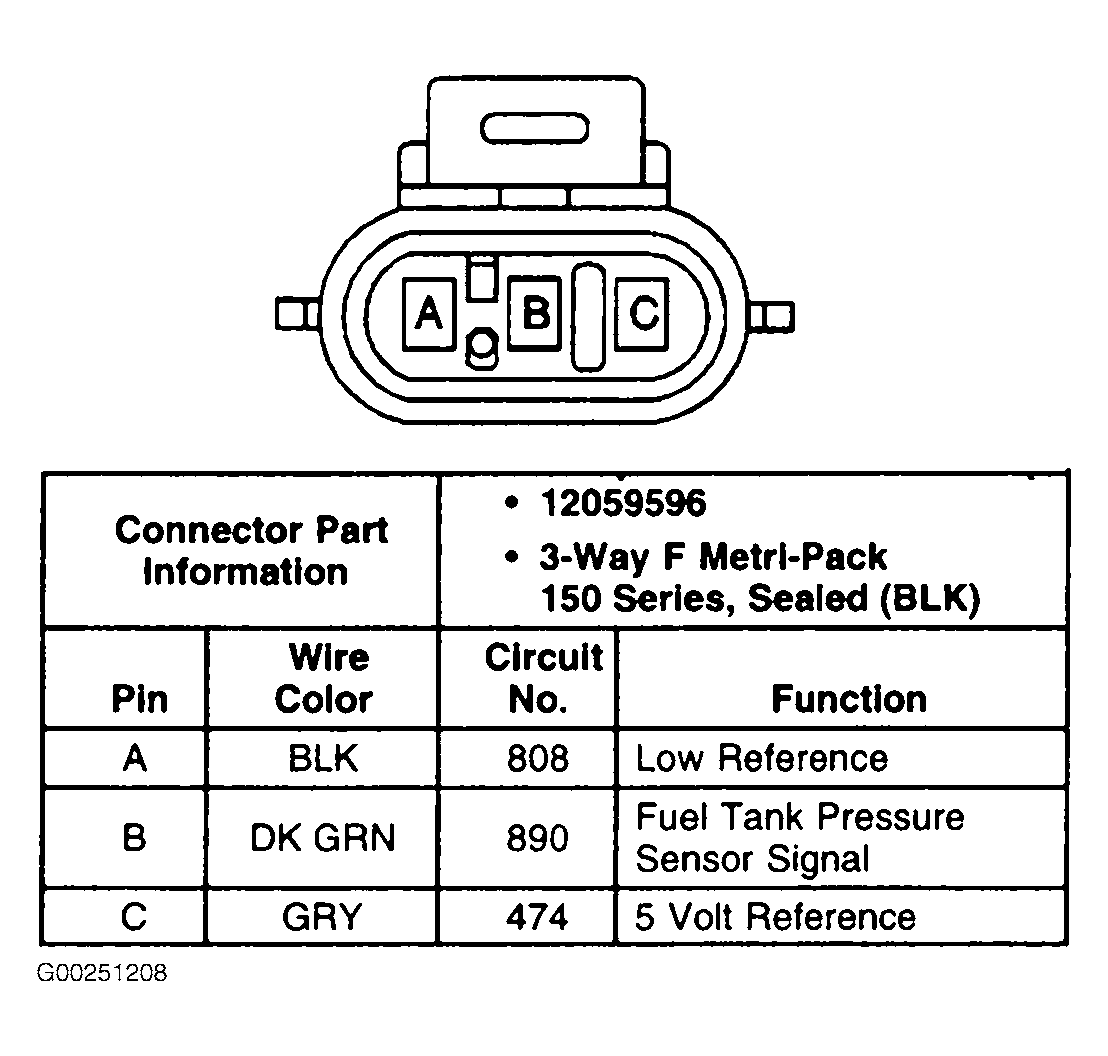

Fig 20: Identifying Fuel Tank Pressure Sensor Connector Terminals
G00251208Courtesy of GENERAL MOTORS CORP.

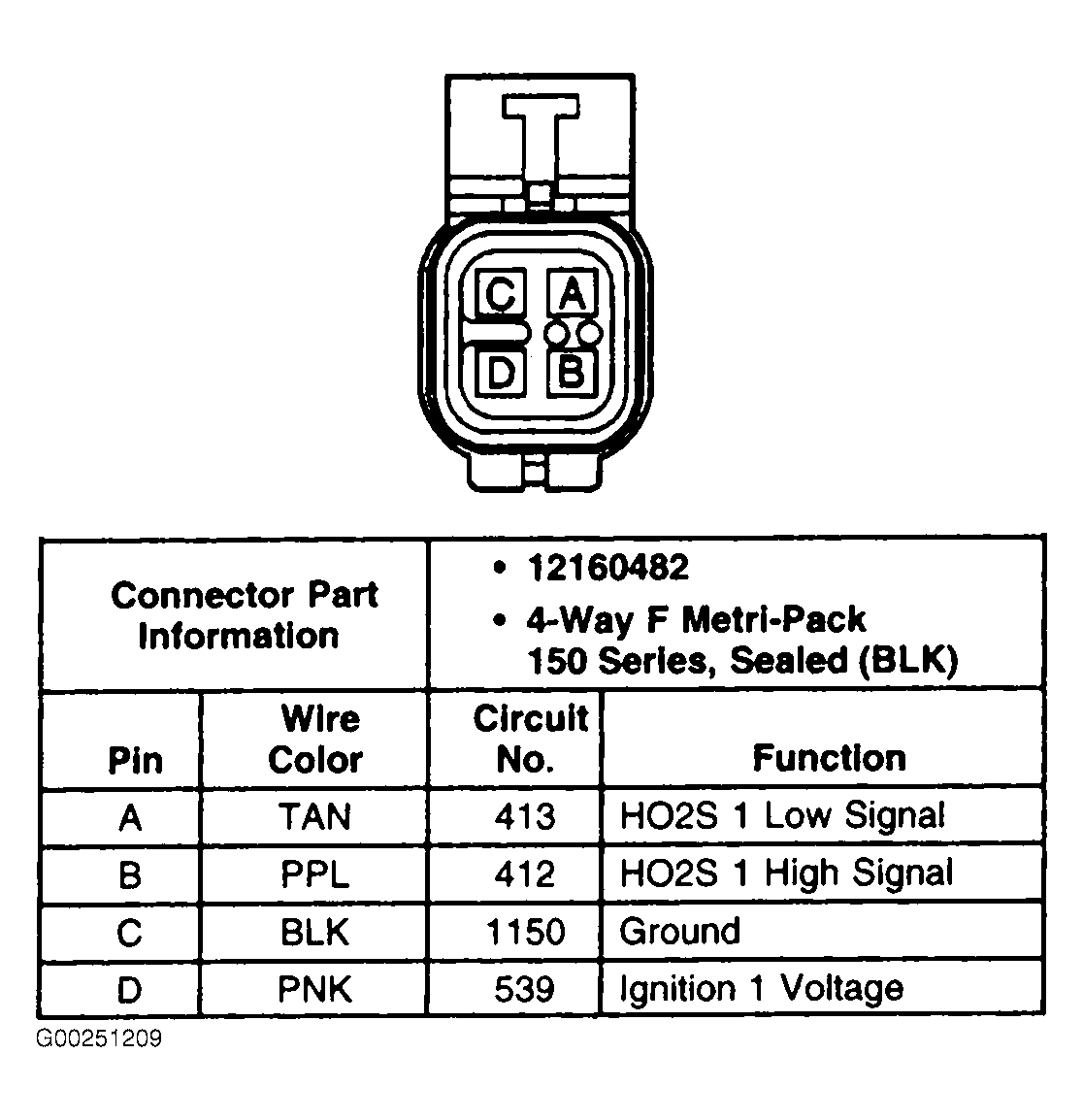

Fig 21: Identifying HO2S Bank 1 Sensor 1 Connector Terminals
G00251209Courtesy of GENERAL MOTORS CORP.

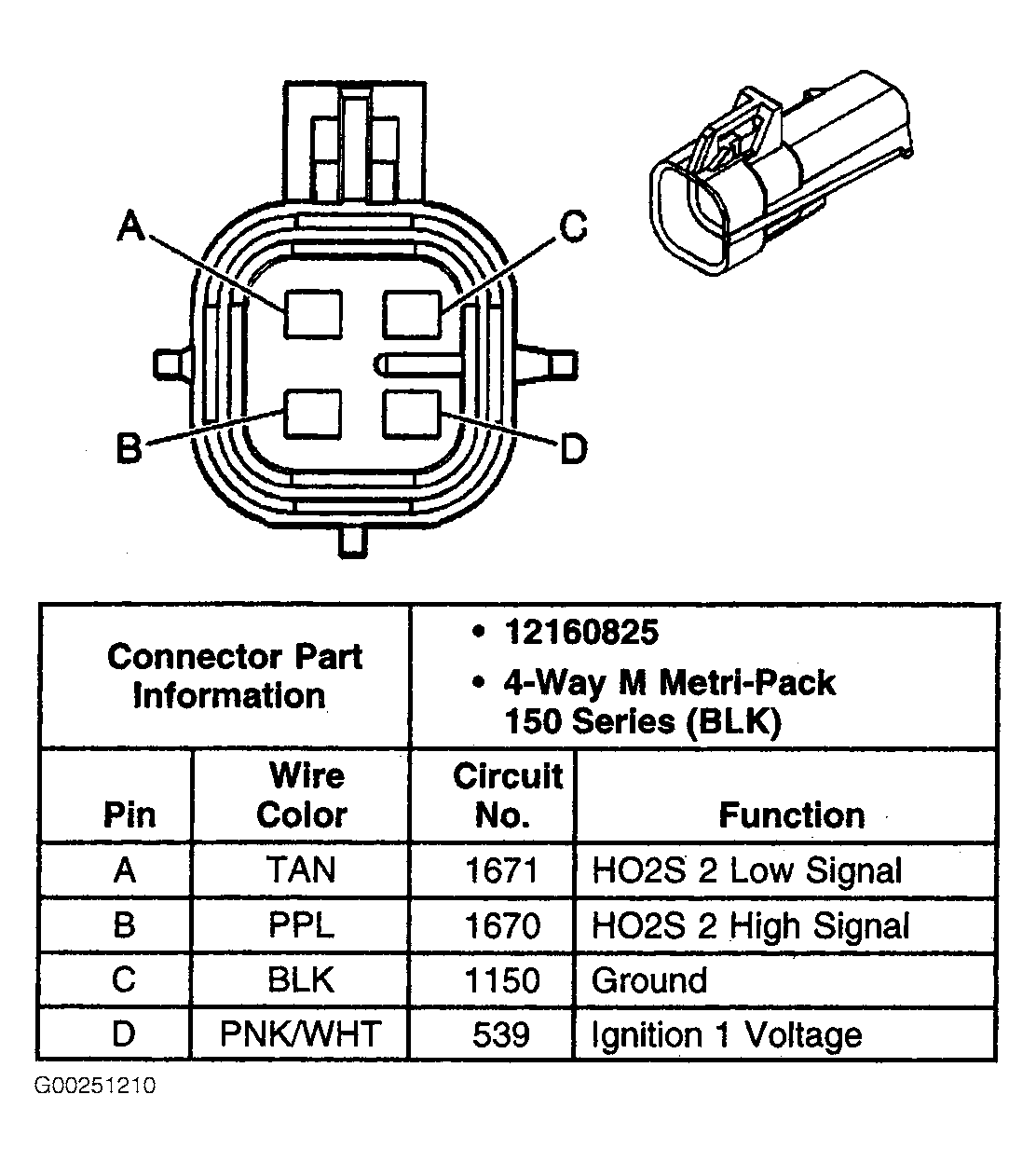

Fig 22: Identifying HO2S Bank 1 Sensor 2 Connector Terminals
G00251210Courtesy of GENERAL MOTORS CORP.

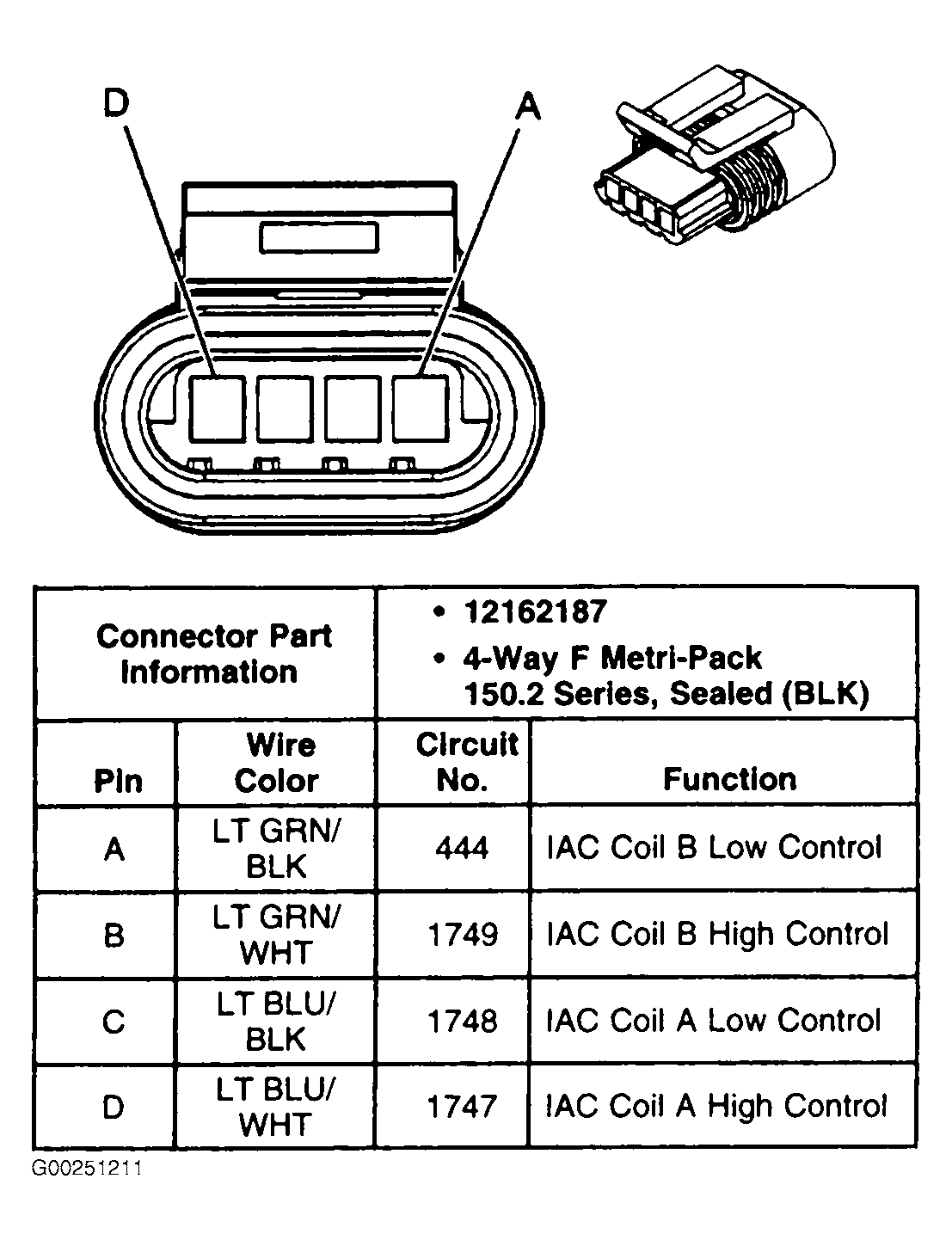

Fig 23: Identifying Idle Air Control Valve Connector Terminals
G00251211Courtesy of GENERAL MOTORS CORP.

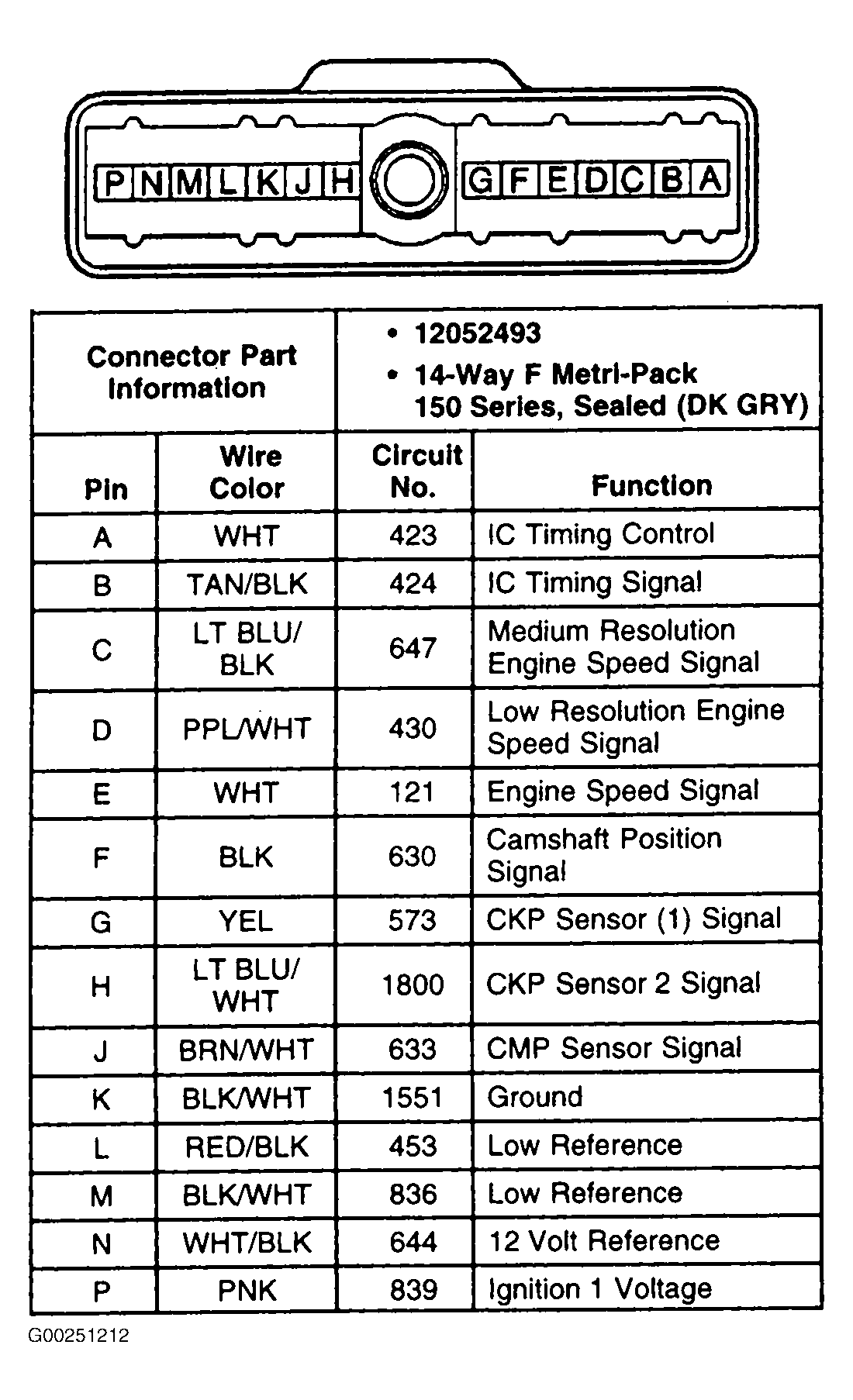

Fig 24: Identifying Ignition Control Module Connector Terminals
G00251212Courtesy of GENERAL MOTORS CORP.
Fig 25: Identifying Intake Air Temperature Sensor Connector Terminals
G00251213Courtesy of GENERAL MOTORS CORP.

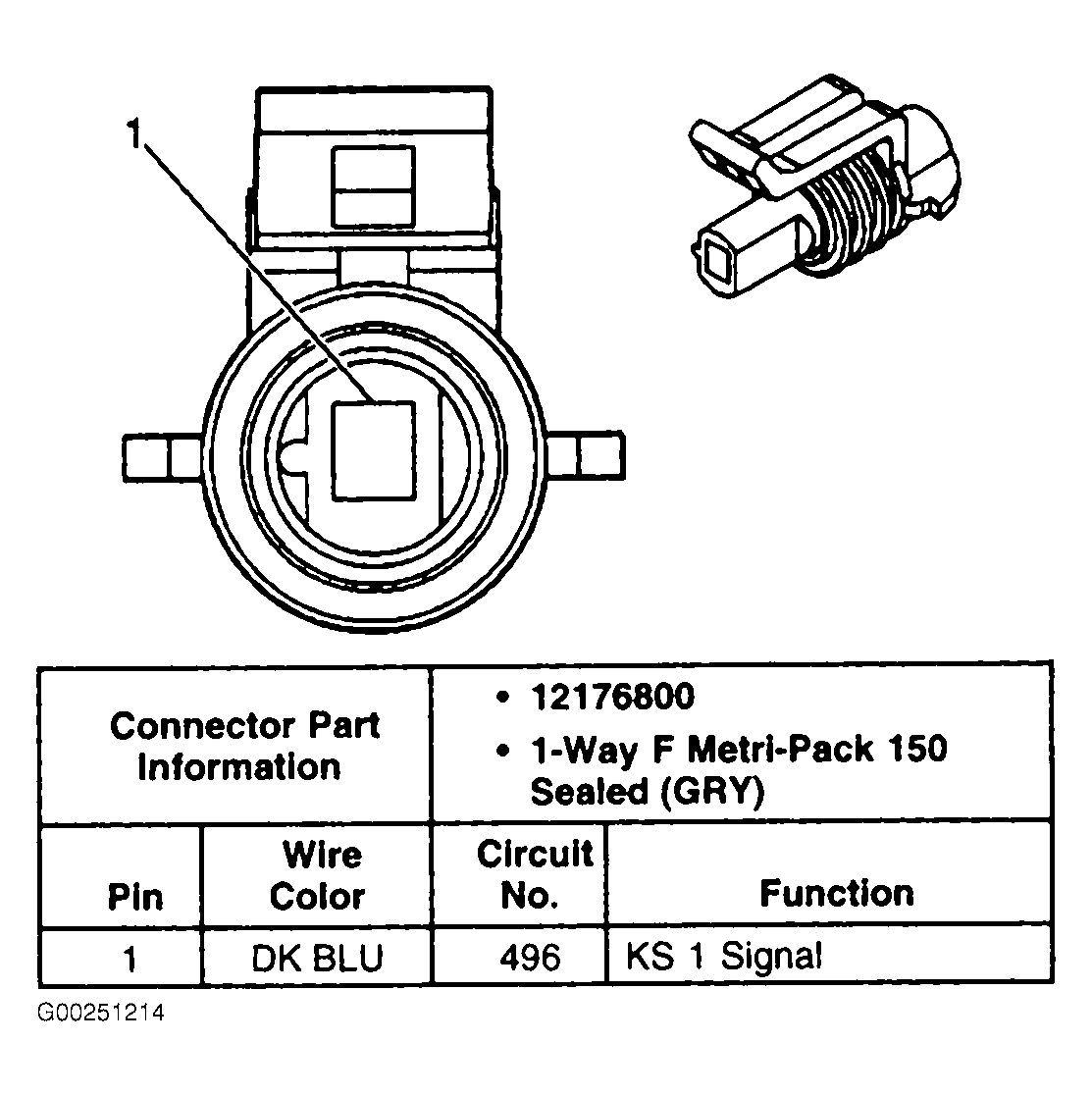

Fig 26: Identifying Knock Sensor Bank 1 Connector Terminals
G00251214Courtesy of GENERAL MOTORS CORP.

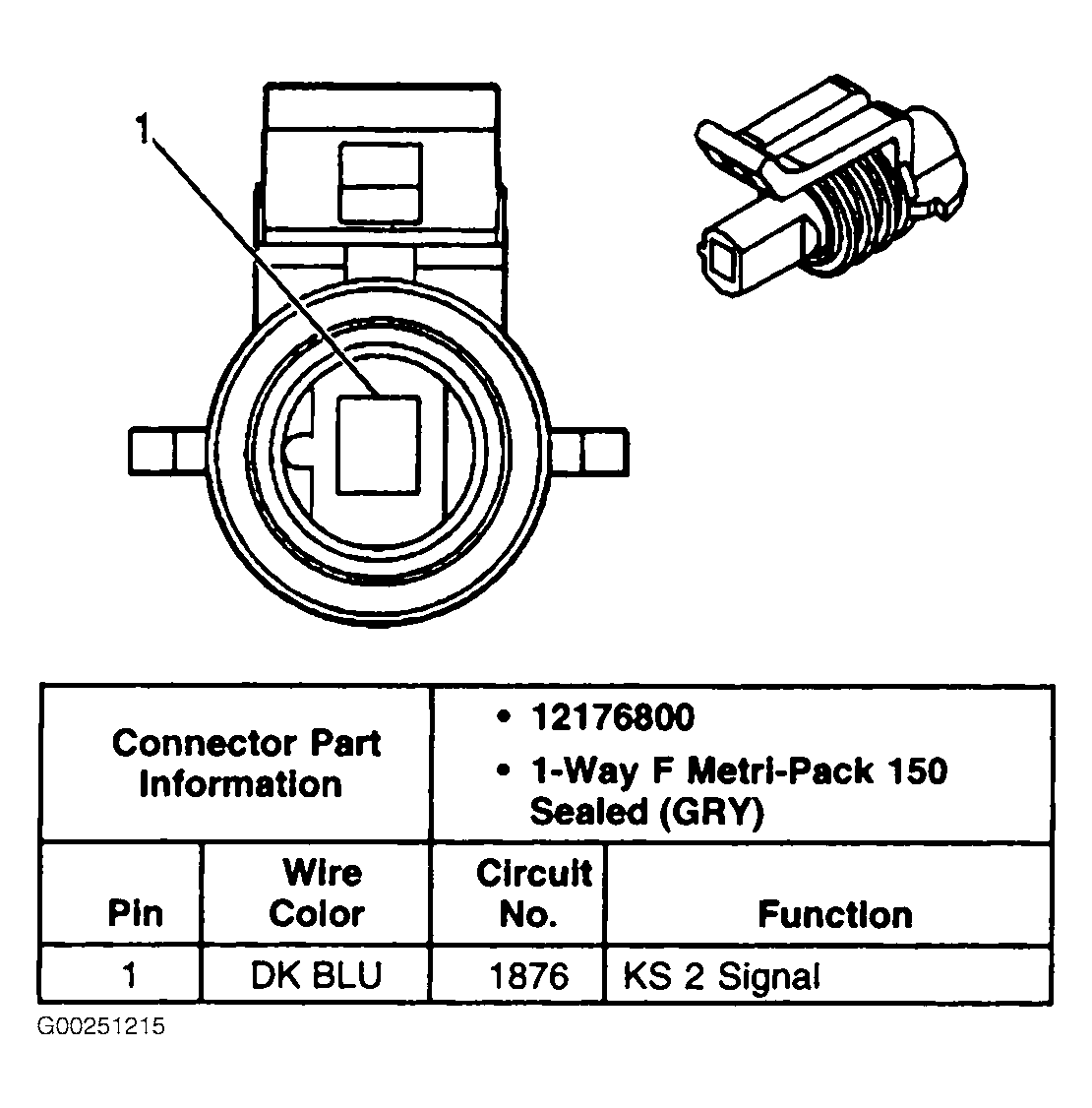

Fig 27: Identifying Knock Sensor Bank 2 Connector Terminals
G00251215Courtesy of GENERAL MOTORS CORP.

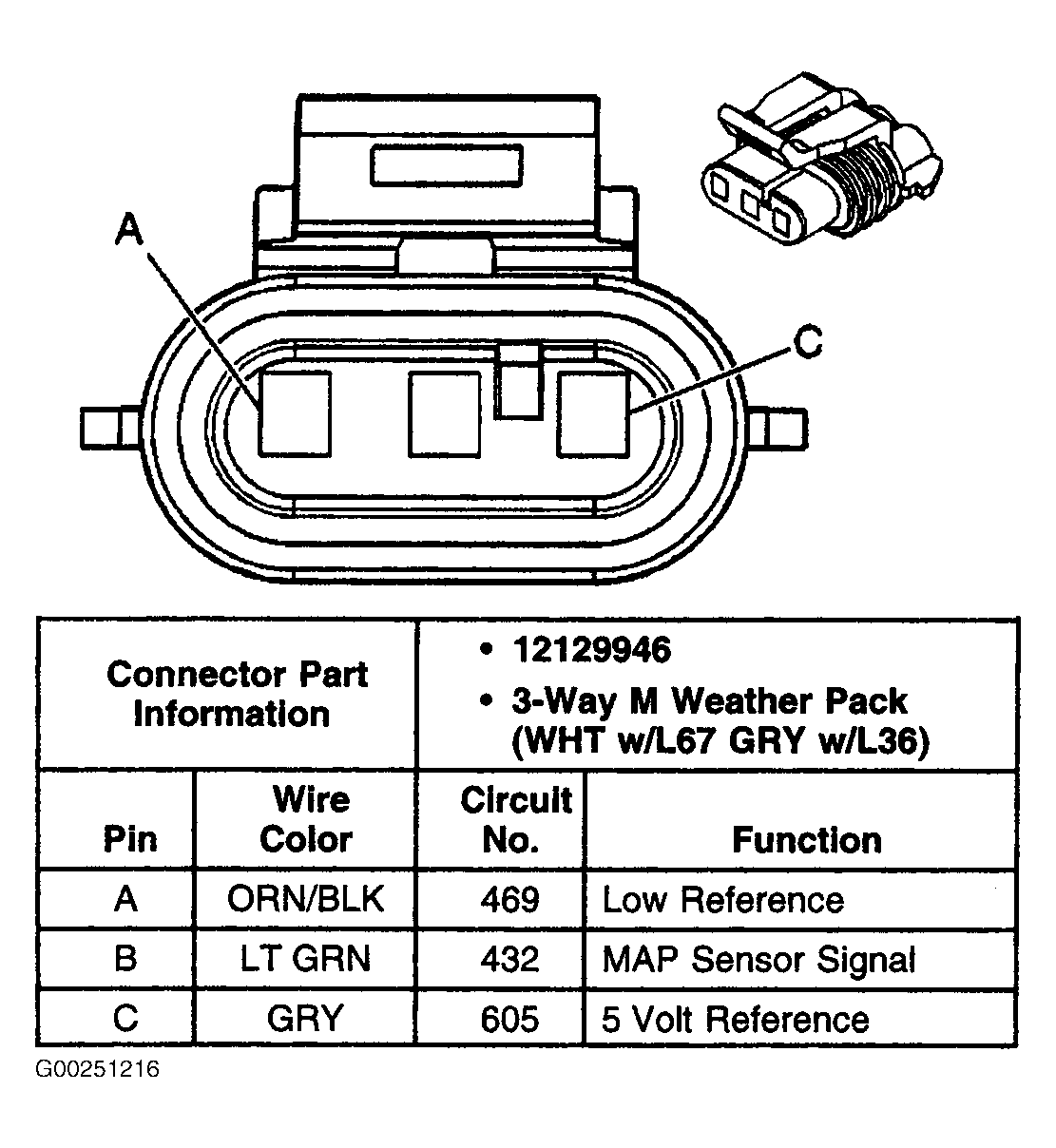

Fig 28: Identifying Manifold Absolute Pressure Sensor Connector Terminal
G00251216Courtesy of GENERAL MOTORS CORP.

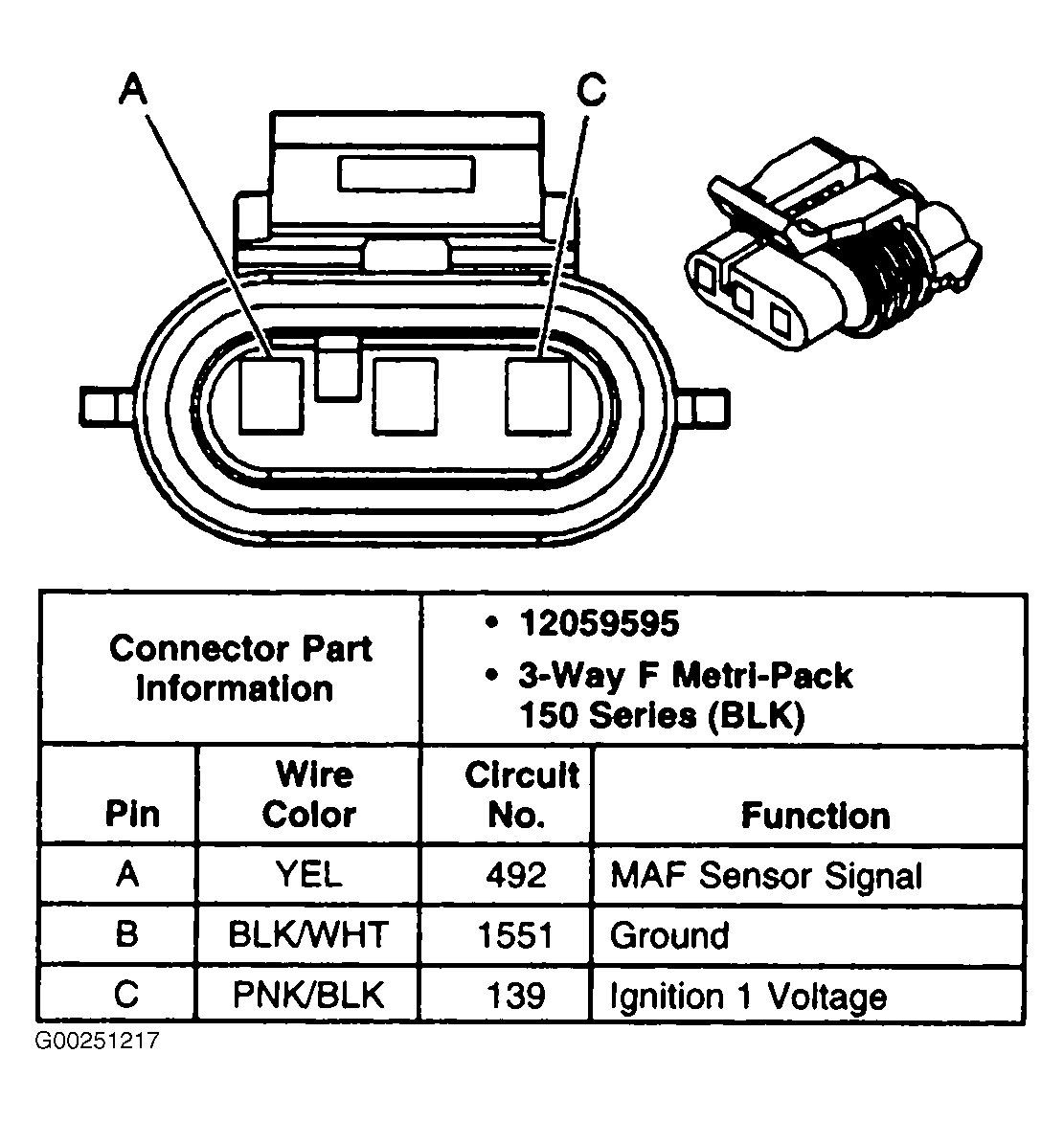

Fig 29: Identifying Mass Airflow Sensor Connector Terminals
G00251217Courtesy of GENERAL MOTORS CORP.

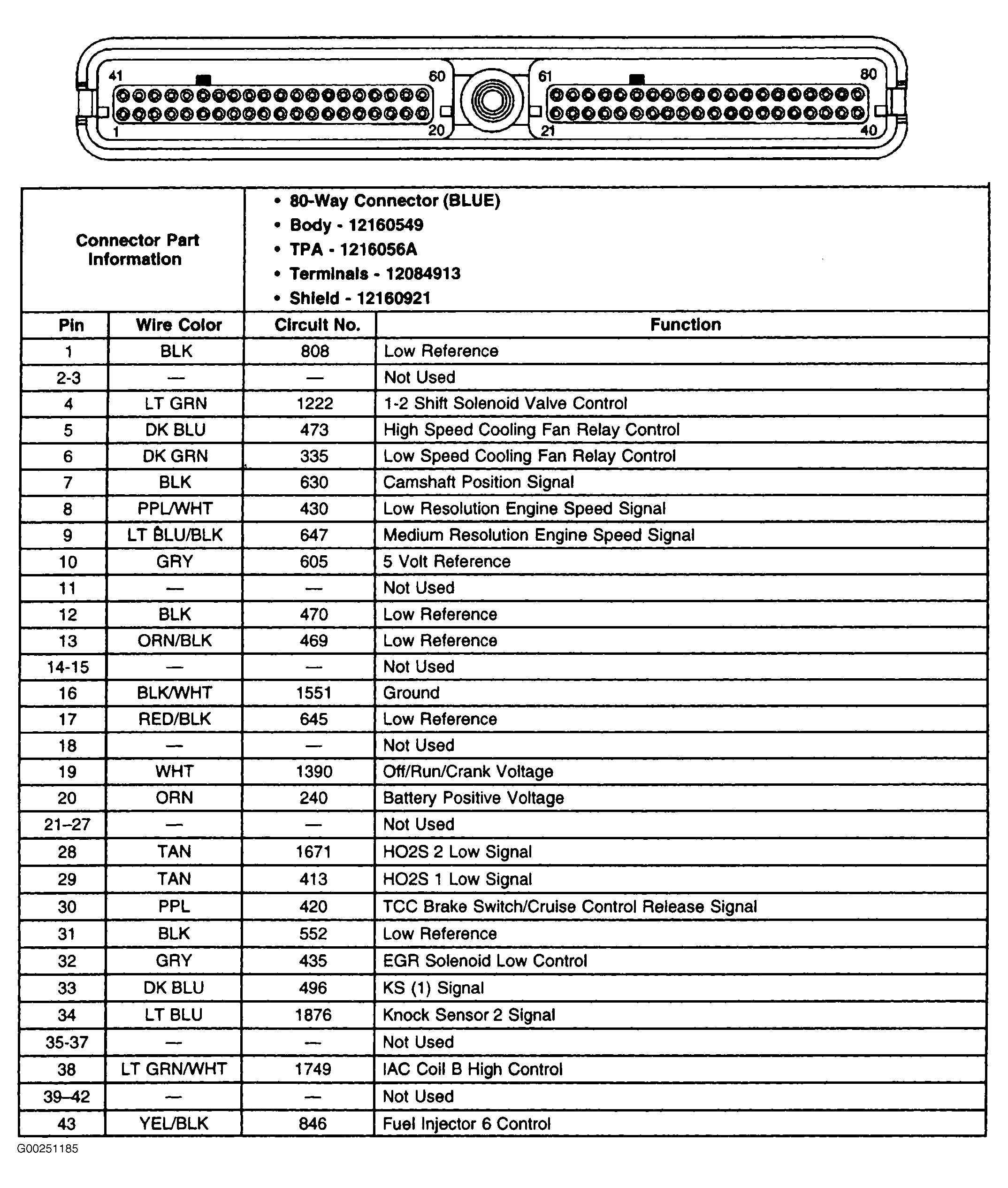

Fig 30: Identifying PCM C1 Connector Terminals (1 Of 2)
G00251185Courtesy of GENERAL MOTORS CORP.

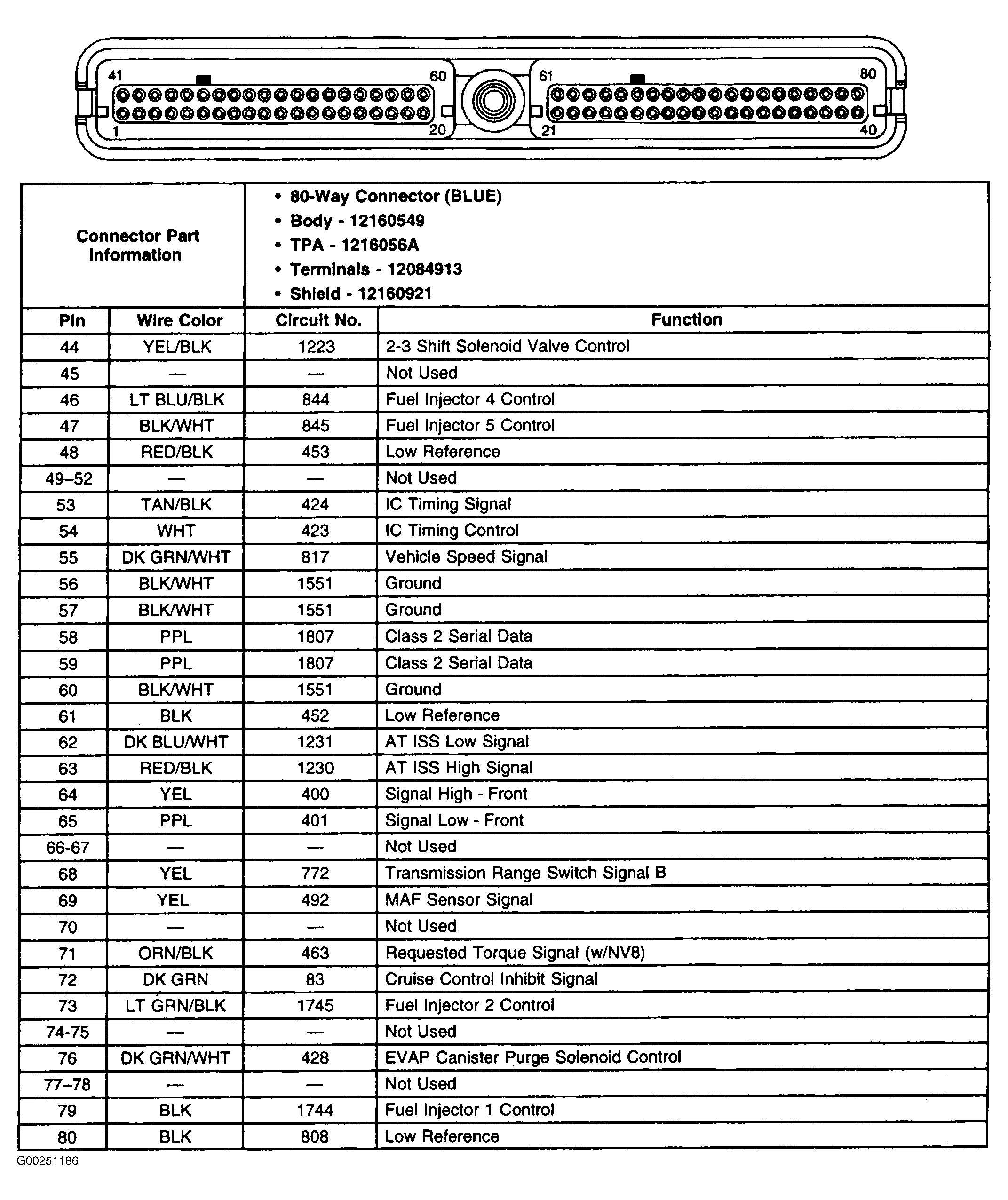

Fig 31: Identifying PCM C1 Connector Terminals (2 Of 2)
G00251186Courtesy of GENERAL MOTORS CORP.

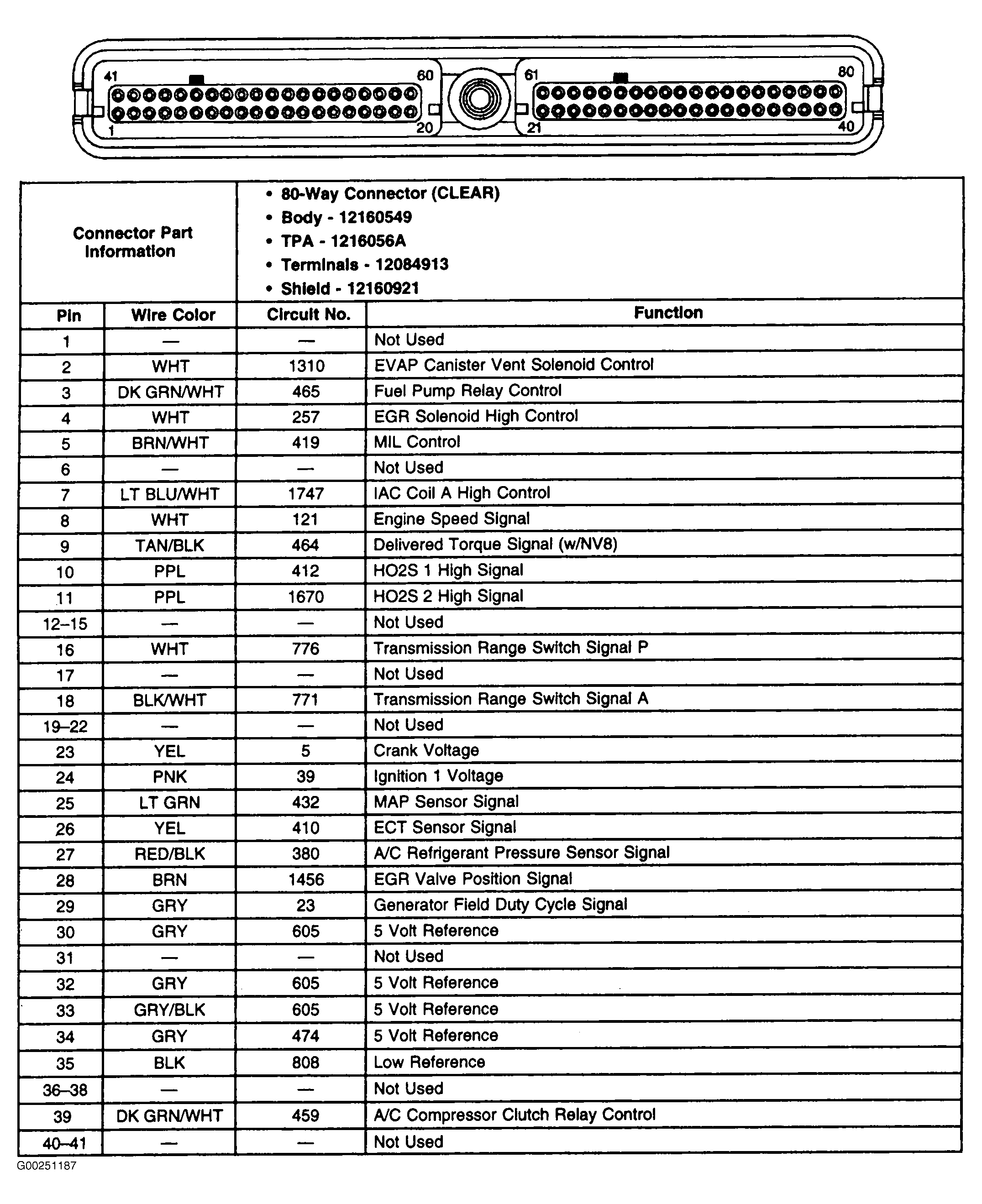

Fig 32: Identifying PCM C2 Connector Terminals (1 Of 2)
G00251187Courtesy of GENERAL MOTORS CORP.
Fig 33: Identifying PCM C2 Connector Terminals (2 Of 2)
G00251188Courtesy of GENERAL MOTORS CORP.

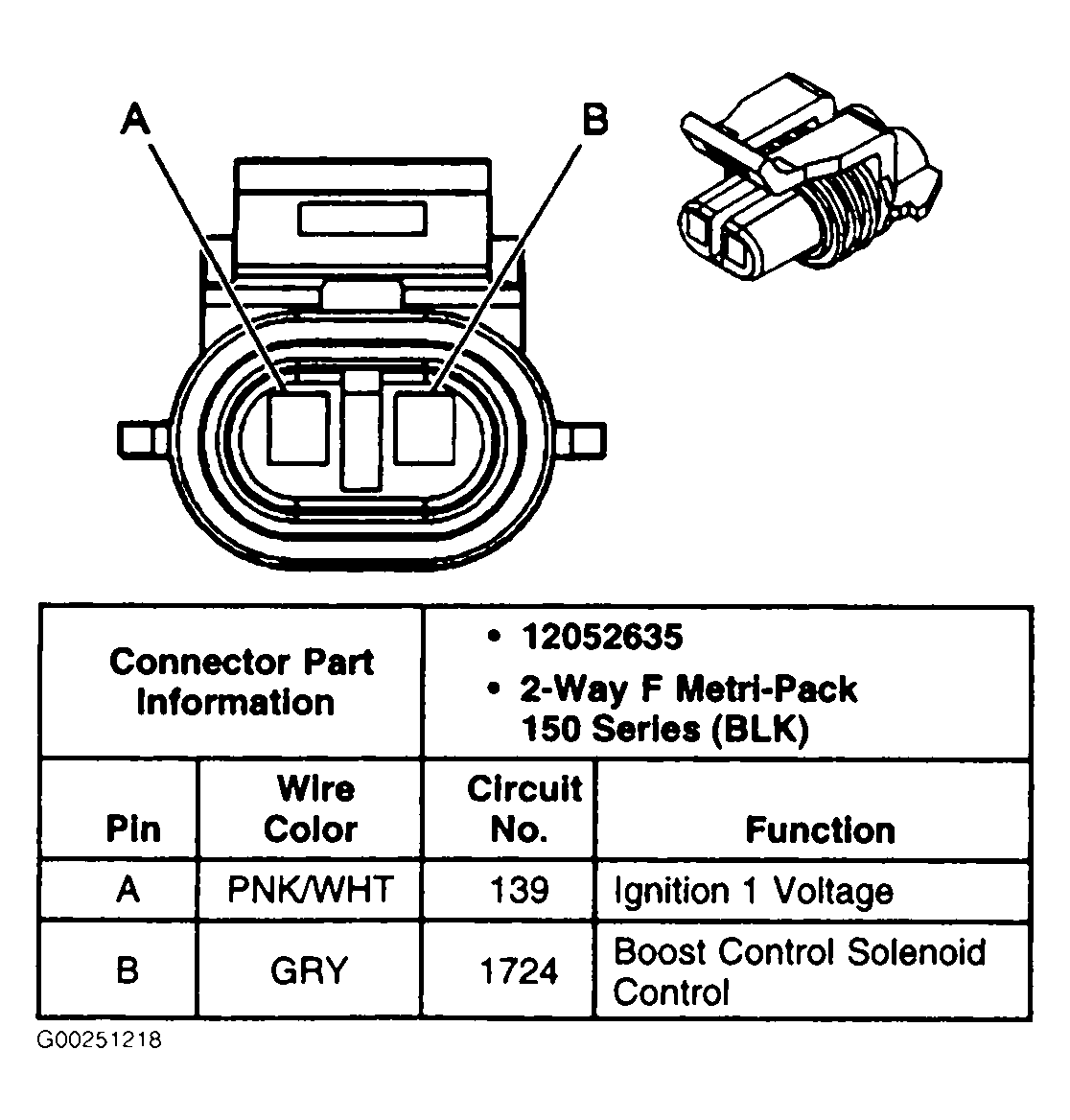

Fig 34: Identifying Supercharger Boost Control Solenoid Connector Terminals
G00251218Courtesy of GENERAL MOTORS CORP.

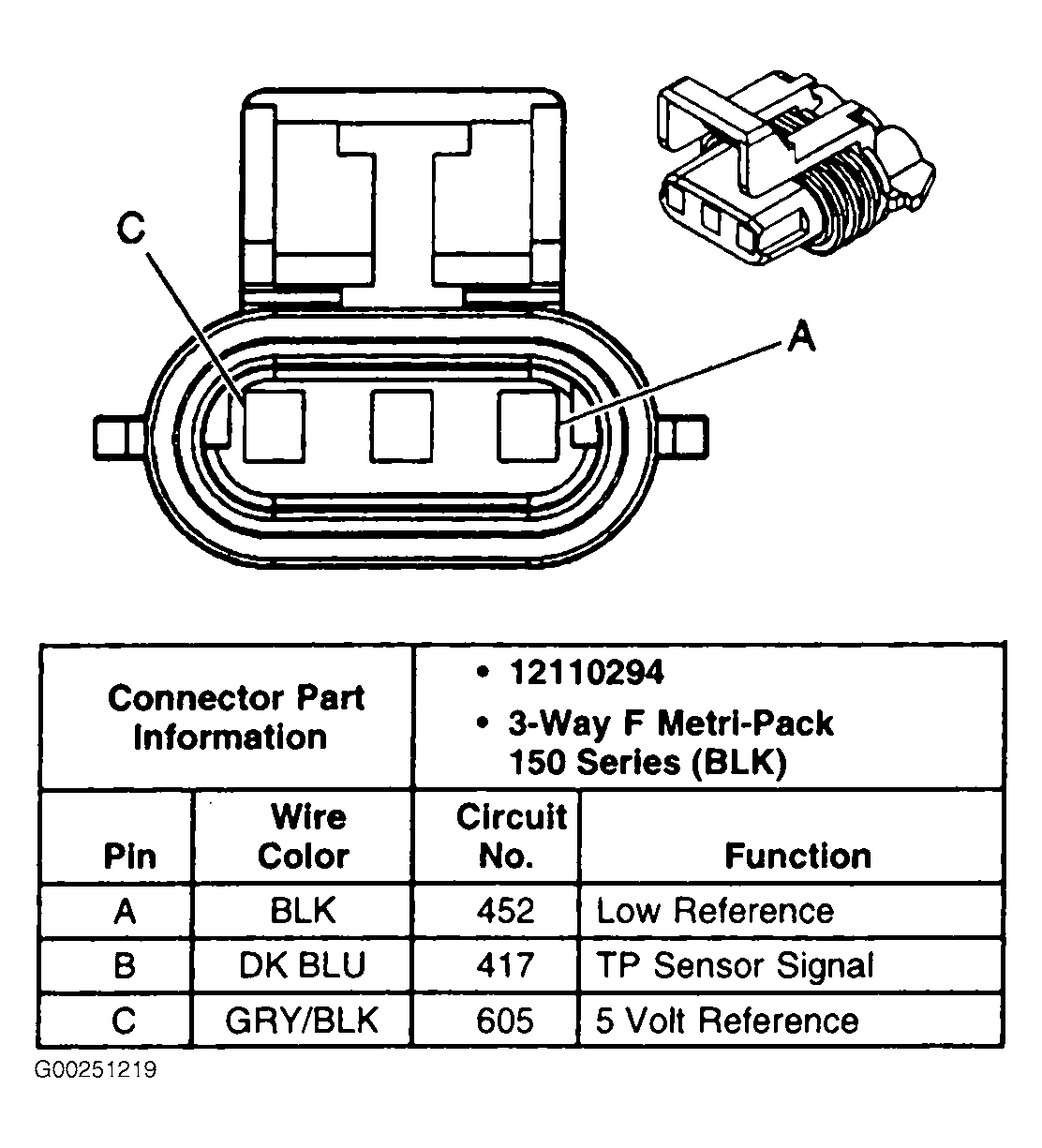

Fig 35: Identifying Throttle Position Sensor Connector Terminals
G00251219Courtesy of GENERAL MOTORS CORP.
