Grand PRIX

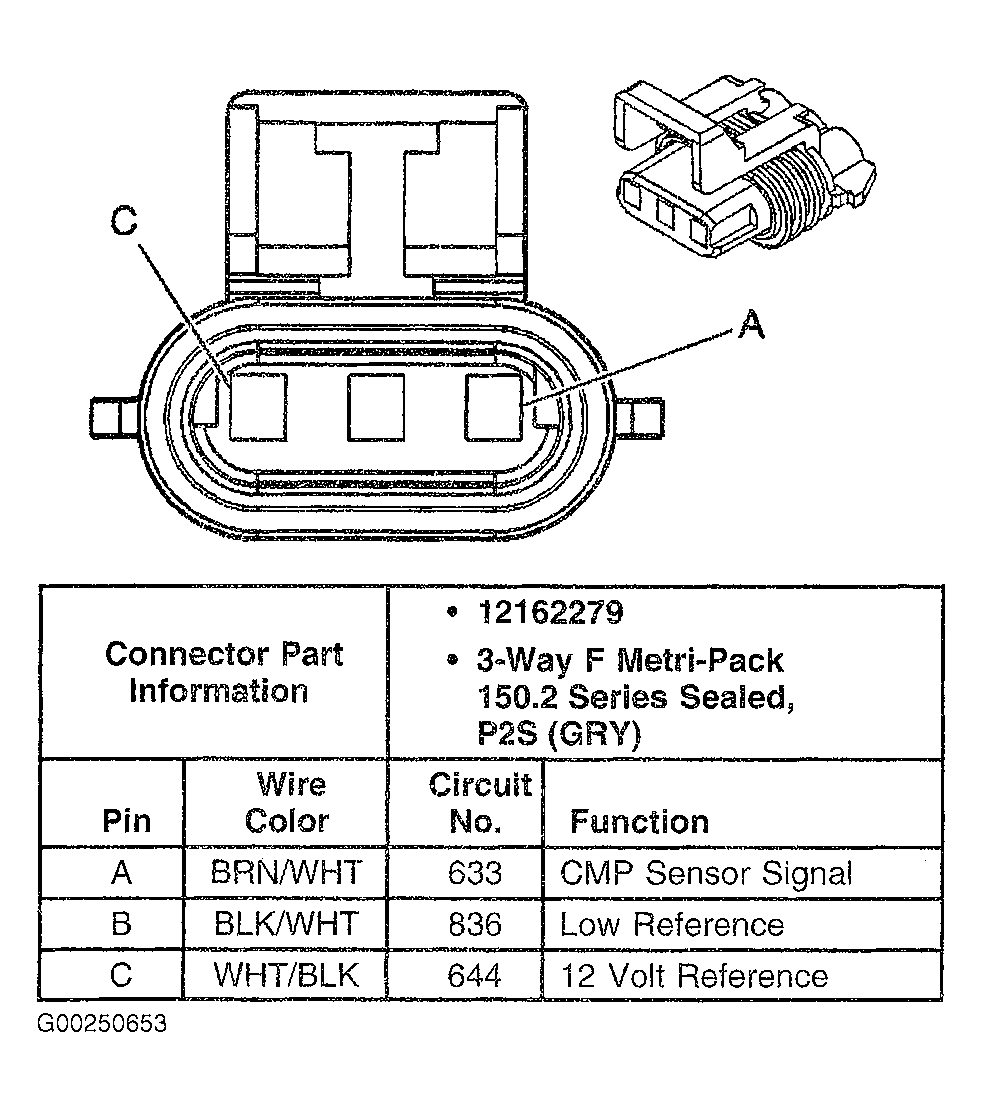

Fig 1: Identifying Camshaft Position Sensor Connector Terminals

G00250653

Courtesy of GENERAL MOTORS CORP.

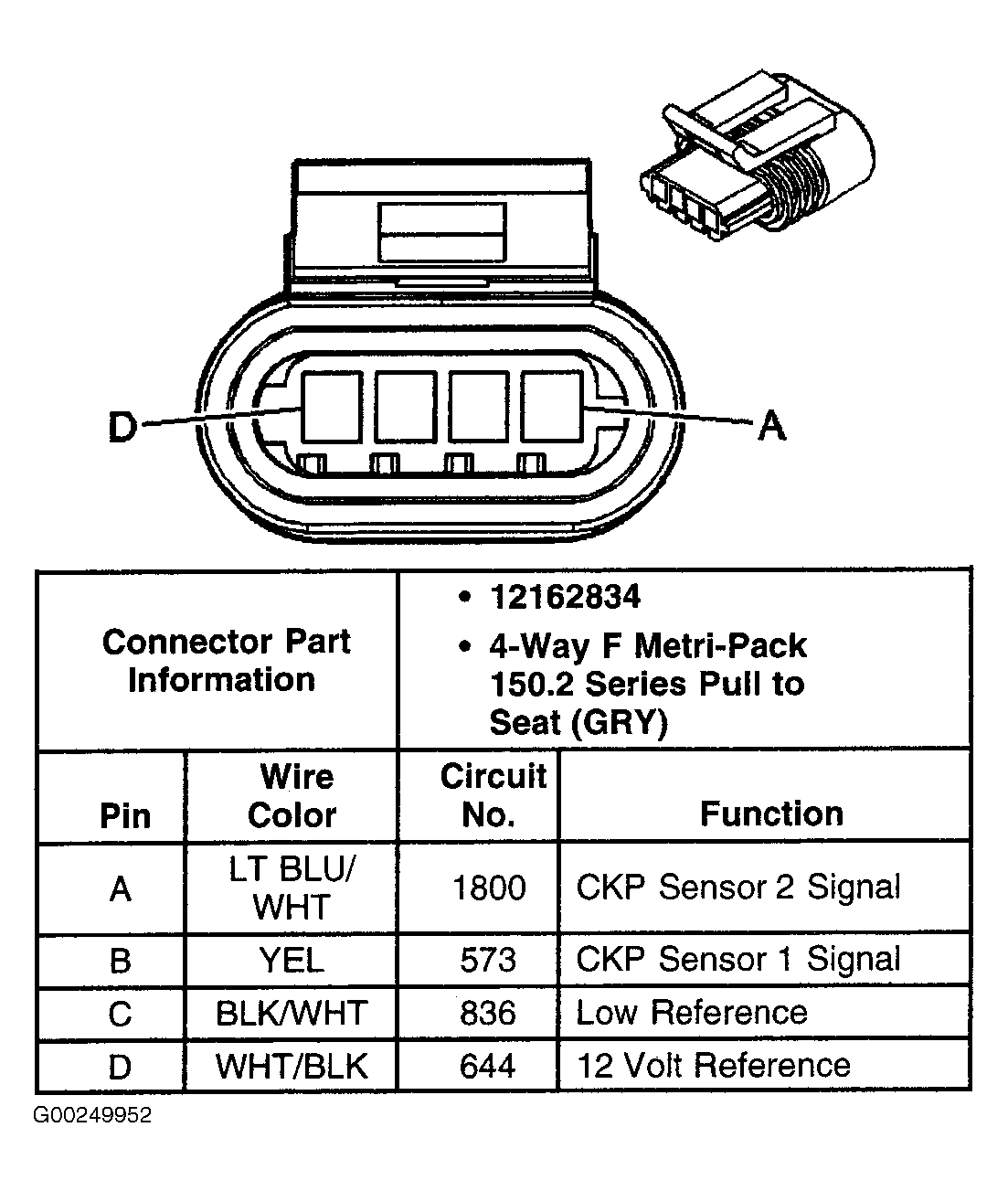

Fig 2: Identifying Crankshaft Position Sensor Connector Terminals

G00249952

Courtesy of GENERAL MOTORS CORP.

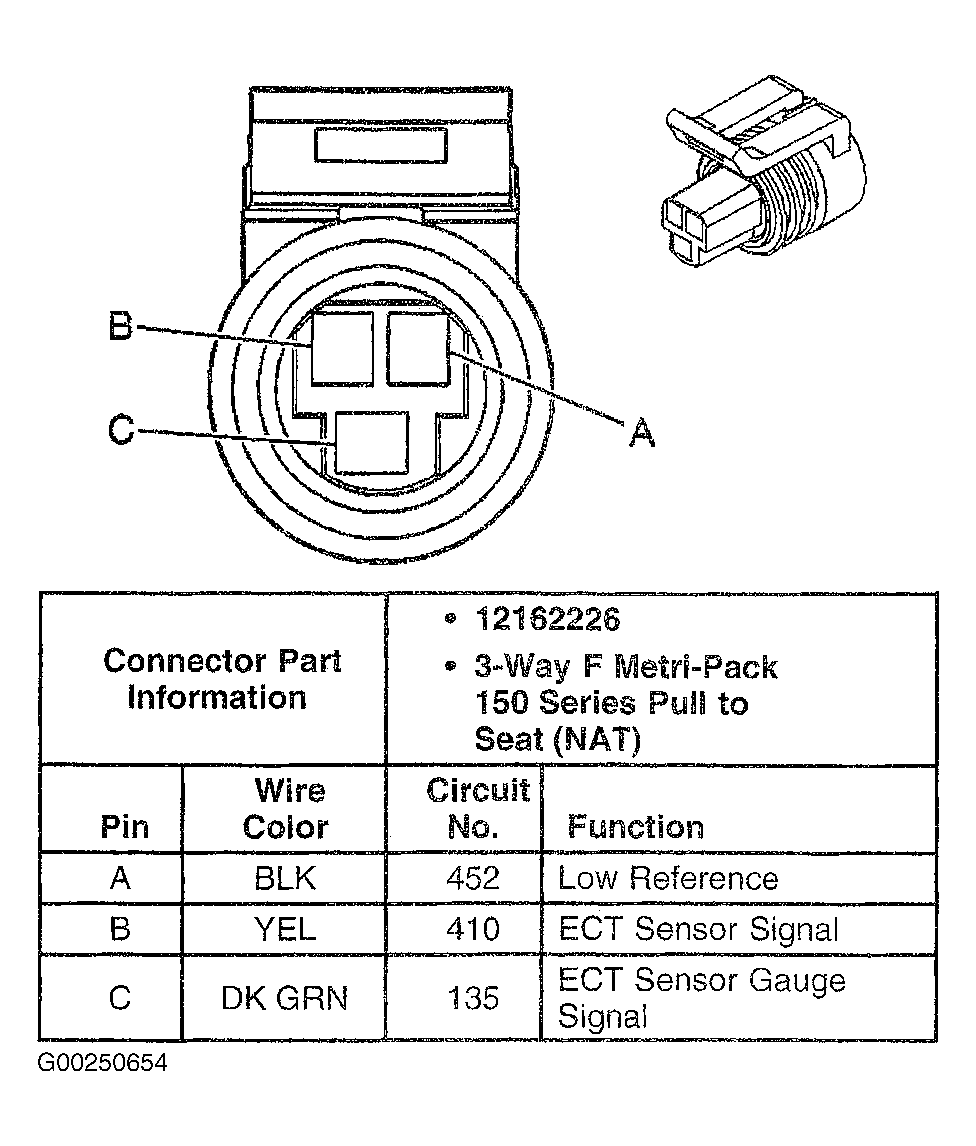

Fig 3: Identifying Engine Coolant Temperature Sensor Connector Terminals

G00250654

Courtesy of GENERAL MOTORS CORP.

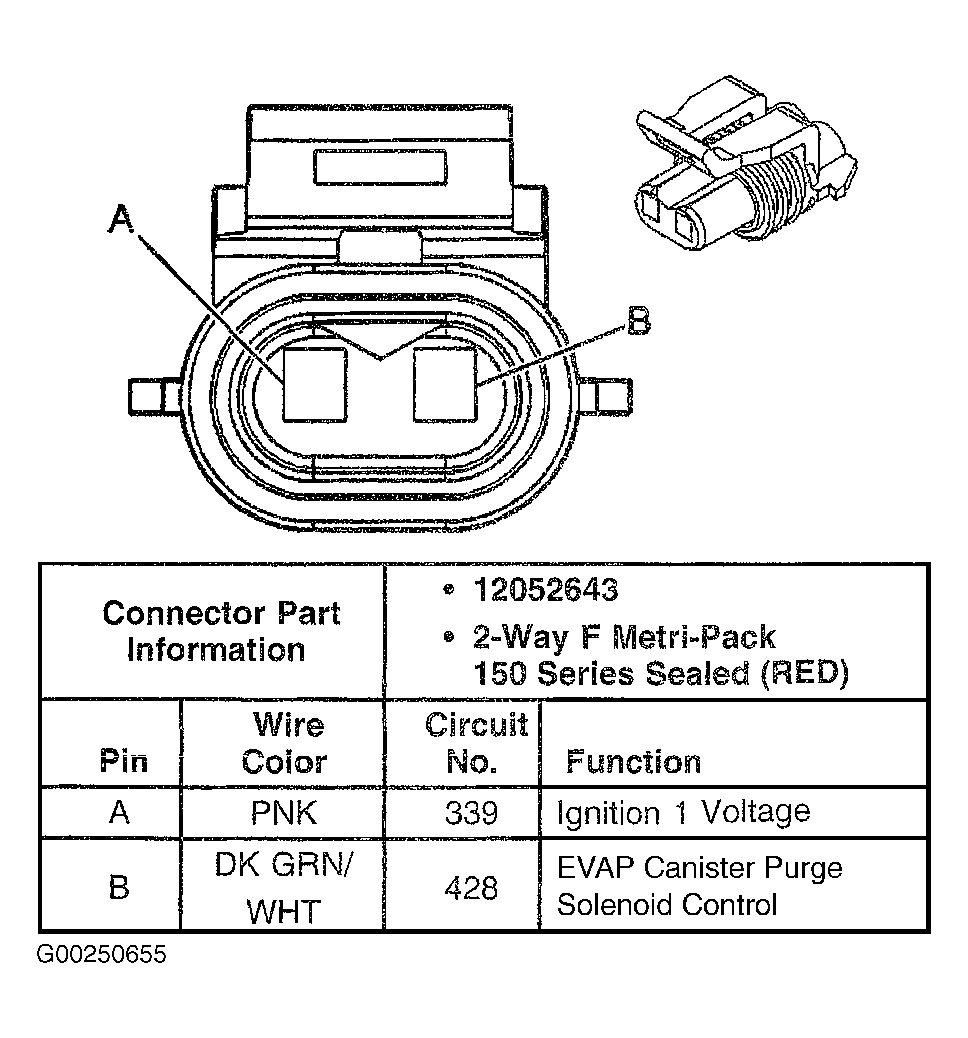

Fig 4: Identifying Evaporative Emission Canister Purge Solenoid Connector Terminals

G00250655

Courtesy of GENERAL MOTORS CORP.

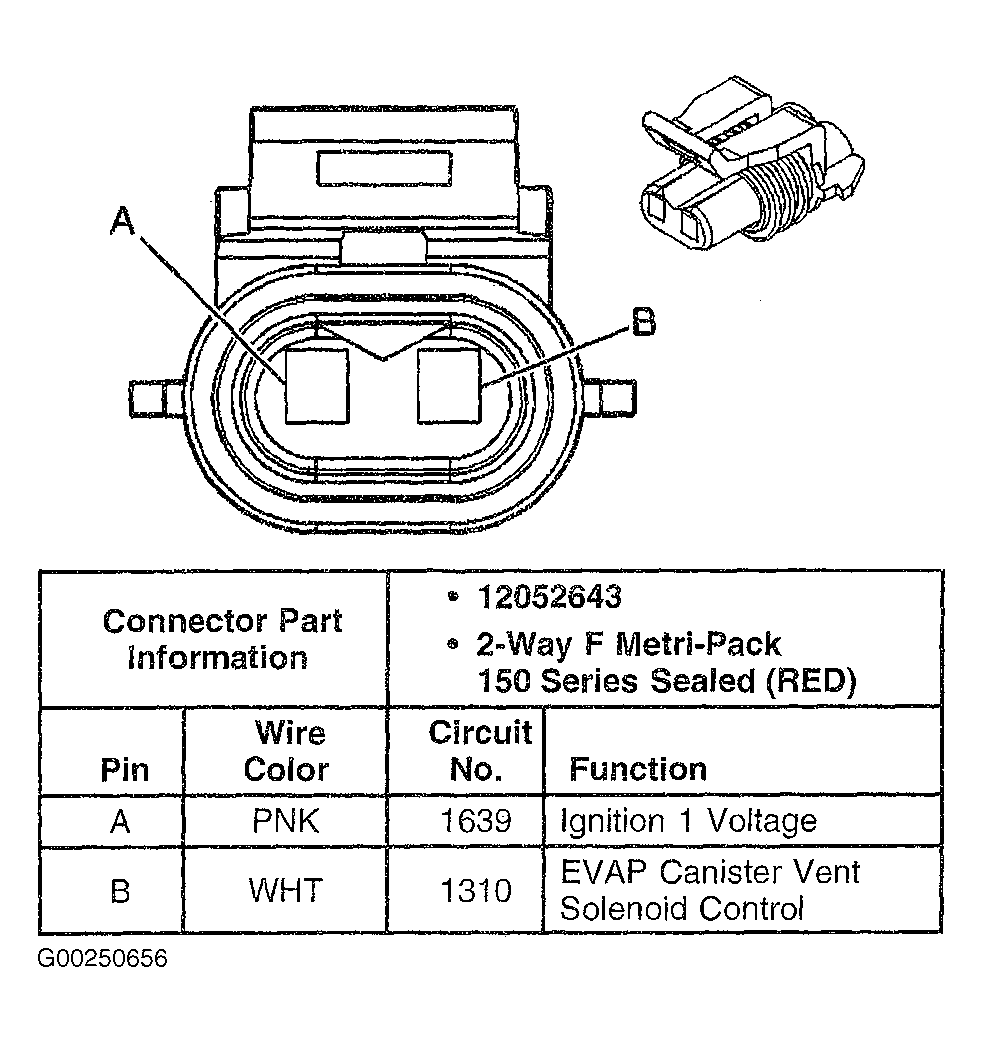

Fig 5: Identifying Evaporative Emission Canister Vent Solenoid Connector Terminals

G00250656

Courtesy of GENERAL MOTORS CORP.

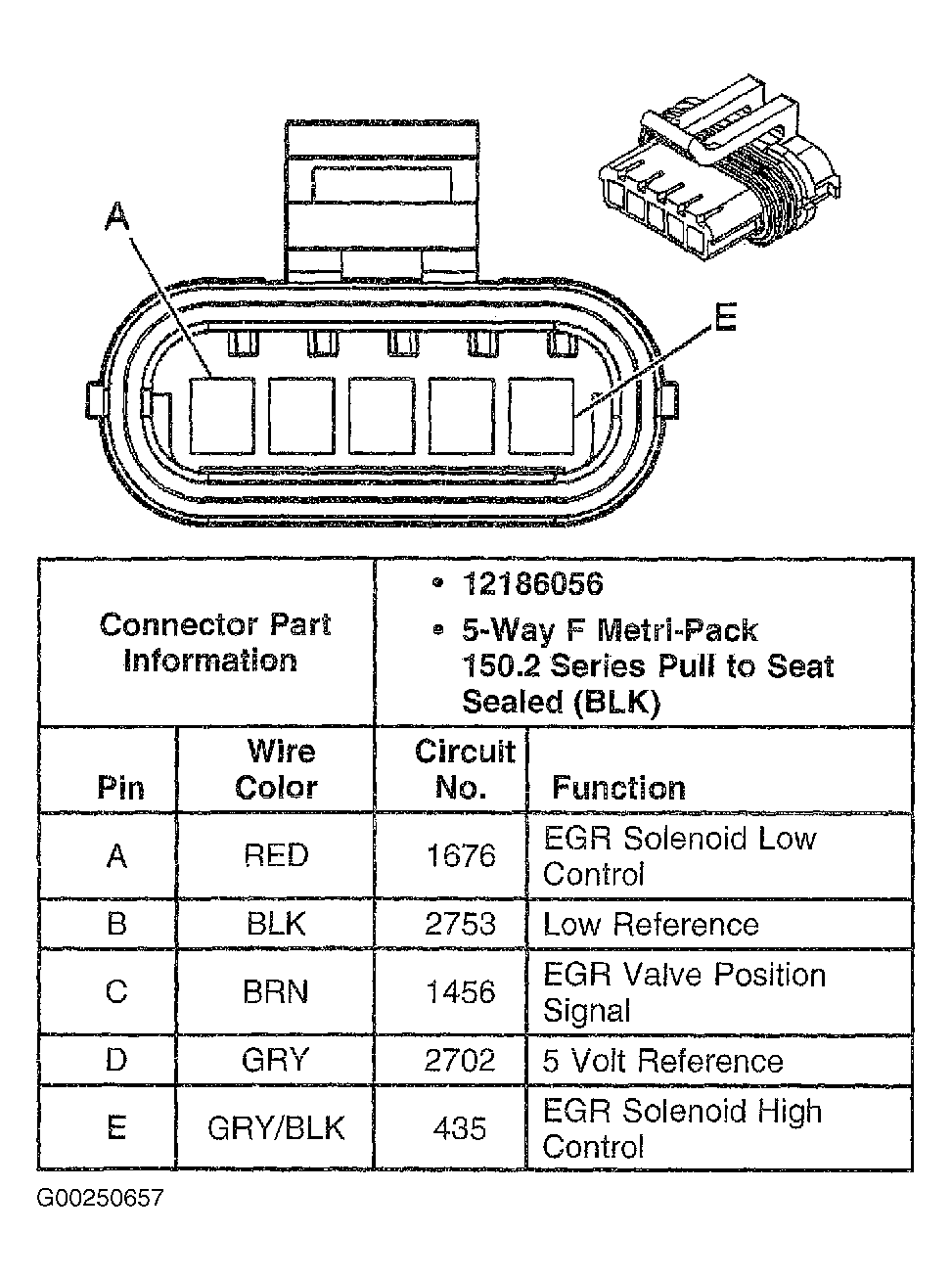

Fig 6: Identifying Exhaust Gas Recirculation Valve Connector Terminals

G00250657

Courtesy of GENERAL MOTORS CORP.

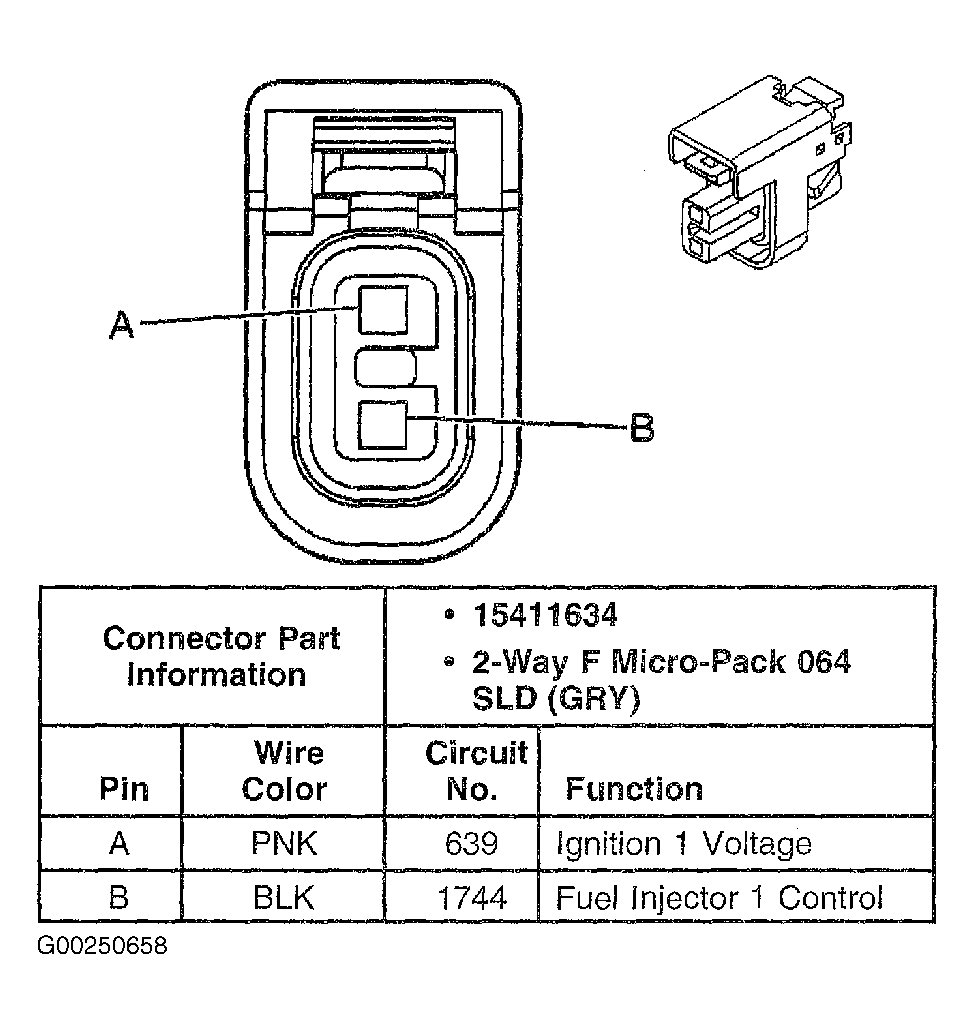

Fig 7: Identifying Fuel Injector No. 1 (W/O Supercharger) Connector Terminals

G00250658

Courtesy of GENERAL MOTORS CORP.

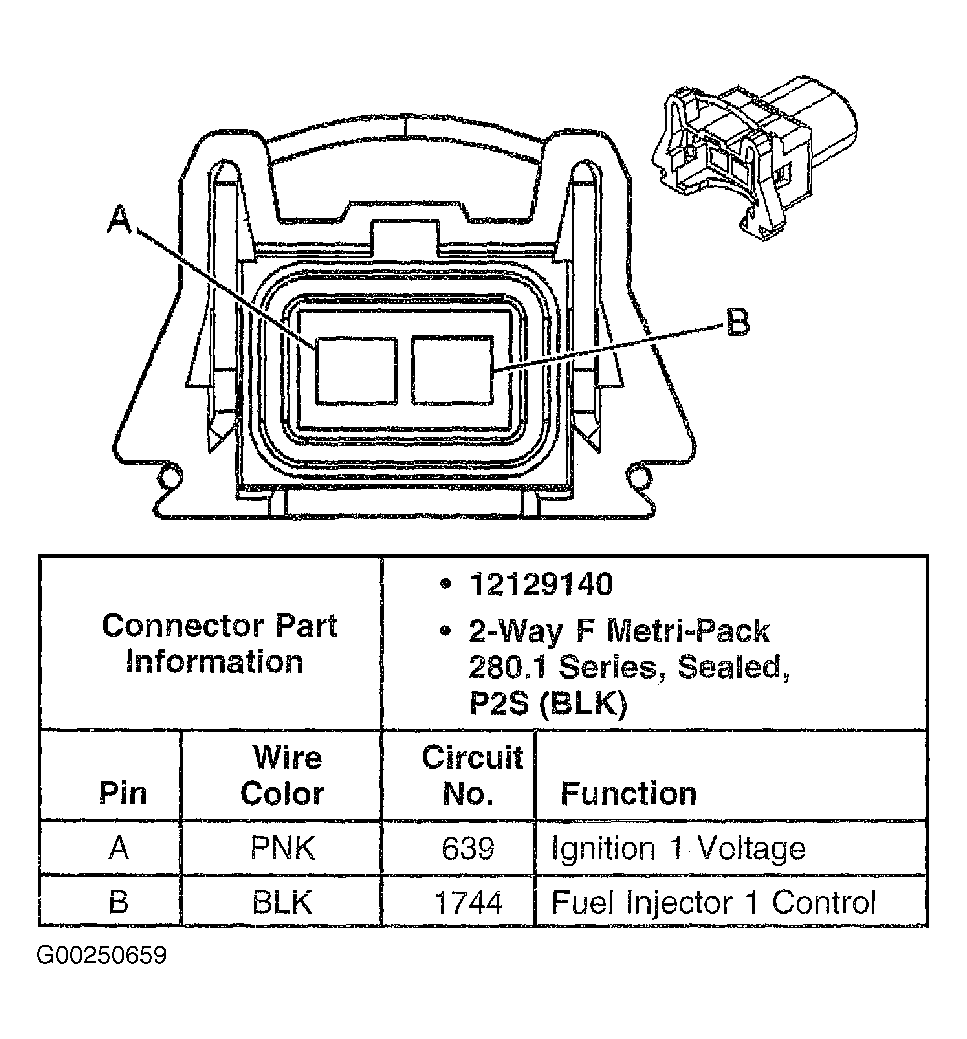

Fig 8: Identifying Fuel Injector No. 1 (W/Supercharger) Connector Terminals

G00250659

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Fuel Injector No. 2 (W/O Supercharger) Connector Terminals

G00250660

Courtesy of GENERAL MOTORS CORP.

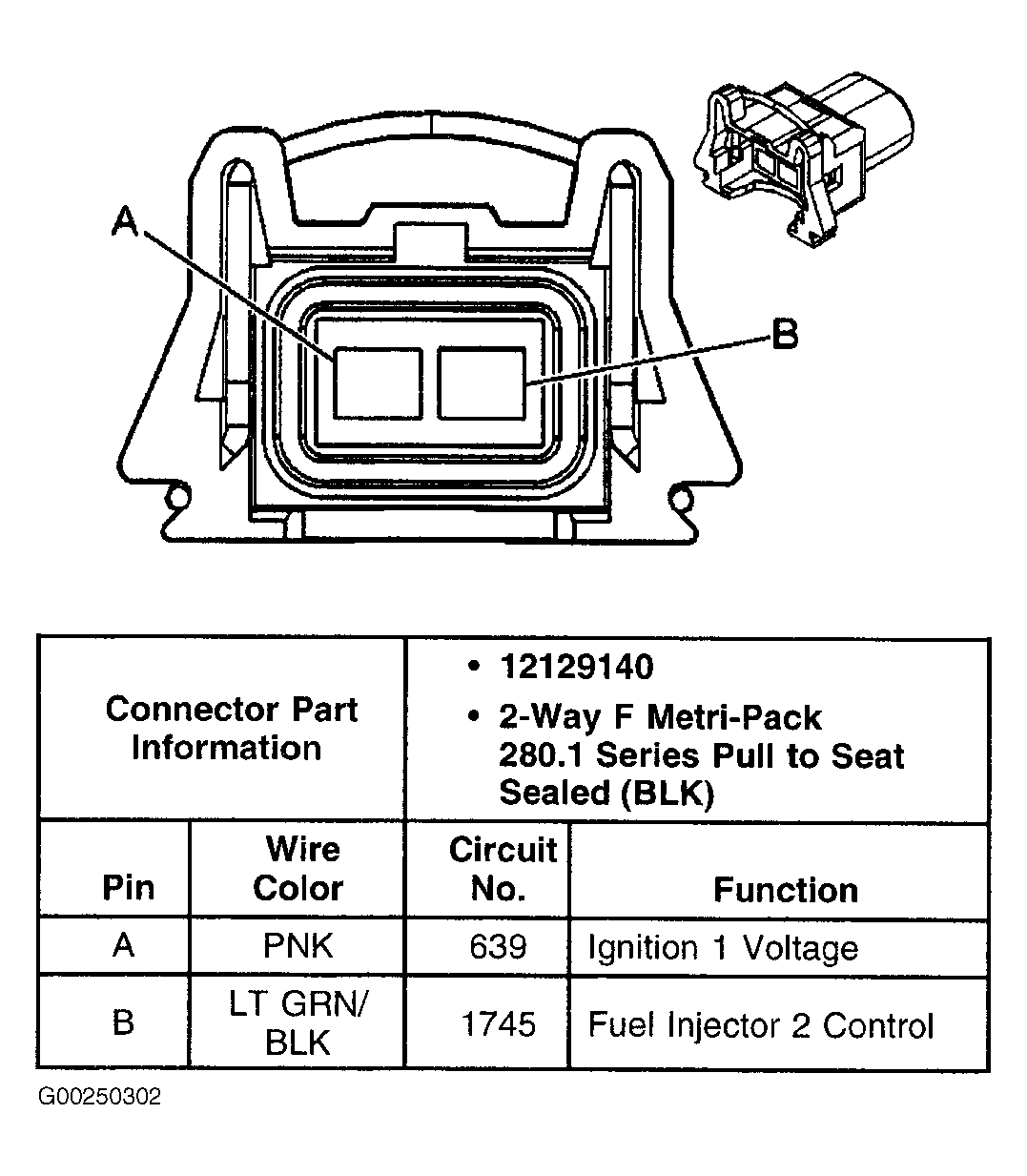

Fig 10: Identifying Fuel Injector No. 2 (W/Supercharger) Connector Terminals

G00250302

Courtesy of GENERAL MOTORS CORP.

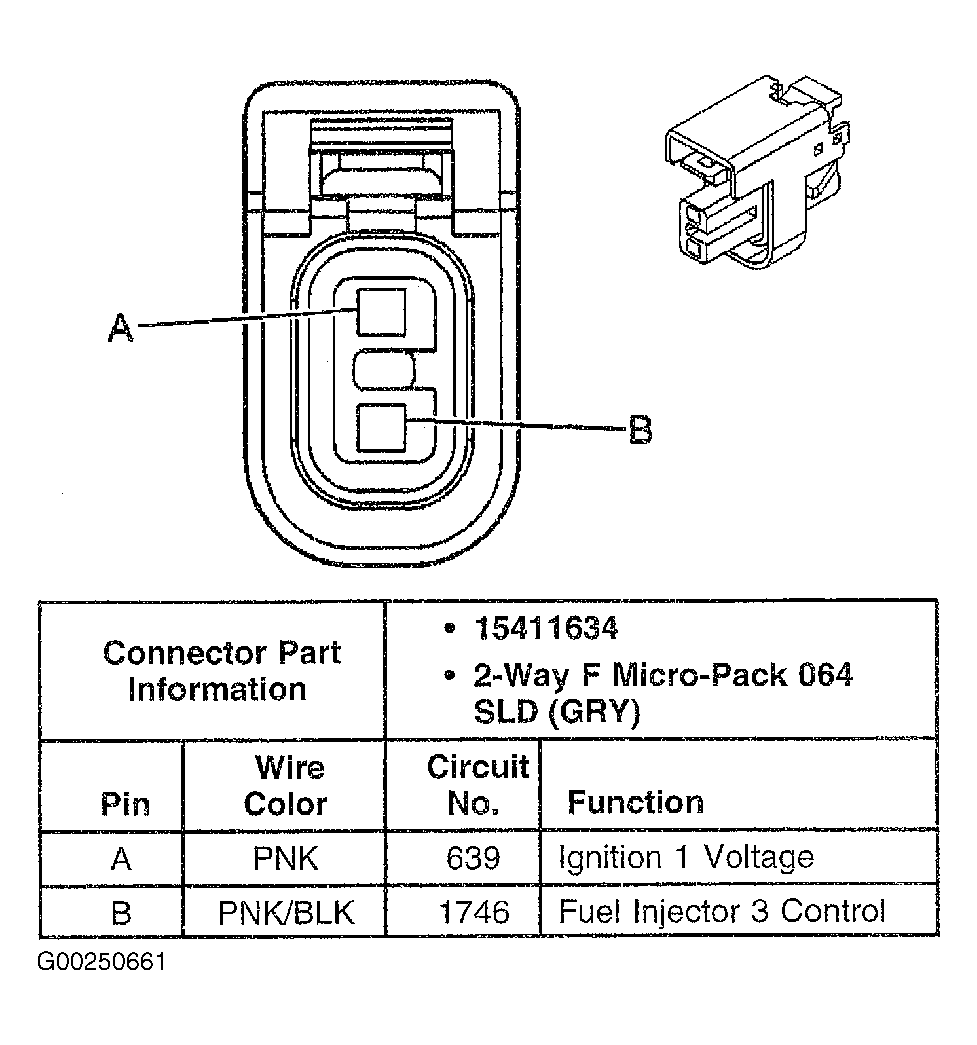

Fig 11: Identifying Fuel Injector No. 3 (W/O Supercharger) Connector Terminals

G00250661

Courtesy of GENERAL MOTORS CORP.

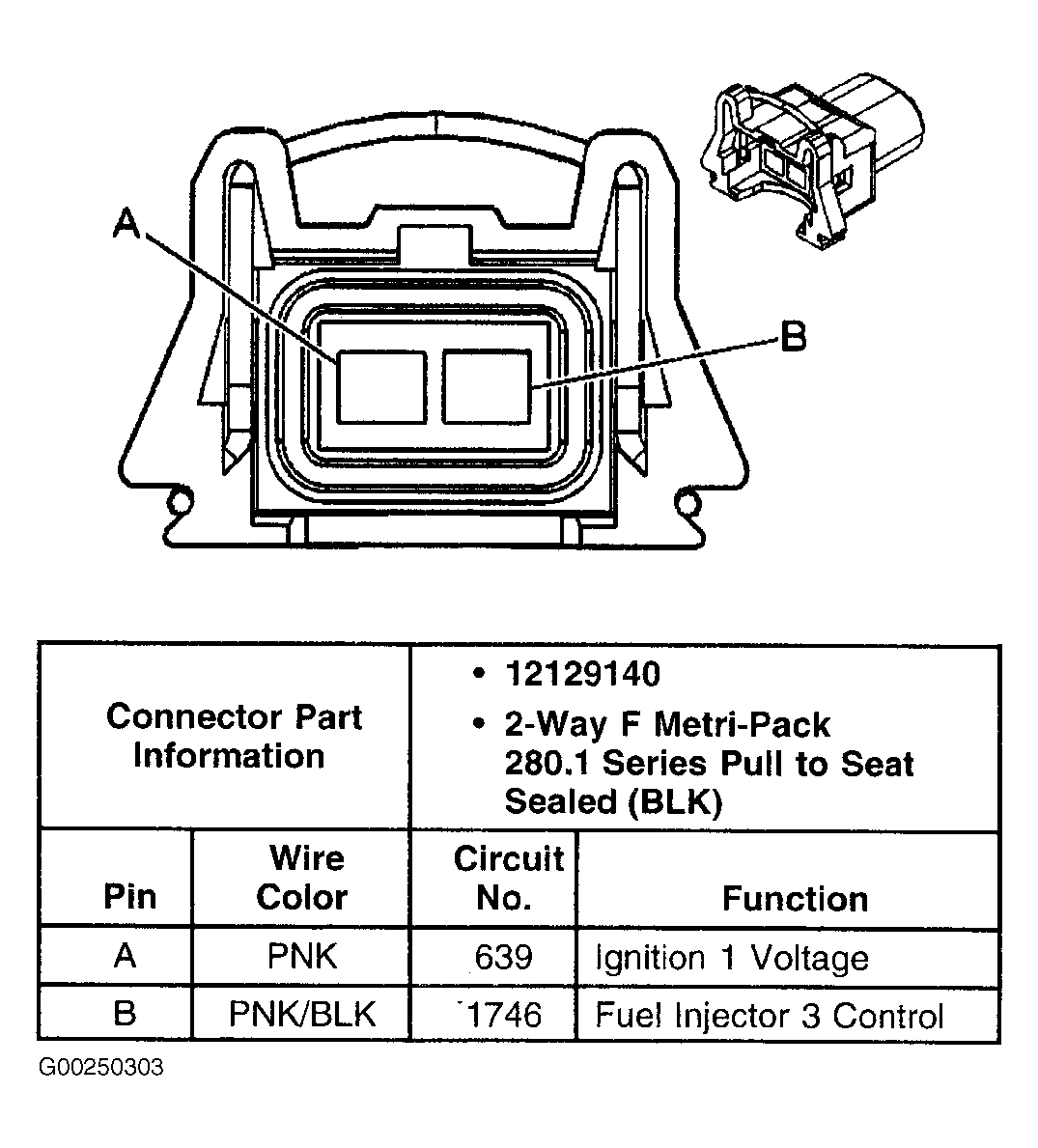

Fig 12: Identifying Fuel Injector No. 3 (W/Supercharger) Connector Terminals

G00250303

Courtesy of GENERAL MOTORS CORP.

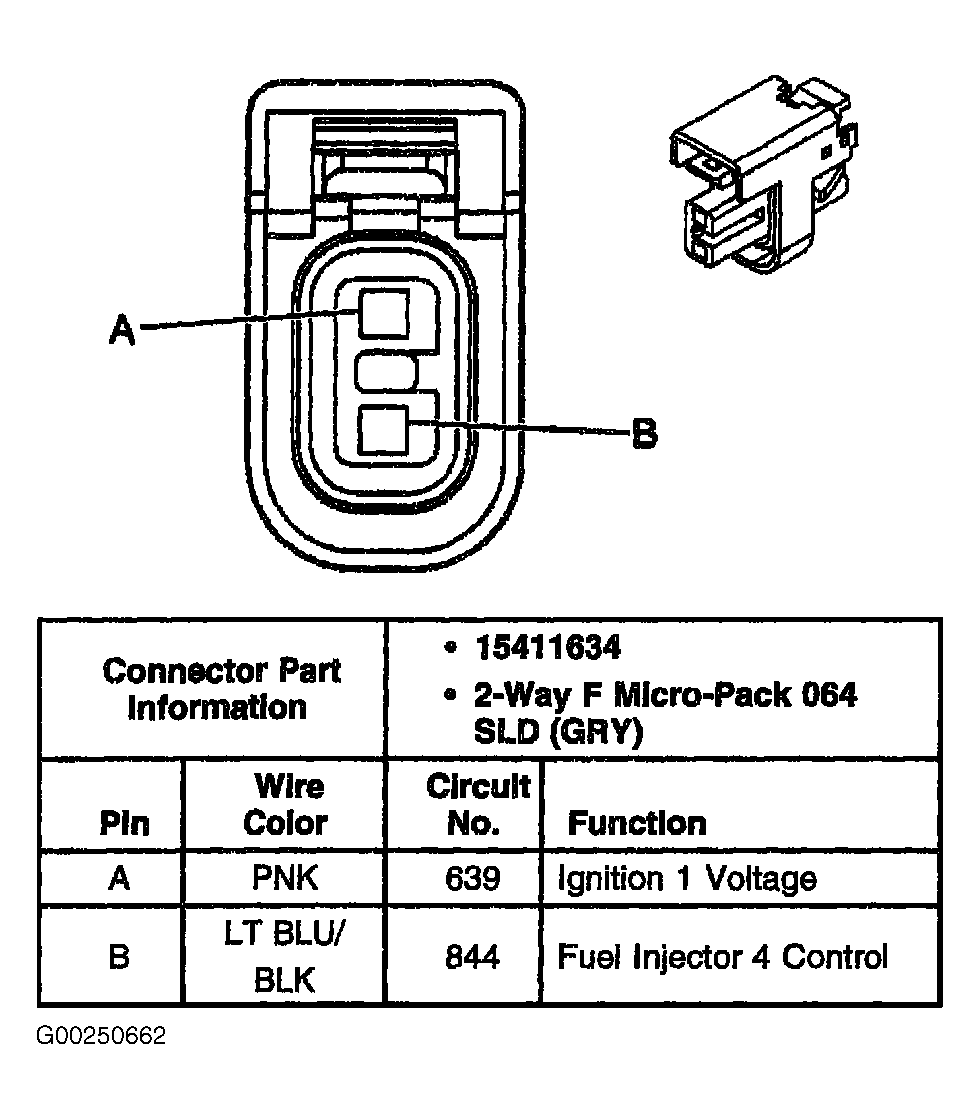

Fig 13: Identifying Fuel Injector No. 4 (W/O Supercharger) Connector Terminals

G00250662

Courtesy of GENERAL MOTORS CORP.

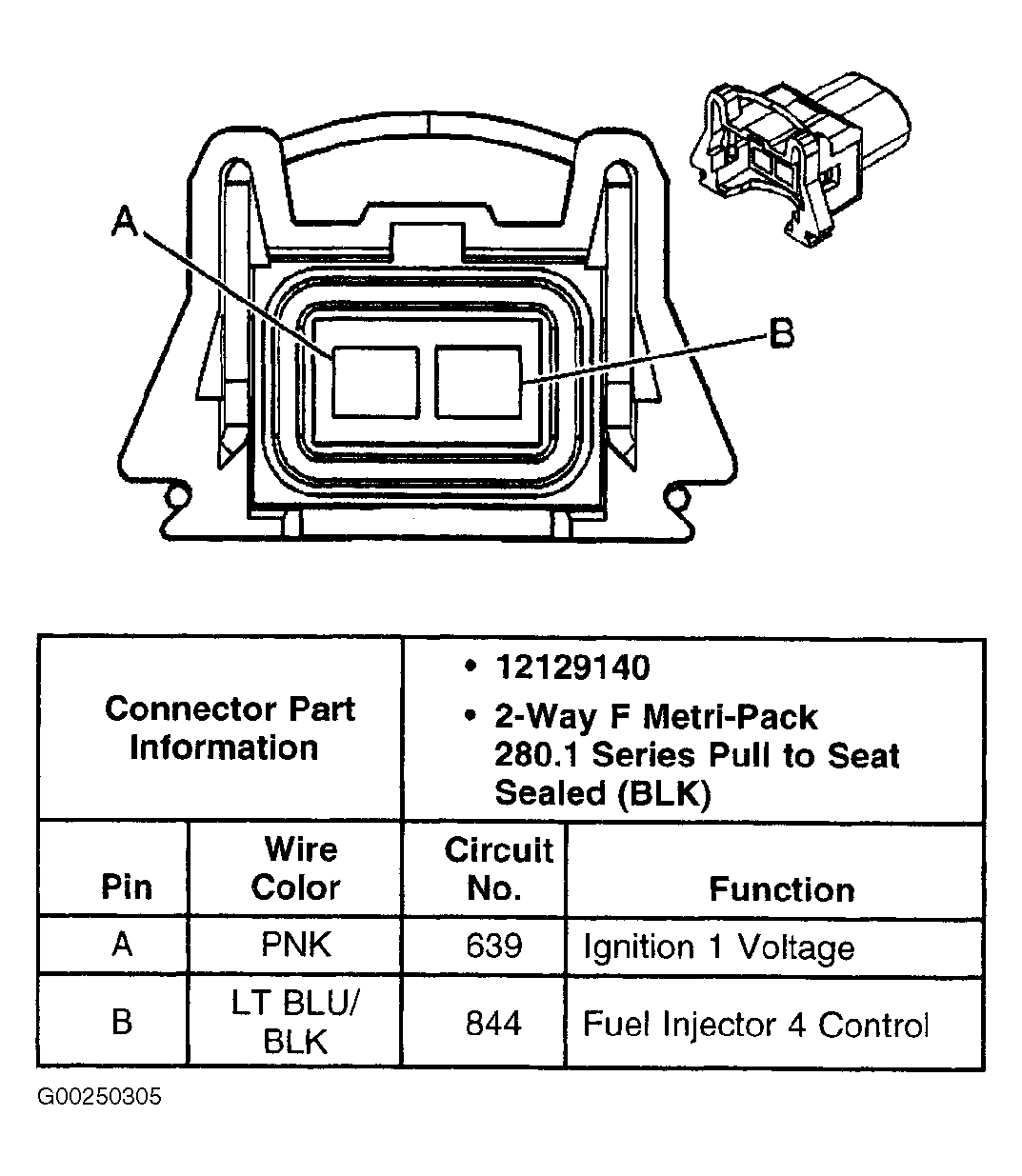

Fig 14: Identifying Fuel Injector No. 4 (W/Supercharger) Connector Terminals

G00250305

Courtesy of GENERAL MOTORS CORP.

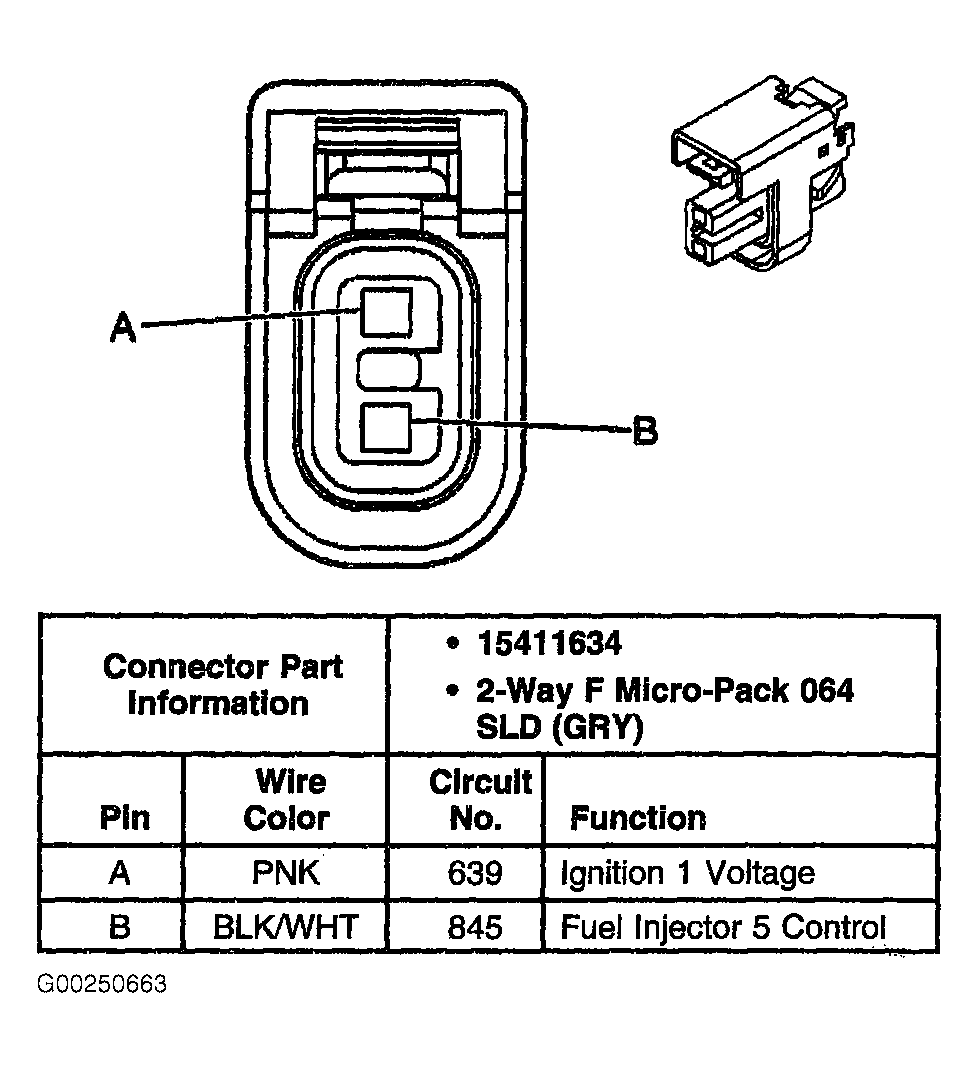

Fig 15: Identifying Fuel Injector No. 5 (W/O Supercharger) Connector Terminals

G00250663

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying Fuel Injector No. 5 (W/Supercharger) Connector Terminals

G00250307

Courtesy of GENERAL MOTORS CORP.

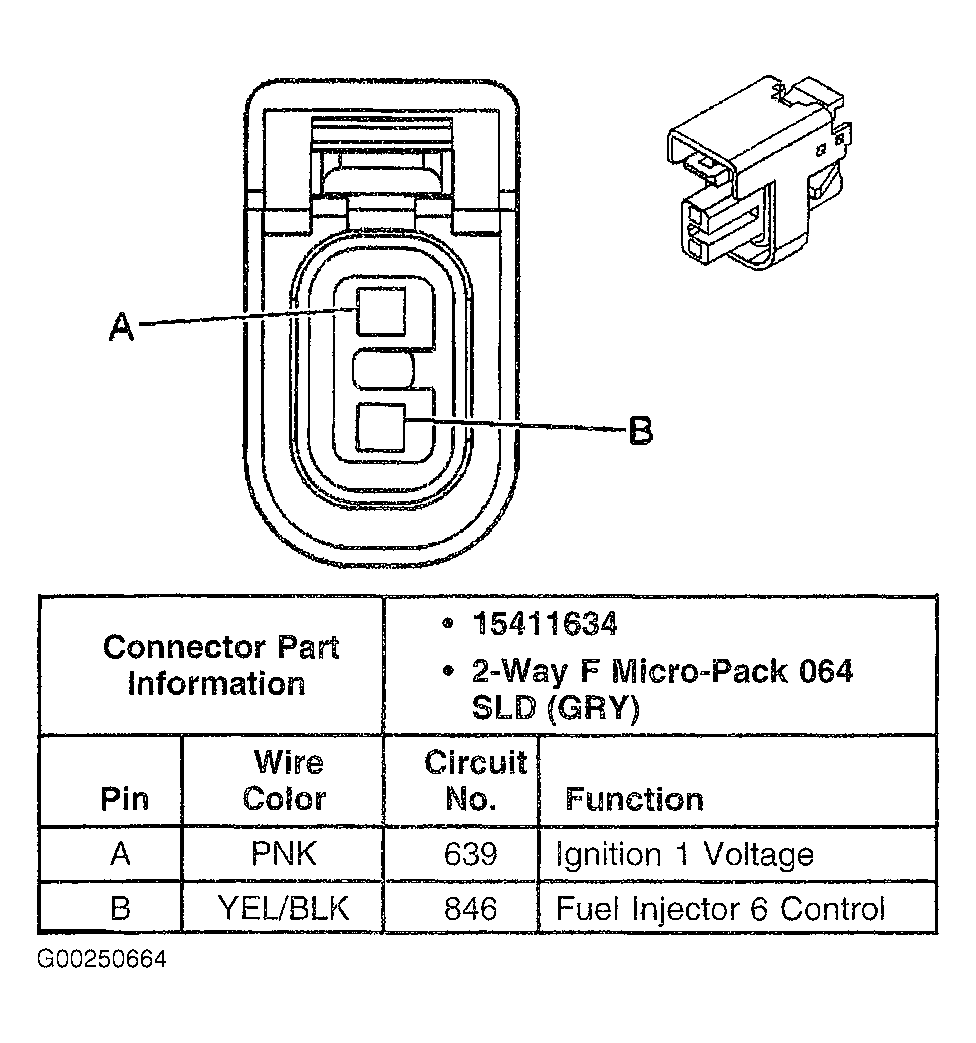

Fig 17: Identifying Fuel Injector No. 6 (W/O Supercharger) Connector Terminals

G00250664

Courtesy of GENERAL MOTORS CORP.

Fig 18: Identifying Fuel Injector No. 6 (W/Supercharger) Connector Terminals

G00250309

Courtesy of GENERAL MOTORS CORP.

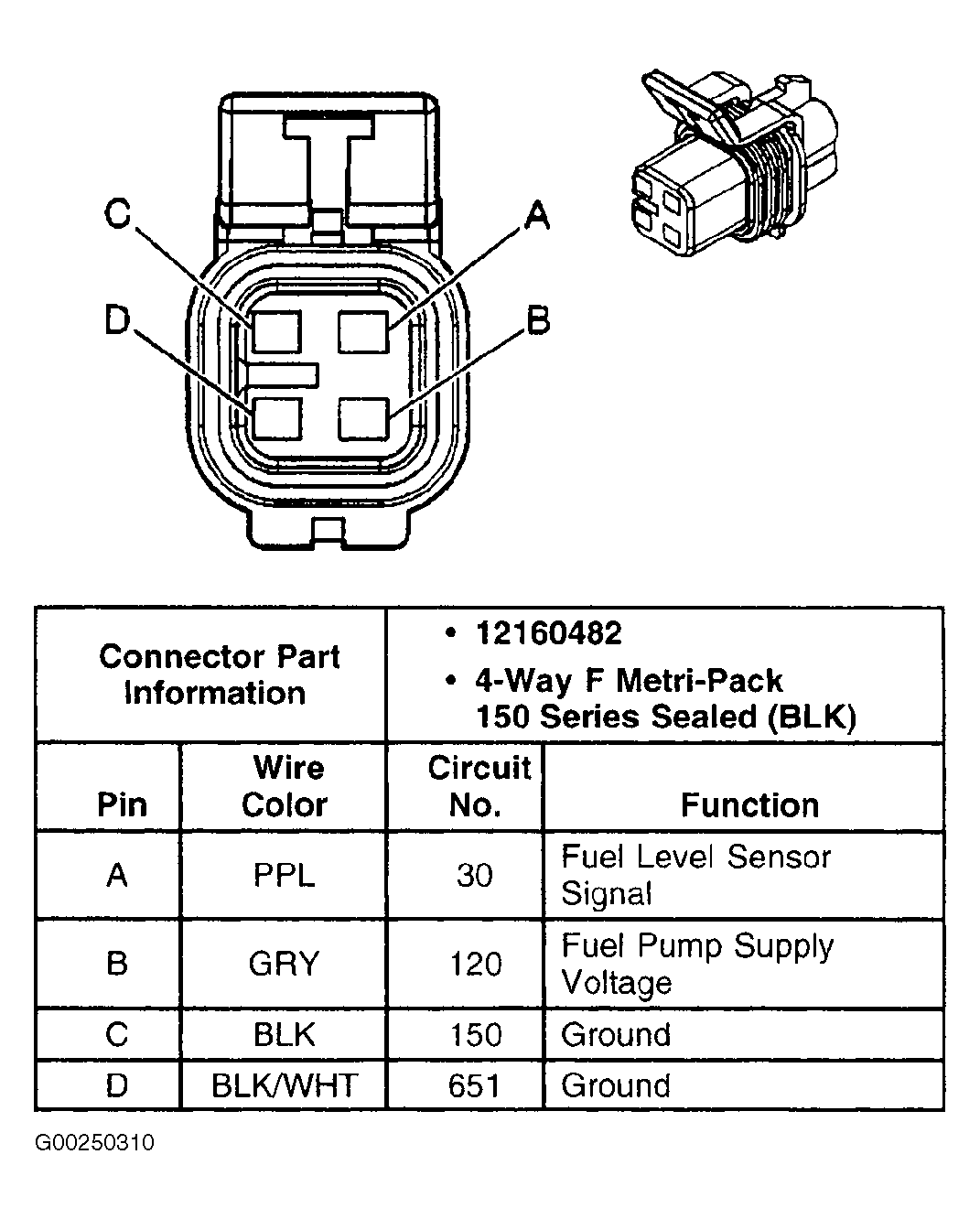

Fig 19: Identifying Fuel Pump & Sender Assembly Connector Terminals

G00250310

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying Fuel Tank Pressure Sensor Connector Terminals

G00141193

Courtesy of GENERAL MOTORS CORP.

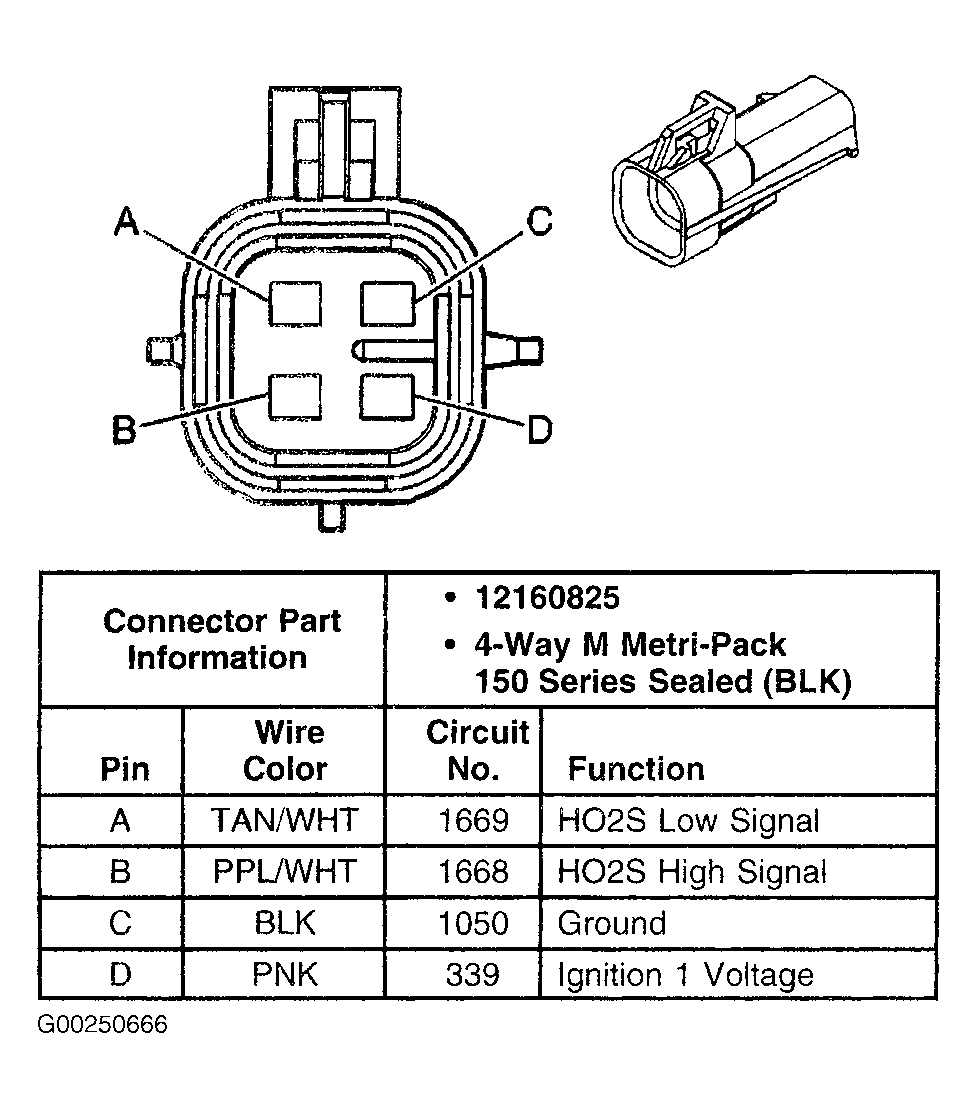

Fig 21: Identifying HO2S Sensor 1 Connector Terminals

G00250666

Courtesy of GENERAL MOTORS CORP.

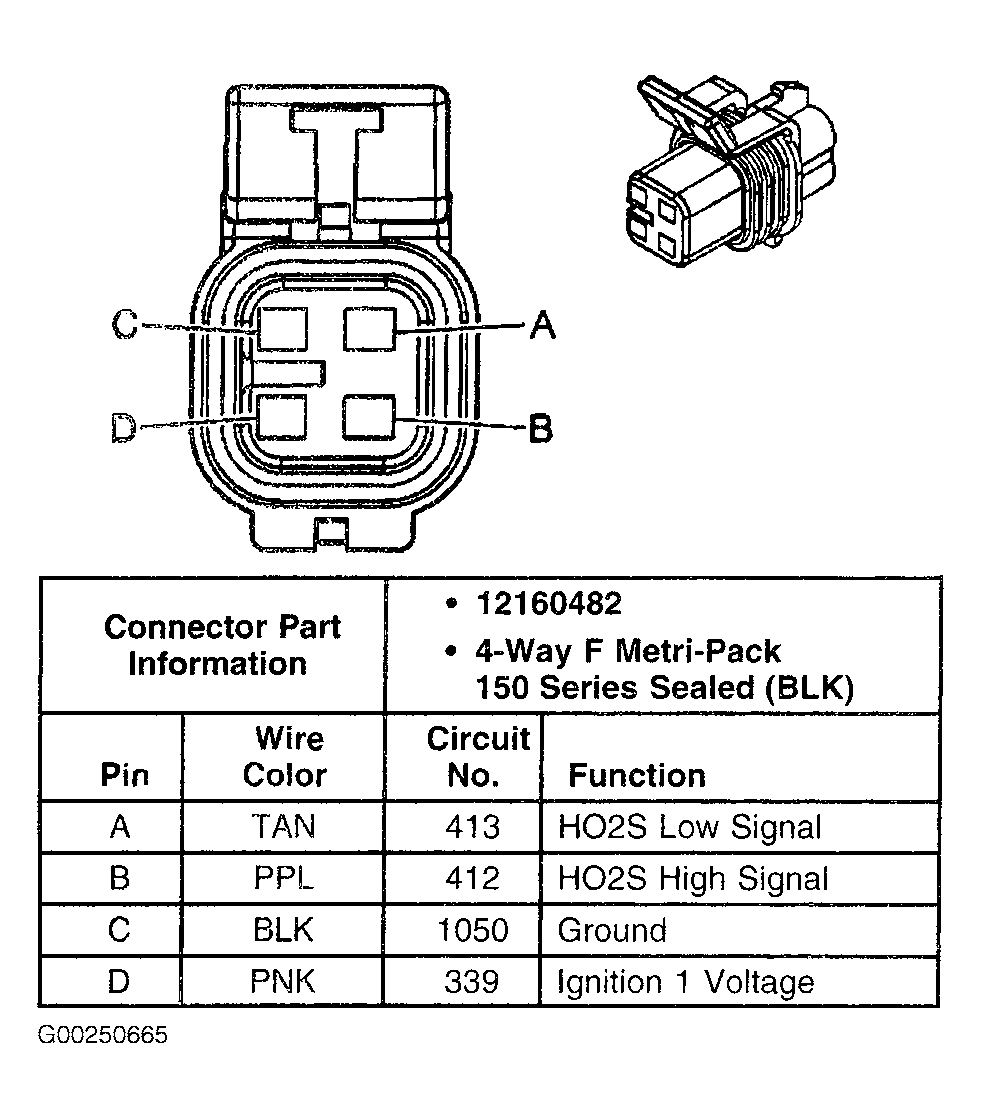

Fig 22: Identifying HO2S Sensor 2 Connector Terminals

G00250665

Courtesy of GENERAL MOTORS CORP.

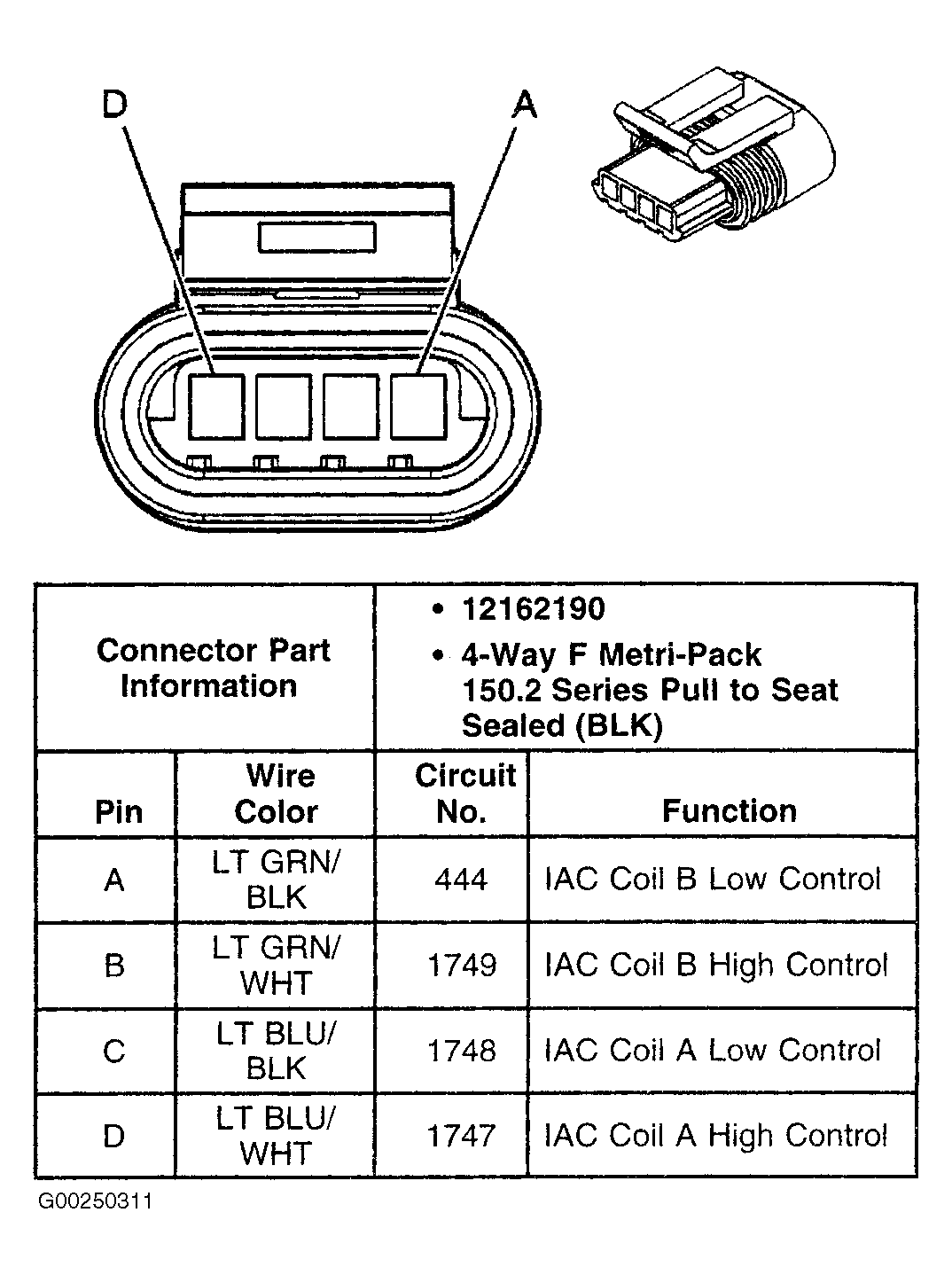

Fig 23: Identifying Idle Air Control Valve Connector Terminals

G00250311

Courtesy of GENERAL MOTORS CORP.

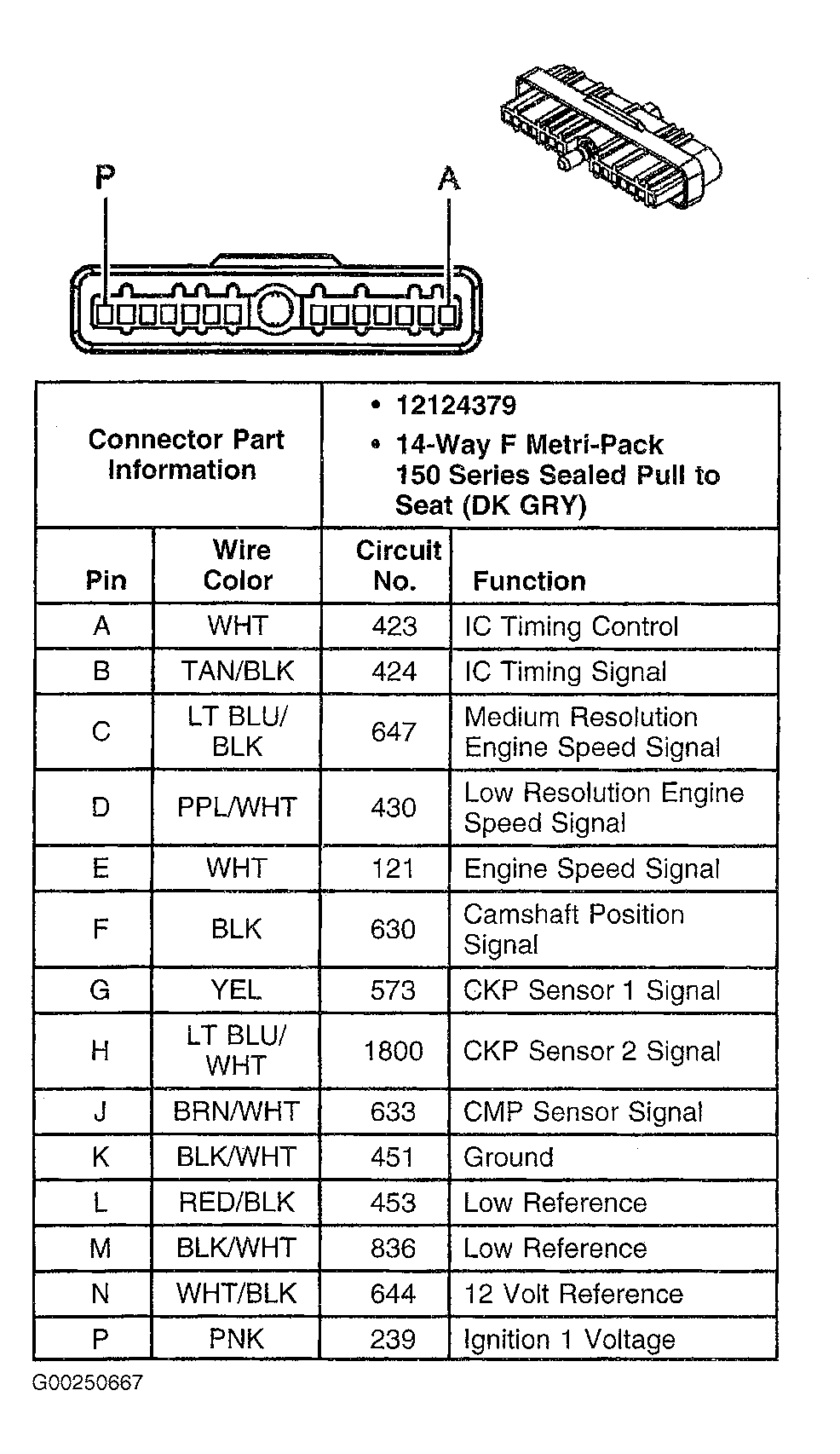

Fig 24: Identifying Ignition Control Module Connector Terminals

G00250667

Courtesy of GENERAL MOTORS CORP.

Fig 25: Identifying Intake Air Temperature Sensor Connector Terminals

G00141213

Courtesy of GENERAL MOTORS CORP.

Fig 26: Identifying Manifold Absolute Pressure Sensor (W/O Supercharger) Connector Terminals

G00141225

Courtesy of GENERAL MOTORS CORP.

Fig 27: Identifying Manifold Absolute Pressure Sensor (W/Supercharger) Connector Terminals

G00141227

Courtesy of GENERAL MOTORS CORP.

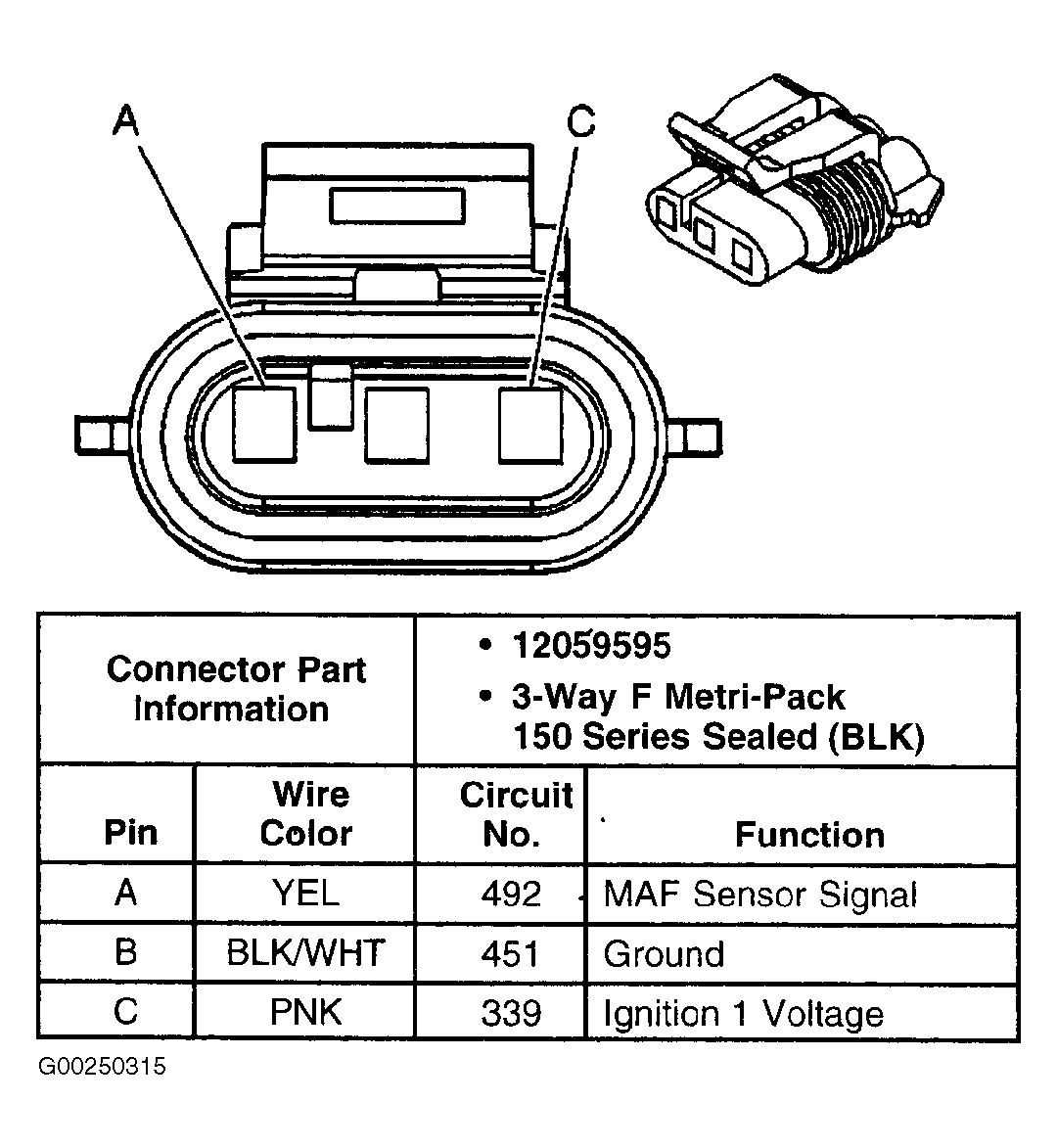

Fig 28: Identifying Mass Airflow Sensor Connector Terminals

G00250315

Courtesy of GENERAL MOTORS CORP.

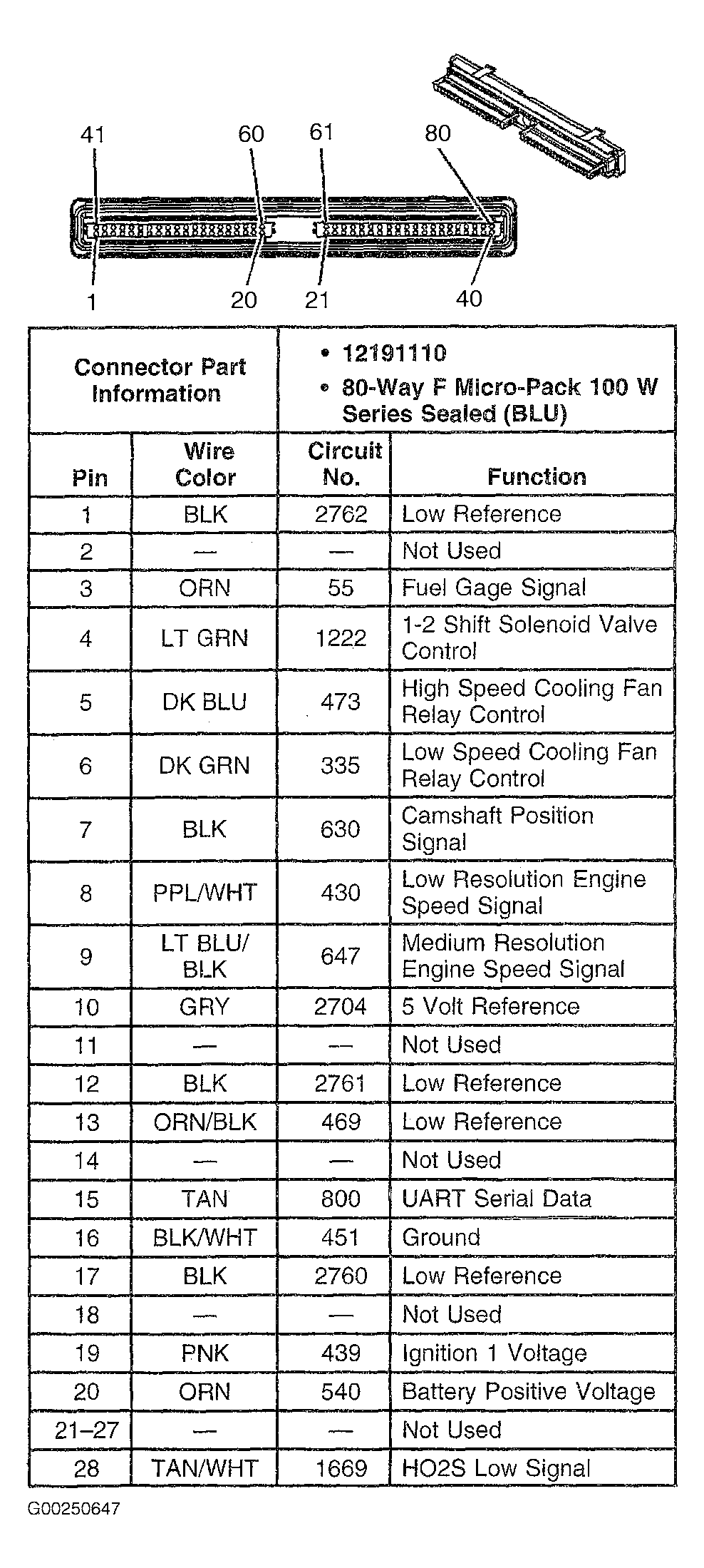

Fig 29: Identifying PCM C1 Connector Terminals (1 Of 3)

G00250647

Courtesy of GENERAL MOTORS CORP.

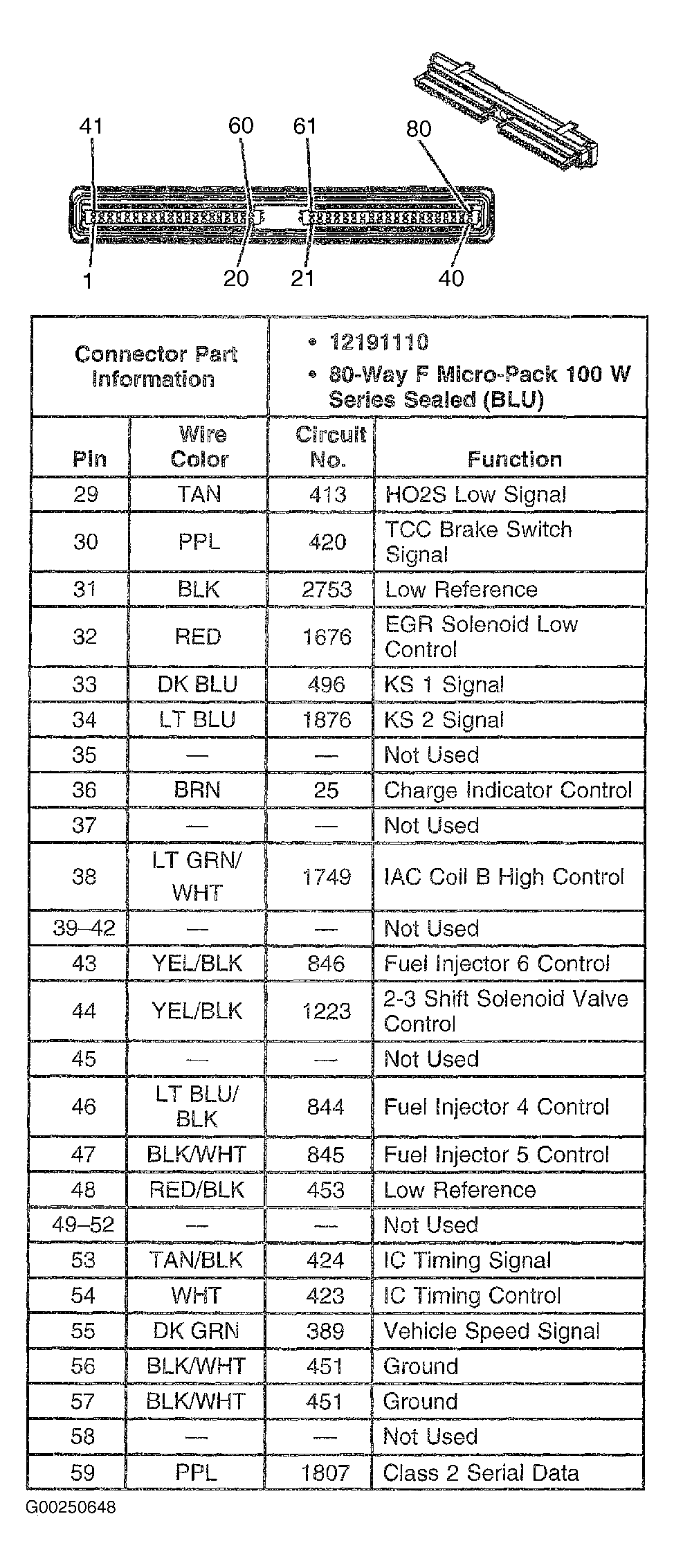

Fig 30: Identifying PCM C1 Connector Terminals (2 Of 3)

G00250648

Courtesy of GENERAL MOTORS CORP.

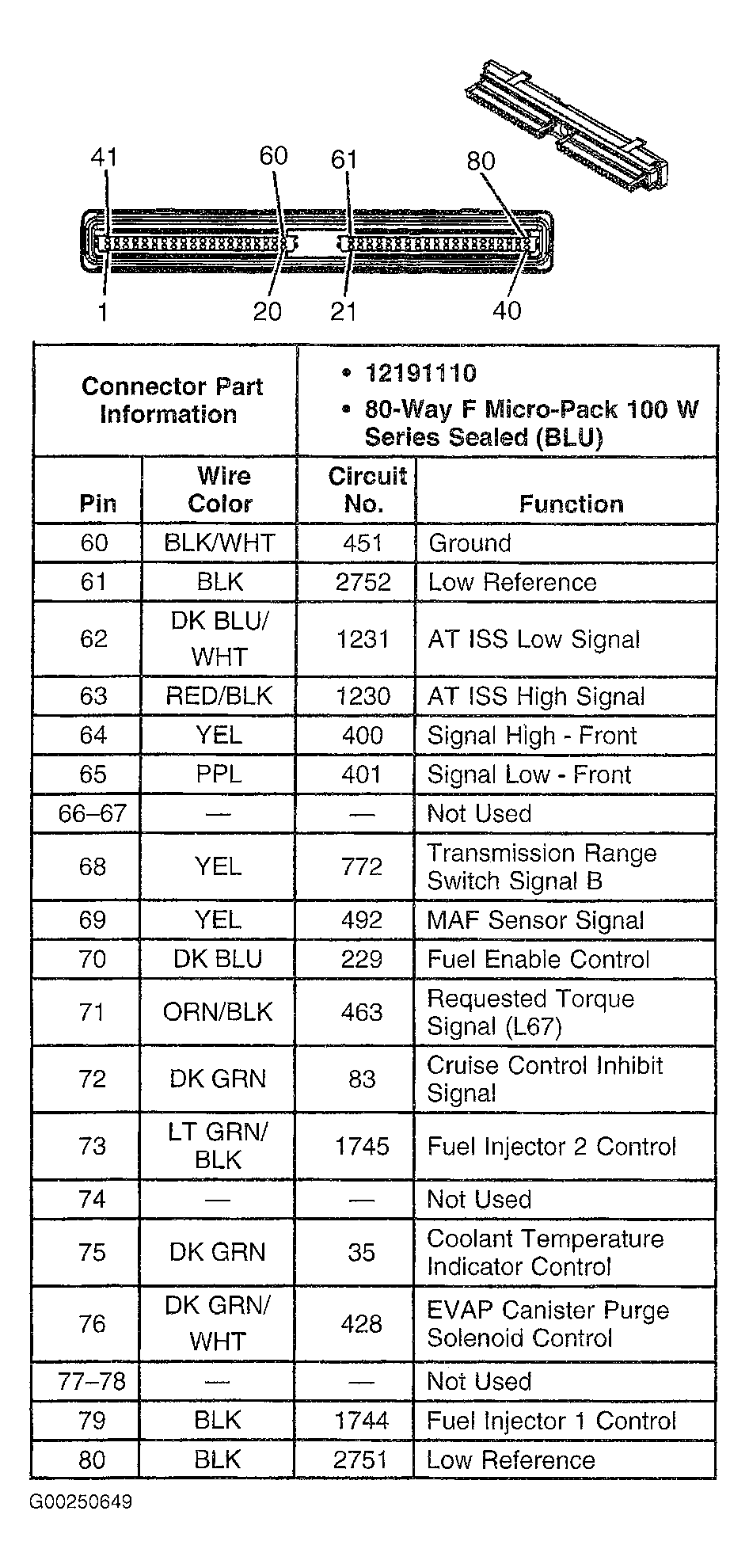

Fig 31: Identifying PCM C1 Connector Terminals (3 Of 3)

G00250649

Courtesy of GENERAL MOTORS CORP.

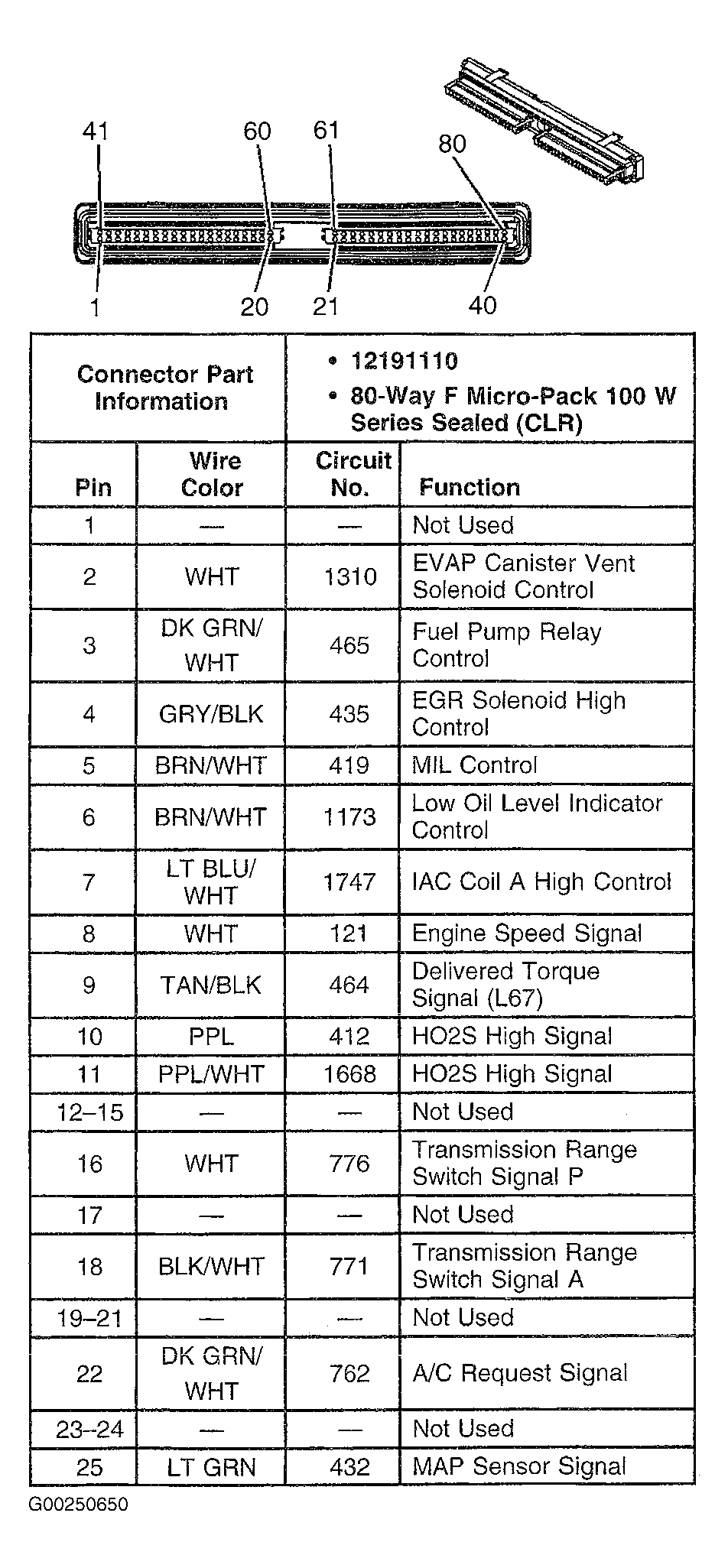

Fig 32: Identifying PCM C2 Connector Terminals (1 Of 3)

G00250650

Courtesy of GENERAL MOTORS CORP.

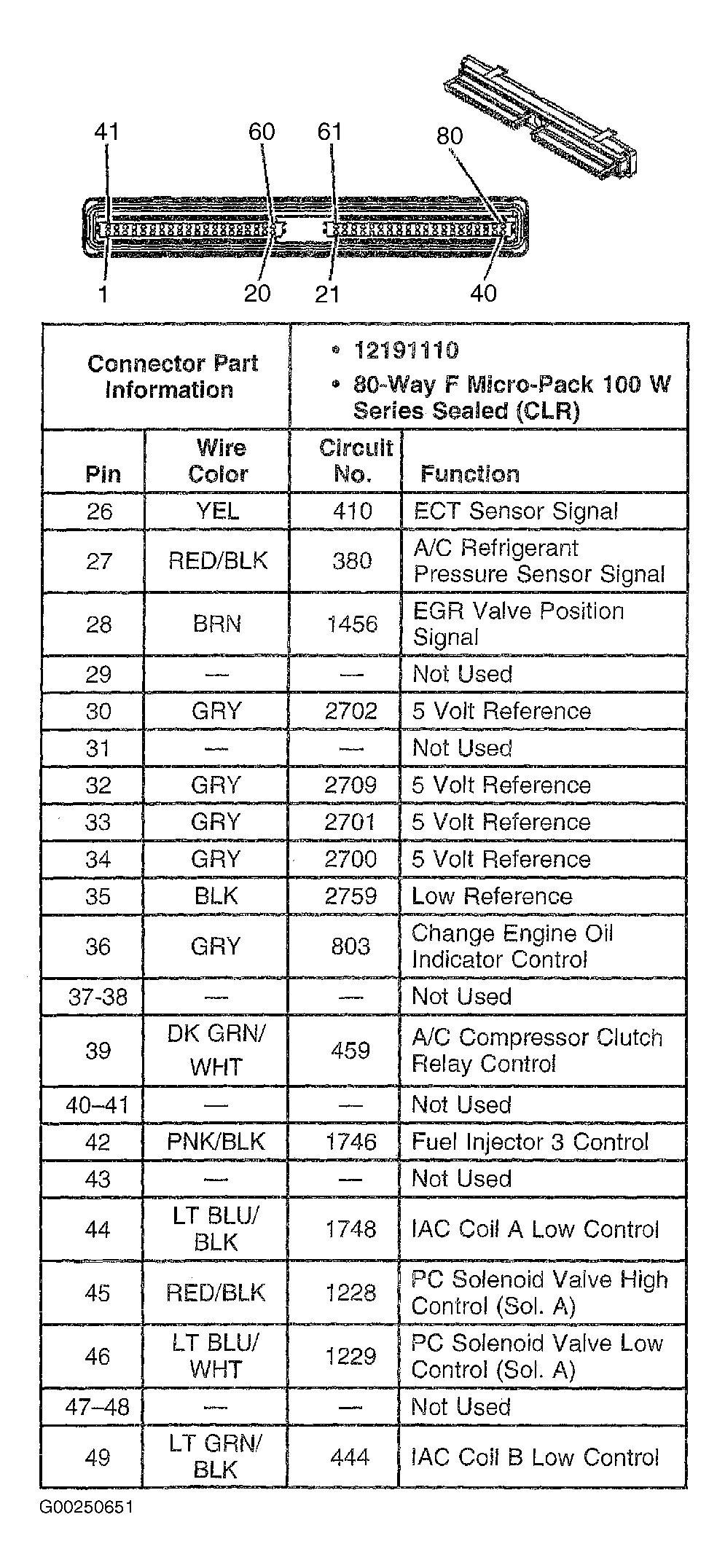

Fig 33: Identifying PCM C2 Connector Terminals (2 Of 3)

G00250651

Courtesy of GENERAL MOTORS CORP.

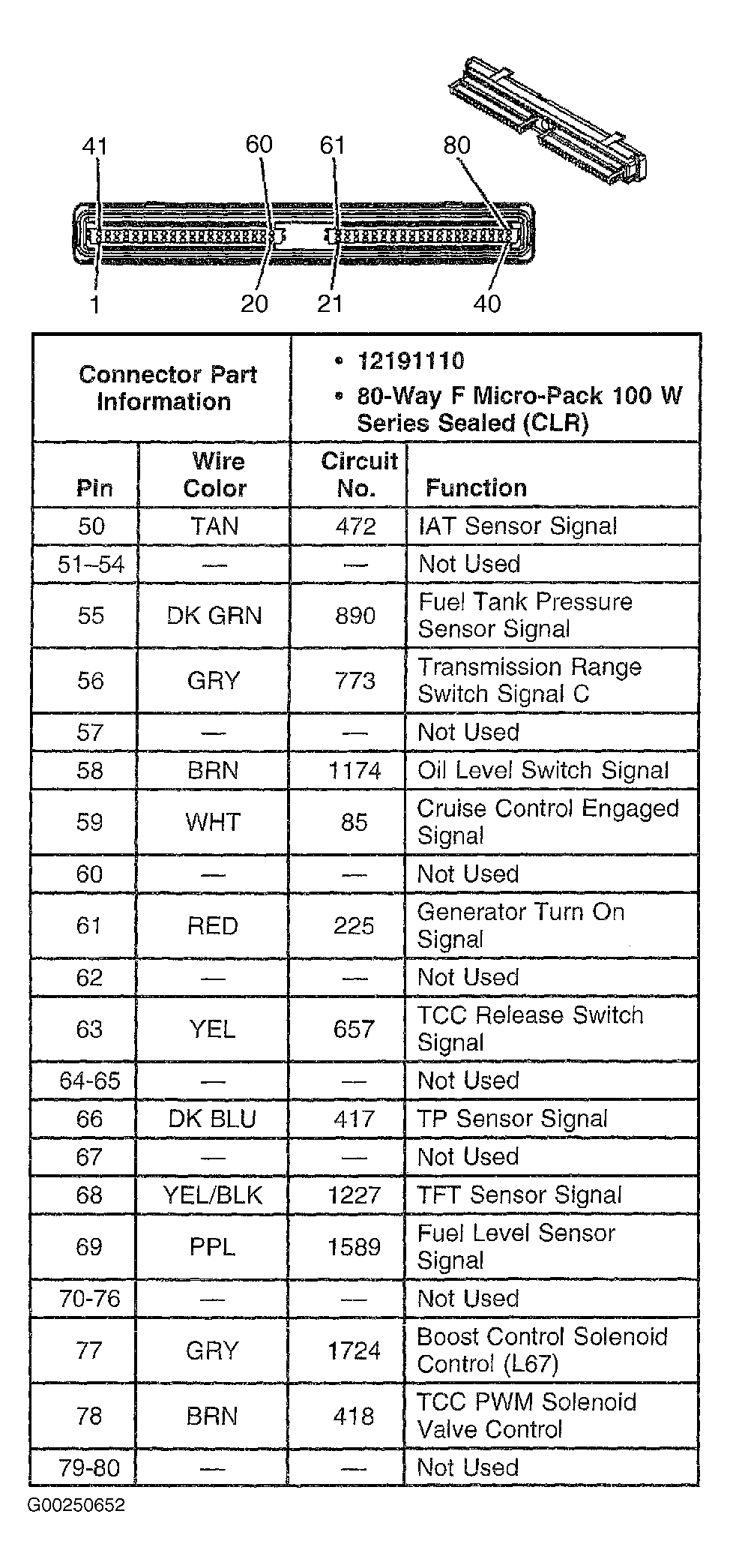

Fig 34: Identifying PCM C2 Connector Terminals (3 Of 3)

G00250652

Courtesy of GENERAL MOTORS CORP.

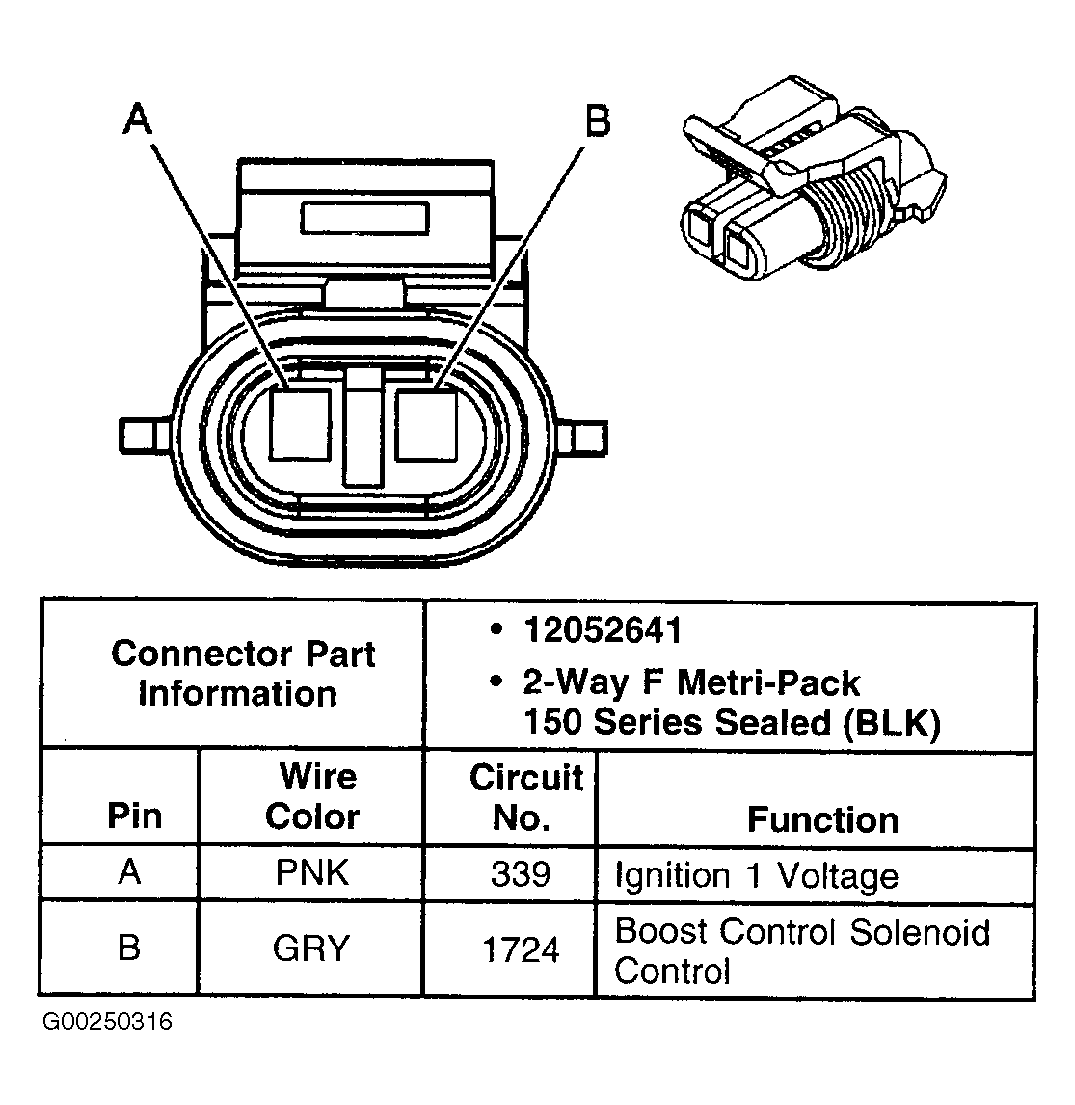

Fig 35: Identifying Supercharger Boost Control Solenoid Connector Terminals

G00250316

Courtesy of GENERAL MOTORS CORP.

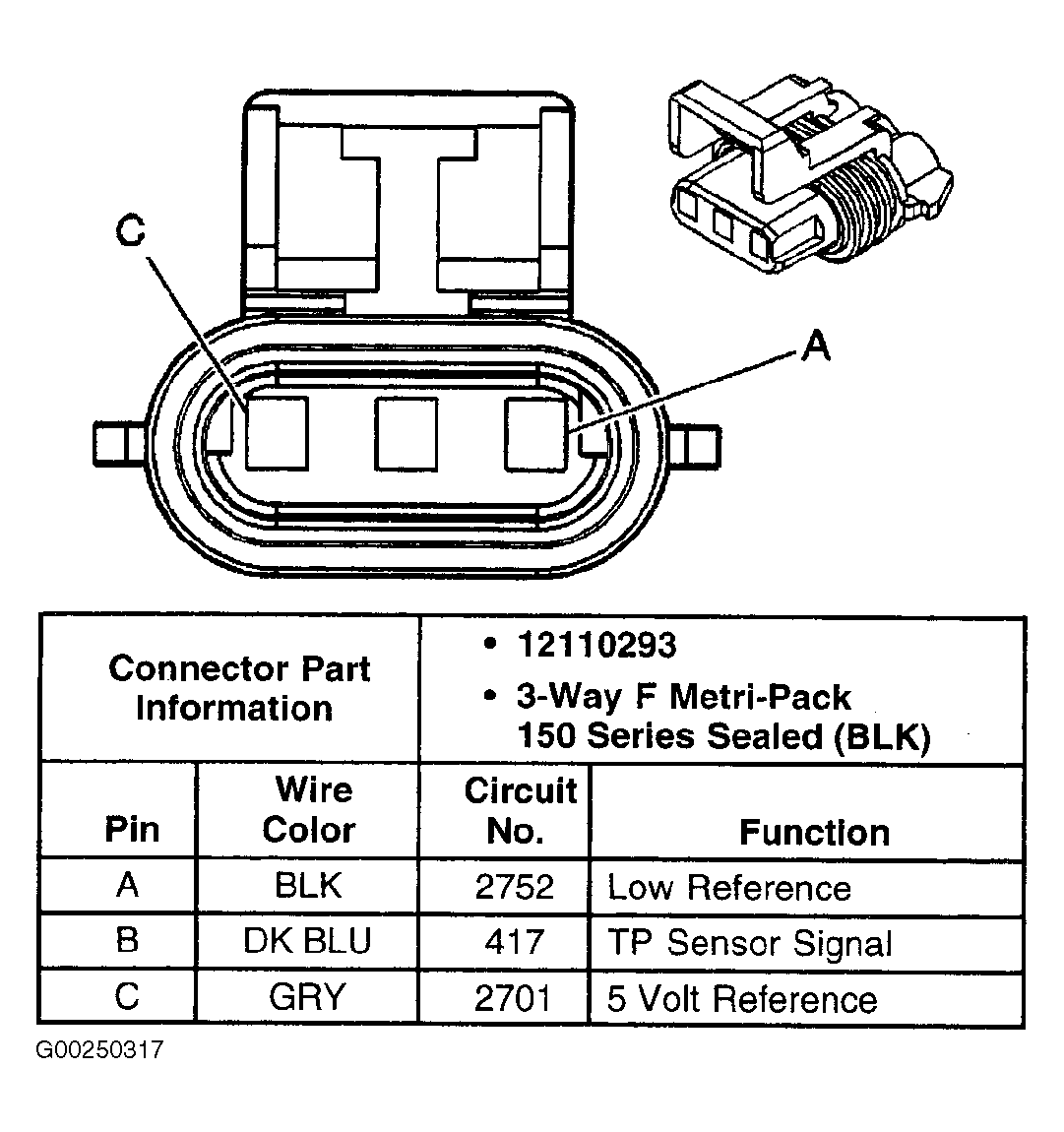

Fig 36: Identifying Throttle Position Sensor Connector Terminals

G00250317

Courtesy of GENERAL MOTORS CORP.
