Connector Identification: Impala

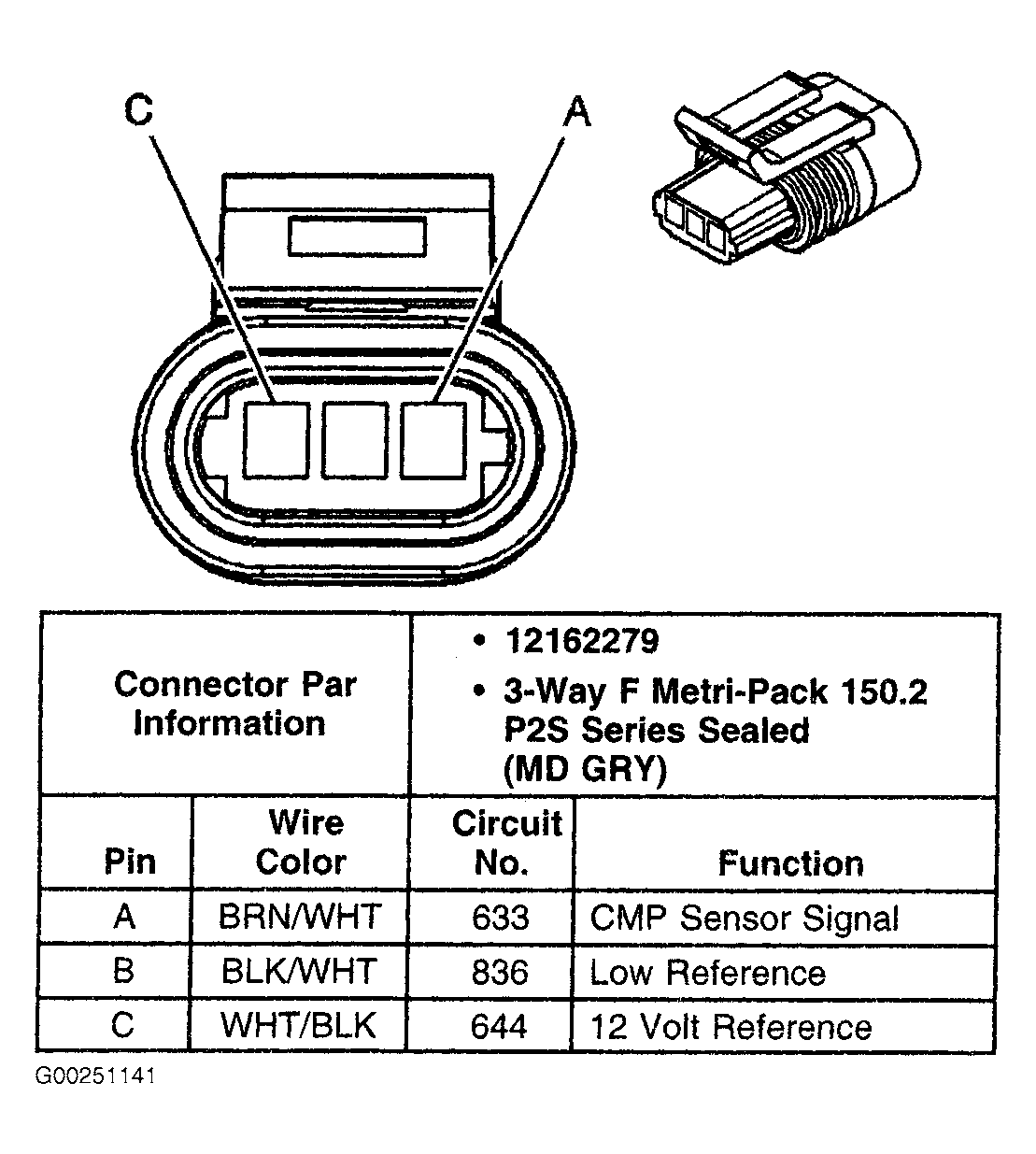

Fig 1: Identifying Camshaft Position Sensor Connector Terminals

G00251141

Courtesy of GENERAL MOTORS CORP.

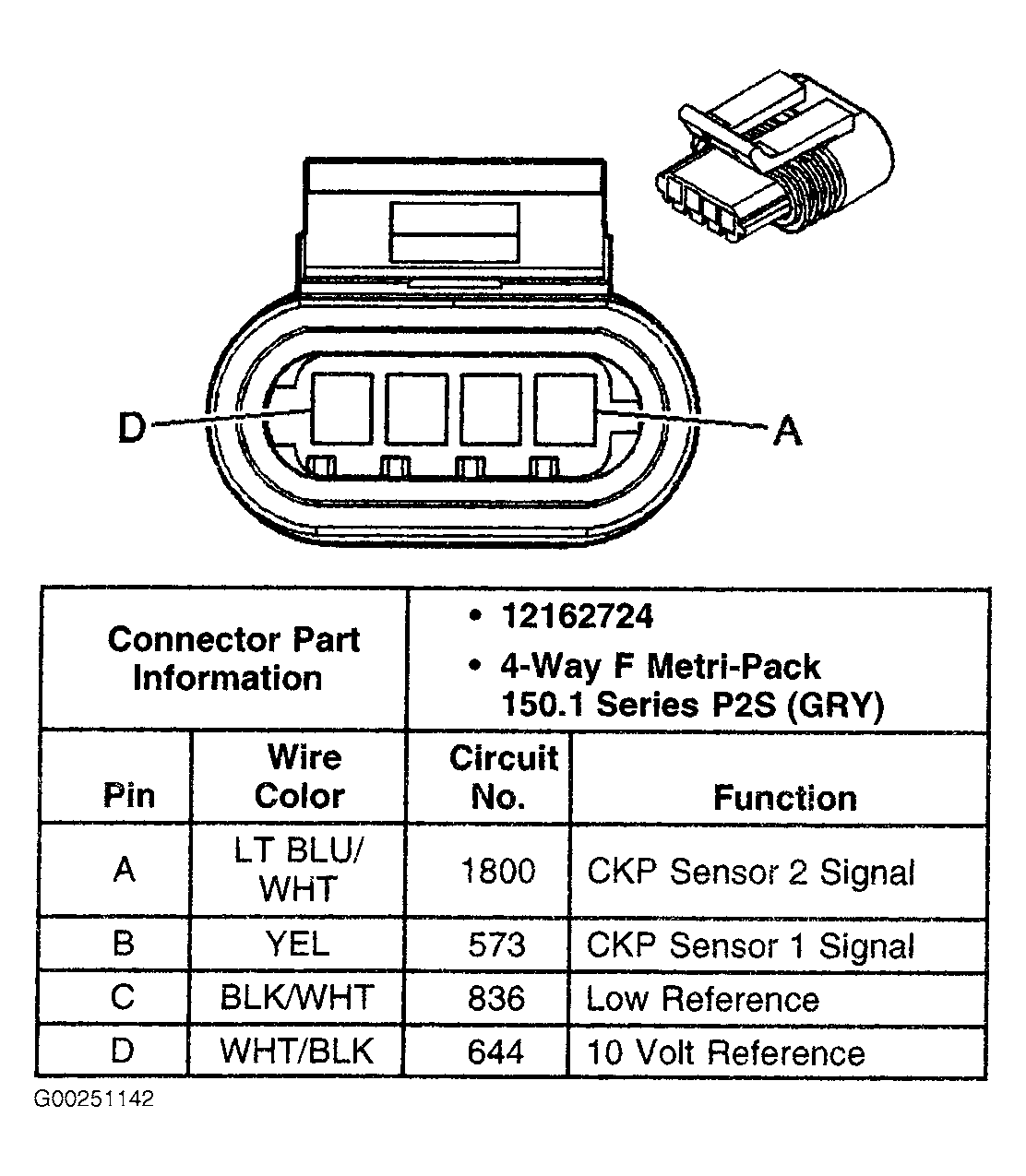

Fig 2: Identifying Crankshaft Position Sensor Connector Terminals

G00251142

Courtesy of GENERAL MOTORS CORP.

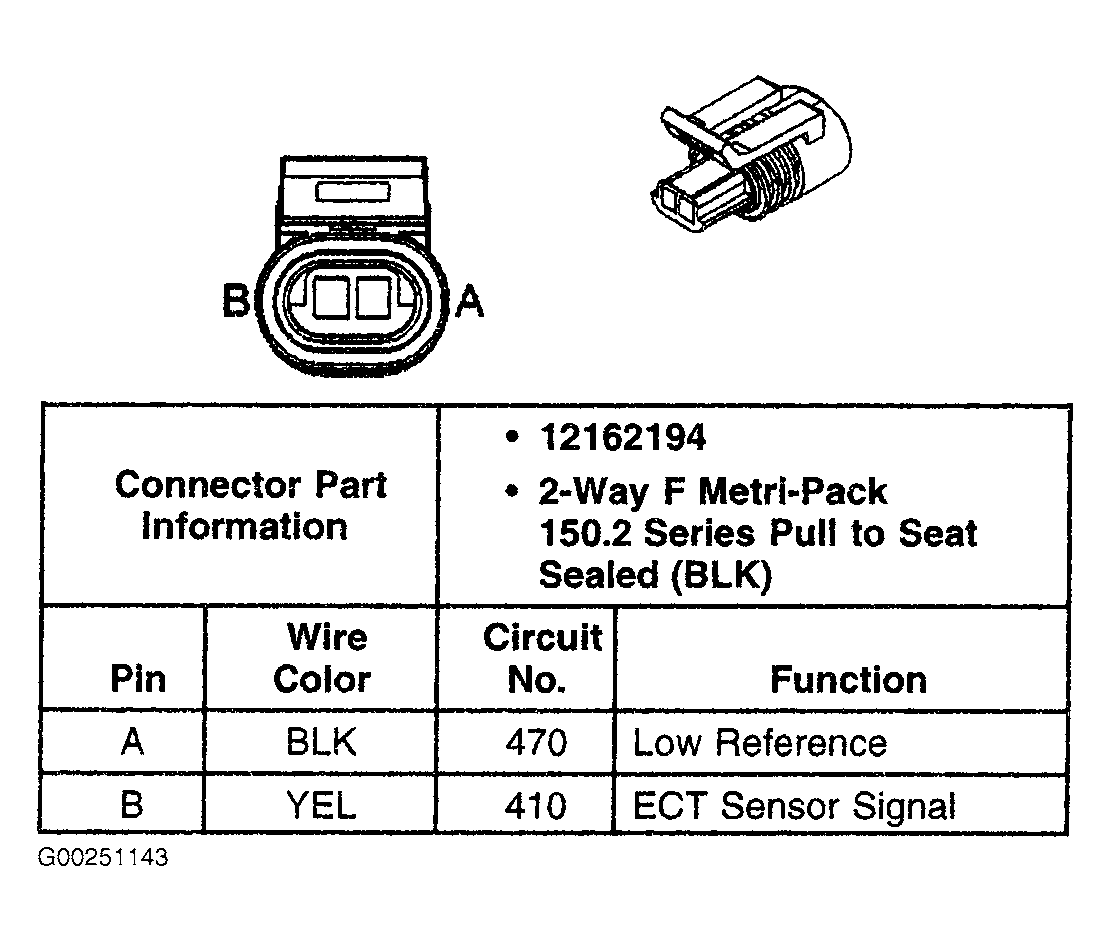

Fig 3: Identifying Engine Coolant Temperature Sensor Connector Terminals

G00251143

Courtesy of GENERAL MOTORS CORP.

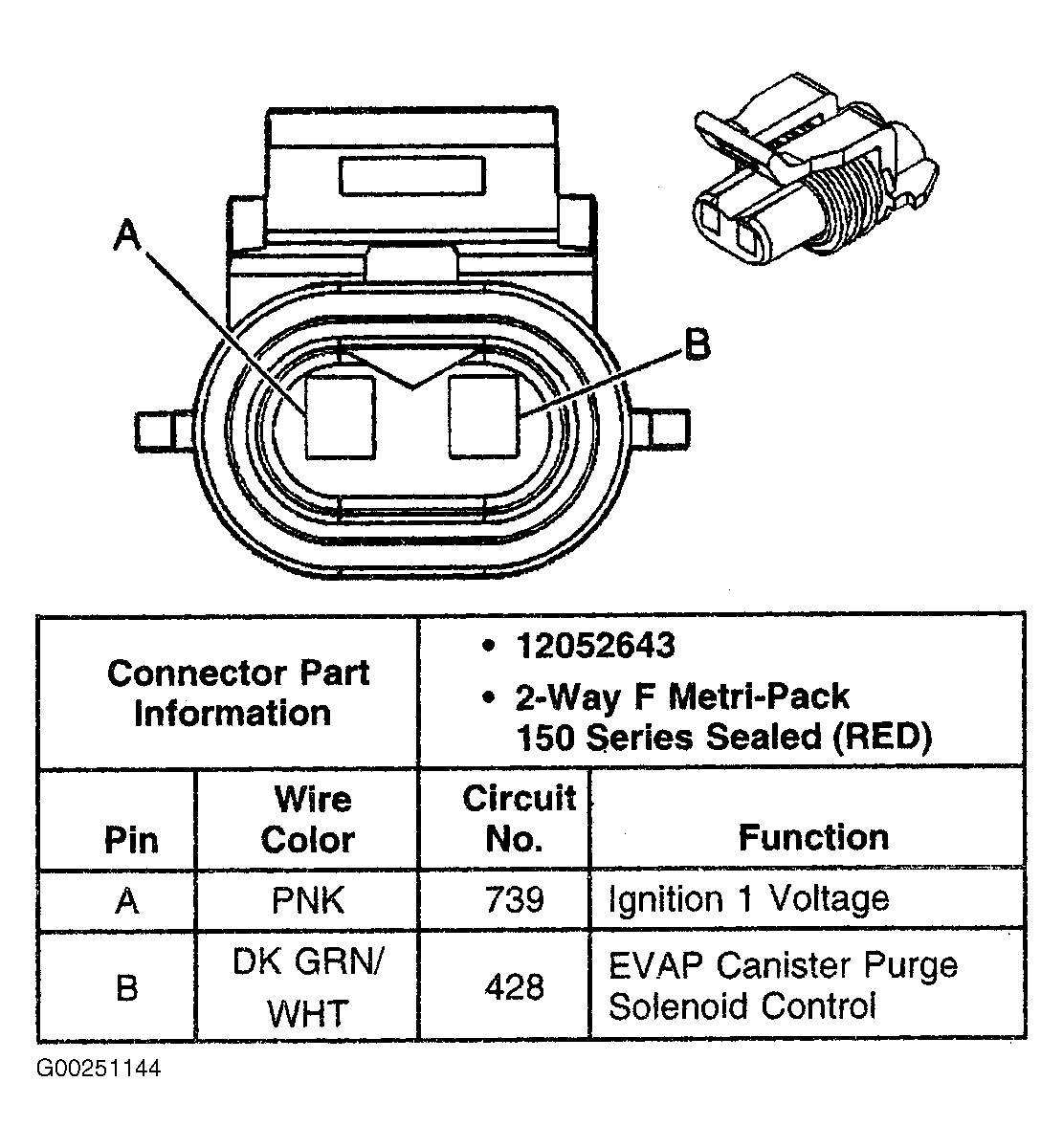

Fig 4: Identifying Evaporative Emissions Canister Purge Solenoid Connector Terminals

G00251144

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Evaporative Emissions Canister Vent Solenoid Connector Terminals

G00251145

Courtesy of GENERAL MOTORS CORP.

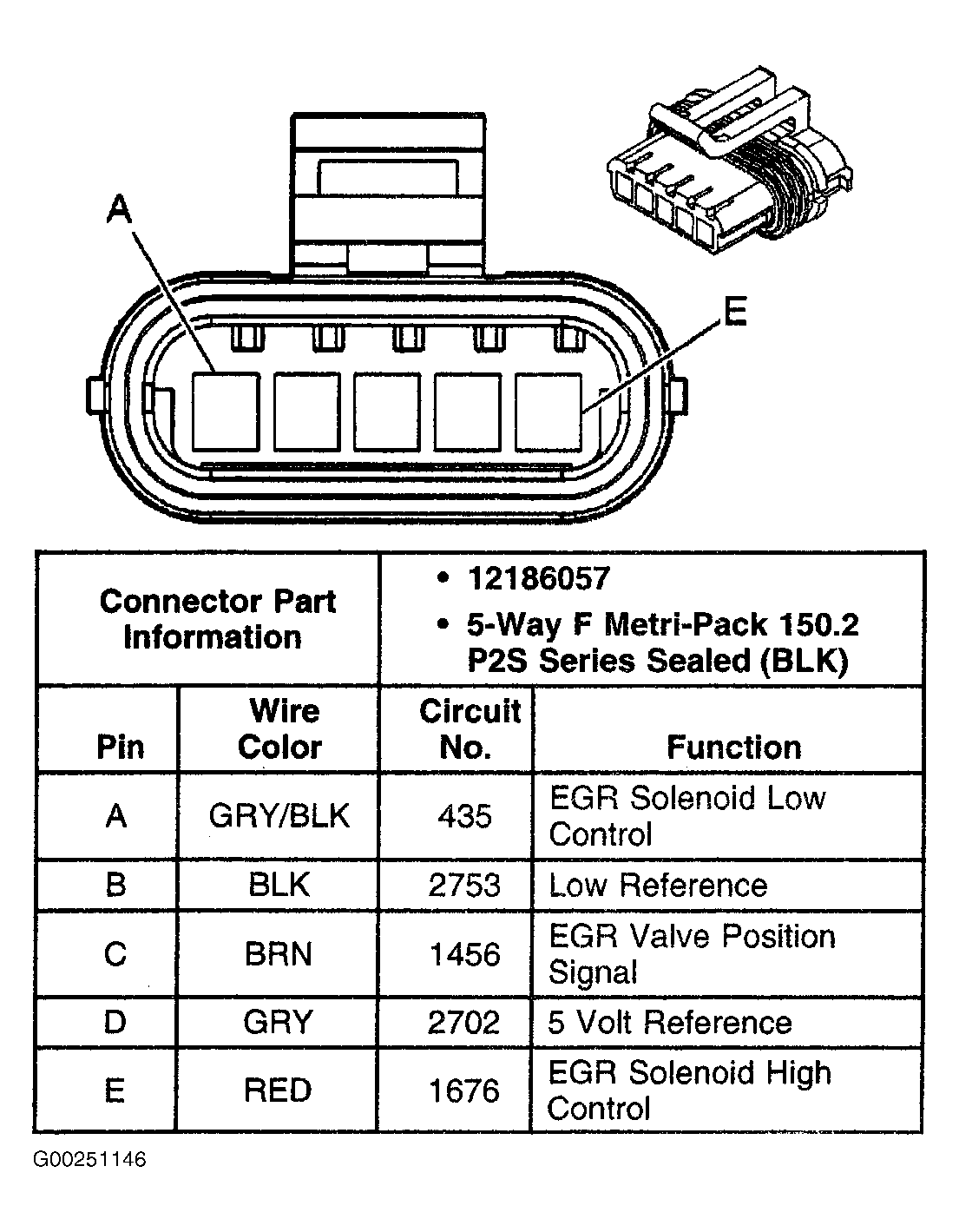

Fig 6: Identifying Exhaust Gas Recirculation Valve Connector Terminals

G00251146

Courtesy of GENERAL MOTORS CORP.

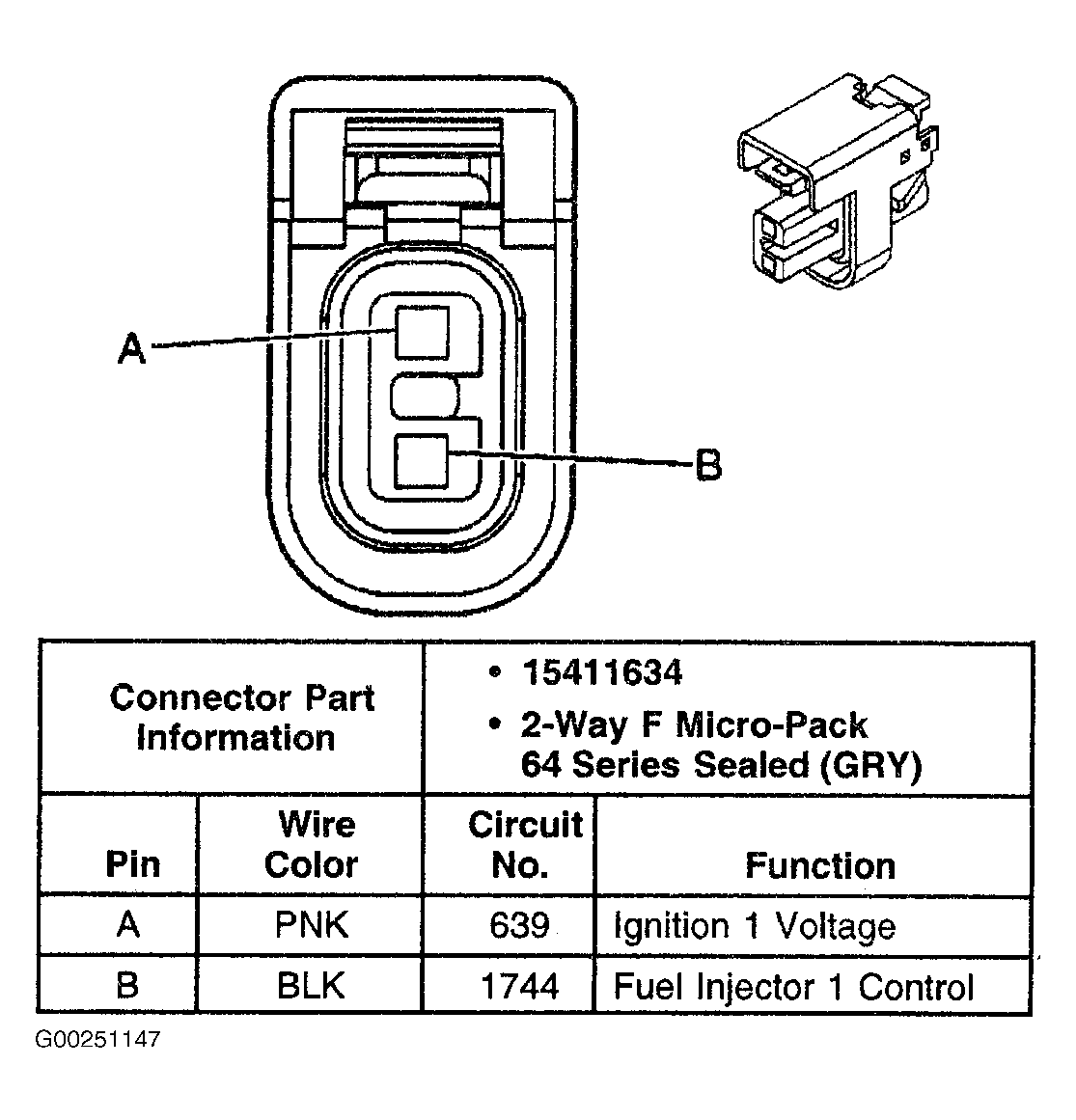

Fig 7: Identifying Fuel Injector No. 1 Connector Terminals

G00251147

Courtesy of GENERAL MOTORS CORP.

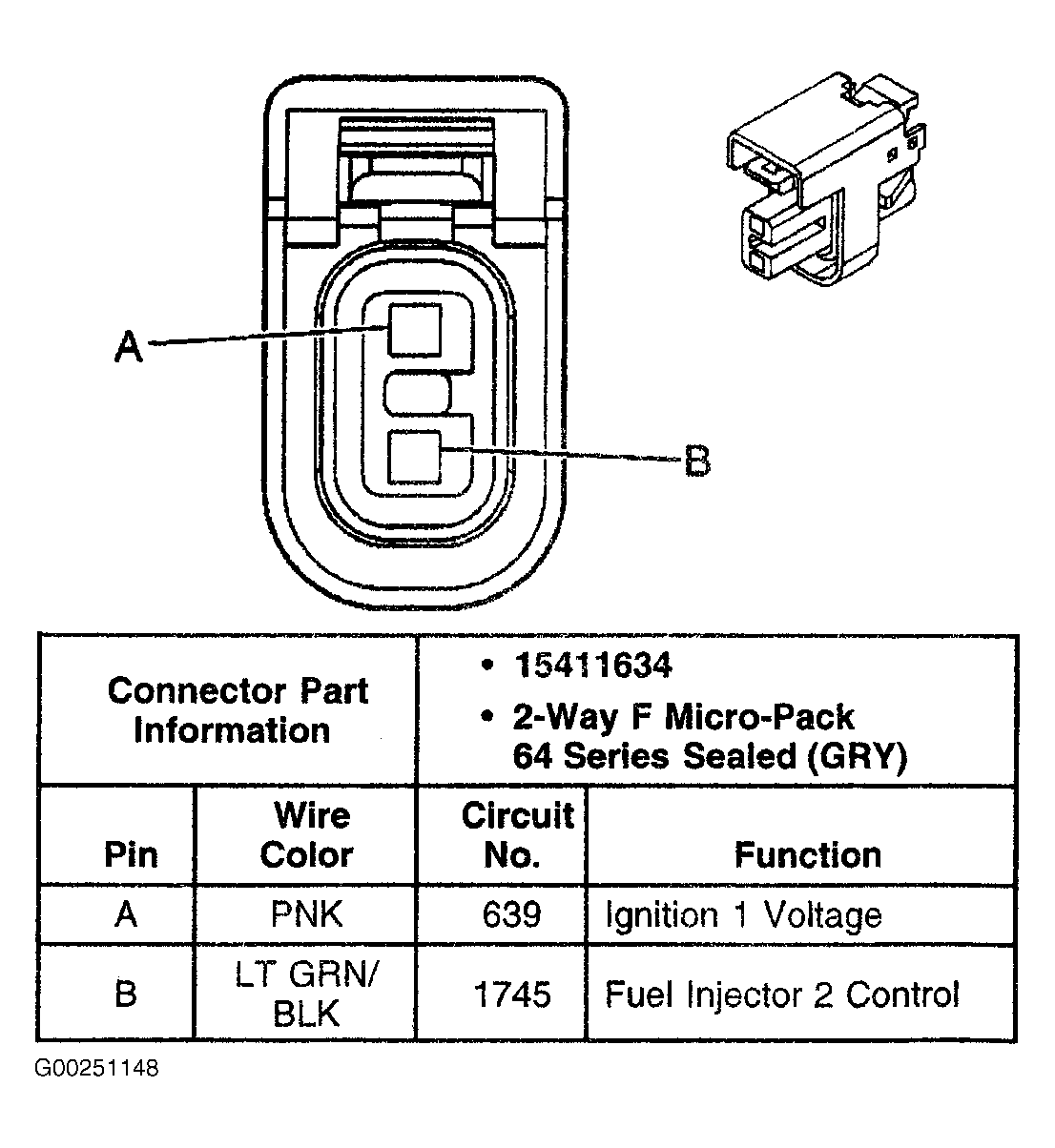

Fig 8: Identifying Fuel Injector No. 2 Connector Terminals

G00251148

Courtesy of GENERAL MOTORS CORP.

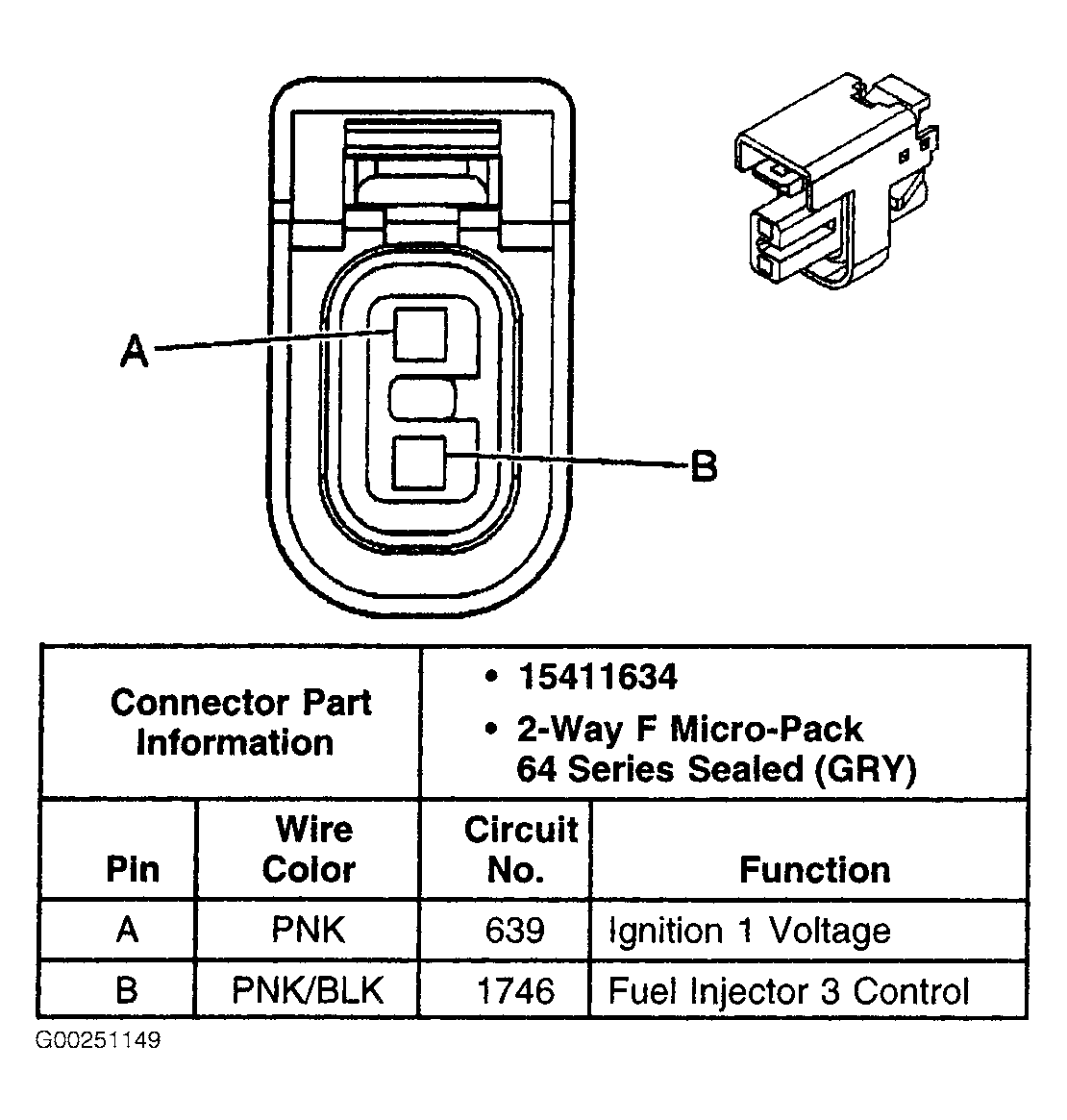

Fig 9: Identifying Fuel Injector No. 3 Connector Terminals

G00251149

Courtesy of GENERAL MOTORS CORP.

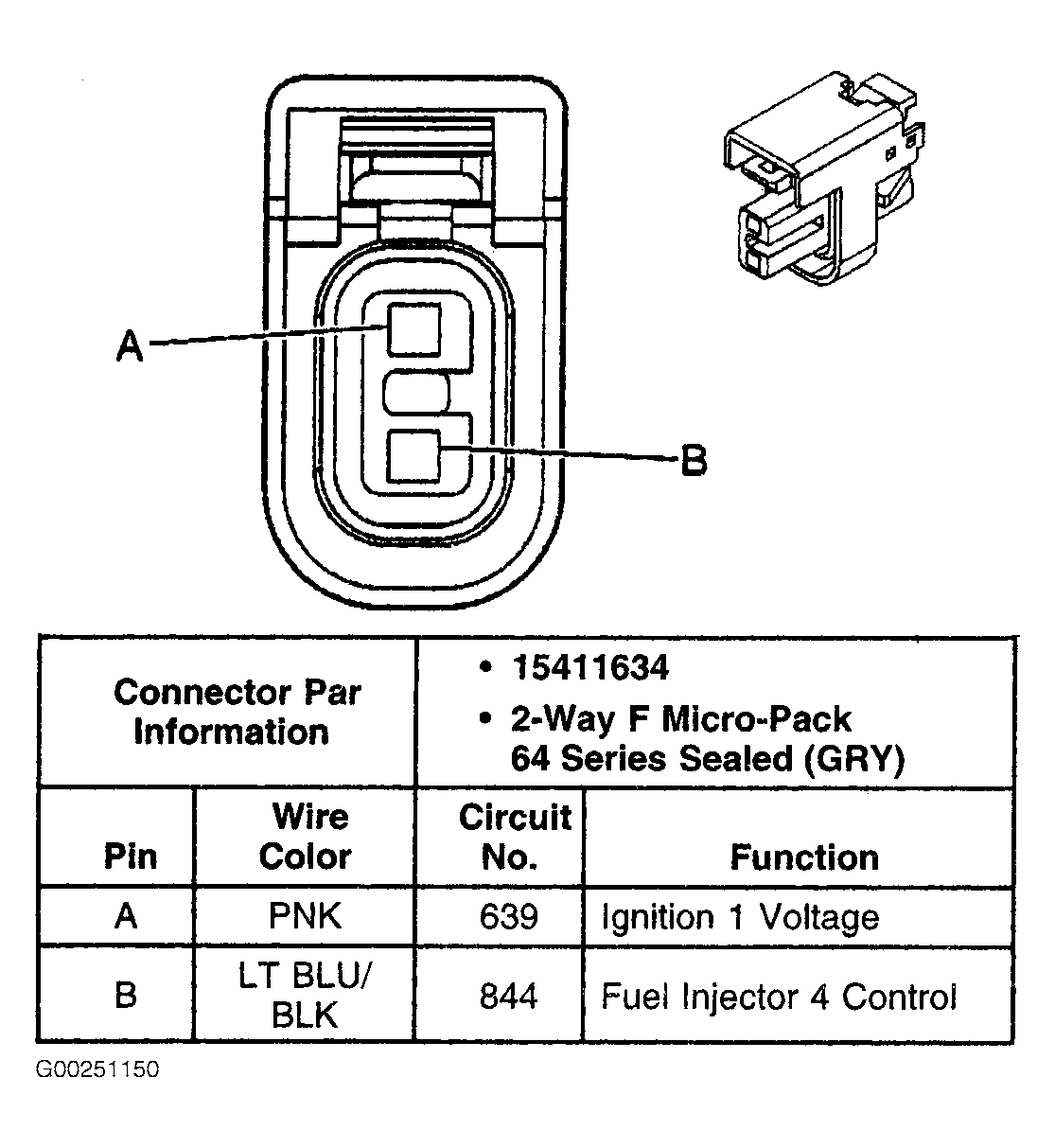

Fig 10: Identifying Fuel Injector No. 4 Connector Terminals

G00251150

Courtesy of GENERAL MOTORS CORP.

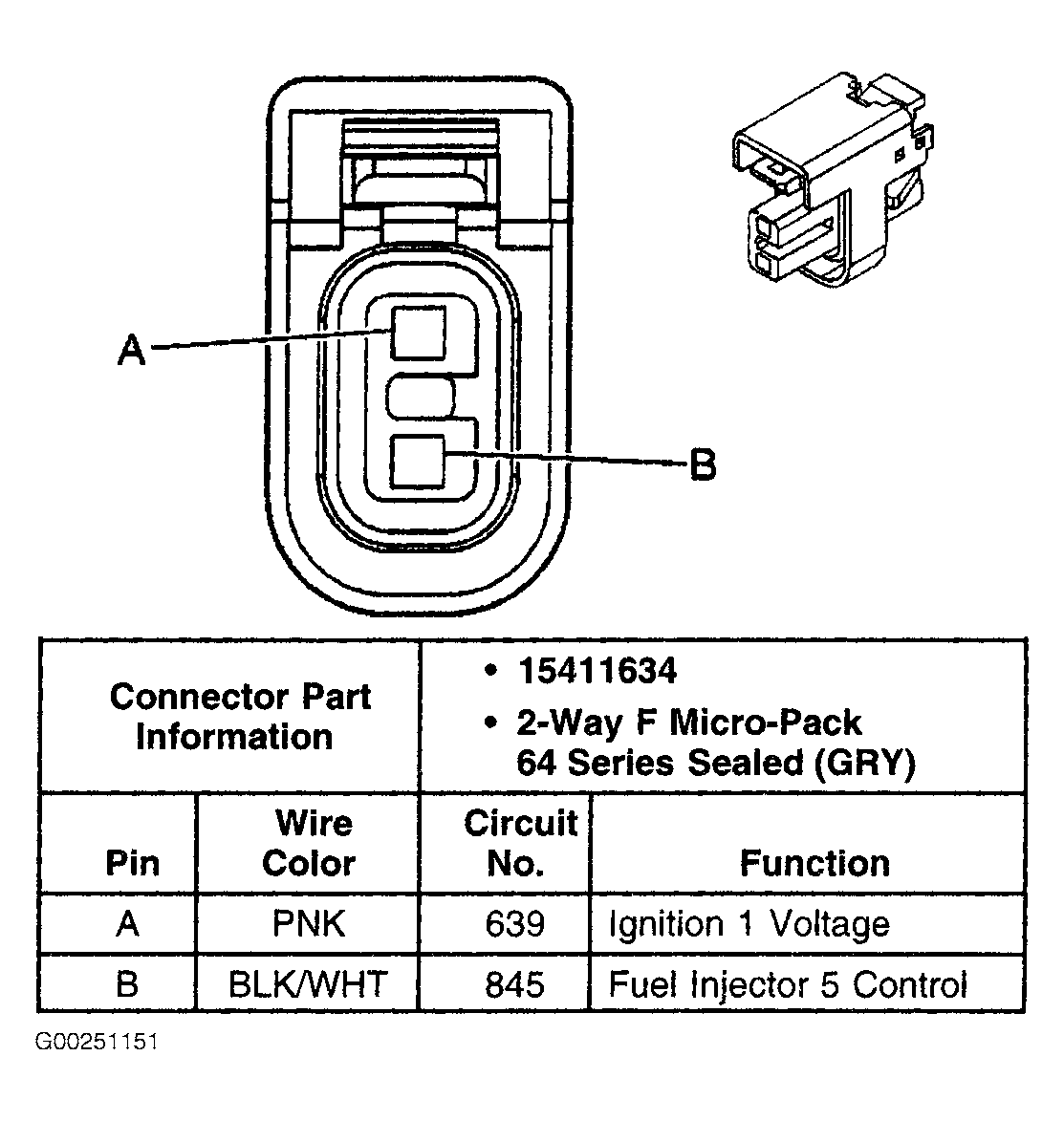

Fig 11: Identifying Fuel Injector No. 5 Connector Terminals

G00251151

Courtesy of GENERAL MOTORS CORP.

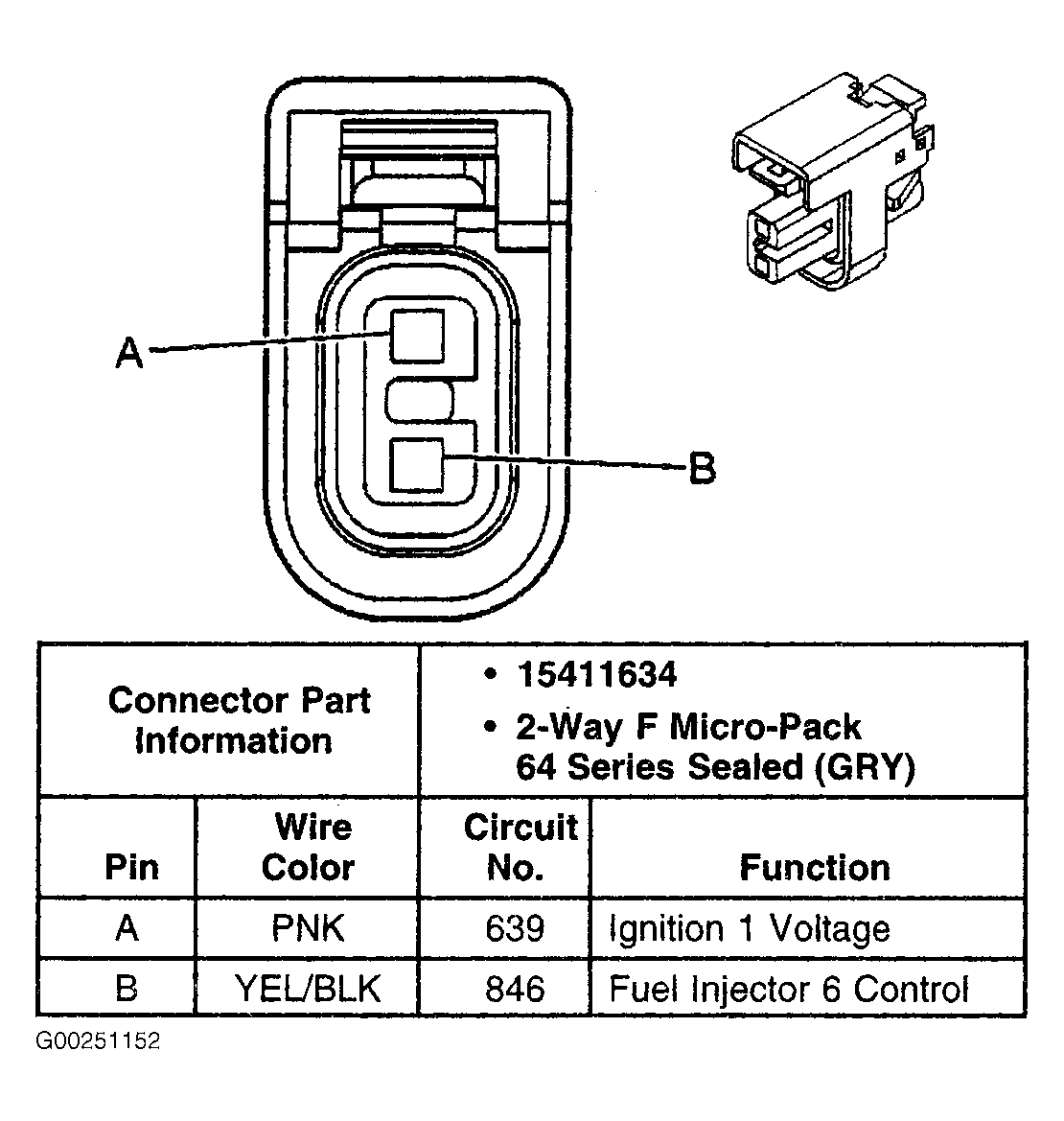

Fig 12: Identifying Fuel Injector No. 6 Connector Terminals

G00251152

Courtesy of GENERAL MOTORS CORP.

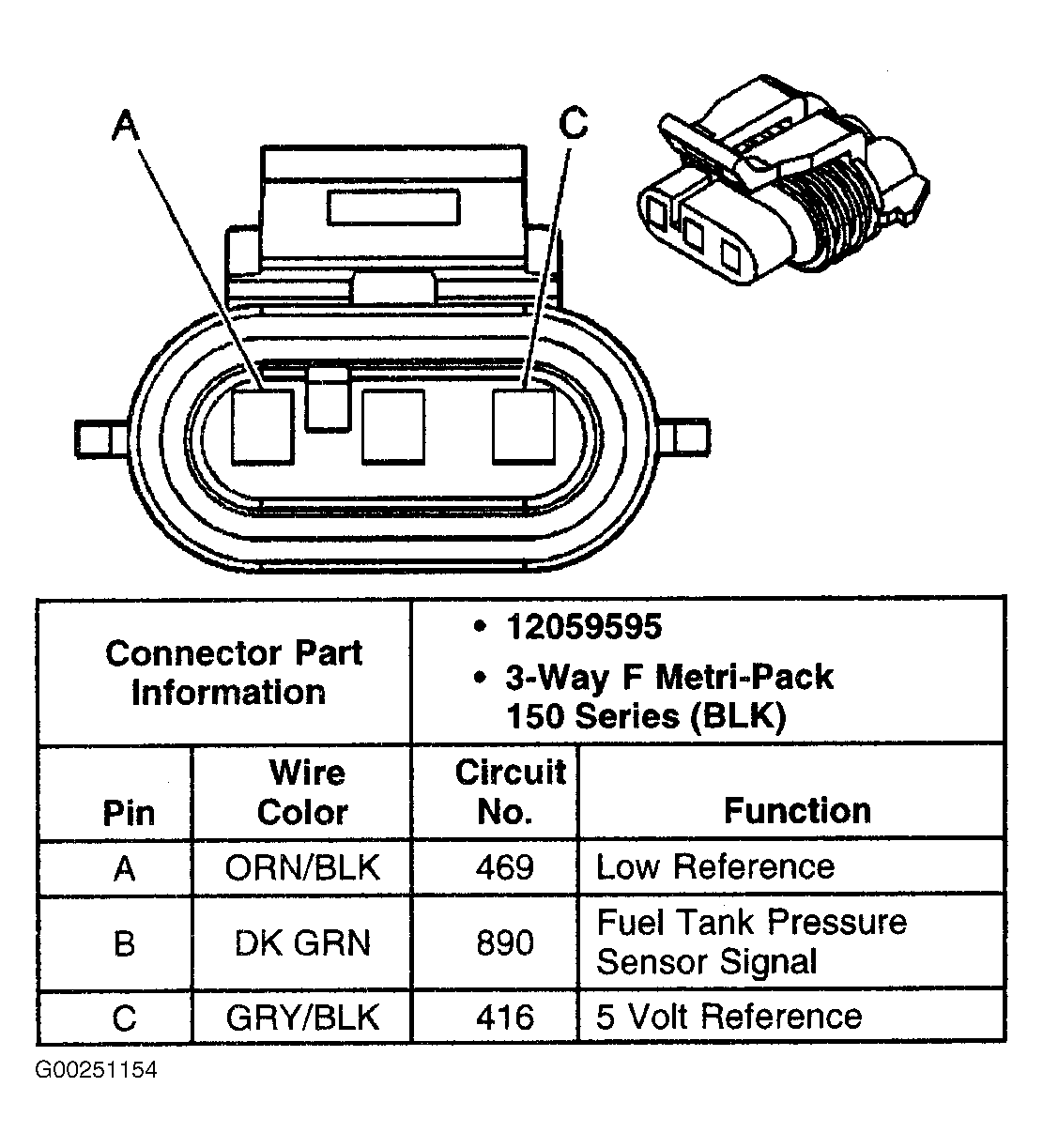

Fig 13: Identifying Fuel Tank Pressure Sensor Connector Terminals

G00251154

Courtesy of GENERAL MOTORS CORP.

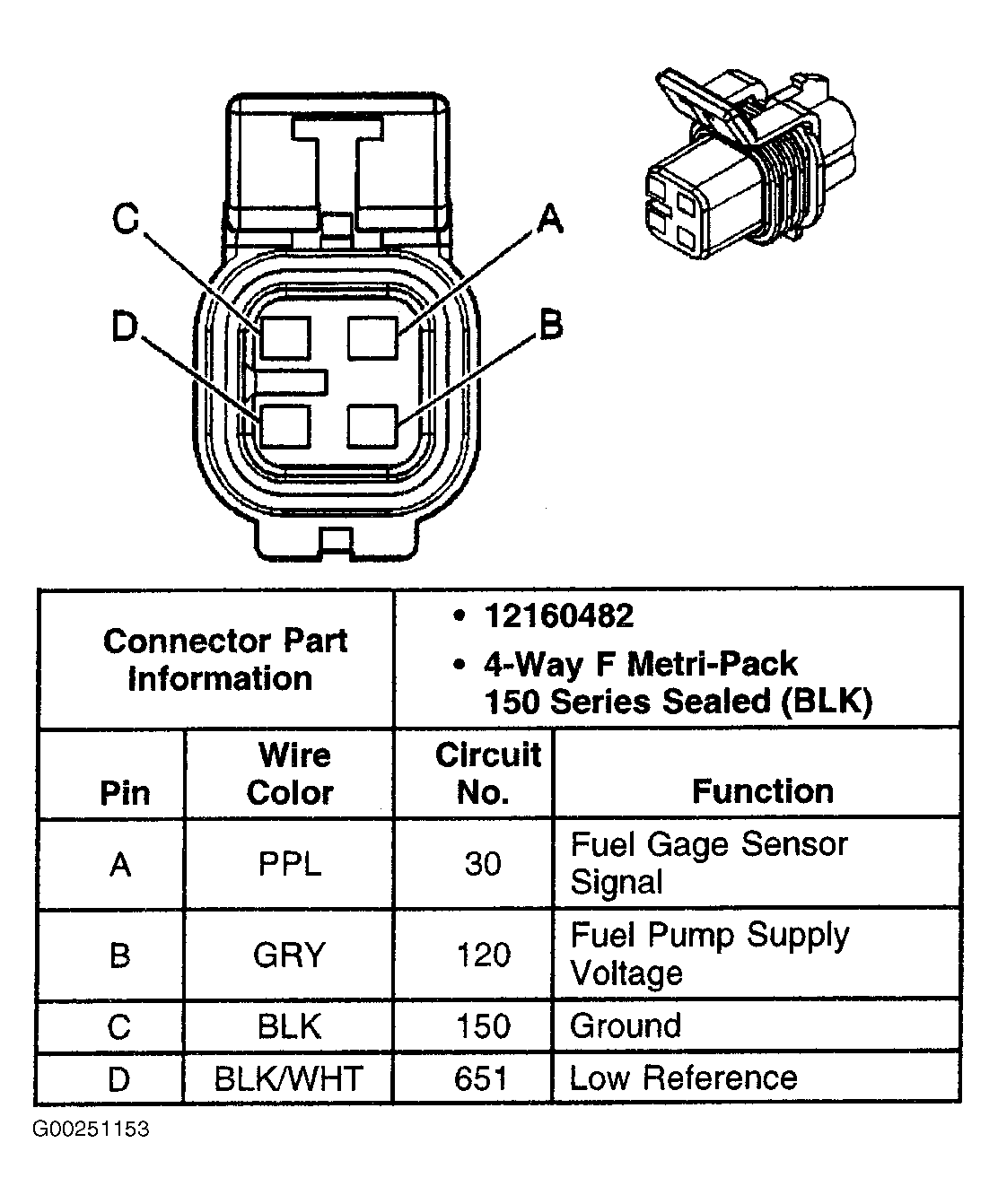

Fig 14: Identifying Fuel Pump & Sender Assembly Connector Terminals

G00251153

Courtesy of GENERAL MOTORS CORP.

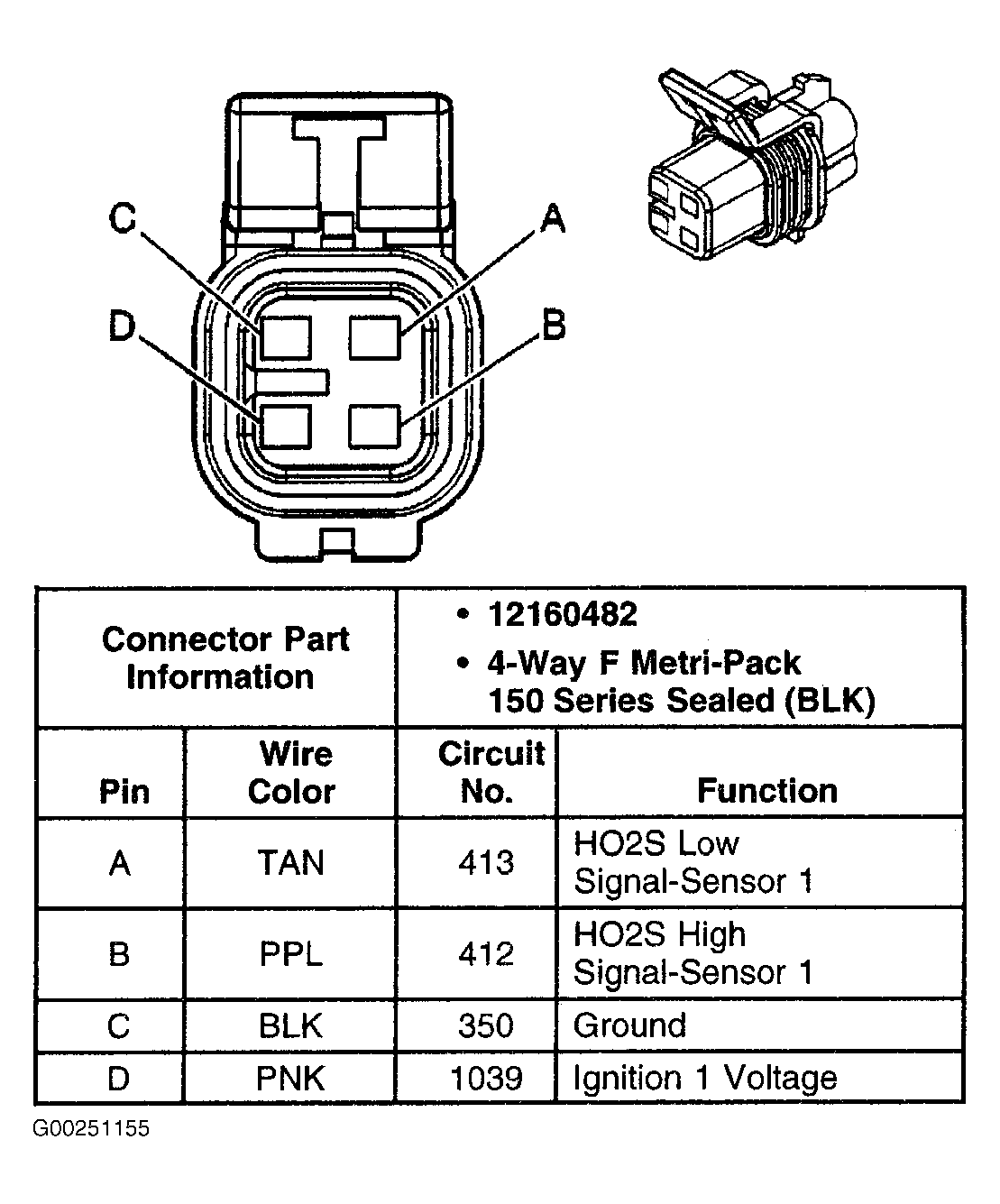

Fig 15: Identifying HO2S Sensor 1 Connector Terminals

G00251155

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying HO2S Sensor 2 Connector Terminals

G00251156

Courtesy of GENERAL MOTORS CORP.

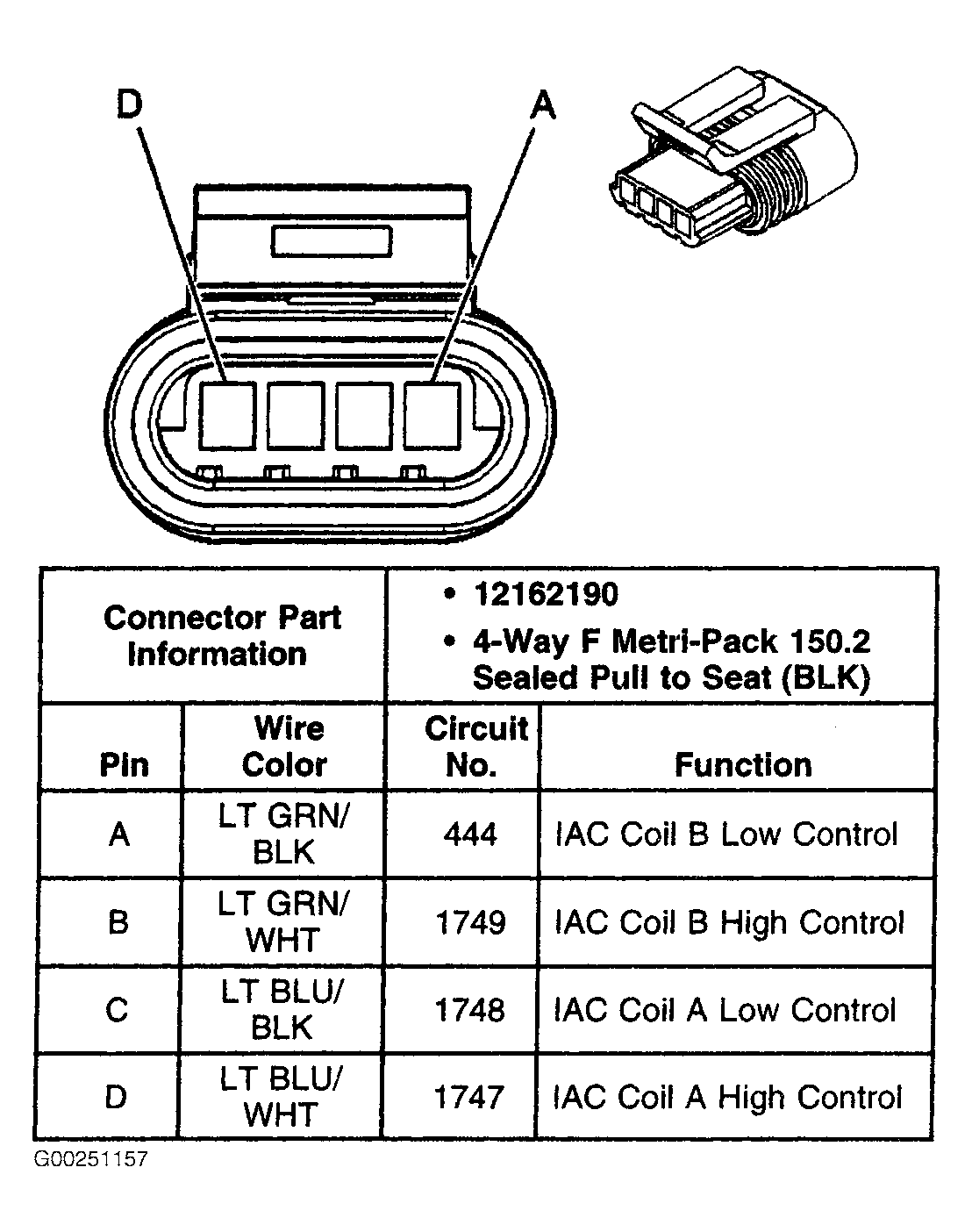

Fig 17: Identifying Idle Air Control Valve Connector Terminals

G00251157

Courtesy of GENERAL MOTORS CORP.

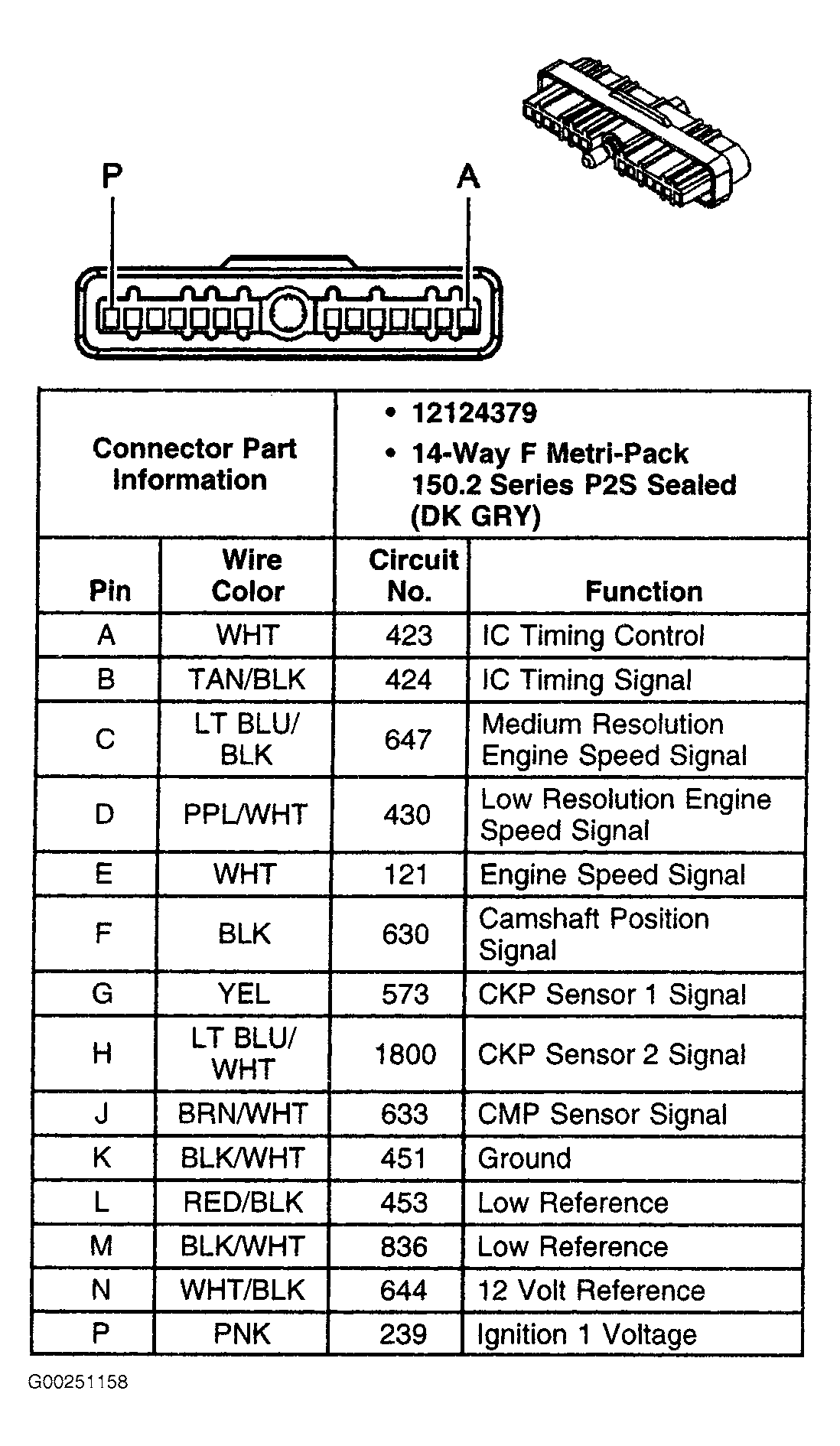

Fig 18: Identifying Ignition Control Module Connector Terminals

G00251158

Courtesy of GENERAL MOTORS CORP.

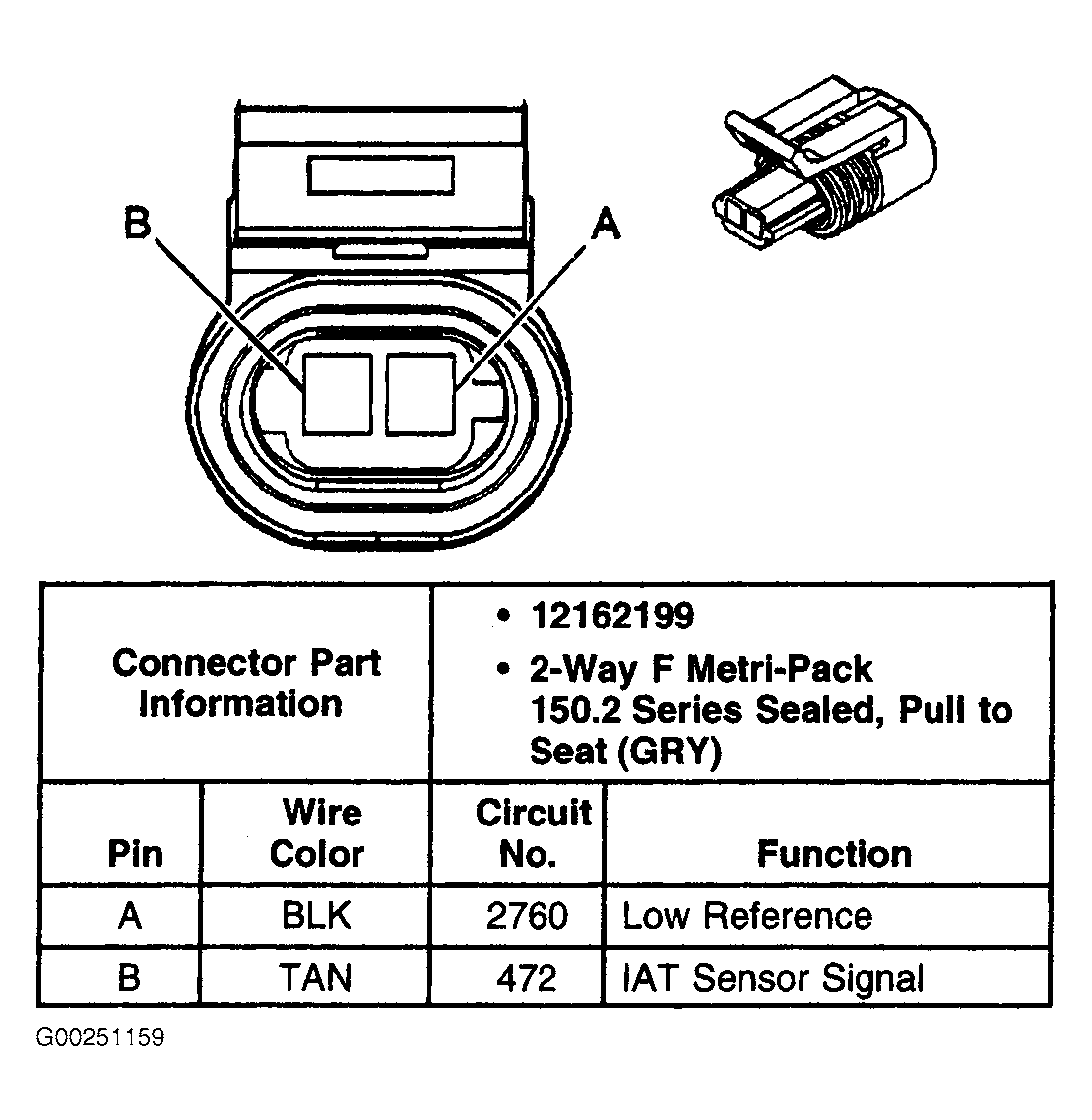

Fig 19: Identifying Intake Air Temperature Sensor Connector Terminals

G00251159

Courtesy of GENERAL MOTORS CORP.

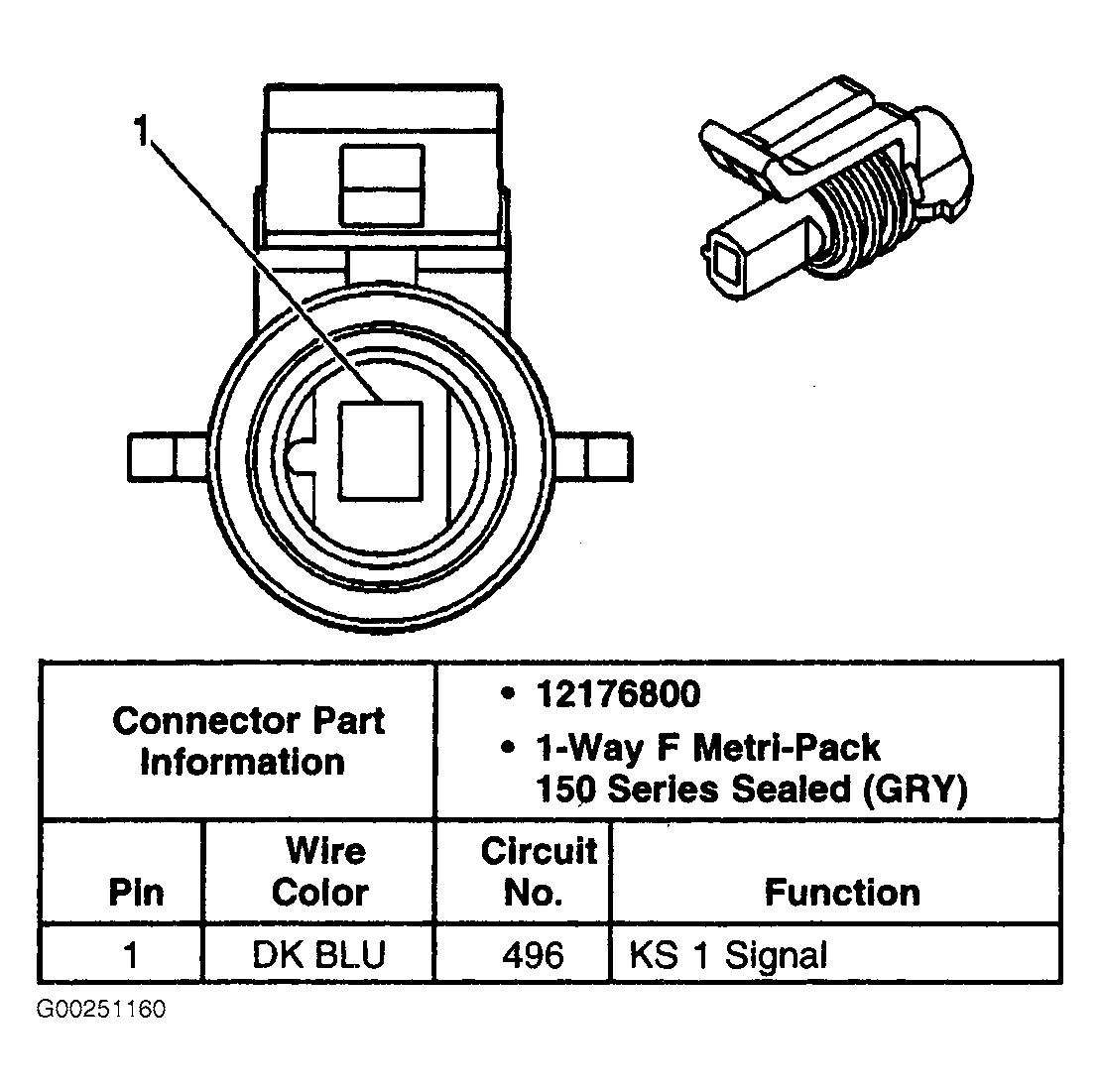

Fig 20: Identifying Knock Sensor 1 Connector Terminals

G00251160

Courtesy of GENERAL MOTORS CORP.

Fig 21: Identifying Knock Sensor 2 Connector Terminals

G00251161

Courtesy of GENERAL MOTORS CORP.

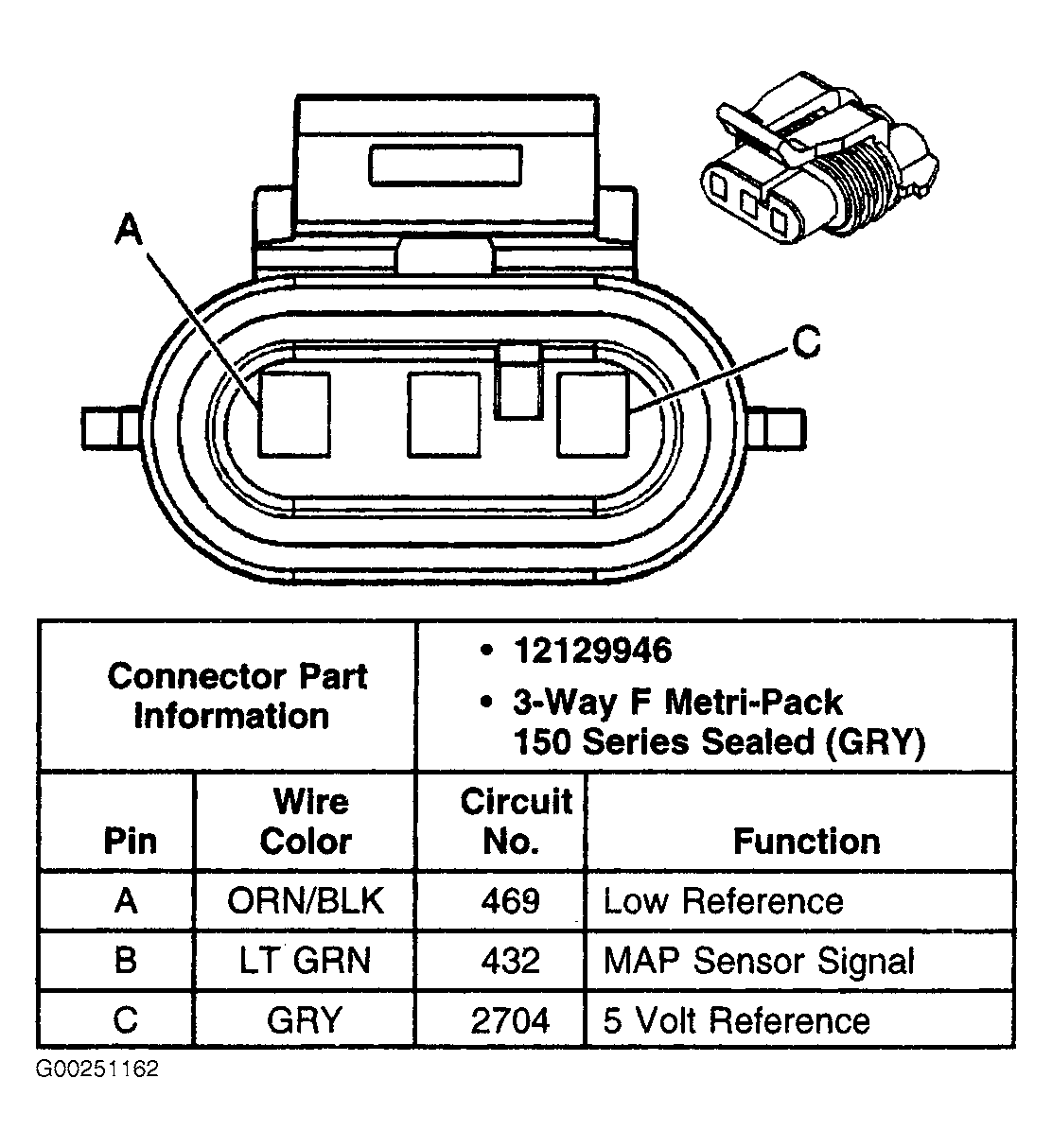

Fig 22: Identifying Manifold Absolute Pressure Sensor Connector Terminals

G00251162

Courtesy of GENERAL MOTORS CORP.

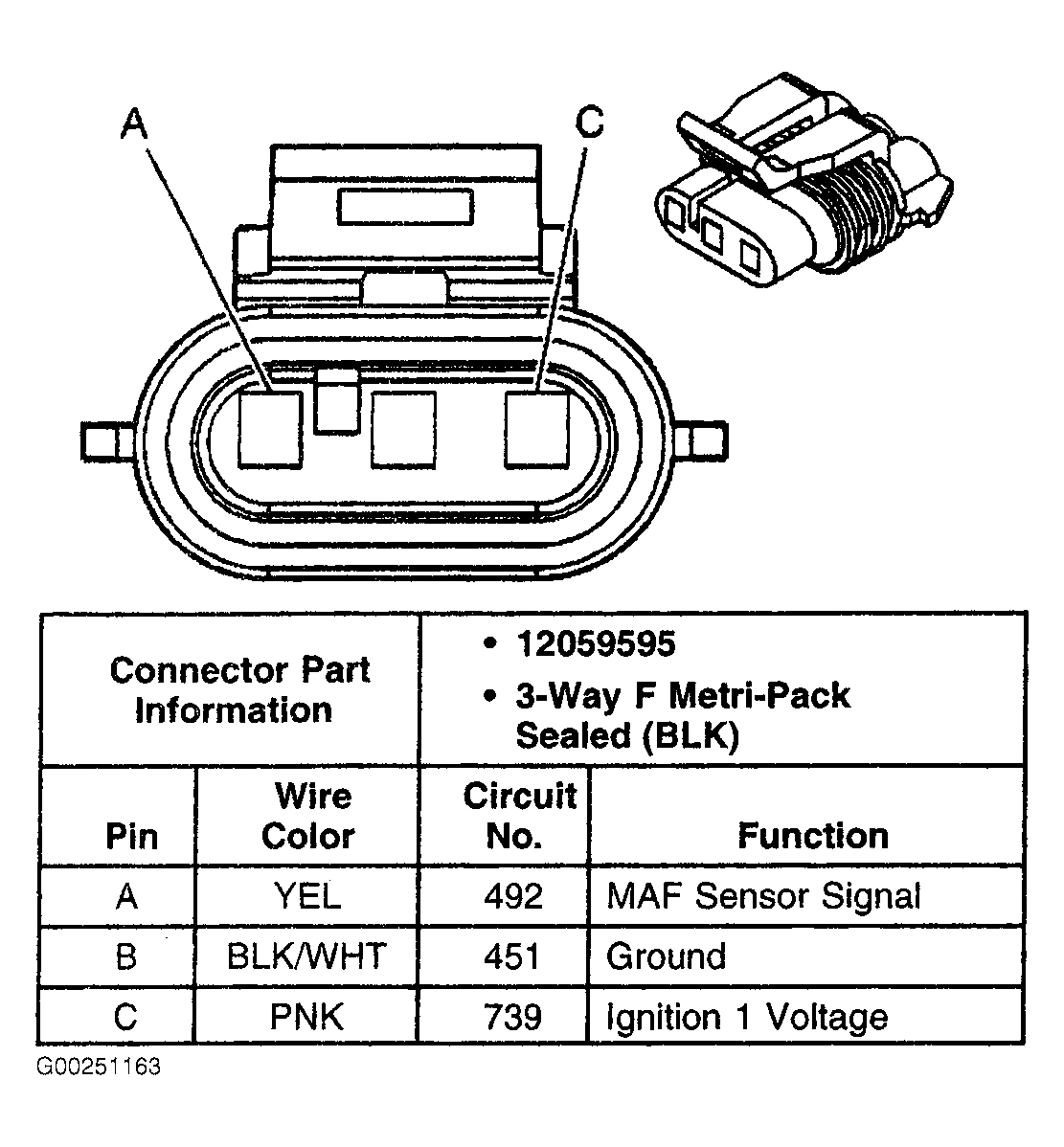

Fig 23: Identifying Mass Airflow Sensor Connector Terminals

G00251163

Courtesy of GENERAL MOTORS CORP.

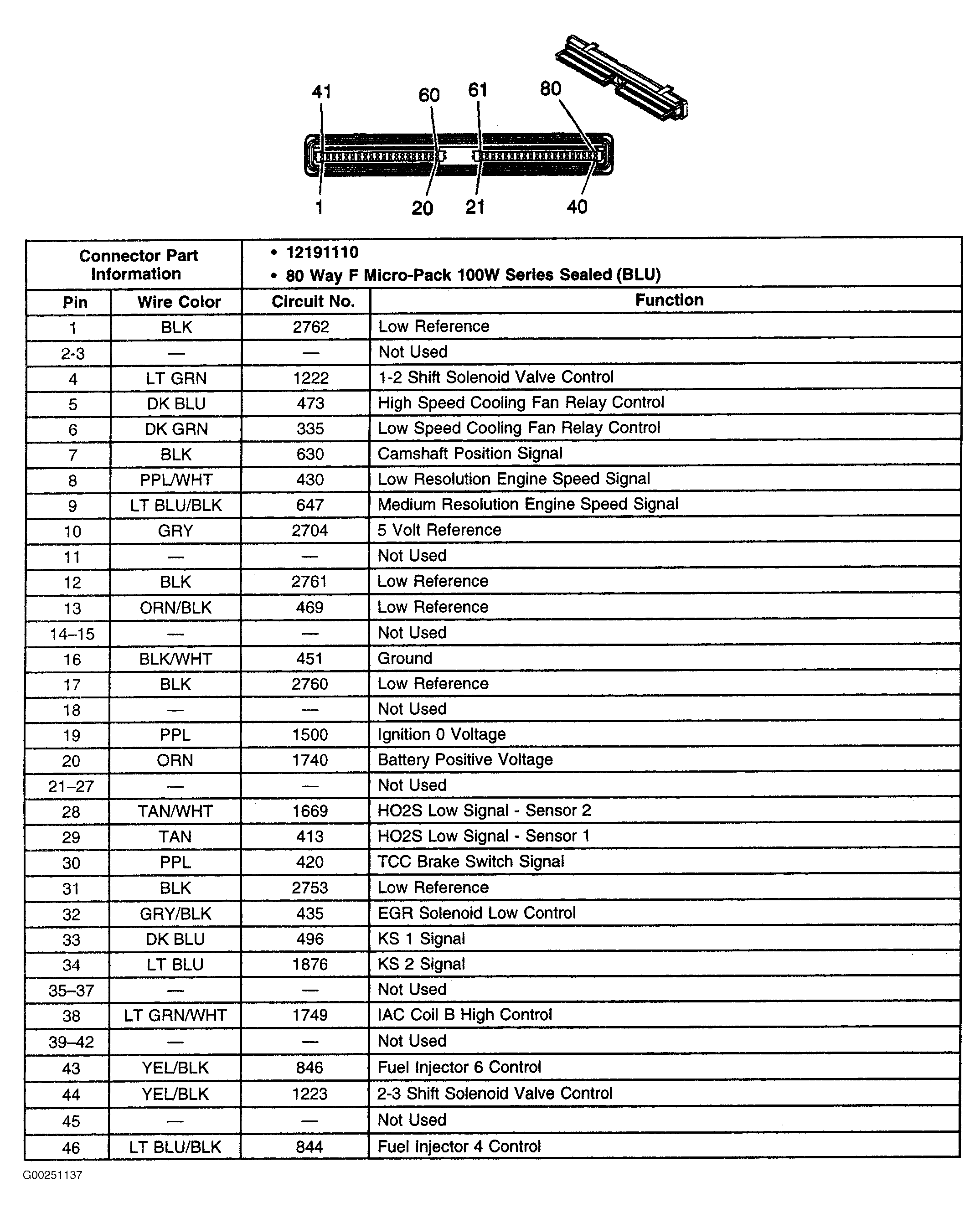

Fig 24: Identifying PCM C1 Connector Terminals (1 Of 2)

G00251137

Courtesy of GENERAL MOTORS CORP.

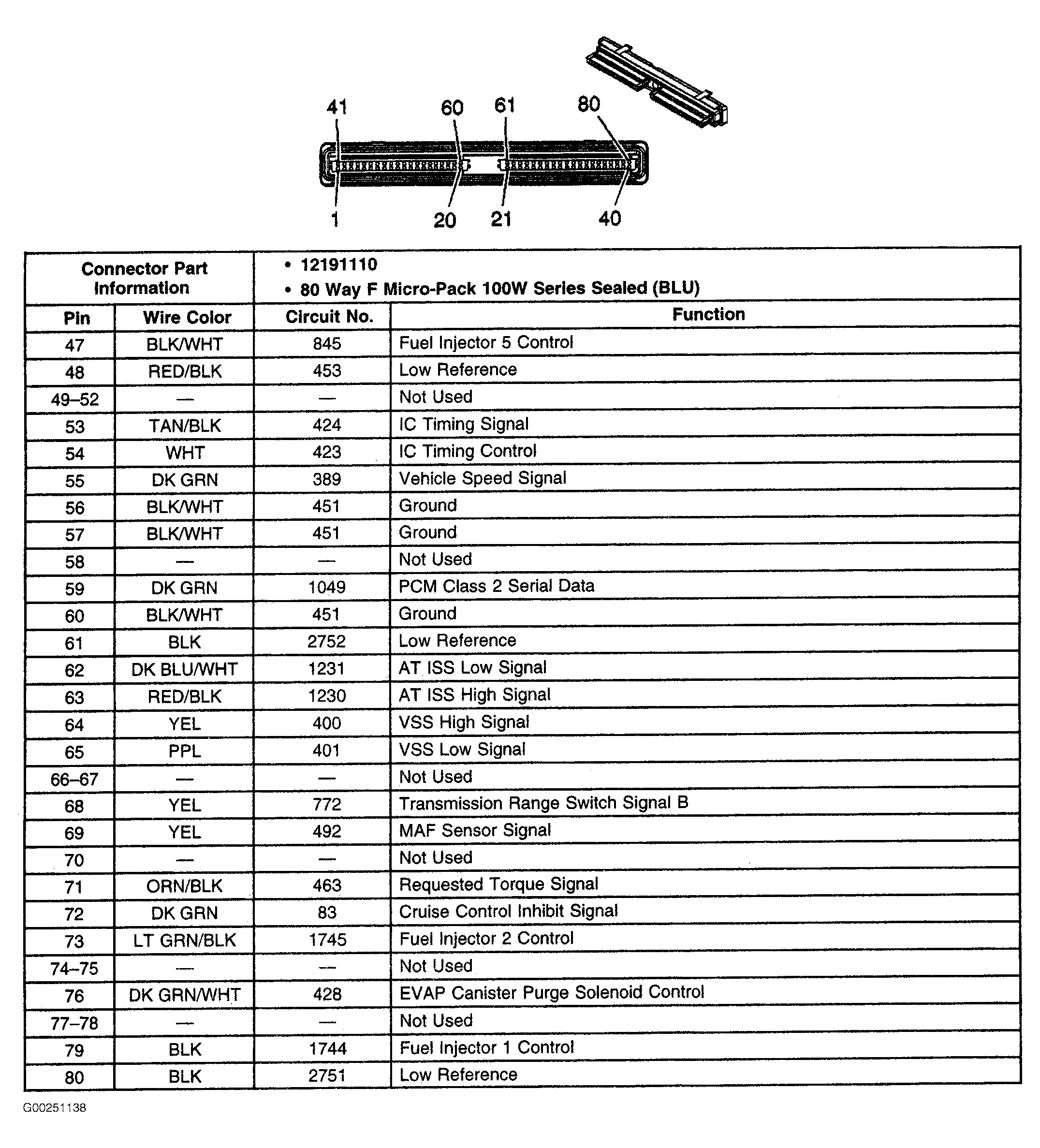

Fig 25: Identifying PCM C1 Connector Terminals (2 Of 2)

G00251138

Courtesy of GENERAL MOTORS CORP.

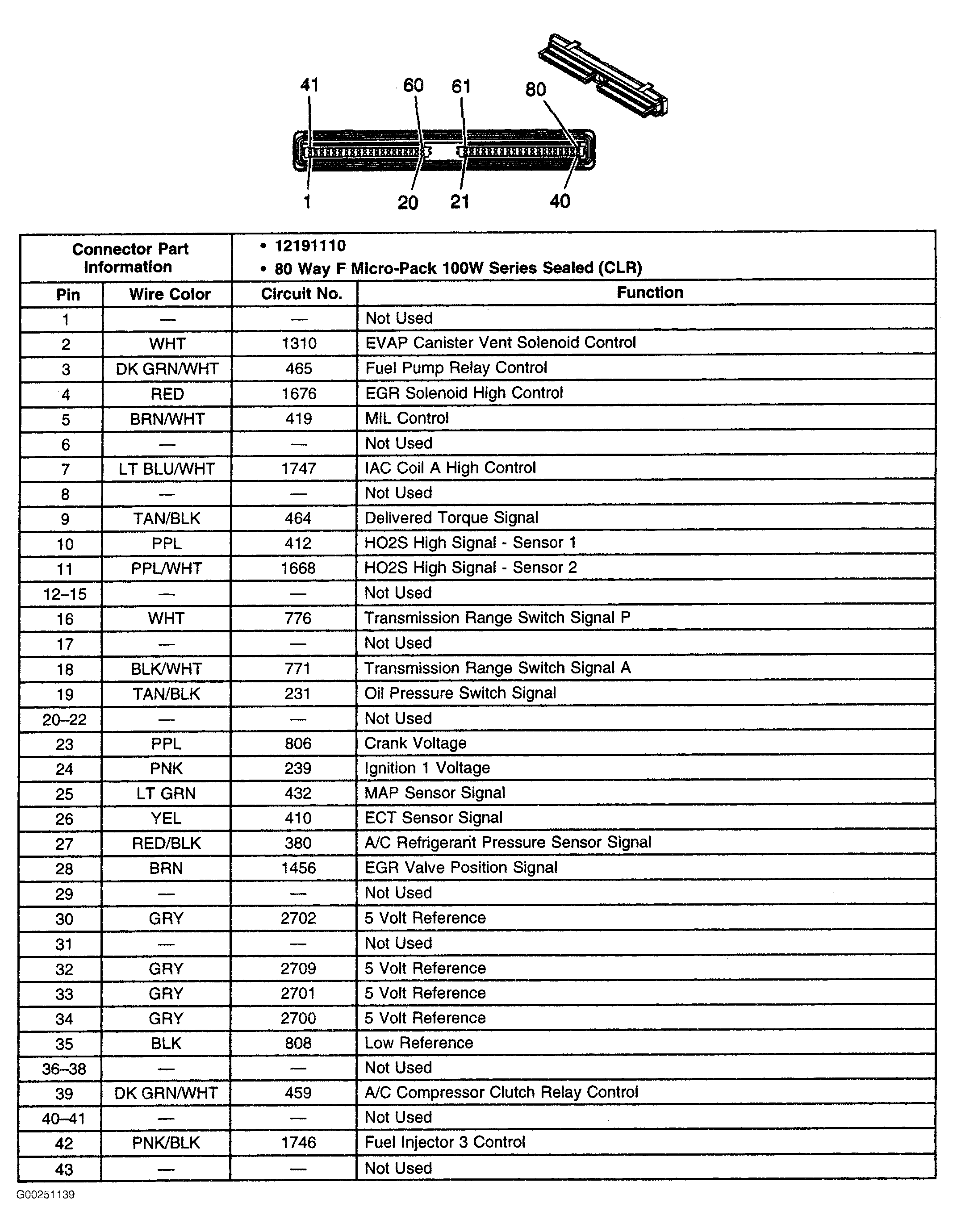

Fig 26: Identifying PCM C2 Connector Terminals (1 Of 2)

G00251139

Courtesy of GENERAL MOTORS CORP.

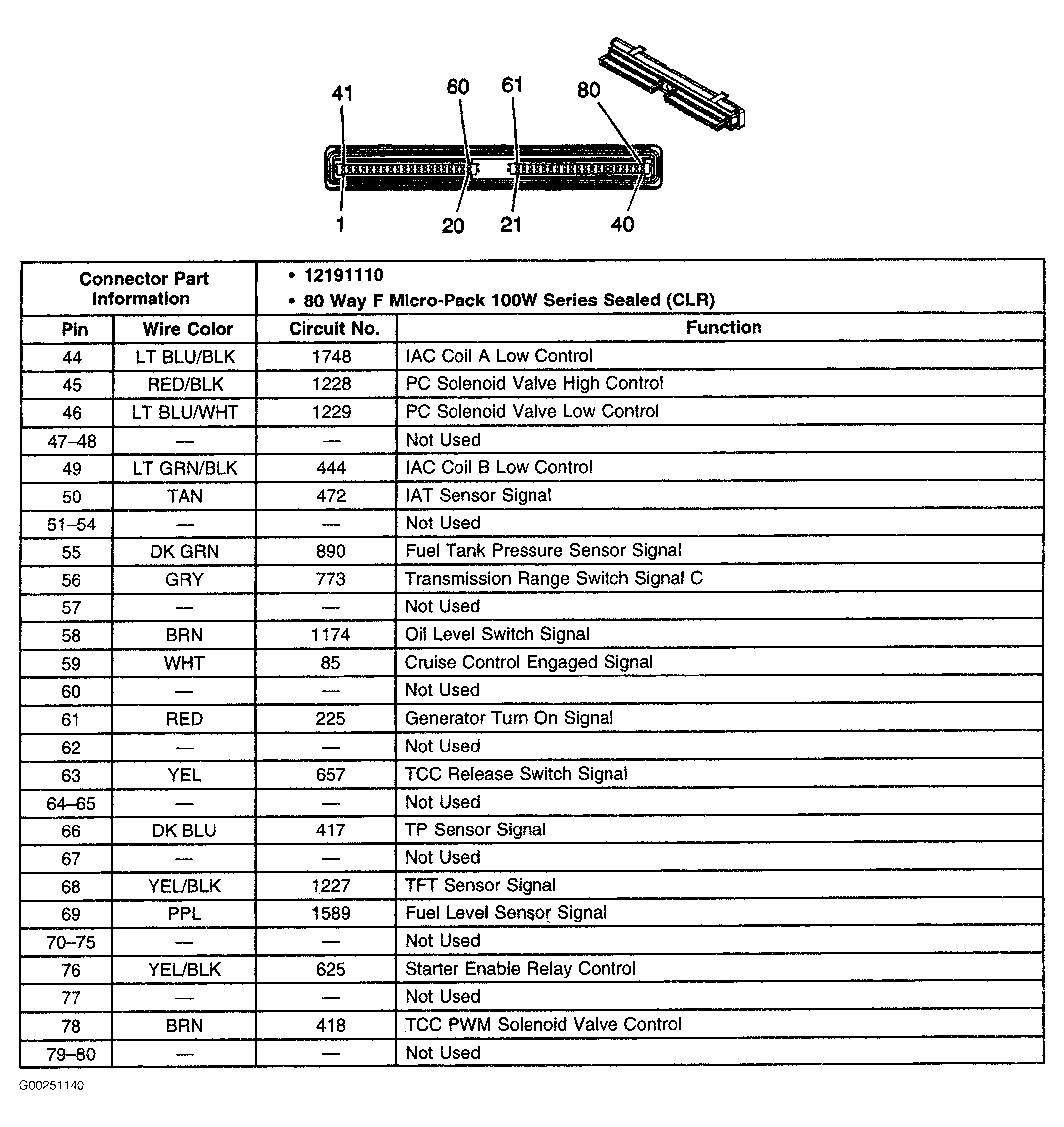

Fig 27: Identifying PCM C2 Connector Terminals (2 Of 2)

G00251140

Courtesy of GENERAL MOTORS CORP.

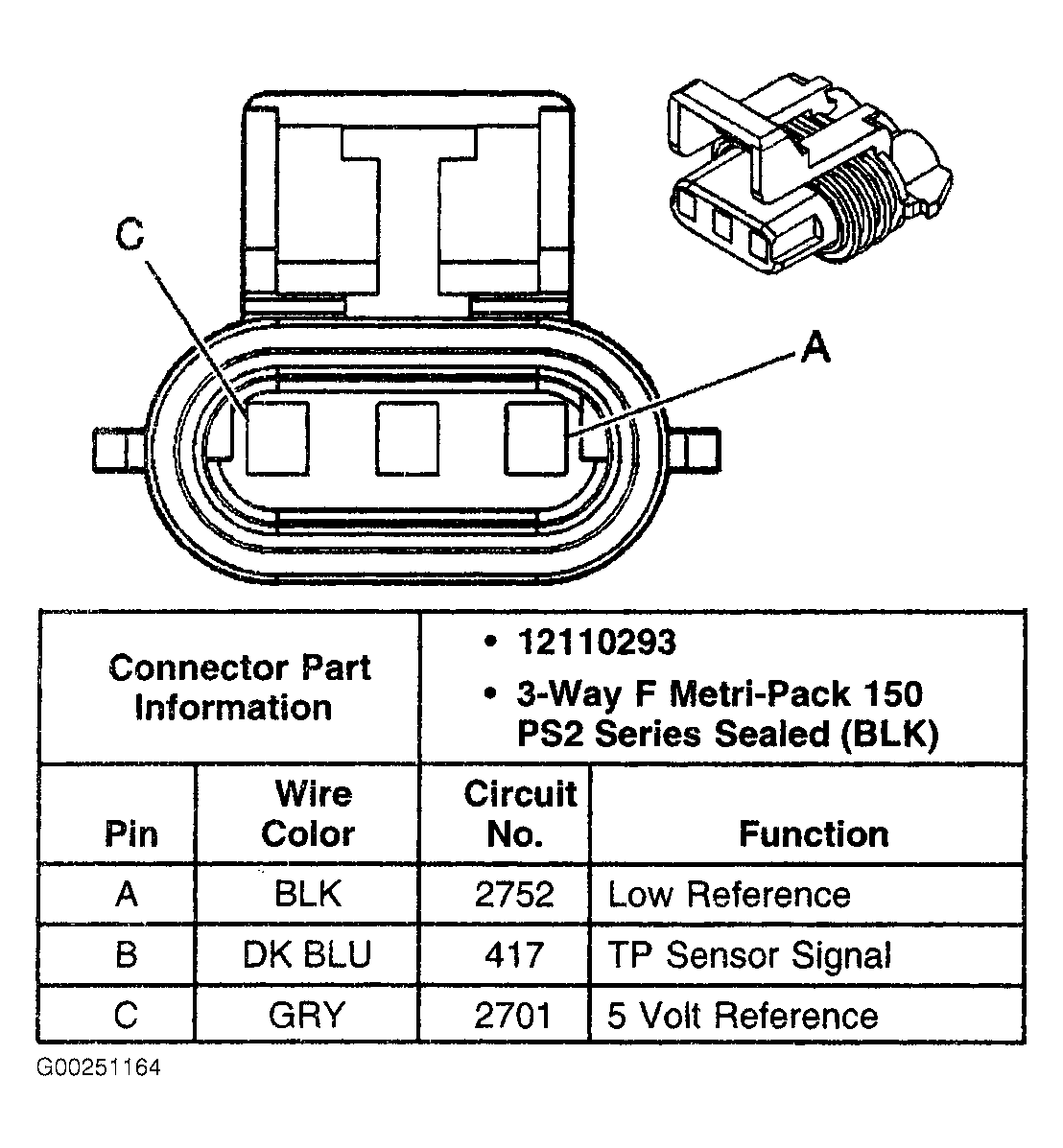

Fig 28: Identifying Throttle Position Sensor Connector Terminals

G00251164

Courtesy of GENERAL MOTORS CORP.

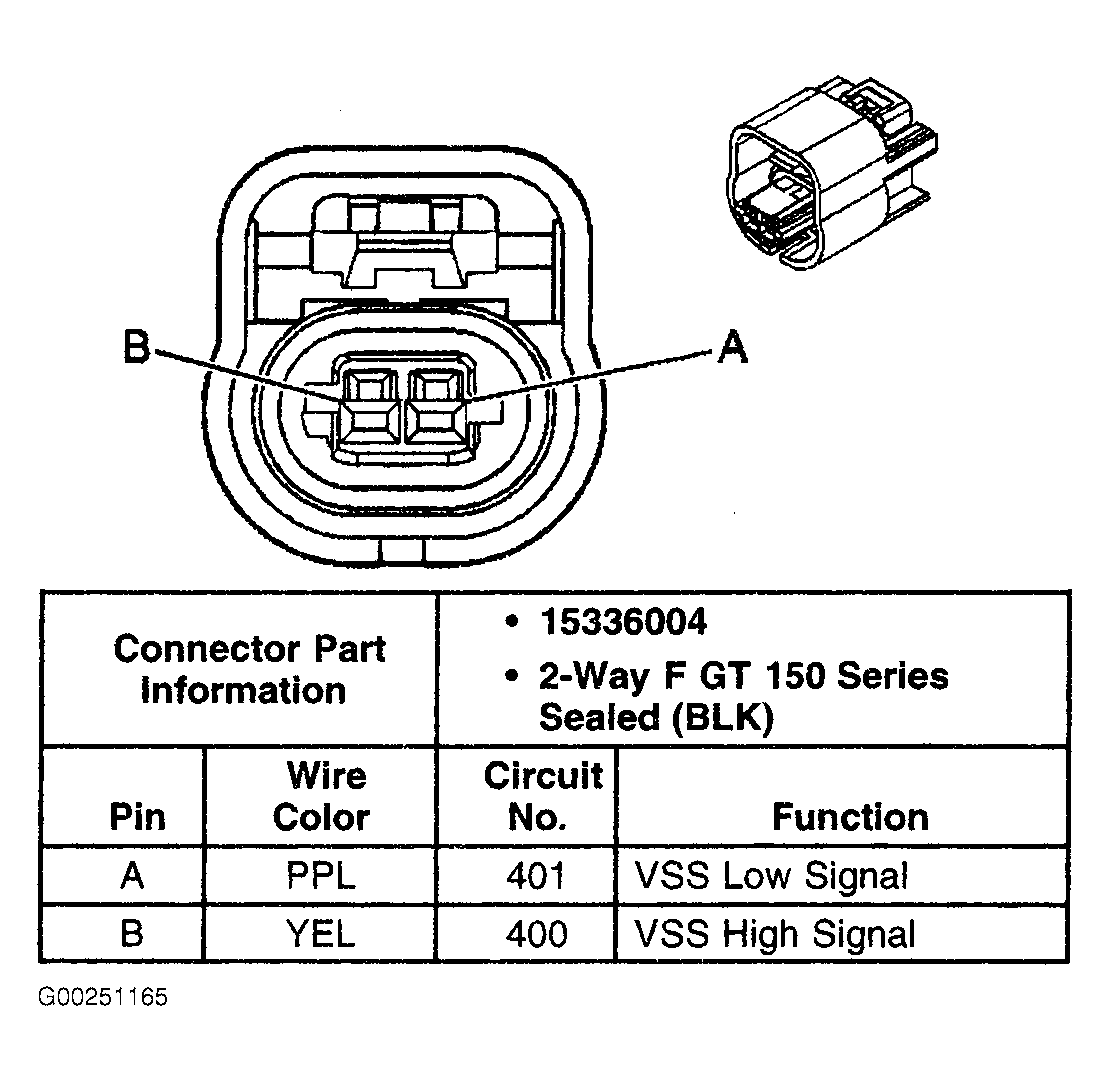

Fig 29: Identifying Vehicle Speed Sensor Connector Terminals

G00251165

Courtesy of GENERAL MOTORS CORP.
