LE Sabre

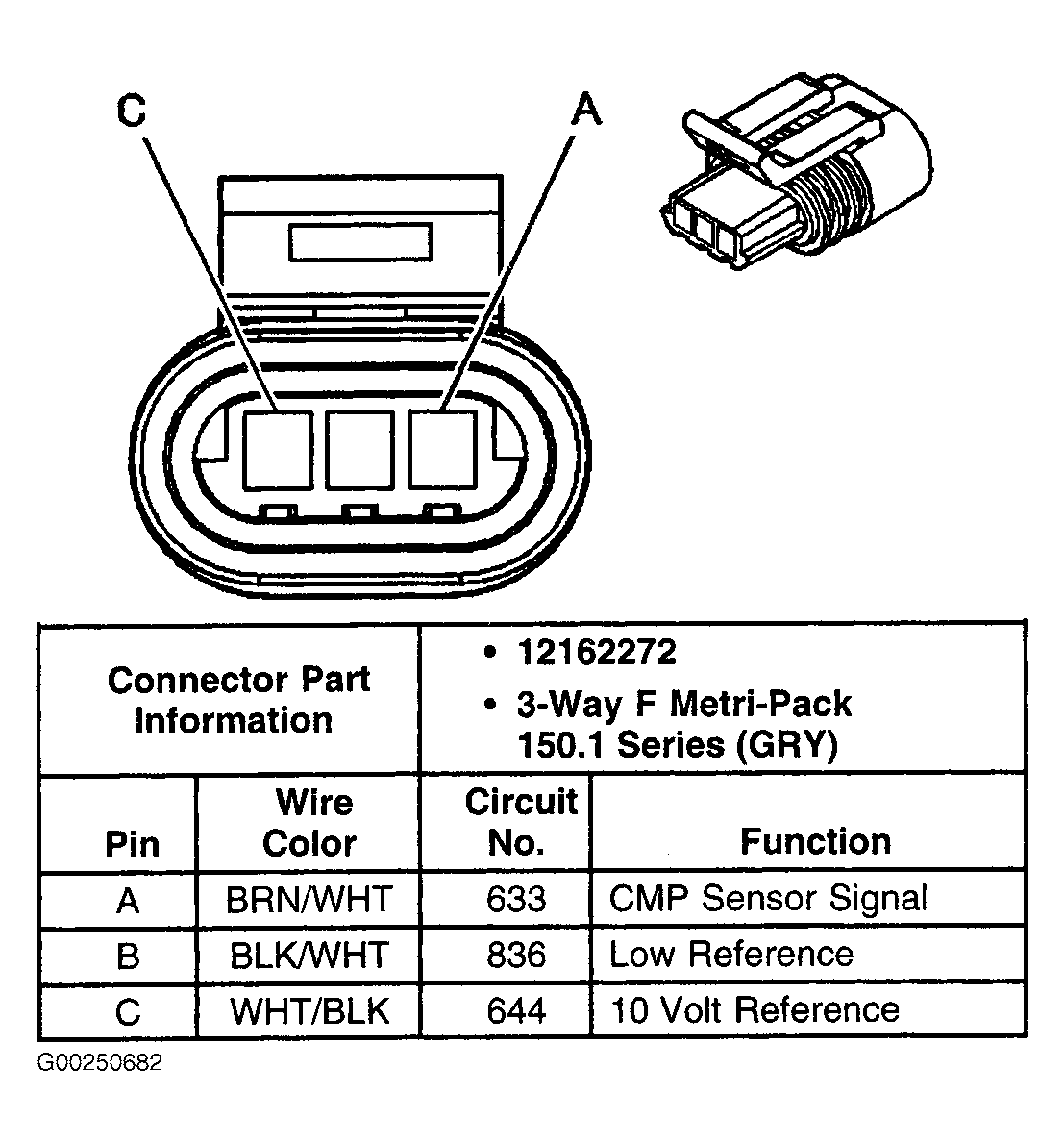

Fig 1: Identifying Camshaft Position Sensor Connector Terminals
G00250682Courtesy of GENERAL MOTORS CORP.

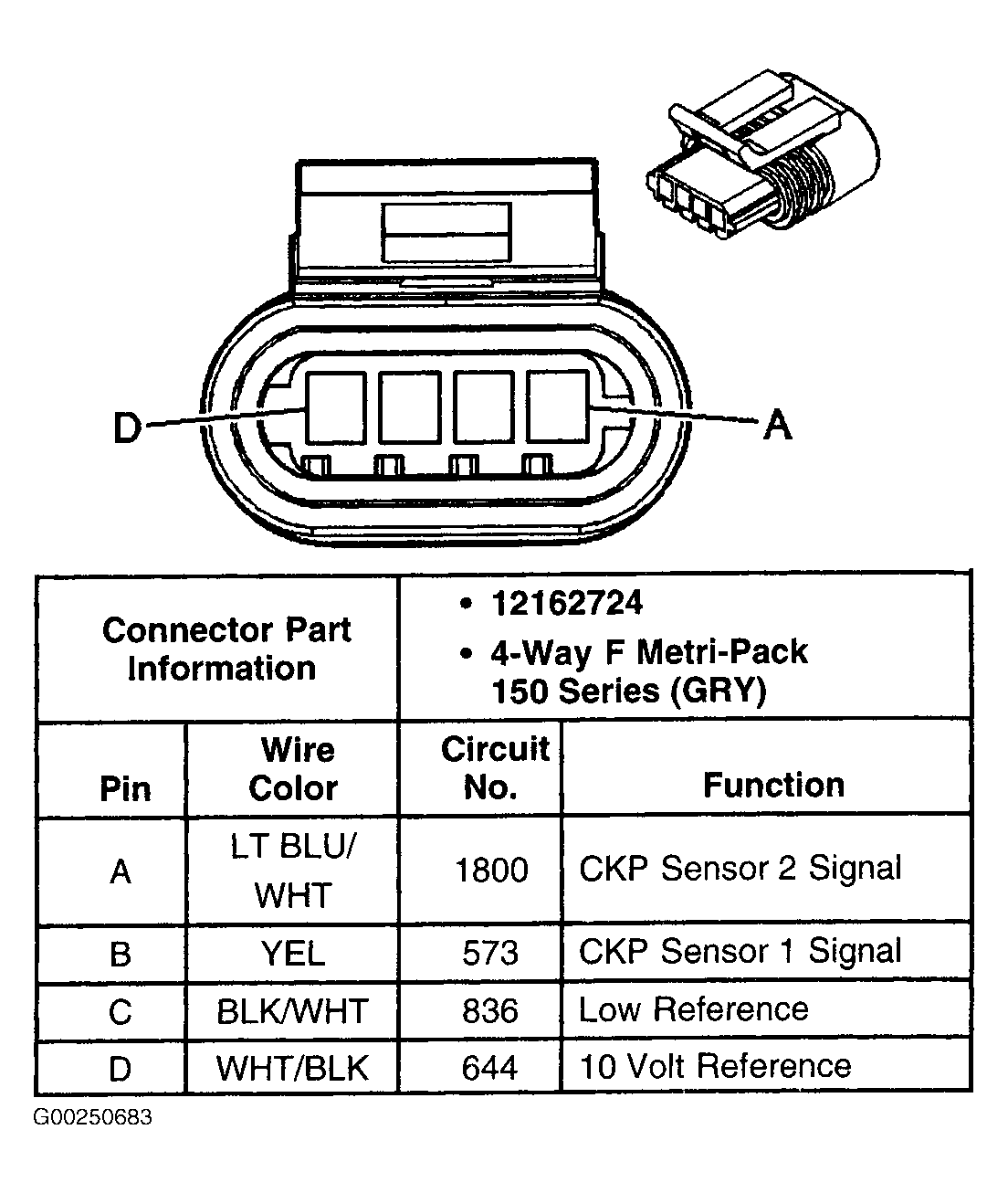

Fig 2: Identifying Crankshaft Position Sensor Connector Terminals
G00250683Courtesy of GENERAL MOTORS CORP.

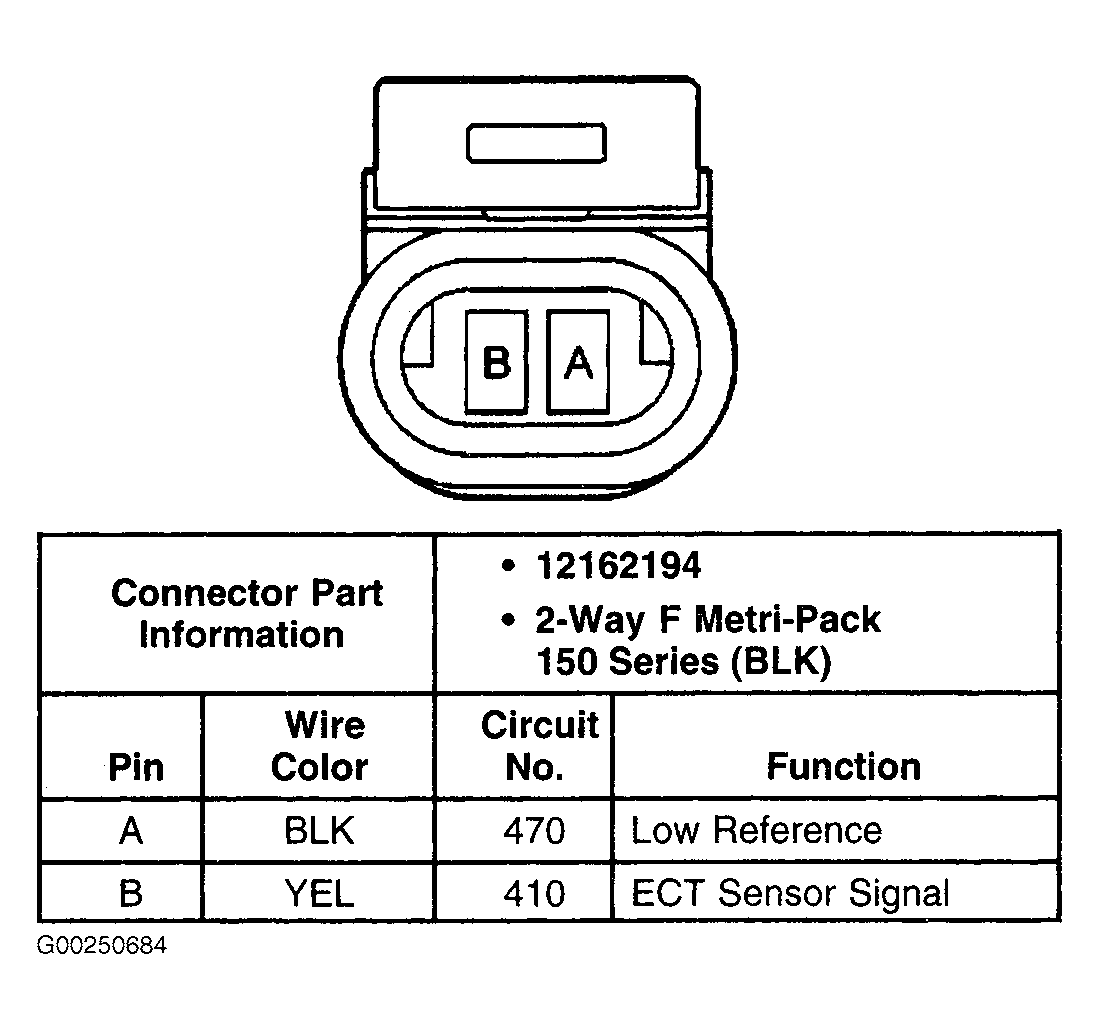

Fig 3: Identifying Engine Coolant Temperature Sensor Connector Terminals
G00250684Courtesy of GENERAL MOTORS CORP.

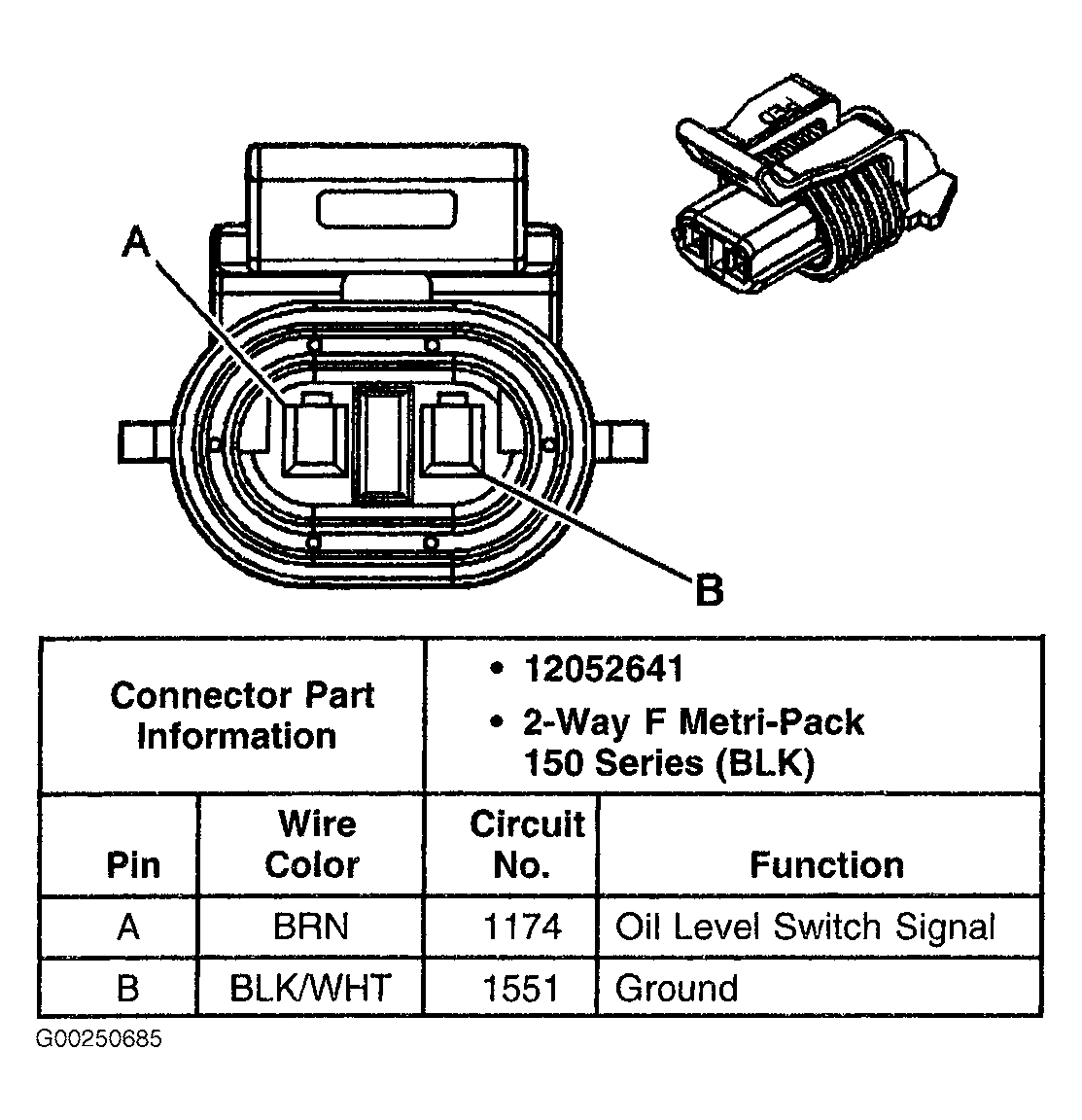

Fig 4: Identifying Engine Oil Level Switch Connector Terminals
G00250685Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying Engine Oil Pressure Sensor Connector Terminals
G00250686Courtesy of GENERAL MOTORS CORP.

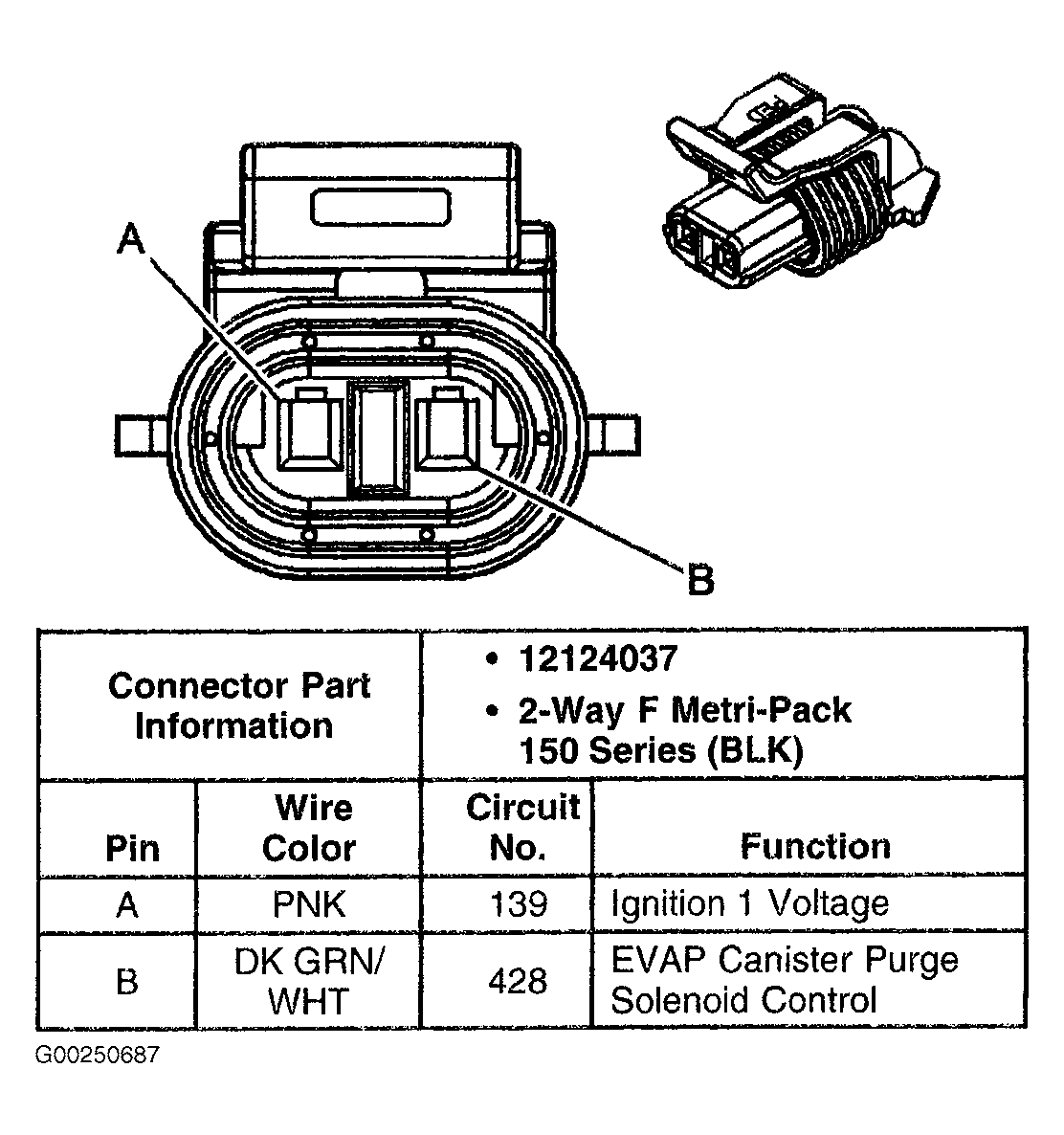

Fig 6: Identifying Evaporative Emissions Canister Purge Solenoid Connector Terminals
G00250687Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying Evaporative Emissions Canister Vent Valve Connector Terminals
G00250688Courtesy of GENERAL MOTORS CORP.

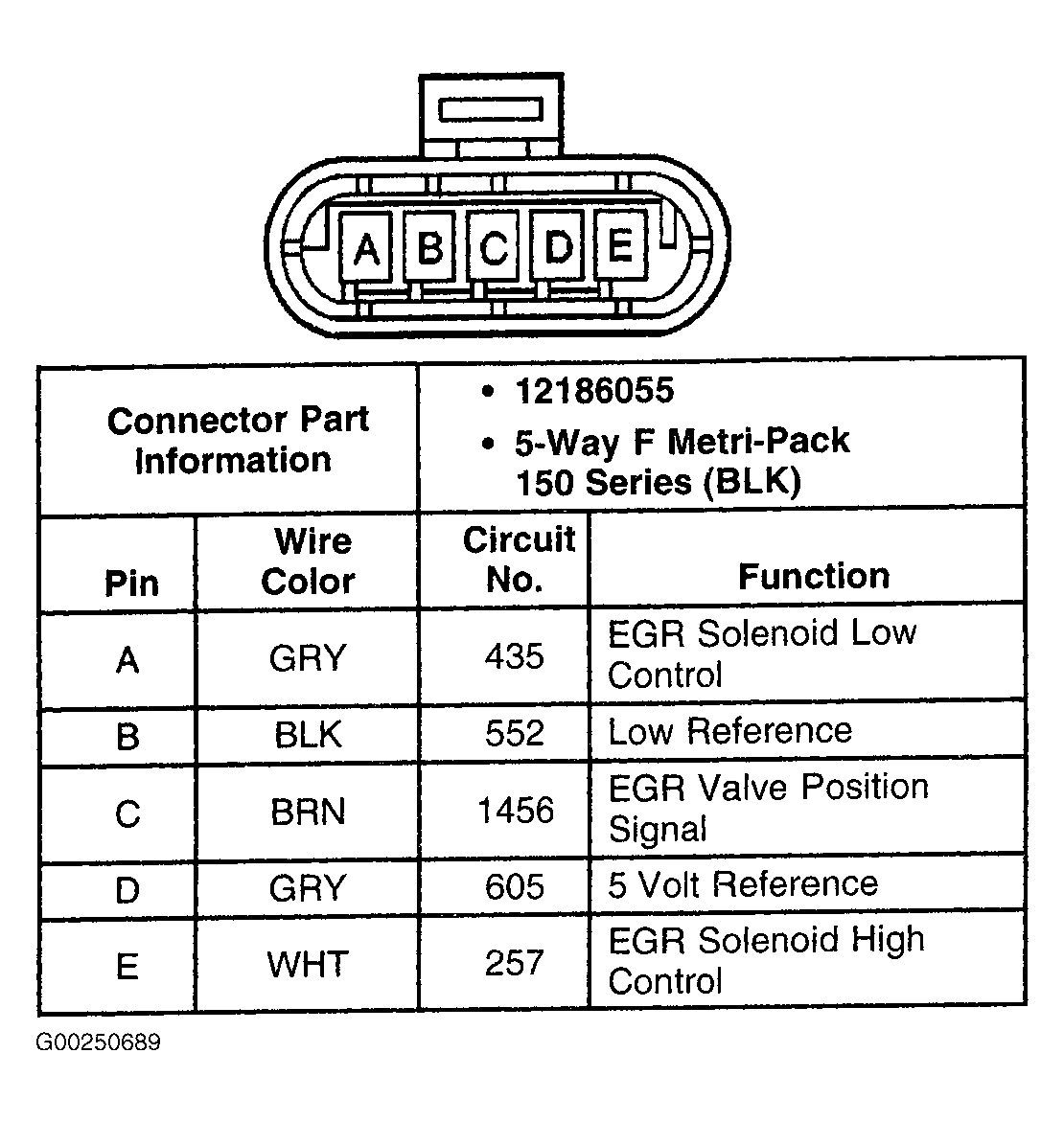

Fig 8: Identifying Exhaust Gas Recirculation Valve Connector Terminals
G00250689Courtesy of GENERAL MOTORS CORP.

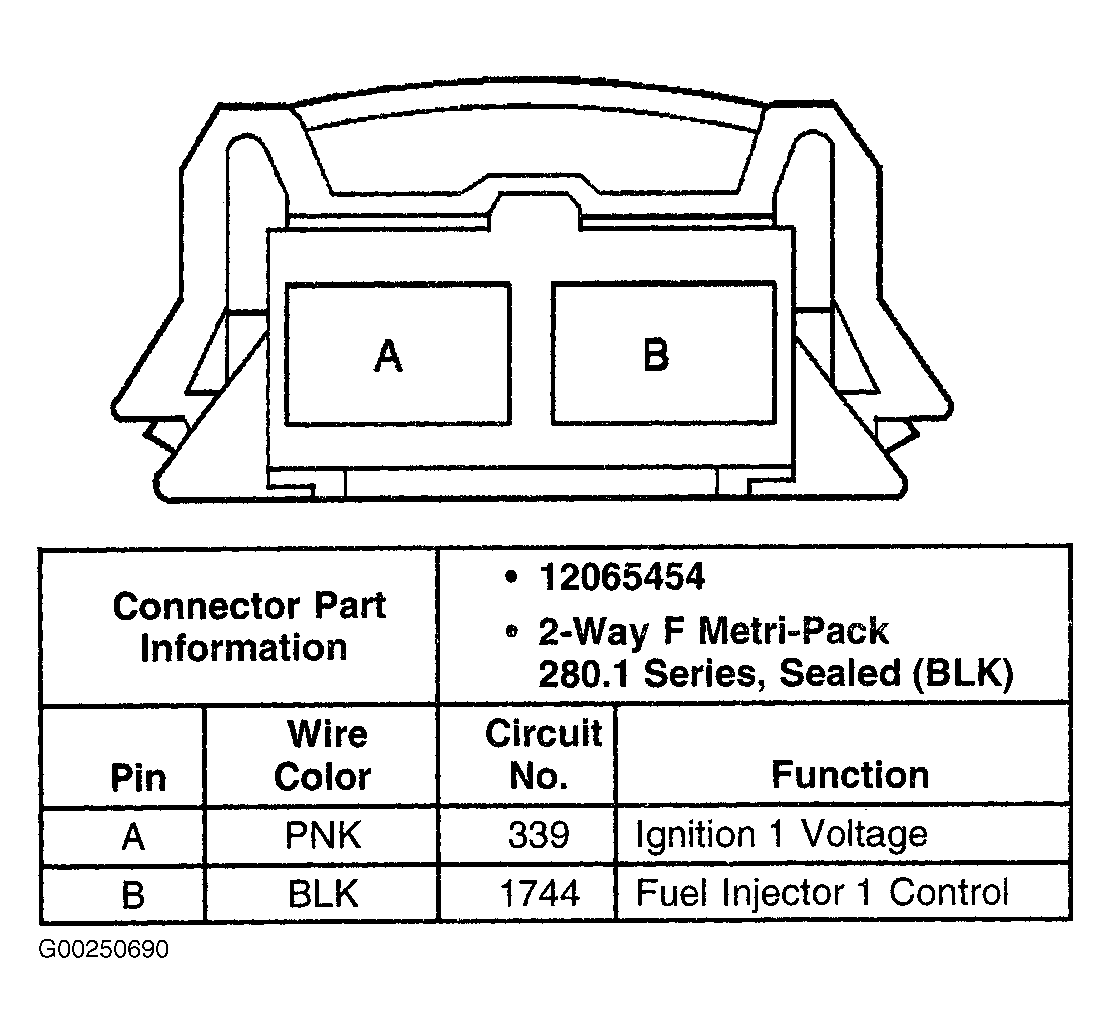

Fig 9: Identifying Fuel Injector No. 1 Connector Terminals
G00250690Courtesy of GENERAL MOTORS CORP.

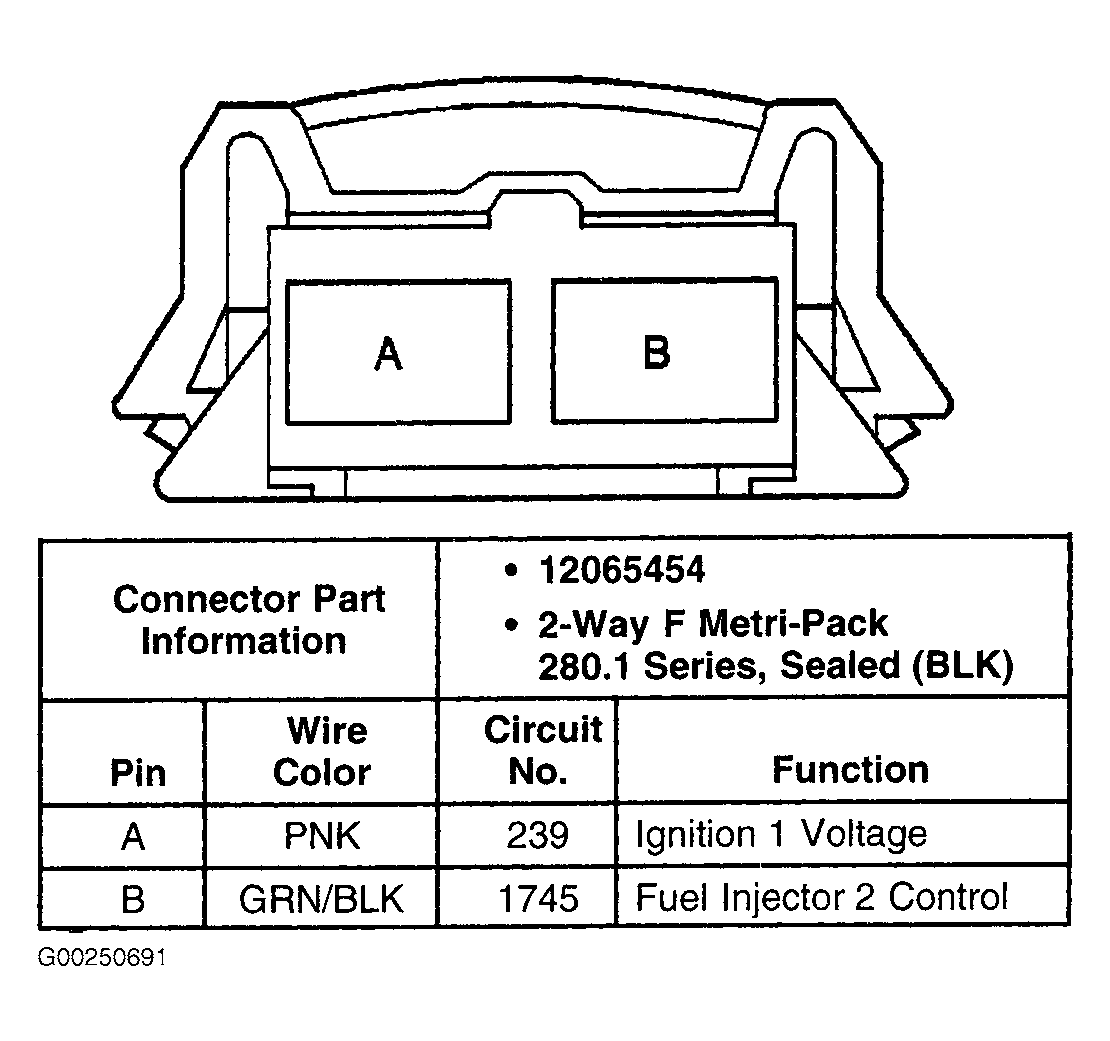

Fig 10: Identifying Fuel Injector No. 2 Connector Terminals
G00250691Courtesy of GENERAL MOTORS CORP.

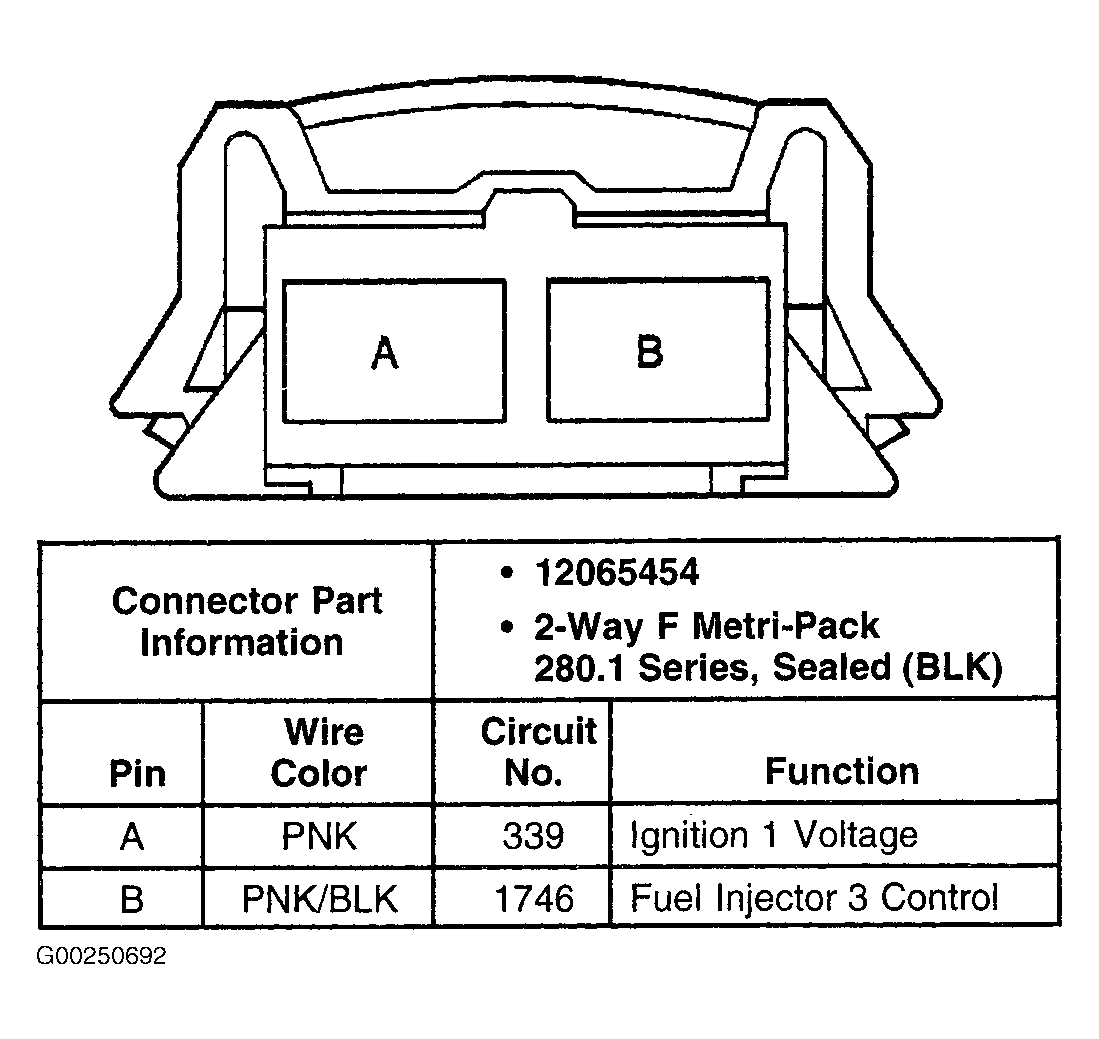

Fig 11: Identifying Fuel Injector No. 3 Connector Terminals
G00250692Courtesy of GENERAL MOTORS CORP.

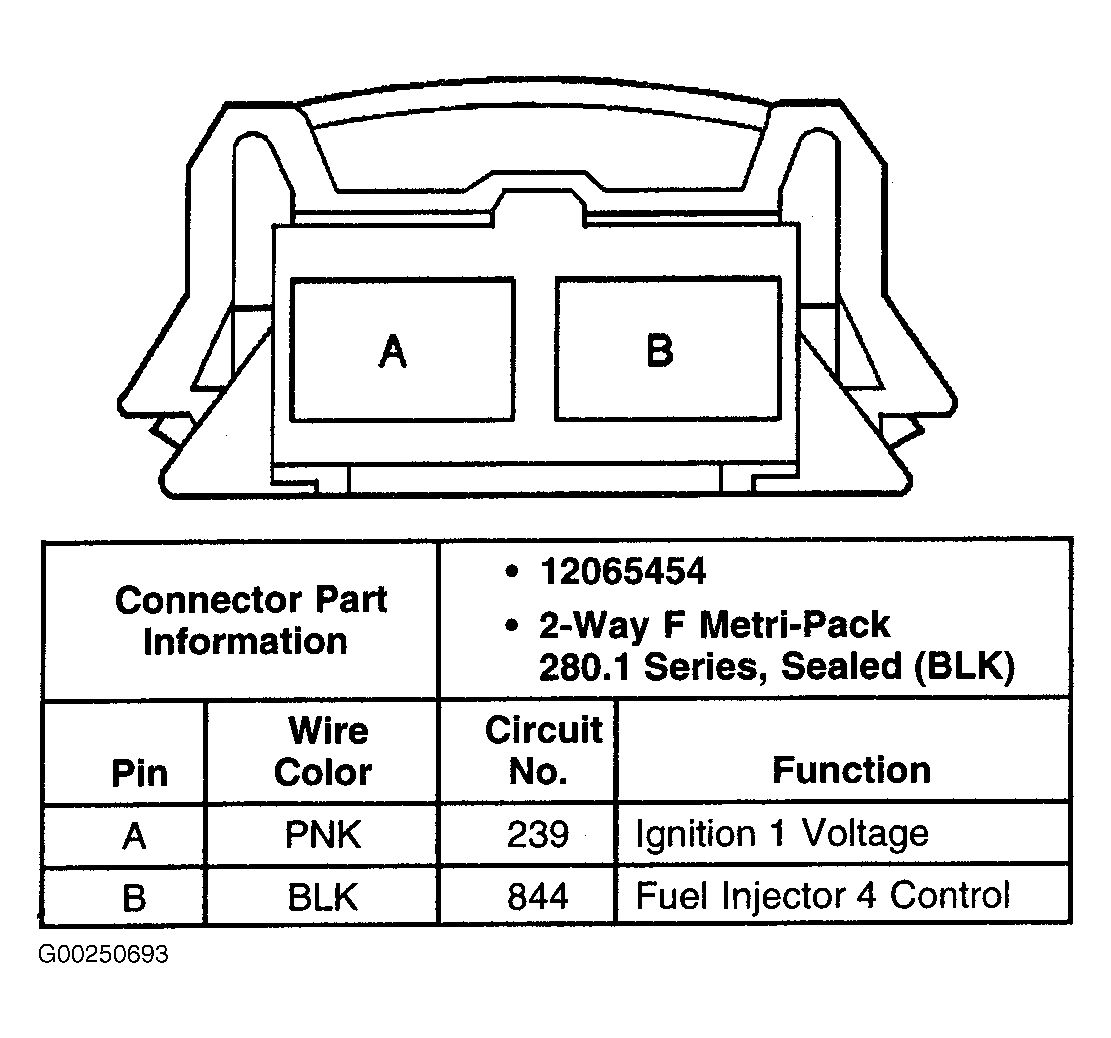

Fig 12: Identifying Fuel Injector No. 4 Connector Terminals
G00250693Courtesy of GENERAL MOTORS CORP.
Fig 13: Identifying Fuel Injector No. 5 Connector Terminals
G00250694Courtesy of GENERAL MOTORS CORP.

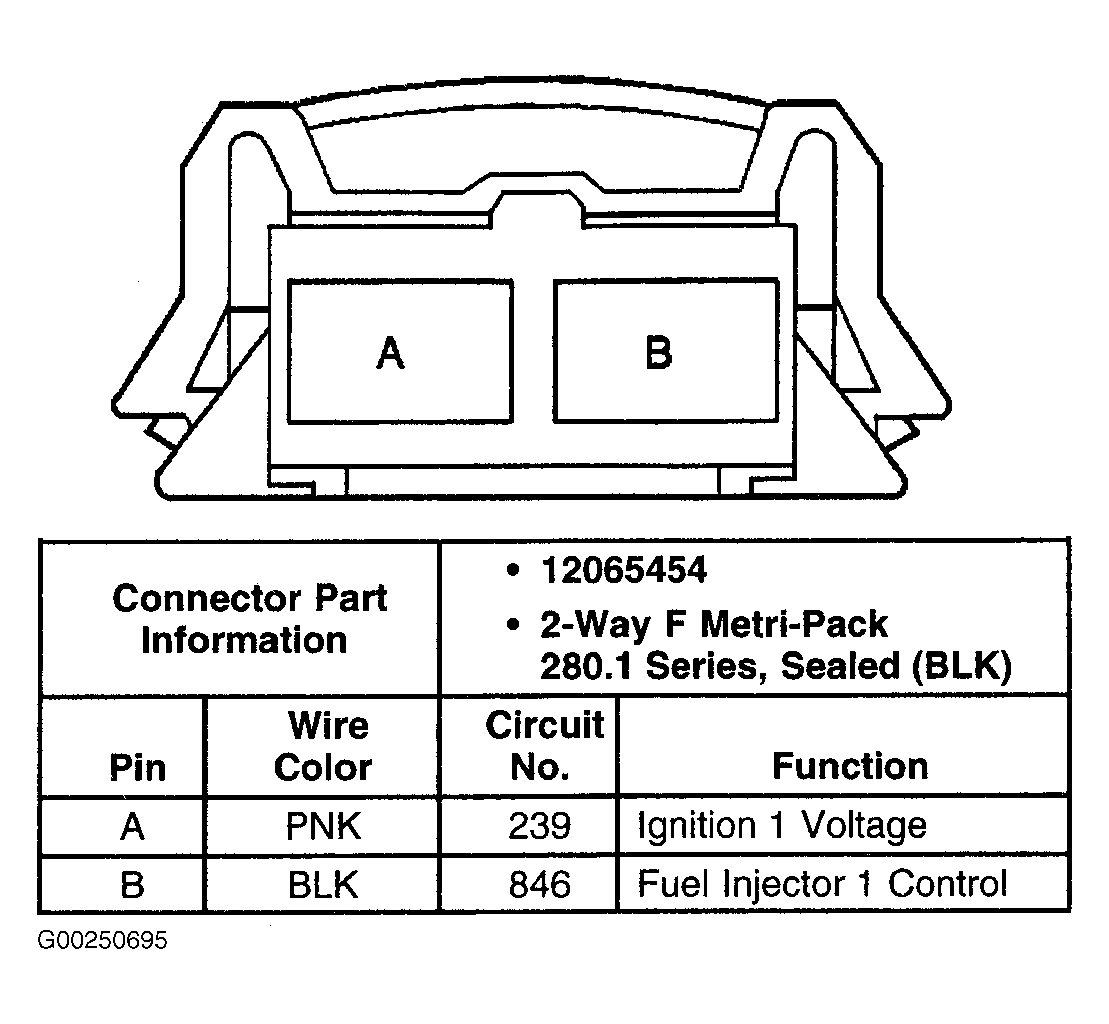

Fig 14: Identifying Fuel Injector No. 6 Connector Terminals
G00250695Courtesy of GENERAL MOTORS CORP.

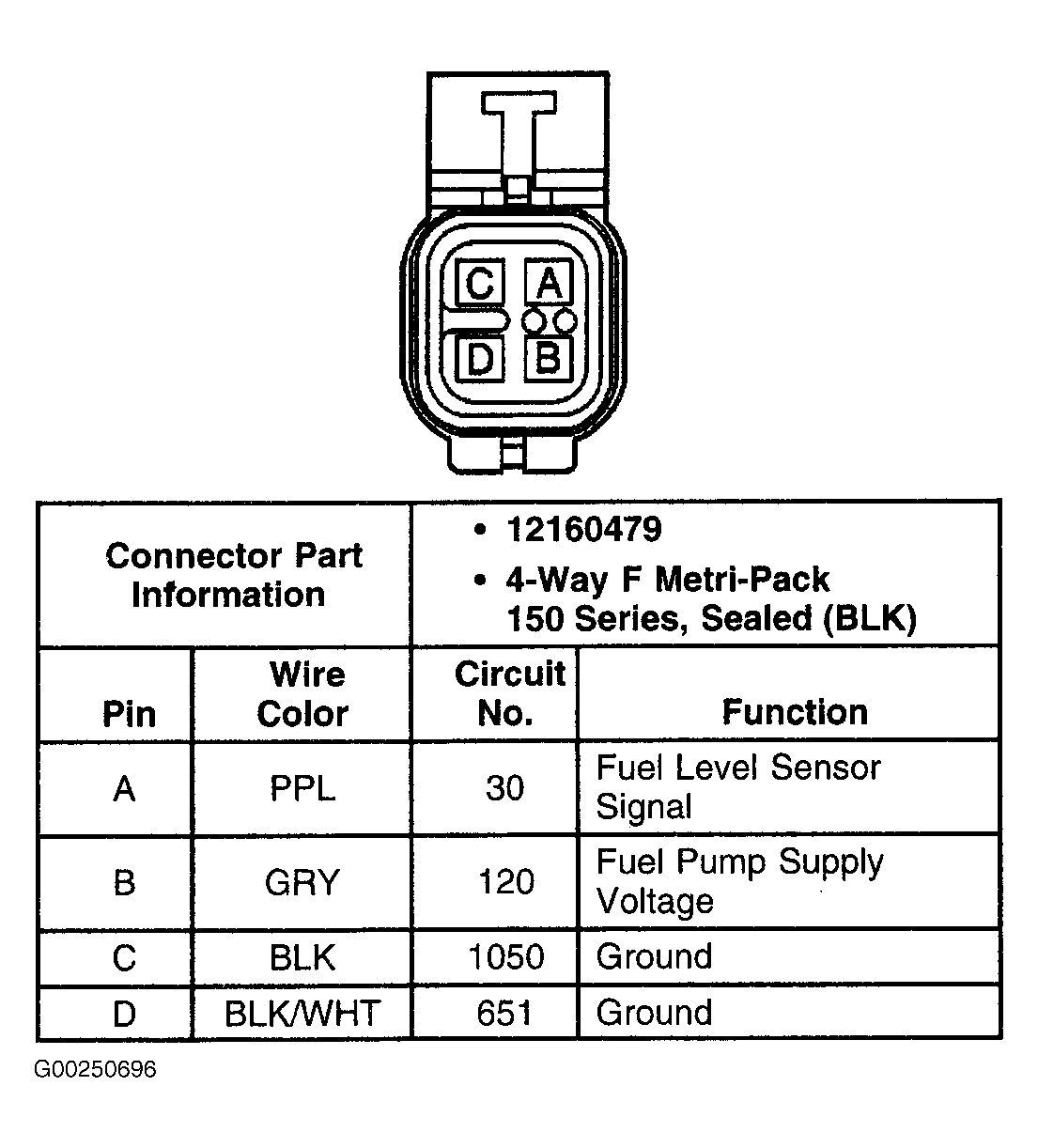

Fig 15: Identifying Fuel Pump & Sender Assembly Connector Terminals
G00250696Courtesy of GENERAL MOTORS CORP.

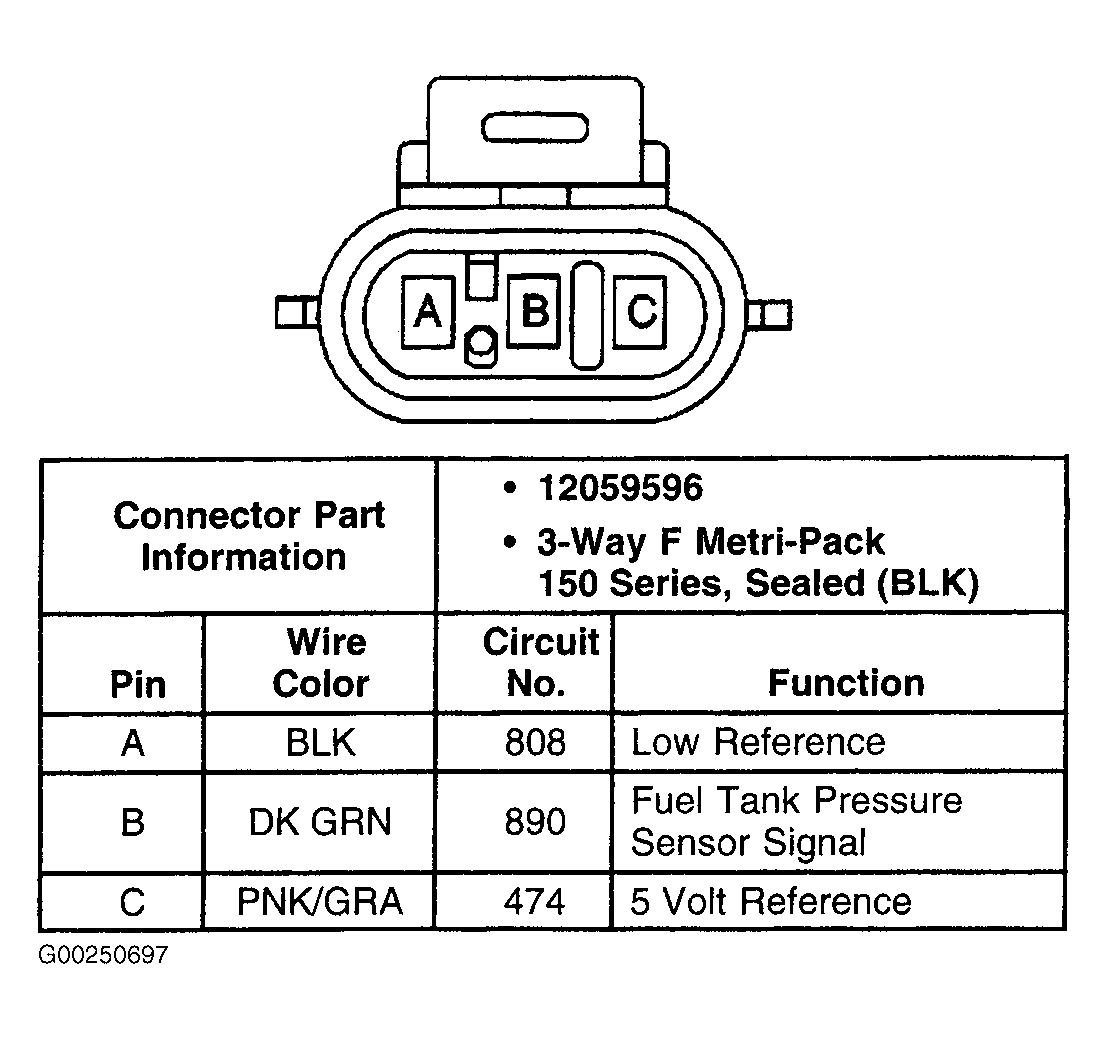

Fig 16: Identifying Fuel Tank Pressure Sensor Connector Terminals
G00250697Courtesy of GENERAL MOTORS CORP.

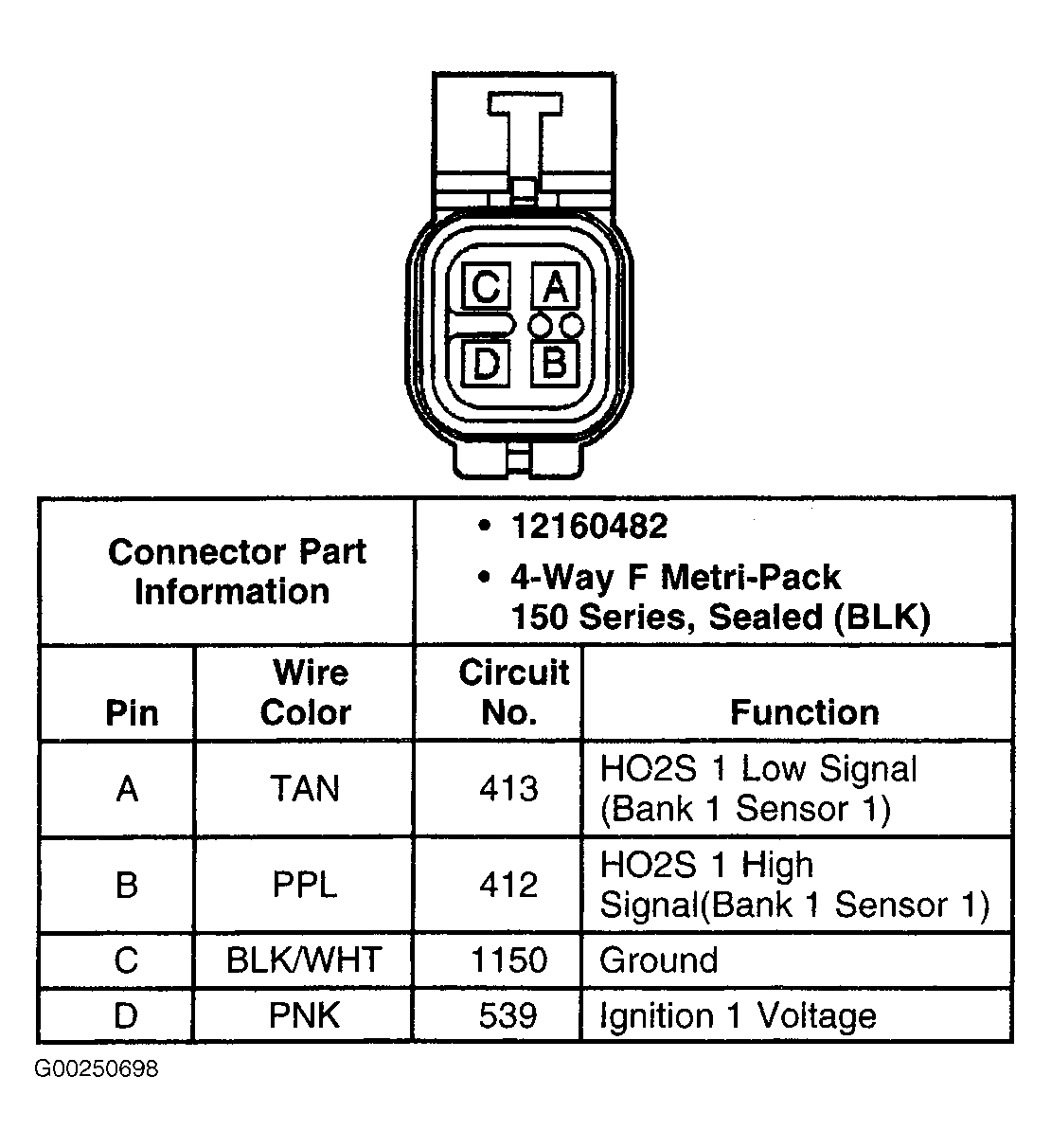

Fig 17: Identifying HO2S Bank 1 Sensor 1 Connector Terminals
G00250698Courtesy of GENERAL MOTORS CORP.

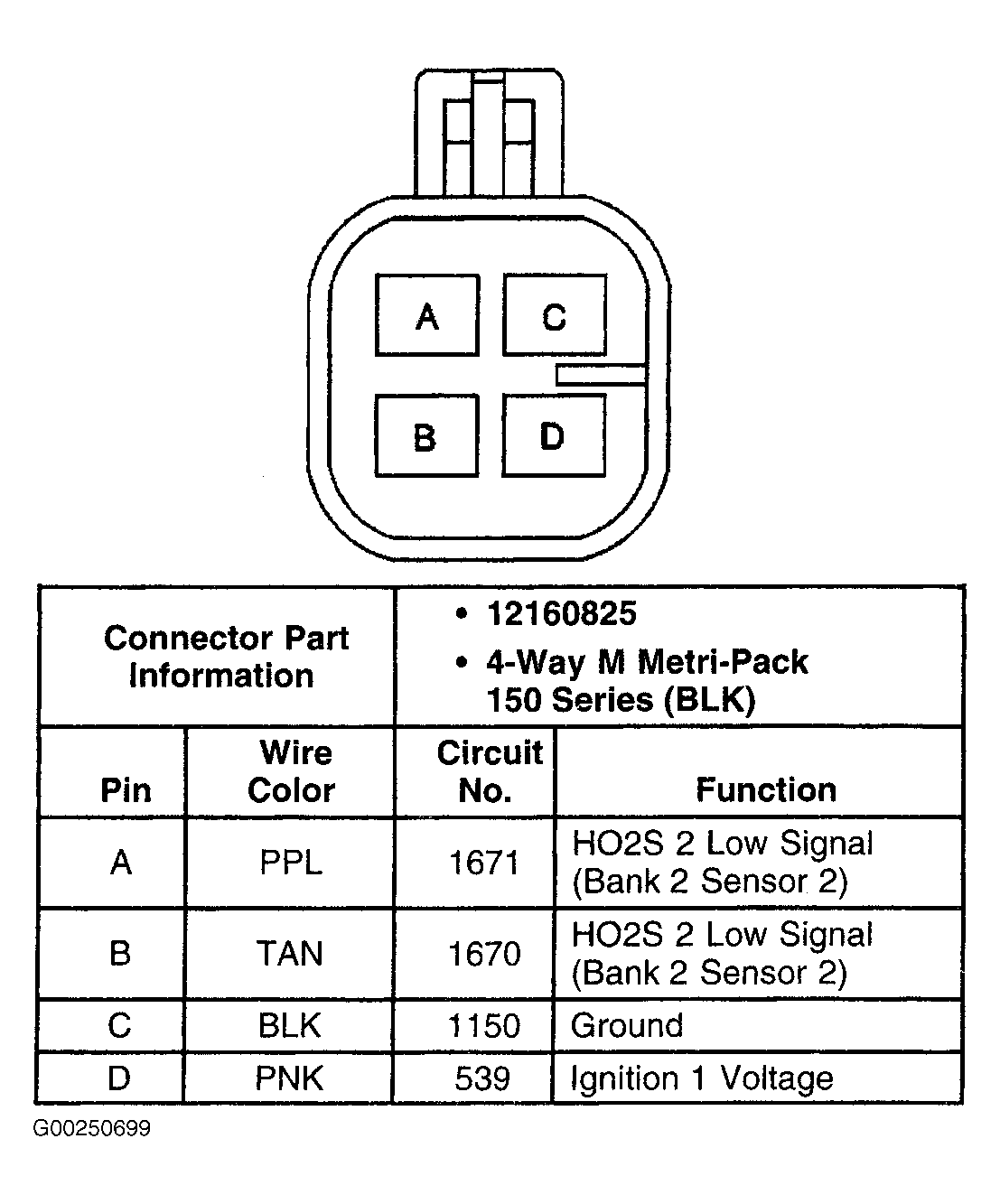

Fig 18: Identifying HO2S Bank 1 Sensor 2 Connector Terminals
G00250699Courtesy of GENERAL MOTORS CORP.

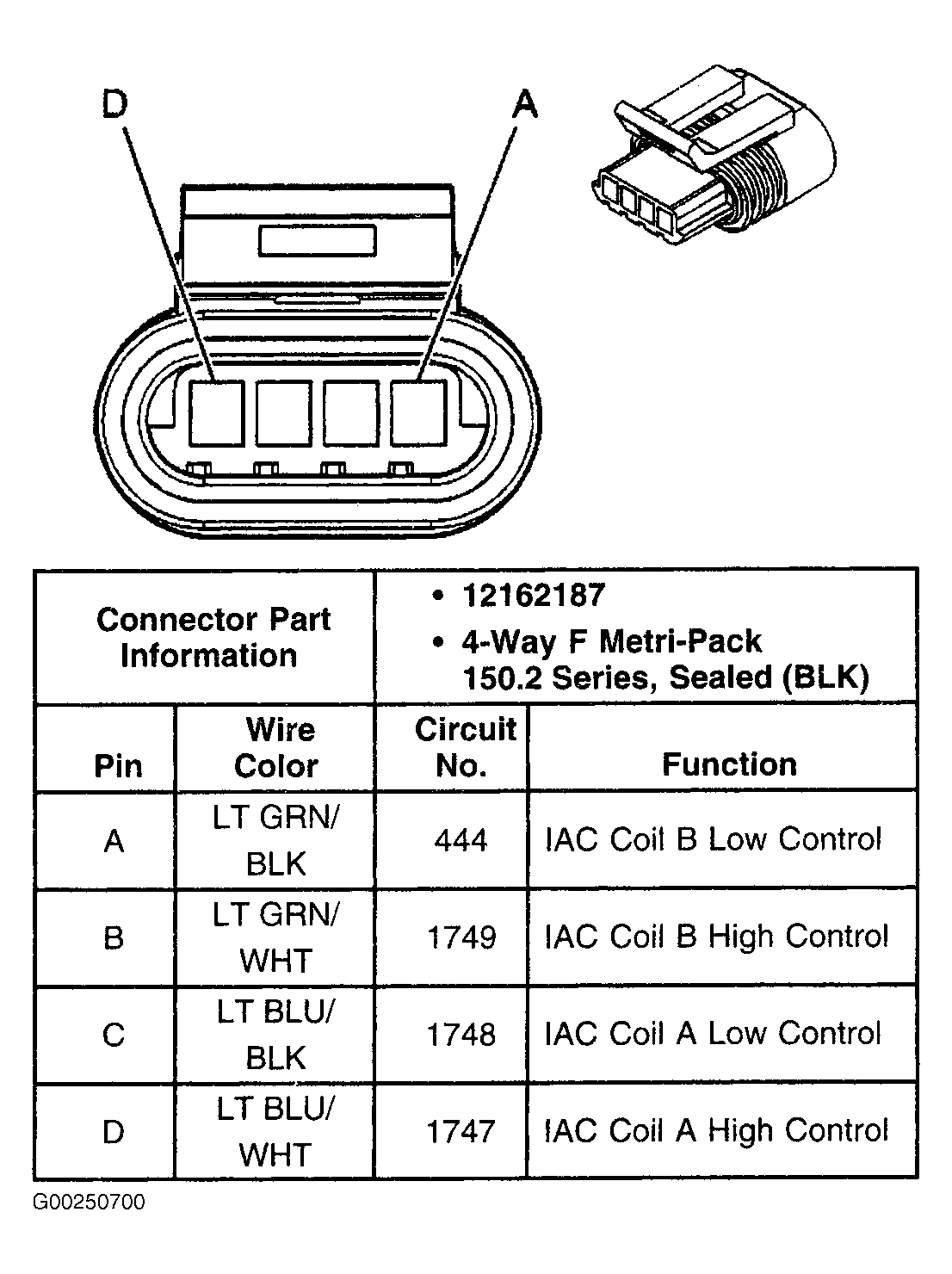

Fig 19: Identifying Idle Air Control Valve Connector Terminals
G00250700Courtesy of GENERAL MOTORS CORP.

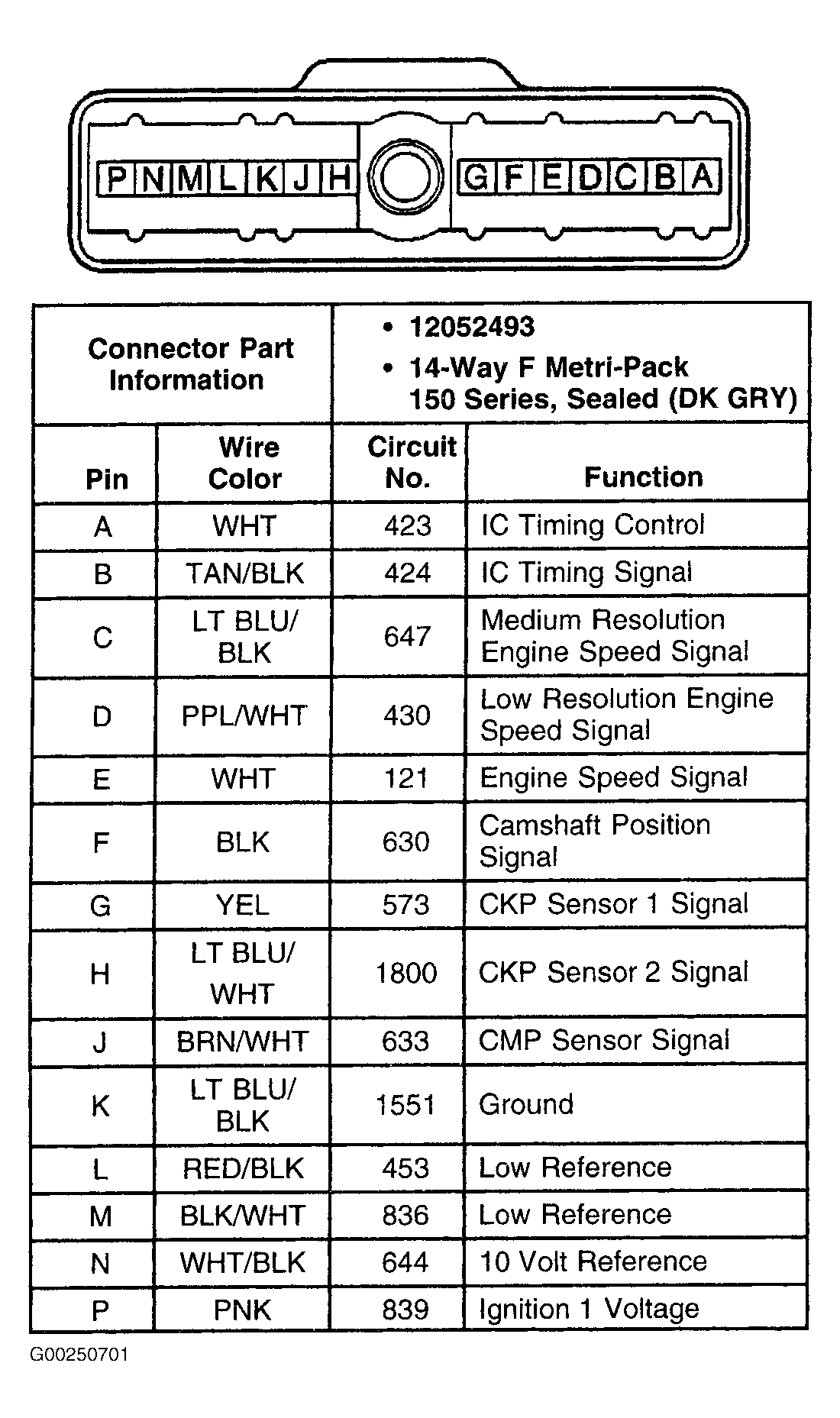

Fig 20: Identifying Ignition Control Module Connector Terminals
G00250701Courtesy of GENERAL MOTORS CORP.

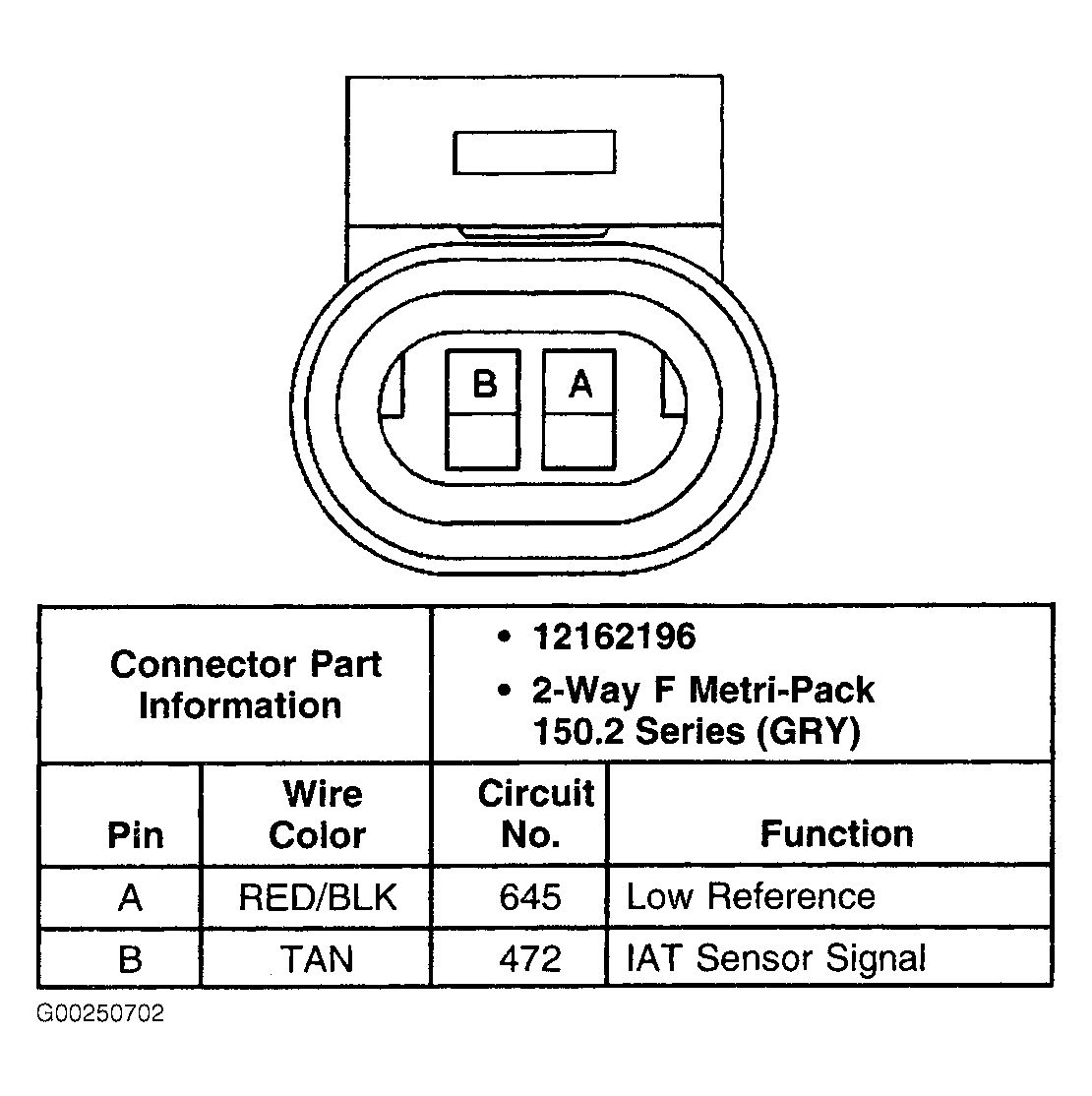

Fig 21: Identifying Idle Air Temperature Sensor Connector Terminals
G00250702Courtesy of GENERAL MOTORS CORP.

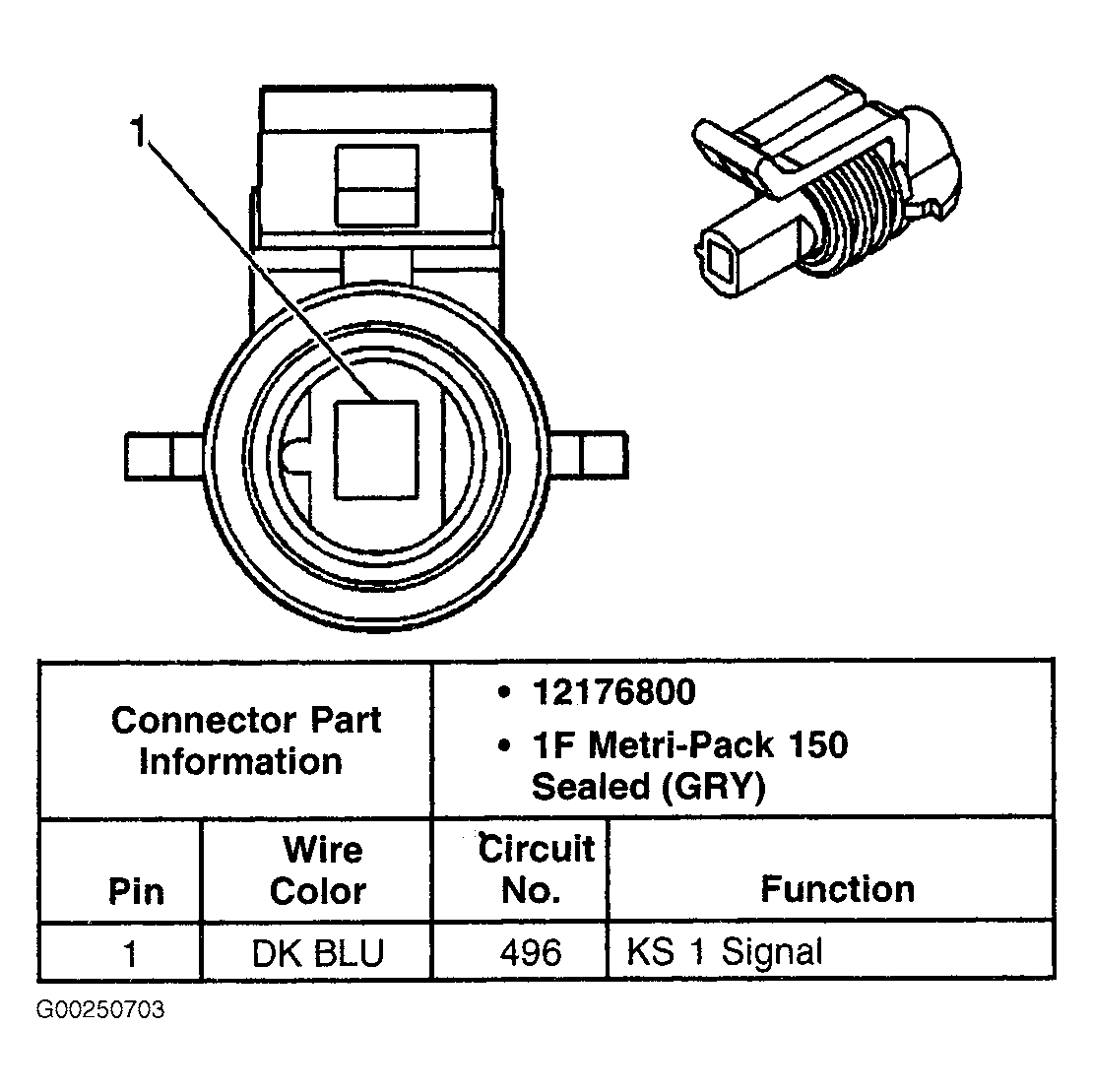

Fig 22: Identifying Knock Sensor Bank 1 Connector Terminals
G00250703Courtesy of GENERAL MOTORS CORP.

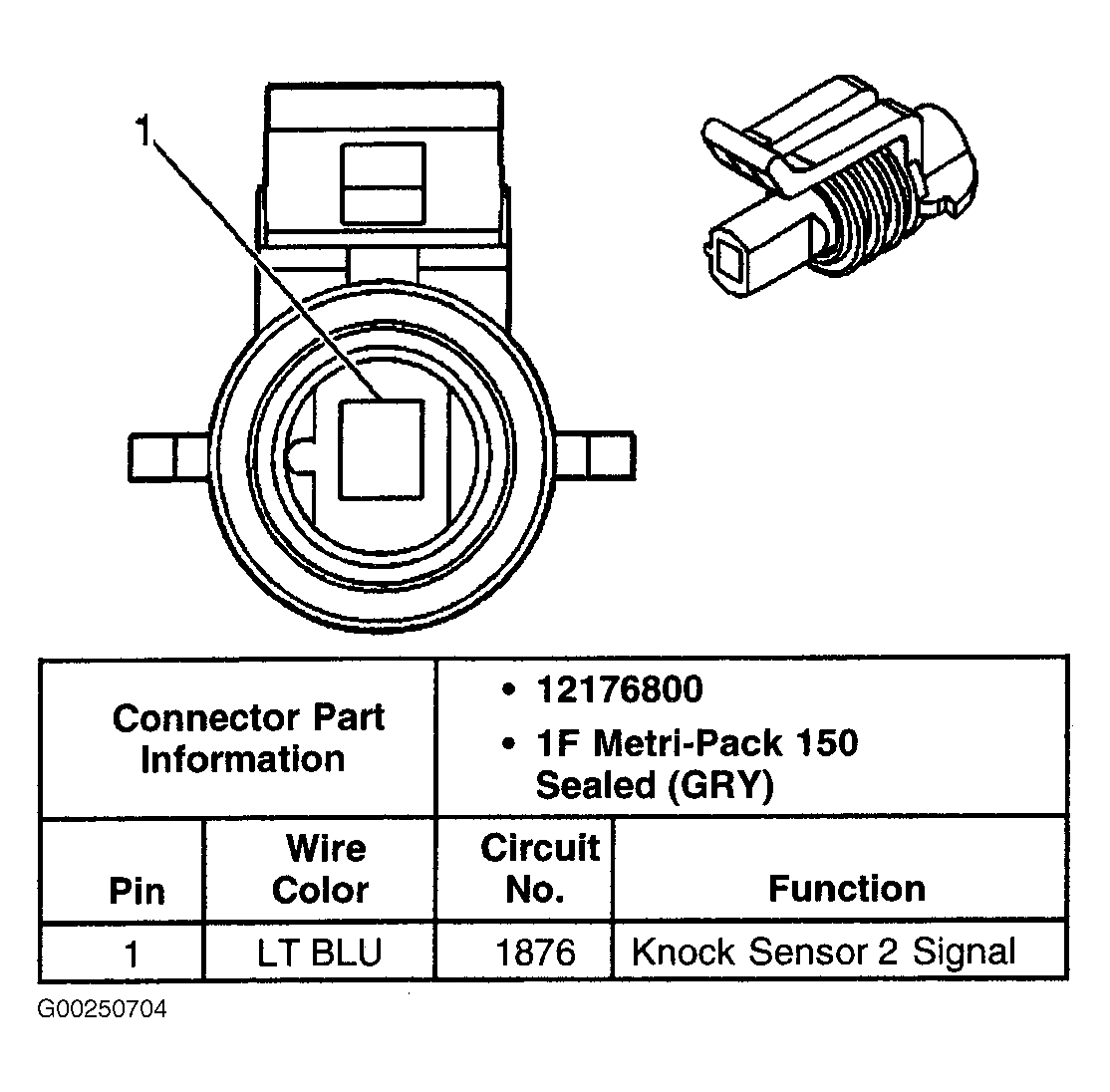

Fig 23: Identifying Knock Sensor Bank 2 Connector Terminals
G00250704Courtesy of GENERAL MOTORS CORP.

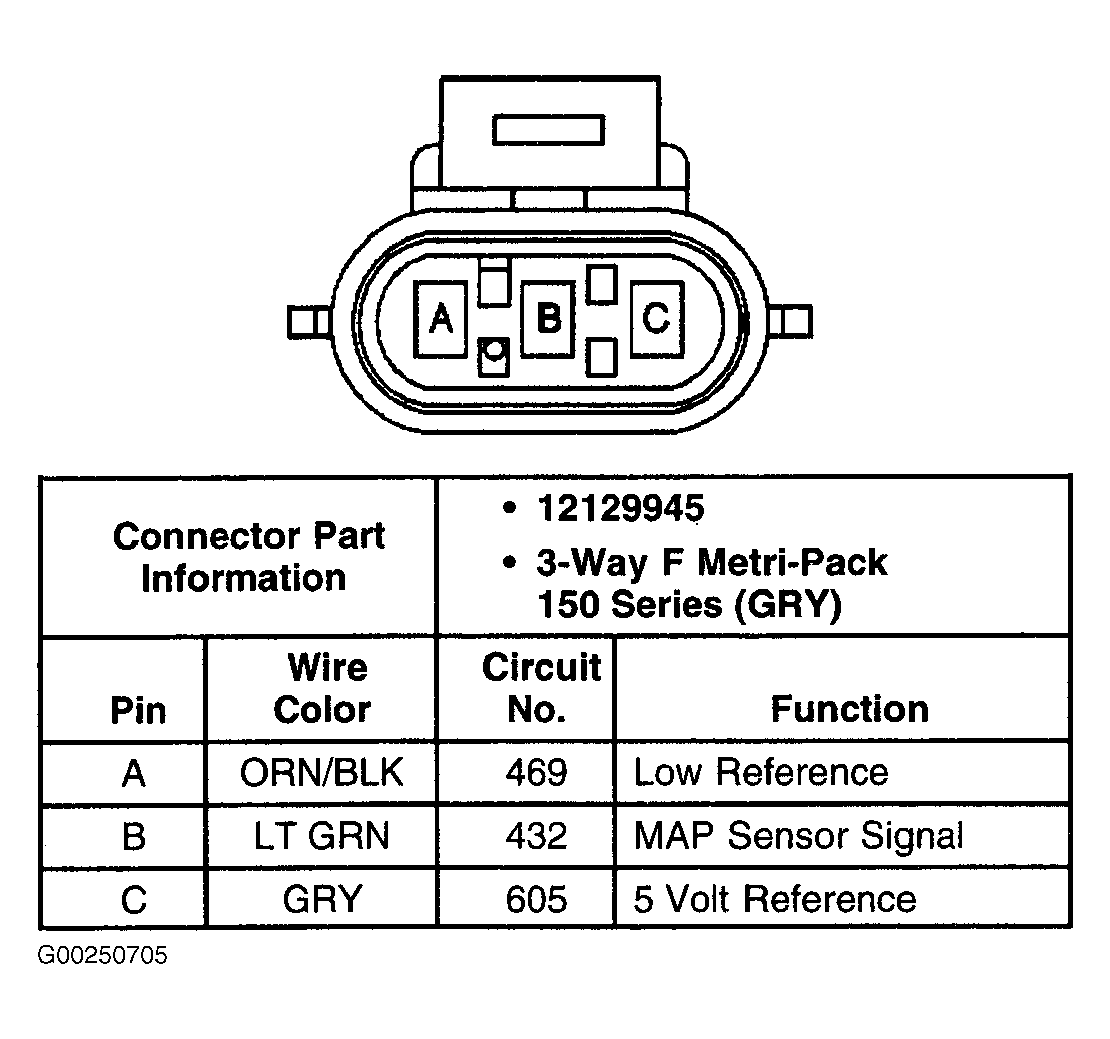

Fig 24: Identifying Manifold Absolute Pressure Sensor (W/O Supercharger) Connector Terminals
G00250705Courtesy of GENERAL MOTORS CORP.

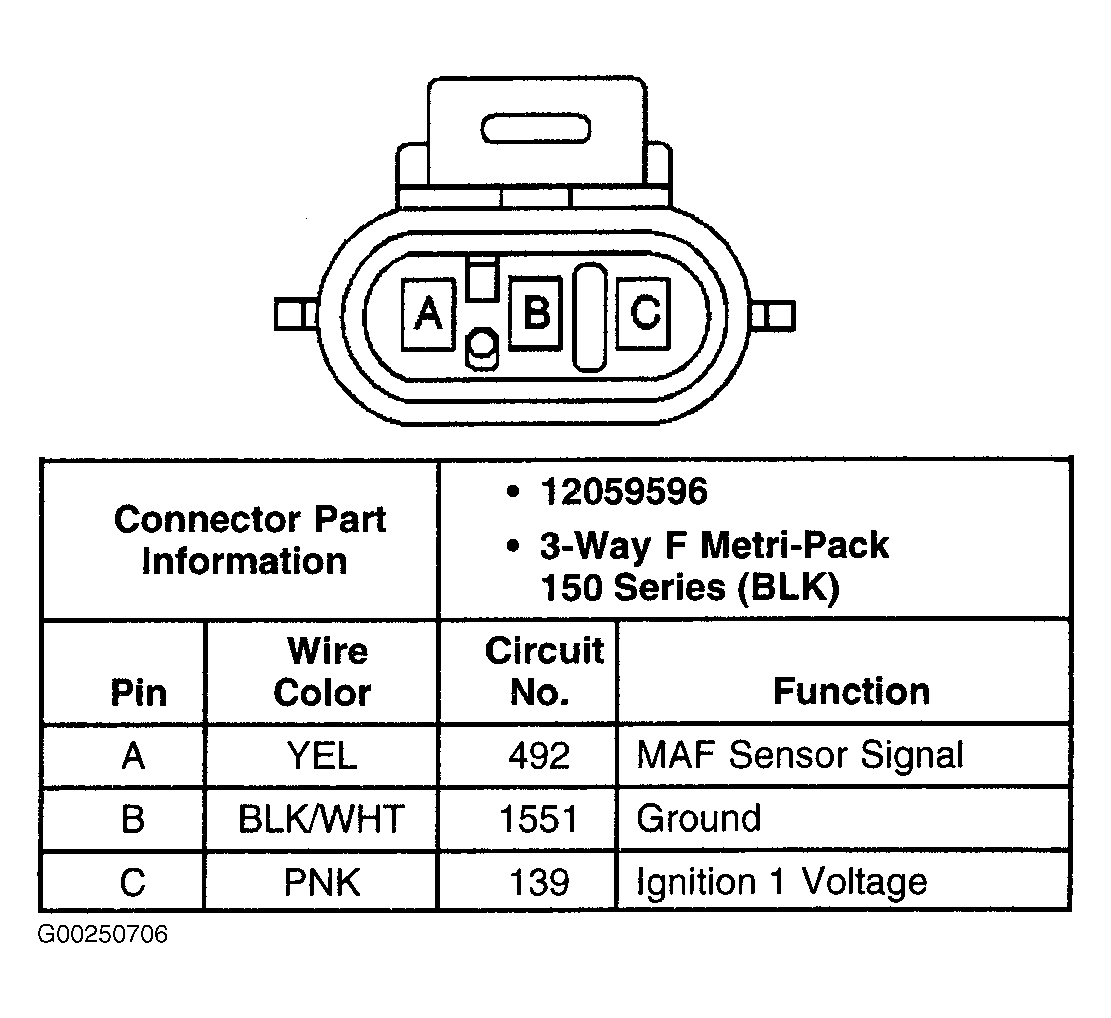

Fig 25: Identifying Mass Airflow Sensor Connector Terminals
G00250706Courtesy of GENERAL MOTORS CORP.

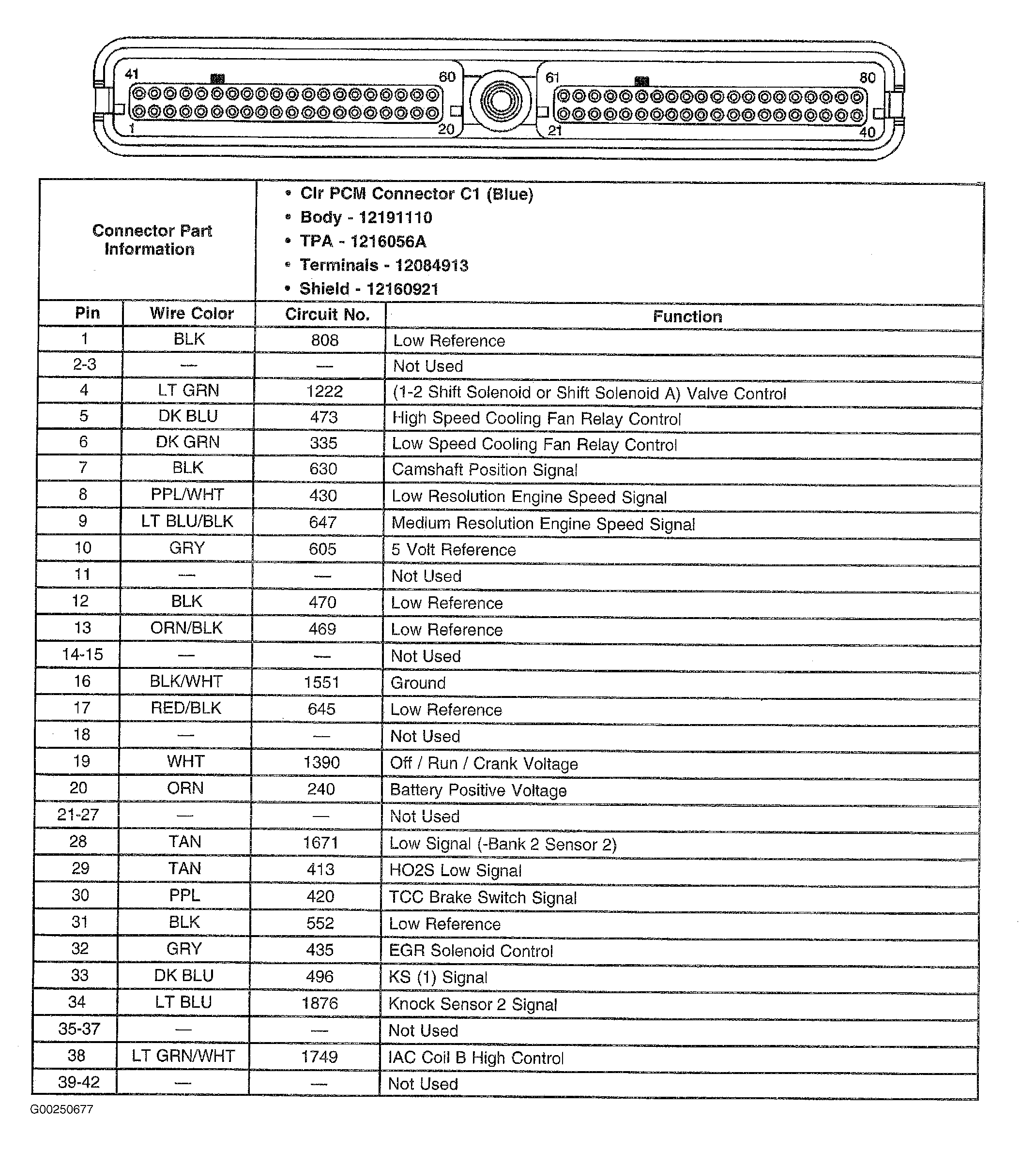

Fig 26: Identifying PCM C1 Connector Terminals (1 Of 2)
G00250677Courtesy of GENERAL MOTORS CORP.

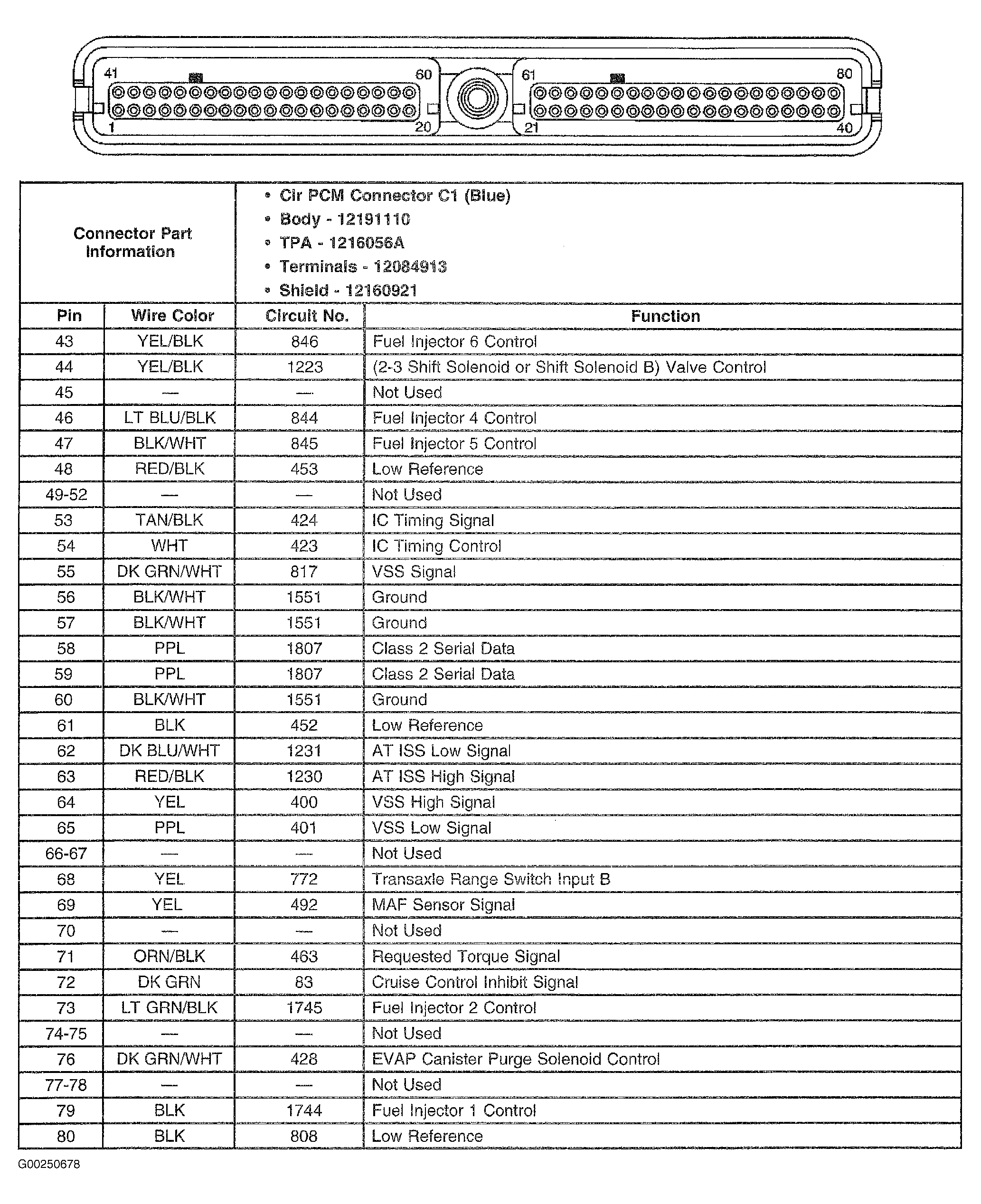

Fig 27: Identifying PCM C2 Connector Terminals (2 Of 2)
G00250678Courtesy of GENERAL MOTORS CORP.

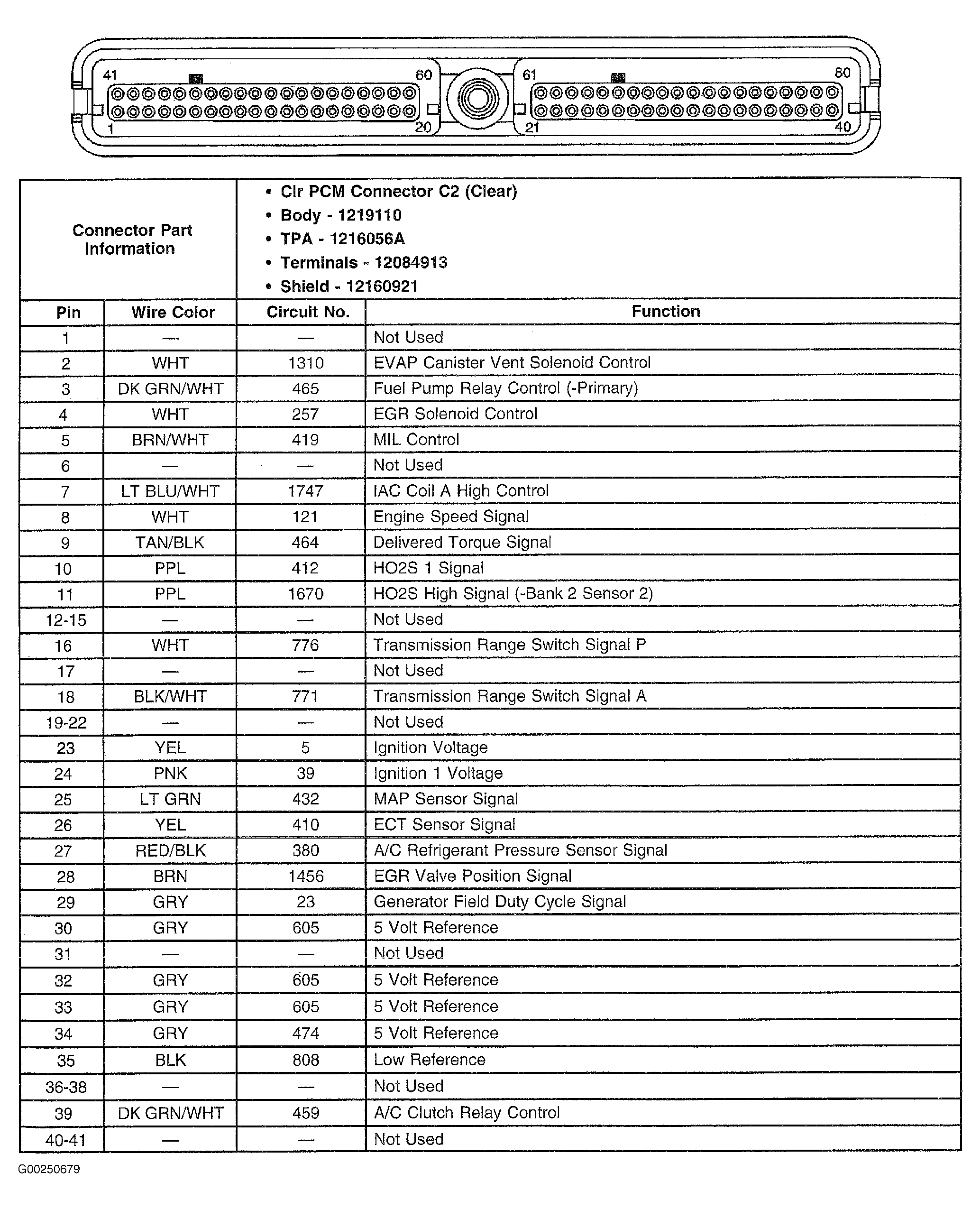

Fig 28: Identifying PCM C2 Connector Terminals (1 Of 2)
G00250679Courtesy of GENERAL MOTORS CORP.

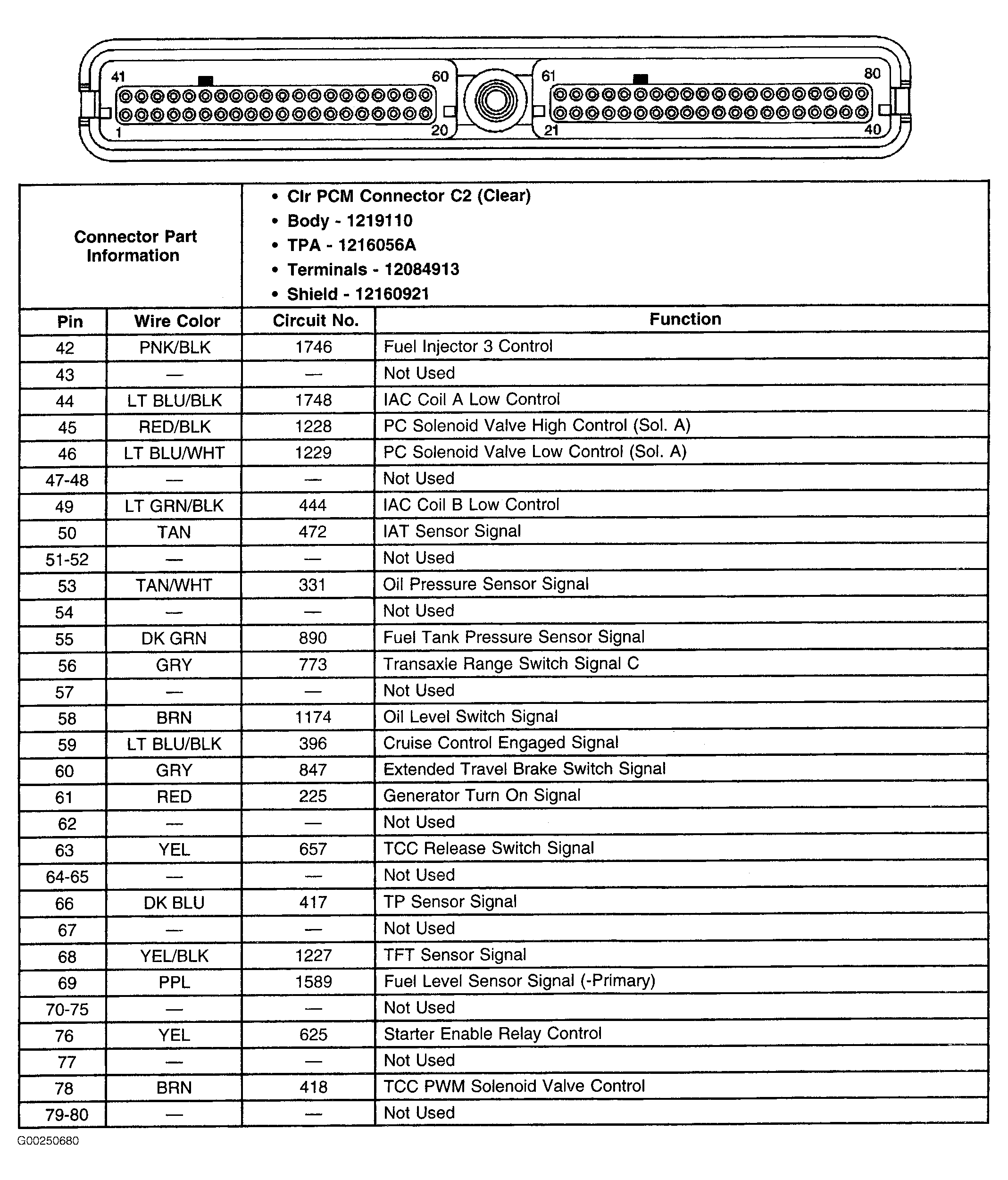

Fig 29: Identifying PCM C2 Connector Terminals (2 Of 2)
G00250680Courtesy of GENERAL MOTORS CORP.

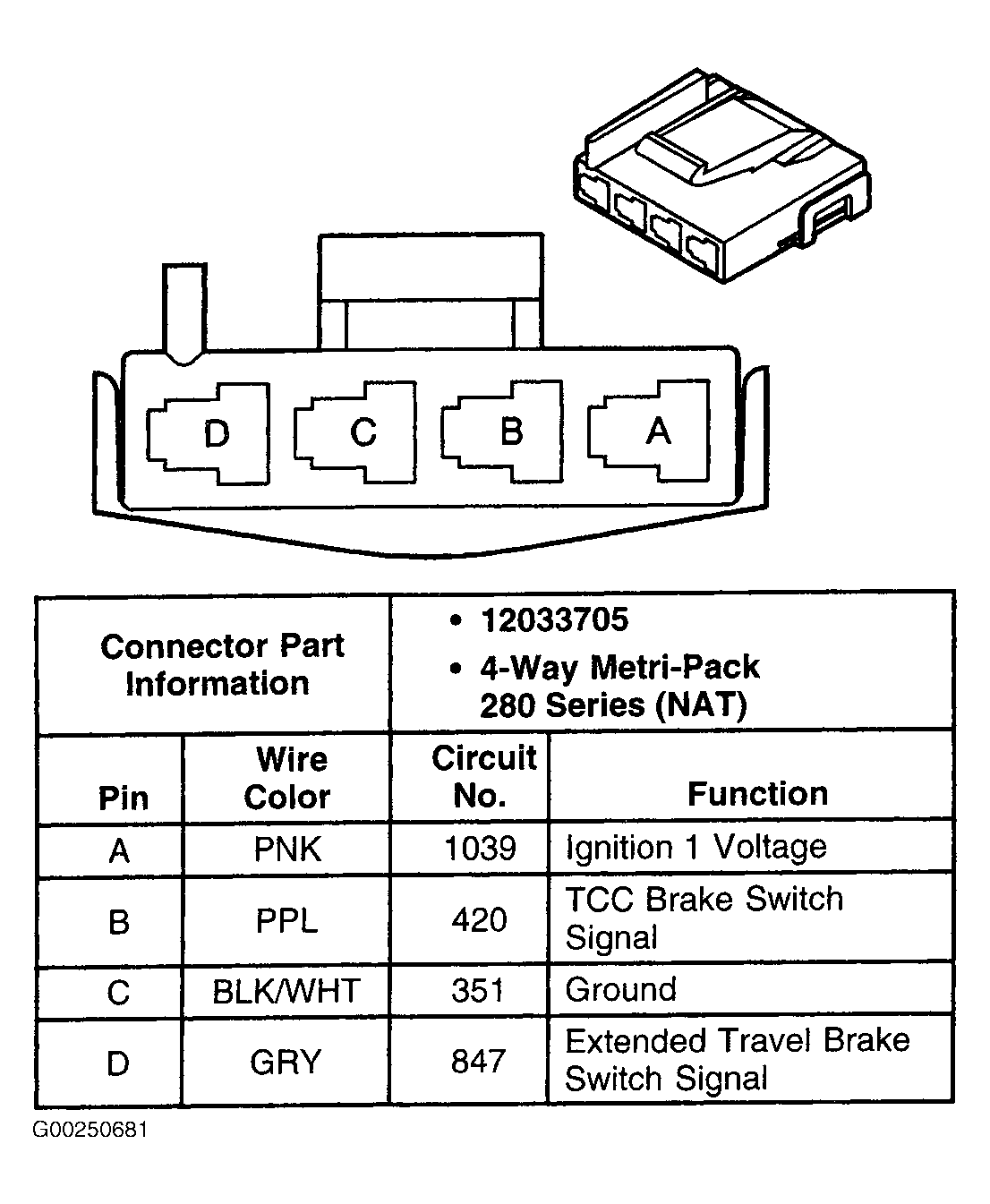

Fig 30: Identifying Stop Light Switch Connector Terminals
G00250681Courtesy of GENERAL MOTORS CORP.

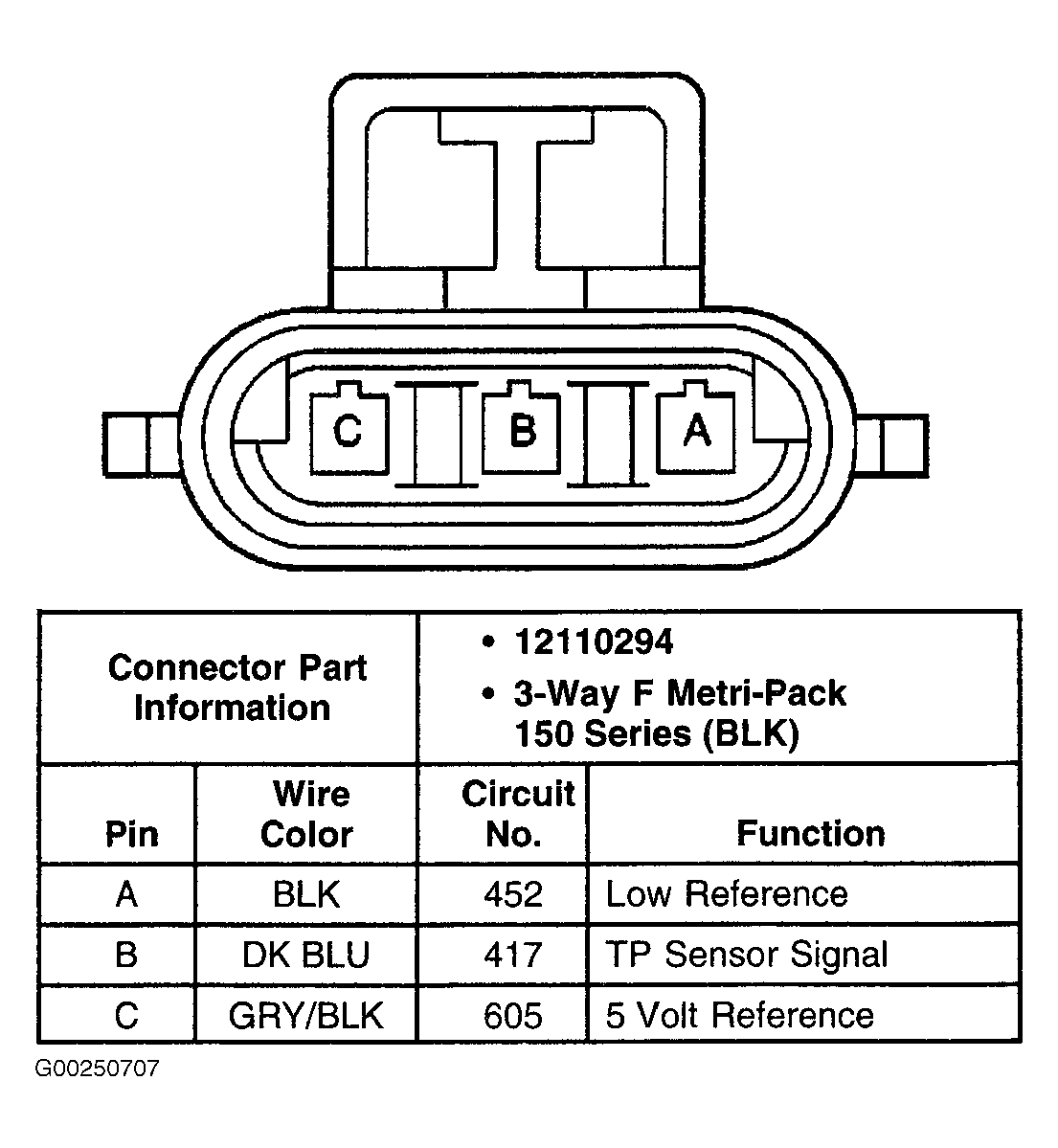

Fig 31: Identifying Throttle Position Sensor Connector Terminals
G00250707Courtesy of GENERAL MOTORS CORP.

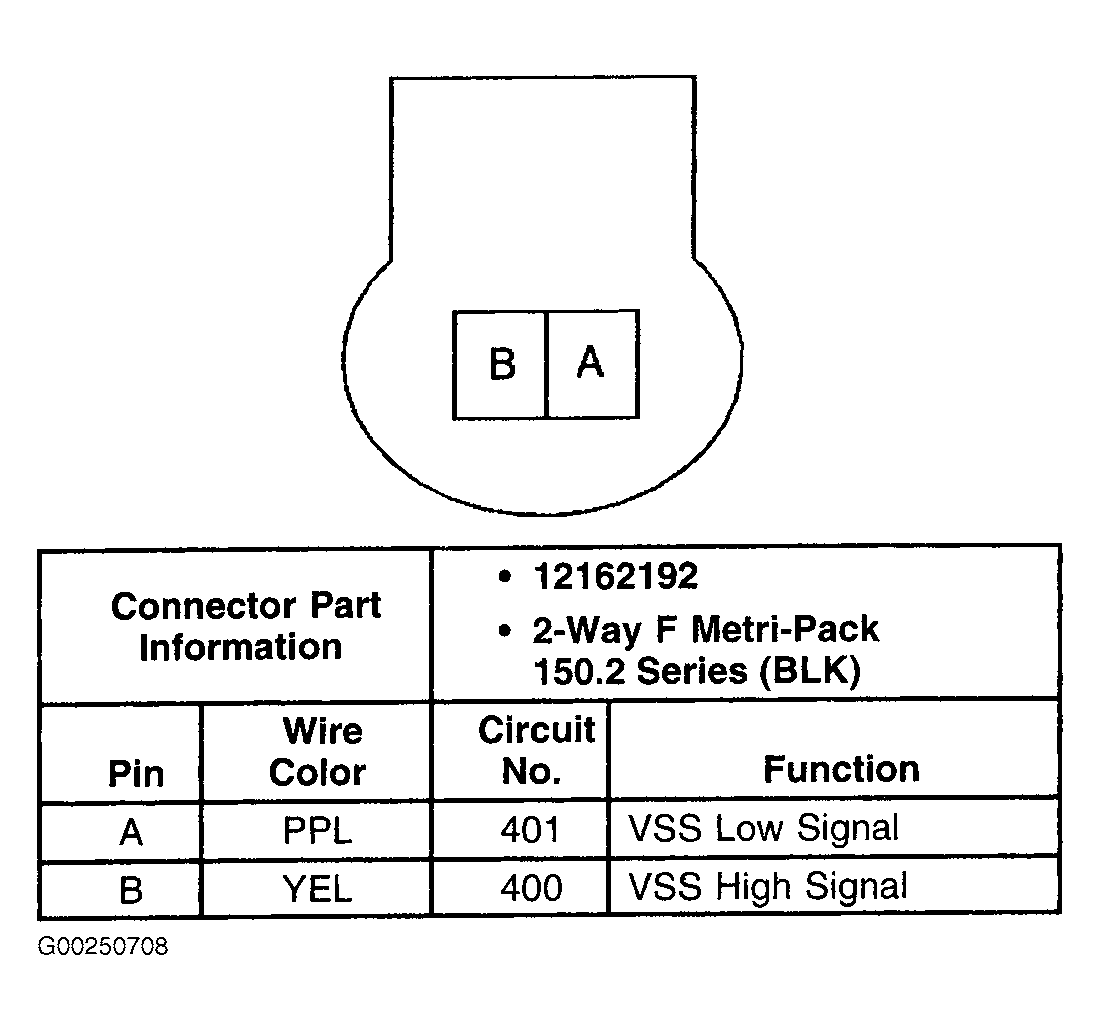

Fig 32: Identifying Vehicle Speed Sensor Connector Terminals
G00250708Courtesy of GENERAL MOTORS CORP.
