Park Avenue

Fig 1: Identifying Camshaft Position Sensor Connector Terminals
G00251189Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Crankshaft Position Sensor Connector Terminals
G00251190Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Engine Coolant Temperature Sensor Connector Terminals
G00251191Courtesy of GENERAL MOTORS CORP.

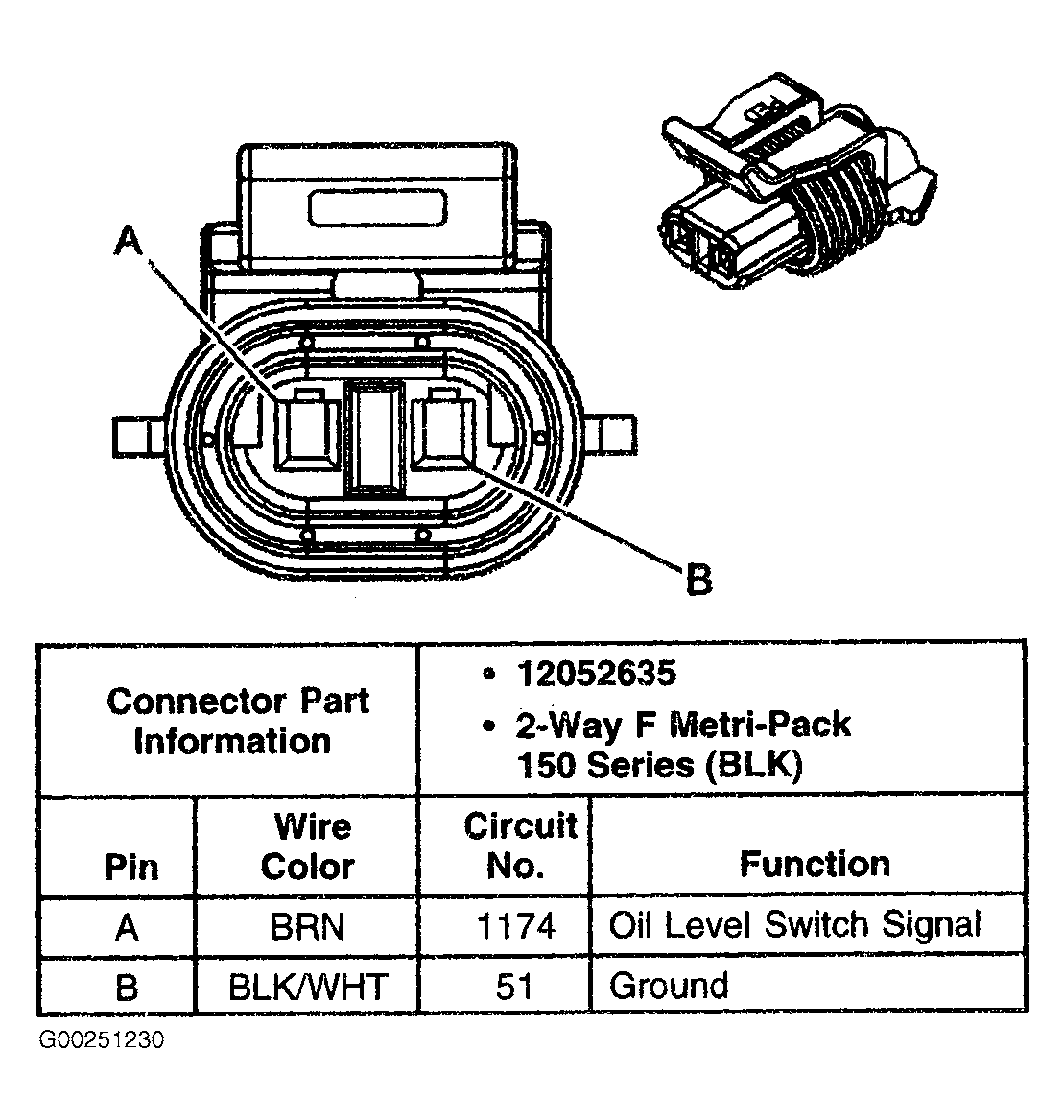

Fig 4: Identifying Engine Oil Level Switch Connector Terminals
G00251230Courtesy of GENERAL MOTORS CORP.

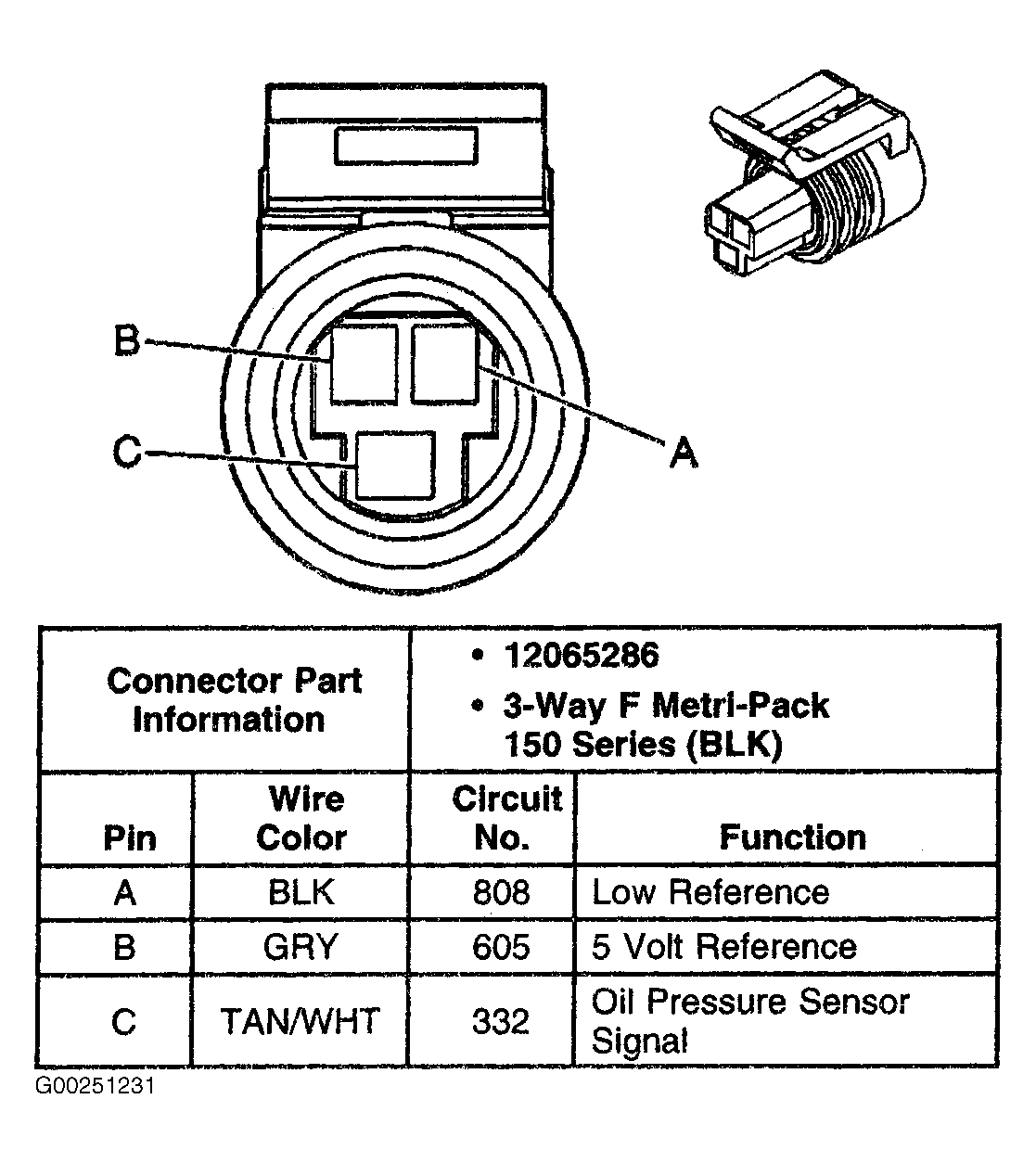

Fig 5: Identifying Engine Oil Pressure Sensor Connector Terminals
G00251231Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying Evaporative Emissions Canister Purge Solenoid Connector Terminals
G00251232Courtesy of GENERAL MOTORS CORP.

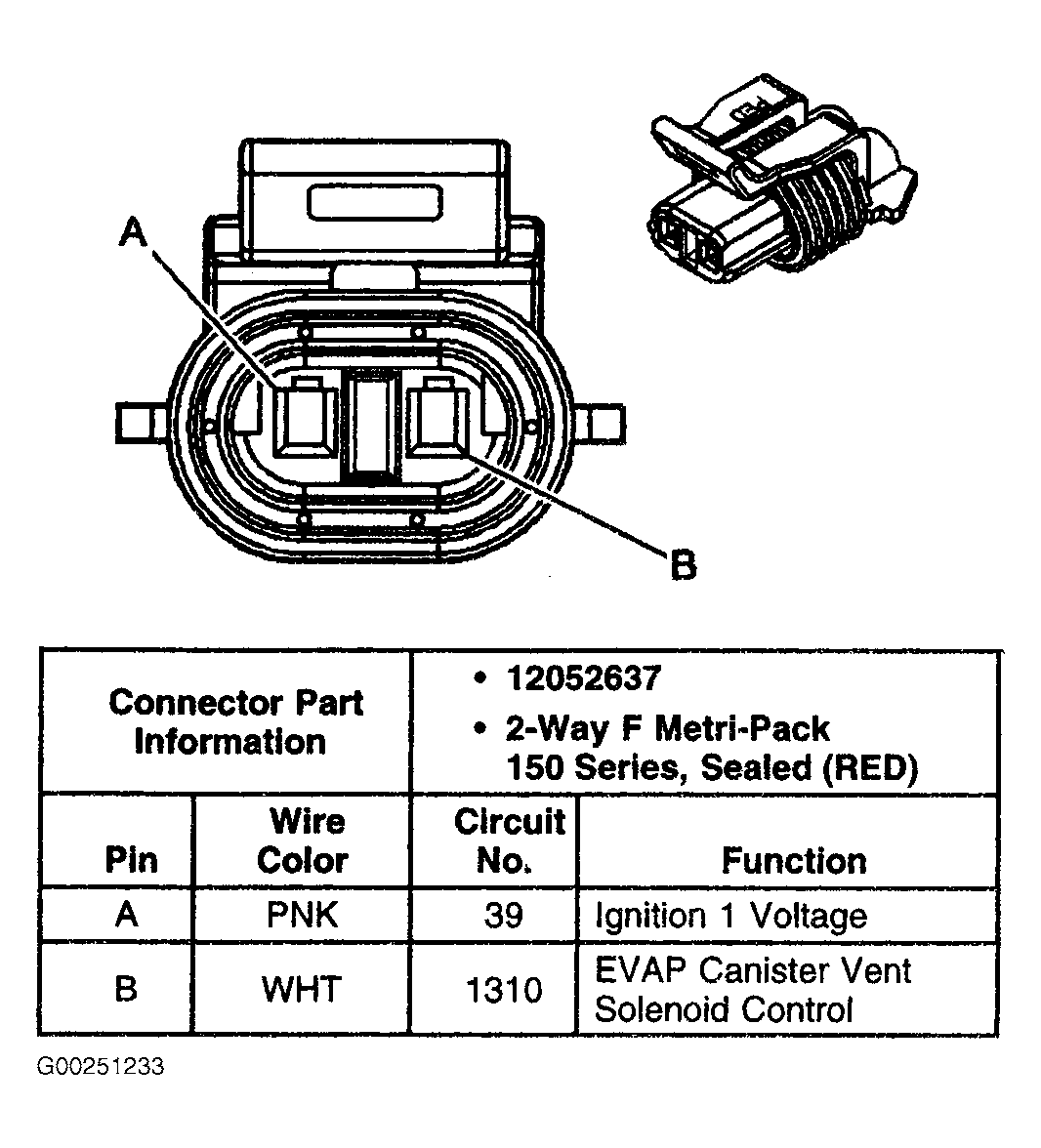

Fig 7: Identifying Evaporative Emissions Canister Vent Solenoid Connector Terminals
G00251233Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Exhaust Gas Recirculation Valve Connector Terminals
G00251194Courtesy of GENERAL MOTORS CORP.

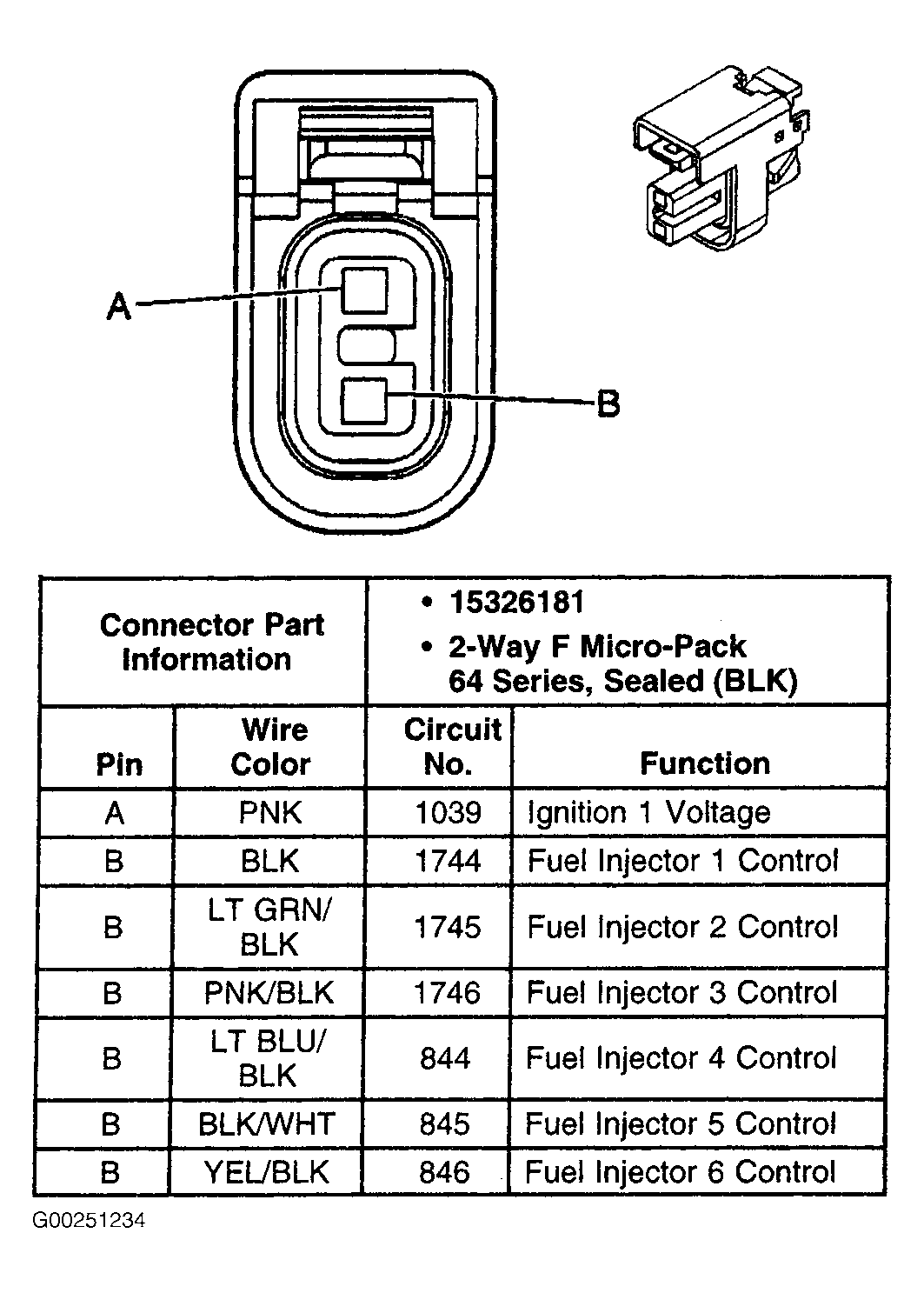

Fig 9: Identifying Fuel Injectors (W/O Supercharger) Connector Terminals
G00251234Courtesy of GENERAL MOTORS CORP.

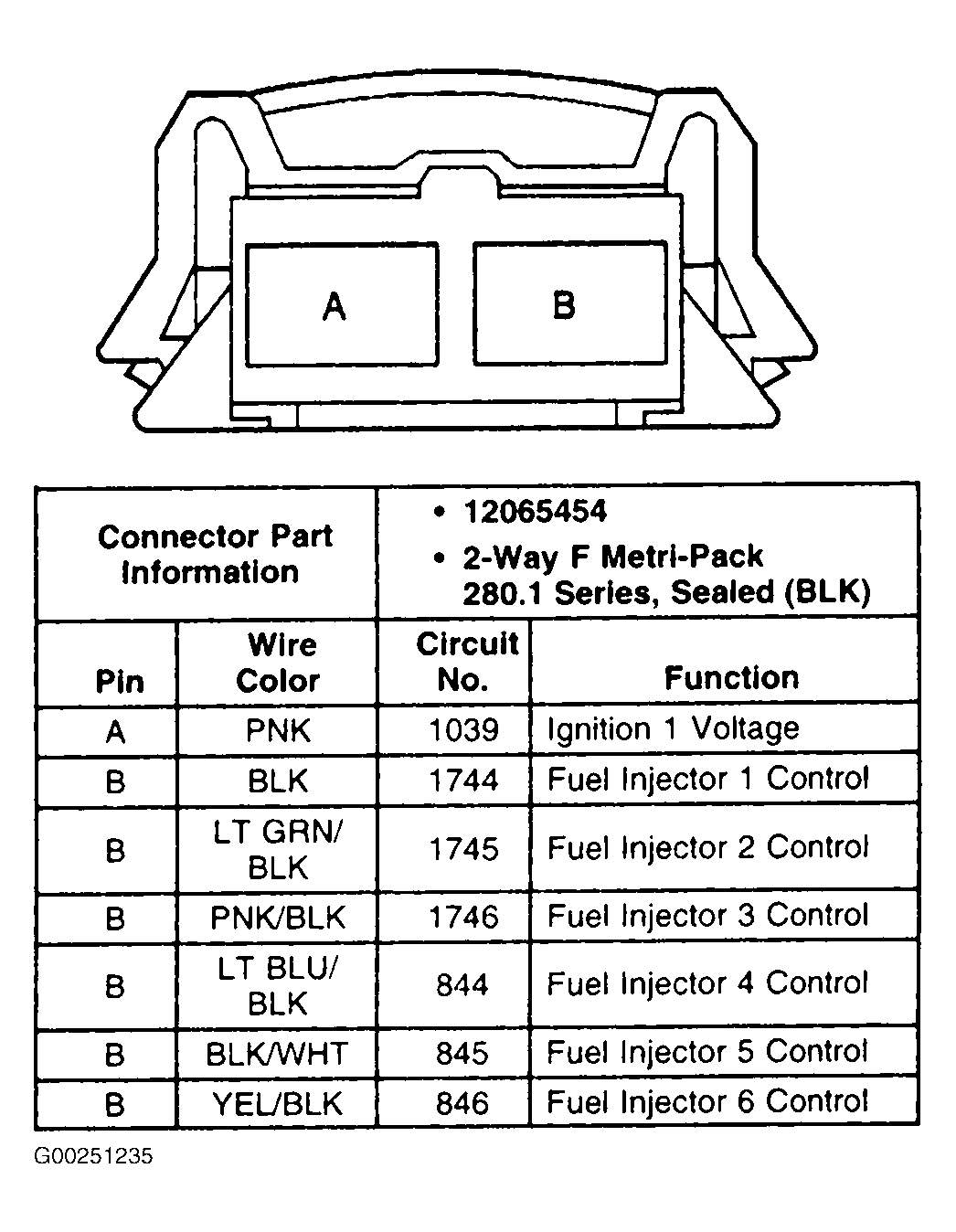

Fig 10: Identifying Fuel Injectors (W/Supercharger) Connector Terminals
G00251235Courtesy of GENERAL MOTORS CORP.

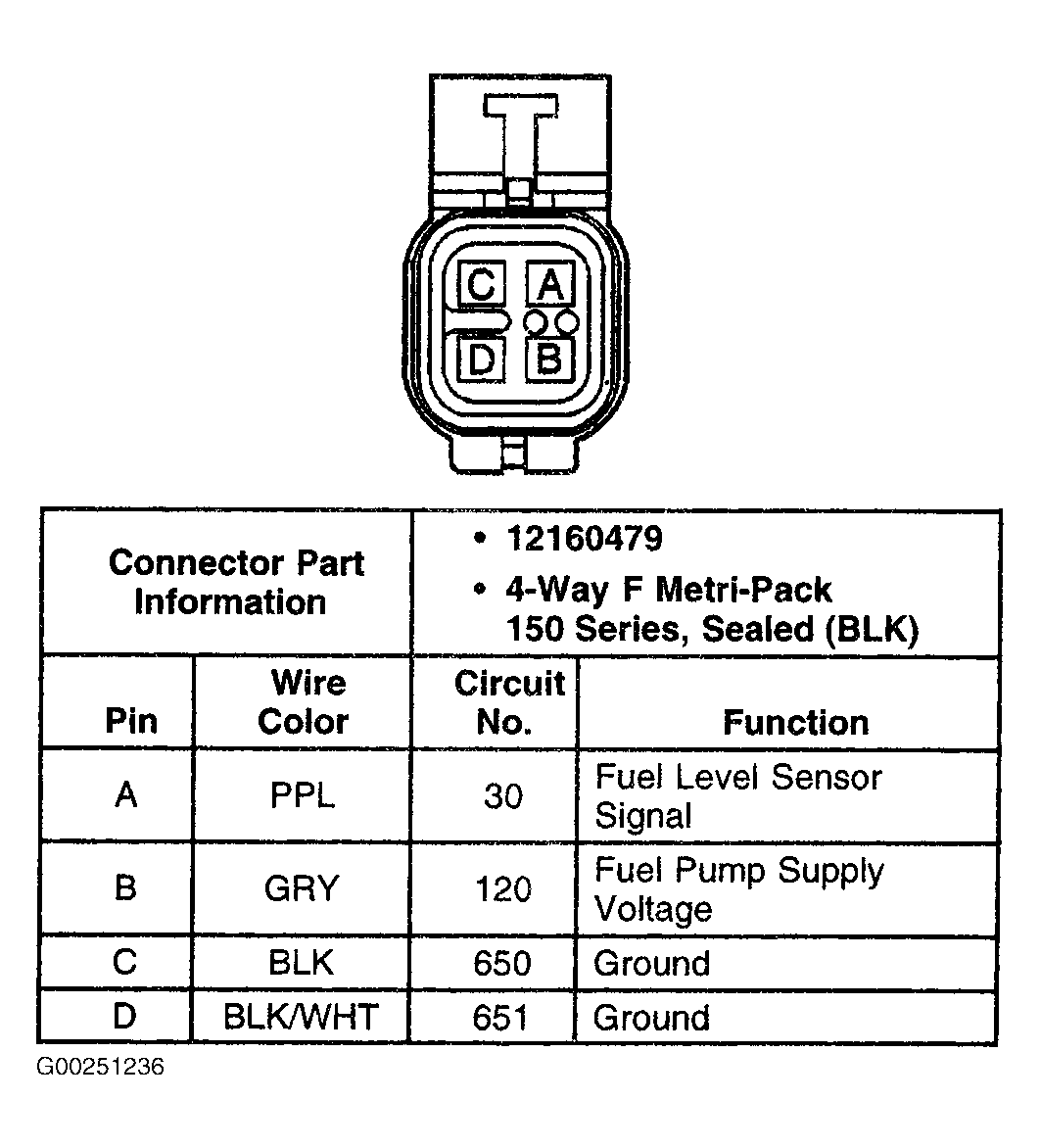

Fig 11: Identifying Fuel Pump & Sender Assembly Connector Terminals
G00251236Courtesy of GENERAL MOTORS CORP.

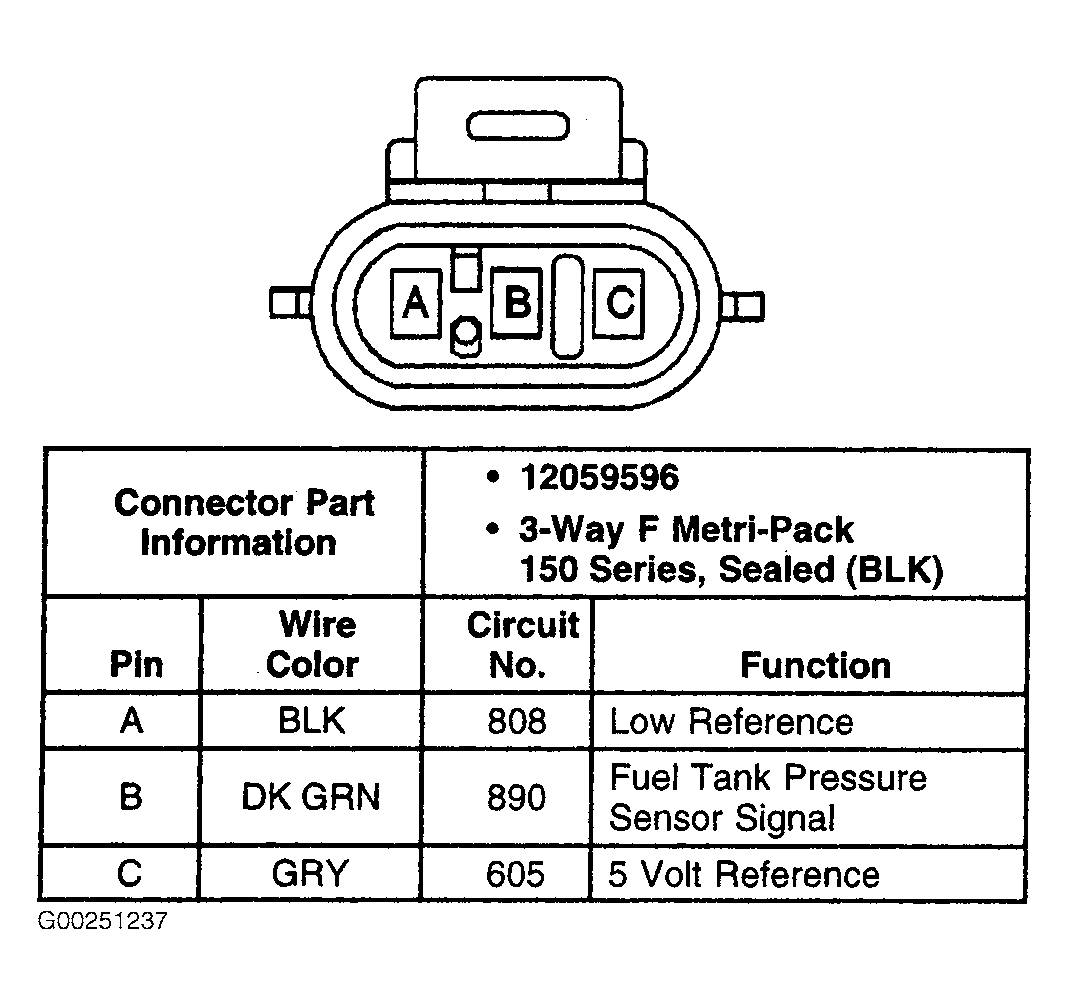

Fig 12: Identifying Fuel Tank Pressure Sensor Connector Terminals
G00251237Courtesy of GENERAL MOTORS CORP.

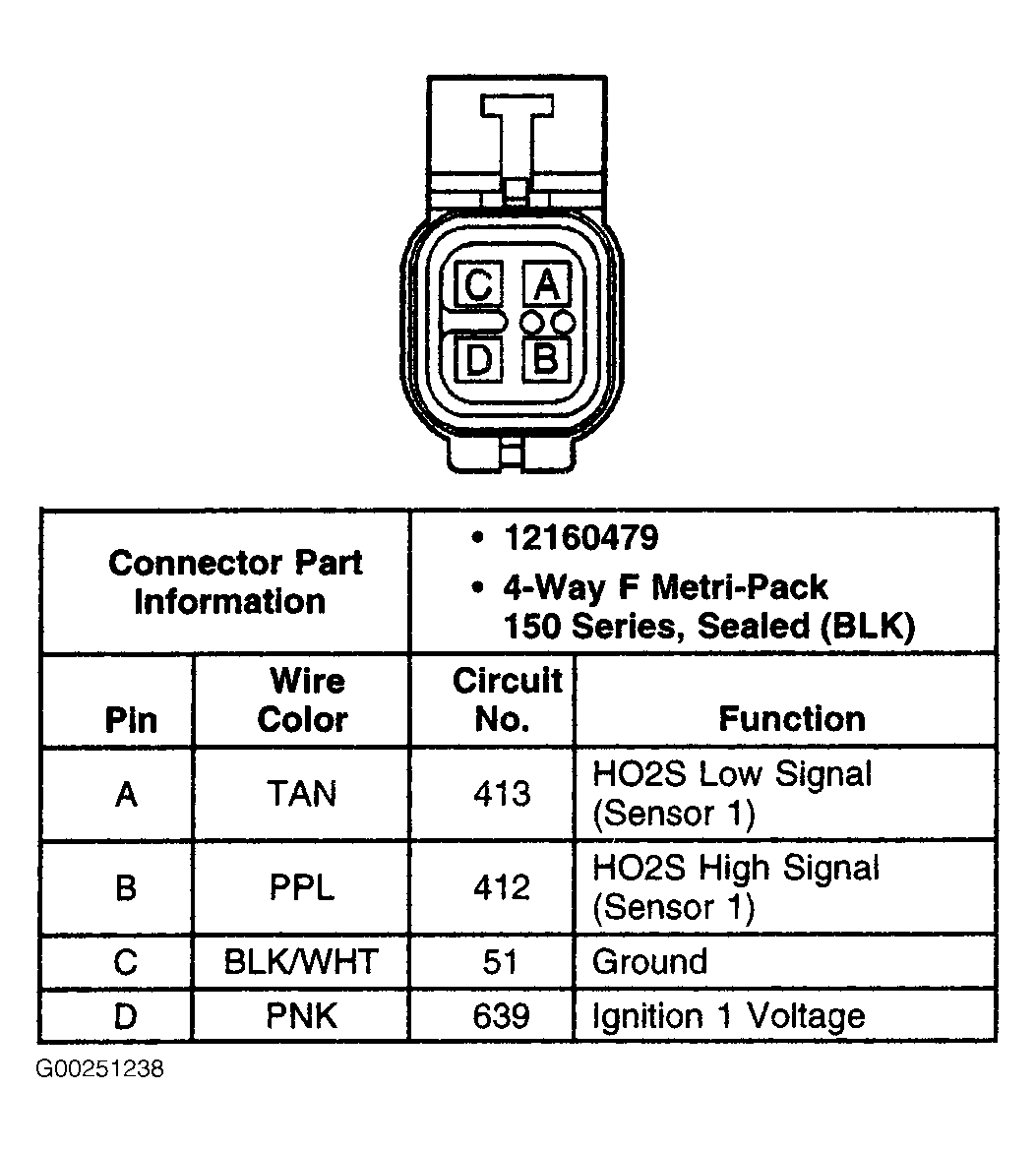

Fig 13: Identifying HO2S Sensor 1 Connector Terminals
G00251238Courtesy of GENERAL MOTORS CORP.

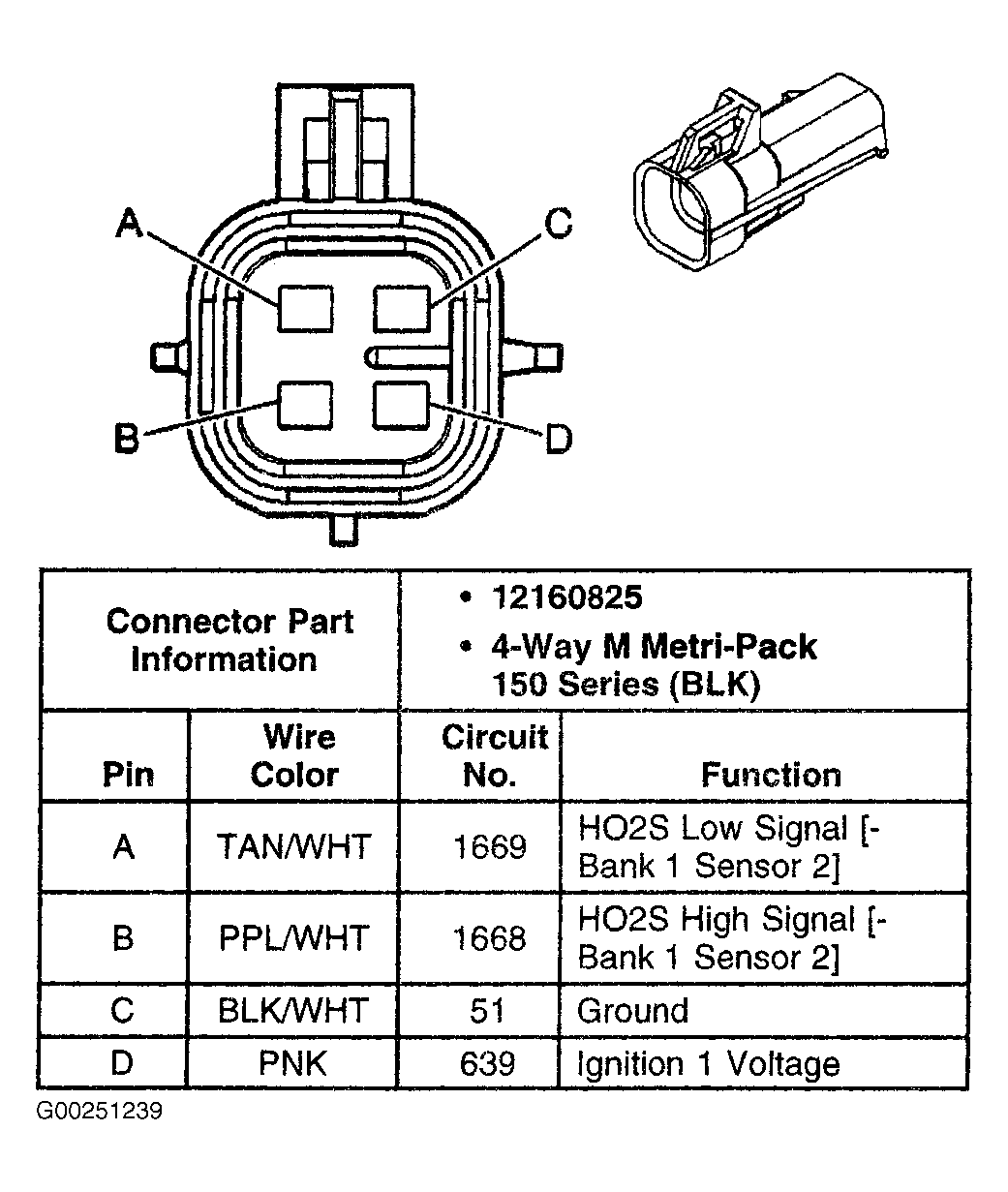

Fig 14: Identifying HO2S Sensor 2 Connector Terminals
G00251239Courtesy of GENERAL MOTORS CORP.

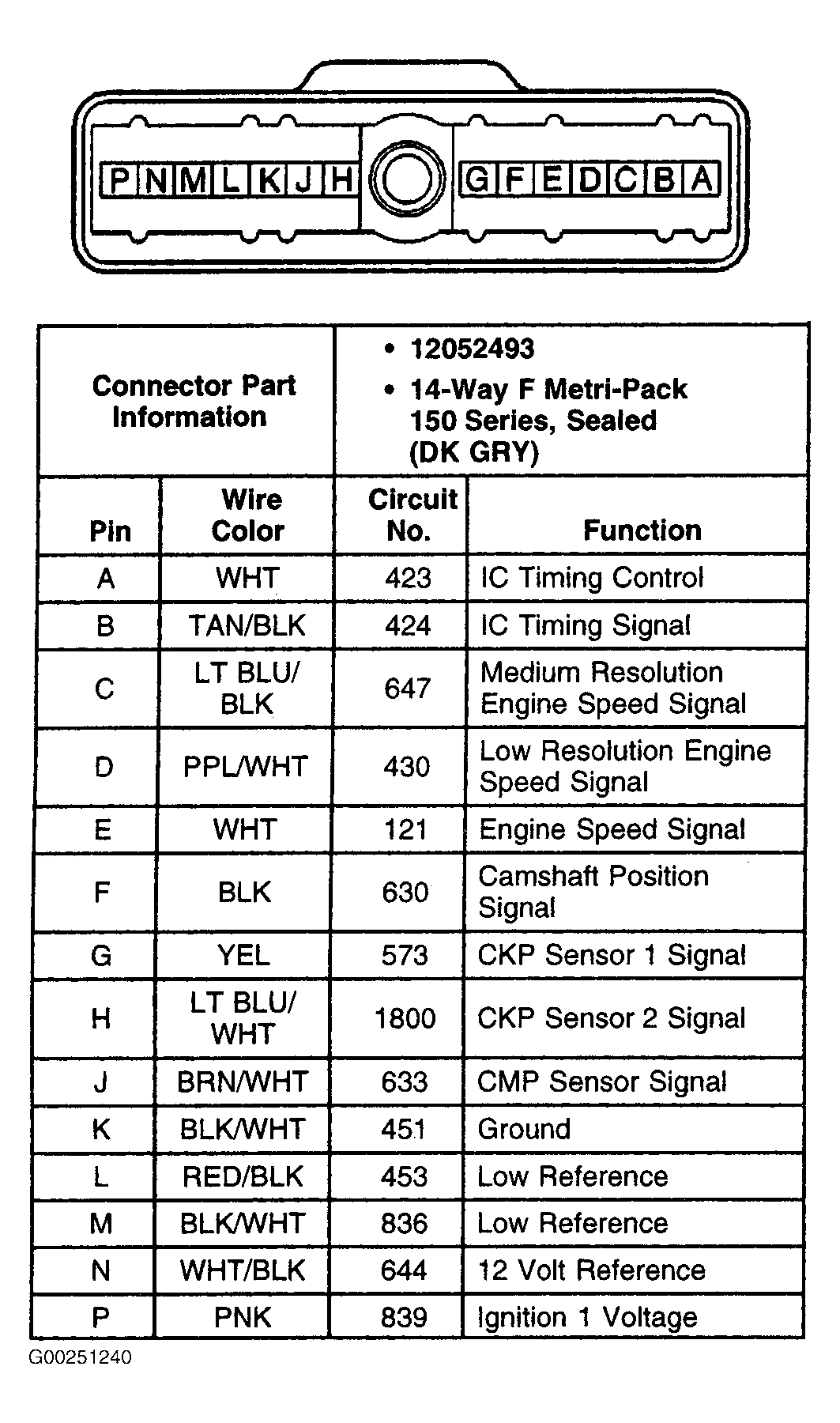

Fig 15: Identifying Ignition Control Module Connector Terminals
G00251240Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying Idle Air Control Valve Connector Terminals
G00251211Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying Intake Air Temperature Sensor Connector Terminals
G00251213Courtesy of GENERAL MOTORS CORP.
Fig 18: Identifying Knock Sensor Bank 1 Connector Terminals
G00251214Courtesy of GENERAL MOTORS CORP.
Fig 19: Identifying Knock Sensor Bank 2 Connector Terminals
G00251215Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Manifold Absolute Pressure Sensor Connector Terminals (W/O Supercharger)
G00251241Courtesy of GENERAL MOTORS CORP.

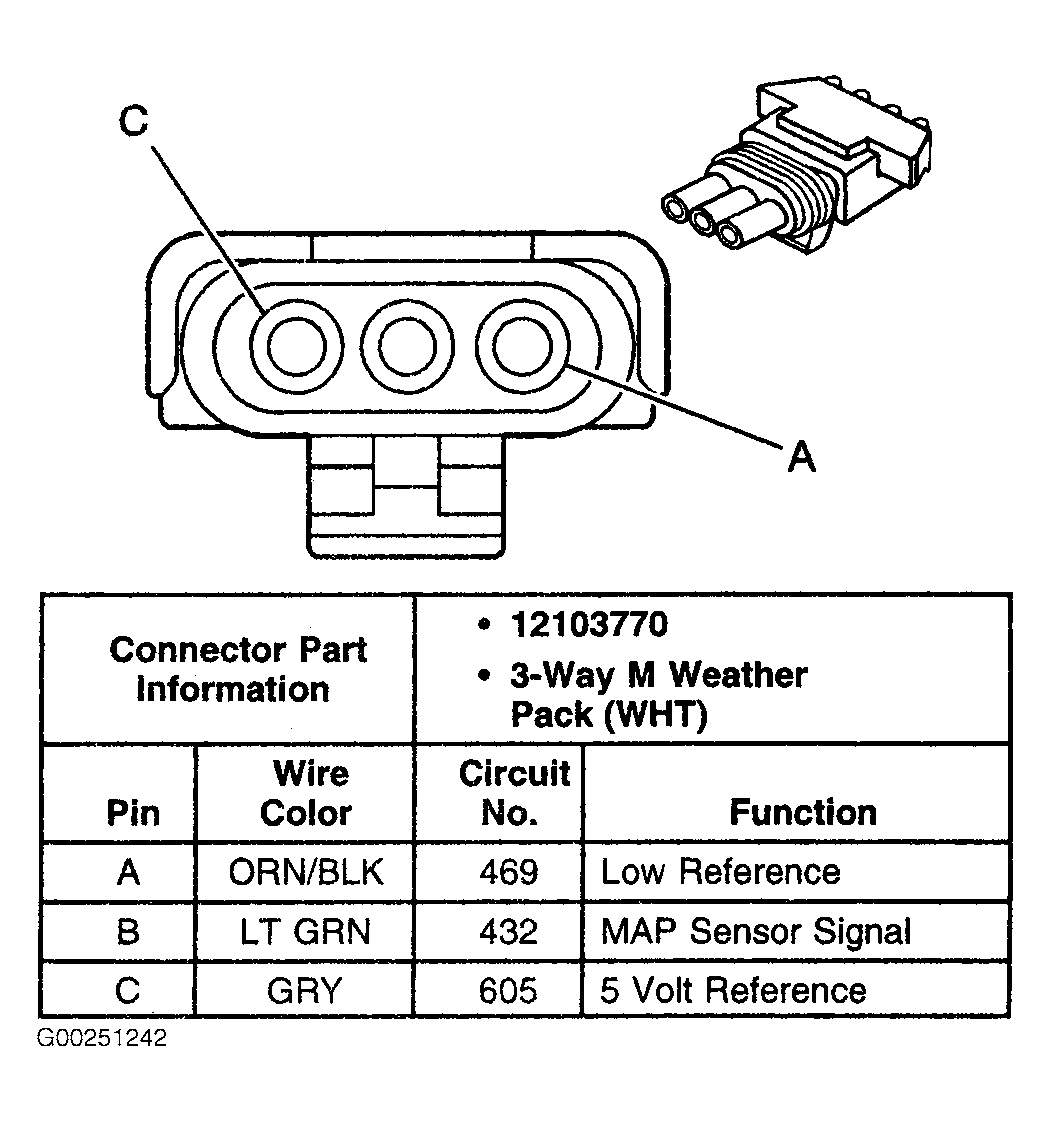

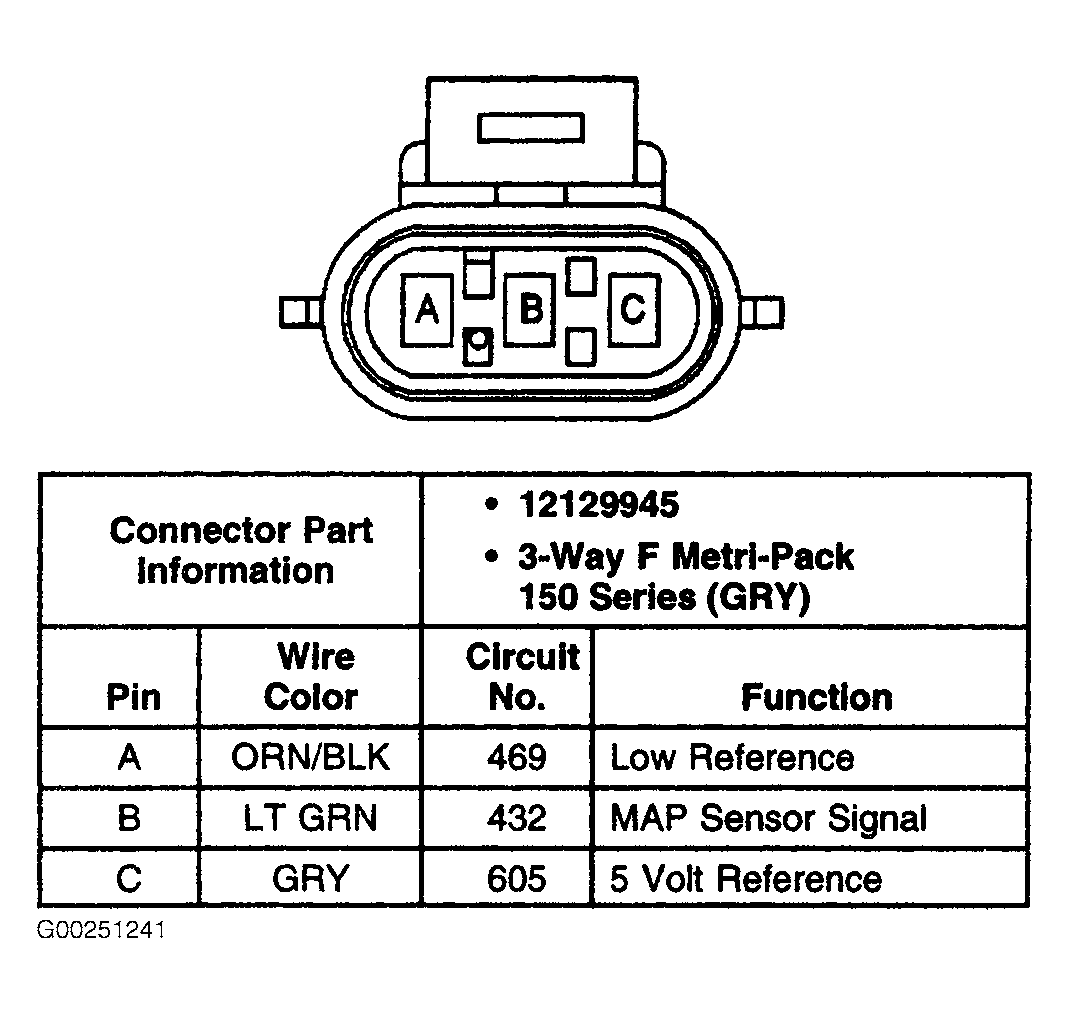

Fig 21: Identifying Manifold Absolute Pressure Sensor Connector Terminals (W/Supercharger)
G00251242Courtesy of GENERAL MOTORS CORP.

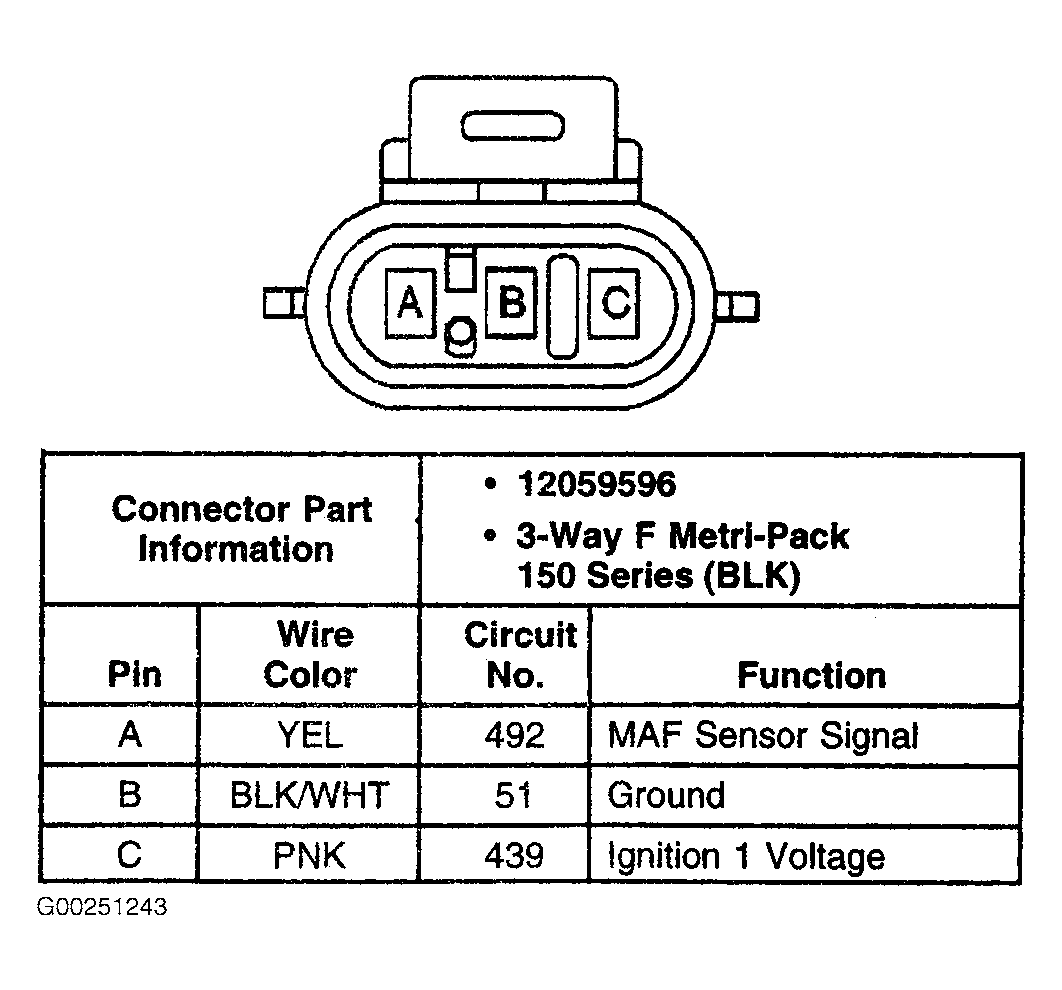

Fig 22: Identifying Mass Airflow Sensor Connector Terminals
G00251243Courtesy of GENERAL MOTORS CORP.

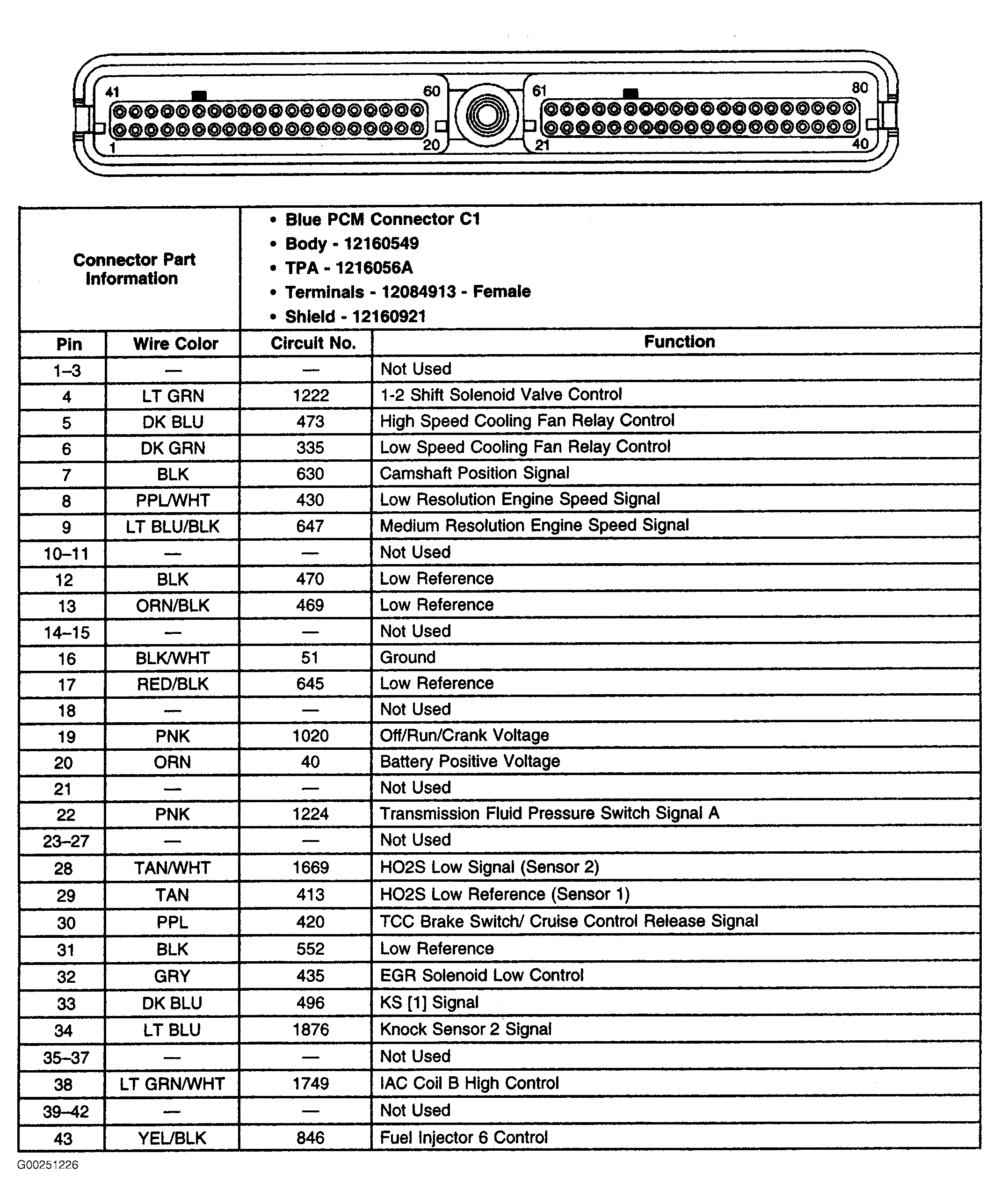

Fig 23: Identifying PCM C1 Connector Terminals (1 Of 2)
G00251226Courtesy of GENERAL MOTORS CORP.

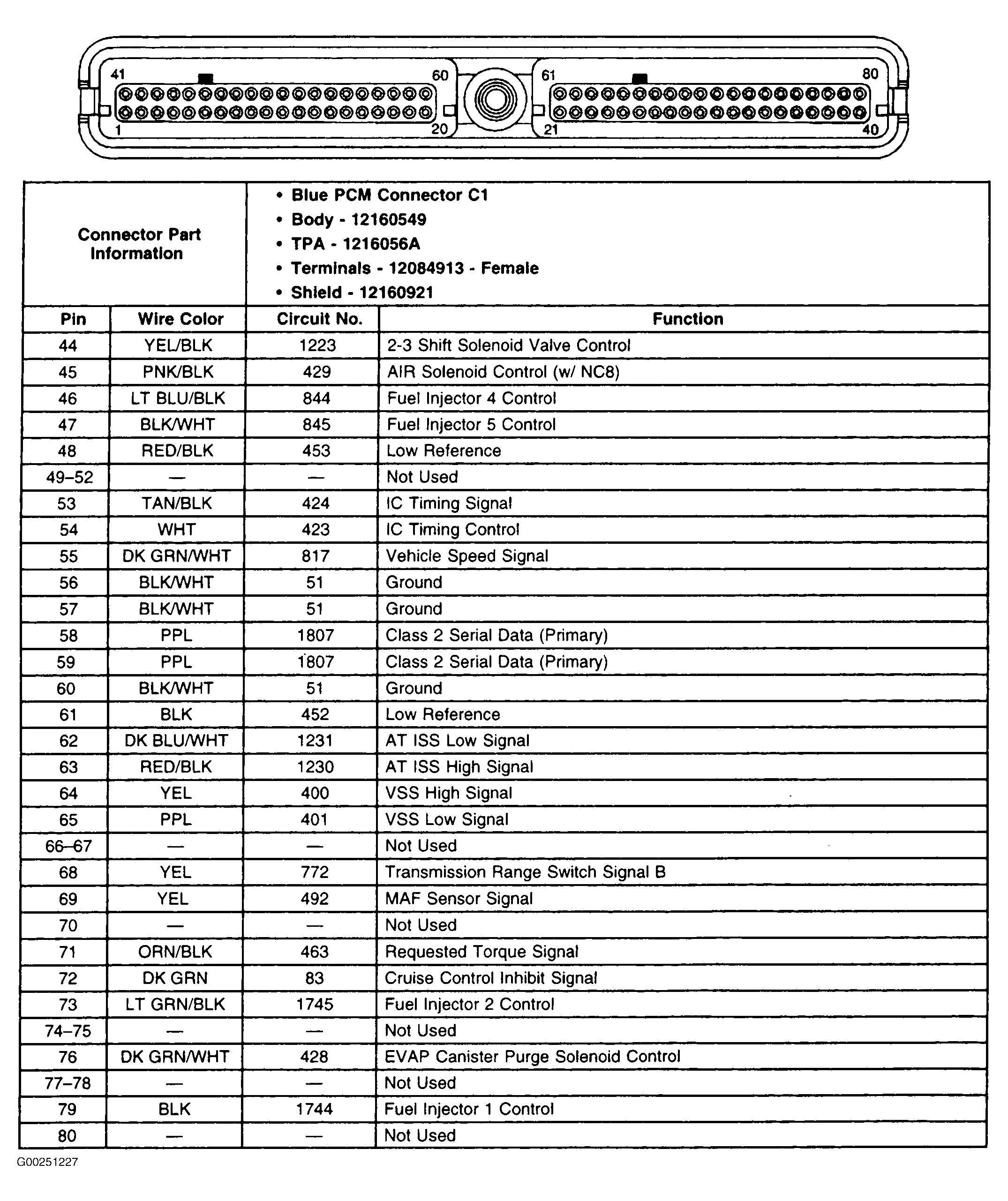

Fig 24: Identifying PCM C1 Connector Terminals (2 Of 2)
G00251227Courtesy of GENERAL MOTORS CORP.

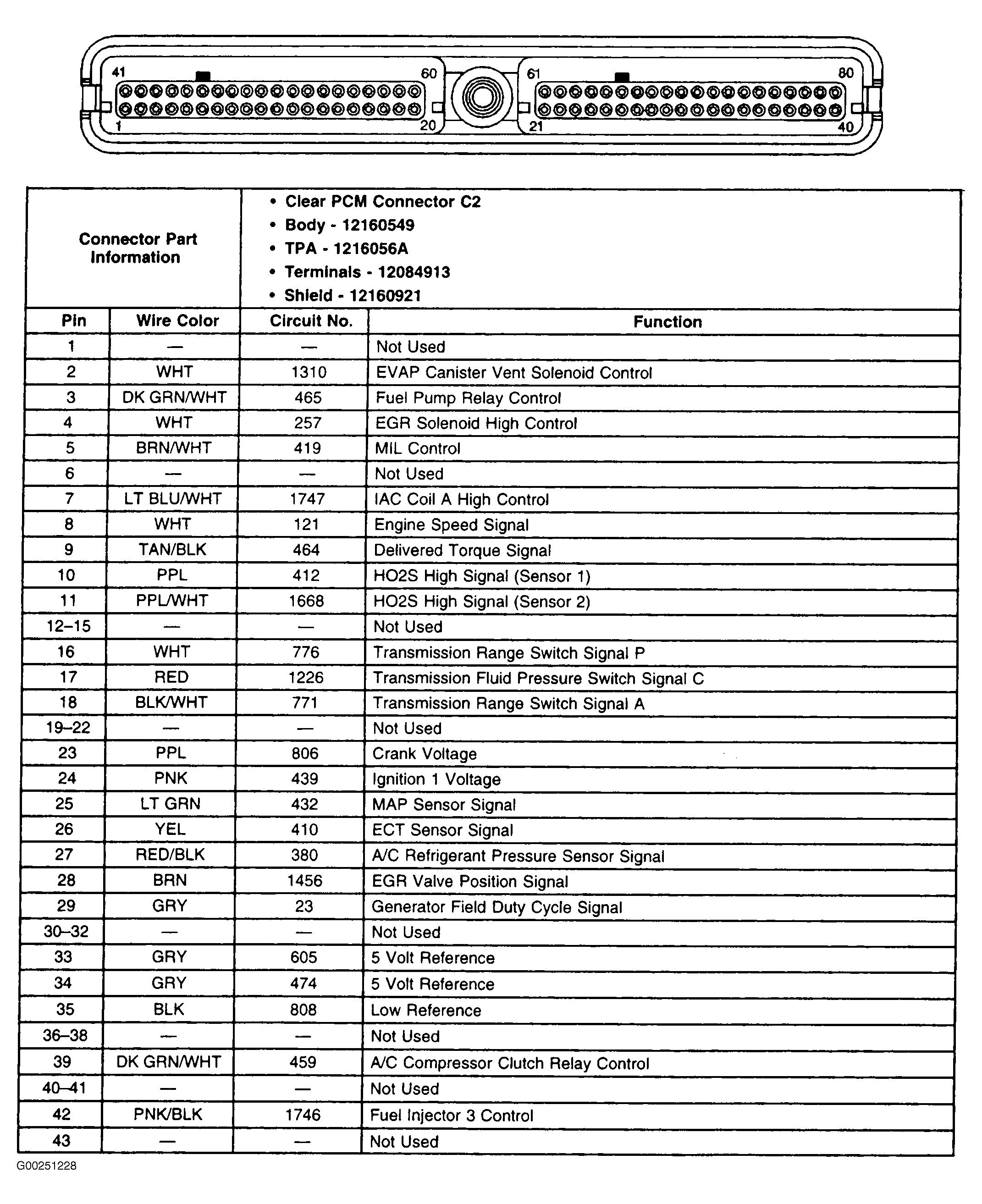

Fig 25: Identifying PCM C2 Connector Terminals (1 Of 2)
G00251228Courtesy of GENERAL MOTORS CORP.

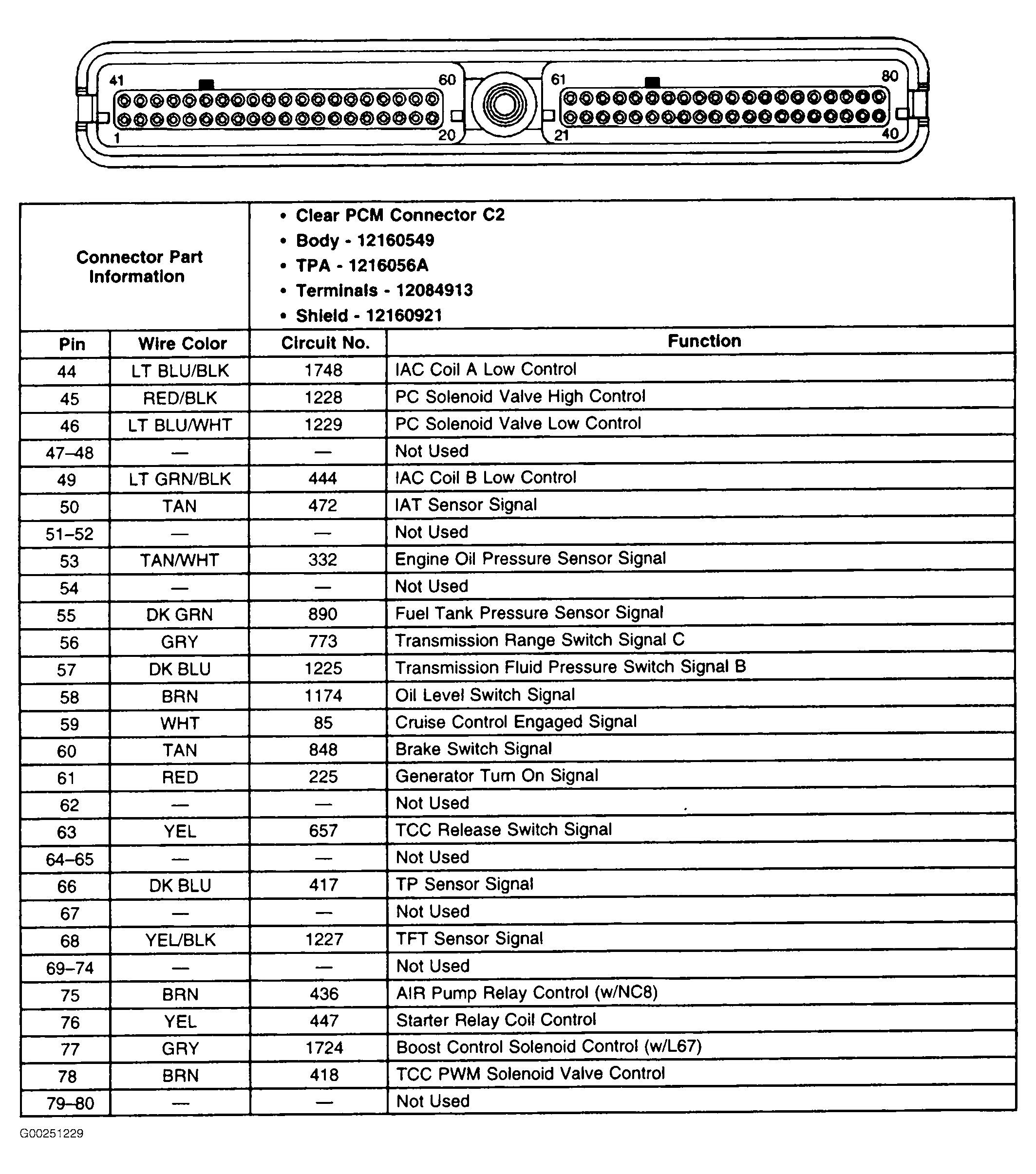

Fig 26: Identifying PCM C2 Connector Terminals (2 Of 2)
G00251229Courtesy of GENERAL MOTORS CORP.

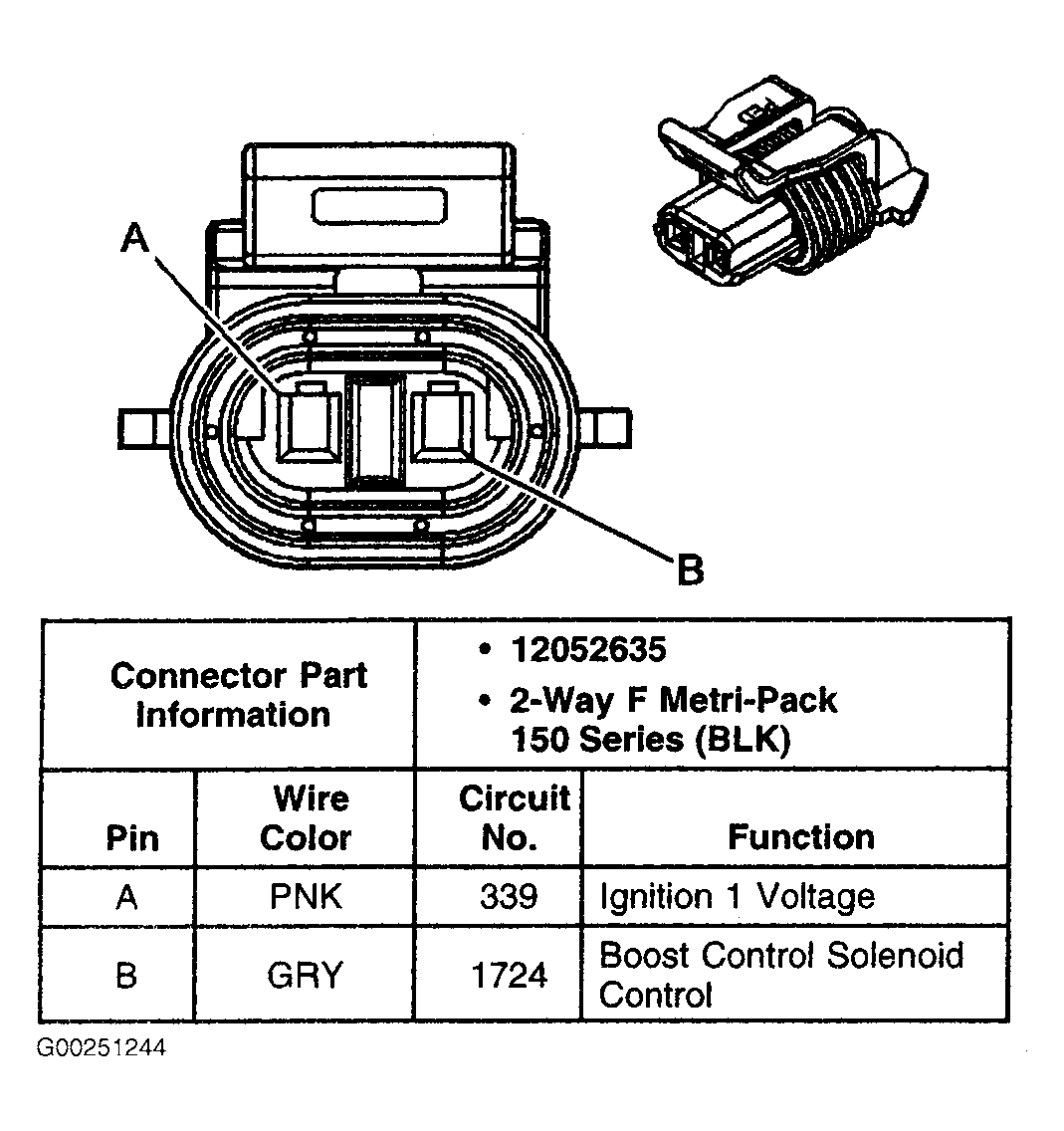

Fig 27: Identifying Supercharger Boost Control Solenoid Connector Terminals
G00251244Courtesy of GENERAL MOTORS CORP.

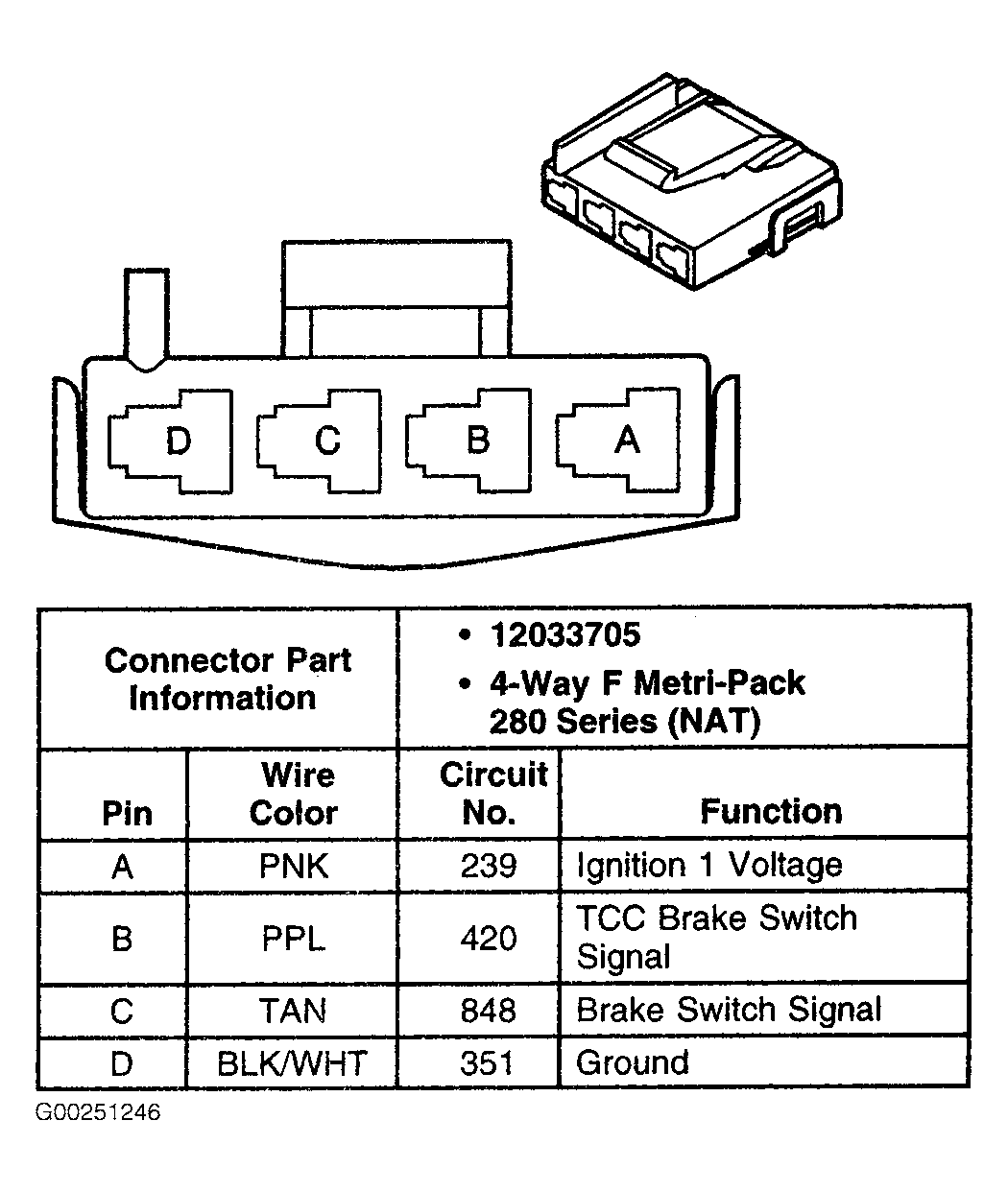

Fig 28: Identifying TCC/Cruise Release Switch Connector Terminals
G00251246Courtesy of GENERAL MOTORS CORP.

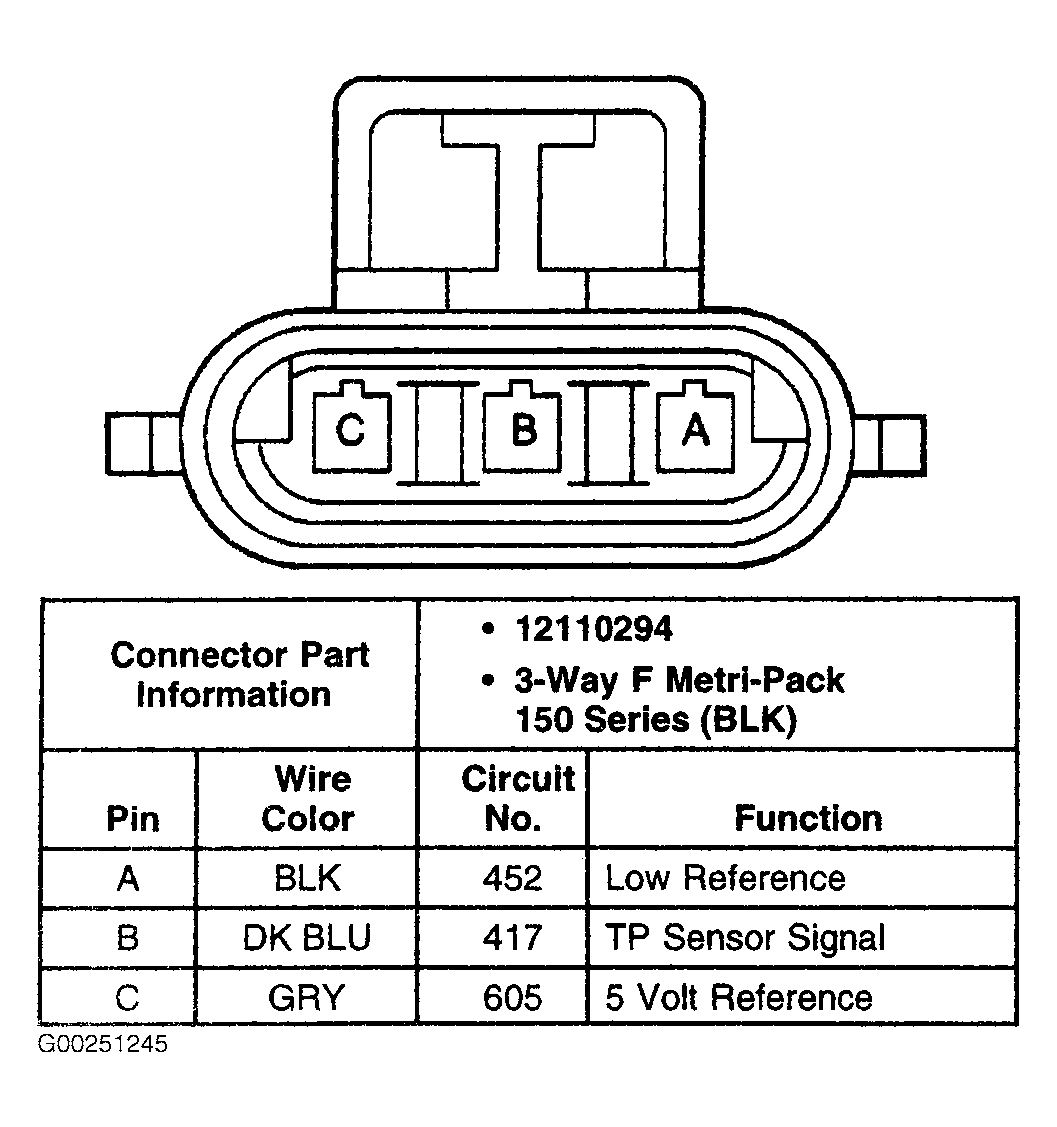

Fig 29: Identifying Throttle Position Sensor Connector Terminals
G00251245Courtesy of GENERAL MOTORS CORP.
Fig 30: Identifying Vehicle Speed Sensor Connector Terminals
G00251247Courtesy of GENERAL MOTORS CORP.
