Diagnostic Procedures

NOTE: If any DTCs are set, other than P0171, diagnose those DTCs before continuing. See DIAGNOSTIC TROUBLE CODE DEFINITIONS .

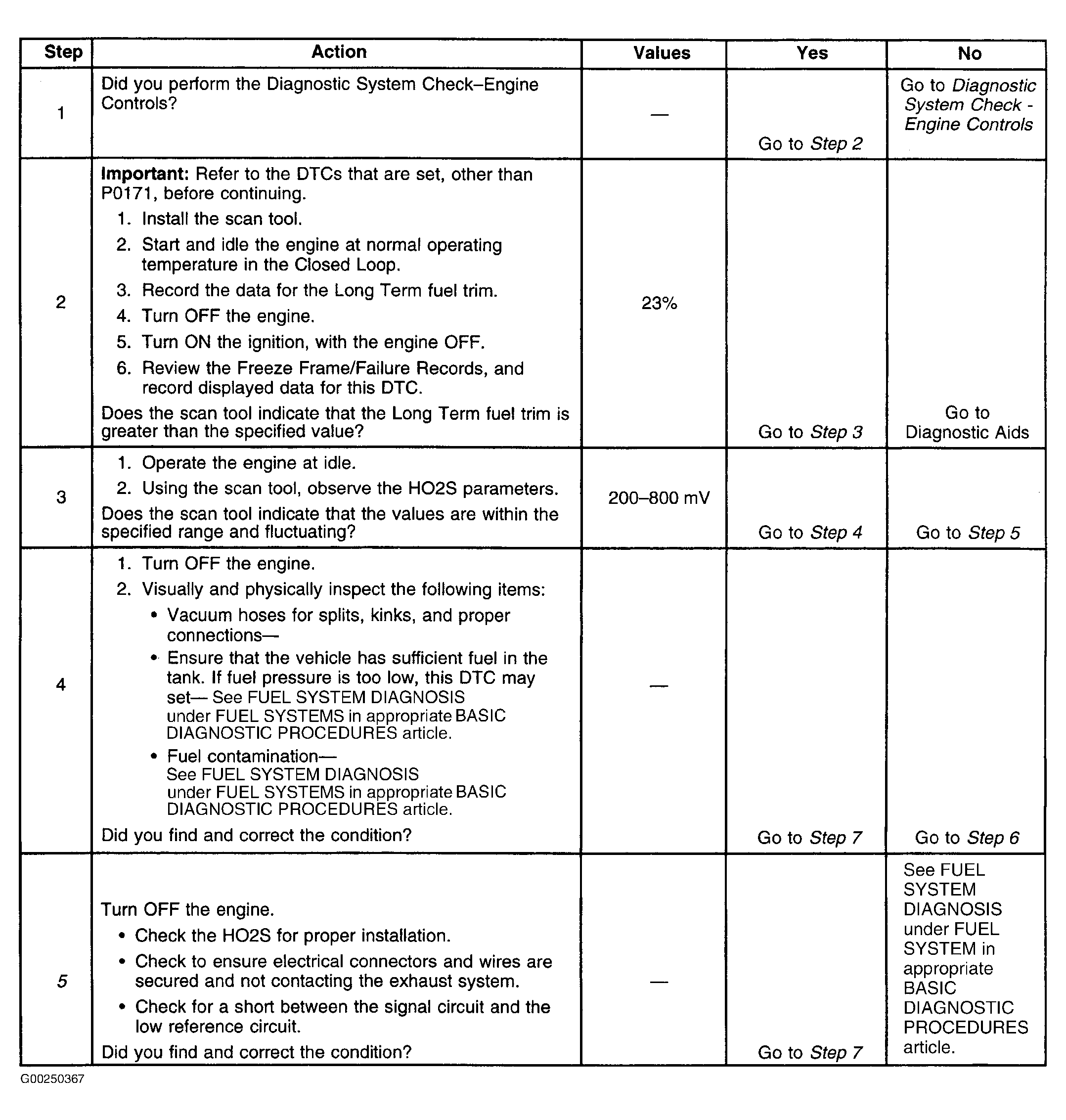

Fig 1: DTC P0171: Fuel Trim System Lean (Steps 1-5)
G00250367Courtesy of GENERAL MOTORS CORP.

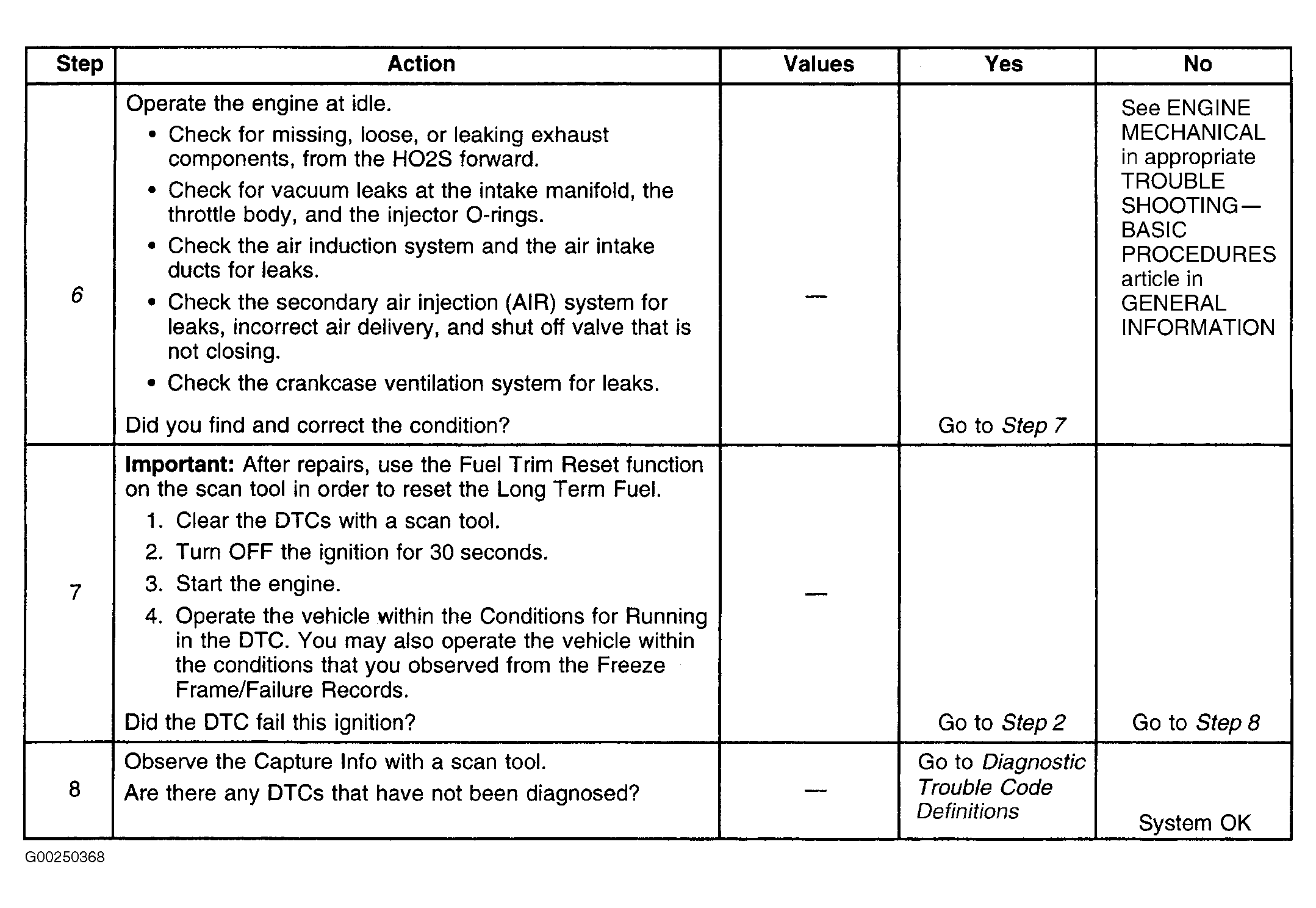

Fig 2: DTC P0171: Fuel Trim System Lean (Steps 6-8)
G00250368Courtesy of GENERAL MOTORS CORP.
