Diagnostic Procedures

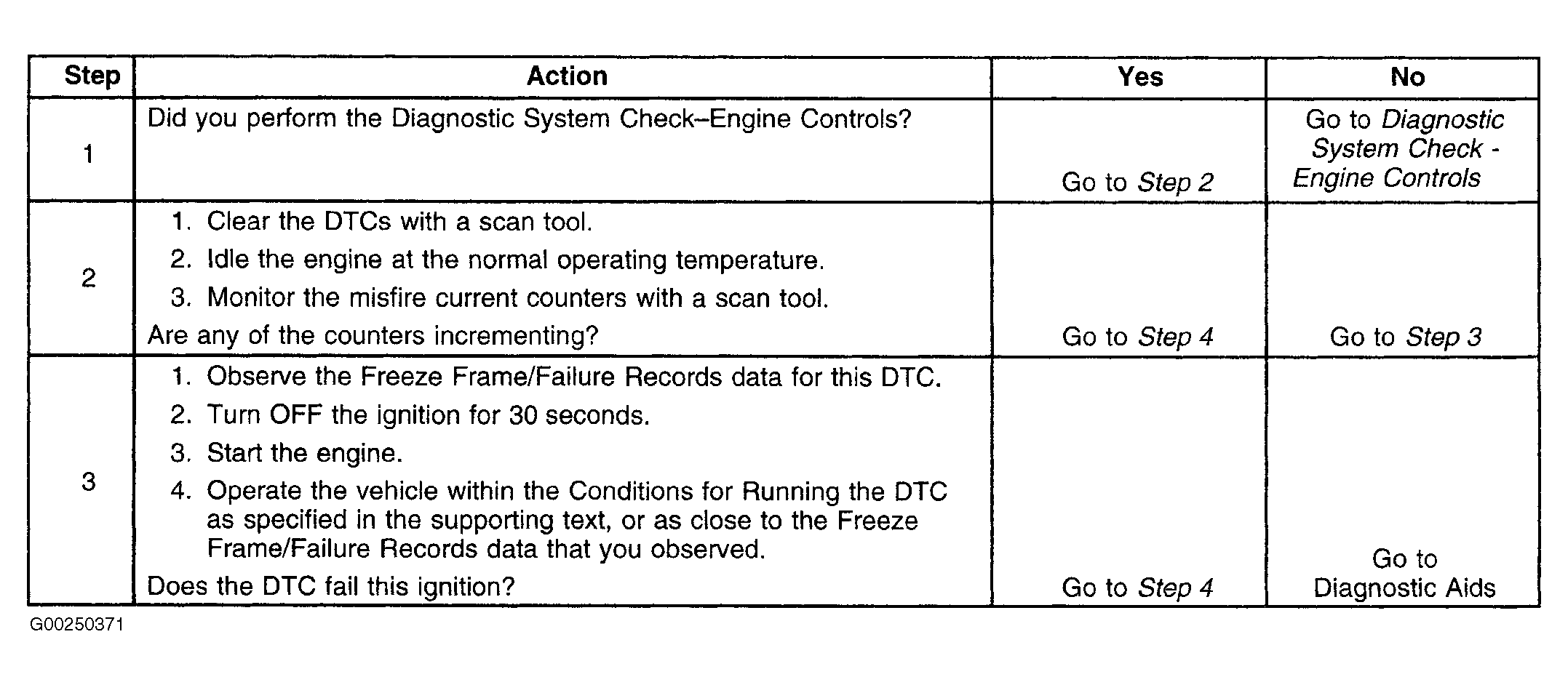

Fig 1: DTC P0201-P0206: Injector Control Circuit (Steps 1-3)
G00250371Courtesy of GENERAL MOTORS CORP.

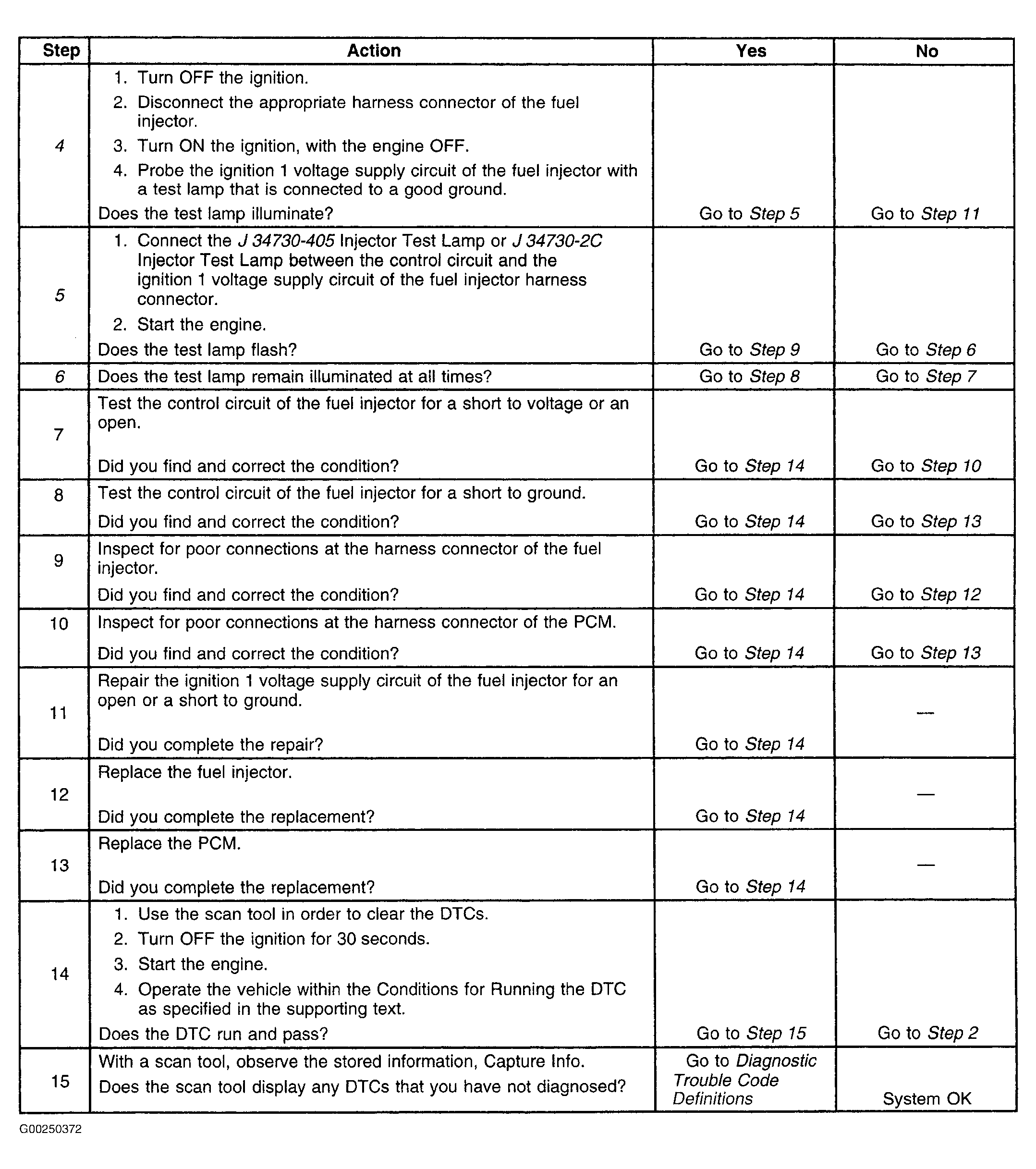

Fig 2: DTC P0201-P0206: Injector Control Circuit (Steps 4-15)
G00250372Courtesy of GENERAL MOTORS CORP.
