Diagnostic Procedures

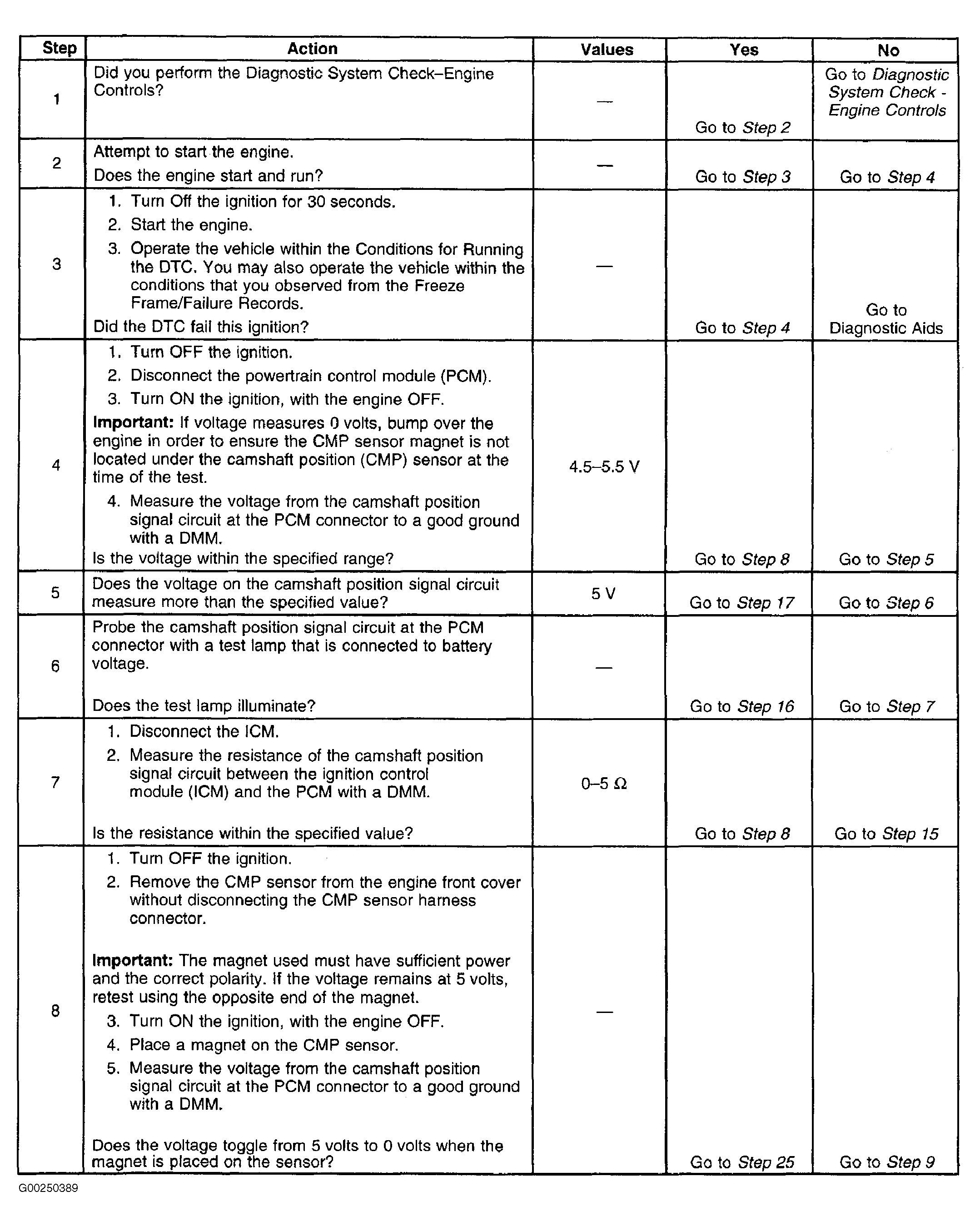

Fig 1: DTC P0341: Camshaft Position Sensor Performance (Steps 1-8)
Courtesy of GENERAL MOTORS CORP.

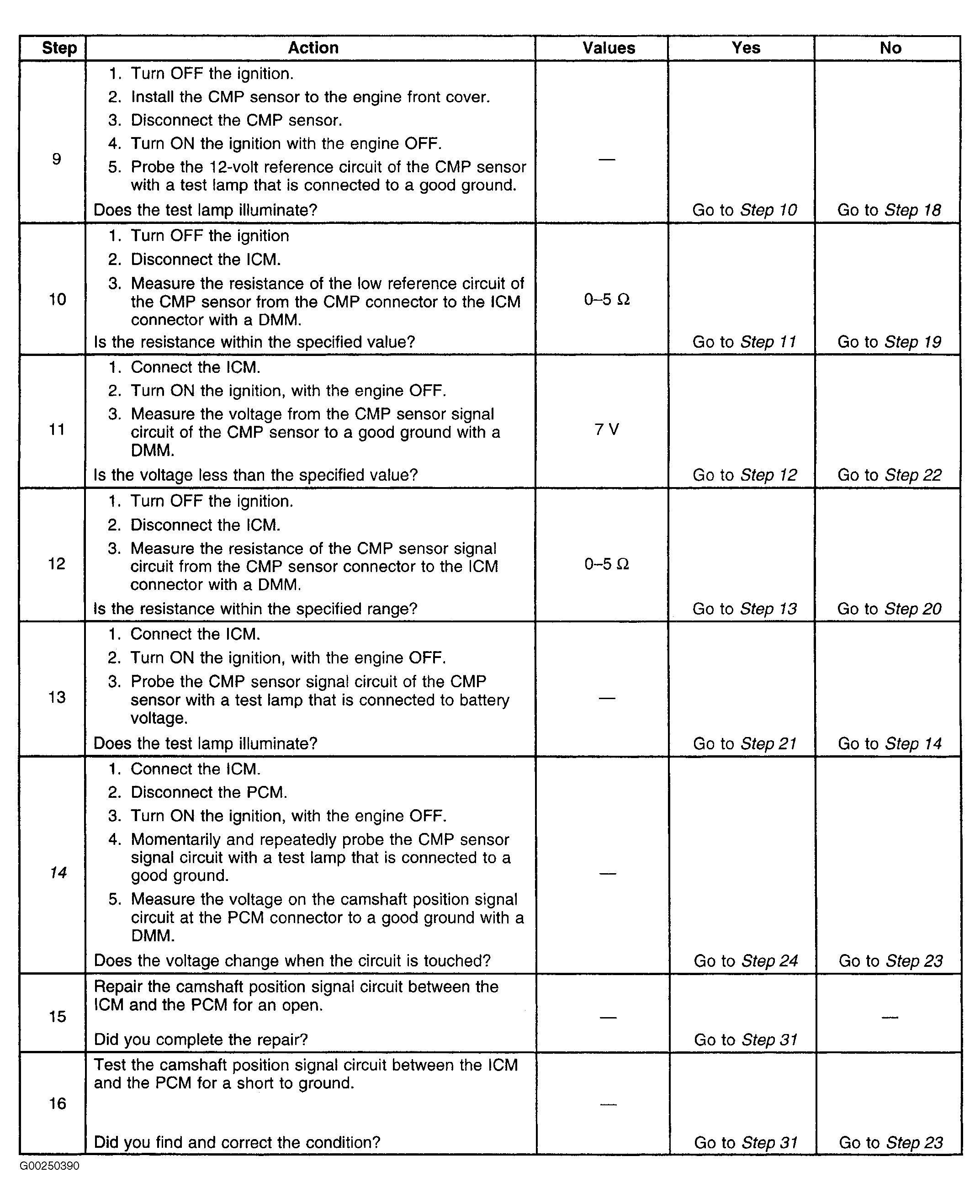

Fig 2: DTC P0341: Camshaft Position Sensor Performance (Steps 9-16)
Courtesy of GENERAL MOTORS CORP.

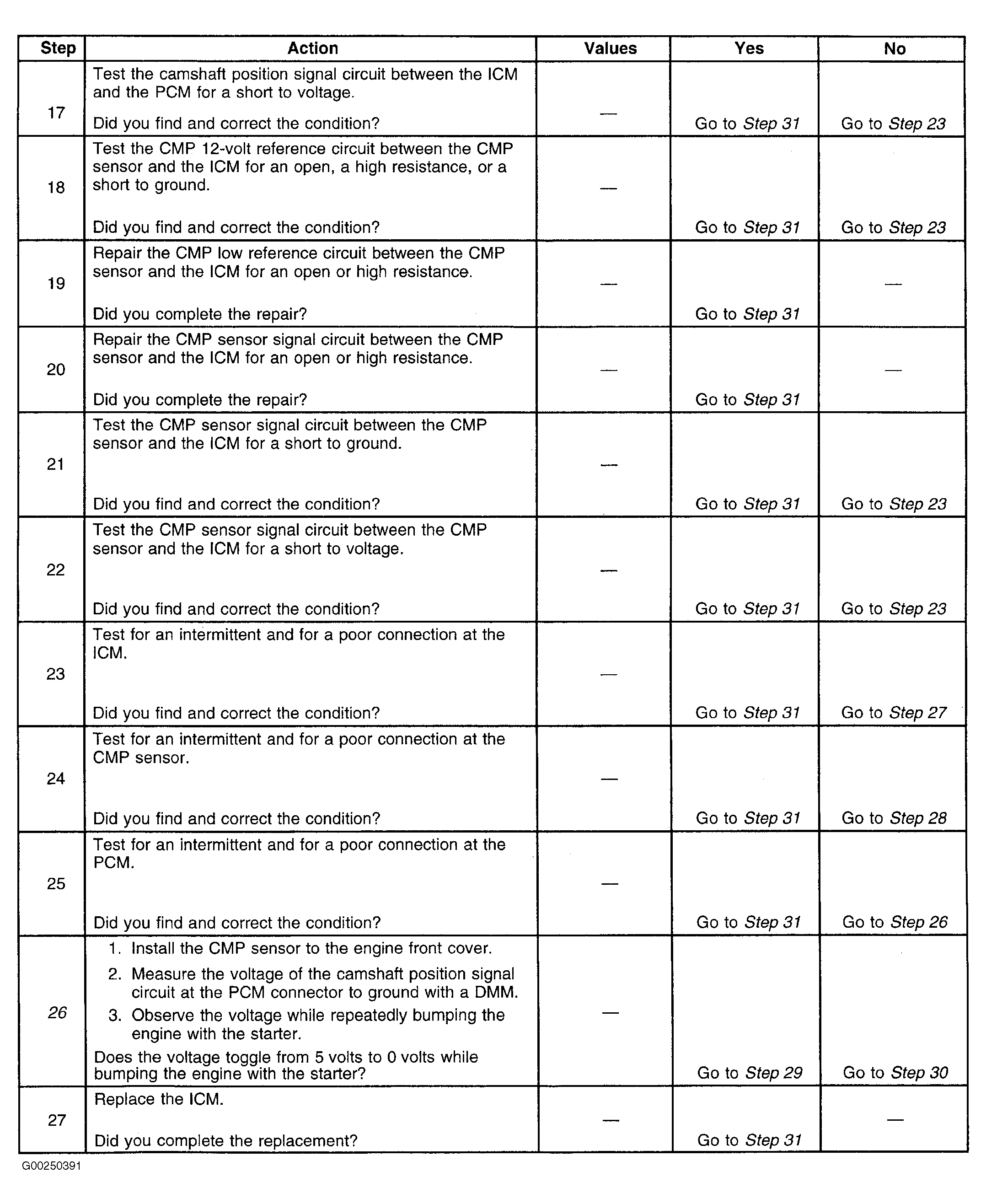

Fig 3: DTC P0341: Camshaft Position Sensor Performance (Steps 17-27)
Courtesy of GENERAL MOTORS CORP.

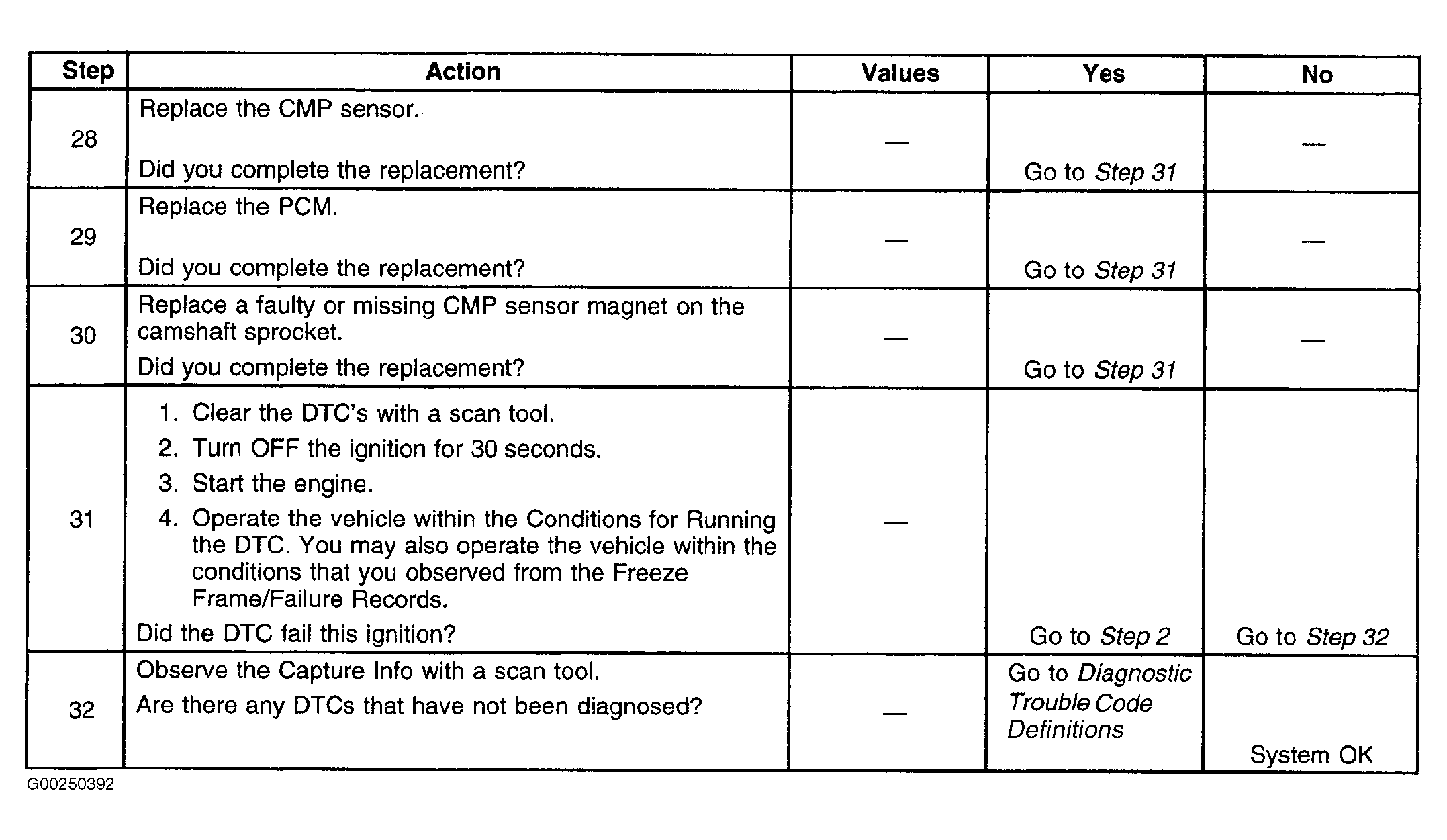

Fig 4: DTC P0341: Camshaft Position Sensor Performance (Steps 28-32)
Courtesy of GENERAL MOTORS CORP.
