Diagnostic Procedures

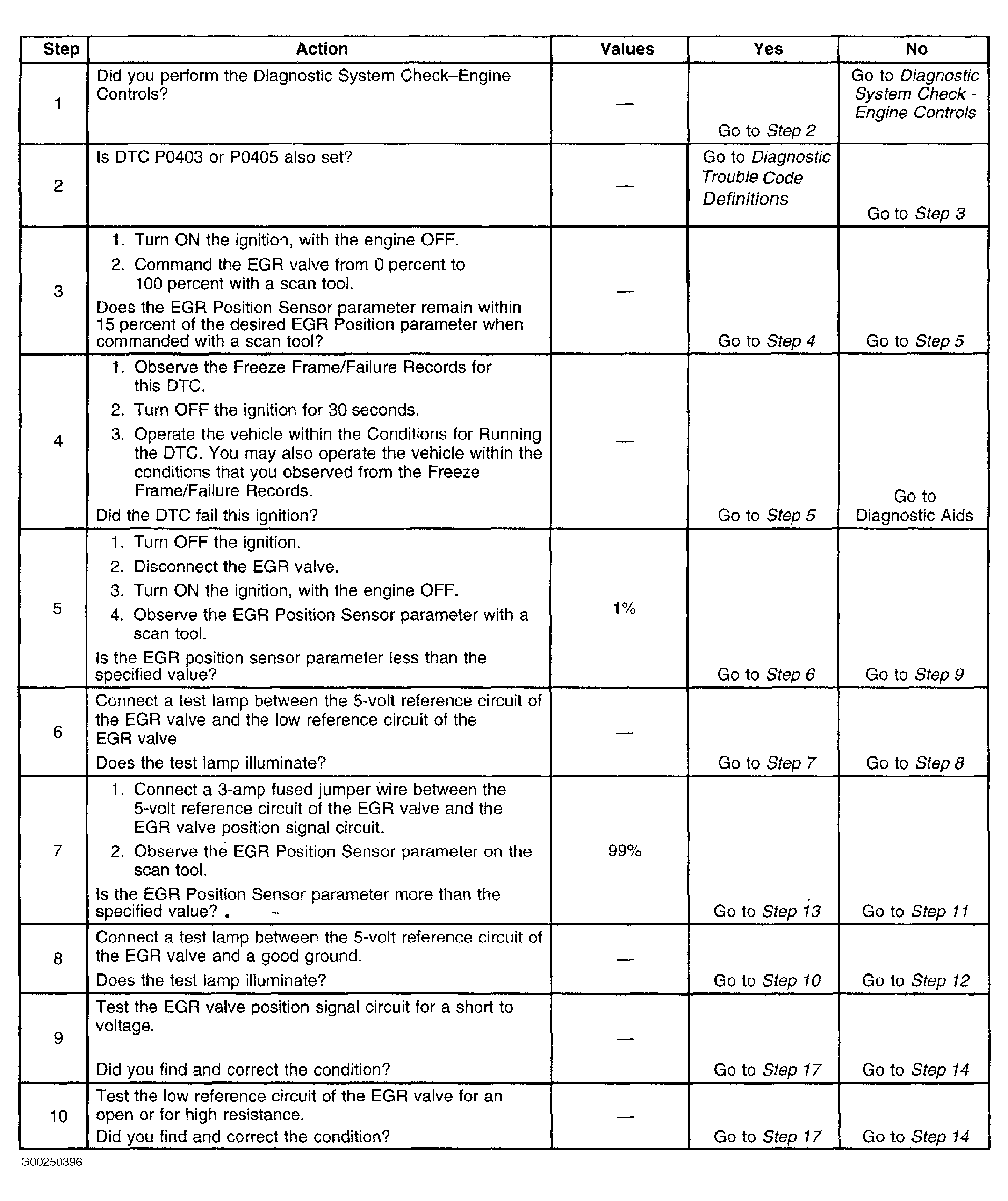

Fig 1: DTC P0404: Exhaust Gas Recirculation Open Position Performance (Steps 1-10)
G00250396Courtesy of GENERAL MOTORS CORP.

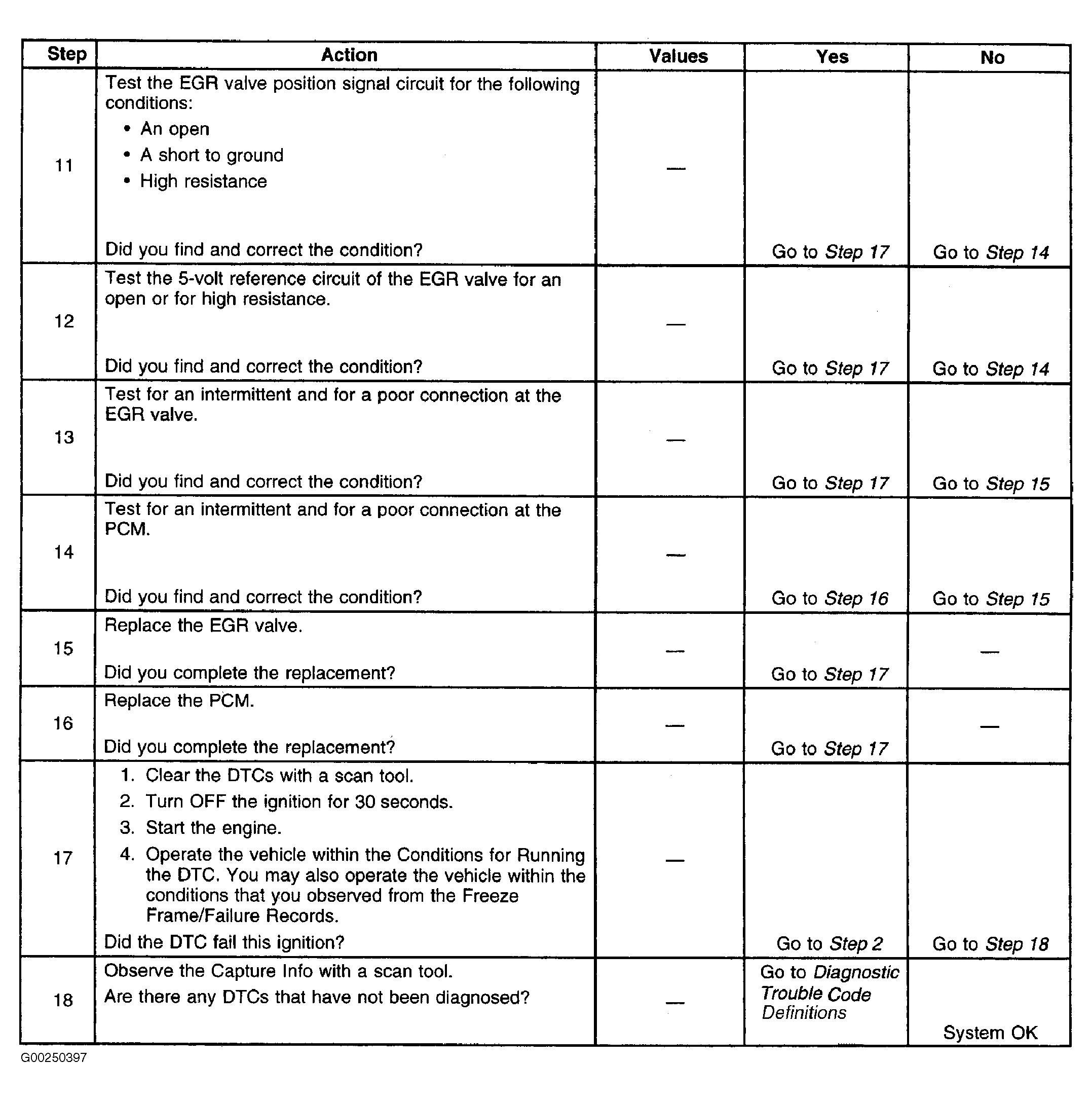

Fig 2: DTC P0404: Exhaust Gas Recirculation Open Position Performance (Steps 11-18)
G00250397Courtesy of GENERAL MOTORS CORP.
