Engine Control System Self-Diagnostics - 3.8L
>>
Diagnostic Tests
>>
DTC P1441: EVAP System Flow During Non-Purge
>>
Diagnostic Procedures
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedures

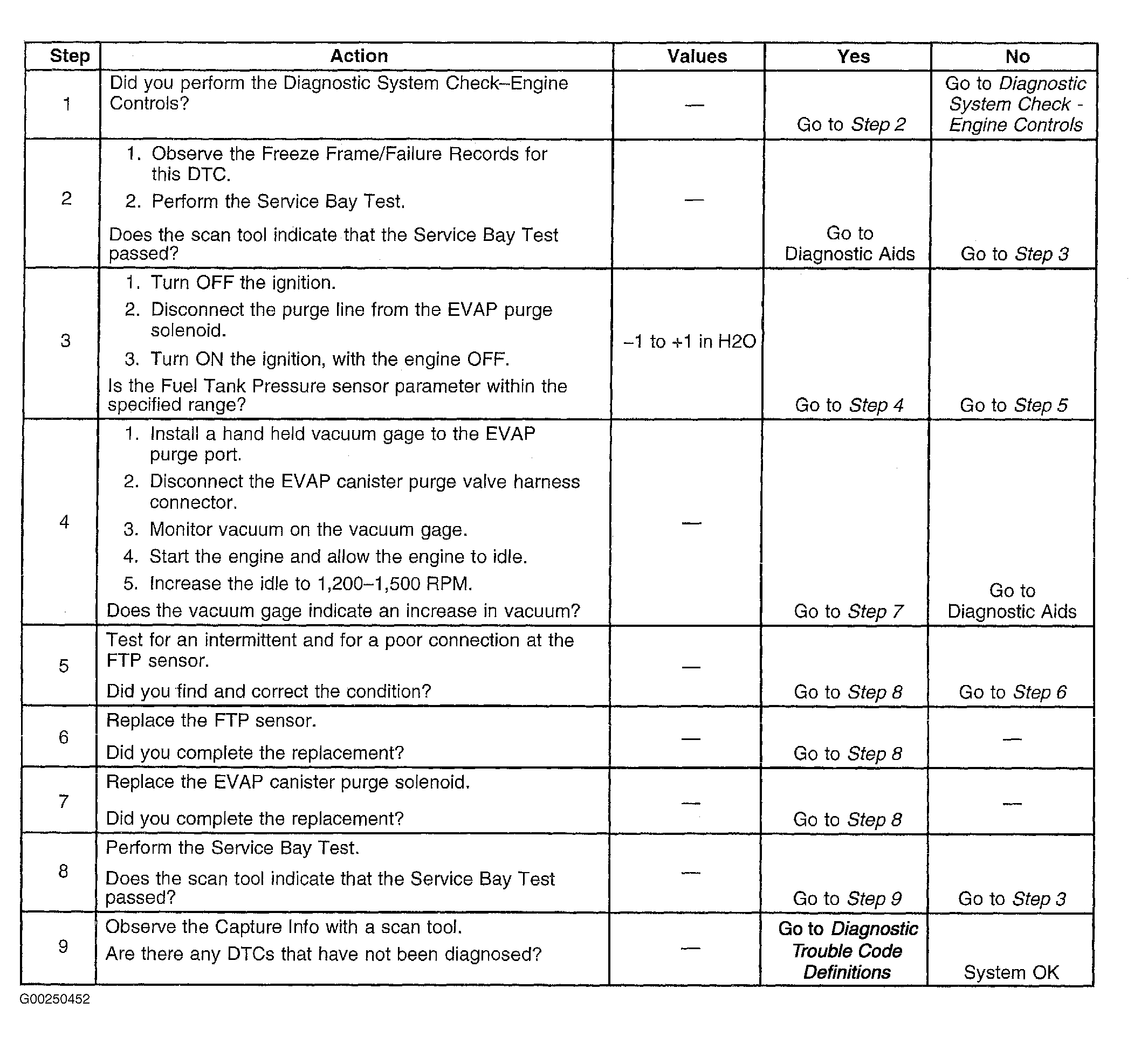

Fig 1: DTC P1441: Evaporative Emissions System Flow During Non-Purge
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
