Connector Identification

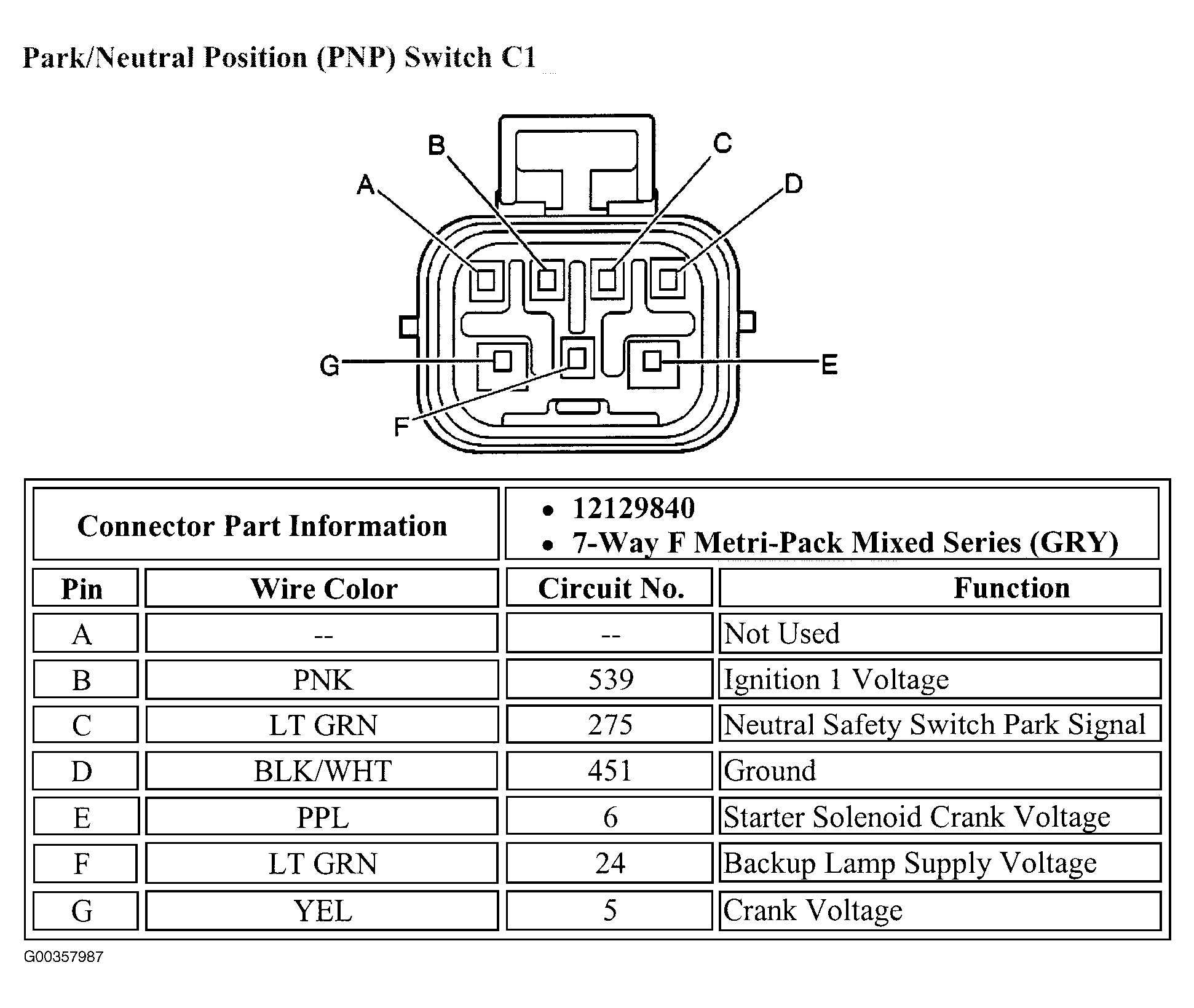

Fig 1: Identifying Park/Neutral Position Switch C1
G00357987Courtesy of GENERAL MOTORS CORP.

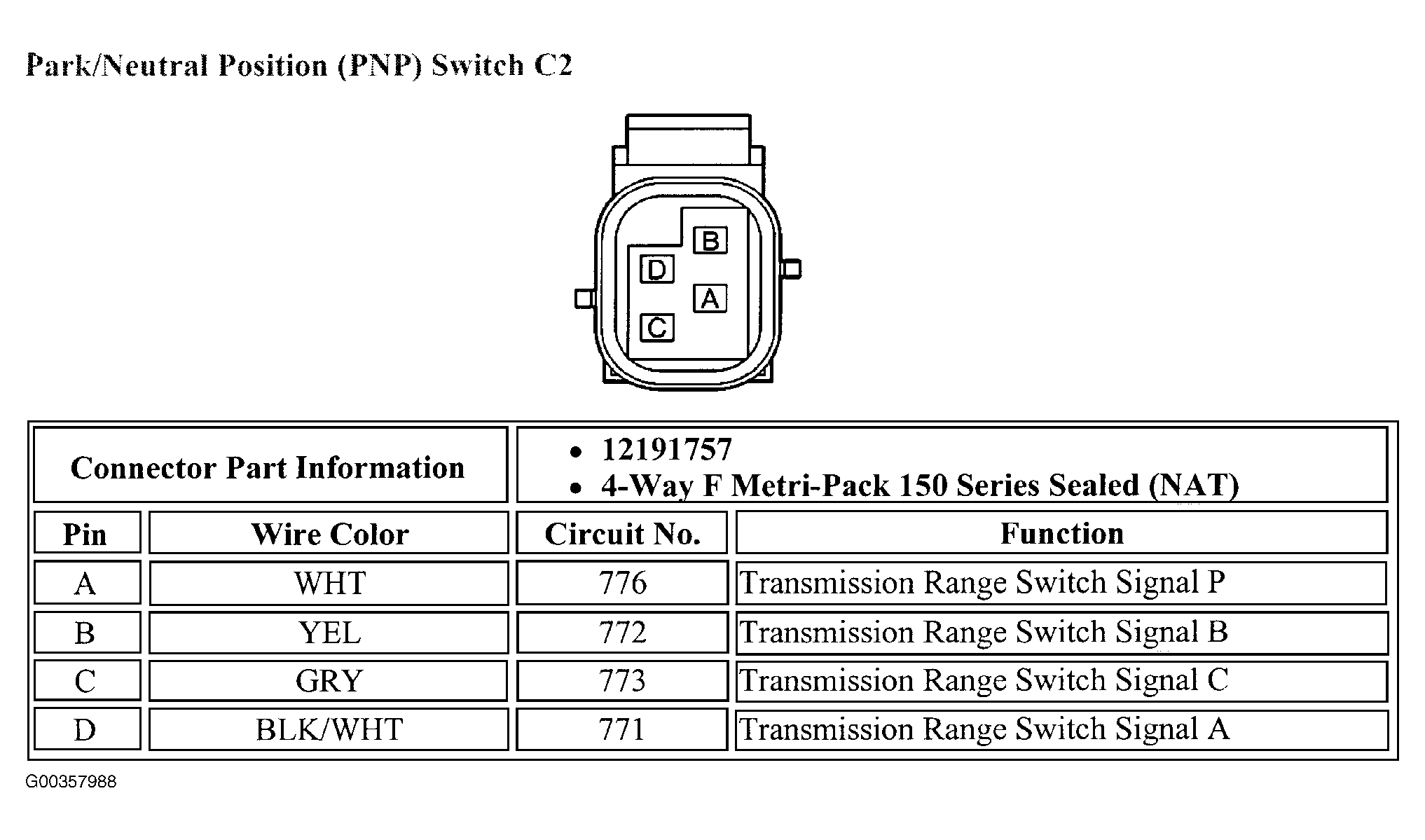

Fig 2: Identifying Park/Neutral Position Switch C2
G00357988Courtesy of GENERAL MOTORS CORP.
