Installation Procedure

  1. Install the tether anchor bracket to the rear shelf.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the tether anchor bolt.

    Tighten

    Tighten the bolt to 28 N.m (21 lb ft).

  3. Install the tether bezel to the rear shelf.

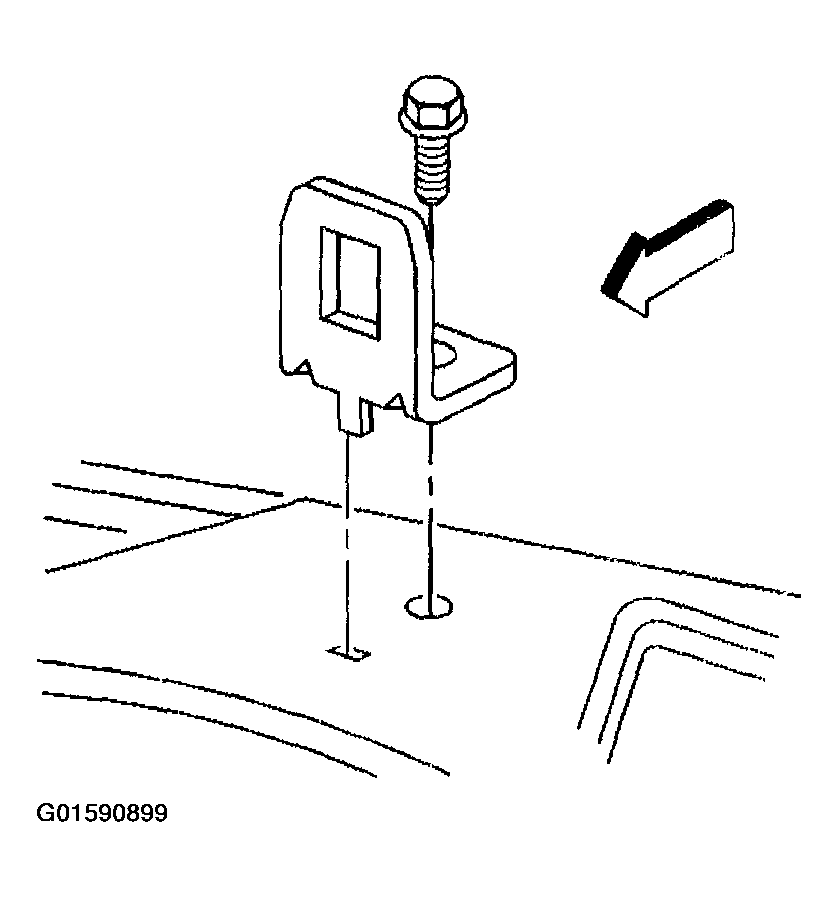

    Fig 1: Installing Tether Anchor Bracket & Bolt To Rear Shelf
    G01590899Courtesy of GENERAL MOTORS CORP.
