Removal Procedure

IMPORTANT: Replace the anchor bracket if the anchor bracket is damaged.
  1. With a flat-bladed tool pry in a upward motion to remove the tether bezel.
  2. Remove the tether anchor bolt.
  3. Remove the tether anchor bracket from the rear shelf.

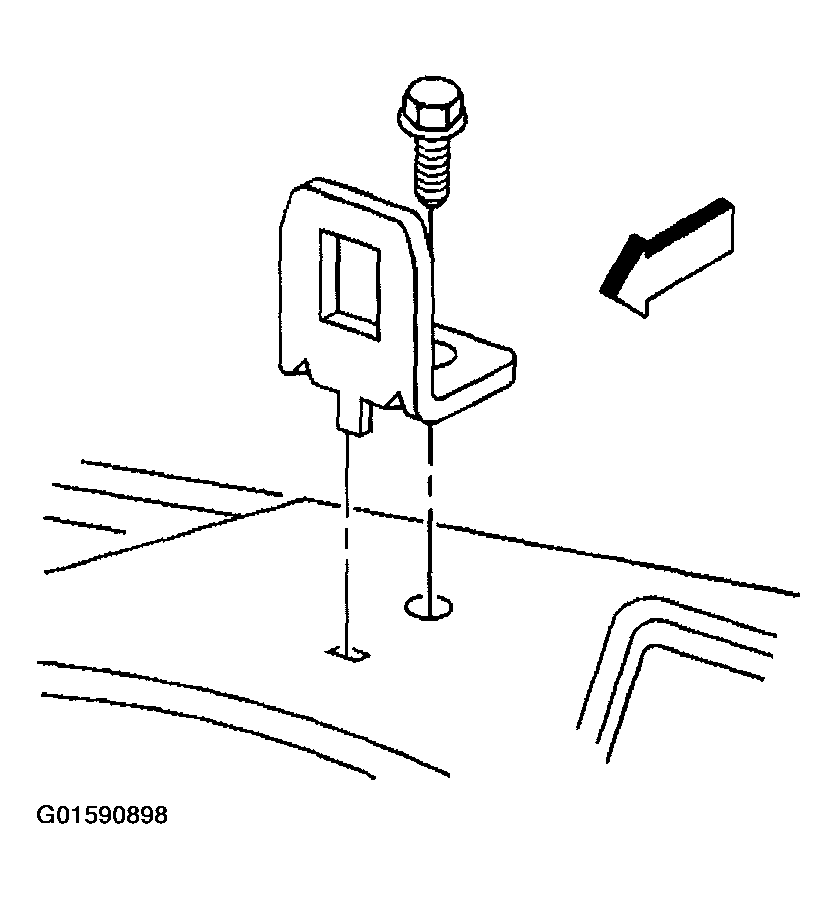

    Fig 1: Removing Tether Anchor Bracket & Bolt From Rear Shelf
    G01590898Courtesy of GENERAL MOTORS CORP.
