Installation Procedure

  1. Install the upper clip of the AT shift lock control onto the upper pivot point, and the lower clip onto the lower pivot point.
  2. Install the center console. Refer to TRIM PLATE REPLACEMENT - CONSOLE in Instrument Panel, Gages and Console.
  3. Install the electrical connector to the AT shift lock control.
  4. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.

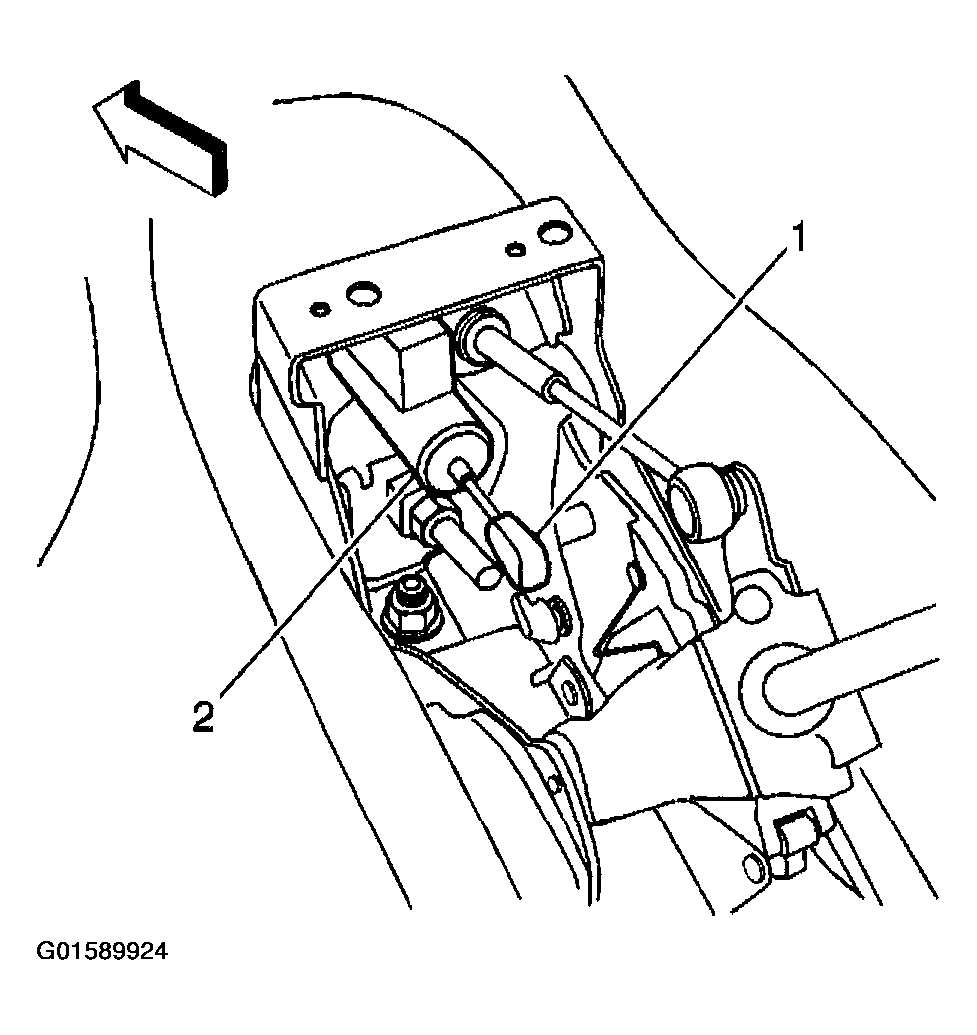

    Fig 1: Installing AT Shift Lock Control Onto Pivot Points
    G01589924Courtesy of GENERAL MOTORS CORP.
