Component Locations

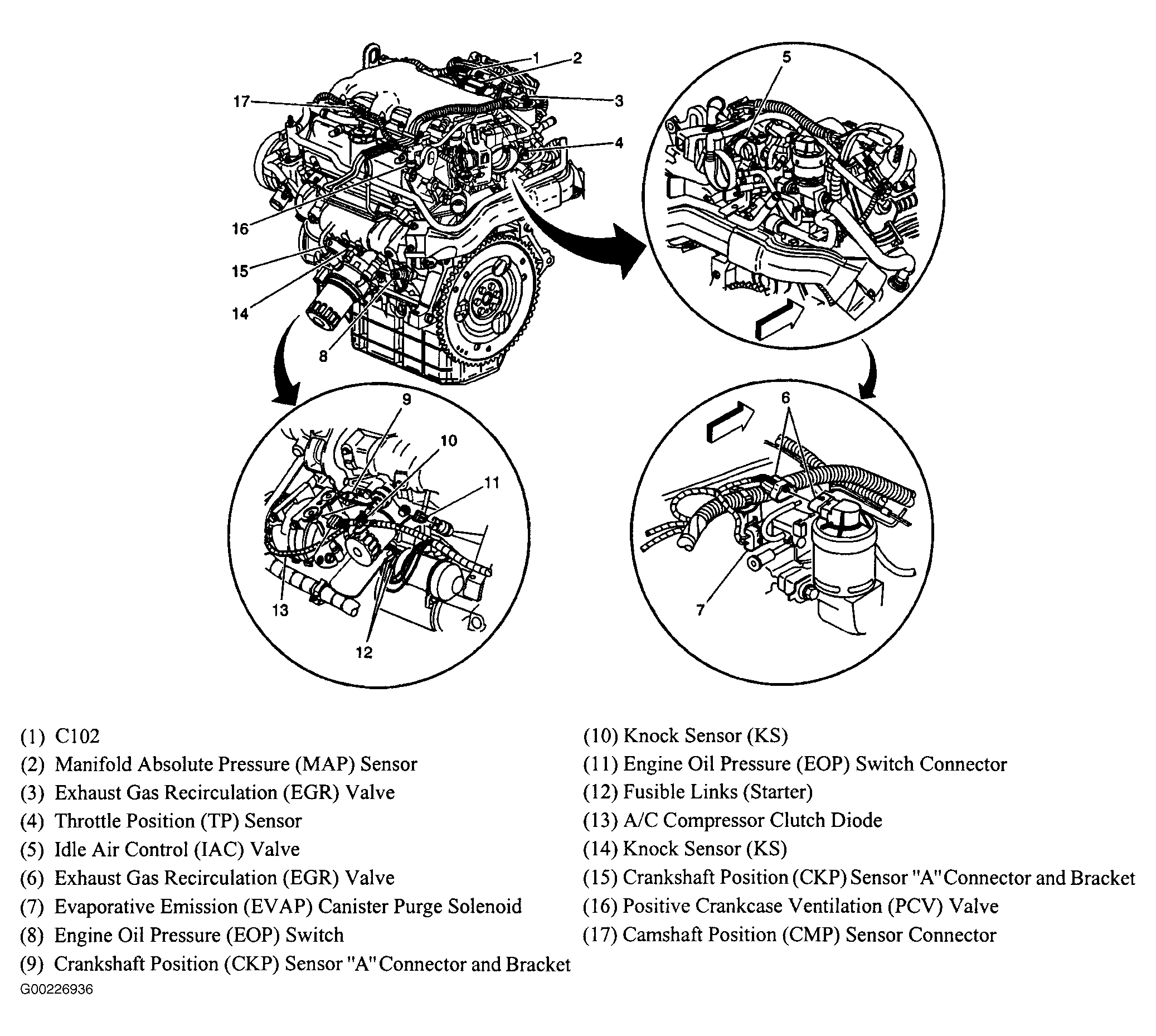

Fig 1: Locating Engine Control Components (Left Side Rear)

G00226936

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating Engine Control Components (Right Side Rear)

G00117360

Courtesy of GENERAL MOTORS CORP.

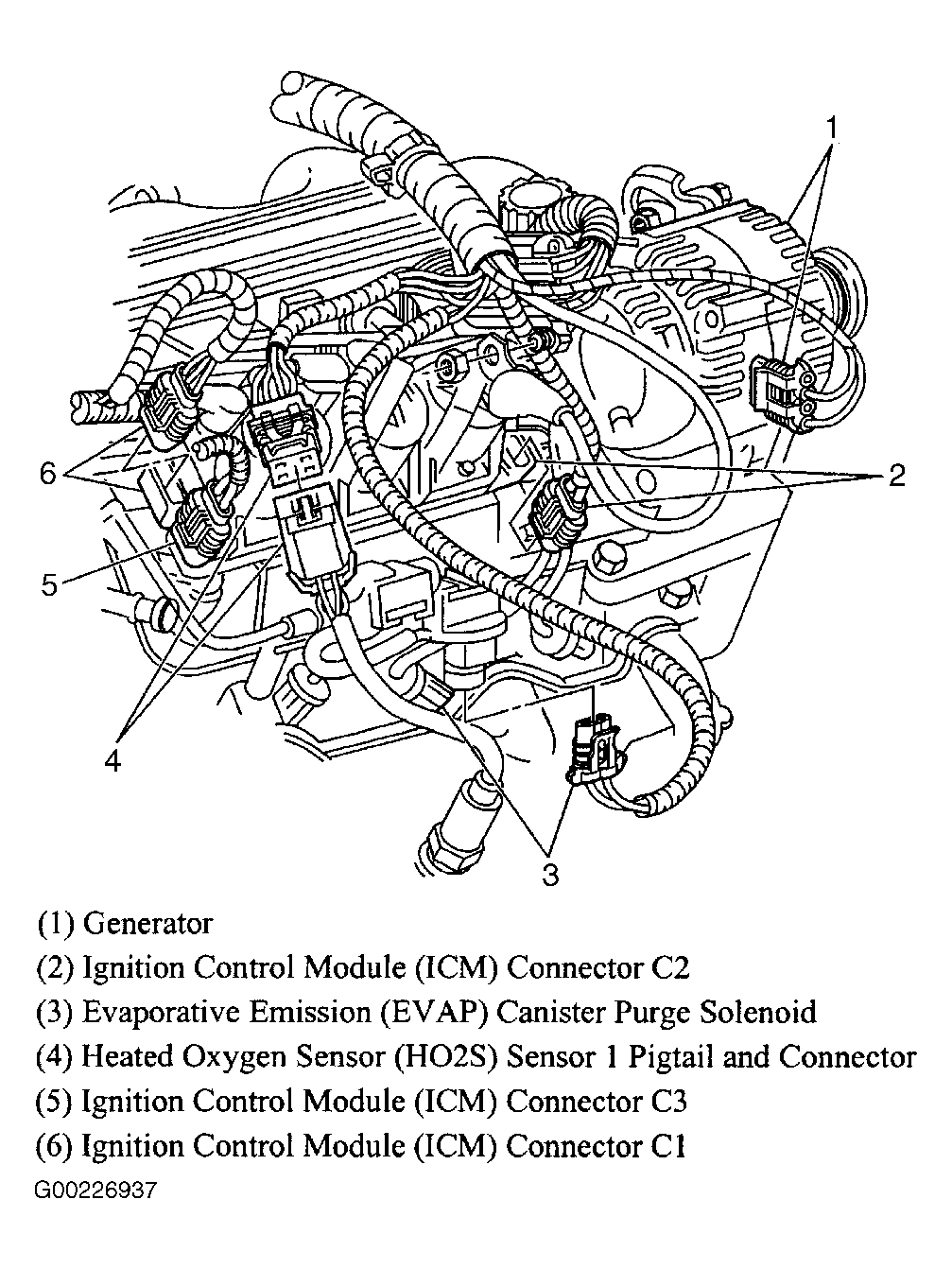

Fig 3: Locating ICM Connectors, EVAP Canister Purge Valve & HO2S 1 Connector

G00226937

Courtesy of GENERAL MOTORS CORP.

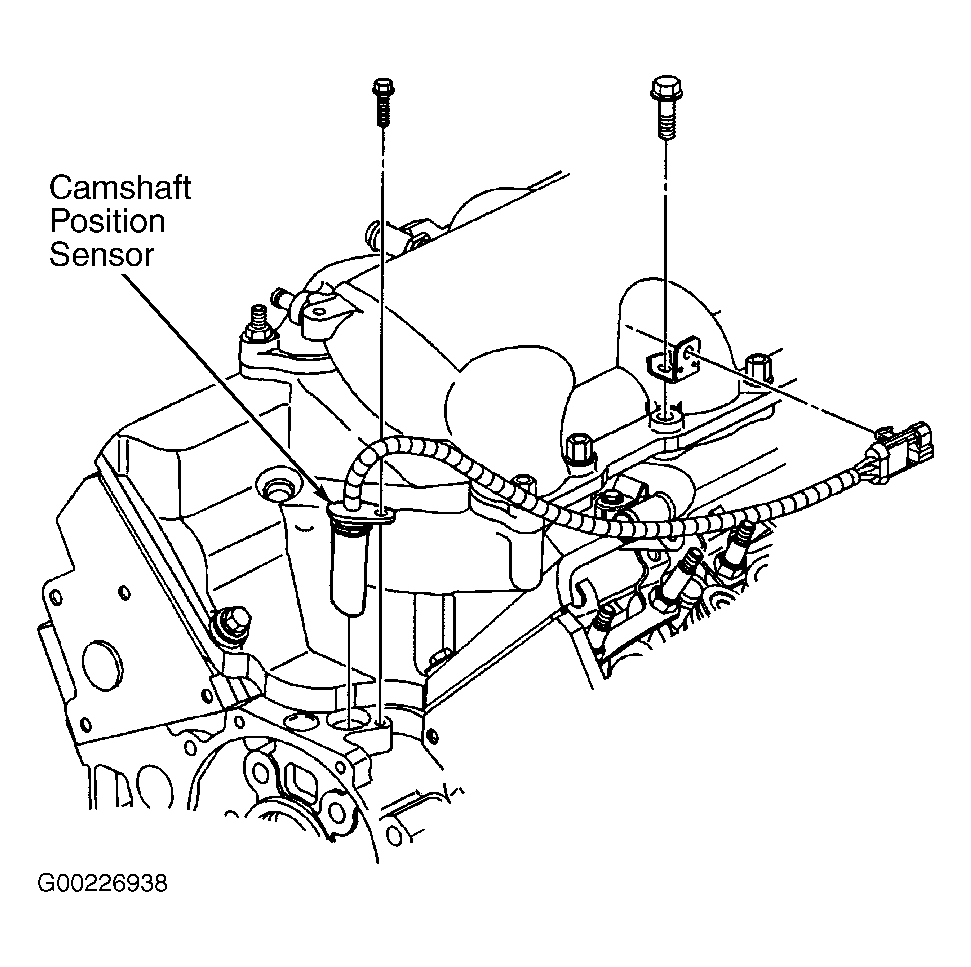

Fig 4: Locating Camshaft Position Sensor

G00226938

Courtesy of GENERAL MOTORS CORP.

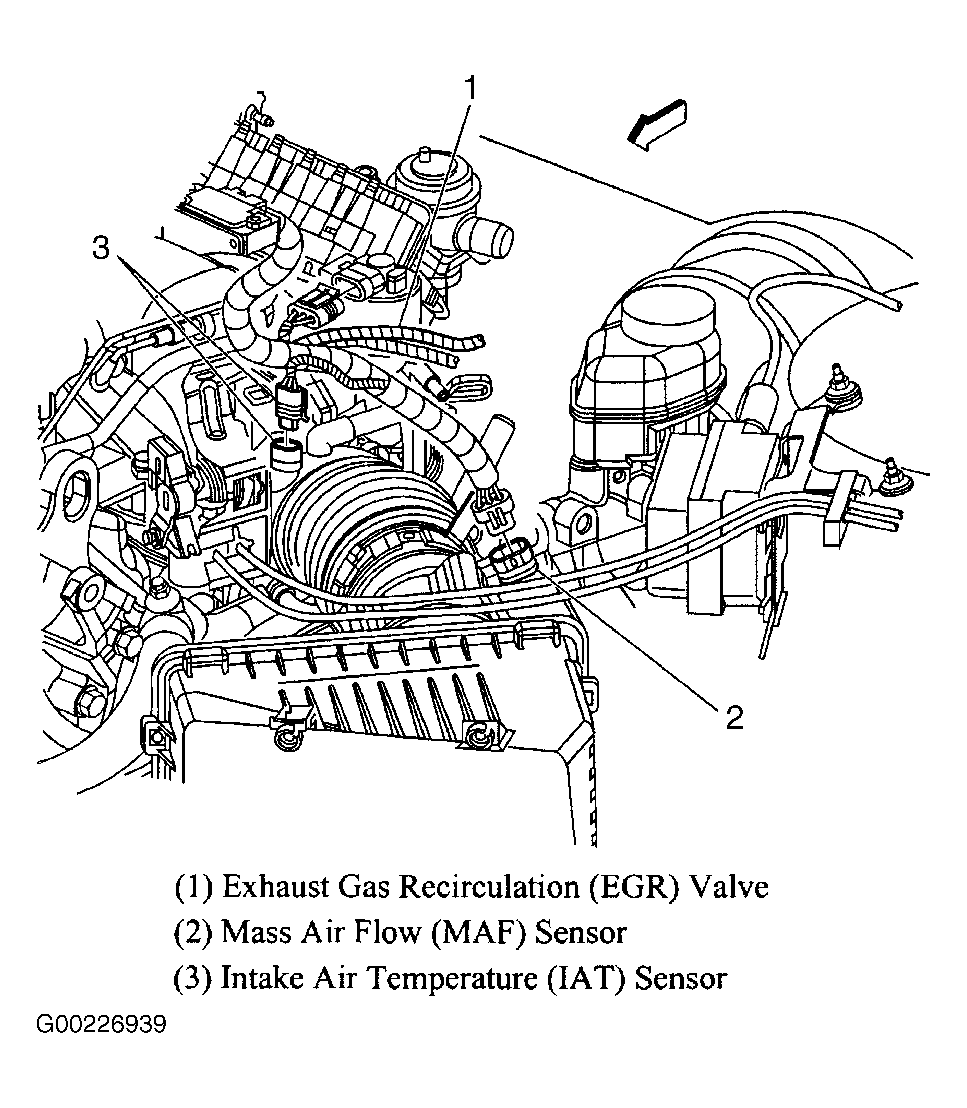

Fig 5: Locating EGR Valve, MAF Sensor & IAT Sensor

G00226939

Courtesy of GENERAL MOTORS CORP.

Fig 6: Locating EGR Valve, EVAP Canister Purge Solenoid & Idle Air Control Valve

G00117361

Courtesy of GENERAL MOTORS CORP.

Fig 7: Locating ECT Sensor

G00027612

Courtesy of GENERAL MOTORS CORP.

Fig 8: Locating CKP Sensor "A", KS Sensor, EOP Sensor, A/C Compressor Clutch & Fusible Links

G00117362

Courtesy of GENERAL MOTORS CORP.

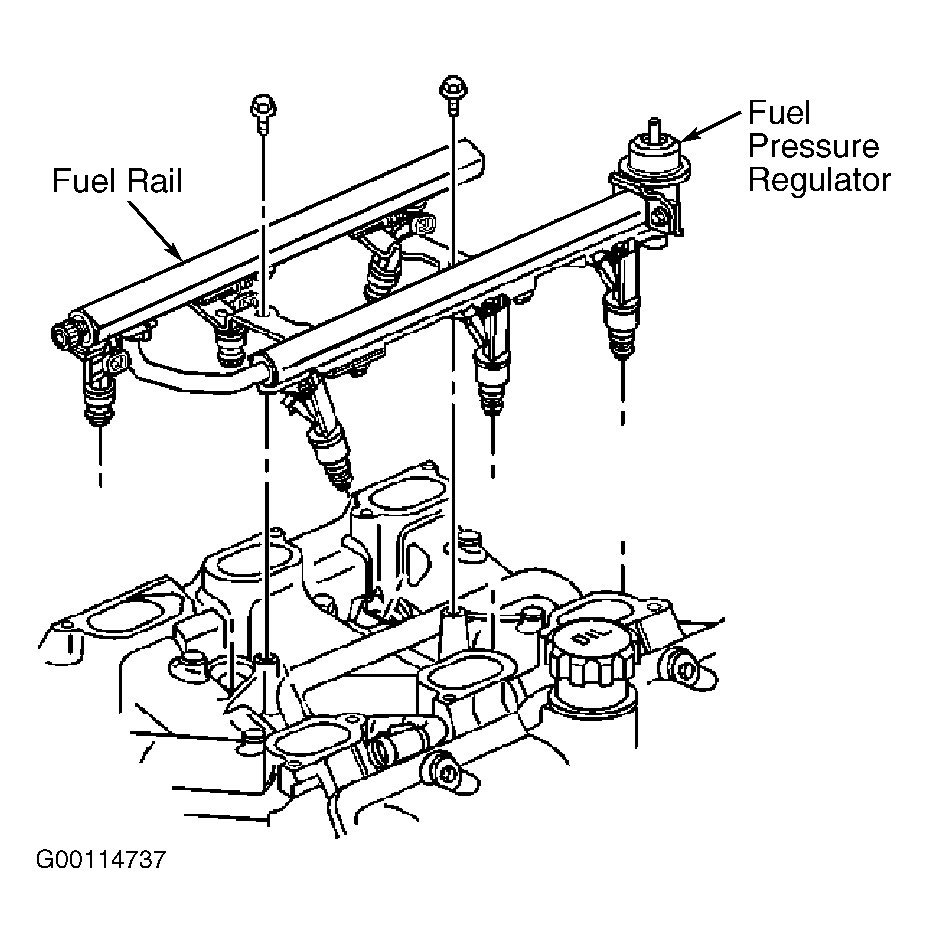

Fig 9: Identifying Fuel Rail Assembly, Fuel Pressure Regulator & Injectors

G00114737

Courtesy of GENERAL MOTORS CORP.

Fig 10: Locating PCM (Alero & Grand Am)

G00121080

Courtesy of GENERAL MOTORS CORP.

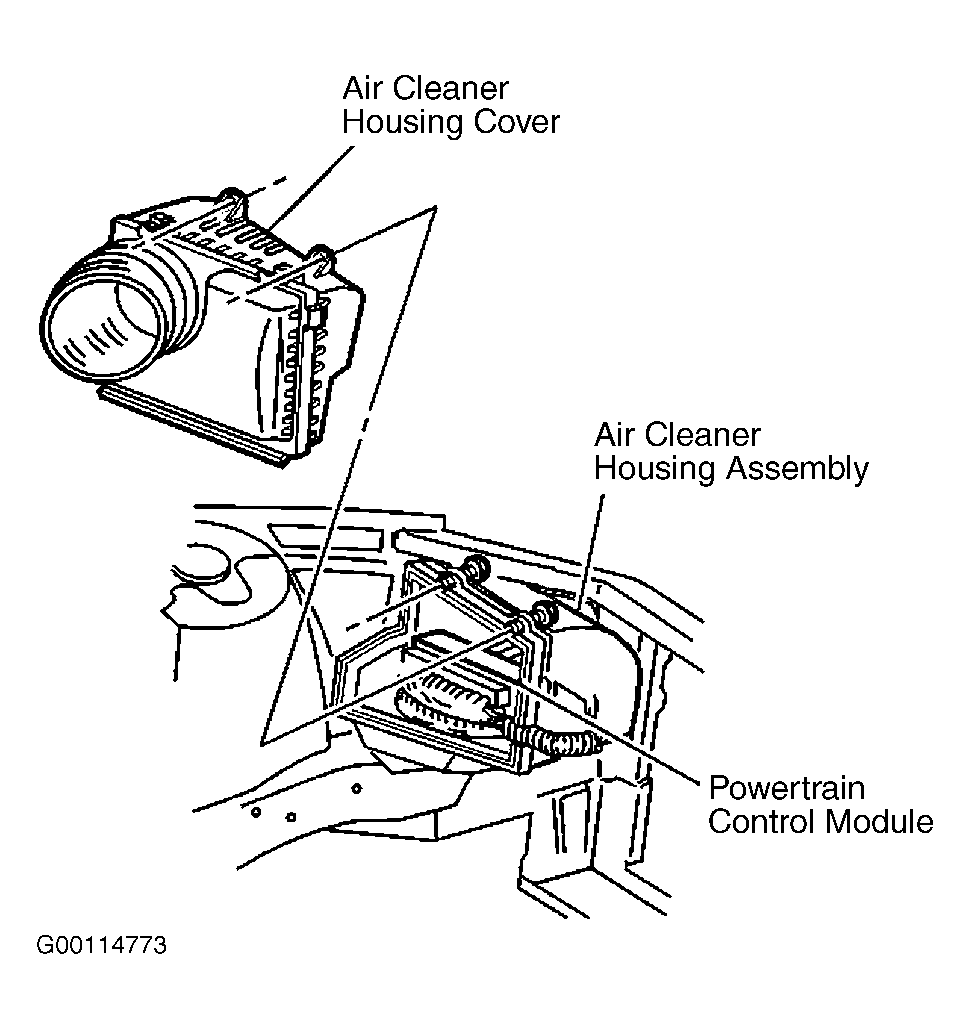

Fig 11: Locating PCM (Impala & Monte Carlo)

G00114773

Courtesy of GENERAL MOTORS CORP.

Fig 12: Locating & Identifying Fuel Pump & Sender Assembly

G00132264

Courtesy of GENERAL MOTORS CORP.

Fig 13: Locating CKP Sensor "A" (24X)

G00028468

Courtesy of GENERAL MOTORS CORP.

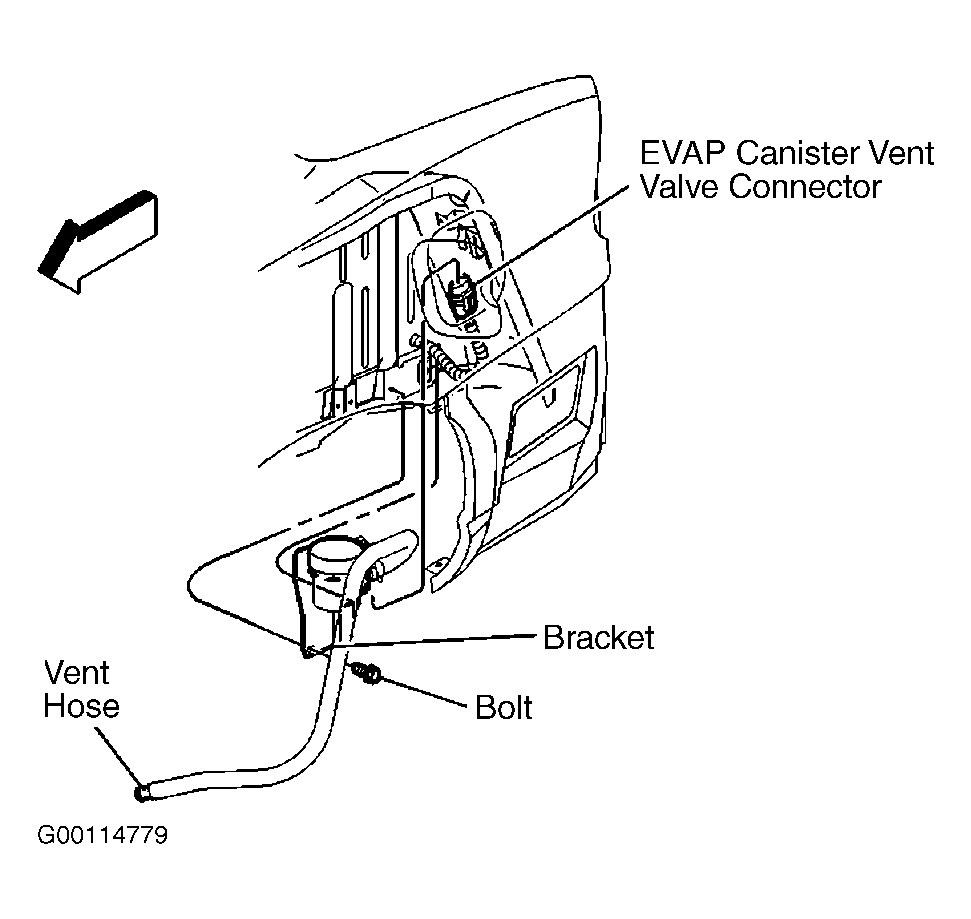

Fig 14: Locating EVAP Canister Vent Valve (Impala & Monte Carlo)

G00114779

Courtesy of GENERAL MOTORS CORP.

Fig 15: Locating EVAP Canister & EVAP Canister Vent Valve (Alero & Grand Am)

G00121074

Courtesy of GENERAL MOTORS CORP.

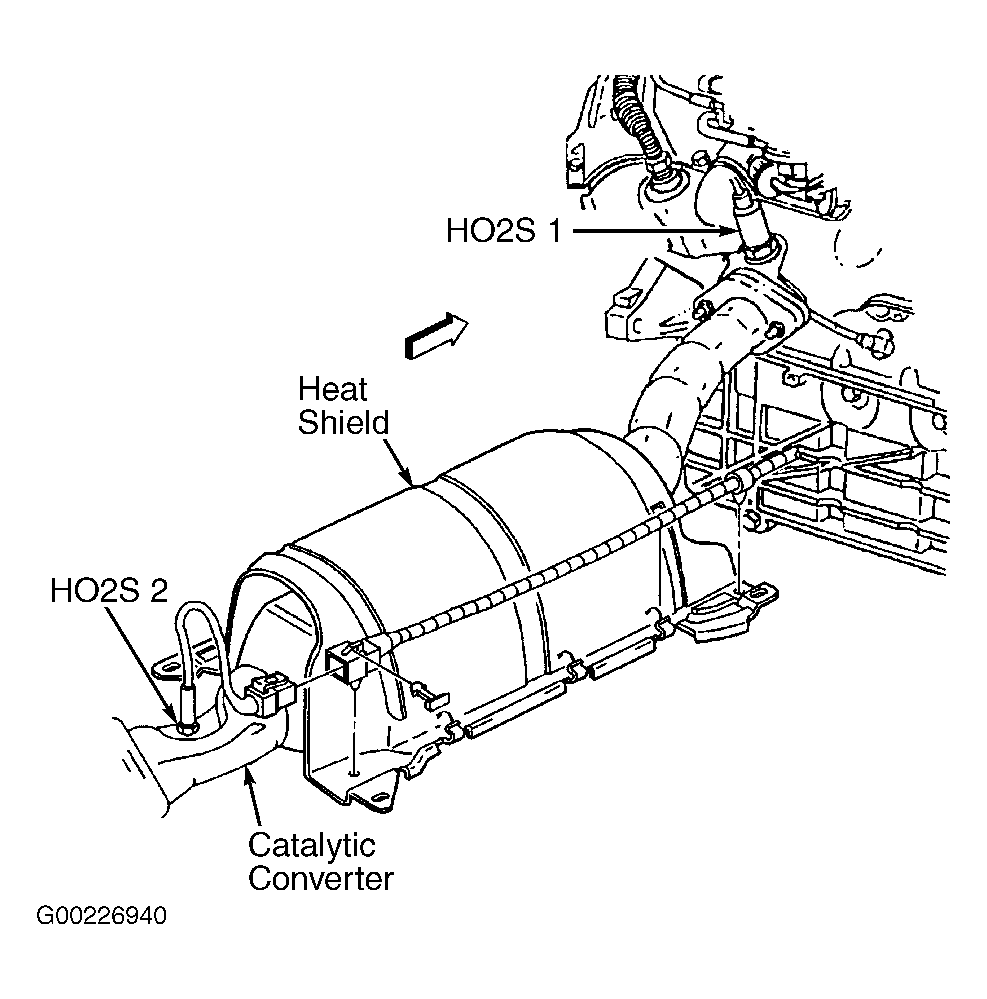

Fig 16: Locating HO2S 1 & 2

G00226940

Courtesy of GENERAL MOTORS CORP.

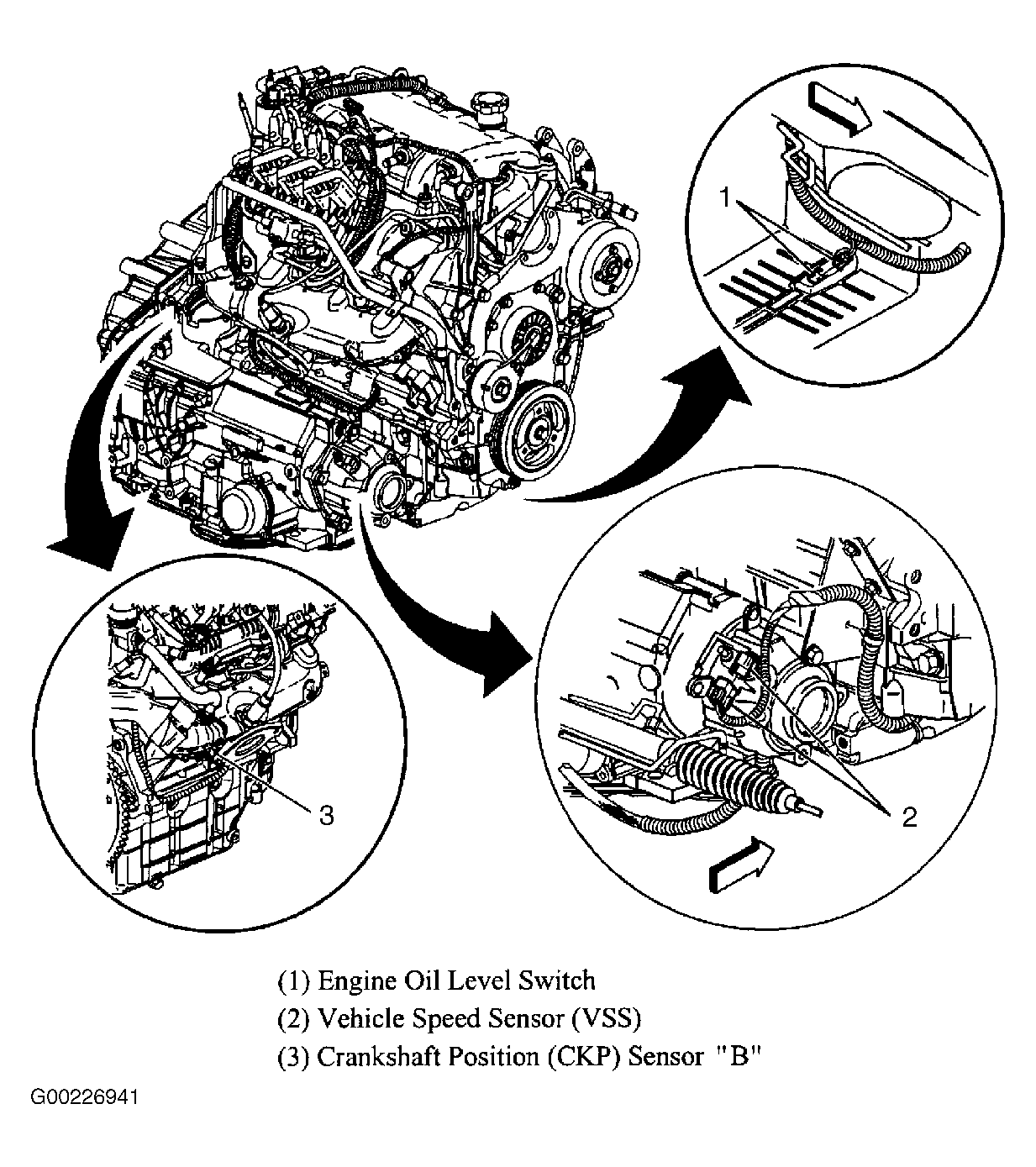

Fig 17: Locating Engine Oil Level Switch, Vehicle Speed Sensor & CKP Sensor "B" (Impala & Monte Carlo)

G00226941

Courtesy of GENERAL MOTORS CORP.

Fig 18: Locating EVAP Hose Components & Routing

G00121075

Courtesy of GENERAL MOTORS CORP.

Fig 19: Locating VSS Sensor (Alero & Grand Am A/T)

G00117363

Courtesy of GENERAL MOTORS CORP.

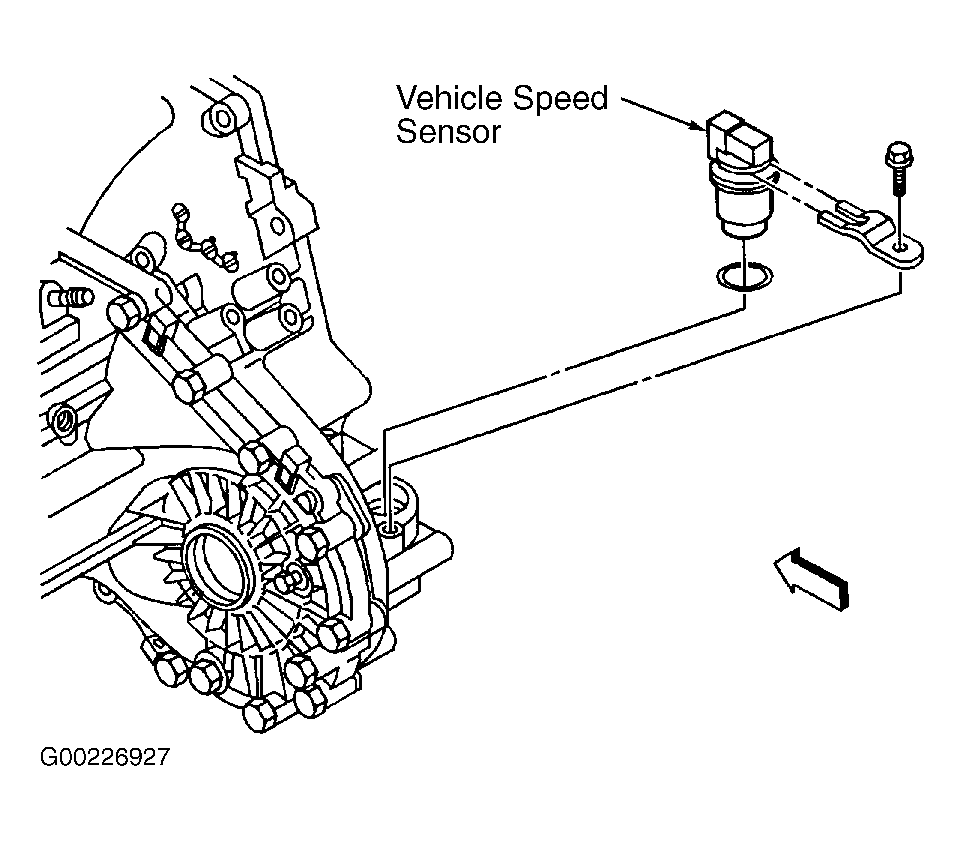

Fig 20: Locating Manual Transmission Vehicle Speed Sensor

G00226927

Courtesy of GENERAL MOTORS CORP.
