Connector Identification

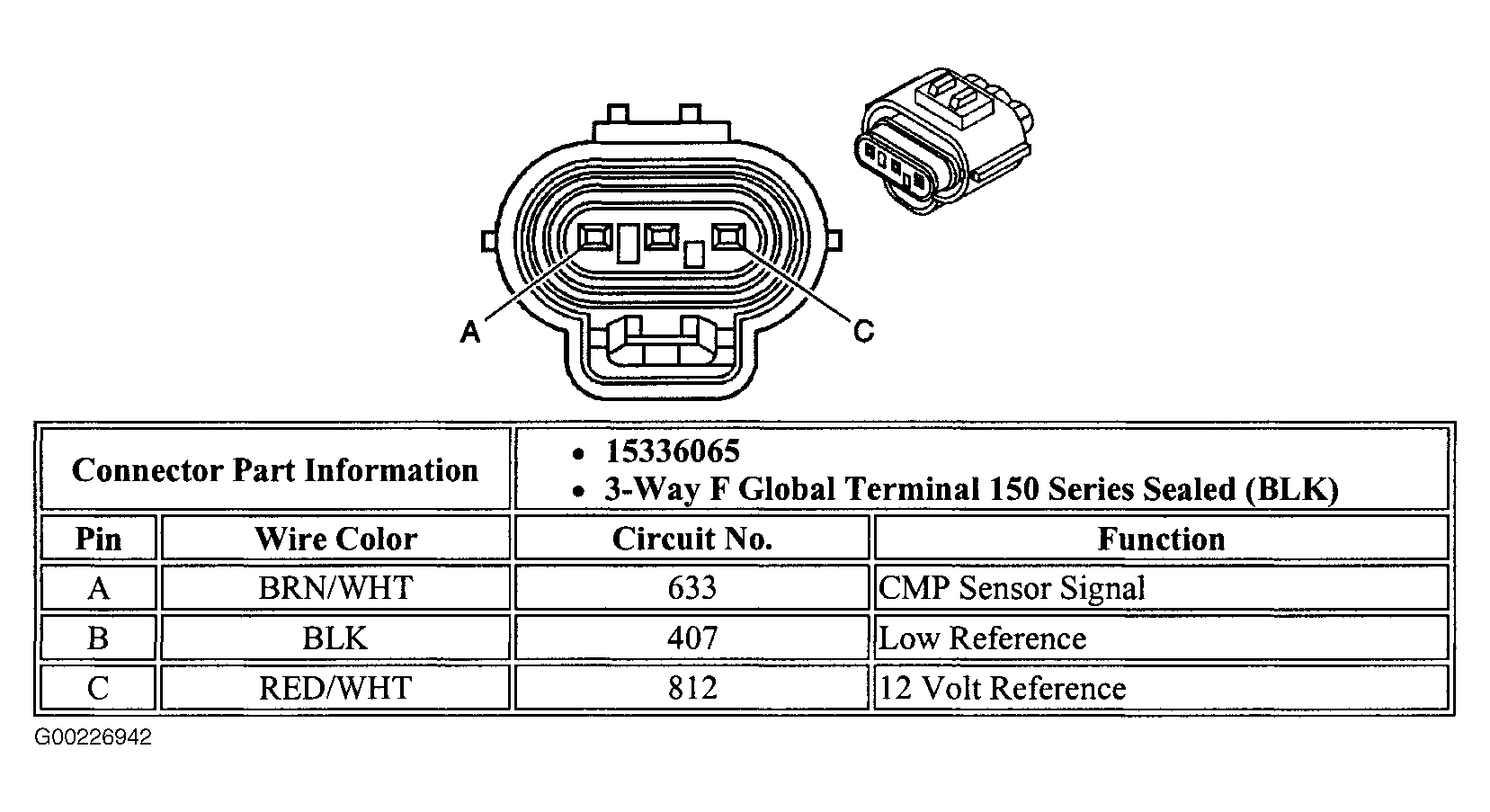

Fig 1: Identifying CMP Harness Connector Terminals (Alero & Grand Am)

G00226942

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying CMP Harness Connector Terminals (Impala & Monte Carlo)

G00117369

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying CKP Sensor "A" Harness Connector (Alero & Grand Am)

G00117370

Courtesy of GENERAL MOTORS CORP.

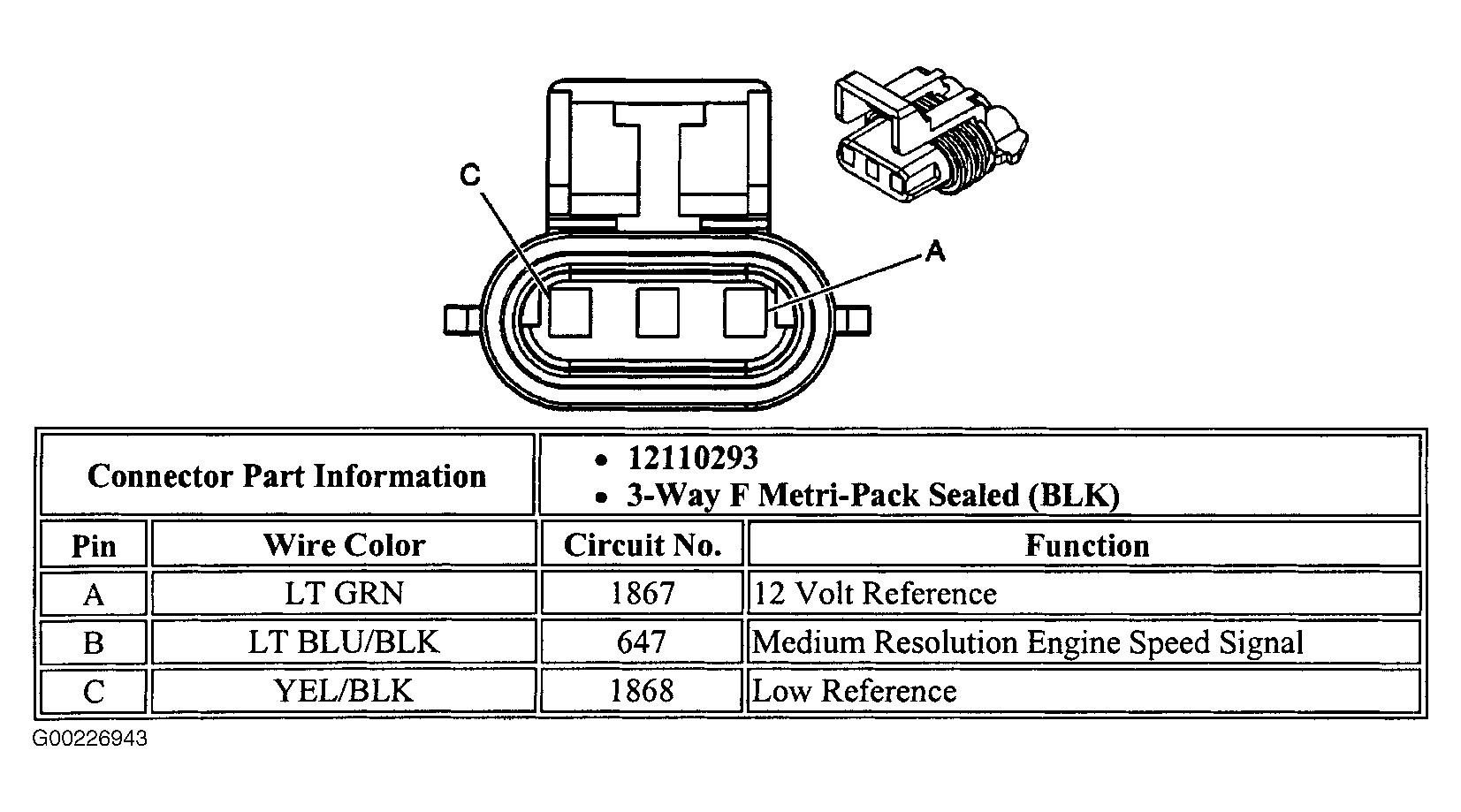

Fig 4: Identifying CKP Sensor "A" Harness Connector Terminals (Impala & Monte Carlo)

G00226943

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying CKP Sensor "B" Harness Connector

G00117371

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying ECT Sensor Harness Connector Terminals

G00117372

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (Alero & Grand Am)

G00117373

Courtesy of GENERAL MOTORS CORP.

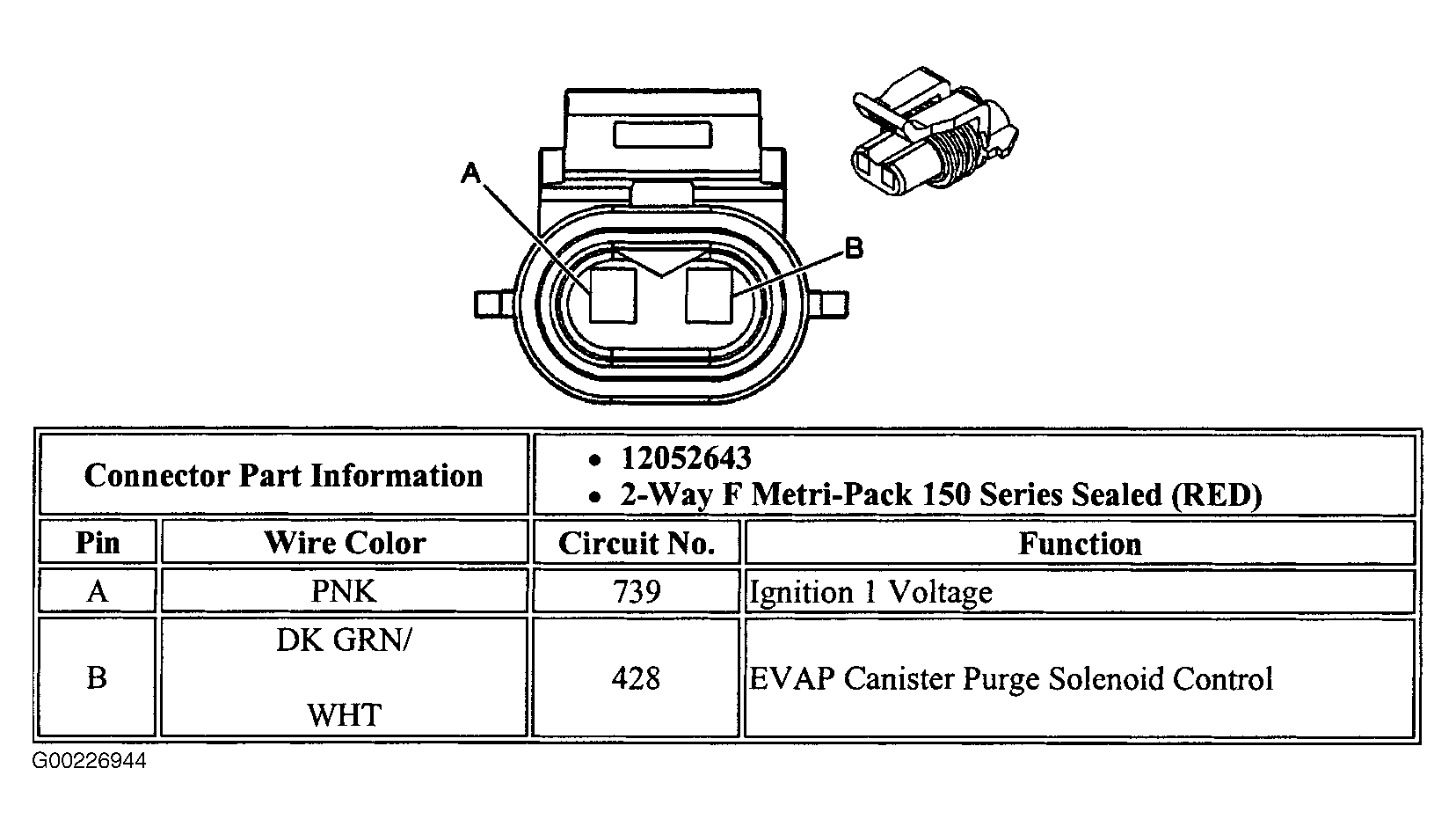

Fig 8: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (Impala & Monte Carlo)

G00226944

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals (Alero & Grand Am)

G00117374

Courtesy of GENERAL MOTORS CORP.

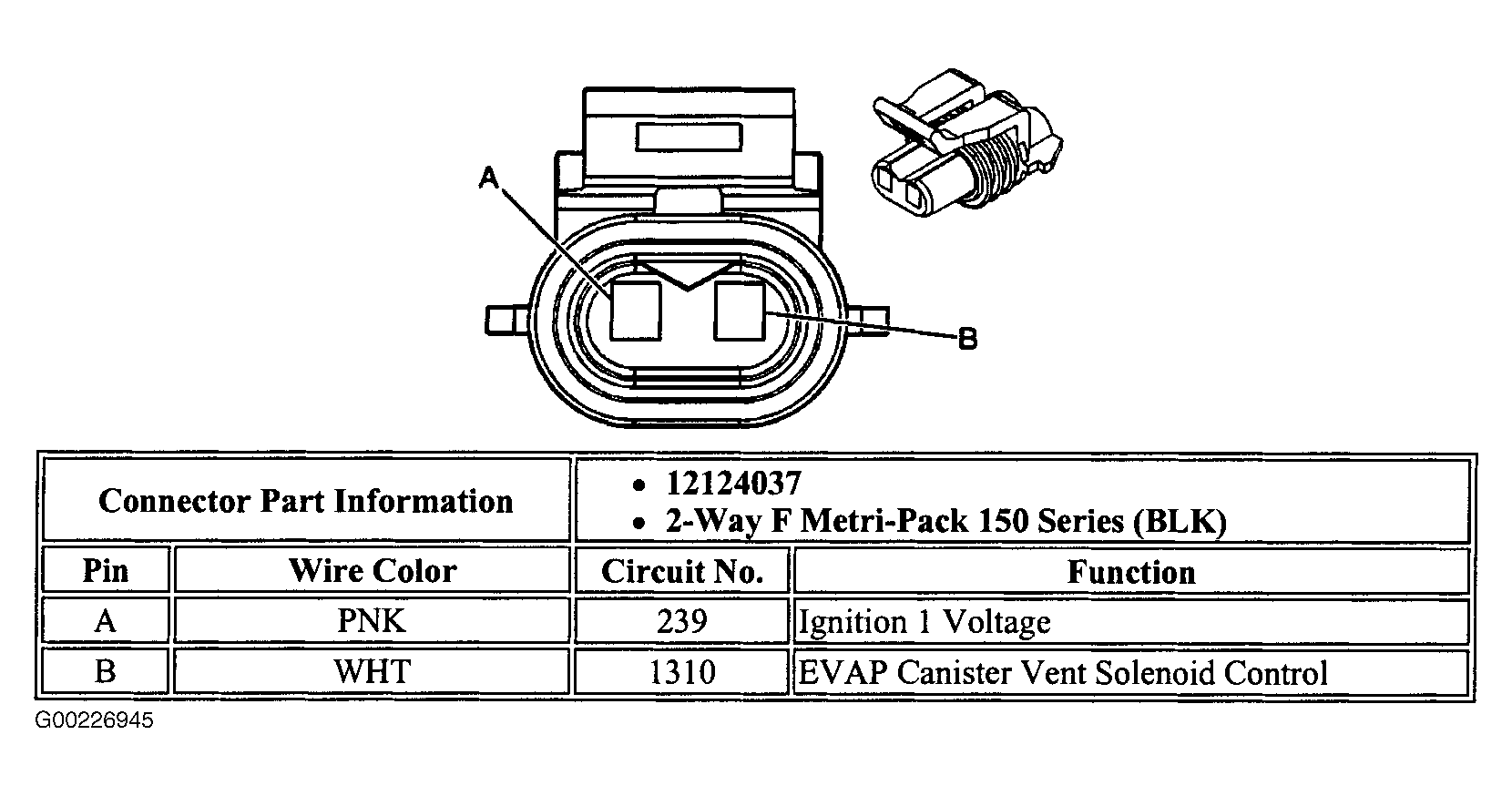

Fig 10: Identifying EVAP Canister Vent Solenoid Control Harness Connector Terminals (Impala & Monte Carlo)

G00226945

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying EGR Valve Harness Connector Terminals (Alero & Grand Am)

G00117375

Courtesy of GENERAL MOTORS CORP.

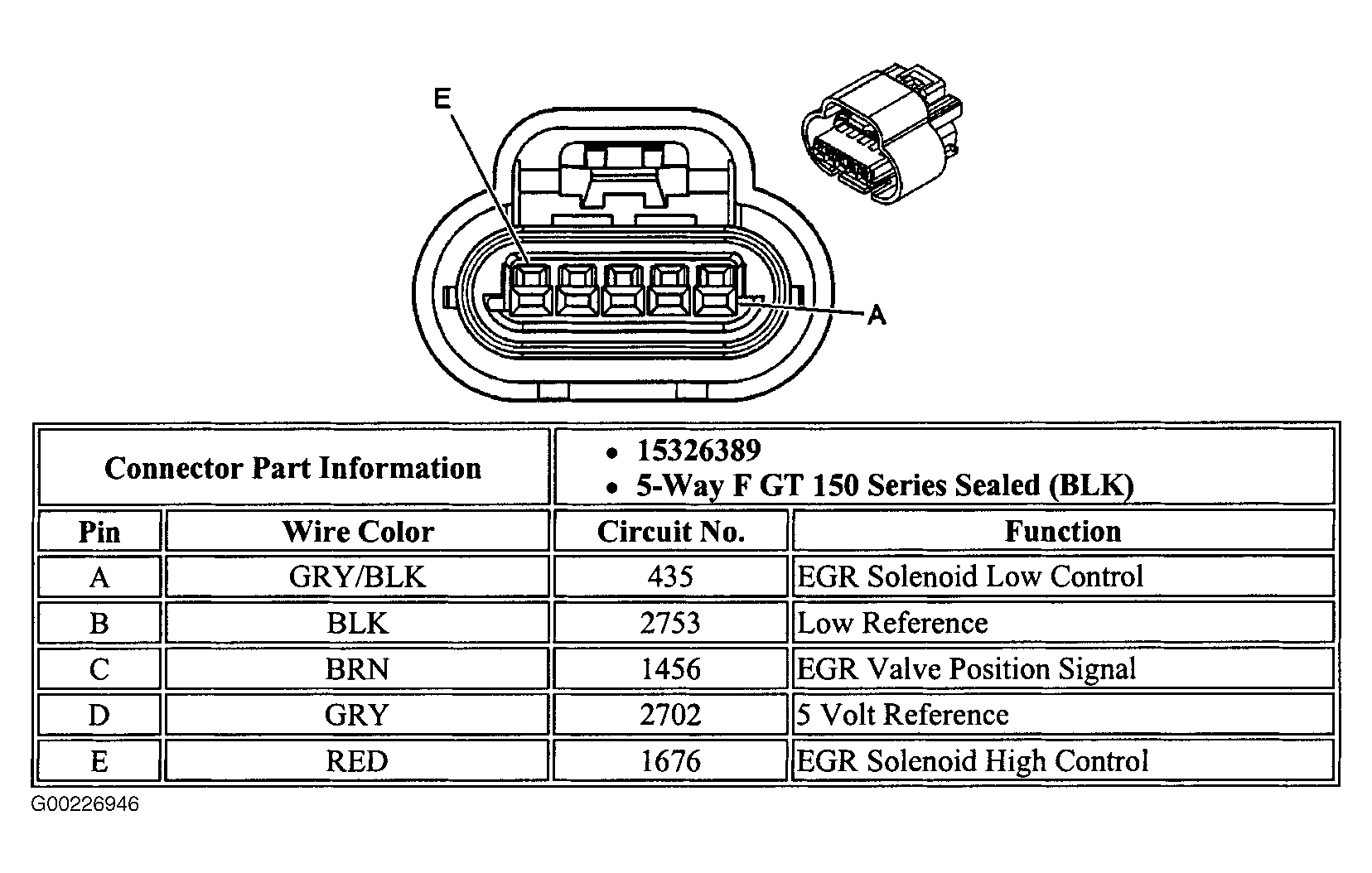

Fig 12: Identifying EGR Valve Harness Connector Terminals (Impala & Monte Carlo)

G00226946

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying Fuel Injector No. 1 Harness Connector Terminals

G00117376

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying Fuel Injector No. 2 Harness Connector Terminals

G00117377

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying Fuel Injector No. 3 Harness Connector Terminals

G00117378

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying Fuel Injector No. 4 Harness Connector Terminals

G00117379

Courtesy of GENERAL MOTORS CORP.

Fig 17: Identifying Fuel Injector No. 5 Harness Connector Terminals

G00117380

Courtesy of GENERAL MOTORS CORP.

Fig 18: Identifying Fuel Injector No. 6 Harness Connector Terminals

G00117381

Courtesy of GENERAL MOTORS CORP.

Fig 19: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals (Alero & Grand Am)

G00117382

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals (Impala & Monte Carlo)

G00226947

Courtesy of GENERAL MOTORS CORP.

Fig 21: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (Alero & Grand Am)

G00117383

Courtesy of GENERAL MOTORS CORP.

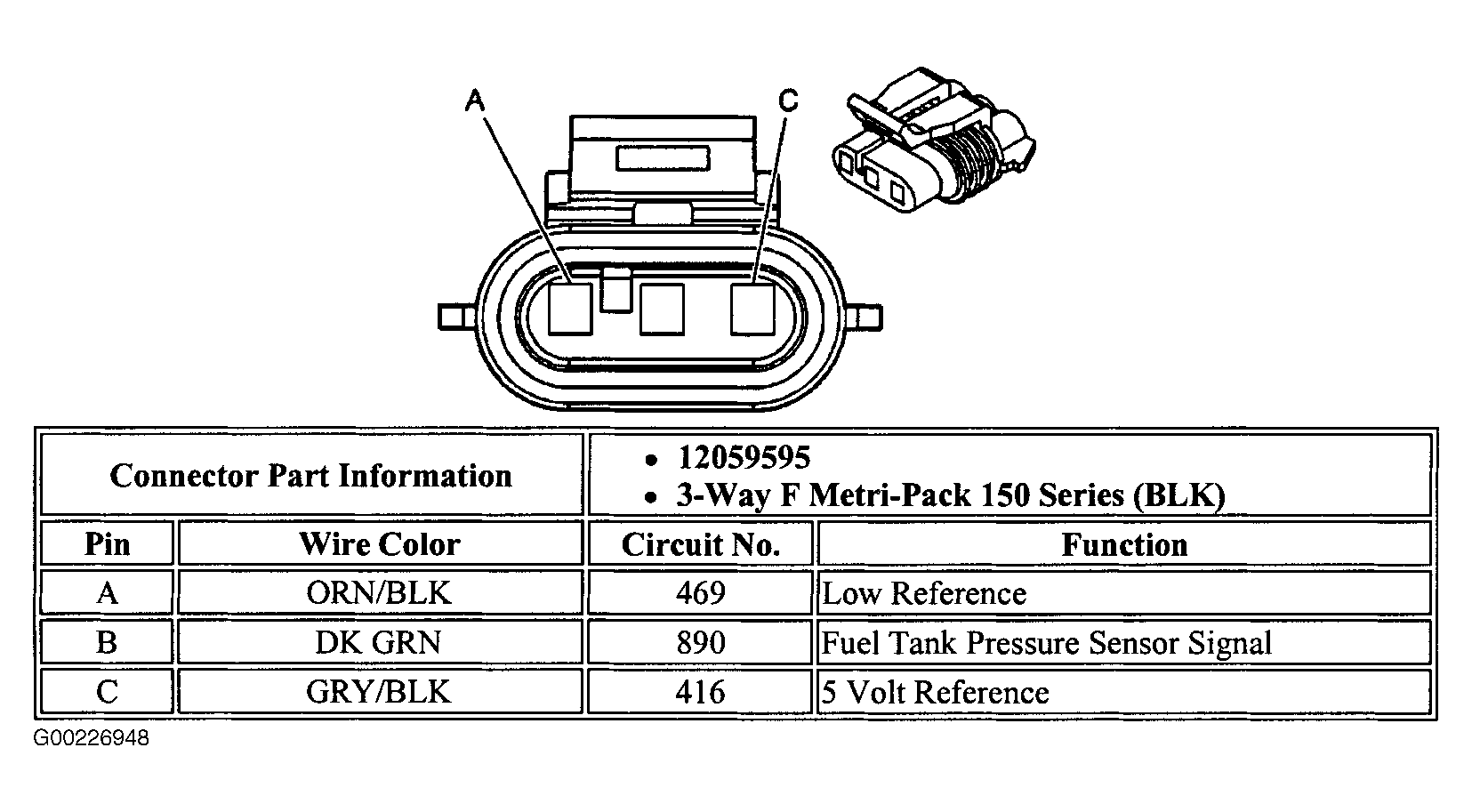

Fig 22: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (Impala & Monte Carlo)

G00226948

Courtesy of GENERAL MOTORS CORP.

Fig 23: Identifying HO2S 1 Harness Connector Terminals (Alero & Grand Am)

G00117384

Courtesy of GENERAL MOTORS CORP.

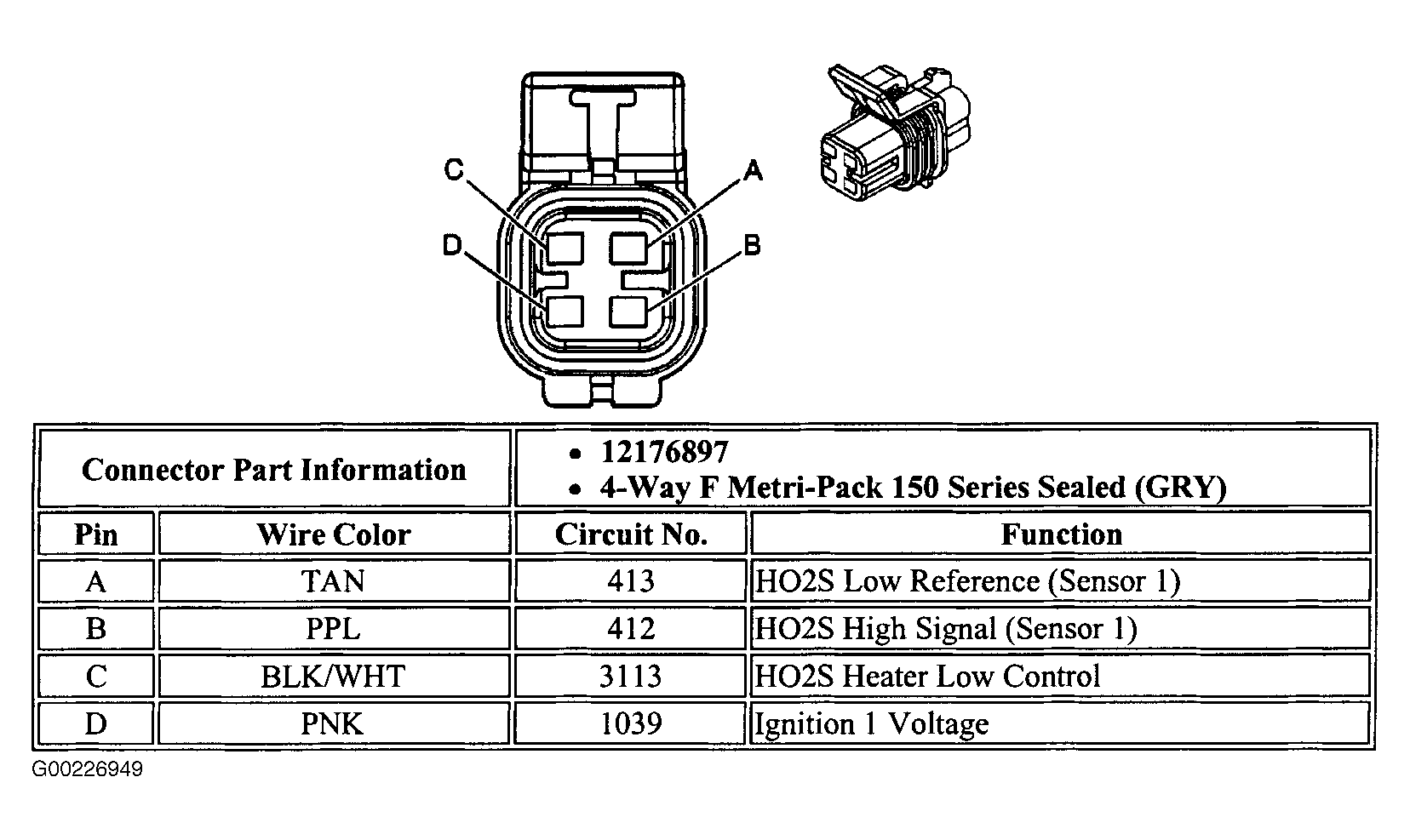

Fig 24: Identifying H02S 1 Harness Connector Terminals (Impala & Monte Carlo)

G00226949

Courtesy of GENERAL MOTORS CORP.

Fig 25: Identifying HO2S 2 Harness Connector Terminals (Alero & Grand Am)

G00117385

Courtesy of GENERAL MOTORS CORP.

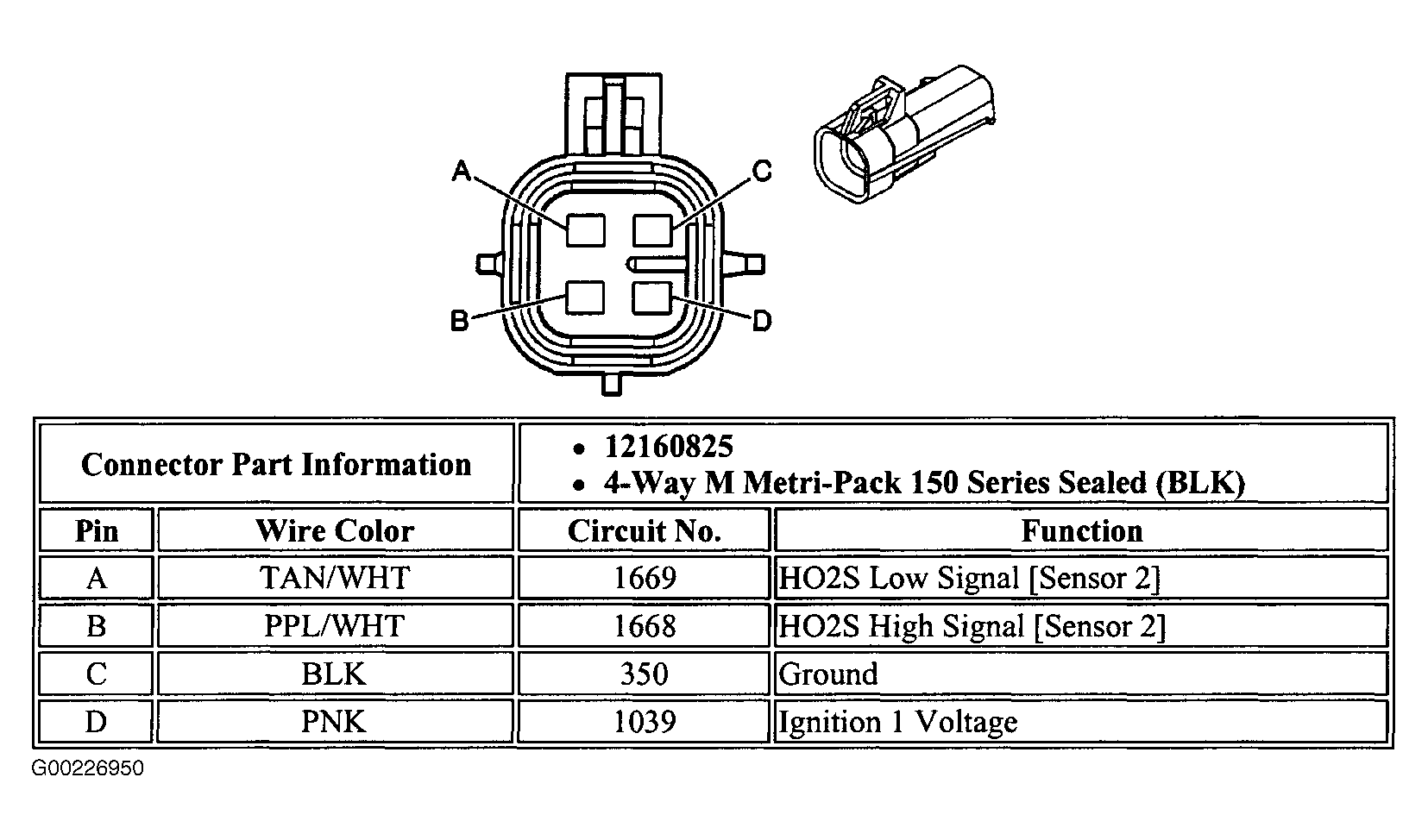

Fig 26: Identifying HO2S 2 Harness Connector Terminals (Impala & Monte Carlo)

G00226950

Courtesy of GENERAL MOTORS CORP.

Fig 27: Identifying IAC Valve Harness Connector Terminals

G00117386

Courtesy of GENERAL MOTORS CORP.

Fig 28: Identifying ICM Harness Connector C1 Terminals

G00117387

Courtesy of GENERAL MOTORS CORP.

Fig 29: Identifying ICM Harness Connector C2 Terminals (Alero & Grand Am)

G00117388

Courtesy of GENERAL MOTORS CORP.

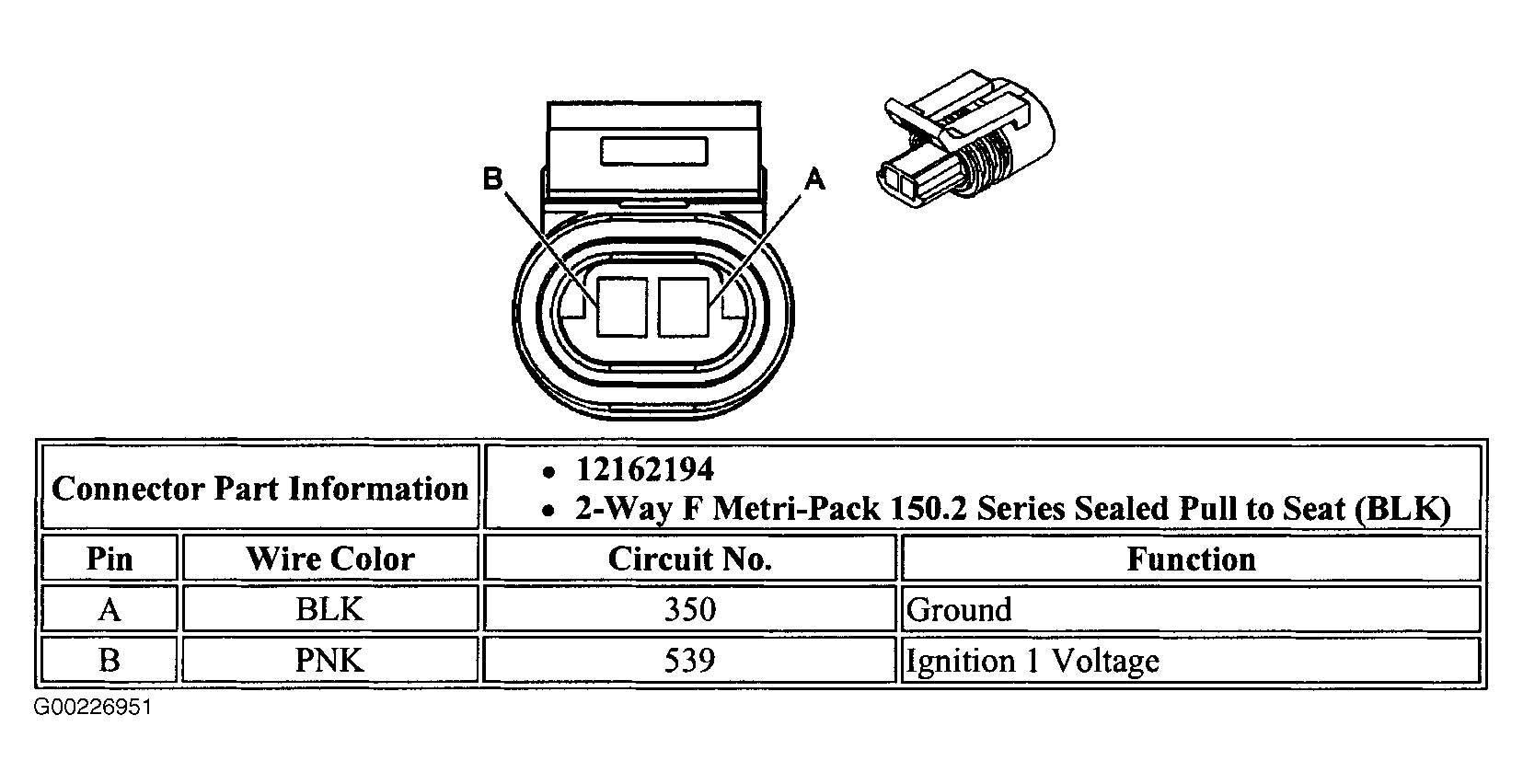

Fig 30: Identifying ICM Harness Connector C2 Terminals (Impala & Monte Carlo)

G00226951

Courtesy of GENERAL MOTORS CORP.

Fig 31: Identifying ICM Harness Connector C3 Terminals (Alero & Grand Am)

G00117389

Courtesy of GENERAL MOTORS CORP.

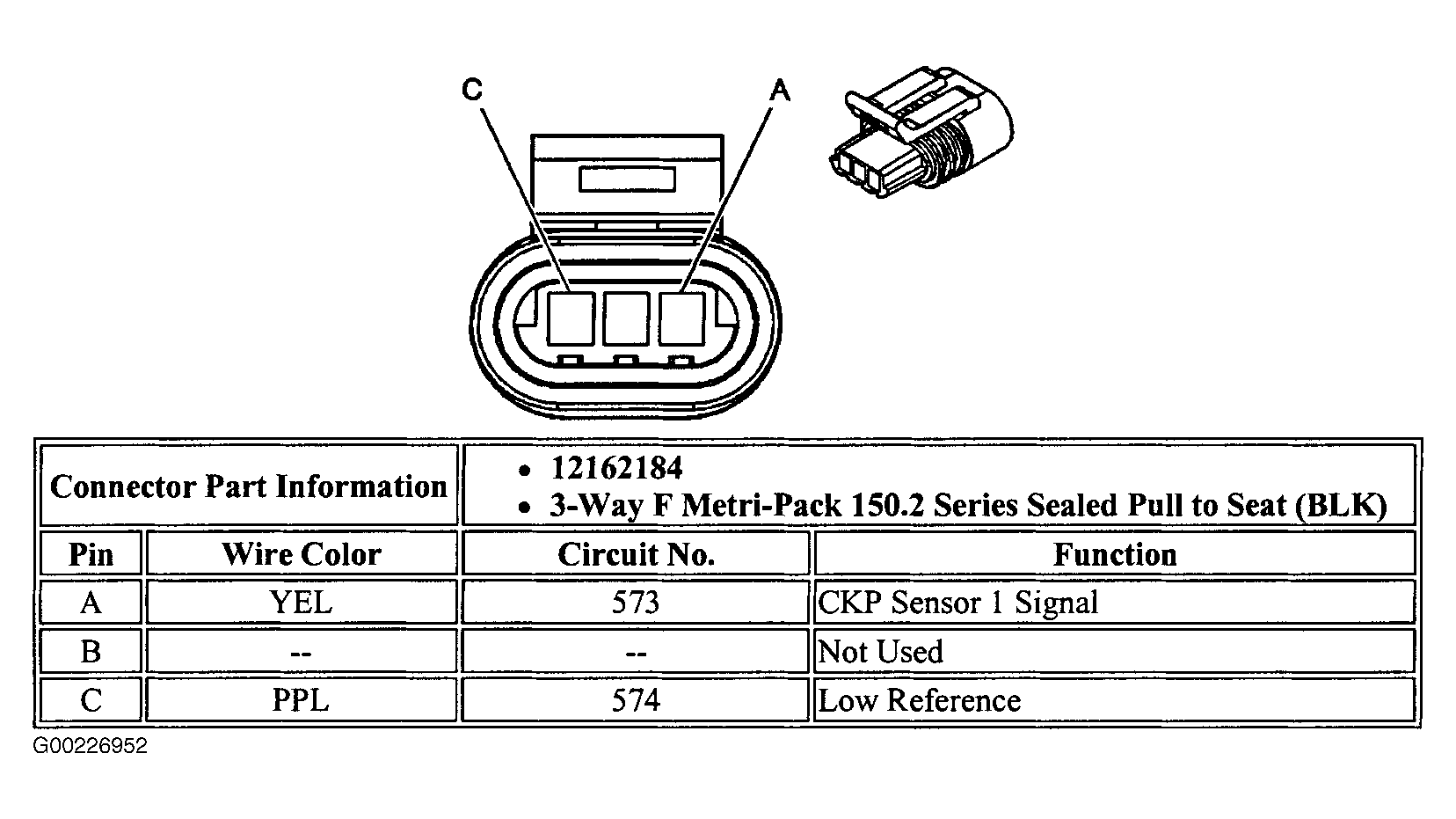

Fig 32: Identifying ICM Harness Connector C3 Terminals (Impala & Monte Carlo)

G00226952

Courtesy of GENERAL MOTORS CORP.

Fig 33: Identifying IAT Sensor Harness Connector Terminals

G00117390

Courtesy of GENERAL MOTORS CORP.

Fig 34: Identifying KS Harness Connector Terminals

G00117391

Courtesy of GENERAL MOTORS CORP.

Fig 35: Identifying MAP Sensor Harness Connector Terminals

G00117392

Courtesy of GENERAL MOTORS CORP.

Fig 36: Identifying MAF Sensor Harness Connector Terminals (Alero & Grand Am)

G00117393

Courtesy of GENERAL MOTORS CORP.

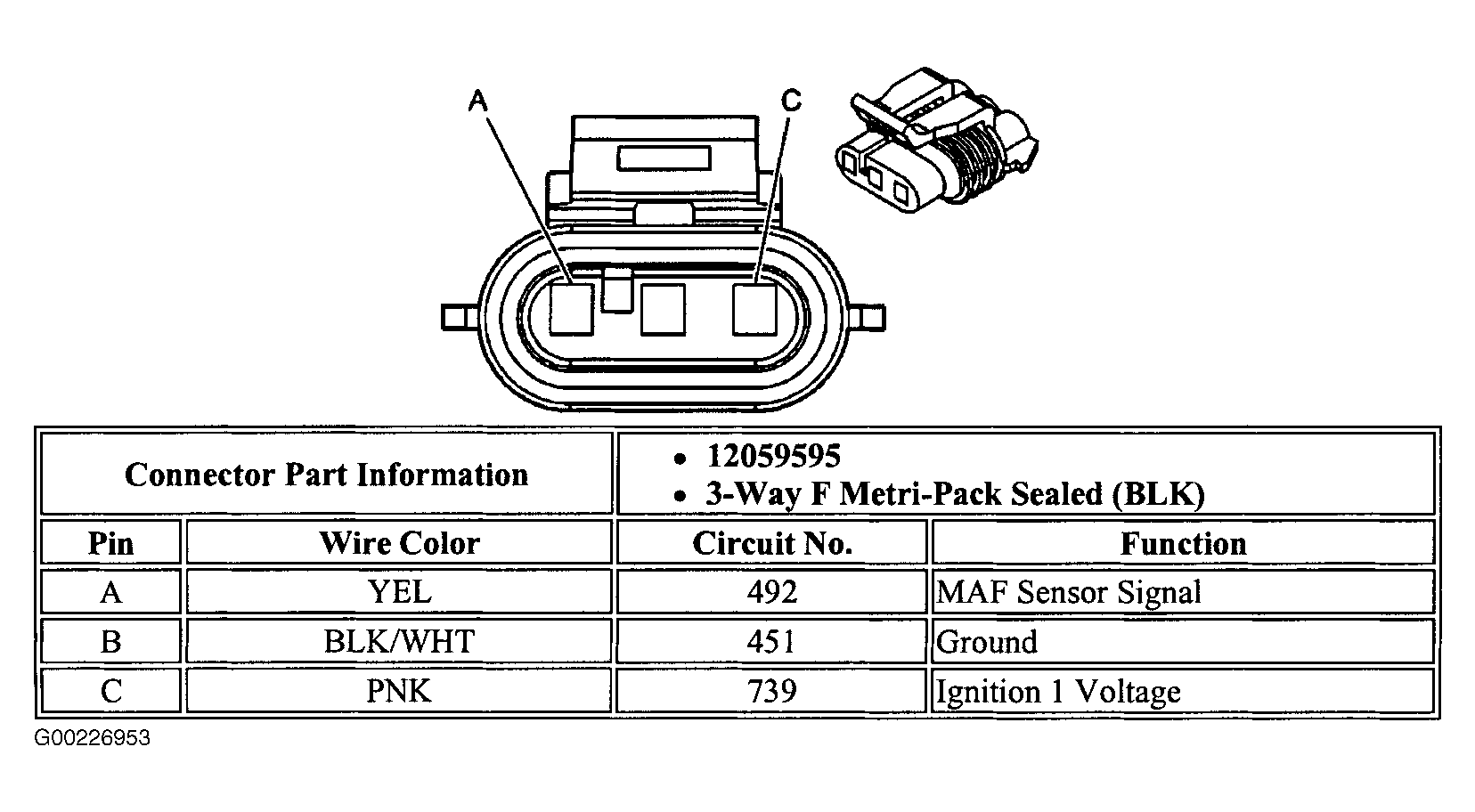

Fig 37: Identifying MAF Sensor Harness Connector Terminals (Impala & Monte Carlo)

G00226953

Courtesy of GENERAL MOTORS CORP.

Fig 38: Identifying PCM Harness Connector C1 Terminals (Alero & Grand Am - 1 Of 2)

G00117365

Courtesy of GENERAL MOTORS CORP.

Fig 39: Identifying PCM Harness Connector C1 Terminals (Alero & Grand Am - 2 Of 2)

G00117366

Courtesy of GENERAL MOTORS CORP.

Fig 40: Identifying PCM Harness Connector C2 Terminals (Alero & Grand Am - 1 Of 2)

G00117367

Courtesy of GENERAL MOTORS CORP.

Fig 41: Identifying PCM Harness Connector C2 Terminals (Alero & Grand Am - 2 Of 2)

G00117368

Courtesy of GENERAL MOTORS CORP.

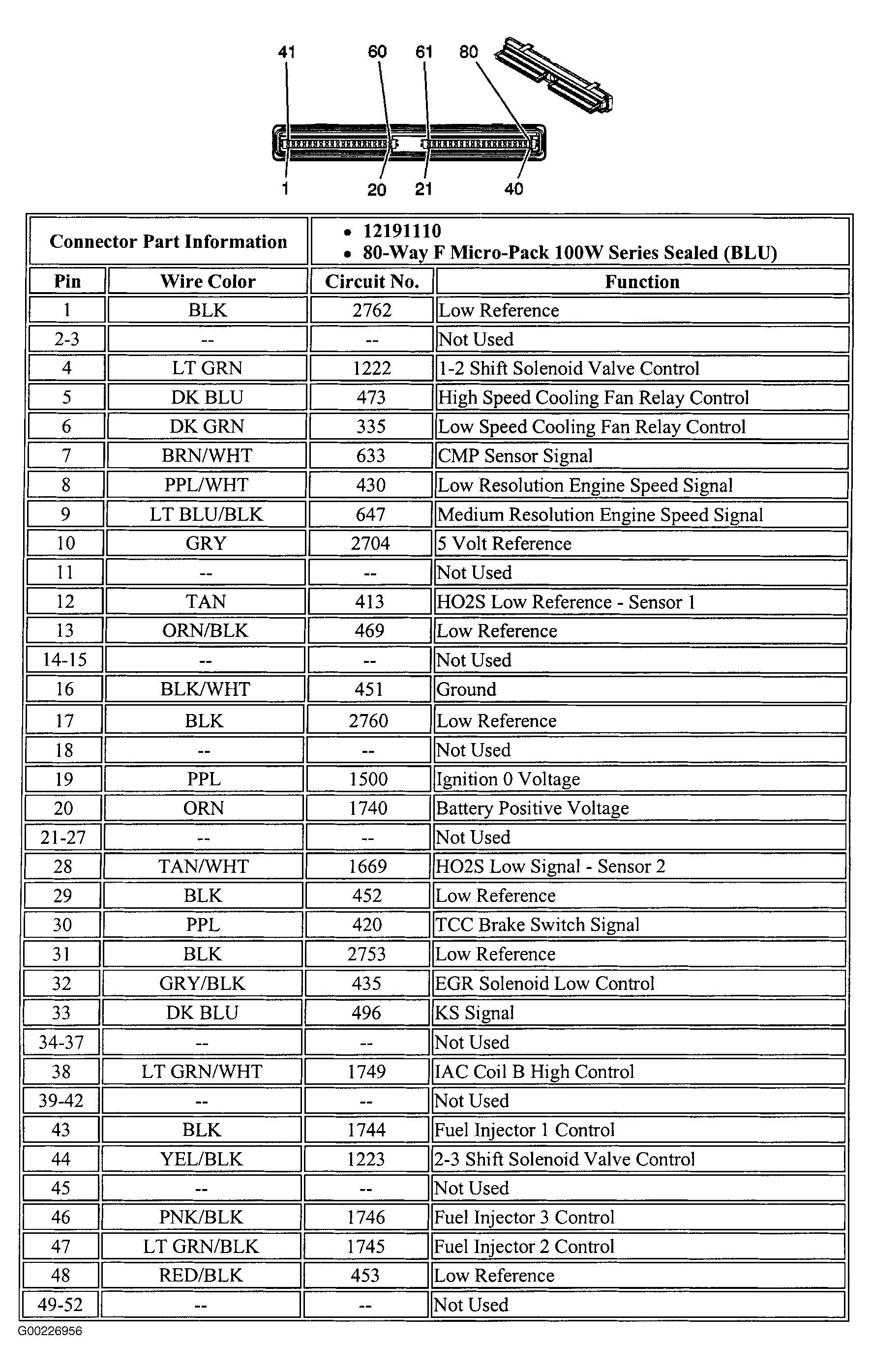

Fig 42: Identifying PCM Harness Connector C1 Terminals (Impala & Monte Carlo - 1 Of 2)

G00226956

Courtesy of GENERAL MOTORS CORP.

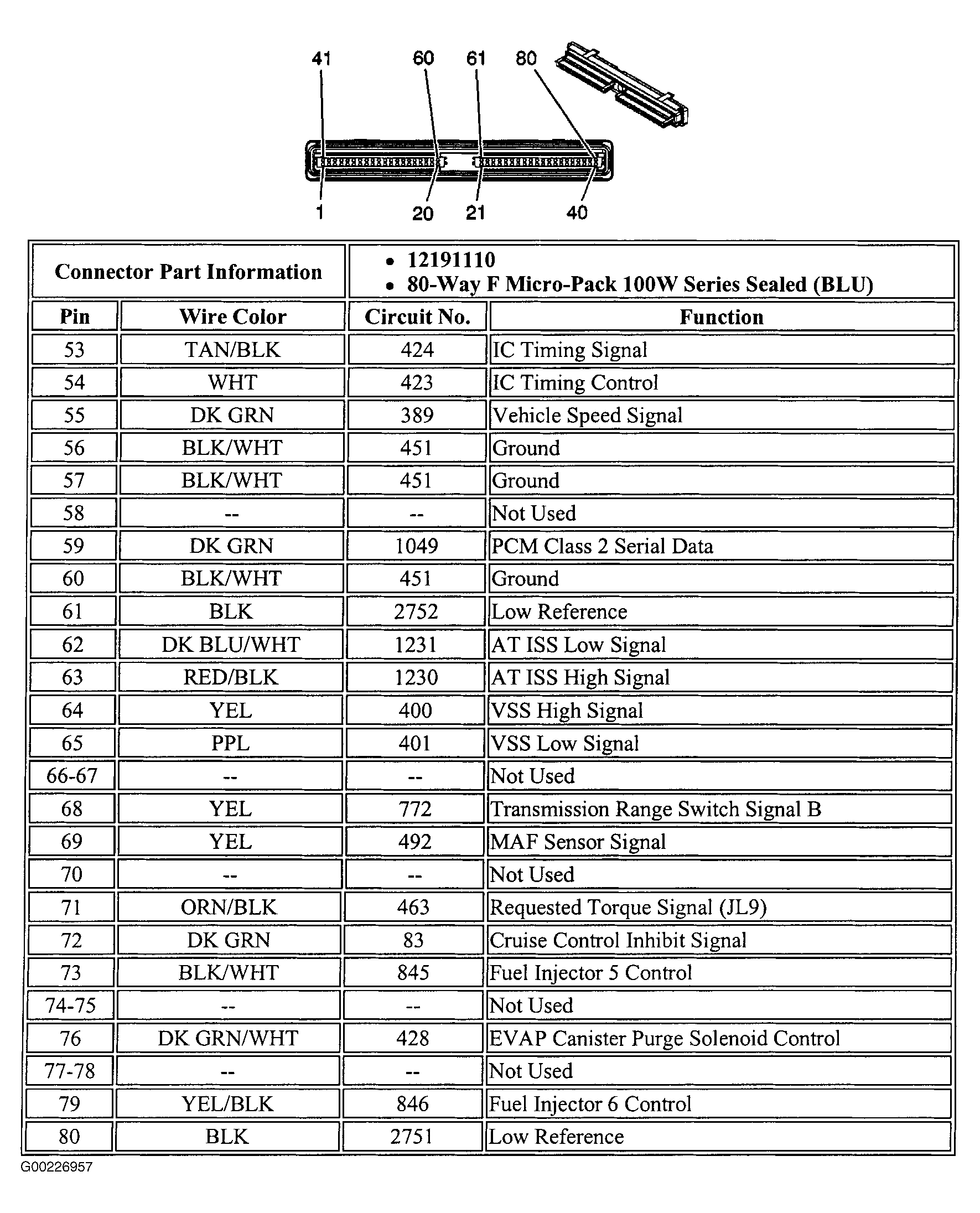

Fig 43: Identifying PCM Harness Connector C1 Terminals (Impala & Monte Carlo - 2 Of 2)

G00226957

Courtesy of GENERAL MOTORS CORP.

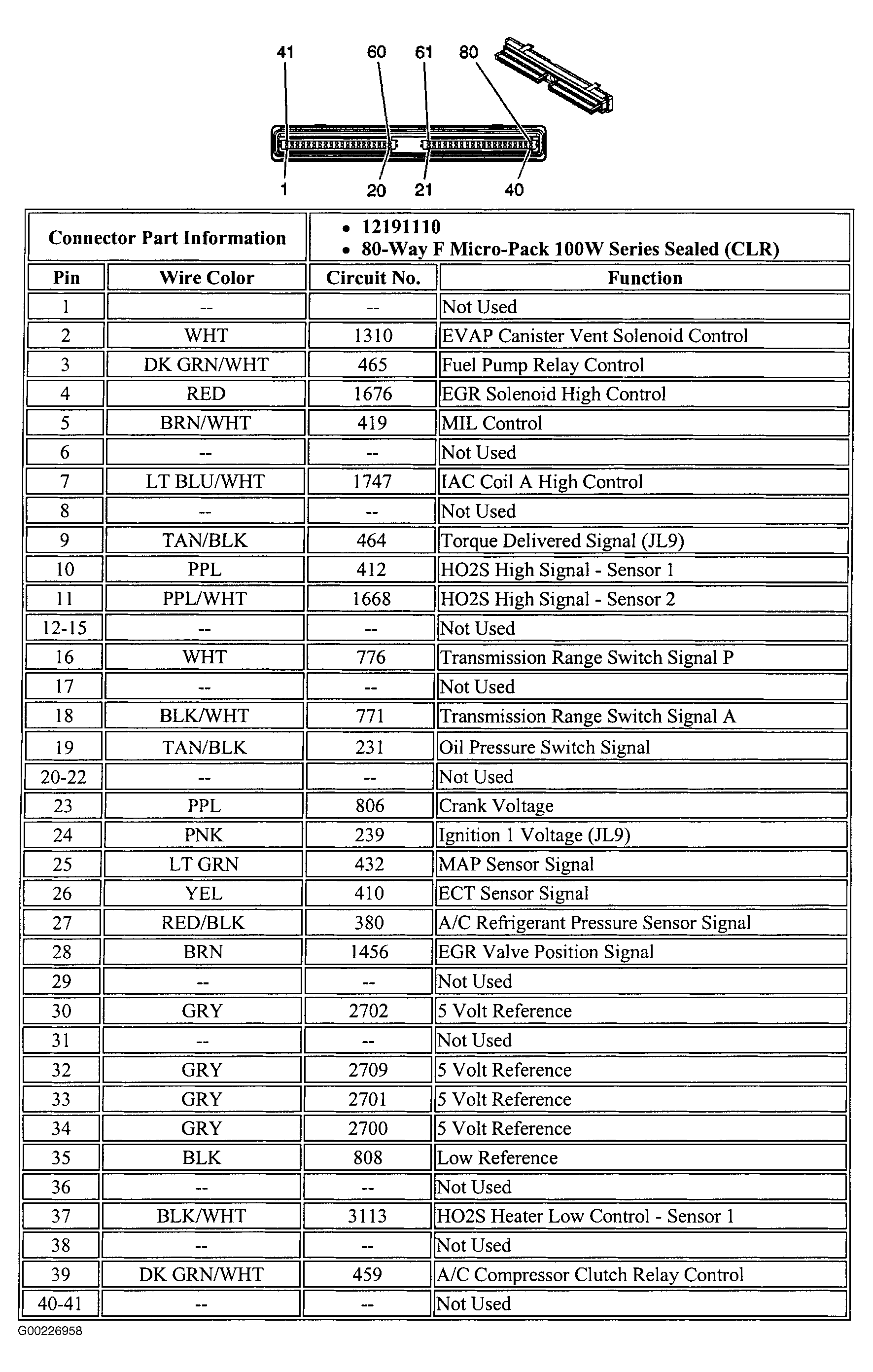

Fig 44: Identifying PCM Harness Connector C2 Terminals (Impala & Monte Carlo - 1 Of 2)

G00226958

Courtesy of GENERAL MOTORS CORP.

Fig 45: Identifying PCM Harness Connector C2 Terminals (Impala & Monte Carlo - 2 Of 2)

G00226959

Courtesy of GENERAL MOTORS CORP.

Fig 46: Identifying TP Sensor Harness Connector Terminals (Alero & Grand Am)

G00117394

Courtesy of GENERAL MOTORS CORP.

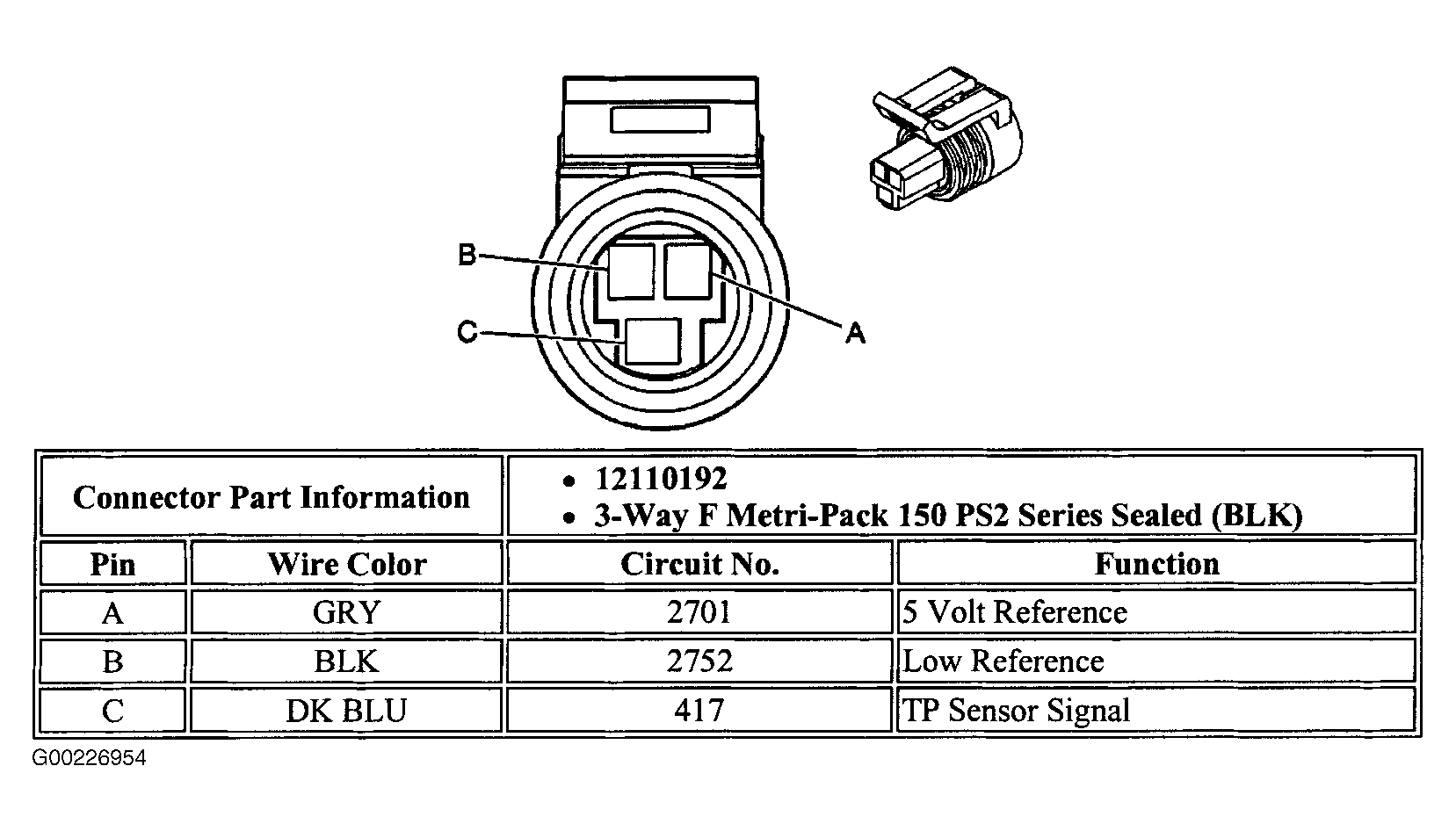

Fig 47: Identifying TP Sensor Harness Connector Terminals (Impala & Monte Carlo)

G00226954

Courtesy of GENERAL MOTORS CORP.

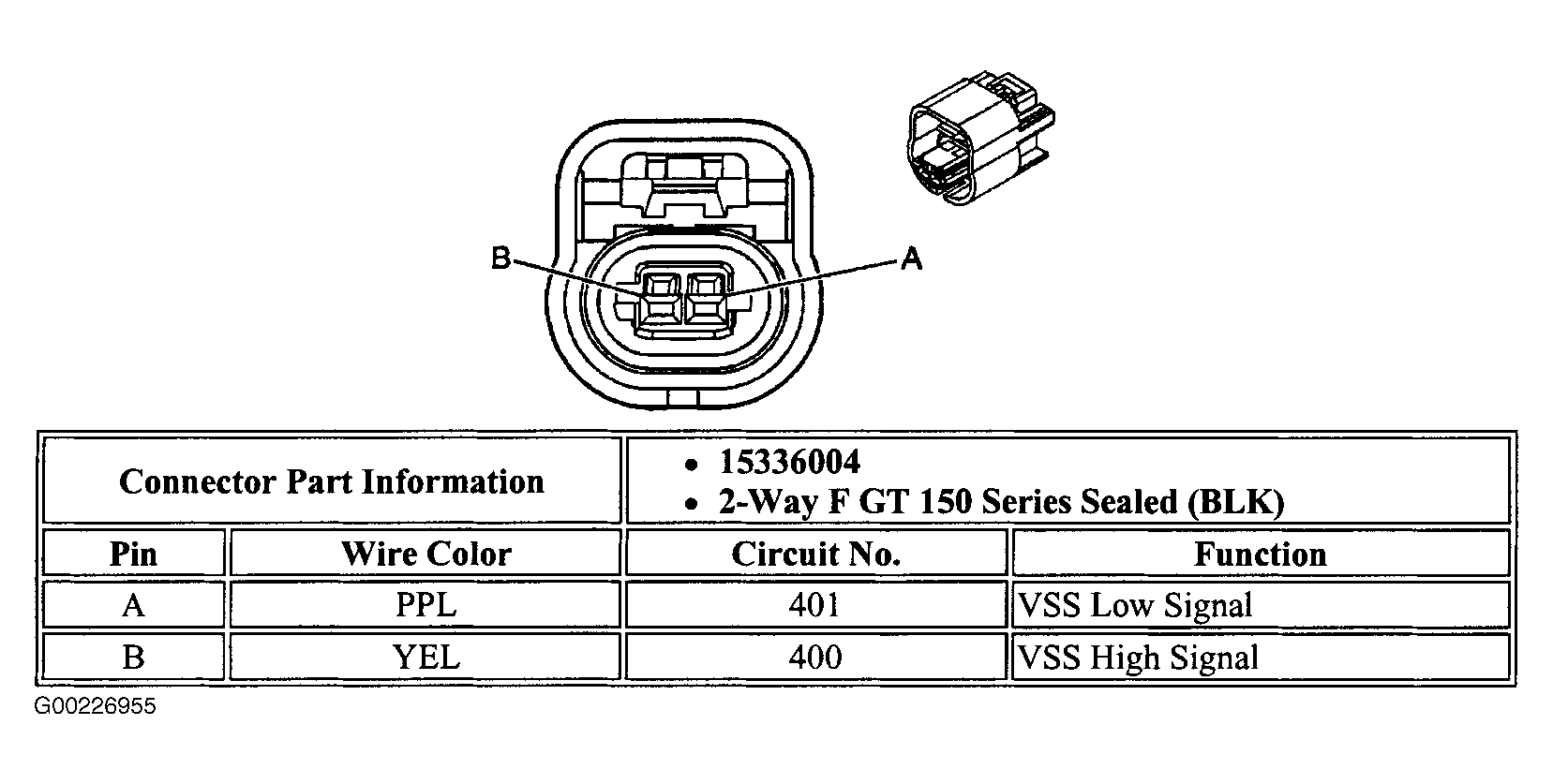

Fig 48: Identifying Vehicle Speed Sensor Harness Connector Terminals

G00226955

Courtesy of GENERAL MOTORS CORP.
