Installation Procedure

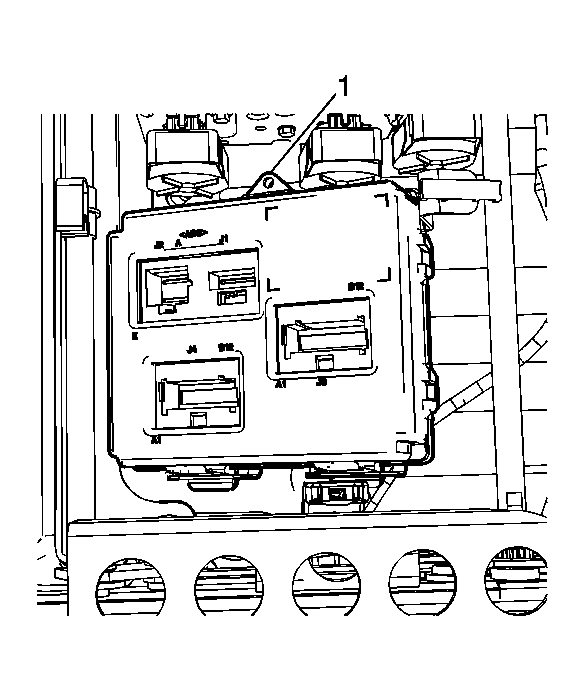

    Fig 1: Identifying Memory Seat Control Module to Seat Screw
    GM1229823Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Position the memory seat control module in the mounting bracket.
  2. Install the screw (1) securing the memory module to the seat.

    Tighten:  Tighten the memory seat control module screw to 1.5 N.m (13 lb in).

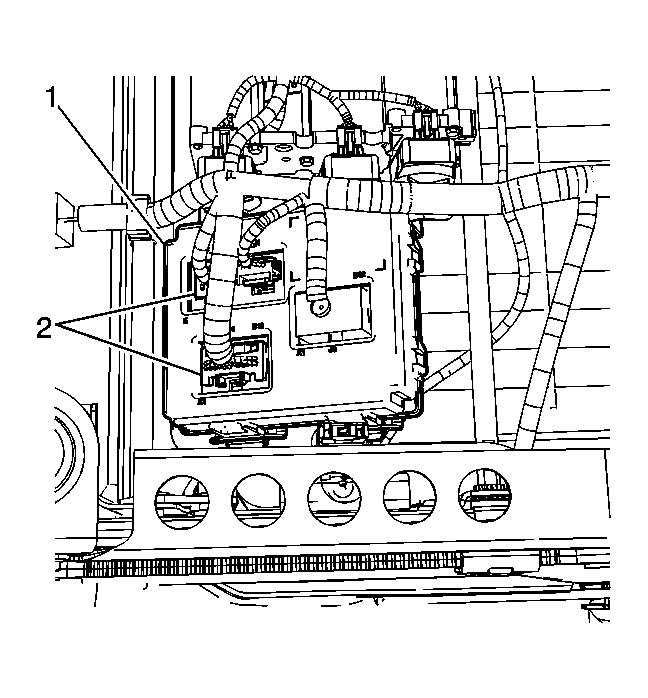

    3. Fig 2: Identifying Memory Seat Control Module & Electrical Connectors
    GM1229820Courtesy of GENERAL MOTORS CORP.
  3. Connect the 4 electrical connectors (2) to the memory seat control module (1).
  4. Install the seat in the vehicle. Refer to Seat Replacement .
