Connector Identification

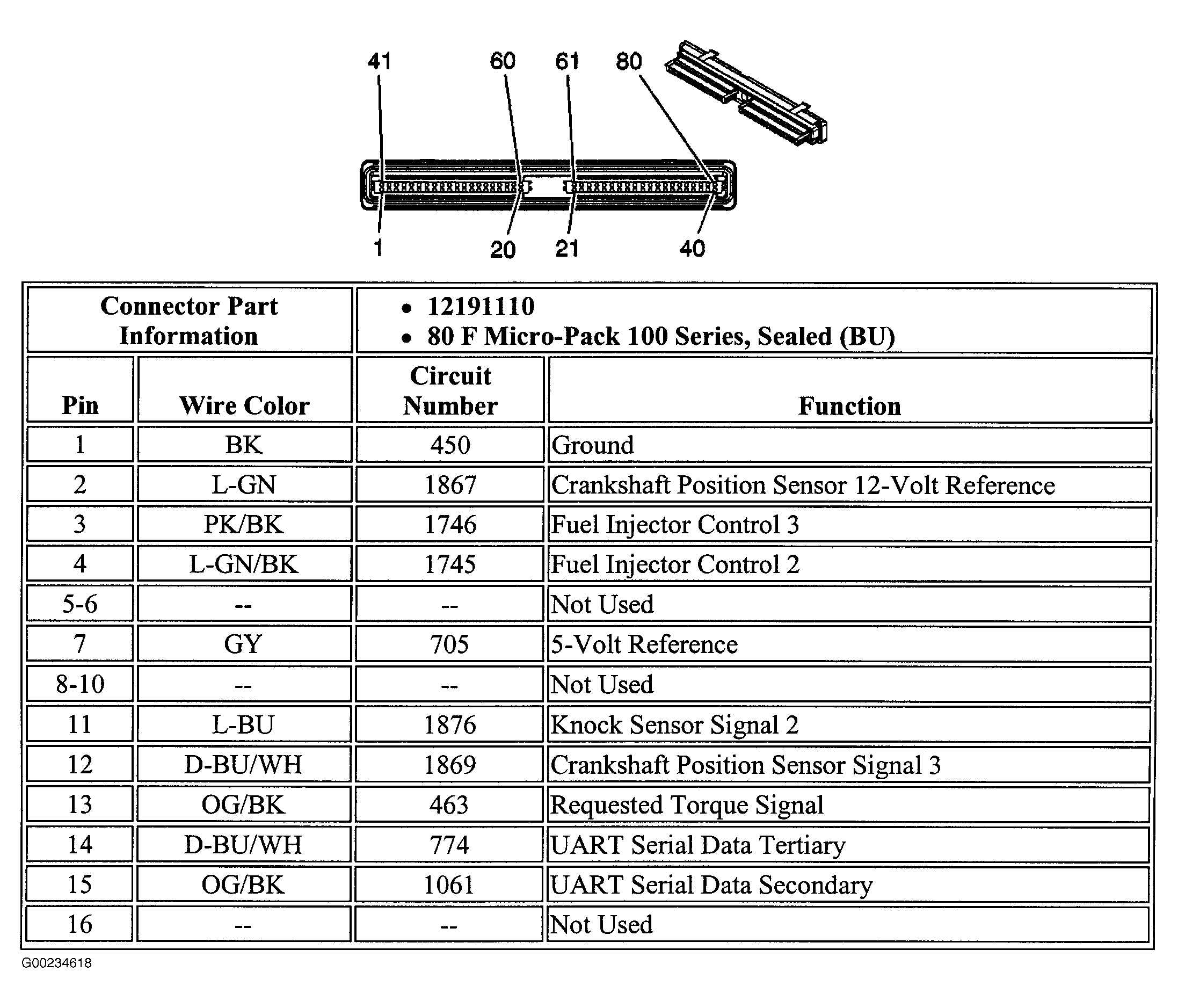

Fig 1: Identifying PCM Connector C1 (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

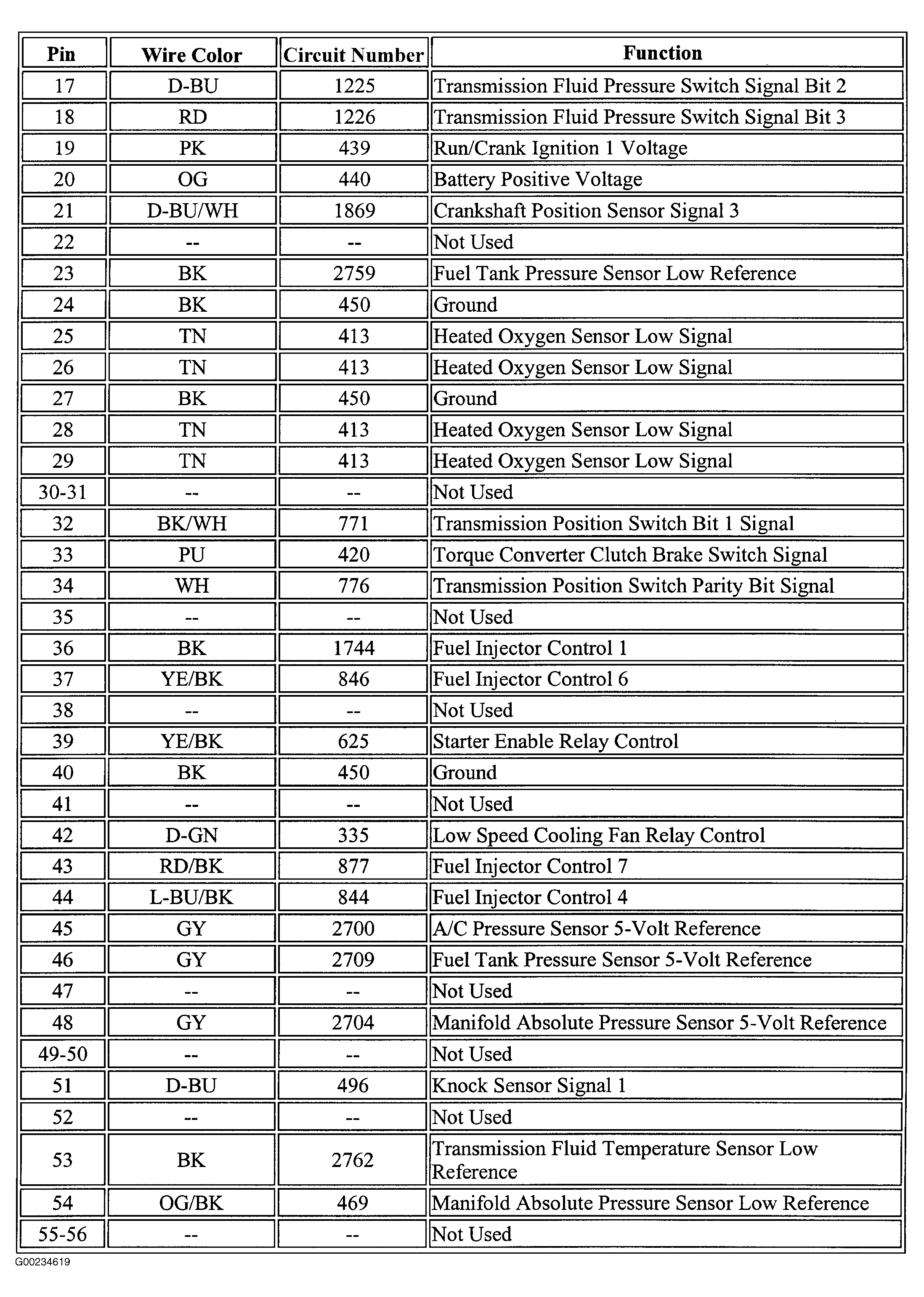

Fig 2: Identifying PCM Connector C1 (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

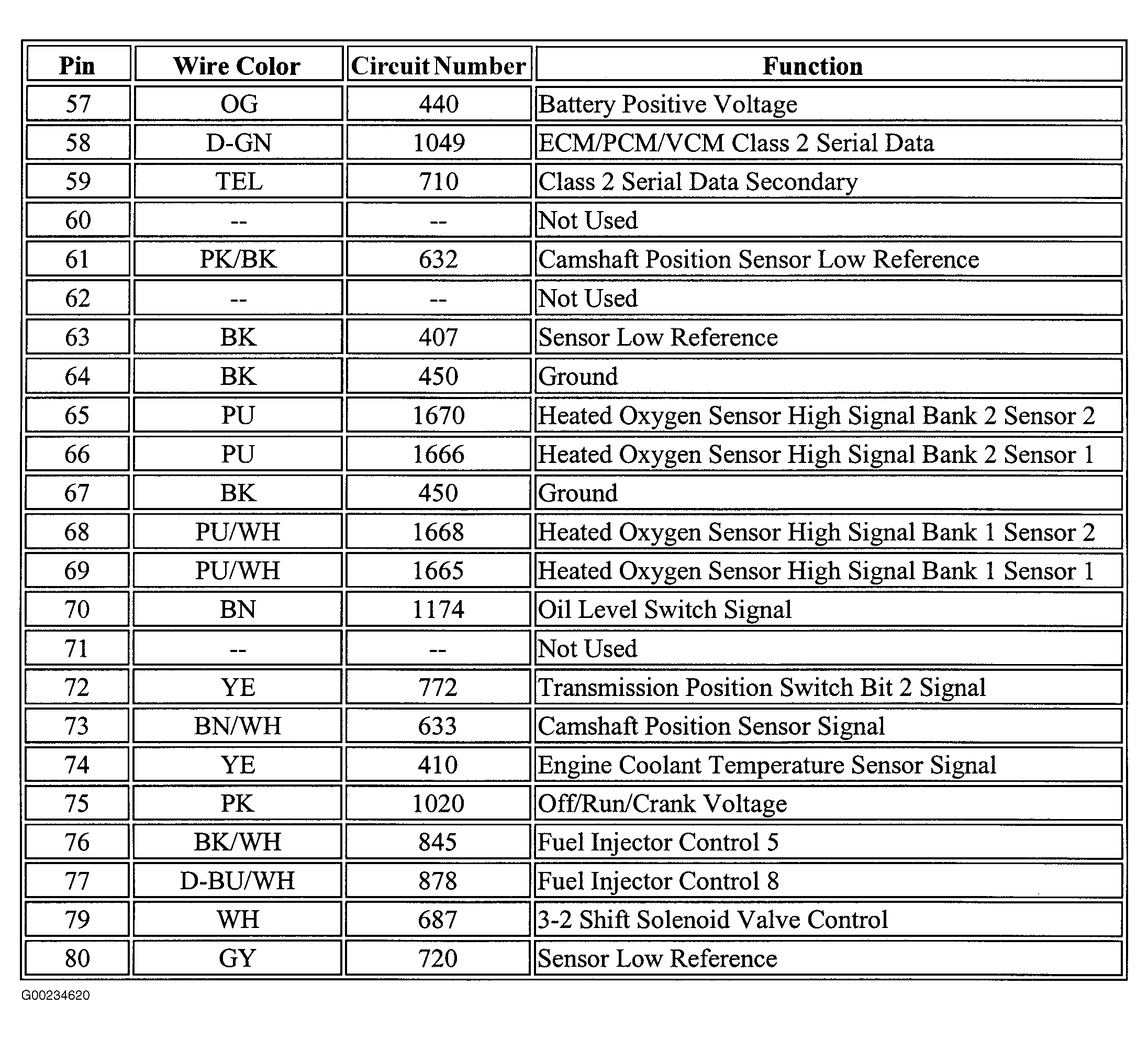

Fig 3: Identifying PCM Connector C1 (3 Of 3)
Courtesy of GENERAL MOTORS CORP.

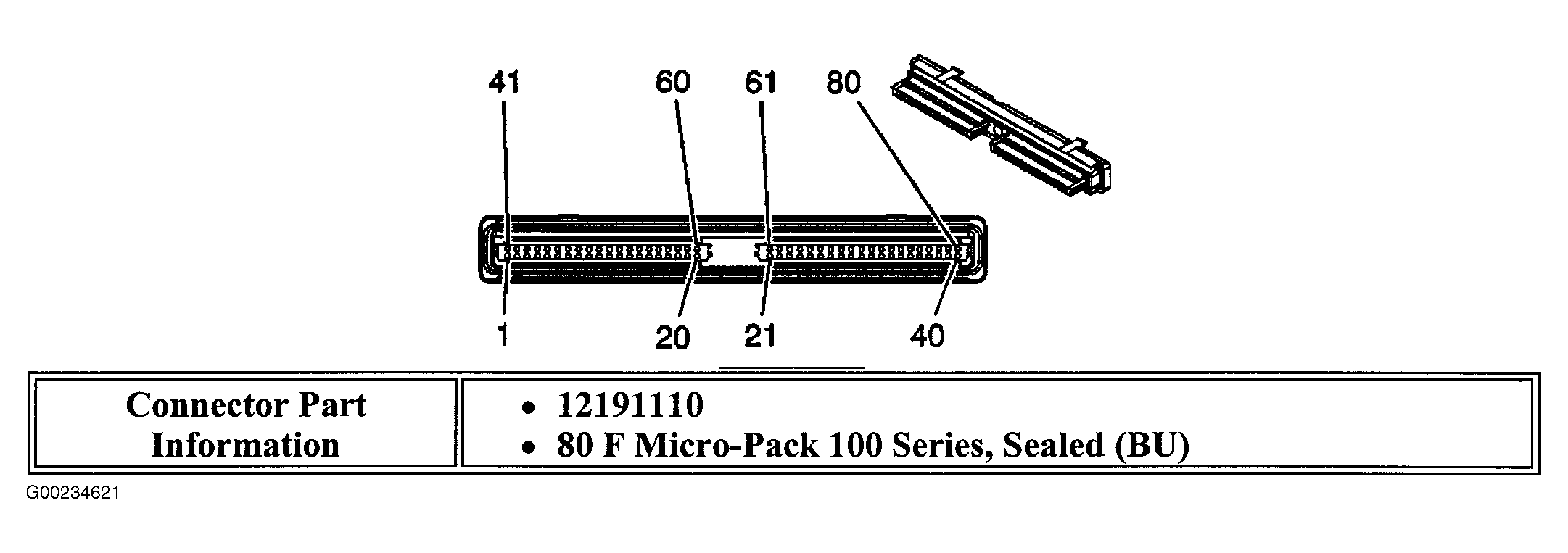

Fig 4: Identifying PCM Connector C2 (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

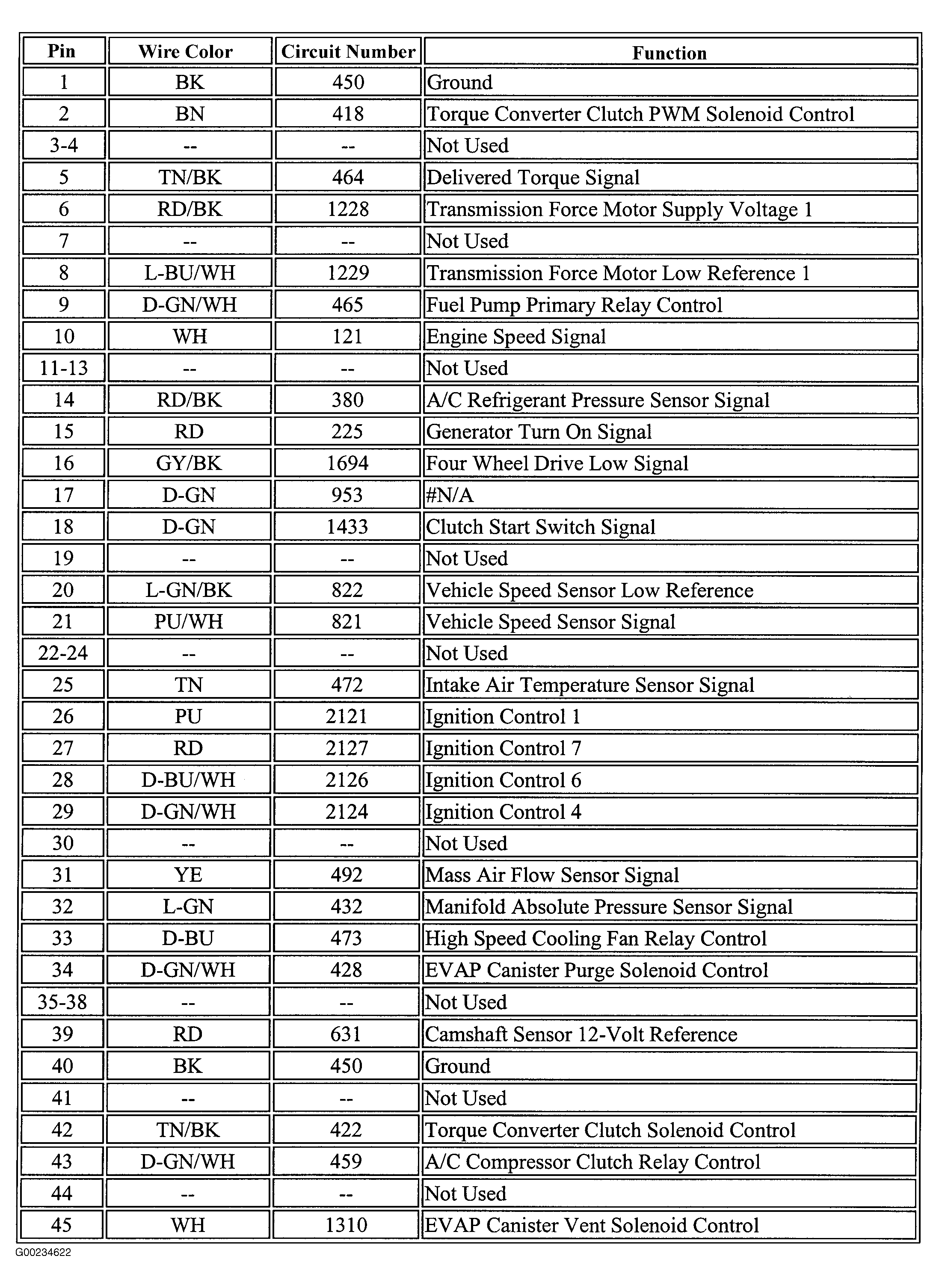

Fig 5: Identifying PCM Connector C2 (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

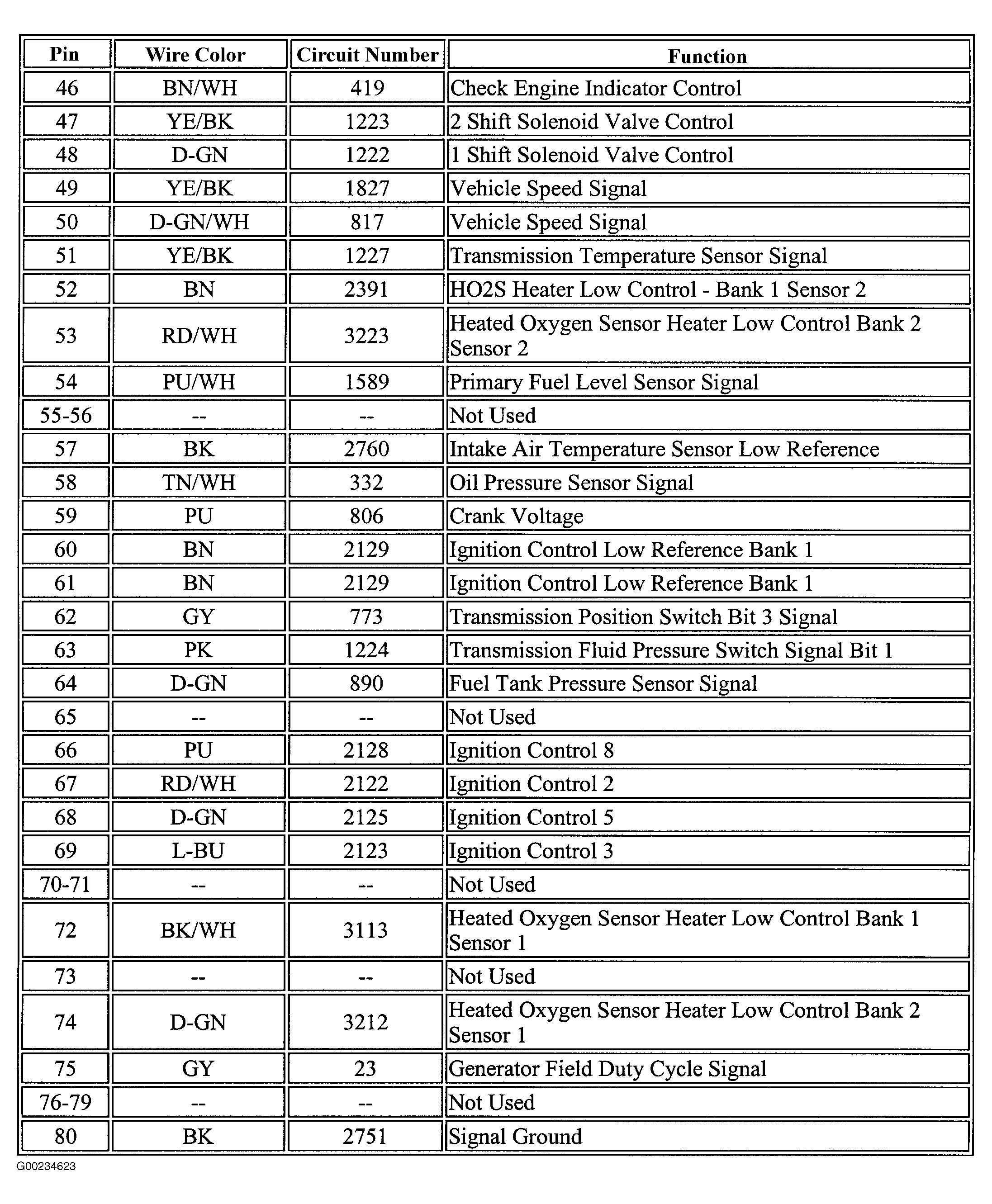

Fig 6: Identifying PCM Connector C2 (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
