Powertrain Control Module Location

The PCM is located on the left side of the engine compartment. See Fig 1 .

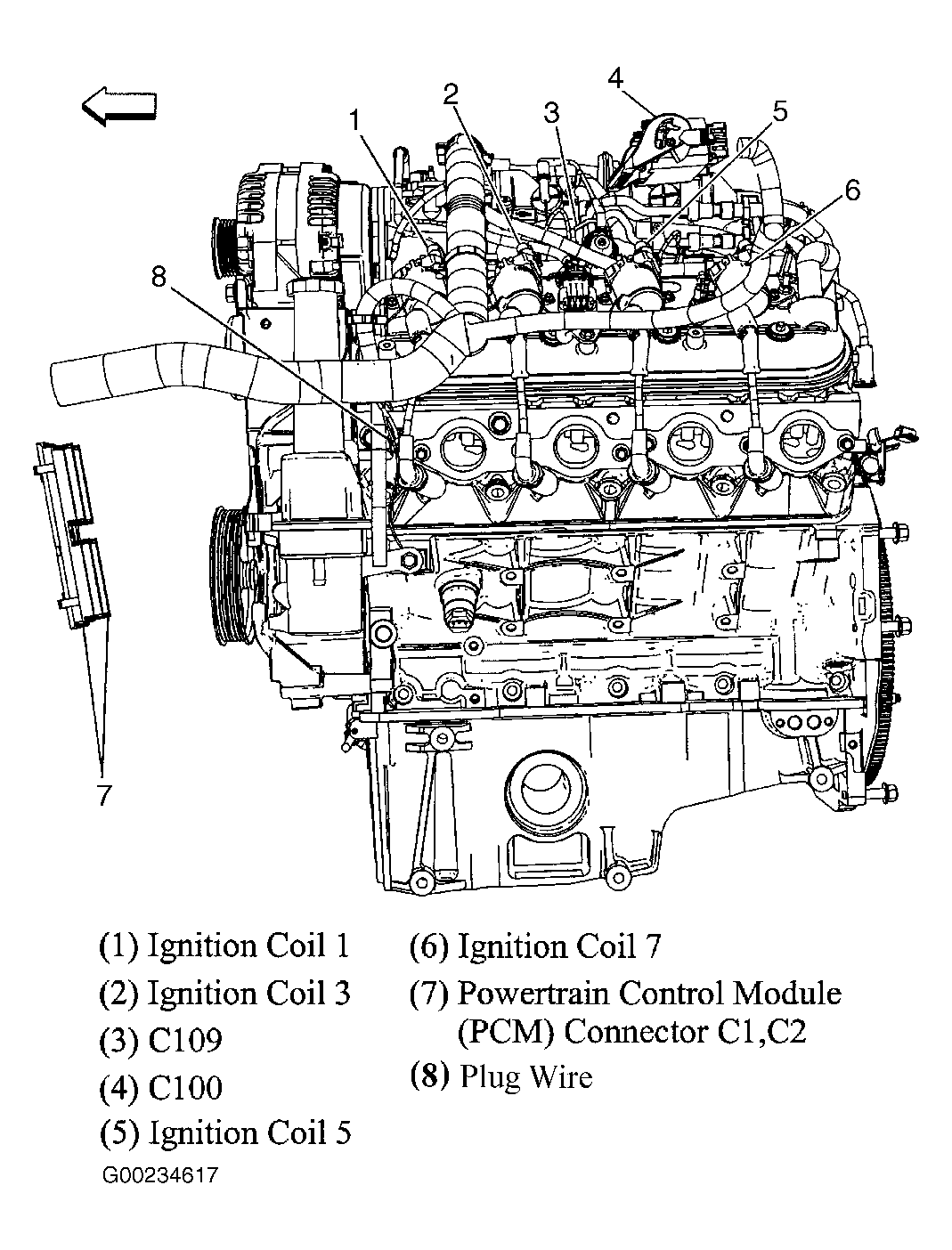

Fig 1: Locating Powertrain Control Module
G00234617Courtesy of GENERAL MOTORS CORP.
