Installation Procedure

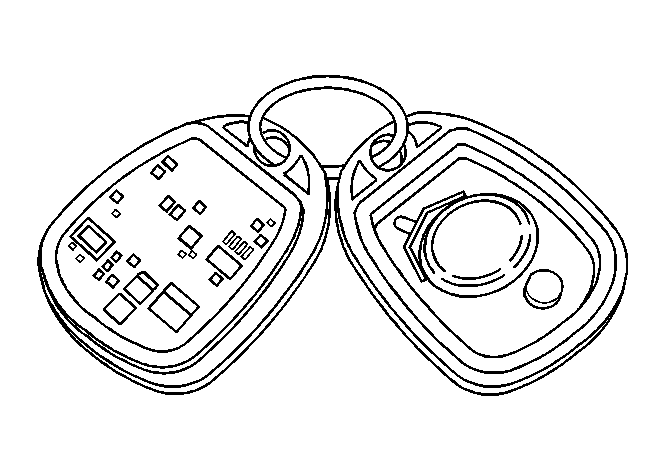

Fig 1: Battery Transmitter Halves

Courtesy of GENERAL MOTORS CORP.

Install the battery with the positive (+) side up.
Use one 3 volt, type CR2032 battery, or the equivalent.
Ensure that the seal is in position.

Fig 2: Closing Transmitter Case

Courtesy of GENERAL MOTORS CORP.

Align the 2 halves of the case together and squeeze the case closed until the tabs are fully seated.
