Power Door Systems Connector End Views

Center Console Switch Assembly Terminal Identification

GM1372723Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 174910-2
  • 20-Way 04 Series Multilock I/O (BK)
Pin Wire Color Circuit No. Function
1 BN/WH 230 Instrument Panel Lamps Dimming Control
2 L-BU 166 Power Window Motor Right Up Signal
3 L-BU 195 Door Lock Control
4 OG 110 Retractable Roof Switch Up Signal
5-7 - - Not Used
8 BN/WH 1571 Traction Control Switch Signal
9 OG 2764 Power Window Motor Left Down Signal
10 BK 1350 Ground
11 - - Not Used
12 TN 167 Power Window Motor Right Down Signal
13 WH 194 Door Unlock Control
14 BN 100 Retractable Roof Switch Down Signal
15-17 - - Not Used
18 BN 341 Ignition 3 Voltage
19 L-GN 2763 Power Window Motor Left Up Signal
20 - - Not Used
Door Latch Assembly Terminal Identification - Driver C1

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162190
  • 4-Way F Metri-Pack 150.2 Series, Sealed, Pull To Seat (BK)
Pin Wire Color Circuit No. Function
A L-GN/BK 394 Door Handle Switch Signal - LF
B GY/BK 745 Left Front Door Ajar Switch Signal
C - - Not Used
D BK 1350 Ground
Door Latch Assembly Terminal Identification - Driver C2

GM684793Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052642
  • 2-Way F Metri-Pack 150 Series, Sealed (GN)
Pin Wire Color Circuit No. Function
A BK 1350 Ground
B L-GN 262 Driver Door Key Switch Signal
Door Latch Assembly Terminal Identification - Driver C3

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A TN 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Door Latch Assembly Terminal Identification - Passenger C1

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162190
  • 4-Way F Metri-Pack 150.2 Series, Sealed, Pull To Seat (BK)
Pin Wire Color Circuit No. Function
A BK 1450 Ground
B - - Not Used
C BK/WH 746 Right Front Door Ajar Switch Signal
D L-BU 395 Door Handle Switch Signal - RF
Door Latch Assembly Terminal Identification - Passenger C2

GM684793Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052642
  • 2-Way F Metri-Pack 150 Series, Sealed (GN)
Pin Wire Color Circuit No. Function
A BK 1450 Ground
B L-GN 265 Passenger Door Key Switch Signal
Door Latch Assembly Terminal Identification - Passenger C3

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A TN 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Outside Rearview Mirror Terminal Identification - Driver

GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12045688
  • 8-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-GN 1499 Driver Mirror Motor Left/Down Control
B BK 1350 Ground
C YE 88 Driver Mirror Motor Up Control
D GY 1690 Automatic Day/Night Mirror Signal
E OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
F L-GN 1499 Driver Mirror Motor Left/Down Control
G PK 1691 Automatic Day/Night Mirror Low Reference
H WH 81 Driver Mirror Motor Right Control
Outside Rearview Mirror Terminal Identification - Passenger

GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12045688
  • 8-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-BU/WH 1497 Passenger Mirror Motor Left/Down Control
B BK 1450 Ground
C BN/WH 1498 Passenger Mirror Motor Left/Down Control
D - - Not Used
E OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
F L-BU/WH 1497 Passenger Mirror Motor Left/Down Control
G - - Not Used
H RD/WH 881 Passenger Mirror Motor Right Control
Outside Rearview Mirror Switch Terminal Identification

GM62439Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047886
  • 8-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BN/WH 1498 Passenger Mirror Motor Left/Down Control
B RD/WH 881 Passenger Mirror Motor Right Control
C L-BU/WH 1497 Passenger Mirror Motor Left/Down Control
D BK 1350 Ground
E OG 4140 Battery Positive Voltage
F WH 81 Driver Mirror Motor Right Control
G YE 88 Driver Mirror Motor Up Control
H L-GN 1499 Driver Mirror Motor Left/Down Control
Roof/Door Module C1 Terminal Identification

GM1372288Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1318747-1
  • 32-Way F 025 Series (WH)
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 D-GN/WH 1135 A/T Shift Lock Control Solenoid Control Voltage
4 GY 6137 A/C Request Signal
5 L-BU 2288 Class 2 Serial Data
6 RD 931 Power Window Return Signal
7 L-BU 915 Power Window Left Position Sensor 2
8 L-GN 916 Power Window Left Position Sensor 1
9 L-GN 927 Power Window Left Position Sensor 2
10 L-BU 926 Power Window Left Position Sensor 1
11-13 - - Not Used
14 L-GN 2763 Power Window Motor Left Up Control
15 OG 2764 Power Window Motor Left Down Control
16 L-BU 166 Power Window Motor Right Up Control
17 TN 167 Power Window Motor Right Down Control
18 OG 110 Retractable Roof Switch Up Signal
19 BN 100 Retractable Roof Switch Down Signal
20 - - Not Used
21 GY/BK 745 Left Front Door Ajar Signal
22 L-GN/BK 394 Door Handle Switch Signal - LF
23 L-GN 262 Driver Door Key Switch Signal
24 BK/WH 746 Right Front Door Ajar Signal
25 L-BU 395 Door Handle Switch Signal - RF
26 L-GN 265 Passenger Door Key Switch Signal
27 WH 906 Retractable Roof Panel Outer Latch Latched Signal
28 YE 903 Retractable Roof Panel Outer Latch Unlatched Signal
29 L-GN 901 Rear Compartment Present Switch Signal
30 - - Not Used
31 D-BU 907 Retractable Roof Panel Outer Latch Striker Aligned Signal
32 L-BU 908 Retractable Roof Panel Outer Latch Striker Disengaged Signal
Roof/Door Module C2 Terminal Identification

GM1372289Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 929504-5
  • 14-Way F (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK 905 Retractable Roof Panel Outer Latch Actuator Control
3 - - Not Used
4 D-BU 164 Power Window Motor Left Front Up Control
5 OG 1840 Battery Positive Voltage
6 D-BU 666 Power Window Motor Right Front Down Control
7 OG 1340 Battery Positive Voltage
8 BN 165 Power Window Motor Right Front Up Control
9 - - Not Used
10 BN 165 Power Window Motor Left Front Down Control
11 - - Not Used
12 D-BU 904 Retractable Roof Panel Outer Latch Actuator Control
13 BK 1450 Ground
14 - - Not Used
Roof/Door Module C3 Terminal Identification

GM1283124Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 929504-3
  • 8-Way F (BK)
Pin Wire Color Circuit No. Function
1 WH 34 Retractable Roof Valve 1 Control
2 D-BU 35 Retractable Roof Valve 2 Control
3 L-BU 36 Retractable Roof Valve 3 Control
4 D-GN 37 Retractable Roof Motor Left Relay Control
5 L-GN 38 Retractable Roof Motor Right Relay Control
6 TN 33 Rear Compartment Lid Release Relay Signal
7 RD/GN 32 Retractable Roof Valve 4 Control
8 - - Not Used
Roof/Door Module C4 Terminal Identification

GM1372291Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1318917-1
  • 24-Way F 025 Series (WH)
Pin Wire Color Circuit No. Function
1 RD 1 12-Volt Reference
2 D-GN 2 Stowage Compartment LID Position Sensor Signal
3 TN 3 Roof Extended Position Sensor Signal
4 BN 4 Roof Retracted Position Sensor Signal
5 BU/WH 5 Stowage Compartment Position Sensor Signal
6 D-GN/WH 6 Stowage Compartment LID - Right Position Sensor Signal
7 PU 7 NTC Thermistor Signal
8 GY 8 Stowage Compartment Closeout Position Sensor Extended Signal
9 BK/WH 9 Stowage Compartment Closeout Position Sensor Retracted Signal
10 - - Not Used
11 BN/WH 11 Stowage Compartment LID - Left Position Sensor Signal
12 - - Not Used
13 TN 13 Rear Compartment Lid Release Switch Interior Signal
14 WH 14 Rear Compartment Ajar Switch Signal
15-24 - - Not Used

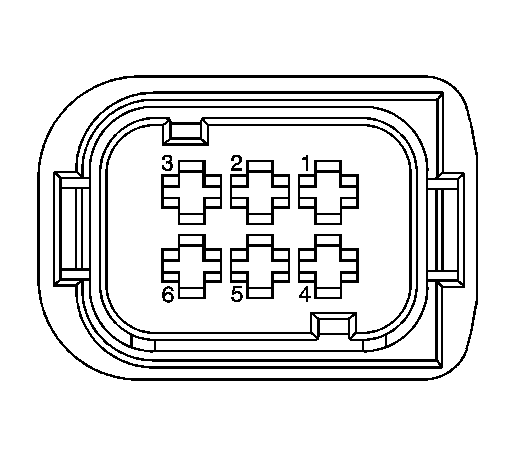

Window Motor Terminal Identification - Driver

GM1401415Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1-967332-1
  • 6-Way F MQS SLD (BK)
Pin Wire Color Circuit No. Function
1 BK 1350 Ground
2 L-GN 916 Power Window Motor Left Front Down Control
3 BN 165 Power Window Left Position Sensor 1 Signal
4 RD 931 Power Window Return Signal
5 L-BU 915 Power Window Left Position Sensor 2 Signal
6 D-BU 164 Power Window Motor Left Front Up Control
Window Motor Terminal Identification - Passenger

GM1401415Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1-967332-1
  • 6-Way F MQS SLD (BK)
Pin Wire Color Circuit No. Function
1 BK 1450 Power Window Return Signal
2 L-GN 927 Power Window Right Position Sensor 2 Signal
3 BN 667 Power Window Motor Right Front Up Control
4 RD 931 Ground
5 L-BU 926 Power Window Right Position Sensor 1 Signal
6 D-BU 666 Power Window Motor Right Front Down Control
