Removal Procedure

  1. Remove the side front door trim panel. Refer to Trim Panel Replacement - Door .
  2. Remove the front water deflector. Refer to Water Deflector Replacement - Front Door .

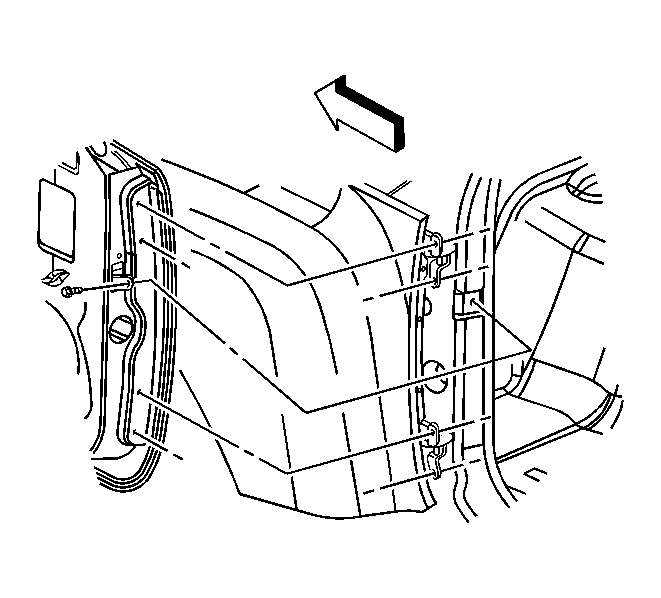

    3. Fig 1: View of Check Link to Pillar Fastener
    GM1275563Courtesy of GENERAL MOTORS CORP.
  3. Remove the fastener that retains the door check link to the pillar.

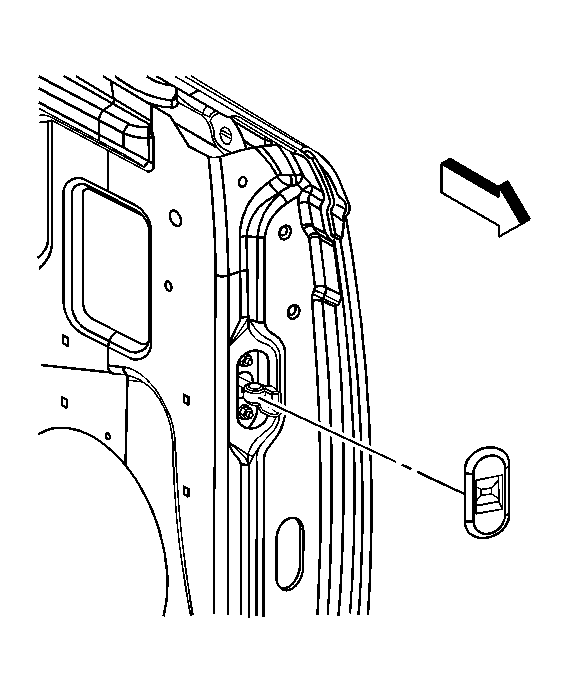

    4. Fig 2: View of Rubber Dust Boot
    GM1275560Courtesy of GENERAL MOTORS CORP.
  4. Remove the rubber dust boot from the door check link in order to gain access to the door retaining fasteners.

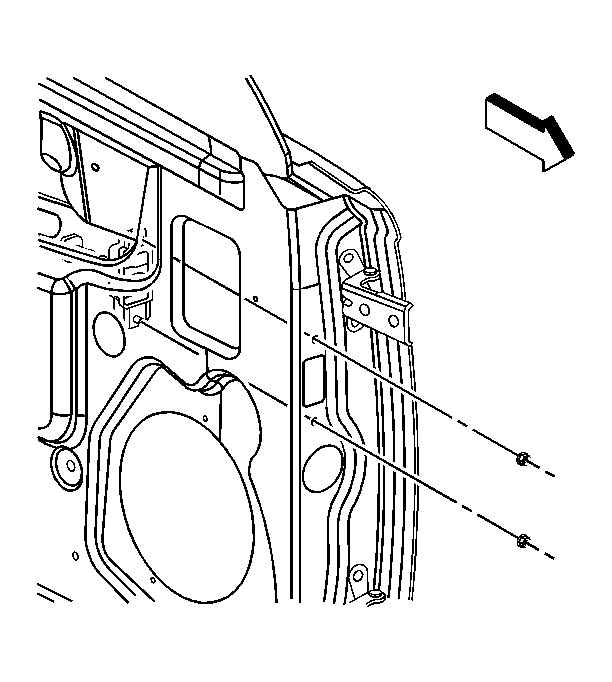

    5. Fig 3: View of Door Check Link Retaining Fasteners
    GM1275564Courtesy of GENERAL MOTORS CORP.
  5. Remove the door check link retaining fasteners from the door.
  6. Remove the door check link assembly through the door access hole.
