Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Door .
    2. Fig 1: Identifying Bezel
    GM1335843Courtesy of GENERAL MOTORS CORP.
  2. Release the locking tabs (1) on the bezel from the inside of the door trim panel.

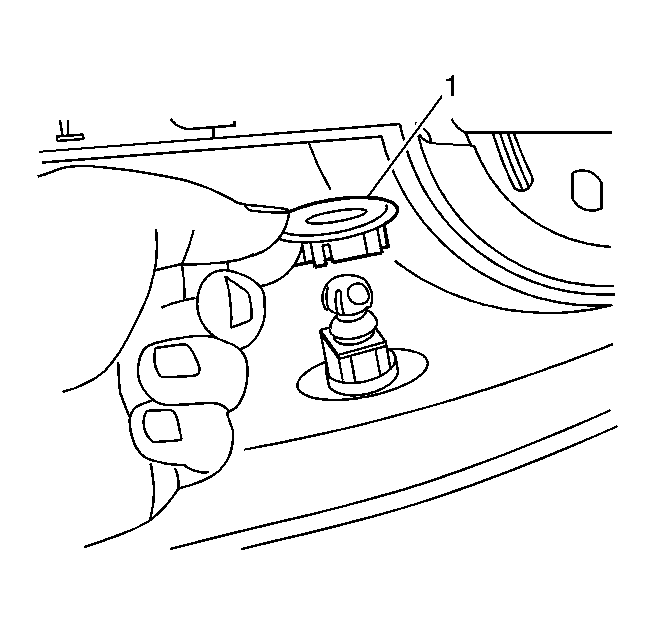

    3. Fig 2: Identifying Power Mirror Switch Bezel
    GM1335845Courtesy of GENERAL MOTORS CORP.
  3. Remove the power mirror switch bezel (1).

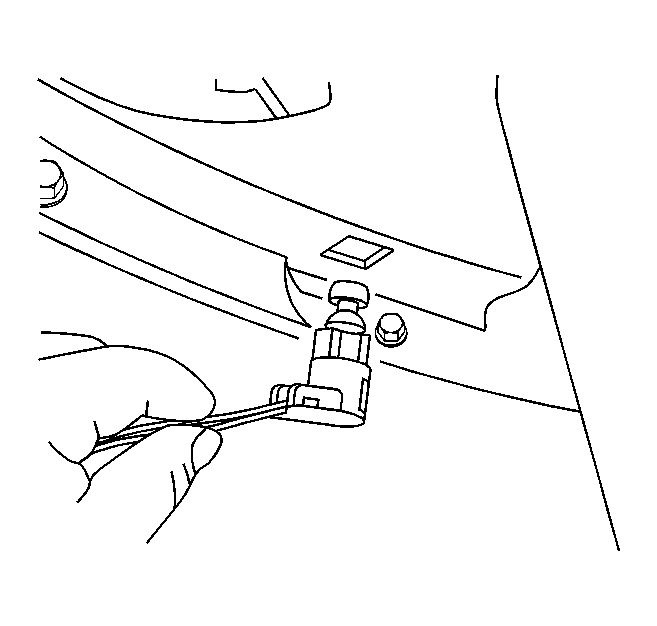

    4. Fig 3: View of Power Mirror Switch
    GM1335846Courtesy of GENERAL MOTORS CORP.
  4. Remove the power mirror switch from the door.
  5. Disconnect the electrical connector.
