Installation Procedure

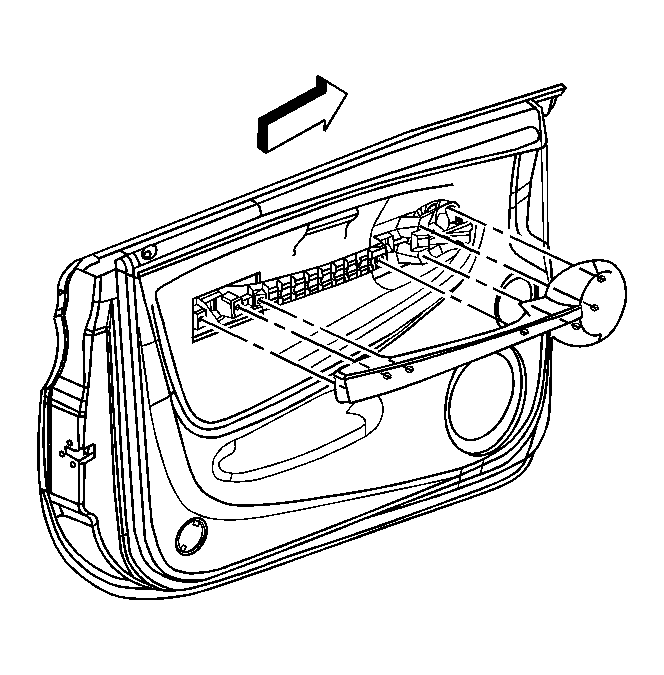

    Fig 1: View of Pull Handle Bezel
    GM1150212Courtesy of GENERAL MOTORS CORP.
  1. Install the pull handle bezel.

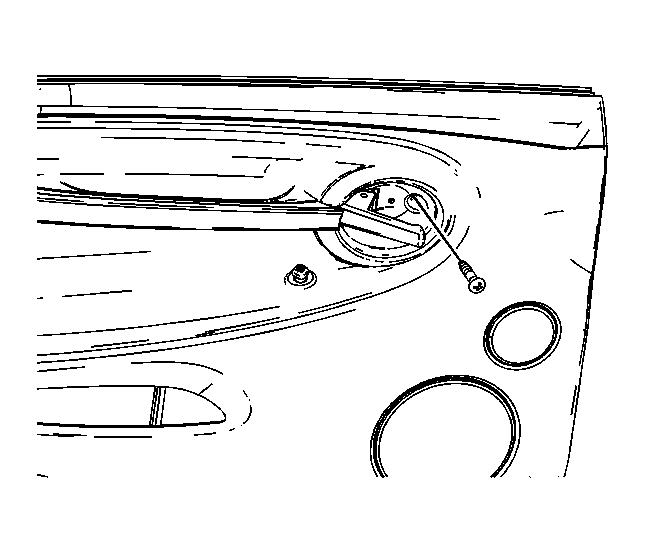

    2. Fig 2: Identifying Pull Handle Bezel Fastener
    GM1276286Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the pull handle bezel fastener.

    Tighten:  Tighten the fasteners to 2 N.m (18 lb in).

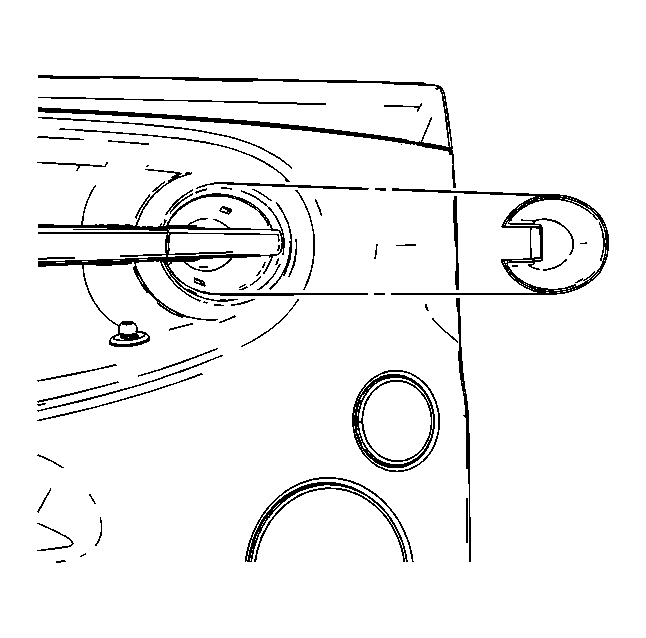

    3. Fig 3: View of Door Handle Bezel
    GM1276297Courtesy of GENERAL MOTORS CORP.
  3. Install the door handle bezel to the door trim panel.
