Adjustment Procedure

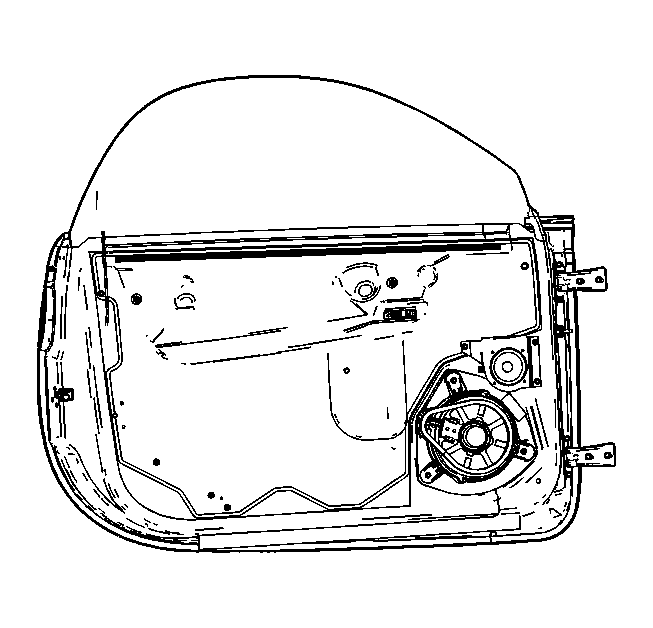

    Fig 1: Raised Window
    GM1325789Courtesy of GENERAL MOTORS CORP.
  1. Position the window to fully up.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Door .
    3. Fig 2: View Of Inner Door Panel Protector
    GM1275116Courtesy of GENERAL MOTORS CORP.
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .

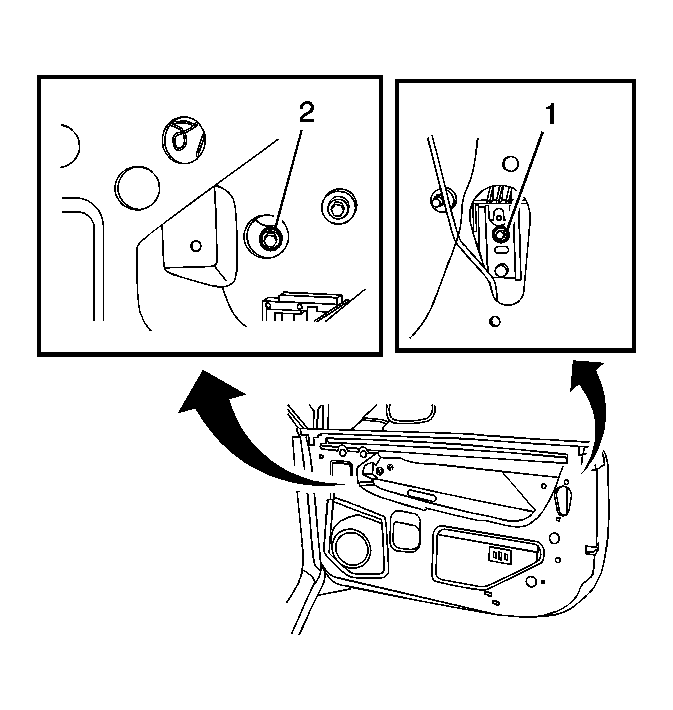

    4. Fig 3: Identifying Front & Rear Window Clamp Bolts
    GM1454936Courtesy of GENERAL MOTORS CORP.
  4. While sitting in the vehicle, close the door to fully raise the window.
  5. Loosen the front (2) and rear (1) window clamp bolts.

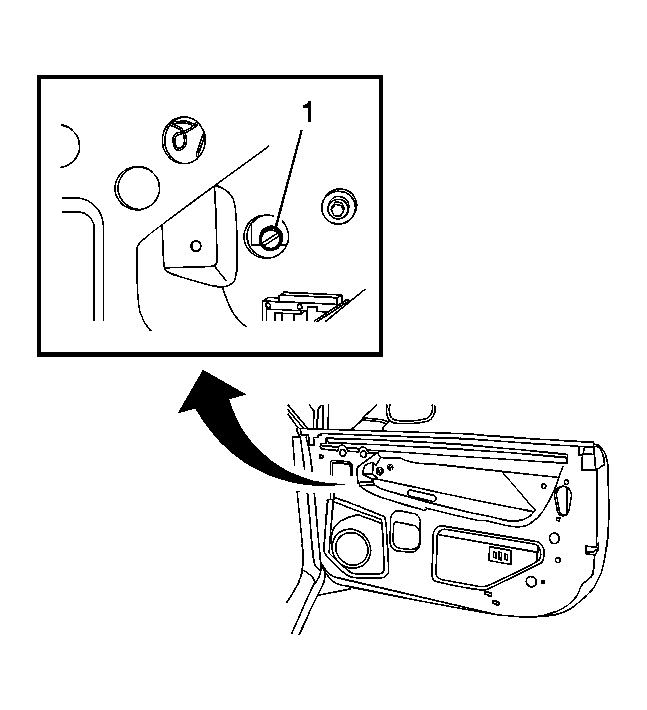

    6. Fig 4: Identifying Adjustment Screw
    GM1454934Courtesy of GENERAL MOTORS CORP.
  6. Open the door to index the window down.
  7. To adjust the passenger side door window fore/aft, turn the adjustment screw (1), located in the front access hole.

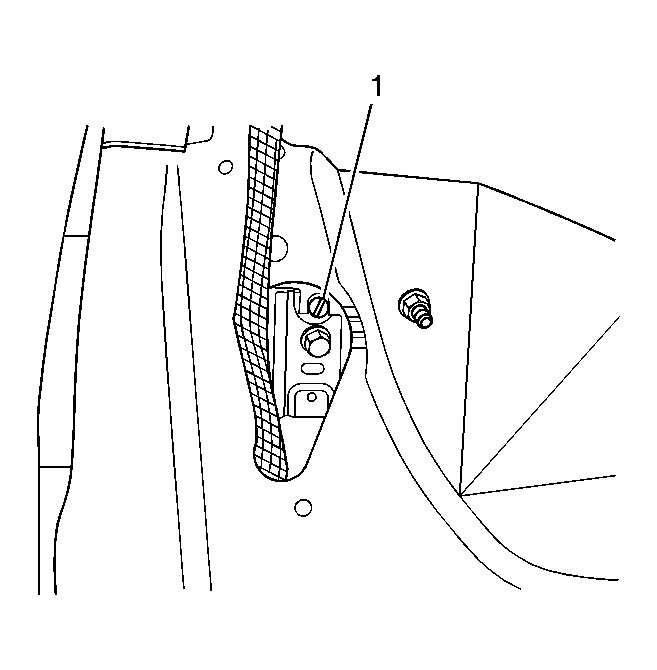

    8. Fig 5: Identifying Adjustment Screw
    GM1325787Courtesy of GENERAL MOTORS CORP.
  8. To adjust the driver side door window fore/aft, turn the adjustment screw (1), located in the rear access hole.
    9. Fig 6: Identifying Front & Rear Window Clamp Bolts
    GM1454936Courtesy of GENERAL MOTORS CORP.
  9. While sitting in the vehicle, close the door to fully raise the window.
    10. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  10. Tighten the front (2) and rear (1) window clamp bolts.

    Tighten:  Tighten the window clamp bolts to 10 N.m (89 lb in).

    11. Fig 7: View Of Inner Door Panel Protector
    GM1275116Courtesy of GENERAL MOTORS CORP.
  11. Install the water deflector. Refer to Water Deflector Replacement - Front Door .
  12. Install the door trim panel. Refer to Trim Panel Replacement - Door .
