Removal Procedure

  1. Remove the side front door trim panel. Refer to Trim Panel Replacement - Door .

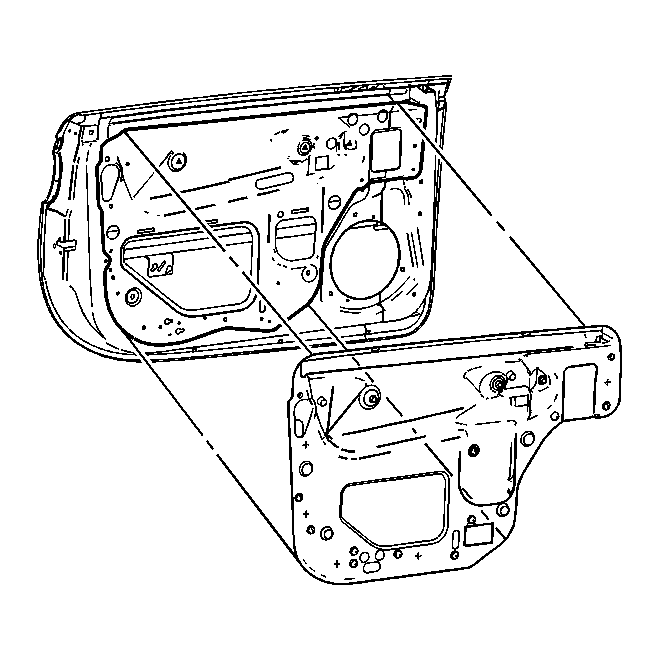

    2. Fig 1: View Of Inner Door Panel Protector
    GM1275116Courtesy of GENERAL MOTORS CORP.
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the door window. Refer to Window Replacement - Door .

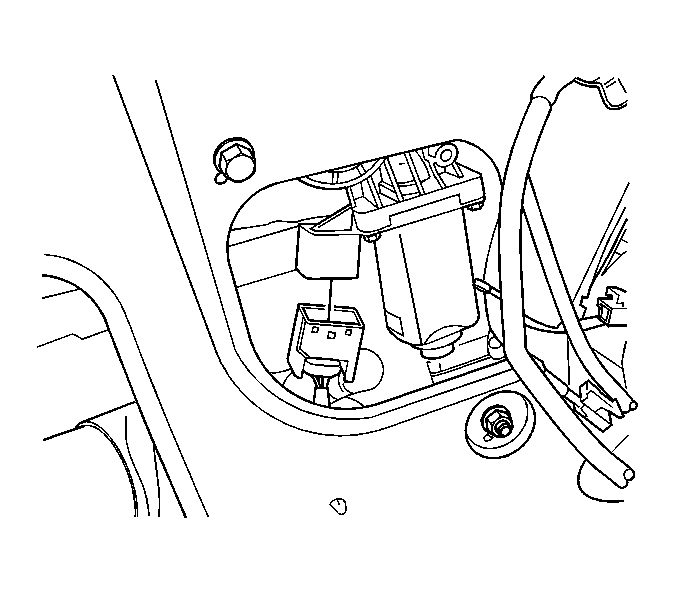

    4. Fig 2: View of Regular Motor Electrical Connector
    GM1325786Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the window regulator electrical connector.

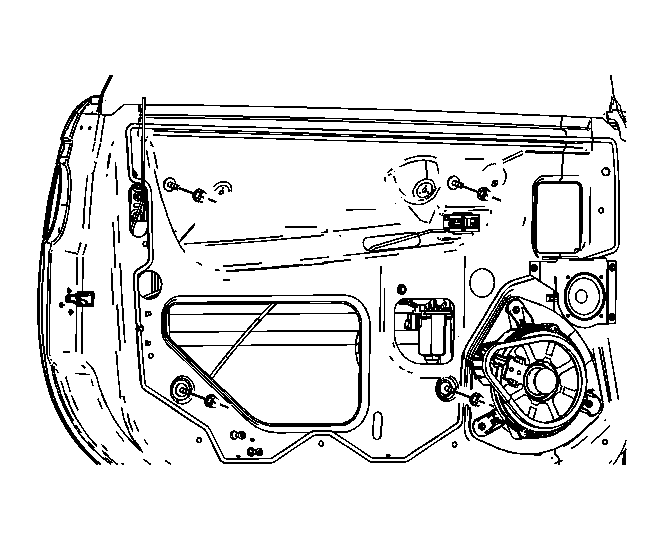

    5. Fig 3: View of Window Regulator Assembly
    GM1325781Courtesy of GENERAL MOTORS CORP.
  5. Remove the nuts from the window regulator.
  6. Remove the window regulator assembly from the door by folding both sides together.

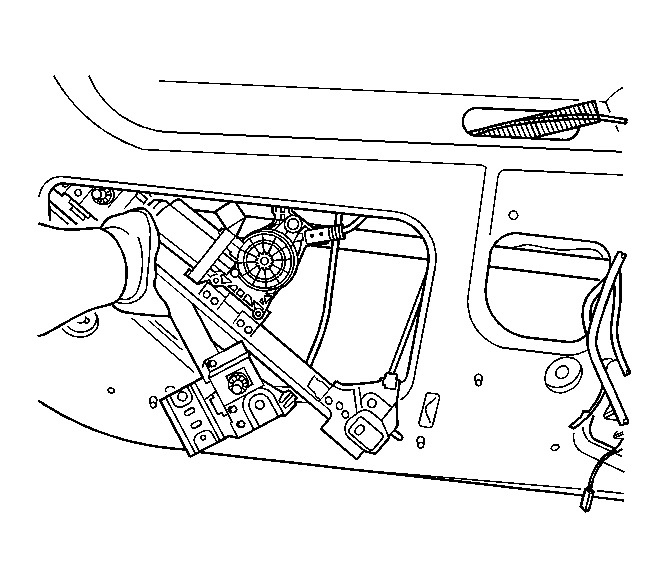

    7. Fig 4: Installing Regulator Through Opening in Door
    GM1325783Courtesy of GENERAL MOTORS CORP.
  7. Remove the regulator from the door through the opening in the door.
