Outside Mirror Schematics

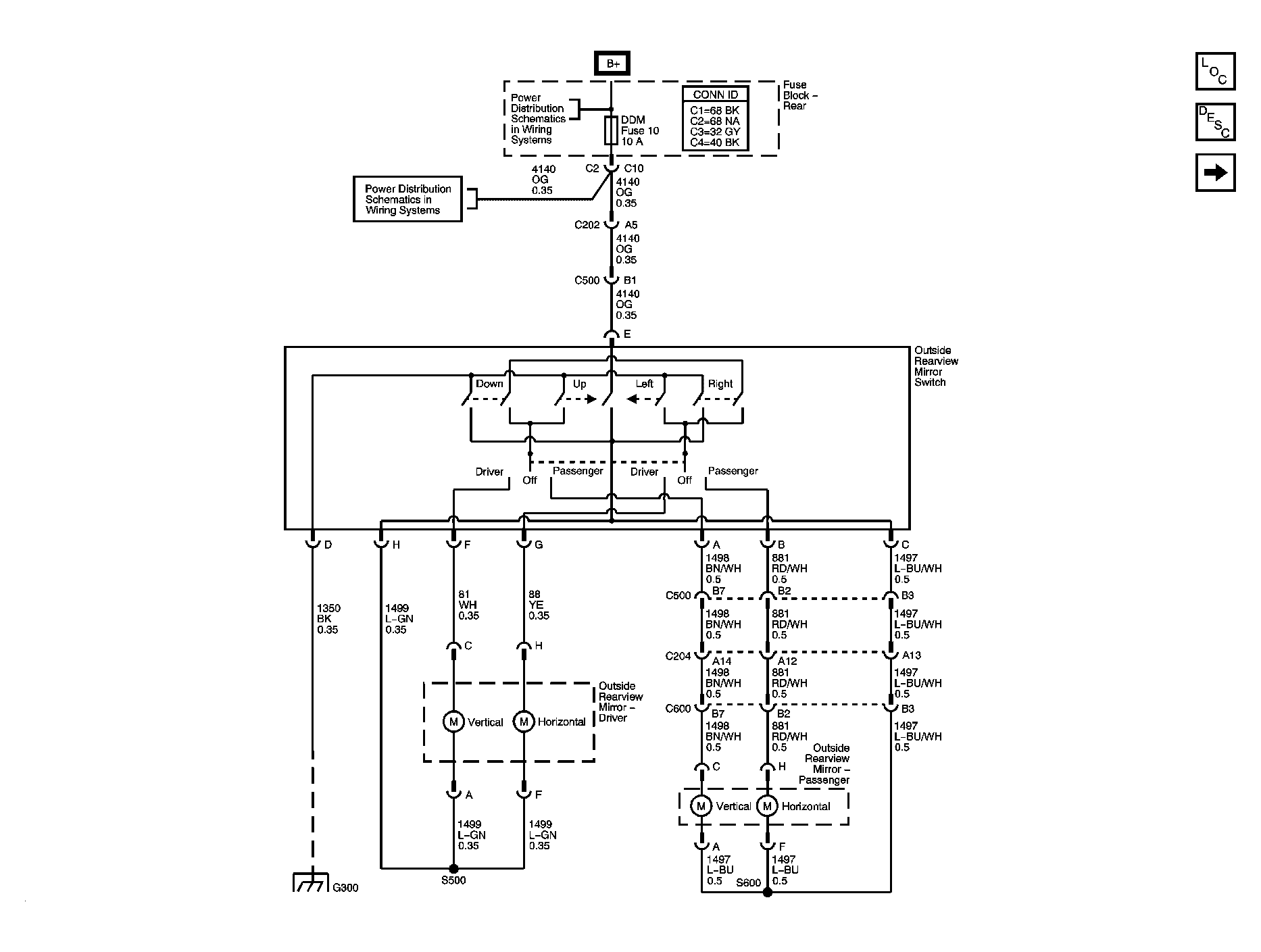

Fig 1: Power Mirrors Schematic
GM1219273Courtesy of GENERAL MOTORS CORP.
Fig 2: Heated Mirrors Schematic
GM1219275Courtesy of GENERAL MOTORS CORP.
