Stationary Windows Component Views

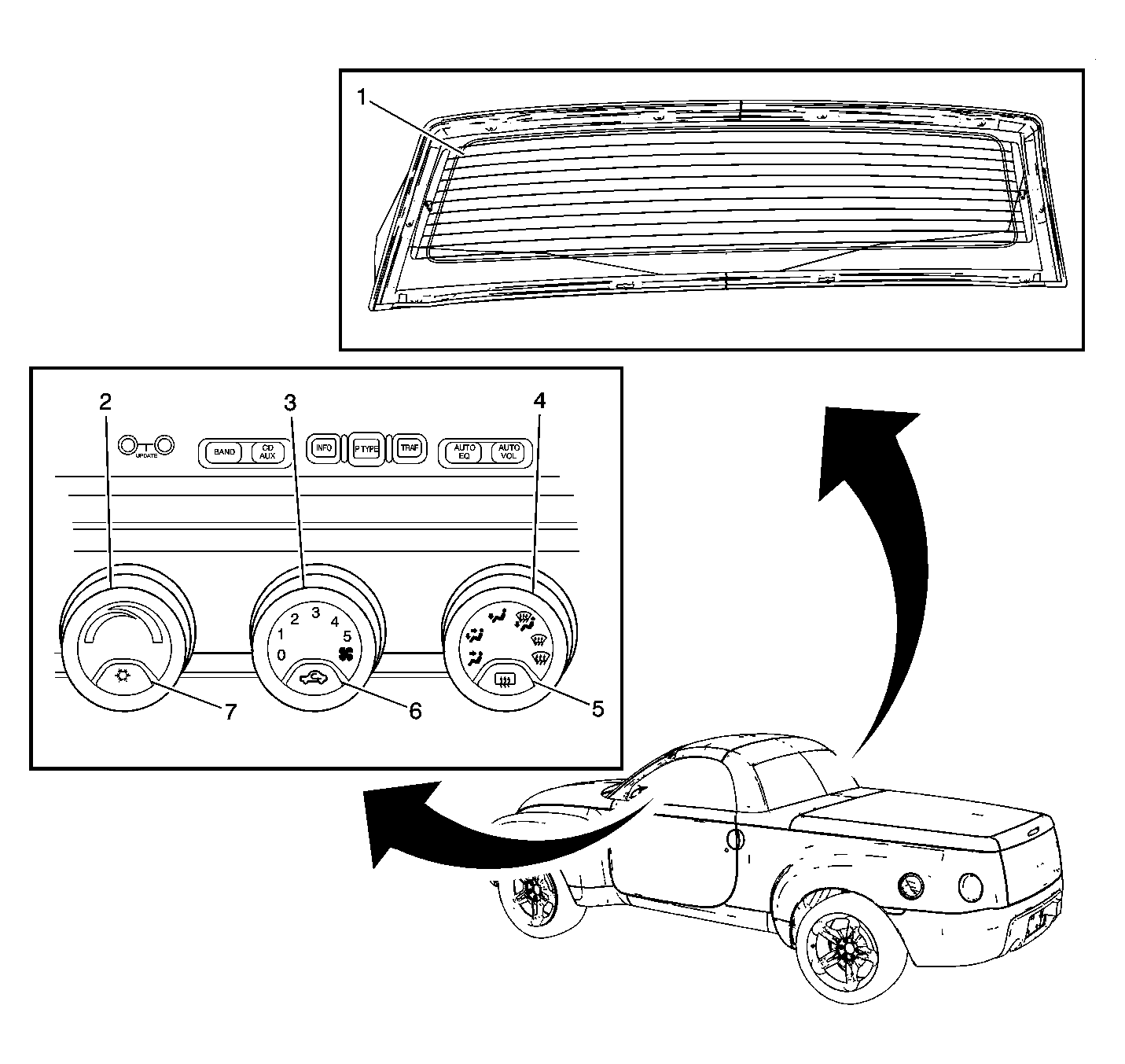

| Callout | Component Name |
|---|---|
| 1 | Rear Window Defogger Grid |
| 2 | Temperature Switch |
| 3 | Blower Motor Switch |
| 4 | Mode Switch |
| 5 | Rear Defrost Switch |
| 6 | Recirc Switch |
| 7 | A/C Switch |

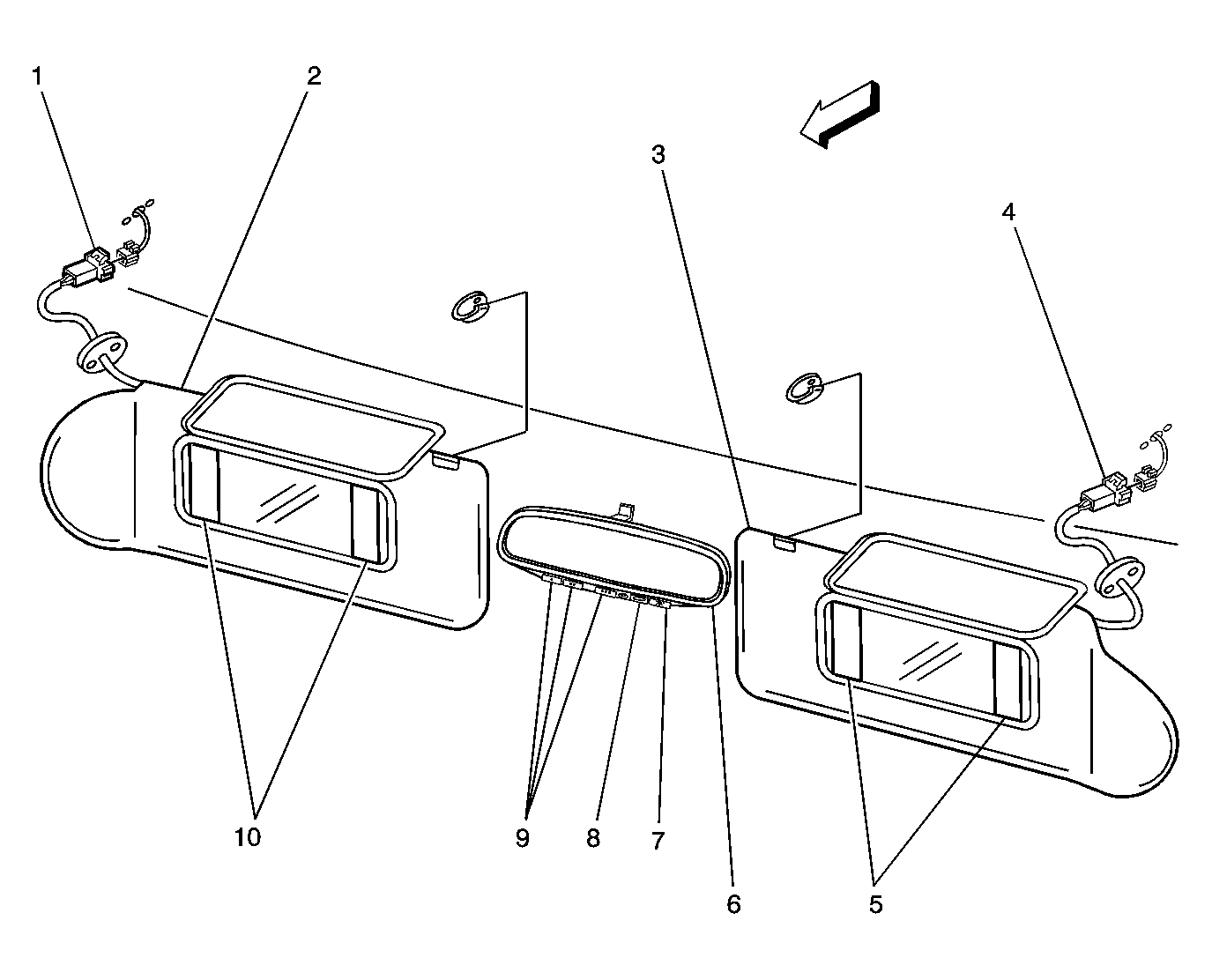

| Callout | Component Name |
|---|---|
| 1 | Vanity Mirror Lamp - Left Connector |
| 2 | Left Sunshade |
| 3 | Right Sunshade |
| 4 | Vanity Mirror Lamp - Right Connector |
| 5 | Vanity Mirror Lamp - Right |
| 6 | Inside Rearview Mirror |
| 7 | Reading Lamp Switch |
| 8 | Electrochromic Mirror On/Off Switch |
| 9 | Garage Door Opener |
| 10 | Vanity Mirror Lamp - Left |
