Rearview Mirror Support Installation

Tools Required

• Inside Mirror Adhesive Kit GM P/N 1052369 (Canadian P/N 993362), or equivalent
• Safety Razor or Utility Knife

1. Determine the location of the mirror mounting base by marking the outside of the windshield with a marking pencil where the base was previously located. If it is not clear where the base was mounted, use the following steps to determine where the base should be installed:

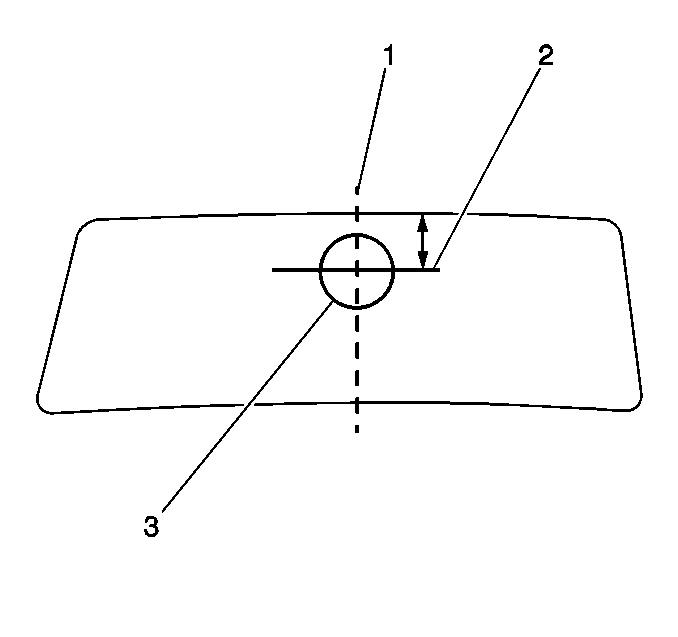

   Fig 1: Identifying Mirror Mounting Base Location
   Courtesy of GENERAL MOTORS CORP.
   1. Using a measuring tape, measure the distance between the windshield pillars from the base of the shade line.
   2. Using a marking pencil, halfway between the windshield pillars, draw a centerline (1) on the windshield from the roof panel to the windshield base.
   3. Draw a perpendicular line intersecting the centerline (2) at that location.

      The top center of the mirror mounting base will be at the intersection of these lines.

2. Scrape the inside windshield thoroughly with a safety razor or utility knife in order to remove all old adhesive.
3. If reinstalling the original mounting base, place the mirror mounting base in a suitable holding device, such as a vise.
4. Clean the mirror mounting base thoroughly with a safety razor or utility knife in order to remove all old adhesive.
5. Clean the inside windshield and the mounting surface of the mirror mounting base thoroughly with a clean cloth saturated with naphtha or a 50/50 mixture (by volume) of clean water and isopropyl alcohol.

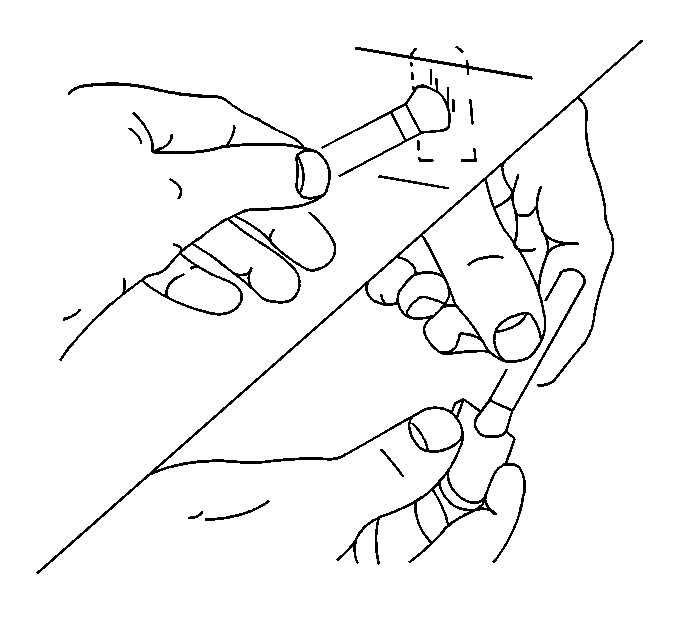

Fig 2: Applying Adhesive To Mirror Base & Window
Courtesy of GENERAL MOTORS CORP.
6. Use Inside Mirror Adhesive Kit GM P/N 1052369 (Canadian P/N 993362), or equivalent, to apply a small amount of activator to the mounting surface of the mirror mounting base.
7. Apply a small amount of activator to the windshield where the mounting base is to be installed.
8. Allow the activator to dry 5 minutes.
IMPORTANT: Do not touch the mounting surface of the mirror mounting base or the window.
9. Apply 1 drop of adhesive to the center of the mirror mounting base.

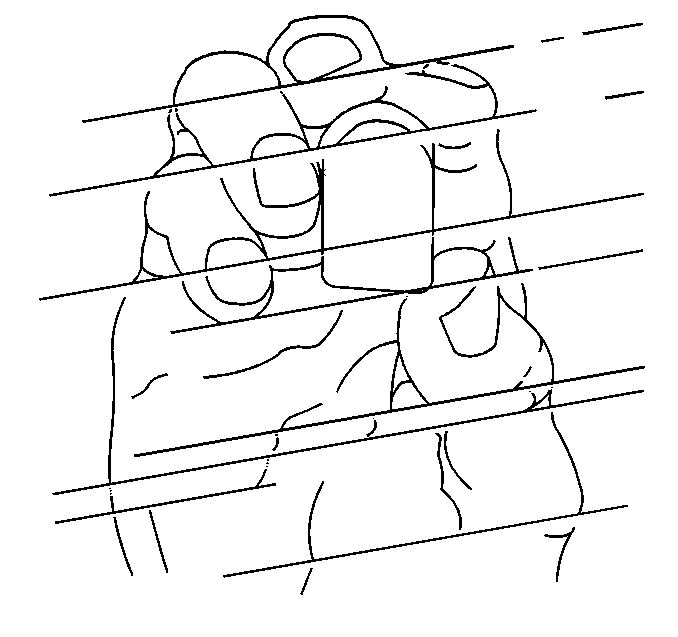

Fig 3: Installing Mirror Mounting Base
Courtesy of GENERAL MOTORS CORP.
10. Immediately apply the mounting base to the windshield, ensuring that the mounting base aligns correctly to the marks made on the outside of the windshield.
11. Hold the mounting base firmly in place for 1 minute.
12. Allow the adhesive to set for 15 minutes.
13. Install the mirror to the mirror mounting base and fasten, if necessary.
14. Connect the electrical connector and install the wire cover, if equipped.
