ABS Component Views

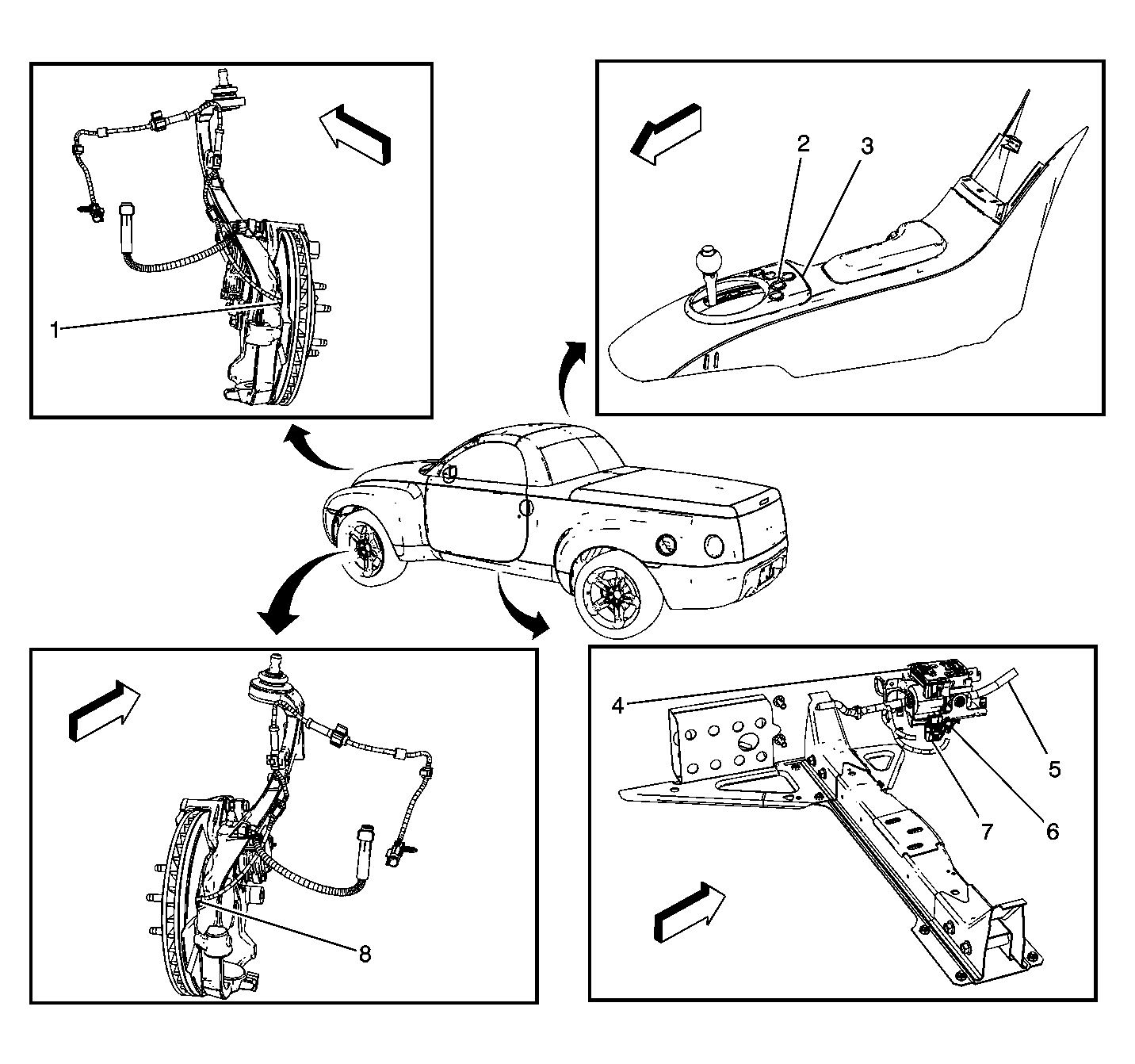

Fig 1: ABS Components - Sensors, Module and Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - RF
2	Traction ON/OFF Switch
3	Center Console Switch Assembly
4	Electronic Brake Control Module (EBCM)
5	Chassis Harness
6	Electronic Brake Control Module (EBCM) Connector C1
7	Electronic Brake Control Module (EBCM) Connector C2
8	Wheel Speed Sensor (WSS) - LF
