Installation Procedure

IMPORTANT: Do not reuse the old mounting screws. Always install new mounting screws with the new EBCM.

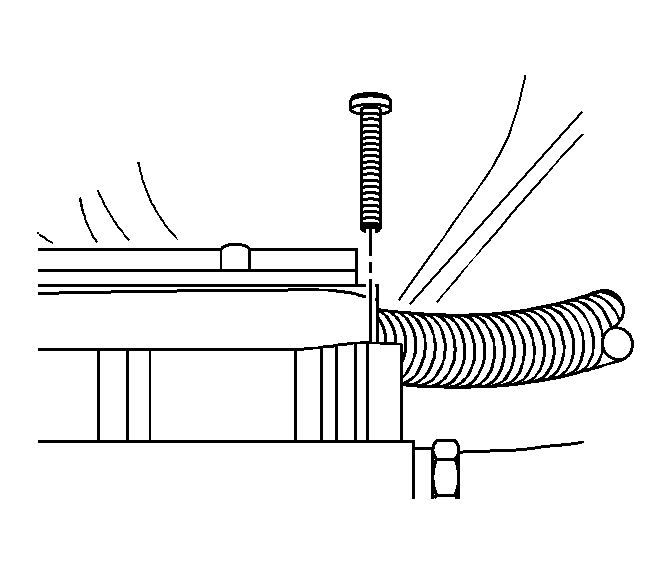

    Fig 1: EBCM Mounting Screws
    GM778153Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not use RTV or any other type of sealant on the EBCM gasket or mating surfaces.
  1. Install EBCM on to the BPMV.
    2. NOTE: Refer to COMPONENT FASTENER TIGHTENING NOTICE in Cautions and Notices.
  2. Install the 4 new T-25 TORX® screws in the EBCM.

    Tighten:  Tighten the 4 T-25 TORX® screws to 5 N.m (39 lb in) in an X-pattern.

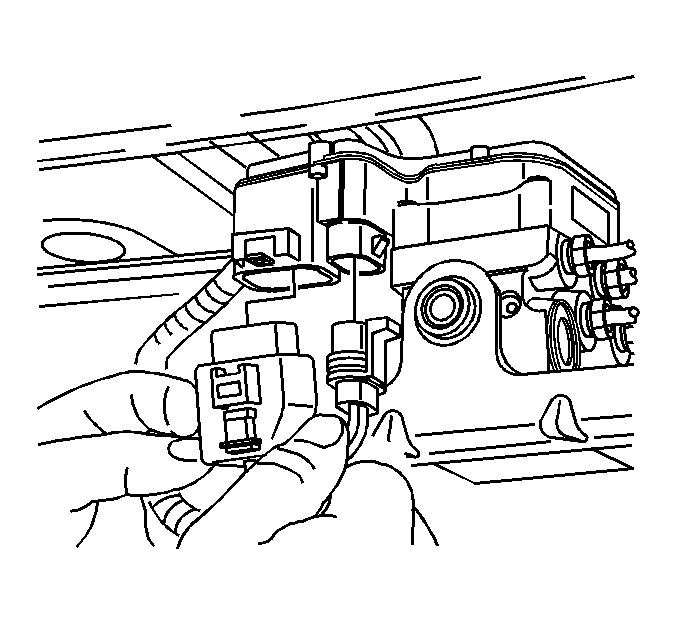

    3. Fig 2: EBCM Side Connectors
    GM777346Courtesy of GENERAL MOTORS CORP.
  3. Install the 2 electrical connectors on the side of the EBCM.

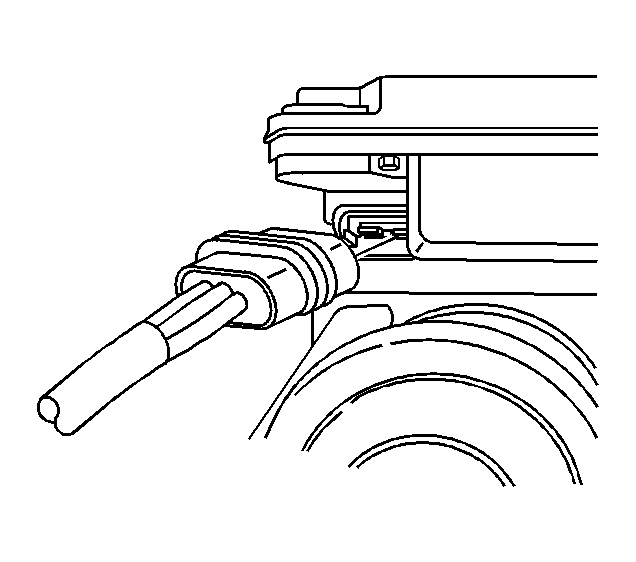

    4. Fig 3: EBCM Back Connector
    GM778100Courtesy of GENERAL MOTORS CORP.
  4. Install the electrical connector on the back of the EBCM.
  5. Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  6. Revise the tire calibration using the Scan Tool Tire Size Calibration function.
