Installation Procedure

Fig 1: View of Shift Bezel Switch Assembly

Courtesy of GENERAL MOTORS CORP.

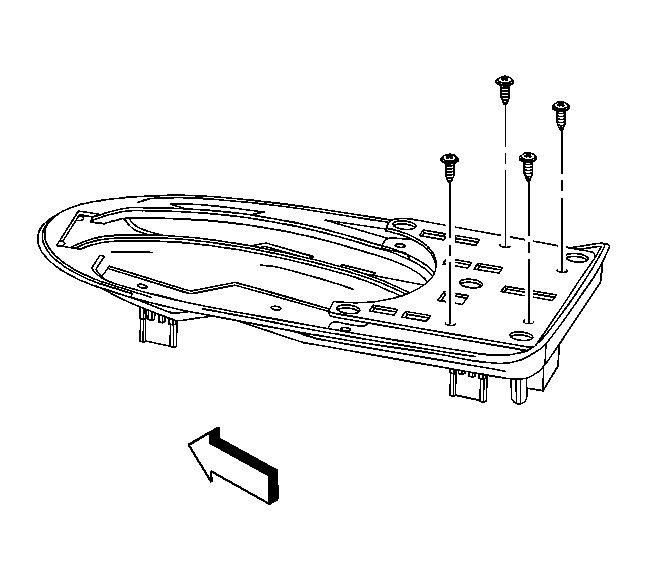

Fig 2: Identifying Shift Bezel Switch Assembly Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the shift bezel switch assembly screws.
Tighten: Tighten the fasteners to 2 N.m (18 lb in).

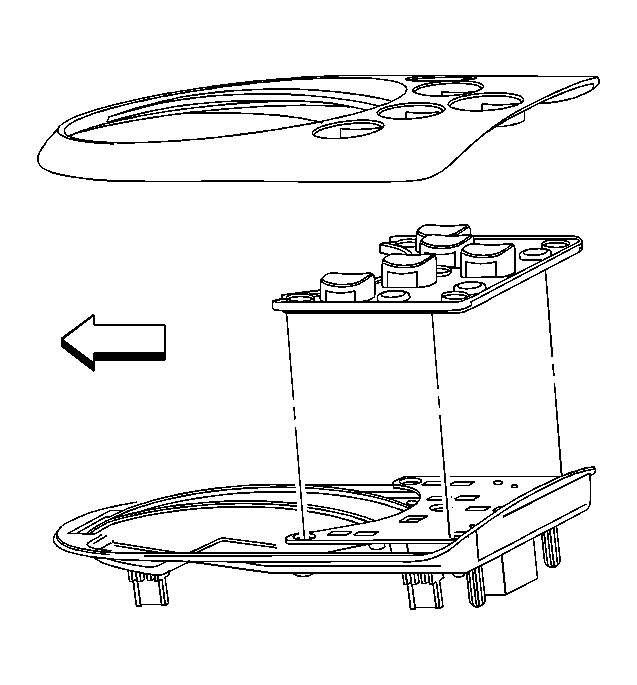

Fig 3: View of Shift Bezel Switch Membrane

Courtesy of GENERAL MOTORS CORP.

Fig 4: View of Console Shift Bezel

Courtesy of GENERAL MOTORS CORP.

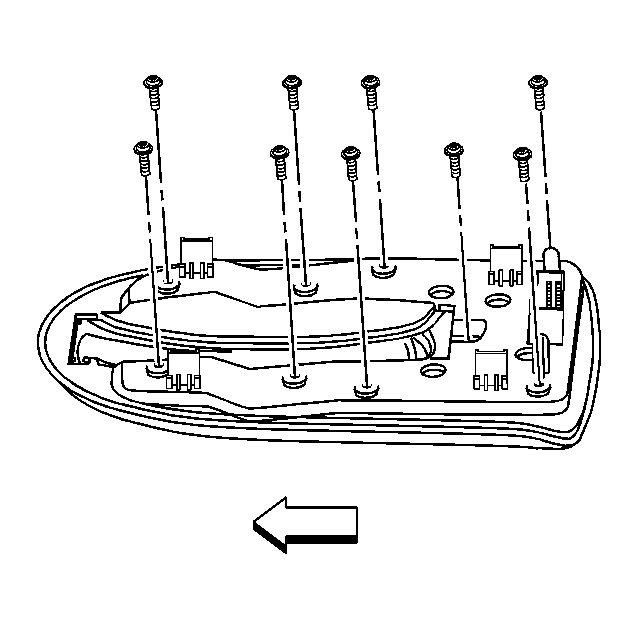

Fig 5: Identifying Console Shift Bezel Fasteners

Courtesy of GENERAL MOTORS CORP.

Install the console shift bezel fasteners.
Tighten: Tighten the fasteners to 2 N.m (18 lb in).
Install the console shift lever bezel to the console. Refer to Console Shift Lever Bezel Replacement in Instrument Panel, Gages and Console.
