Ground Distribution Schematics

Fig 1: G100, G102

GM1154940

Courtesy of GENERAL MOTORS CORP.

Fig 2: G101

GM1154974

Courtesy of GENERAL MOTORS CORP.

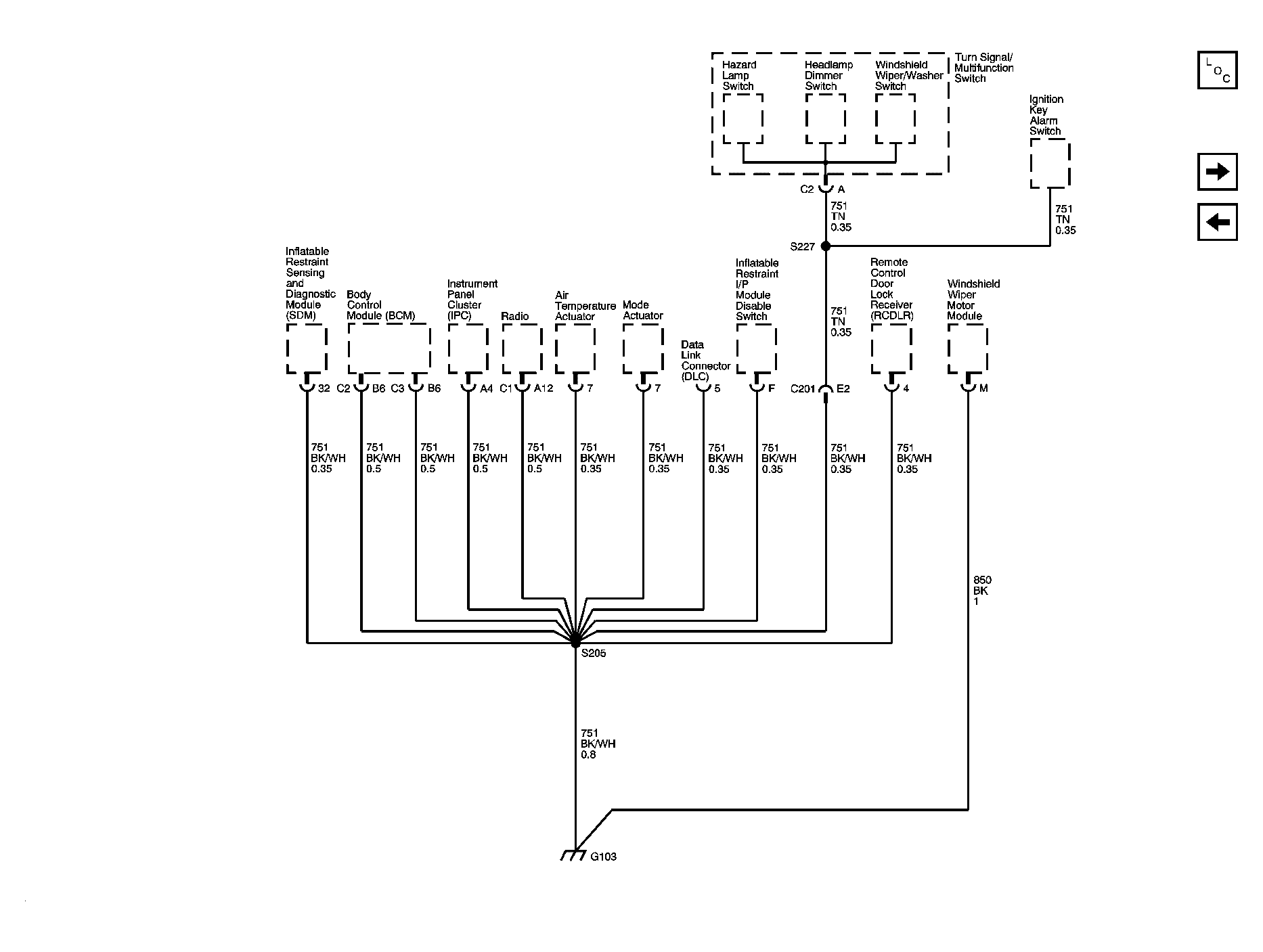

Fig 3: G103, G104

GM1155100

Courtesy of GENERAL MOTORS CORP.

Fig 4: G105

GM1155179

Courtesy of GENERAL MOTORS CORP.

Fig 5: G200

GM1155254

Courtesy of GENERAL MOTORS CORP.

Fig 6: G300

GM1155257

Courtesy of GENERAL MOTORS CORP.

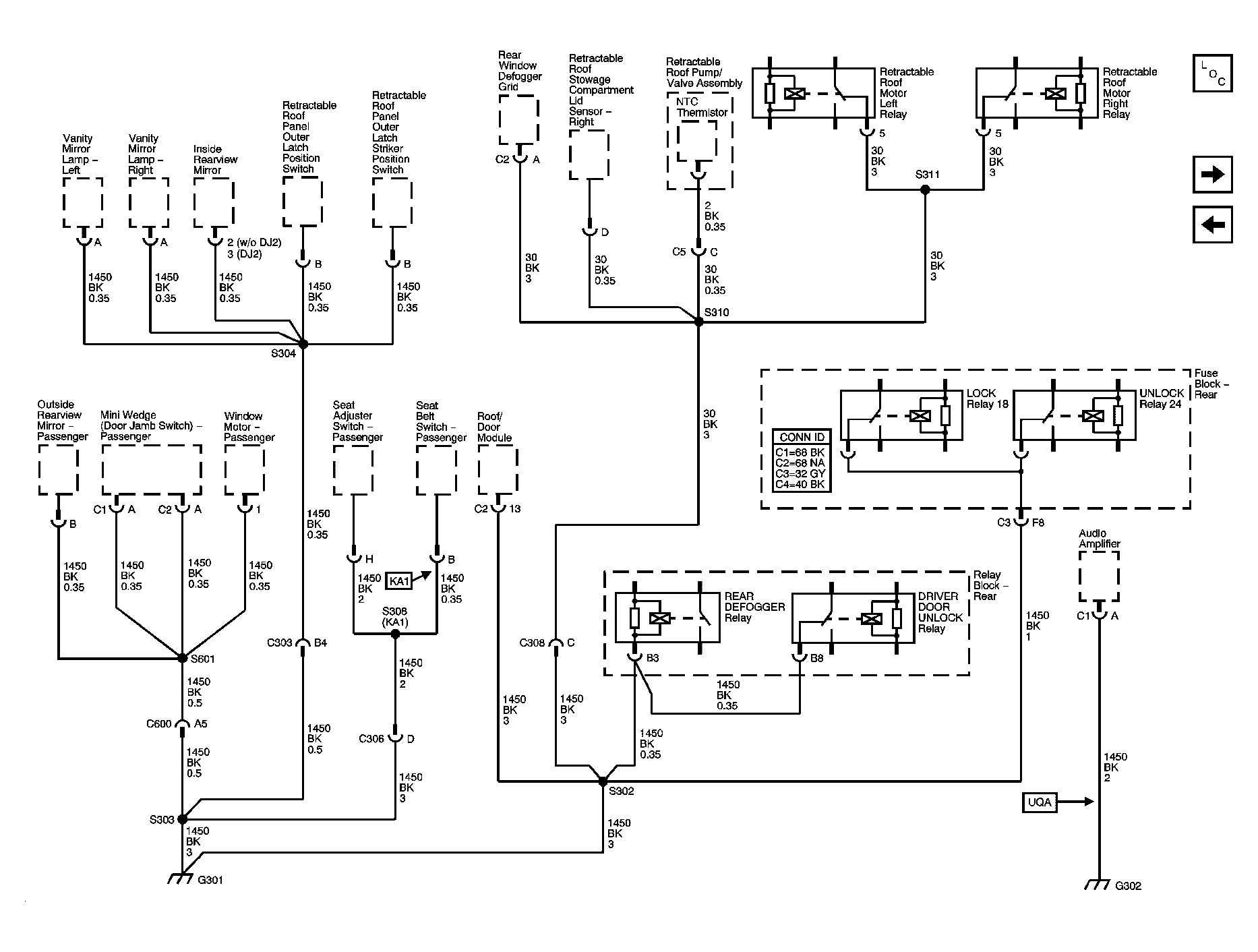

Fig 7: G301, G302

GM1155312

Courtesy of GENERAL MOTORS CORP.

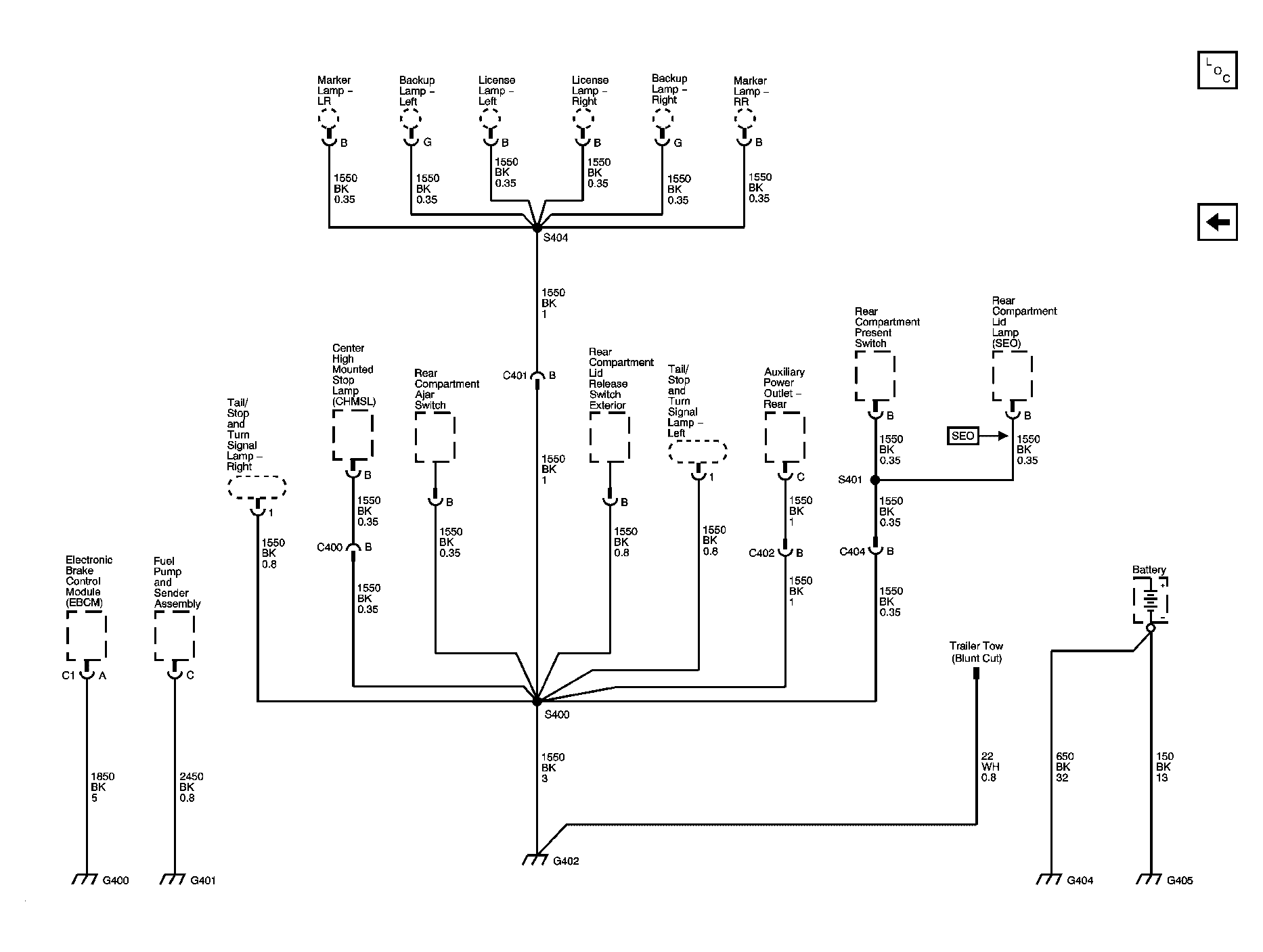

Fig 8: G400, G401, G402, G403, G404, G405

GM1155337

Courtesy of GENERAL MOTORS CORP.
