Engine Electrical Component Views

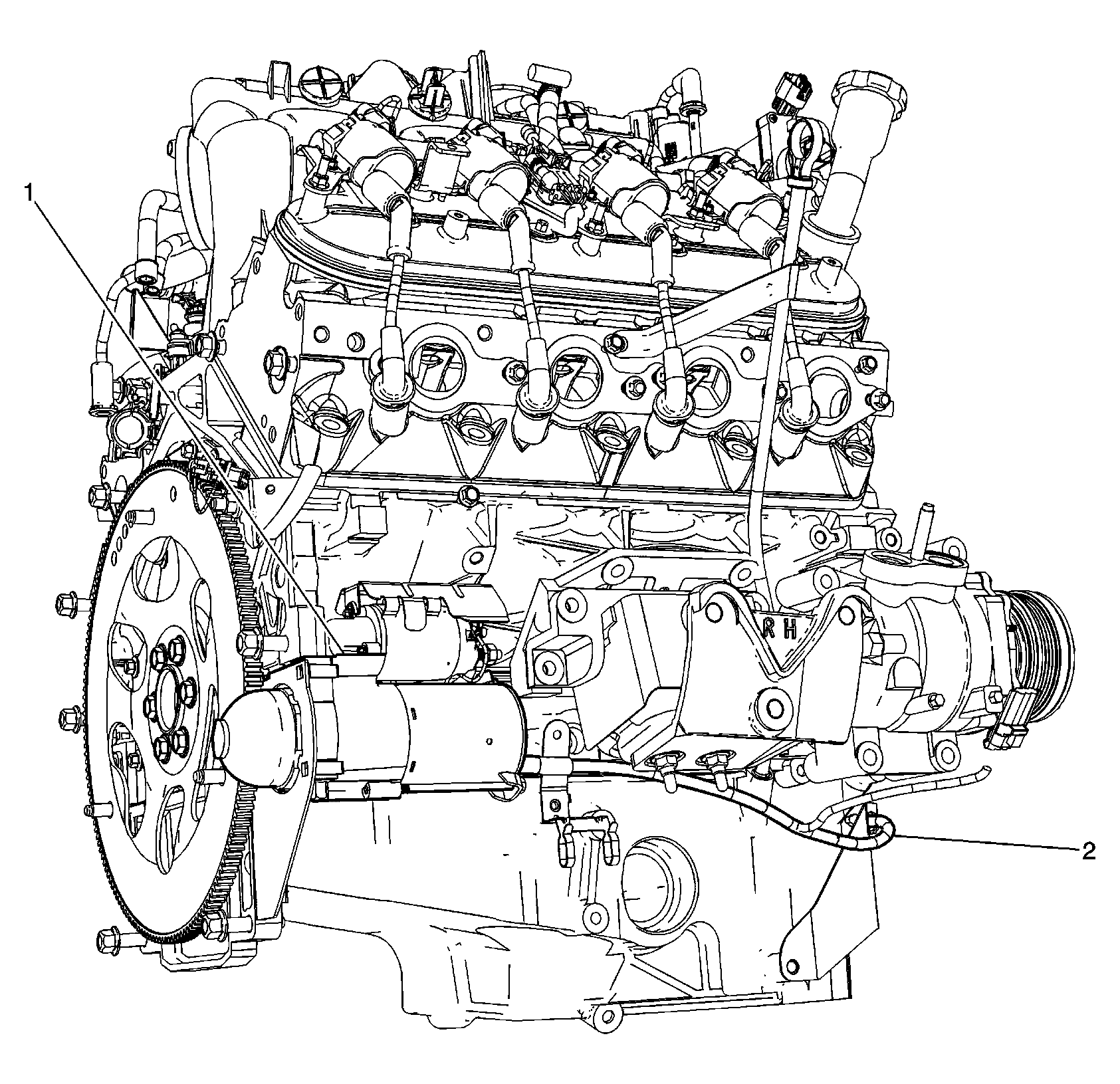

Fig 1: Starter Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter
2	Engine Harness

Fig 2: Generator Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injector 8
2	Manifold Absolute Pressure (MAP) Sensor
3	C115
4	Fuel Injector 7
5	Fuel Injector 5
6	Fuel Injector 3
7	Fuel Injector 1
8	Generator
9	Evaporative Emission (EVAP) Canister Purge Solenoid
10	Fuel Injector 2
11	Fuel Injector 4
12	Fuel Injector 6
