Installation Procedure

  1. Install the positive cable assembly into vehicle from the bottom of vehicle.
  2. Install the positive cable assembly to wire looms.

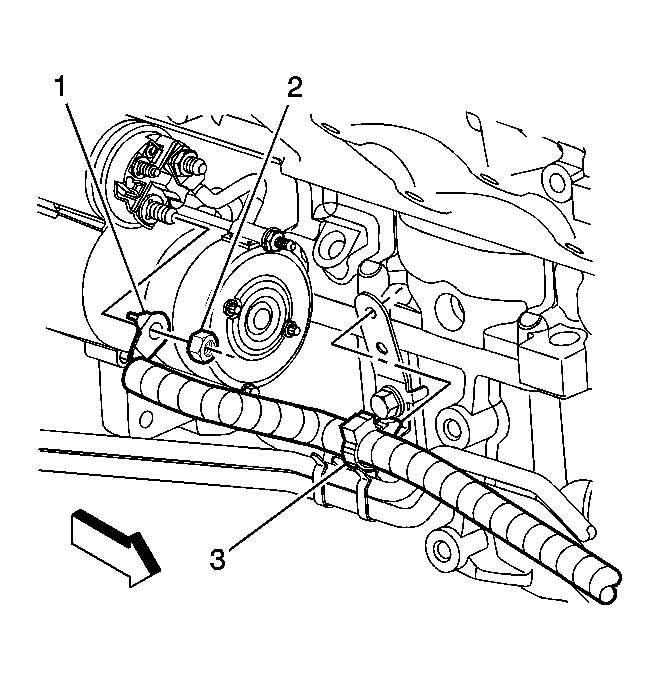

    3. Fig 1: Removing/Installing Positive Cable Lead From Starter
    GM899617Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the nut to retain positive cable to starter.

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

  4. Lower the vehicle.
    5. Fig 2: View Of Generator Cable & Nut
    GM395686Courtesy of GENERAL MOTORS CORP.
  5. Install the positive cable to rear of generator.

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

    6. Fig 3: View Of Underhood Bussed Electrical Center Positive Cable Bolt
    GM847253Courtesy of GENERAL MOTORS CORP.
  6. Connect the bolt retaining positive cable to electrical center.

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

    7. Fig 4: View Of Battery Cables At Junction Block
    GM662521Courtesy of GENERAL MOTORS CORP.
  7. Install the positive cable and nut in the junction box.

    Tighten:  Tighten the nut to 6 N.m (53 lb in).

  8. Close the hood.
  9. Raise the vehicle.
  10. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  11. Install the rear battery cover and nuts.

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).

  12. Lower the vehicle.
