Installation Procedure

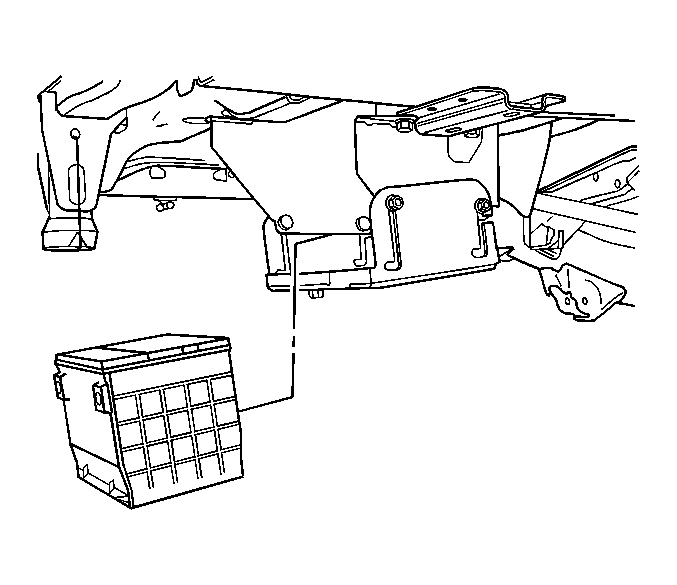

Fig 1: View of Battery & Lower Battery Box

Courtesy of GENERAL MOTORS CORP.

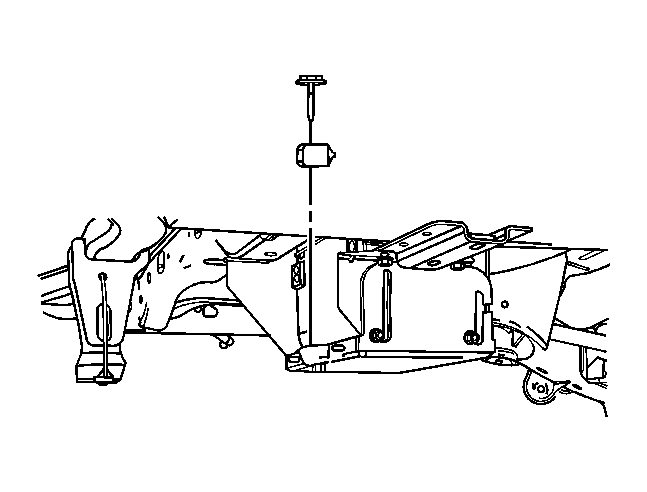

Fig 2: View of Battery Hold Down

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the battery hold-down and bolt.
Tighten: Tighten bolt to 25 N.m (18 lb ft).
Raise the lower battery box and lock into place.

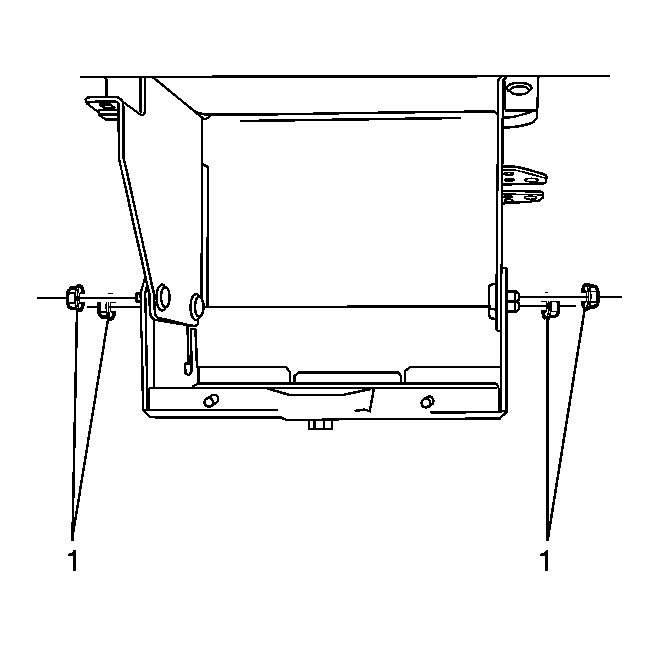

Fig 3: Identifying Lower Battery Box Slide Nuts

Courtesy of GENERAL MOTORS CORP.

Tighten the battery box slide nuts (1).
Tighten: Tighten nuts to 25 N.m (18 lb ft).
Connect the negative and positive battery cables.

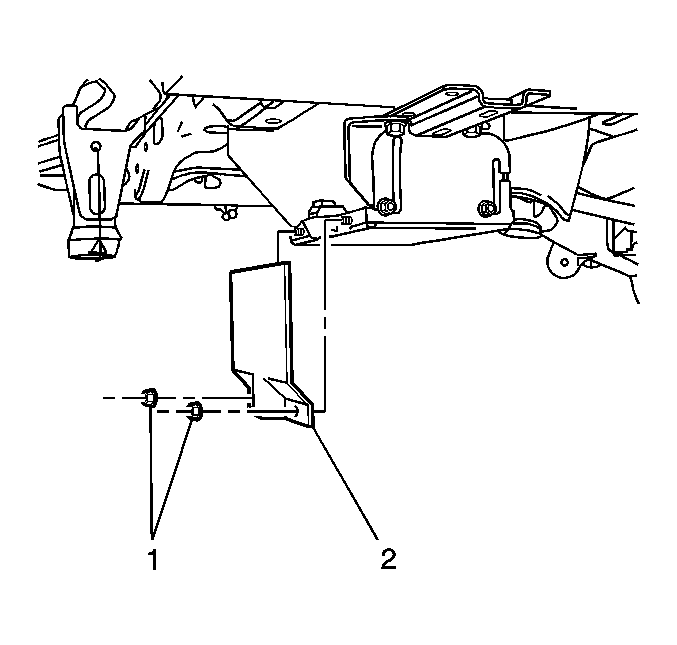

Fig 4: Identifying Rear Battery Cover & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the rear battery cover (2) and nuts (1).
Tighten: Tighten nuts to 10 N.m (89 lb in).
Lower the vehicle.
