Installation Procedure

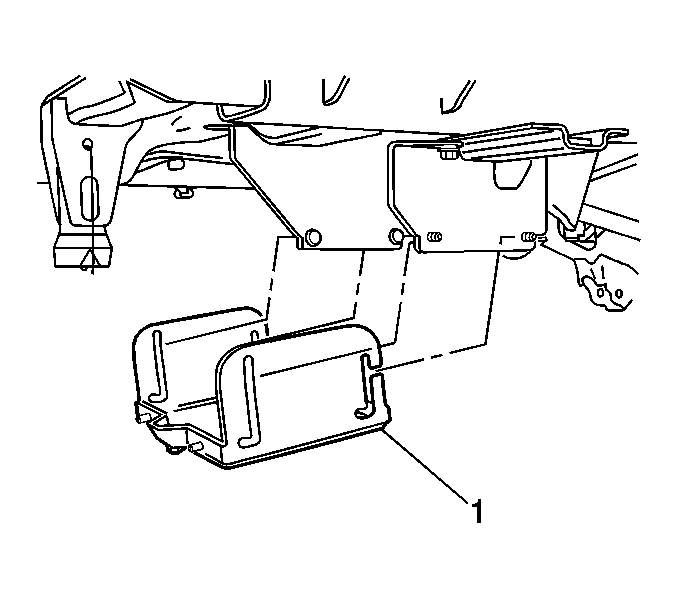

Fig 1: Identifying Lower Battery Box

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Lower Battery Box Slide Nuts

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not tighten slide nut when you install. They will be tighten after lower battery box is raise to the lock position.

Fig 3: View of Battery & Lower Battery Box

Courtesy of GENERAL MOTORS CORP.

Fig 4: View of Battery Hold Down

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the battery hold-down and bolt.
Tighten: Tighten bolt to 25 N.m (18 lb ft).
Raise the lower battery box and lock into place.
Tighten the battery box slide nuts.
Tighten: Tighten nuts to 25 N.m (18 lb ft).
Connect the negative and positive battery cables.

Fig 5: Identifying Rear Battery Cover & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the rear battery cover (2) and nuts (1).
Tighten: Tighten nuts to 10 N.m (89 lb in).
Lower the vehicle.
