Removal Procedure

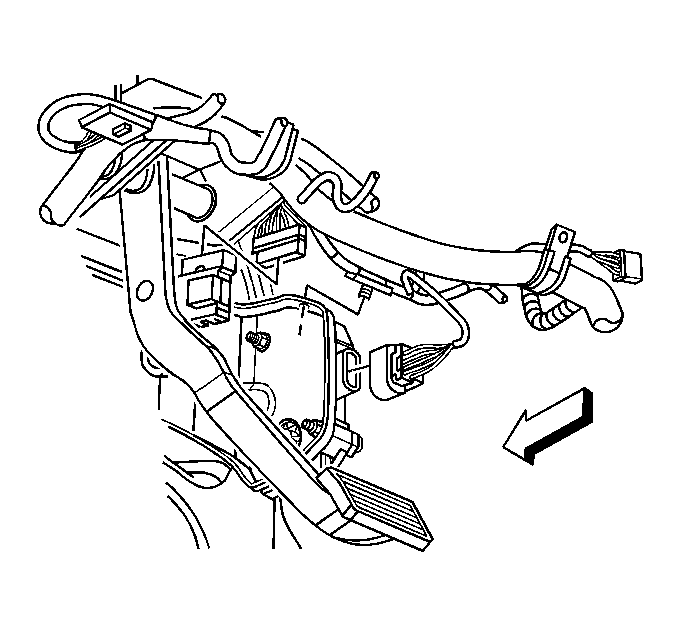

    Fig 1: Disconnecting/Connecting APP Sensor Electrical Connector
    GM899725Courtesy of GENERAL MOTORS CORP.
  1. Remove the left instrument panel (IP) lower closeout insulator panel.
  2. Disconnect the accelerator pedal position (APP) sensor harness connector.

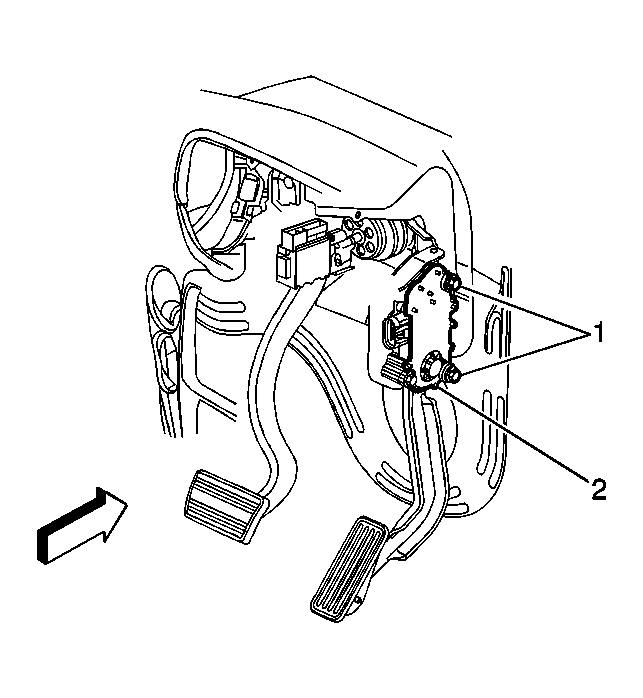

    Fig 2: Identifying APP Assembly
    GM742494Courtesy of GENERAL MOTORS CORP.

    Remove the accelerator pedal mounting bolts (1).

  3. Remove the APP assembly (2).
