Installation Procedure

  1. Install the CKP sensor.

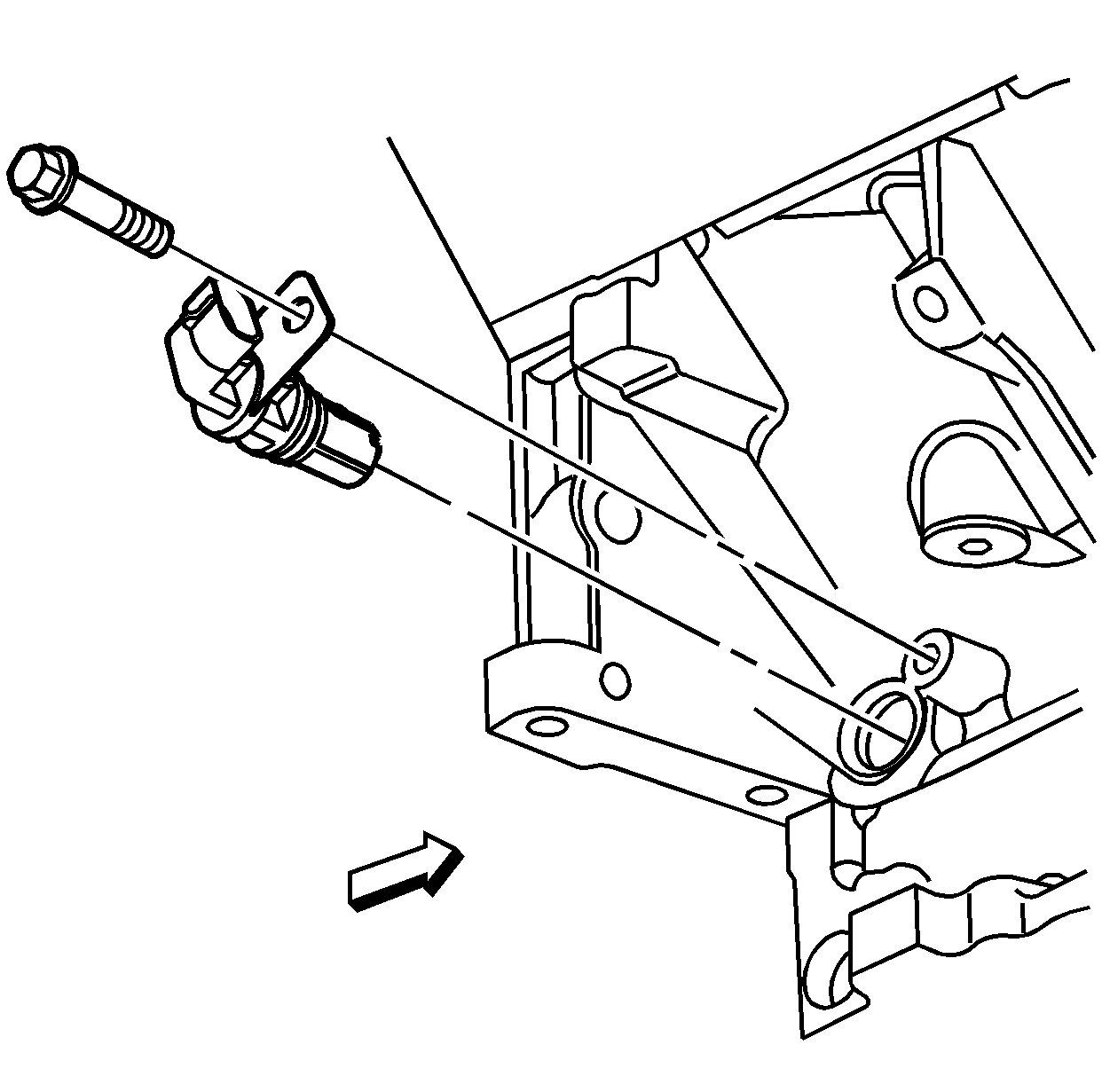

    2. Fig 1: View Of CKP Sensor & Bolt
    GM55322Courtesy of GENERAL MOTORS CORP.
  2. Install the CKP sensor retaining fastener.

    Tighten:  Tighten the fastener to 25 N.m (18 lb ft).

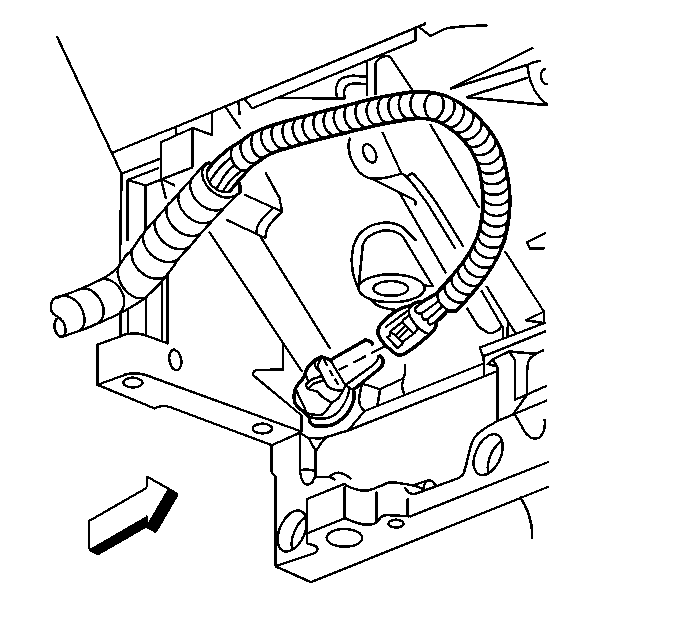

    3. Fig 2: Identifying Crankshaft Position (CKP) Sensor/Connector
    GM56592Courtesy of GENERAL MOTORS CORP.
  3. Connect the CKP sensor electrical connector.

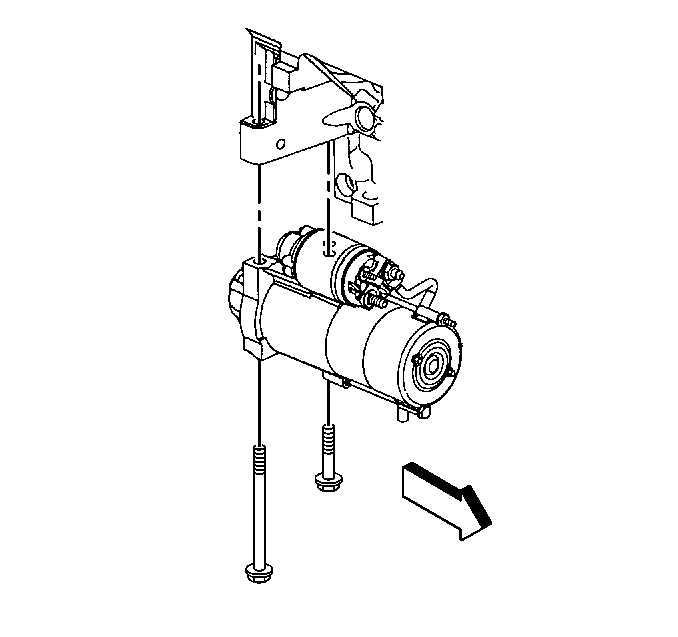

    4. Fig 3: View Of Starter
    GM211621Courtesy of GENERAL MOTORS CORP.
  4. Install the starter. Refer to STARTER MOTOR REPLACEMENT in Engine Electrical.
  5. Lower the vehicle.
  6. Connect the negative battery cable.
  7. Perform the CKP system variation learn procedure. Refer to CKP System Variation Learn Procedure .
