Removal Procedure

  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

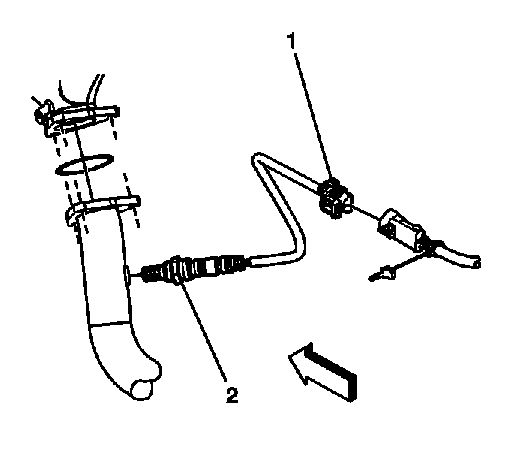

    2. Fig 1: Identifying O2 Sensor & Related Components
    GM715477Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the connector (1) for the HO2S.
  3. Remove the HO2S (2) using a J 39194-B  .Special Tools .
