Installation Procedure

IMPORTANT: Lightly coat the MAP sensor seal with clean engine oil before installing the sensor.

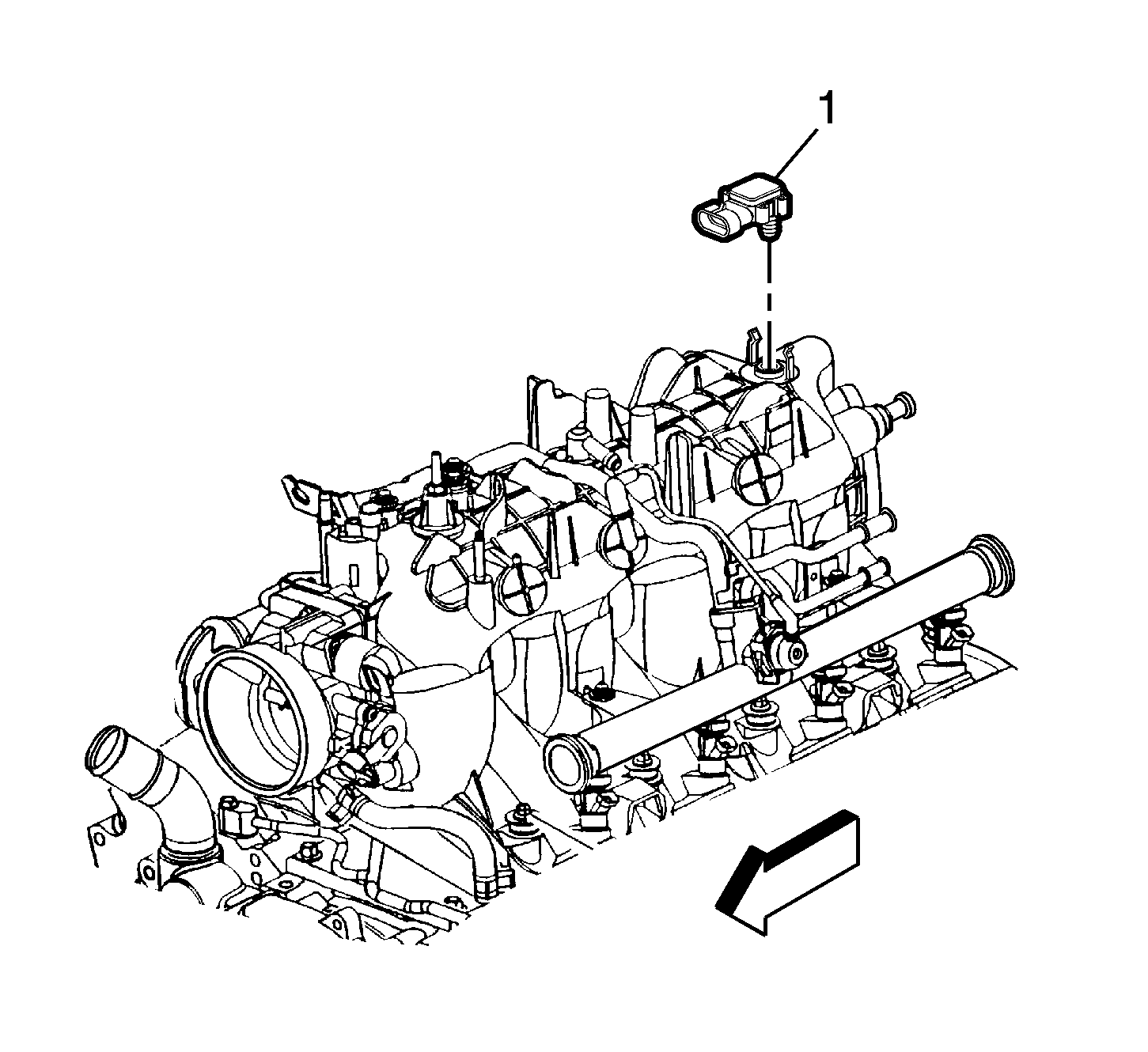

    Fig 1: Identifying MAP Sensor
    GM260159Courtesy of GENERAL MOTORS CORP.
  1. Install the MAP sensor (1). Push the MAP sensor down in order to engage the sensor into the retainer.
    2. Fig 2: Engine Sight Shield
    GM1231427Courtesy of GENERAL MOTORS CORP.
  2. Connect the MAP sensor electrical connector.
  3. Install the intake manifold sight shield.

    Tighten:  Tighten the fasteners to 10 N.m (89 lb in).
