Removal Procedure

  1. Remove the safety belt webbing anchor. Refer to Seat Belt Replacement - Front .
    2. Fig 1: View of Seat Belt Guide Loop
    GM1344131Courtesy of GENERAL MOTORS CORP.
  2. Route the safety belt webbing anchor and webbing through the shoulder belt guide bracket.
  3. Remove the folding top stowage compartment lid lock pillar muckets. Refer to Folding Top Stowage Compartment Lid Lock Pillar Muckets Replacement in Roof.

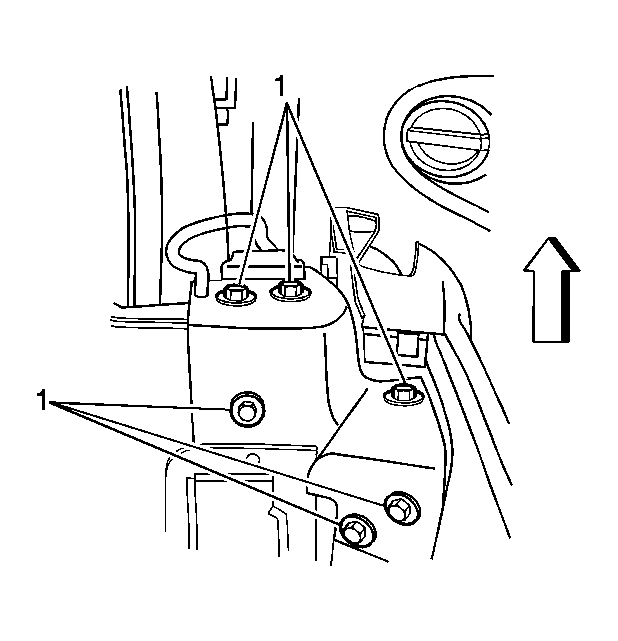

    4. Fig 2: Identifying Shoulder Belt Guide Bracket Fasteners
    GM1344150Courtesy of GENERAL MOTORS CORP.
  4. Remove the shoulder belt guide bracket fasteners (1).
  5. Remove the shoulder belt guide bracket from the vehicle.
