Removal Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Install a drain pan under the vehicle.
Remove the tires and wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

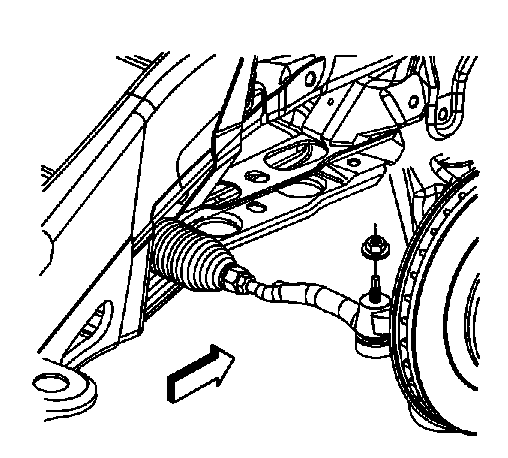

Fig 1: View Of Tie Rod Retaining Nut

Courtesy of GENERAL MOTORS CORP.

Remove the outer tie rods retaining nuts.

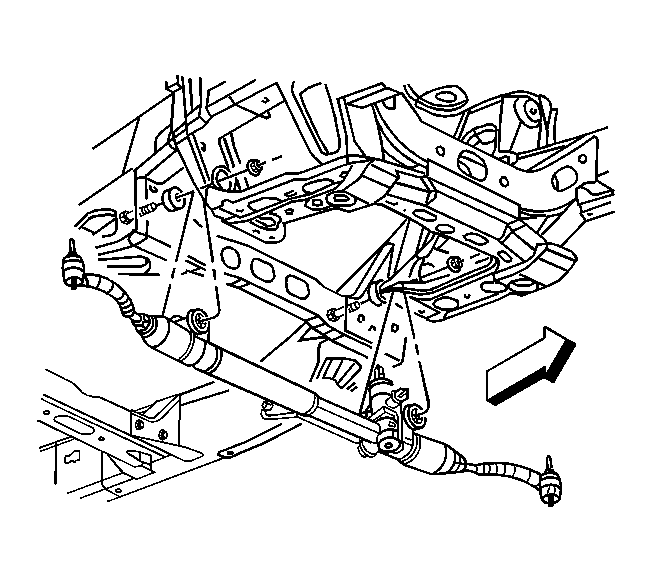

Fig 2: Removing Outer Tie Rod Assembly From Steering Knuckle

Courtesy of GENERAL MOTORS CORP.

NOTE: Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.

Disconnect the outer tie rods from the steering knuckles using J 24319-B . See Special Tools .
Remove the steering gear crossmember. Refer to Crossmember Replacement - Front Steering Gear in Frame and Underbody.
Disconnect the lower intermediate shaft from the power steering gear. Refer to Intermediate Steering Shaft Replacement - Lower in Steering Wheel and Column.

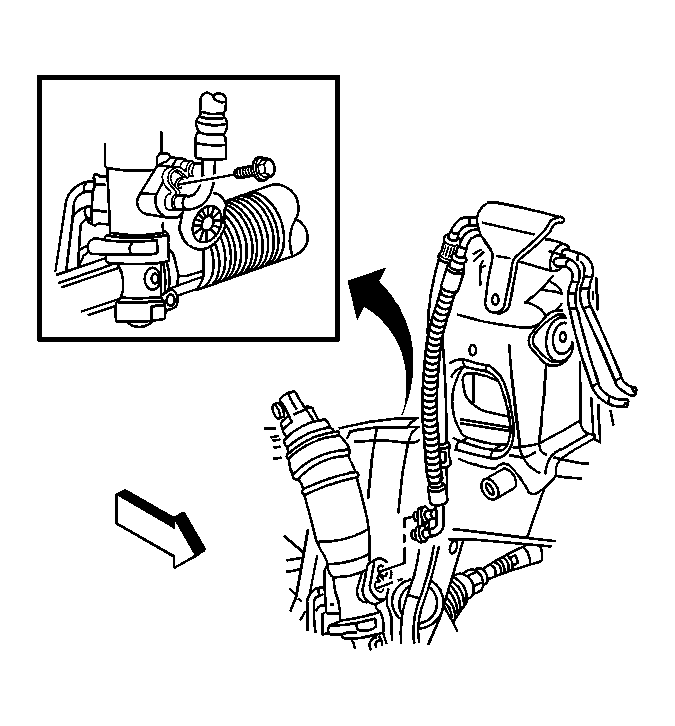

Fig 3: View Of Power Steering Hose Assembly To Gear Retaining Bolt

Courtesy of GENERAL MOTORS CORP.

Remove the power steering hose assembly to the power steering gear retaining bolt.
Remove the power steering hose assembly from the power steering gear.
Support the power steering gear.

Fig 4: View Of Power Steering Gear & Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the power steering gear mounting bolts.
Remove the power steering gear from the vehicle.
Remove the outer tie rods from the inner tie rods. Refer to Rack and Pinion Outer Tie Rod End Replacement .
