Stationary Windows Connector End Views

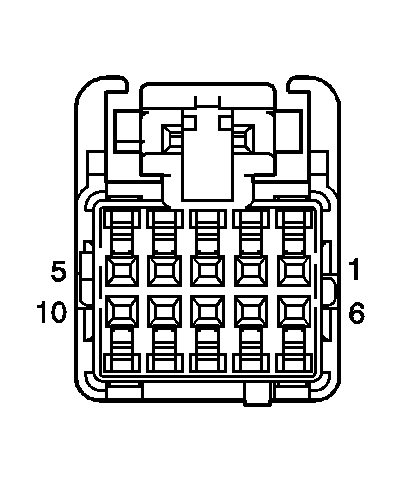

Inside Rearview Mirror (W/DJ2) Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1-2 | - | - | Not Used |
| 3 | BK | 1450 | Ground |
| 4 | GY | 1690 | Automatic Day/Night Mirror Signal |
| 5 | OG | 3140 | Battery Positive Voltage |
| 6 | PK | 639 | Ignition 1 Voltage |
| 7 | L-GN | 24 | Backup Lamp Supply Voltage |
| 8 | GY/BK | 690 | Courtesy Lamp Low Control |
| 9 | PK | 1691 | Automatic Day/Night Mirror Low Reference |
| 10 | - | - | Not Used |
