Removal Procedure

  1. Remove the spark plug wires. Refer to Spark Plug Wire Replacement .

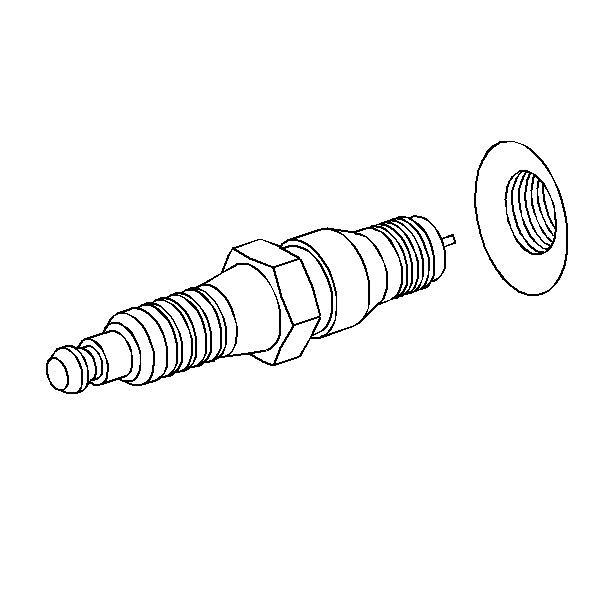

    2. Fig 1: View Of Spark Plug And Sparkplug Seat
    GM14824Courtesy of GENERAL MOTORS CORP.
  2. Loosen each spark plug 1 or 2 turns.
  3. Brush or air blast away any dirt from around the spark plugs.
  4. Remove the spark plugs 1 at a time. Place each plug in a tray marked with the corresponding cylinder numbers.
