Engine Control System - 5.3L - Introduction
>>
Schematic and Routing Diagrams
>>
Emission Hose Routing Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Emission Hose Routing Diagram

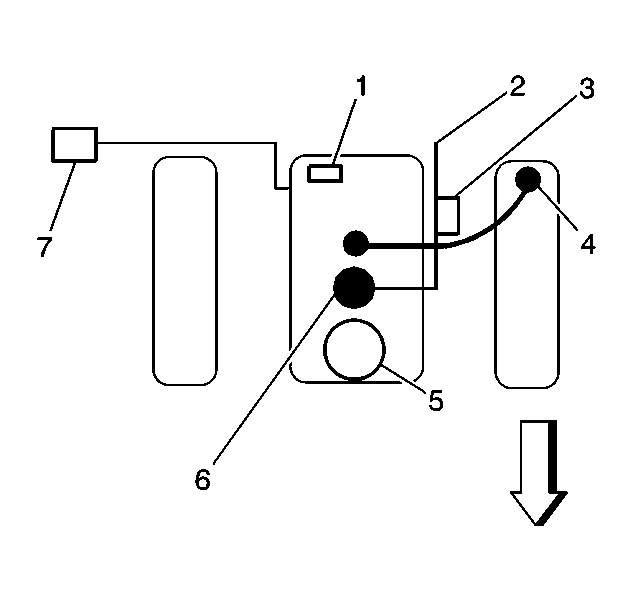

Fig 1: Vacuum Hose Routing
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Manifold Absolute Pressure (MAP) Sensor
2
EVAP Canister Purge Hose
3
EVAP Service Port
4
Positive Crankcase Ventilation (PCV) Valve
5
Throttle Body
6
EVAP Canister Purge Valve
7
AIR Module, if equipped
