Engine Controls Schematics

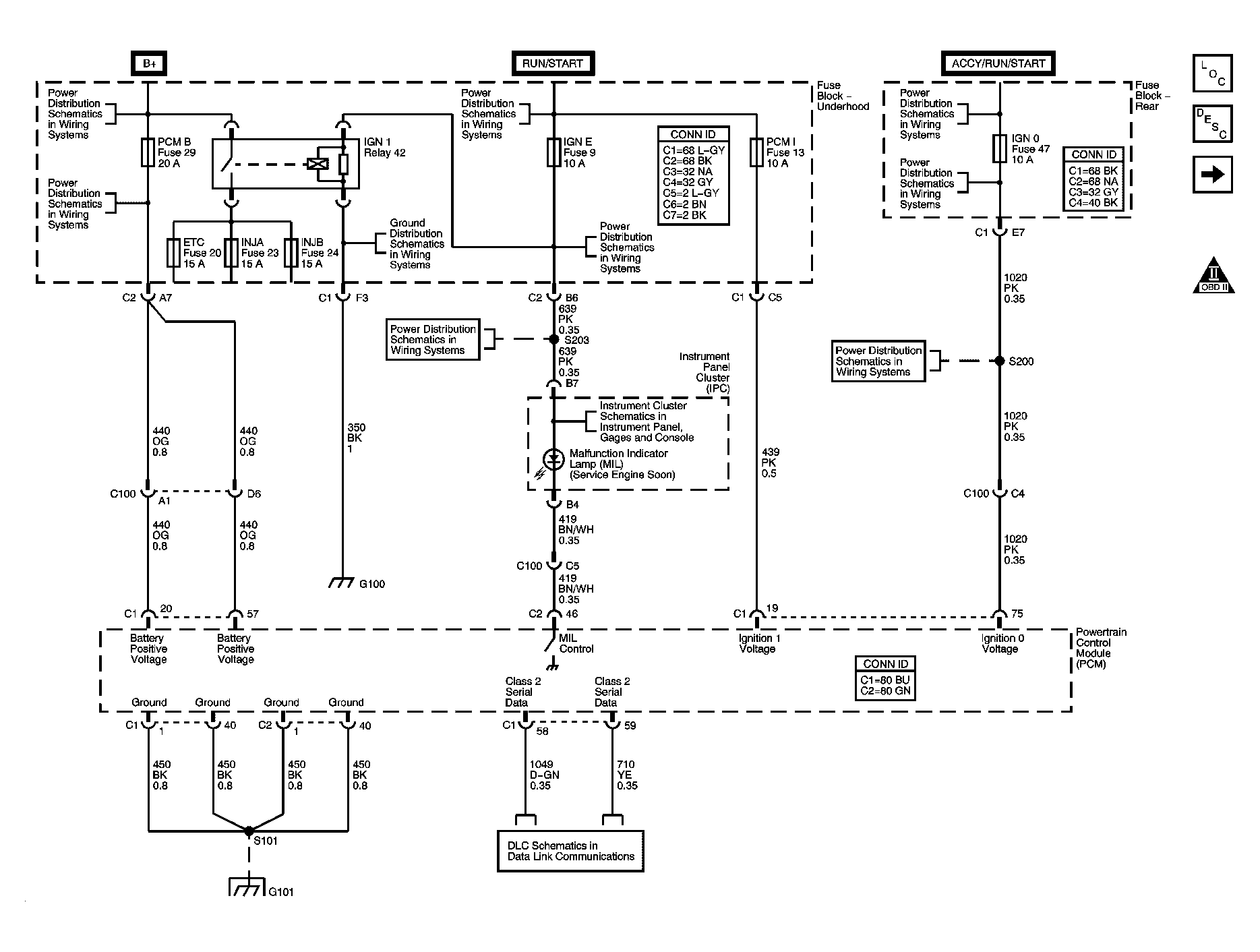

Fig 1: Power, Ground, Serial Data & MIL

Courtesy of GENERAL MOTORS CORP.

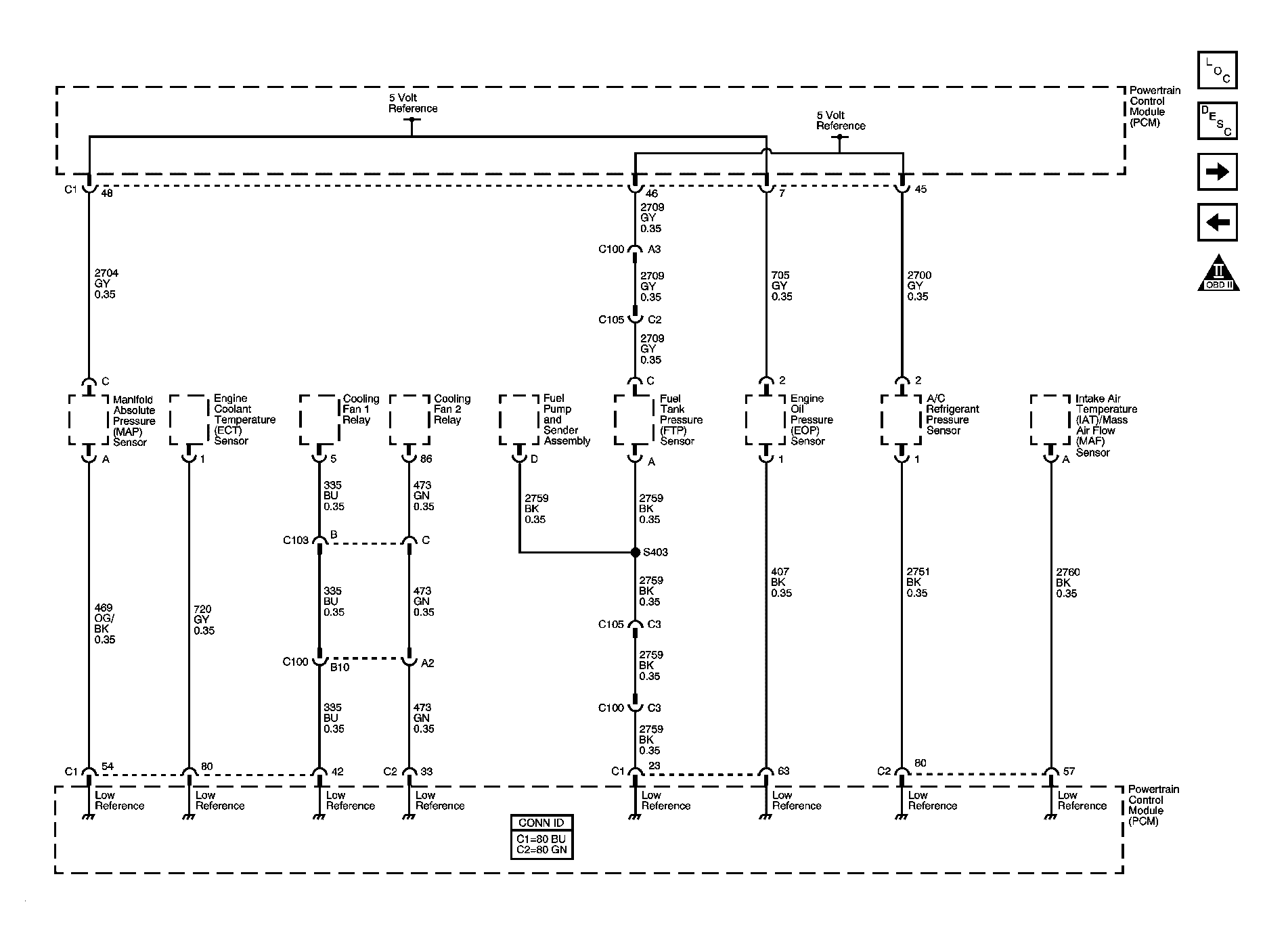

Fig 2: Engine Data Sensors - 5 Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

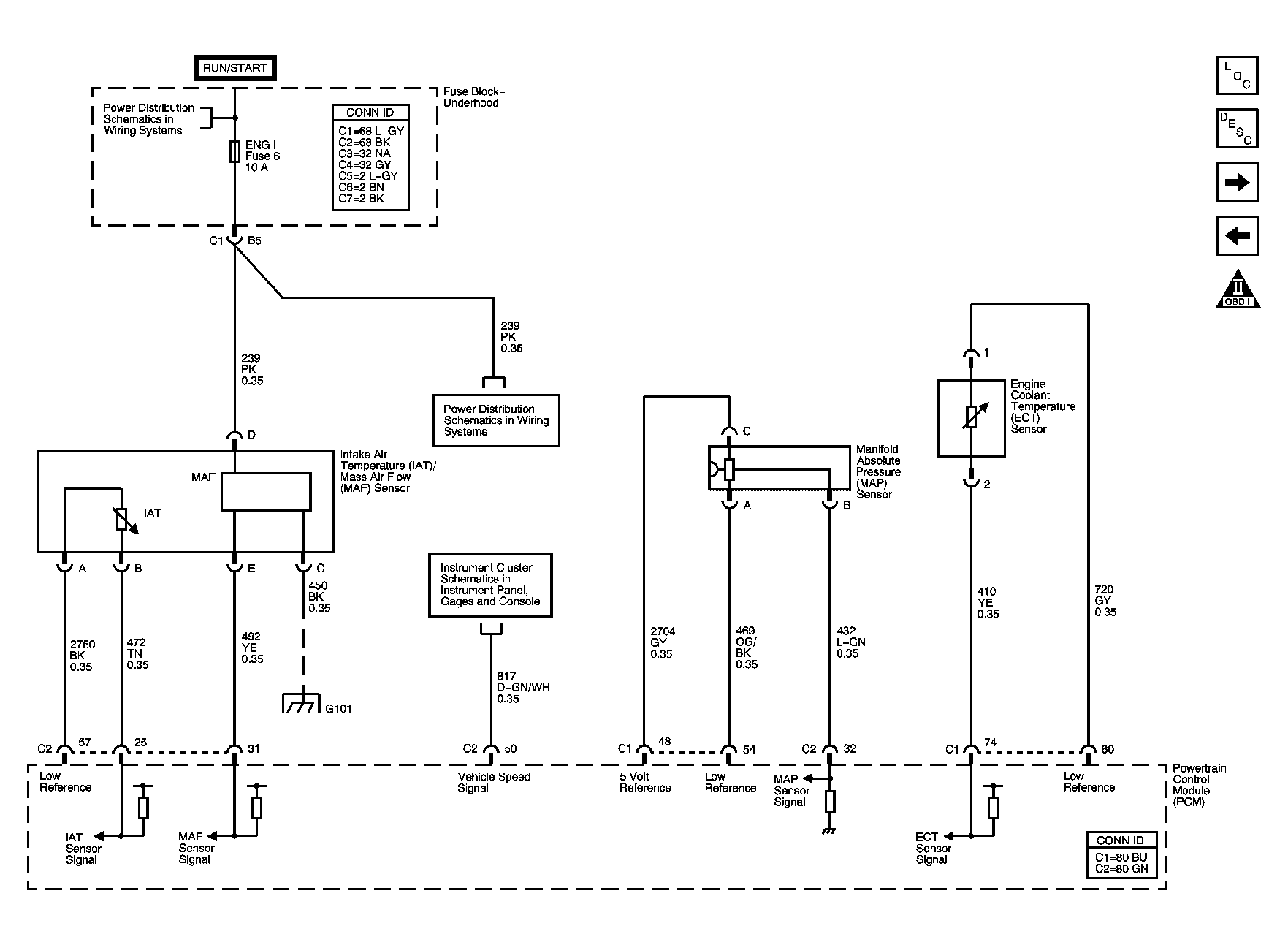

Fig 3: Engine Data Sensors Schematic (Pressure, Temperature & VSS)

Courtesy of GENERAL MOTORS CORP.

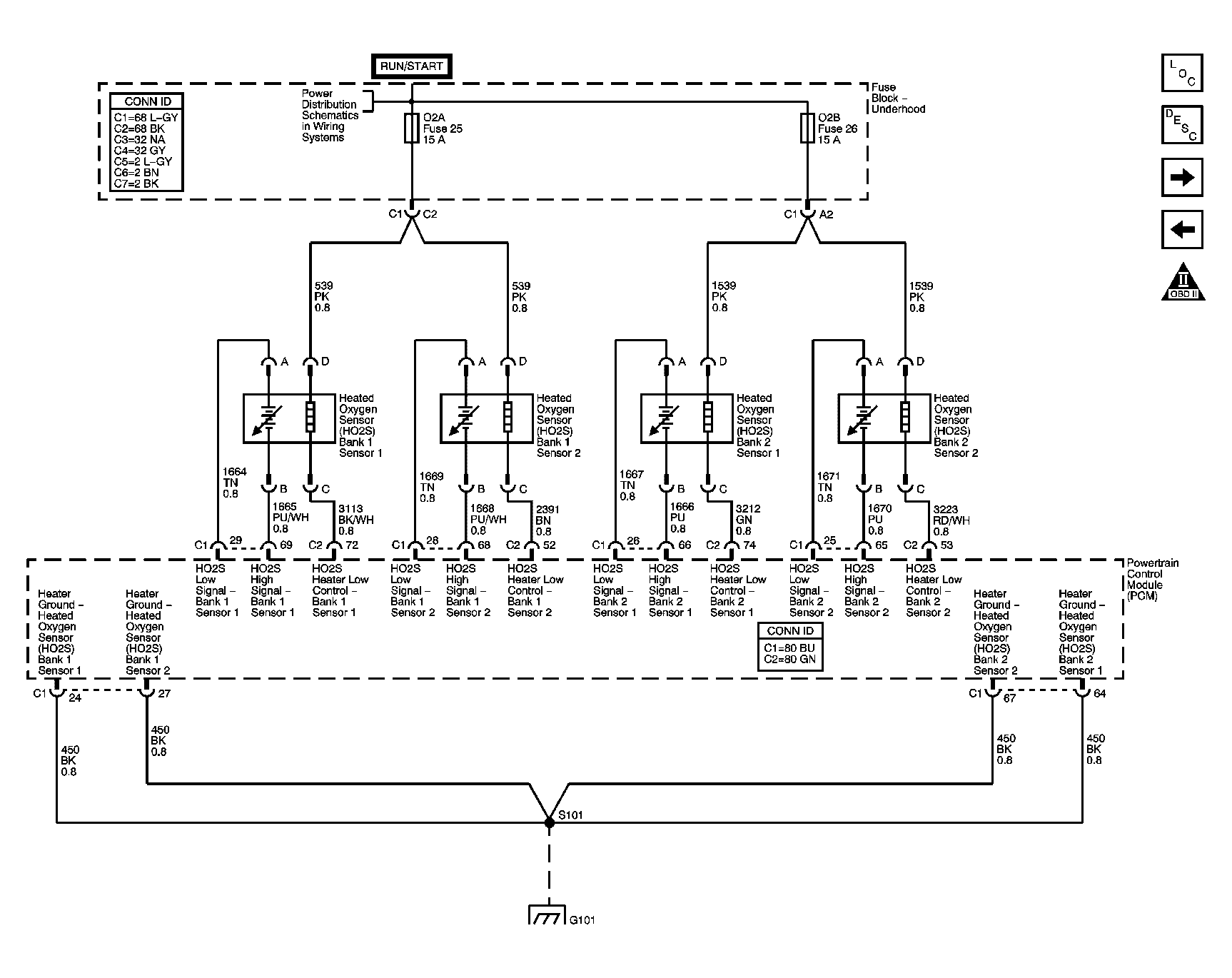

Fig 4: Engine Data Sensors Schematic (Oxygen Sensors)

Courtesy of GENERAL MOTORS CORP.

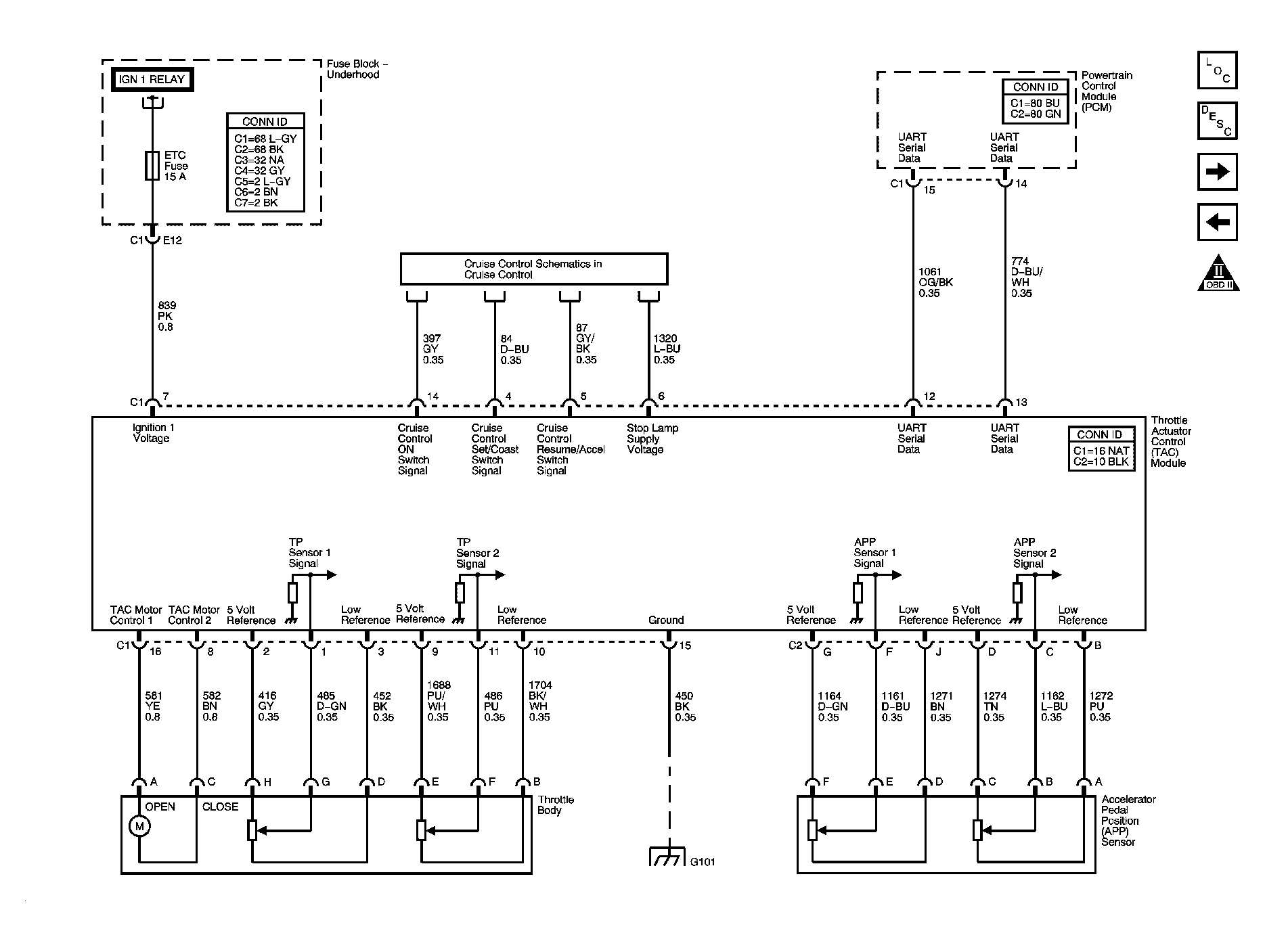

Fig 5: Engine Data Sensors Schematic (Throttle Actuator Controls)

Courtesy of GENERAL MOTORS CORP.

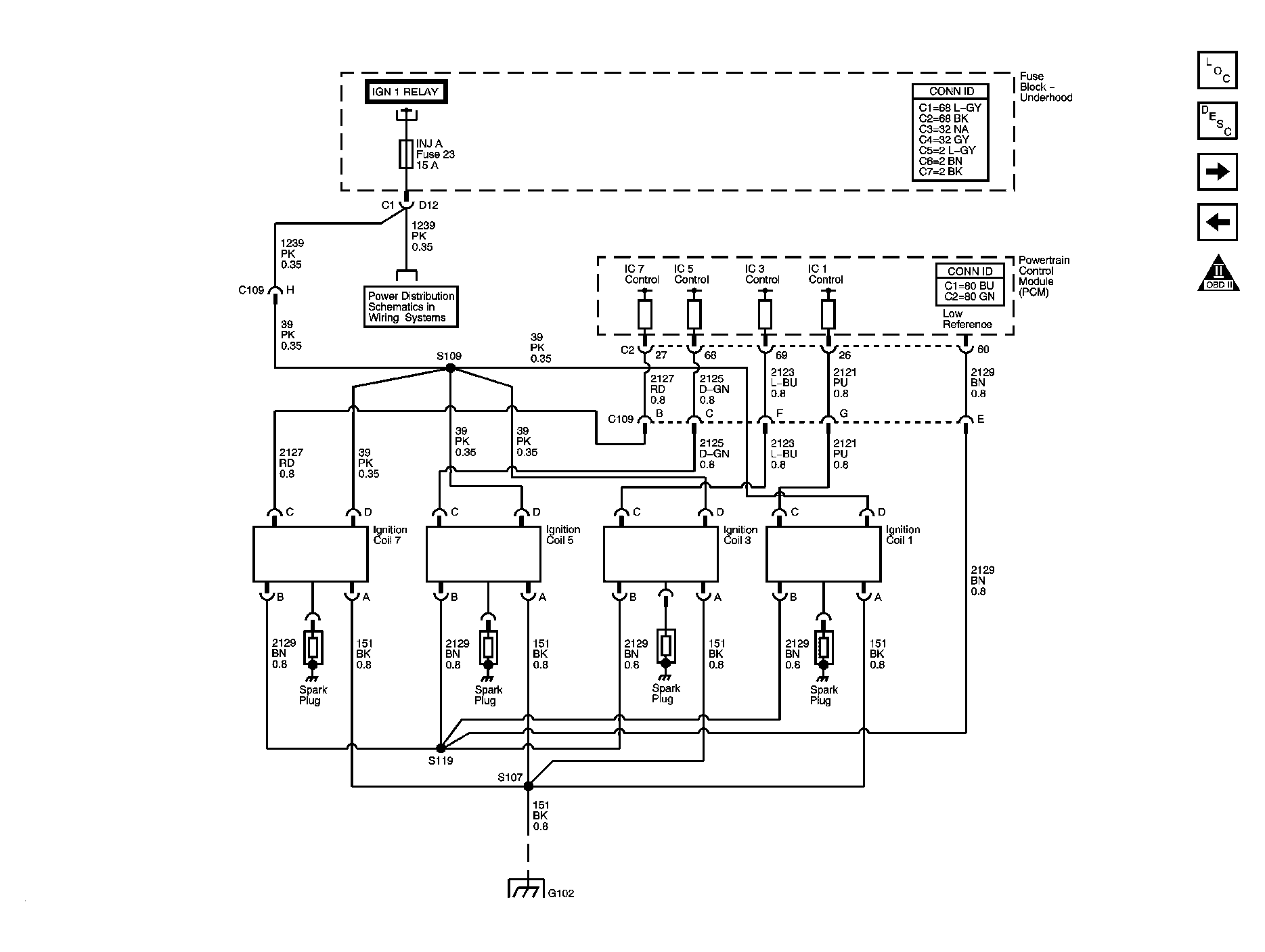

Fig 6: Engine Data Sensors Schematic (Ignition Controls - Ignition System Coils 1, 3, 5 & 7)

Courtesy of GENERAL MOTORS CORP.

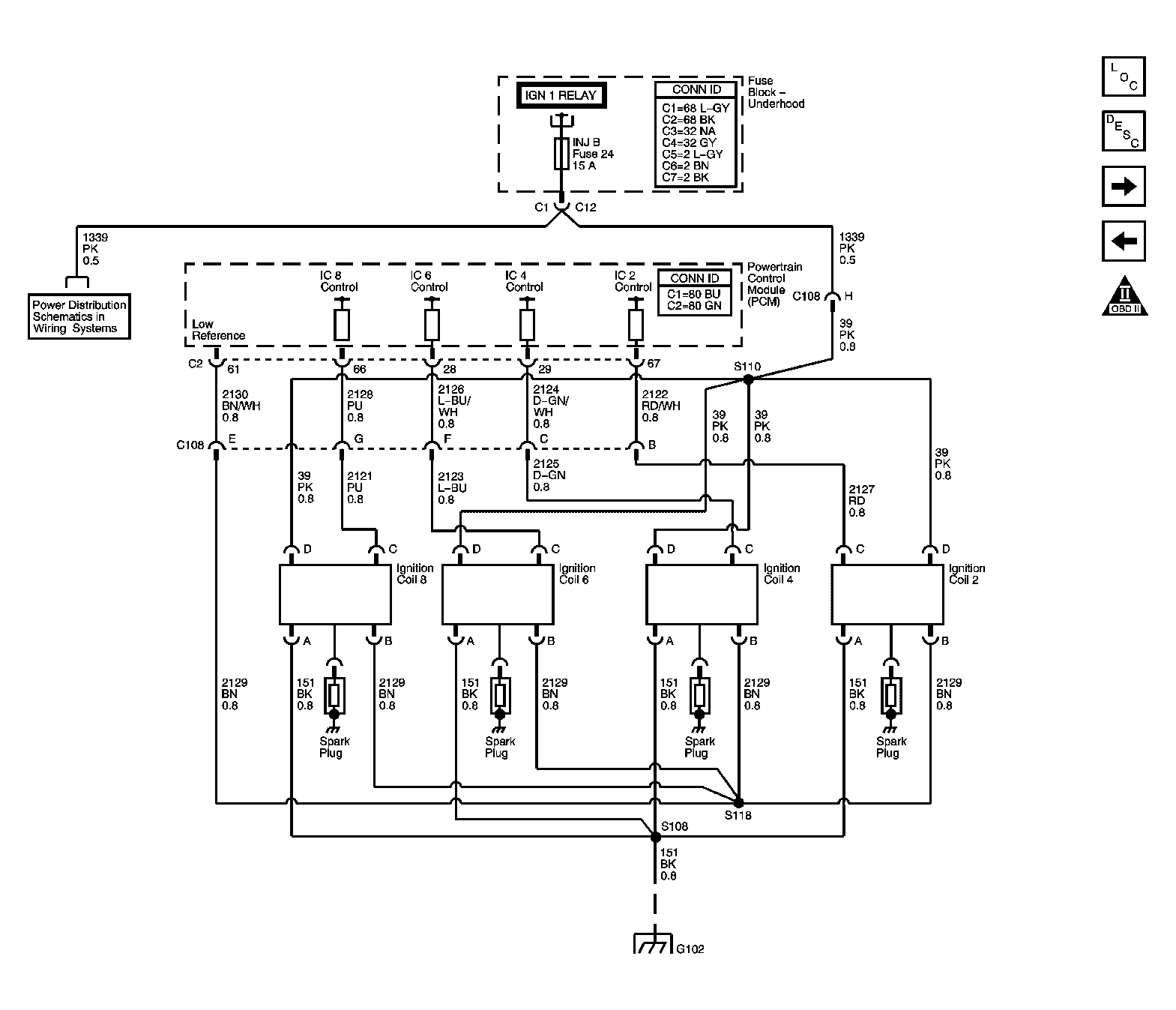

Fig 7: Engine Data Sensors Schematic (Ignition Controls - Ignition System Coils 2, 4, 6 & 8)

Courtesy of GENERAL MOTORS CORP.

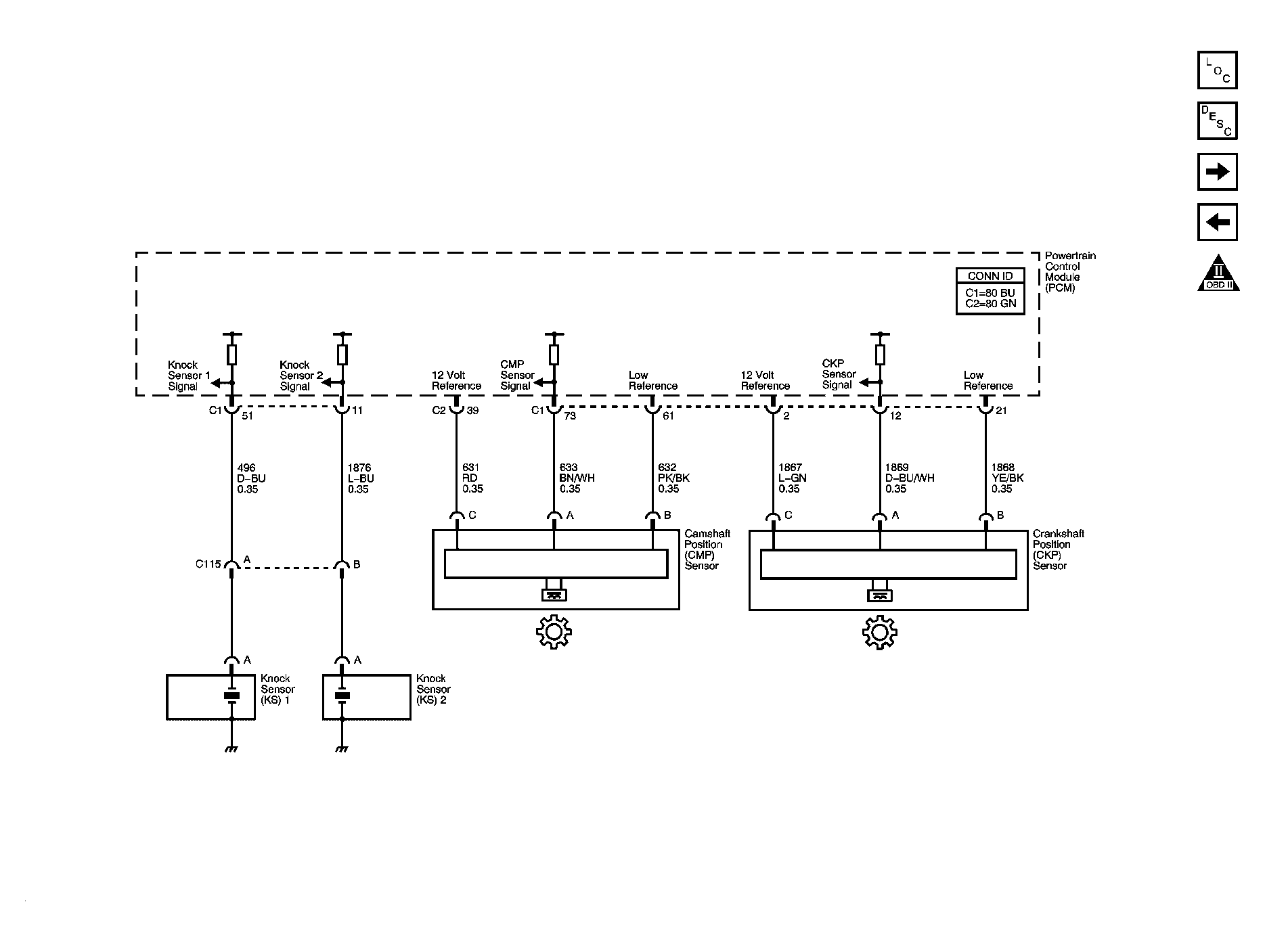

Fig 8: Engine Data Sensors Schematic (Ignition Controls - Sensors)

Courtesy of GENERAL MOTORS CORP.

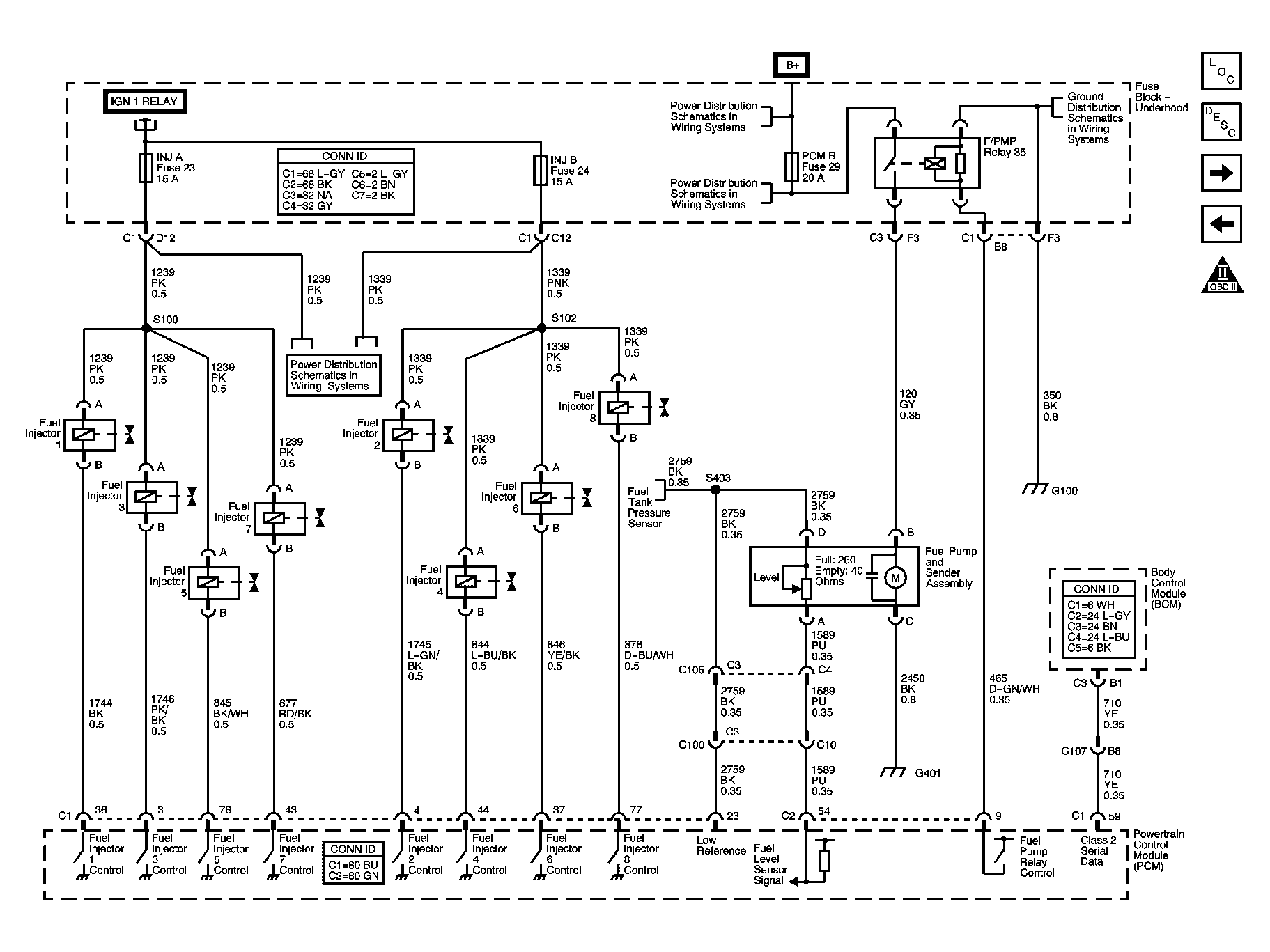

Fig 9: Fuel Controls Schematic (Fuel Pump Controls & Fuel Injectors)

Courtesy of GENERAL MOTORS CORP.

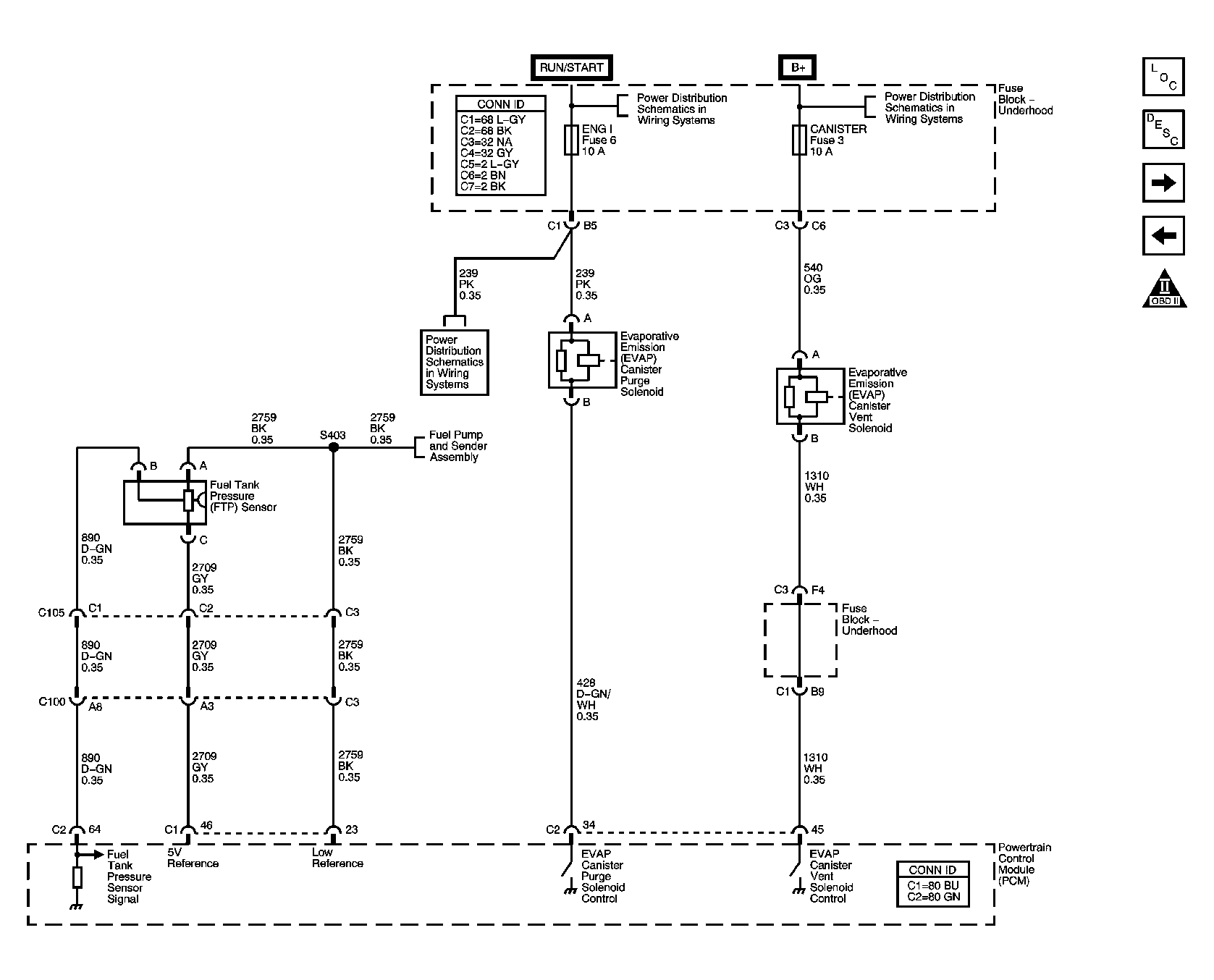

Fig 10: Fuel Controls Schematic (EVAP Controls)

Courtesy of GENERAL MOTORS CORP.

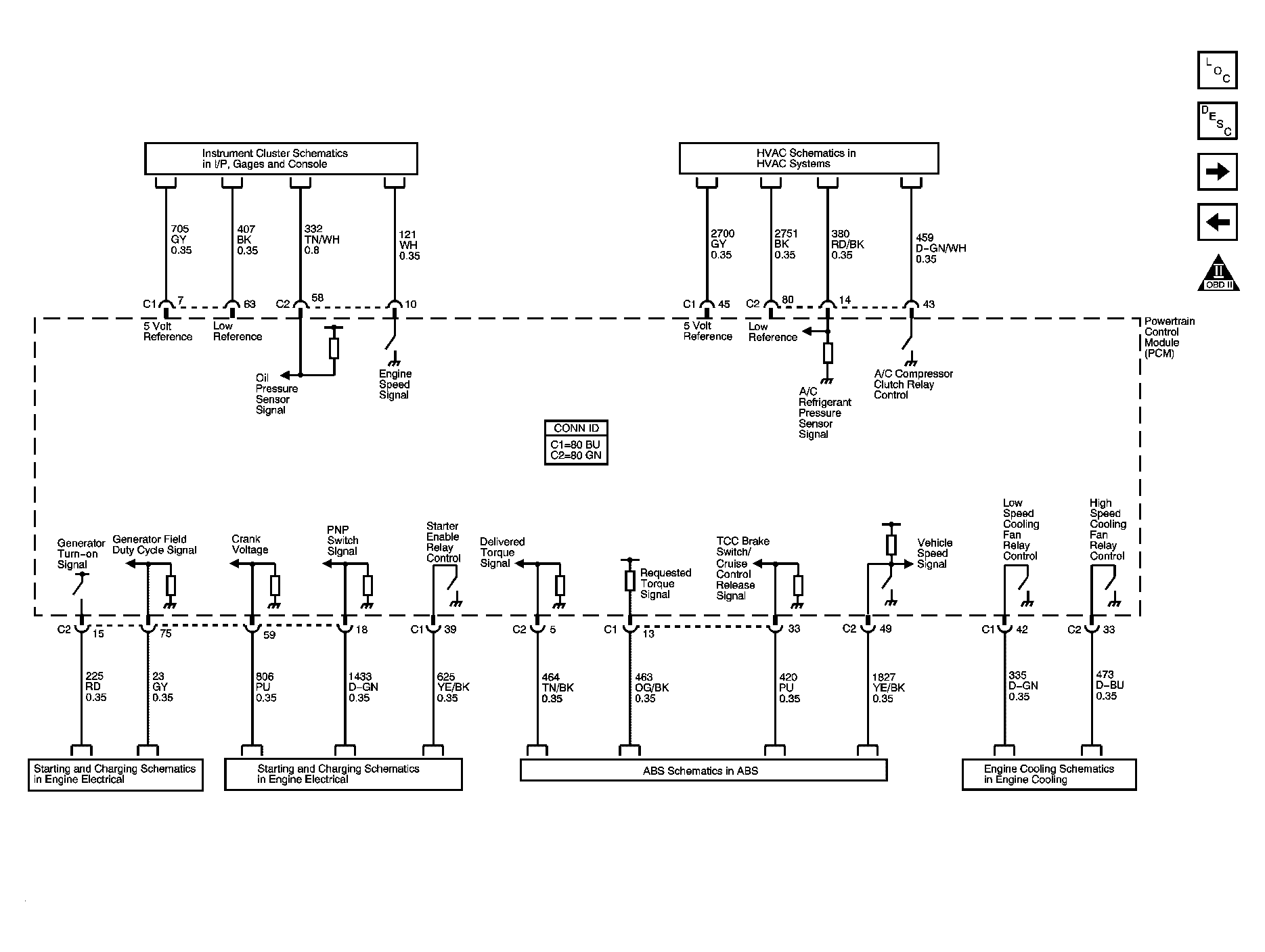

Fig 11: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

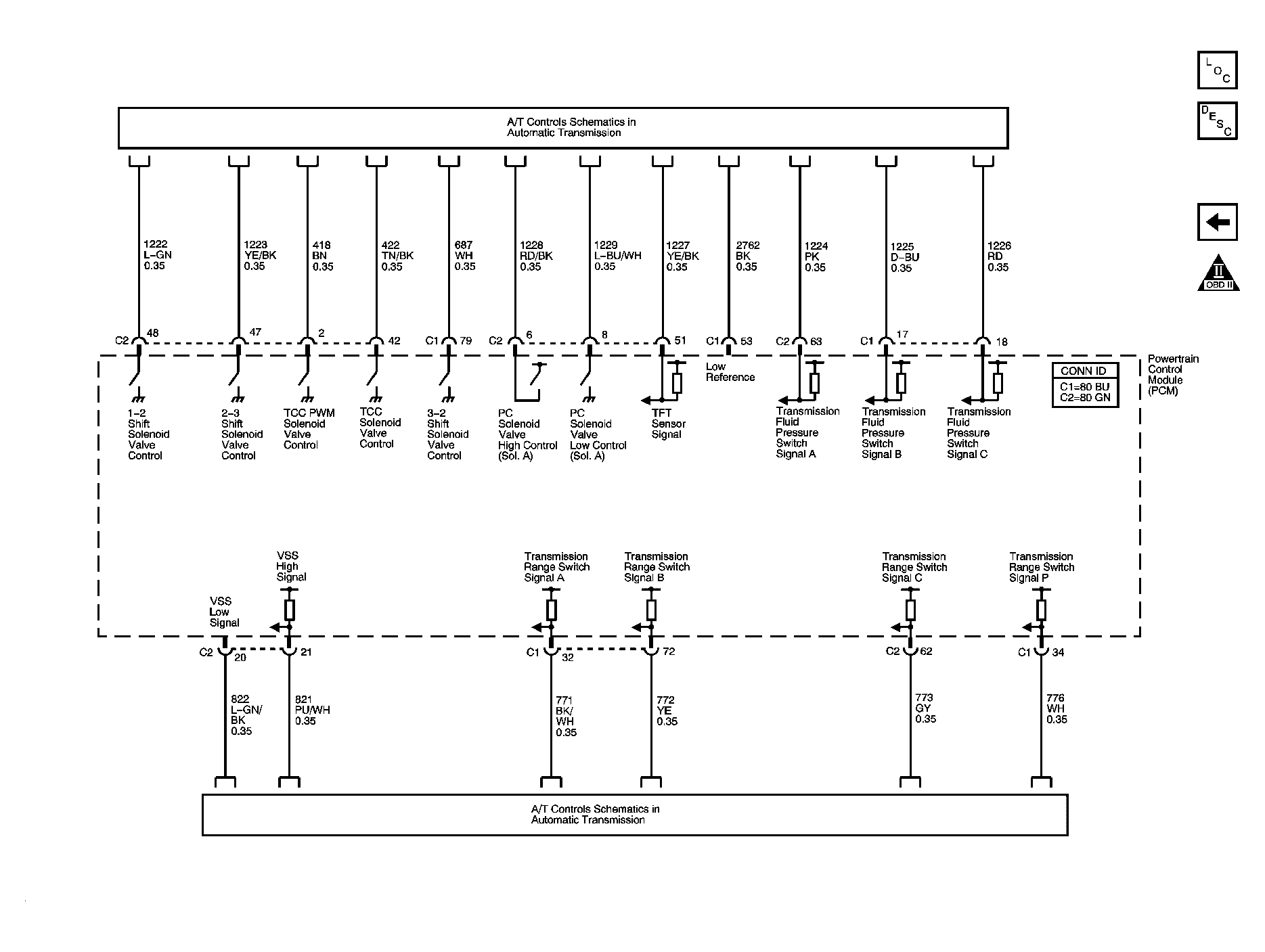

Fig 12: Transmission Control Reference - A/T Schematic

Courtesy of GENERAL MOTORS CORP.
